1. CMS ESR. May, 2004 HCAL TriDAS 1 HCAL TPG Status Tullio Grassi University of Maryland May 2004

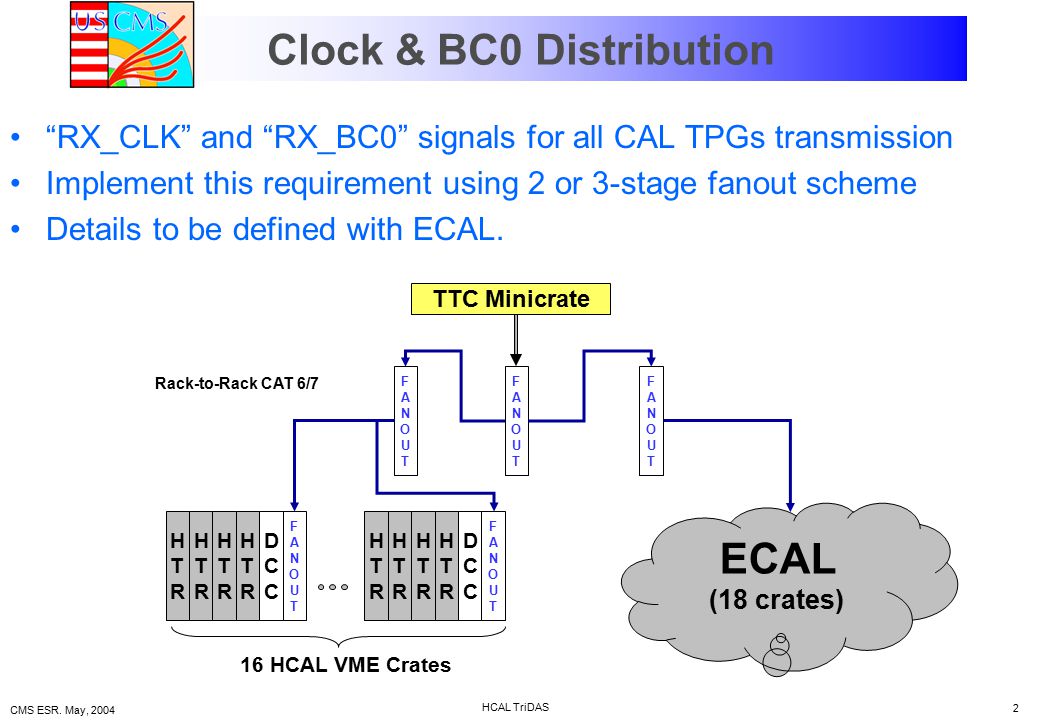

2. CMS ESR. May, 2004 HCAL TriDAS 2 Clock & BC0 Distribution “RX_CLK” and “RX_BC0” signals for all CAL TPGs transmission Implement this requirement using 2 or 3-stage fanout scheme Details to be defined with ECAL. Rack-to-Rack CAT 6/7 HTRHTR DCCDCC HTRHTR HTRHTR HTRHTR FANOUTFANOUT HTRHTR DCCDCC HTRHTR HTRHTR HTRHTR FANOUTFANOUT FANOUTFANOUT FANOUTFANOUT FANOUTFANOUT TTC Minicrate 16 HCAL VME Crates ECAL (18 crates)

3. CMS ESR. May, 2004 HCAL TriDAS 3 Fanout board - features Built by J. Mans and C. Tully at Princeton Fanout 4 differential LVPECL signals over cat6 with RJ45 connectors: –RX_CLK, –RX_BC0 –TTC serial stream –80MHz Ref_Clk Board operates in 2 modes –Global (unique board for ECAL and HCAL) –Crate Successfully used in 2003 testbeam and all current HCAL R&D test stands J.C. da Silva received one board for evaluation and “blessing”

4. CMS ESR. May, 2004 HCAL TriDAS 4 Fanout Board - diagram TTC fiber Clk80 P1 P2 Input from GLOBAL Fanout 18 Identical Outputs (also as timing) 40MHz TTC_CLK RX_CLK RX_BC0 INT_BC0 RX_CLK RX_BC0 QPLL 80MHz QPLL can run stand-alone TTCrx EXT_BC0 TTC Broadcast QPLL implemented this way allows RX_CLK to be “cleaned” at each board if needed GCGC GCGC FPGA Progr. Delay Decoding GCGC G

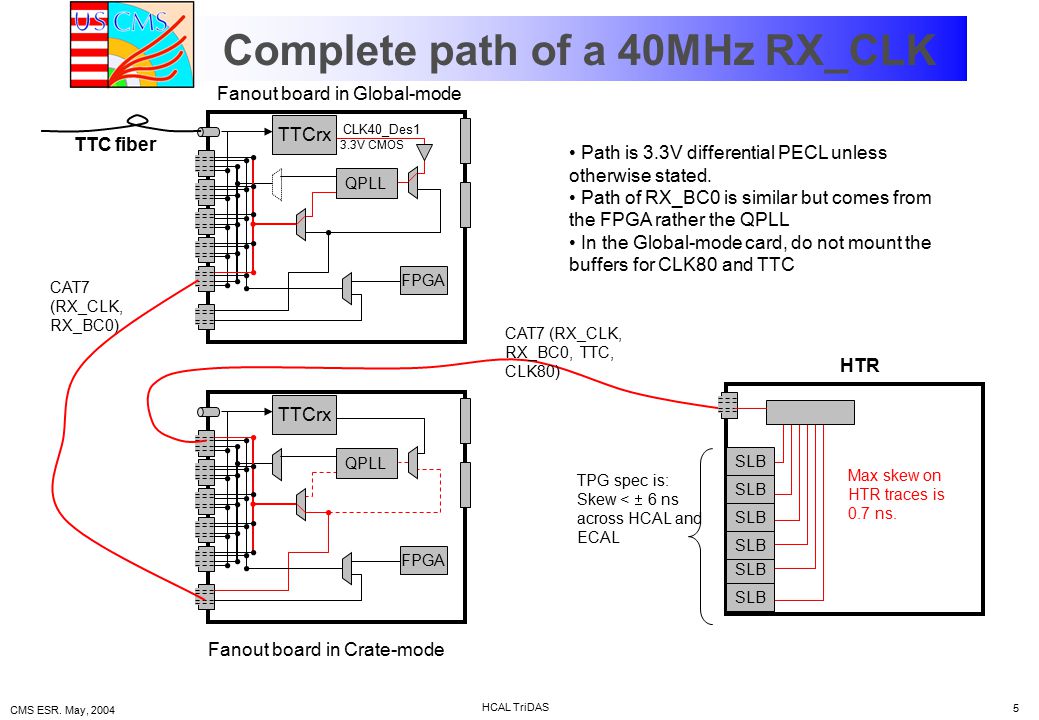

5. CMS ESR. May, 2004 HCAL TriDAS 5 Complete path of a 40MHz RX_CLK TTC fiber CLK40_Des1 FPGA CAT7 (RX_CLK, RX_BC0) TTCrx QPLL FPGA TTCrx QPLL Fanout board in Crate-mode Fanout board in Global-mode 3.3V CMOS Path is 3.3V differential PECL unless otherwise stated. Path of RX_BC0 is similar but comes from the FPGA rather the QPLL In the Global-mode card, do not mount the buffers for CLK80 and TTC CAT7 (RX_CLK, RX_BC0, TTC, CLK80) HTR SLB Max skew on HTR traces is 0.7 ns. TPG spec is: Skew <  6 ns across HCAL and ECAL

6. CMS ESR. May, 2004 HCAL TriDAS 6 TTC-PMC mezzanine (UMD) –Carry TTCrx onto HCAL boards (HTR, DCC, Fanout) –Money-saver as it eliminated a lot of optical components and Fine-Line BGAs on 9U boards. Production is done (~350 boards) The assembly house mounted all LEDs backward Test in progress (100% yield so far)

7. CMS ESR. May, 2004 HCAL TriDAS 7 HTR Schematic RX_CLK40 SLB RX_BC0 TTC TTCrx mezzanine CLK80 Crystal Serial FE-Data Ref Clk Deserializers (8) 20 Recovered Clk TPG Path SYS40 Clk TTC Broadcast Async Fifo PLL TTC 40 Clk x2 XILINX LC Fiber Data SYS80 Clk Fanout Card (1/VME crate)

8. CMS ESR. May, 2004 HCAL TriDAS 8 HTR Rev4 Status Current (Rev4) board – 3 in lab now –Testing:  Links/Clocks (same as Rev3, no problems, no mystery at UMD)  DAQ path exactly same as Rev3  Trigger Primitive Generation (basic features)  Integration with SLB (next slide)

9. CMS ESR. May, 2004 HCAL TriDAS 9 Trigger link and SLB testing –Control of SLB (“Local Bus”) seems ok –JTAG working (connector on P3 area of motherboard) –Link tests between SLB and Wisconsin receiver board (STC) HP signal generator  120MHz clock for Receiver-STC 120MHz divided by 3 and injected into TTC system SLB runs with RX_CLK extracted from TTC+QPLL 1.2Gbaud copper link: verified –Some tests of Cat6 cable showed BER increases by ~10 compared to skew-clear cables. This could be fine, depending on the final cable length

10. CMS ESR. May, 2004 HCAL TriDAS 10 Trigger link and SLB testing Problems In our setup we have seen 2 problems, but we had not much time to investigate: 1.Two pairs seem swapped (we see A,B,D,C instead of A,B,C,D) 2.Data are mis-aligned from pair-to-pair. The mis- alignement changes every time we restart. We think that these are not a hardware or PCB problems, but cabling or firmware.

11. CMS ESR. May, 2004 HCAL TriDAS 11 Trigger Link testing So far, used Wisconsin STC boards. For commissioning and mass-production we need something different: –More channels –Programmable to optimize the test setup Layout underway for an SLB/Vitesse mezzanine transition –Allows to plug a Vitesse-Rx-mezzanine on each SLB post. –Run backwards into motherboard Board is now under design –Delays as an engineer left. HTR SLB site UW Vitesse receiver mezzanine card

12. CMS ESR. May, 2004 HCAL TriDAS 12 Production Issues Fiber Optics Some problems not fully understood. Seem more related to optical cables, connectors, laser Changing the receiver (HTR) is not considered Yield (excluding optics) Last year batch (Rev3) had 5 bad boards out of 30 Only 1 was fixed (assembler mounted wrong part) Not much time to find out the problems Assembler seems the best in the area.

13. CMS ESR. May, 2004 HCAL TriDAS 13 HTR Plans HTR-RCT Integration test in Wisconsin –Start on May 24 th –Will try to put energy on a given bunch and generate an L1A –Main goal is to validate all hardware If Wisconsin and Maryland groups are satisfied with the Integration Tests, we will launch the HTR production. Testbeam04 in CERN –At some point we want to use the last version (Rev4) –Issue: we only have 3 now. –HF needs 2 HTRs to run

14. CMS ESR. May, 2004 HCAL TriDAS 14 Level 1 Latency ItemHBHEHF BX to QIE input224 QIE to GOL (FE)998 Optical Link (75- 90m@1clock/5m) 1515-18 HTR → SLB12 SLB ?444 TPG Cables (15m)333 TOTAL4545-4846-49 HCAL O-E QIECCA HTR SLB RCT BX TOF To RBX DataTo RCT RBX HPD or PMT (HF) 46 clocks = 1,147.7ns GOL Nothing has changed (46 clock tick budget) –FPGA logic does not include summing! –Estimates: probably 1 more clock cycle in HF –Eliminating summing in overlap might be ok for MET/Jet triggers But would still have the 1→ 6 summing in HF 12-13

15. CMS ESR. May, 2004 HCAL TriDAS 15 TPG Alignment Align so that all ECAL and HCAL data from same bucket reaches RCT inputs at same time –Achieved by delaying each channel individually –Method for establishing this delay implemented inside SLB Histogram data over threshold, look for LHC structure pattern –Issue: For some detectors, occupancy is very low (HO, especially at low lumens) Ch N Ch N+1 Ch N+2 RX_BC0 (Global)

16. CMS ESR. May, 2004 HCAL TriDAS 16 Absolute (and Relative) Timing Relative timing within HCAL via: –Laser and LEDs Have to consider random latency variation after resynching optical links –Cross-check with BC0 from FE Absolute synchronization for Level 1 –SLB histograms E T –Looks for LHC beam structure –Does this work? (esp at low luminosity?) Salavat has been working on this –Min bias events, some with Orca and some with fast sim Occupancy at 10 34 shown here –250MeV per ADC count Question: how many orbits to establish the LHC beam structure per detector?

17. CMS ESR. May, 2004 HCAL TriDAS 17 Summary (from Salavat) HCAL ElementCut (ADC counts) # LHC Orbits Required (88  s/orbit) HB,  ~0 ≥65x10 5 HB,  ~1.4 ≥610 5 HE,  ~1.6 ≥510 4 HE,  ~2.8 ≥510 2 HF, 13,  ~2.9 ≥510 4 HF, 13,  ~3.4 ≥510 3 HO, ring 2≥8>10 7 At 2x10 33

18. CMS ESR. May, 2004 HCAL TriDAS 18 Summary (from Salavat) For HB, HE, and HF probably easy to remeasure “on the fly” –Fill SLB histograms, read out over VME, calculate offset… For HO, probably will take few hours to maybe even a day –OK as long as absolute (non random) latency is stable over long periods –Need more simulation, checks…in progress

19. CMS ESR. May, 2004 HCAL TriDAS 19 Occupancy Implications and Alignment Bottom line: Will try to develop the following algorithm: –Whatever it takes, we measure the absolute alignment If it takes hours, then so be it... –We hope that this absolute alignment will not change over time –Keep track of the relative alignment by: Sending up a BC0 signal from the FE –Keep track of this. If the links go down and we reset, then we measure the relative alignment and adjust accordingly Problems: –If we are off by an order of magnitude or more...  Needs some more simulation, computing resources, etc. –Assumes long term stabilities which will have to be tracked

20. CMS ESR. May, 2004 HCAL TriDAS 20 Another Latency Issue TTCrx chip has a chip-to-chip variation in latency of ~20ns –Affect only the DAQ-path How well known is this? Need a scheme for insitu calibration of the TTCrx latency –Probably can come up with something for HTR/DCC/Fanout –Not sure what to do about TTCrx in FE...
