01.07.2010© MAN Diesel & Turbo TS/Basics < 1 >< 1 > …that our turbochargers increase engine output by more than 300% …that the TCA88 delivers an air amount over 200 tons per hour, equivalent to the volume of 5,400 TEU containers …that the compressor wheel has an outer diameter speed of approx. 560 m/s, equivalent to 2,000 km/h …that the compressor wheel - could it roll on the road - would make the marathon distance (42 km) in about 1¼ minutes …that during maximum rotor speed, on each single turbine blade pulls a force of 900 kN, equivalent to a mass of 2 fully loaded trucks Did you know…
2
01.07.2010© MAN Diesel & Turbo TS/Basics < 2 >< 2 > Turbocharger Basic Facts Did you know......that a TCA88 turbocharger is able to deliver an air amount of well over 200,000 m³ per hour, corresponding to the volume of 6,000 TEU containers
3
01.07.2010© MAN Diesel & Turbo TS/Basics < 3 >< 3 > Turbocharger Basic Facts Did you know......that at high rotor speeds a force of 900 kN is pulling at each turbine blade of a TCA88 turbocharger, equivalent to the mass of two fully loaded trucks
4
01.07.2010© MAN Diesel & Turbo TS/Basics < 4 >< 4 > Turbocharger Basic Facts Did you know......that the circumferential speed of the compressor wheel at the outer diameter comes close to 2,000 km/h - equivalant to the speed of a supersonic jet
5
01.07.2010© MAN Diesel & Turbo TS/Basics < 5 >< 5 > Did you know......that the circumferential speed of a compressor wheel is almost 2,000 km/h and could it roll on the road – it would make the marathon distance (42 km) in about 1¼ minutes Turbocharger Basic Facts
6

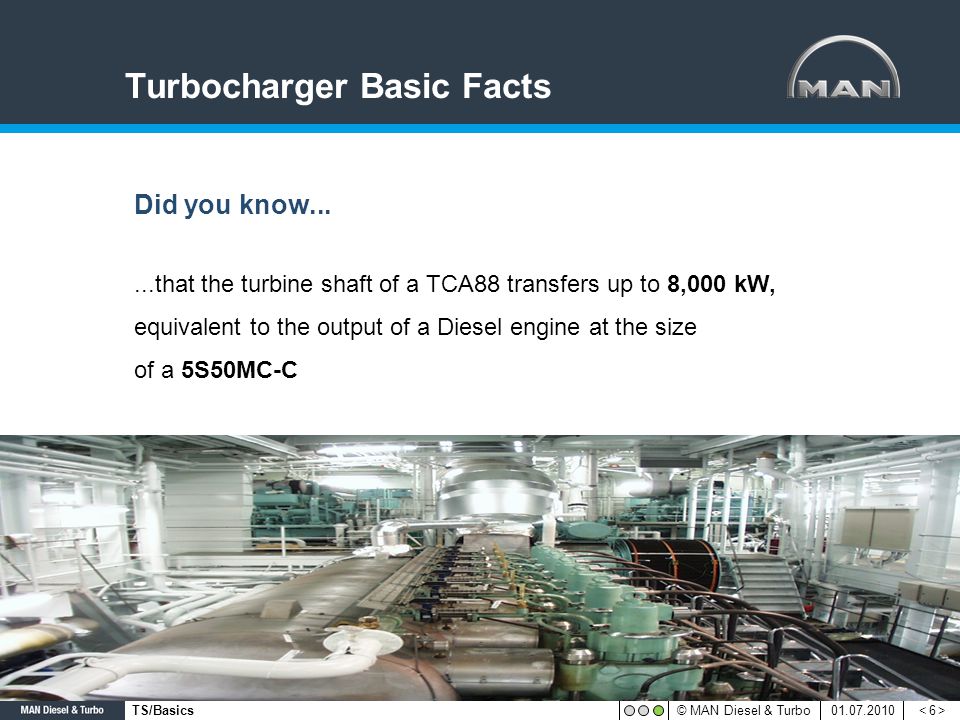

01.07.2010© MAN Diesel & Turbo TS/Basics < 6 >< 6 > Turbocharger Basic Facts Did you know......that the turbine shaft of a TCA88 transfers up to 8,000 kW, equivalent to the output of a Diesel engine at the size of a 5S50MC-C
7
01.07.2010© MAN Diesel & Turbo TS/Basics < 7 >< 7 > Turbocharger Basic Facts Did you know......that a TCA88 turbocharger is able to deliver an air amount of well over 200,000 m³ per hour, corresponding to the volume of 6,000 TEU containers
8
01.07.2010© MAN Diesel & Turbo TS/Basics < 8 >< 8 > Turbocharger Basic Facts Did you know......that at high rotor speeds a force of 900 kN is pulling at each turbine blade of a TCA88 turbocharger, equivalent to the mass of two fully loaded trucks
9
01.07.2010© MAN Diesel & Turbo TS/Basics < 9 >< 9 > Turbocharger Basic Facts Did you know......that the circumferential speed of the compressor wheel at the outer diameter comes close to 2,000 km/h and could it roll on the road would make the marathon distance of 42 km in 1 min 15 sec
10

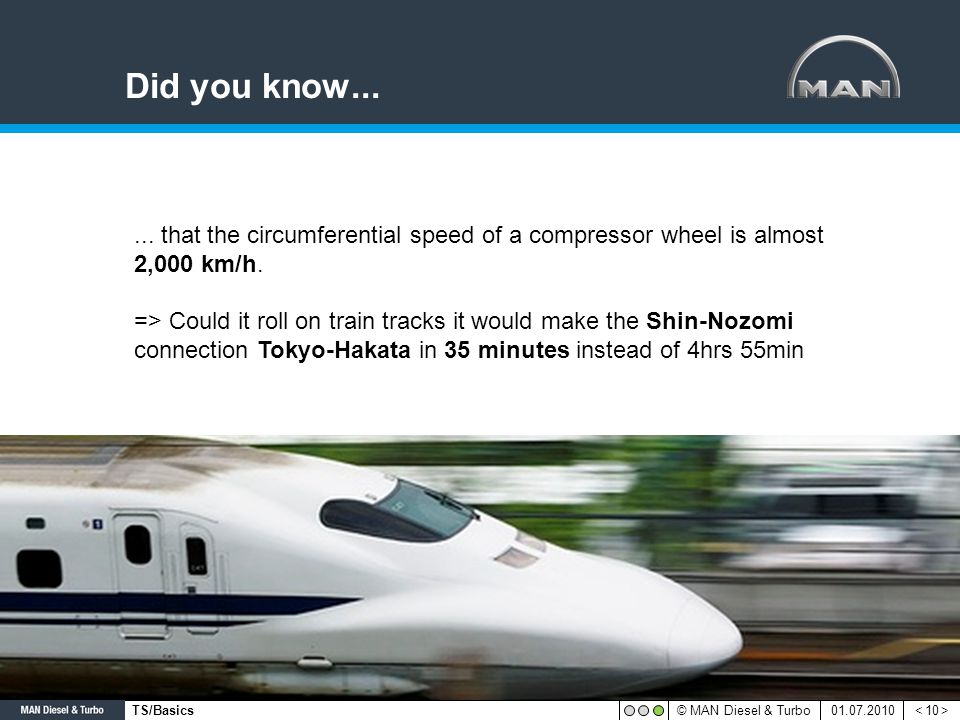

01.07.2010© MAN Diesel & Turbo TS/Basics... that the circumferential speed of a compressor wheel is almost 2,000 km/h. => Could it roll on train tracks it would make the Shin-Nozomi connection Tokyo-Hakata in 35 minutes instead of 4hrs 55min Did you know...
11

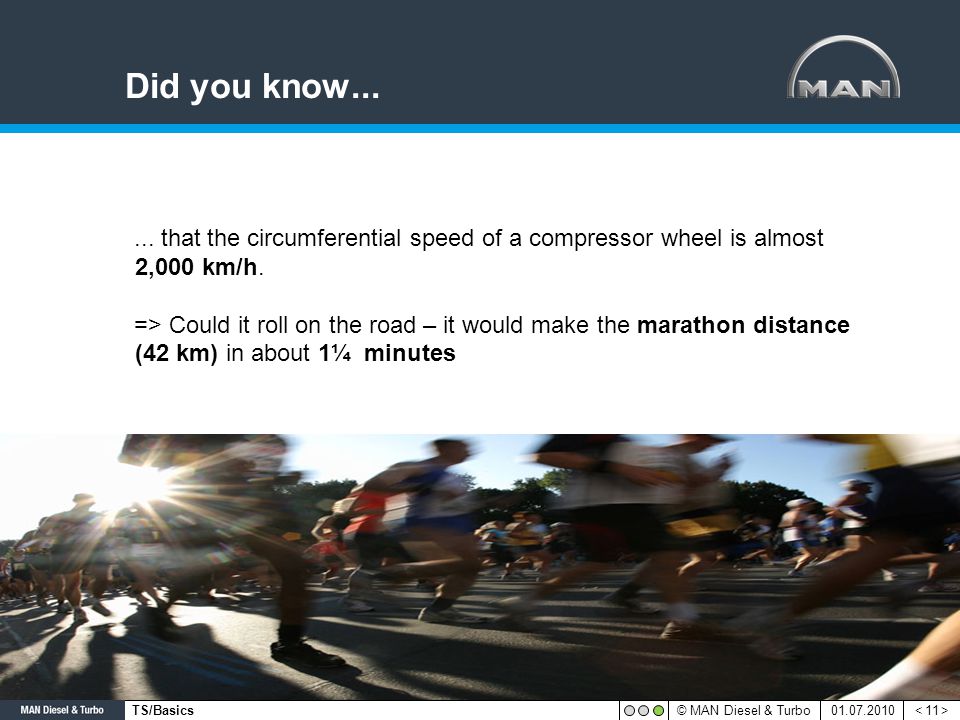

01.07.2010© MAN Diesel & Turbo TS/Basics... that the circumferential speed of a compressor wheel is almost 2,000 km/h. => Could it roll on the road – it would make the marathon distance (42 km) in about 1¼ minutes Did you know...
12
01.07.2010© MAN Diesel & Turbo TS/Basics... that the circumferential speed of a compressor wheel is almost 2,000 km/h. => Could it roll on train tracks it would make the Maglev connection between Shanghai Pudong International Airport and Shanghai City in 55 seconds Did you know...
13
01.07.2010© MAN Diesel & Turbo TS/Basics Did you know...... that a TCA88 turbocharger is able to deliver an air amount of 200,000 m³/hr => Corresponding to the volume of the Imabari-Kokusai-Hotel
14
01.07.2010© MAN Diesel & Turbo TS/Basics 5L16/24 475 kW 1 x NR12/S 12K90MC-C 54,800 kW 3 x NA70/T9 7S50MC-C 21,800 kW 1 x TCA77-2 12V48/60 14,400 kW 1 x TCA77-4 Four Stroke Two Stroke Applications
15
01.07.2010© MAN Diesel & Turbo TS/Basics Stationary Power Plants “ Choloma”, Honduras 265 MW 14 x 18V48/60 with TCA 88-4 Power Barge Guatemala 132.3 MW 7 x 18V48/60 14 x NA48/S Applications Ships Jo Sequoia 37,600 dwt 7S50MC-C 1 x TCA77-2
16
01.07.2010© MAN Diesel & Turbo TS/Basics Four-stroke engines 5L16/24 with 475 kW output and NR12/RS turbocharger Applications Two-stroke engines 12K90MC-C with 54,800 kW output and 3 x NA70/TO9 turbochargers
17

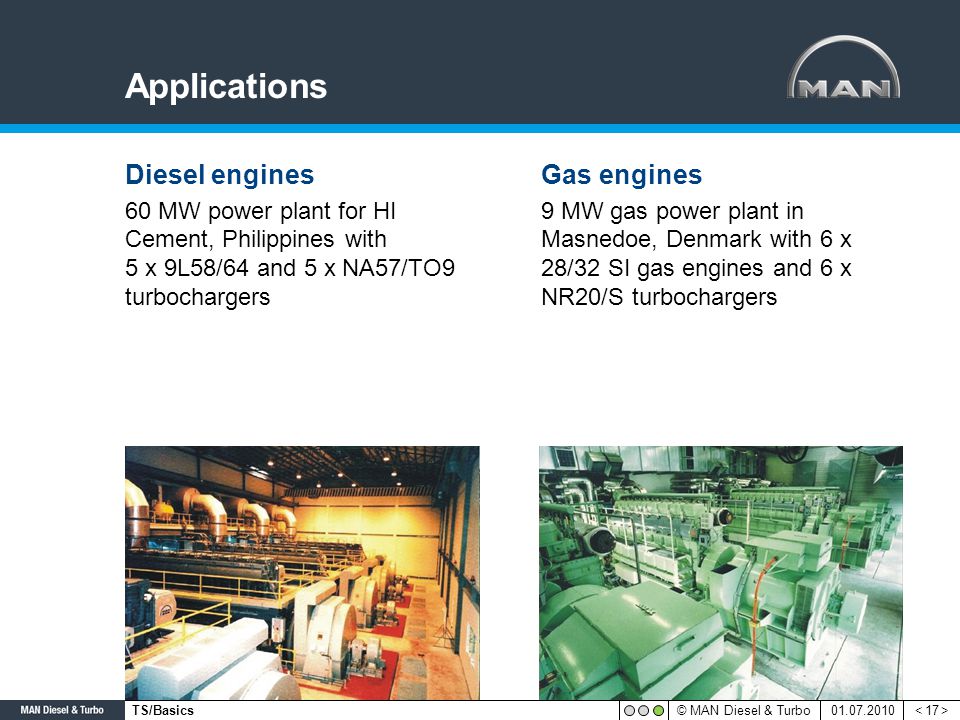

01.07.2010© MAN Diesel & Turbo TS/Basics Diesel engines 60 MW power plant for HI Cement, Philippines with 5 x 9L58/64 and 5 x NA57/TO9 turbochargers Applications Gas engines 9 MW gas power plant in Masnedoe, Denmark with 6 x 28/32 SI gas engines and 6 x NR20/S turbochargers
18
01.07.2010© MAN Diesel & Turbo TS/Basics Ships Maersk Durban, out of a series of 10x 5,000 TEU container vessels with 9K90MC-C and 3 x TCA77-20 turbochargers each Applications Stationary Power Plants 61 MA Power Plant „Fort George“, Mauritius with 2 x 9K80MC-S engines and turbo compound system (TCS) with 4 x NA70/TO9 turbochargers and 2 x PTG26 power turbines
19

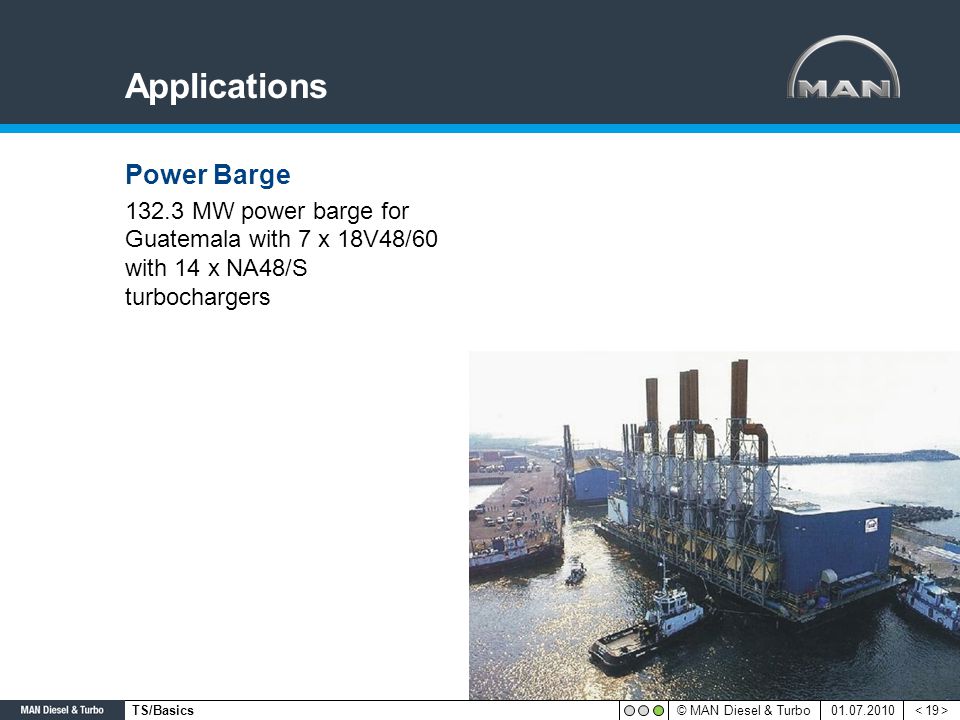

01.07.2010© MAN Diesel & Turbo TS/Basics Power Barge 132.3 MW power barge for Guatemala with 7 x 18V48/60 with 14 x NA48/S turbochargers Applications
20

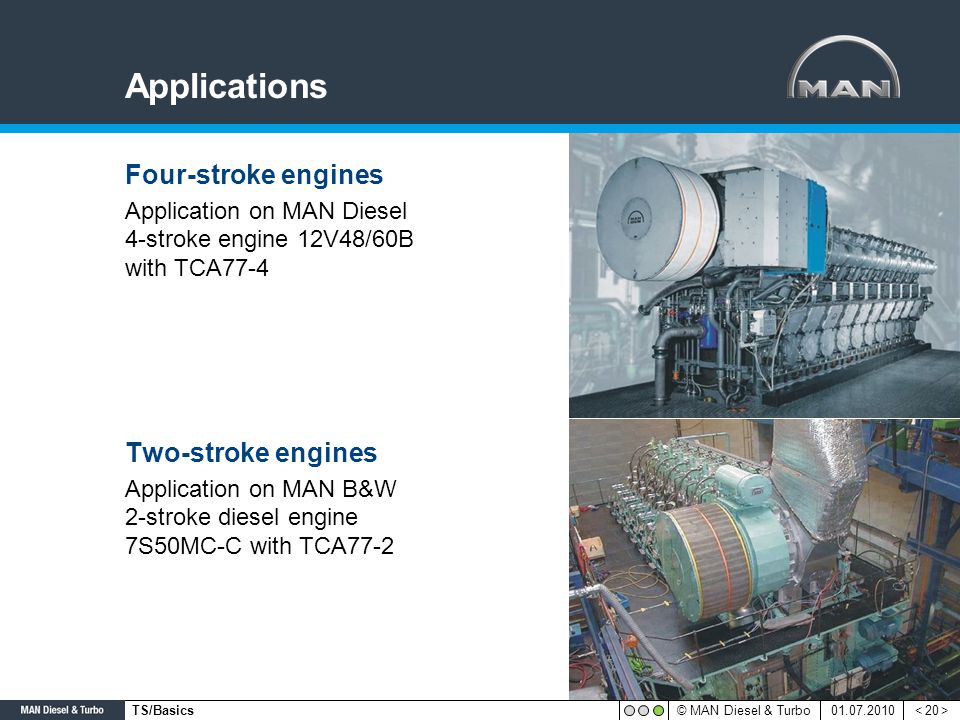

01.07.2010© MAN Diesel & Turbo TS/Basics Four-stroke engines Application on MAN Diesel 4-stroke engine 12V48/60B with TCA77-4 Applications Two-stroke engines Application on MAN B&W 2-stroke diesel engine 7S50MC-C with TCA77-2
21
01.07.2010© MAN Diesel & Turbo TS/Basics Chemical Tanker Jo Sequoia First TCA turbocharger put into operation on 7S50MC-C engine on board 37,600 dwt chemical tanker Jo Sequoia in January 2003 Applications TCA
22
01.07.2010© MAN Diesel & Turbo TS/Basics Choloma, Honduras: Largest 4-Stroke Power Plant in the World 14 x 18V48/60 engines with TCA88 turbochargers and a total output of 265 MW Applications TCA
23

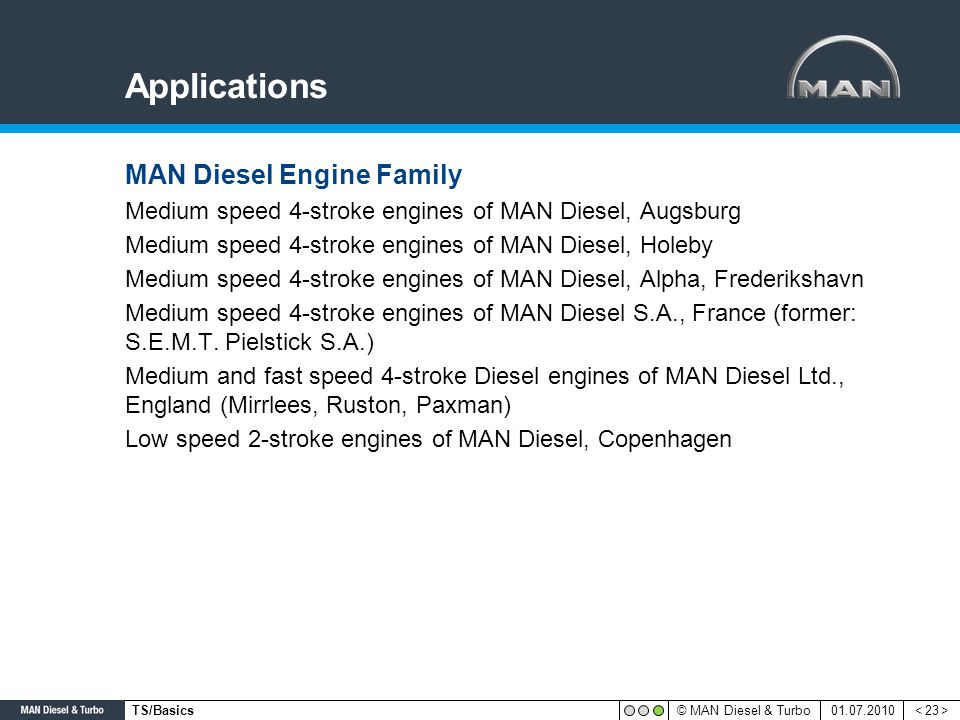

01.07.2010© MAN Diesel & Turbo TS/Basics MAN Diesel Engine Family Medium speed 4-stroke engines of MAN Diesel, Augsburg Medium speed 4-stroke engines of MAN Diesel, Holeby Medium speed 4-stroke engines of MAN Diesel, Alpha, Frederikshavn Medium speed 4-stroke engines of MAN Diesel S.A., France (former: S.E.M.T. Pielstick S.A.) Medium and fast speed 4-stroke Diesel engines of MAN Diesel Ltd., England (Mirrlees, Ruston, Paxman) Low speed 2-stroke engines of MAN Diesel, Copenhagen Applications
24
01.07.2010© MAN Diesel & Turbo TS/Basics Engine Builders Outside the MAN Diesel Group Caterpillar MaK, Germany Dresser Rand, USA Fairbanks Morse Engine Division (Coltec), USA GE Jenbacher, Austria Deutz MWM, Germany Niigata, Japan Daihatsu, Japan SKL, Germany Wartsila NSD, Finland Wartsila NSD, Switzerland Applications
25
01.07.2010© MAN Diesel & Turbo TS/Basics Engine Builders Outside the MAN Diesel Group ABC, Belgium BEZ Motory a.s., Czech Republic Cummins Ltd., England Deutz AG, Germany GE Jenbacher, Austria Guascor S.A., Spain HCP, Poland PDM Pervomaisk, Ukraine SKL Motor GmbH, Germany TMZ Ekaterinburg, Russia VDM Balakovo, Russia Applications PBST
26
01.07.2010© MAN Diesel & Turbo TS/Basics STX ENPACO, Korea PBS Turbo, Czech Republic Mitsui, Japan Kawasaki, Japan CXZ, China Bryansk, Russia MAN Diesel Turbocharger Plant Shanghai, China MAN Diesel, Germany MAN Diesel T/C Production Sites and MAN Diesel T/C Licensees
