2. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Agenda SDN Evolution – a paradigm shift in the networking space SDN Architecture – layers of an SDN deployment HP Hybrid SDN Deployment – slowly adopt an SDN architecture HP Open SDN Ecosystem – simple, open, enterprise ready HP SDN Applications – Network Protector, Network Optimizer for Microsoft Lync HP SDN App Store – A market place for SDN applications and a platform to share innovations SDN in the Data Center – Federation with HP Helion (Openstack), VMWare NSX (network virtualization) and partnership with Nuage Networks (Alcatel-Lucent)

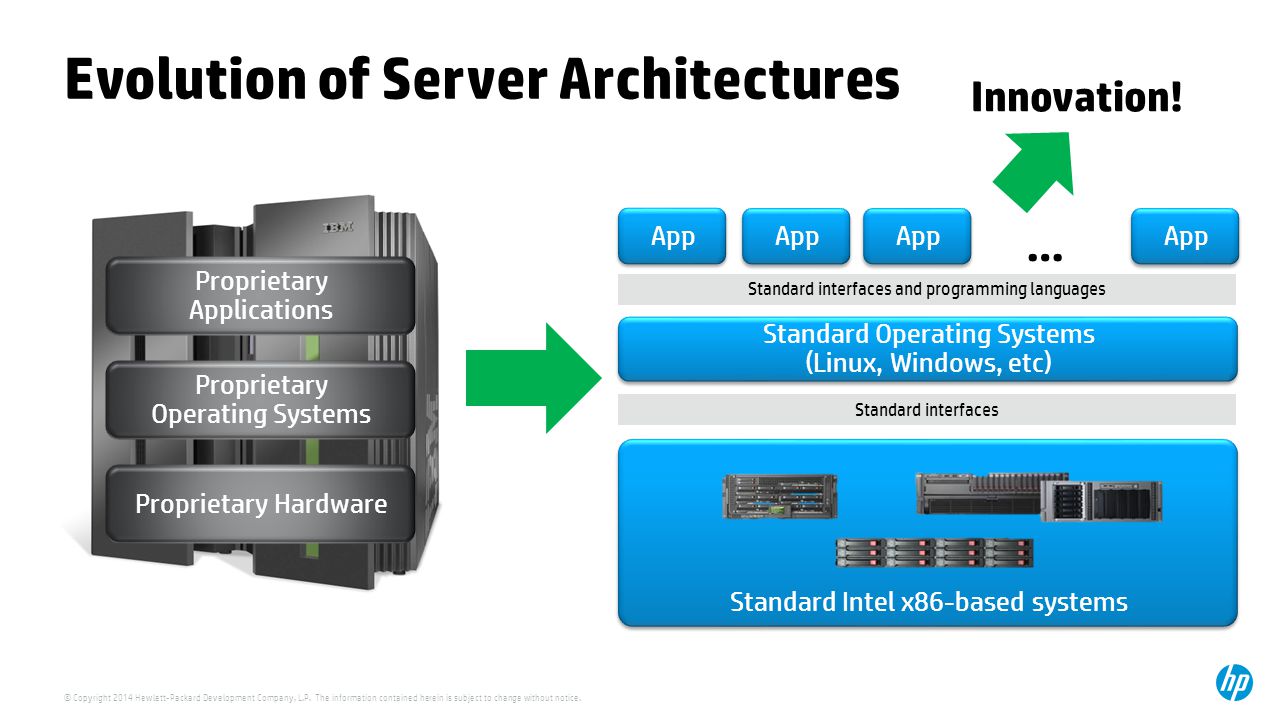

3. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Standard Intel x86-based systems Evolution of Server Architectures Proprietary Hardware Proprietary Operating Systems Proprietary Applications Standard Operating Systems (Linux, Windows, etc) Standard Operating Systems (Linux, Windows, etc) App … Innovation! Standard interfaces and programming languages Standard interfaces App

4. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Standard “programmable” systems Evolution of Network Architectures Proprietary Hardware Proprietary OS OS-Integrated Features Routing MCast … QoS Standard interfaces and control protocols Open interfaces and programming languages Network features (applications) Centralized Control Plane Innovation!

5. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Separate control and data plane; abstract control plane of many devices to one Deliver open programmable interfaces to automate orchestration of network services Open standard-based programmatic access to infrastructure Deliver open programmable interfaces to automate orchestration of network services HP SDN Architecture Overview Separate control and data plane; abstract control plane of many devices to one Deliver open programmable interfaces to automate orchestration of network services Open standard-based programmatic access to infrastructure Network Device Control & Data Plane Programmable Interface (e.g., OpenFlow) Network Applications SDN Applications Business Applications (e.g., OpenStack, CloudStack) Cloud Orchestration HP VAN SDN Controller Programmable Open APIs Infrastructure Layer SDN Architecture Control Layer Application Layer

6. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP Hybrid SDN Architecture Legacy Network Device Hybrid OF-Network Device Virtual Device Infrastructure SDN Controller Control Application Traditional Protocols OSPF, STP SDN Applications CLI SDN Hybrid Architecture

7. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP Virtual Application Networks SDN Controller Infrastructure SDN Architecture HP Open SDN Ecosystem Virtual Cloud Network Protector Load Balancing Partner Apps Network Optimizer ConvergedControl Design, Implementation, & Support Services Over 25 million ports across 50 Switches VAN Network Resource Automation Intelligent Management Center VAN SDN Manager VAN Server Connect Management Applications Control

8. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP Network Protector SDN Application Enabling real-time security at the network edge Protects from over 1.5M threats daily 1 TippingPoint Keeps users data and privacy protected with real-time protection from threats Enables proactive IT threat detection keeping users devices safe Lowers costs by reducing need for dedicated security devices 1,2 RepDV database as of March, 2014 2013 SDN Innovation Award

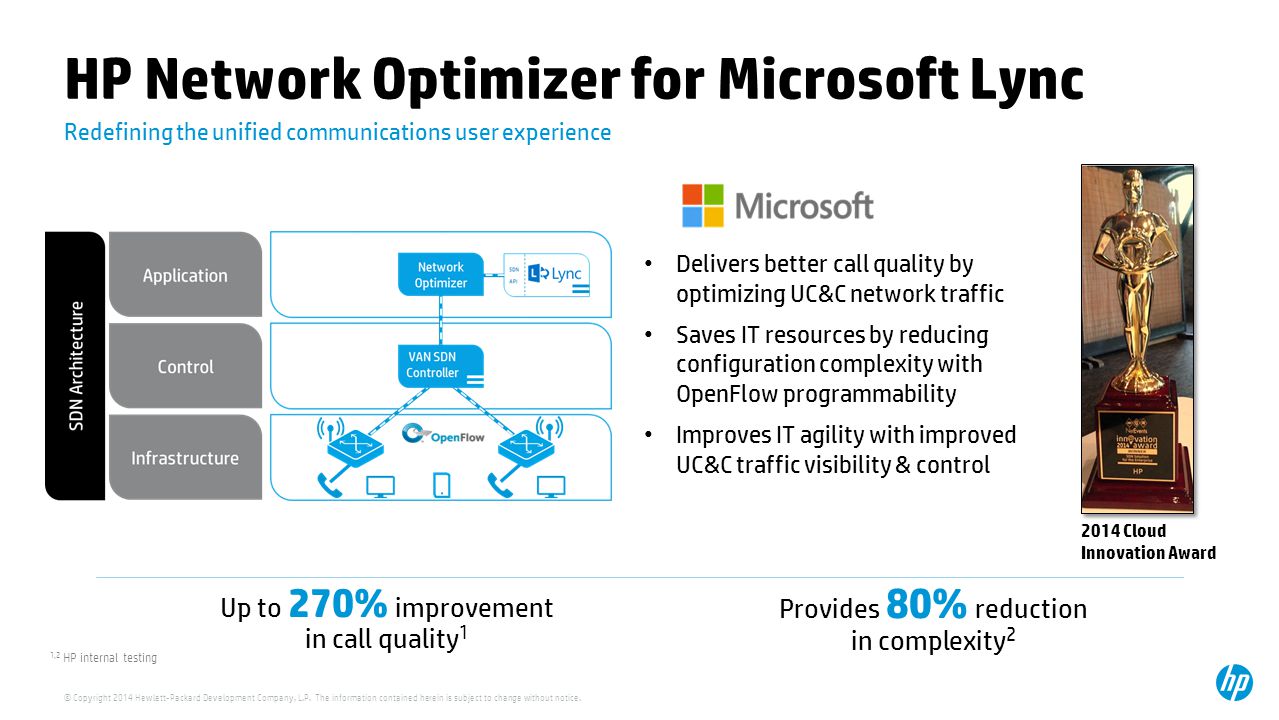

9. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP Network Optimizer for Microsoft Lync Redefining the unified communications user experience Delivers better call quality by optimizing UC&C network traffic Saves IT resources by reducing configuration complexity with OpenFlow programmability Improves IT agility with improved UC&C traffic visibility & control 1,2 HP internal testing Up to 270% improvement in call quality 1 Provides 80% reduction in complexity 2 2014 Cloud Innovation Award

10. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP SDK and SDN App Store create an open ecosystem

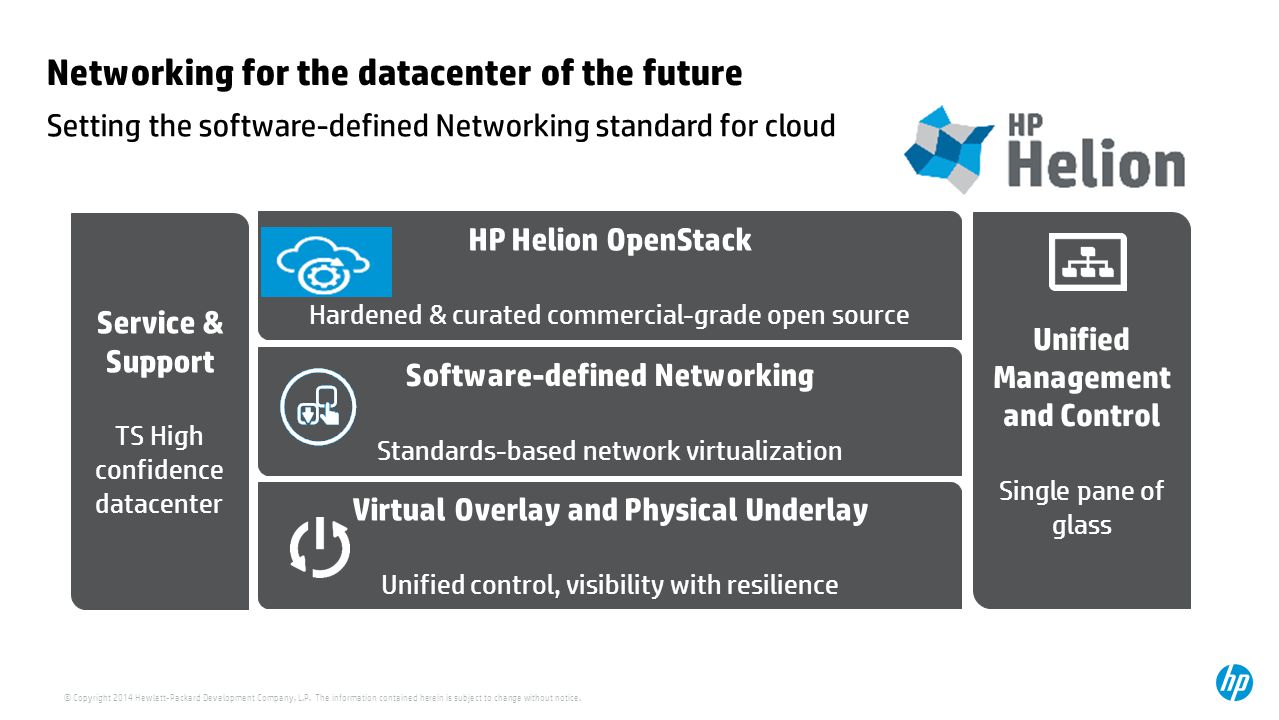

11. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Virtual Overlay and Physical Underlay Unified control, visibility with resilience Software-defined Networking Standards-based network virtualization HP Helion OpenStack Hardened & curated commercial-grade open source Setting the software-defined Networking standard for cloud Networking for the datacenter of the future Unified Management and Control Single pane of glass Service & Support TS High confidence datacenter

12. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Network Virtualization Solutions Utilizing VXLAN Service Provider / Cloud Providers / Telco / Extra- large Enterprise / Global Account Multi-data center environment Data center interconnect Large scale DCs Distributed Cloud Networking (DCN) Small / Medium / Large enterprise Private or Hybrid Cloud VM mobility within a Data Center Fully open-source, Multi- Hypervisor (Hyper-V 2015) Neutron component used by Helion OpenStack Virtual Cloud Networking (VCN) Large enterprise / Global Account Customers with strong affinity with VMware Private or Hybrid Medium scale VM Mobility within a DC HP-VMware Networking Solution

13. © Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. You win with HP Networking SIMPLIFICATION Network Simplification Simple Automated Agile Lower TCOFaster Services Availability & Scale
