1 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Enabling Cloud with SDN/Virtual Application Networks and OpenFlow Transforming Delivery of Applications to Users Matt Yeagle, Manager, Channel Architect, HP Networking October 2012

2 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 2 Cloud Application Delivery Expectations 50% Workloads will be virtualized by the end of 2012 PRIVATE, PUBLIC AND INDEPENDENT CLOUDS Over 1% Of smartphones consume 50% of mobile data DYNAMIC AND MOBILE SERVICE CONSUMPTION Just 3 months To deploy a new application from data center to user COMPLEXITY OF THE INFRASTRUCTURE Over

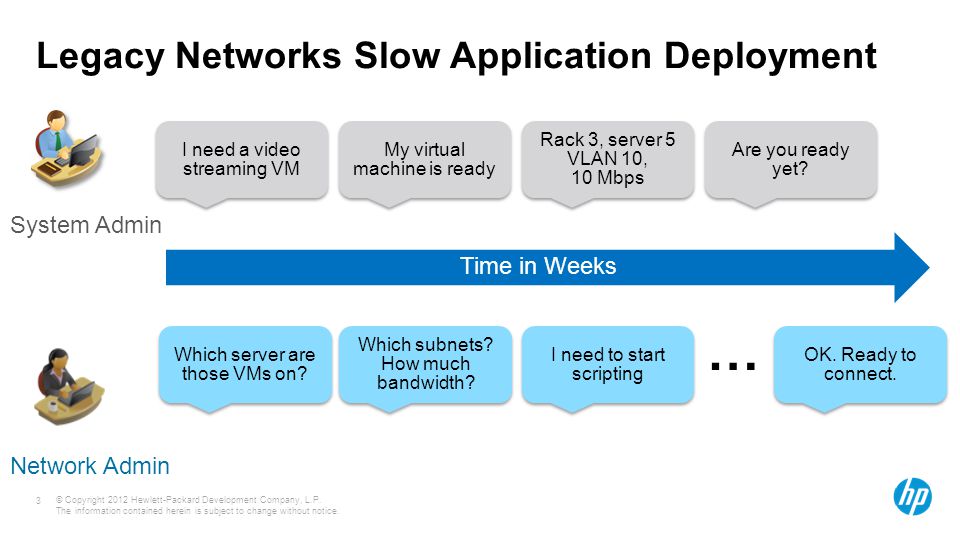

3 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 3 Legacy Networks Slow Application Deployment Which server are those VMs on? I need to start scripting Which subnets? How much bandwidth? OK. Ready to connect. System Admin Network Admin Time in Weeks I need a video streaming VM Are you ready yet? My virtual machine is ready Rack 3, server 5 VLAN 10, 10 Mbps Rack 3, server 5 VLAN 10, 10 Mbps …

4 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 4 Legacy Networks Can’t Meet Cloud Expectations Application Indifferent Rigid, Physical Networks Manual Management Impossible to identify applications and user behaviors and meet diverse SLAs Architected for one tenant, user type and location type with device-dependent provisioning inhibiting scale and lacking programmability Slow to respond to new application requirements and hampered by manual errors

5 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 5 The challenge with networks today Proliferation of Network Protocols Increased complexity − OPEX is increasing while CAPEX remains the same − Complex configurations are error prone Difficulty Innovating Closed and proprietary solutions Modeling large networks is challenging Applications and Networks are viewed as black boxes to each other

6 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. So Can SDN, VAN or OpenFlow Help Us With This Current Networking Dilemma?

7 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 7 An emerging network architecture What is software-defined networking (SDN)? Abstraction of control plane from forwarding hardware Network control plane as a centralized software program Centralized intelligence of network topology Dynamic and programmable network, interaction with applications Implemented via variety of methods including OpenFlow protocol Key Benefits Provides opportunity for rapid innovation in networking Use cases for all types of networks including Enterprise Campus, Service Provider, Cloud, Data Center Can enable simplified management through network virtualization Applications Infrastructure Network OS Network API SDN Model Control Plane

8 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 8 What is OpenFlow? Protocol for direct access to switch forwarding plane Controller or control software uses OpenFlow protocol to provide programmable interface to switches & routers Open standard defined by the Open Networking Foundation (ONF) Firewall IPS Edge Switches Edge Switches Controller Wireless APs Net Apps Core Switch Agg Switches Core Switches

9 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 9 What is Virtual Application Networks Application Characterization Network Virtualization Automated Orchestration Characterize the application to create consistency, reliability & repeatability across the entire network infrastructure Virtualize & program the infrastructure to create multitenant, on-demand, topology & device-independent provisioning Orchestrate based on templates, including user SLA and policy, to enable dynamic application delivery

10 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Cool! Still Listening!

11 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 11 Best-in-Class Networking in a Converged Infrastructure HP Converged Infrastructure for Cloud Power and cooling Management software FlexNetwork Architecture Servers Storage Converged Infrastructure HP Proprietary and Confidential

12 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 12 Industry’s only architecture converging data center, campus, branch FlexNetwork Architecture OpenScalableSecureAgileConsistent

13 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 13 SDN example Use Cases Use CaseNetwork ChallengeTraditional SolutionSDN Solution Management Simplification Many devices with individual interfaces and static configurations, difficult to implement change CLI, scripting, SNMP & management tools to provide limited visibility and configurability of fragmented network devices Controller with management tool to set policies and provide a more dynamic view of the entire network, no device-level configuration Seamless Mobility & BYOD Difficult to provide seamless experience across wired and wireless networks with many different devices Limited integration of controllers into switches, QoS, IEEE 802.1x access control, VLANs Use OF-enabled switches and APs to recognize users and devices and provide same access policies and performance. More granular control over traffic. Orchestration in a Virtualized data center Servers and applications move around the data center and network cannot respond dynamically to changing needs Management Software, vSwitch, Manual configuration changes Use OF controller to dynamically configure network in response to changes. Communicate with software and hardware elements

14 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 14 Can you Build a SDN without OpenFlow? Command-line interfaces CLIs are the interfaces common to switches and routers, which network managers use to configure them, and activate or deactivate services. SNMP Simple Network Management Protocol can be used to modify and apply a new configuration through remote modification of configuration information. XMPP Extensible Messaging and Presence Protocol is an XML streaming protocol for presence and messaging routing. It also provides a secure but easily programmed language for linking diverse networks. Netconf The lETF's Netconf is designed to reduce the programming effort involved in automating device configuration. Netconf would use XML to configure devices and to more efficiently tap state and configuration data stored on devices. OpenStack OpenStack, the Rackspace/NASA open source software for cloud computing, is free, modular open source software for developing public and private cloud computing fabrics and controllers. Virtualization software APIs APIs in hypervisors and other virtualization software, such as VMware's vSphere, virtualize server, storage and network resources, and aggregate and allocate them on demand to applications. They include tools to define resource pools and business rules for service levels, and to automate the enforcement of service levels to ensure application availability, performance, security and scalability.

15 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 15 Virtualize and centralize control of network infrastructure Software-Defined Networks & OpenFlow SDNs/OpenFlow complement traditional integration tools + SNMP, APIs, CLI HP FlexNetwork delivers ‘enterprise-grade’ SDN solutions Reliable, scalable, secure network virtualization SNMP, APIs + Software-Defined Networks enabling technologies:

16 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 16 Why OpenFlow-based SDN? OpenFlow is a standards based protocol Ensures vendor interoperability Avoid vendor-lock in Complements existing network technologies Designed from ground-up to enable SDNs Broadest industry adoption and support Simplifies implementing a programmable network Service Provider Research Public Cloud Campus Networks Private Cloud Traditional Data Center

17 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 17 HP OpenFlow Leadership HP & Stanford collaborate on Ethane HP is founding member of ONF HP Labs forms OpenFlow research team HP early-release OpenFlow software to researchers HP demos OpenFlow-enabled switch HP makes OpenFlow software generally available HP helps establish InCNTRE HP will extend OpenFlow across the FlexNetwork architecture Growth in Customer Deployments

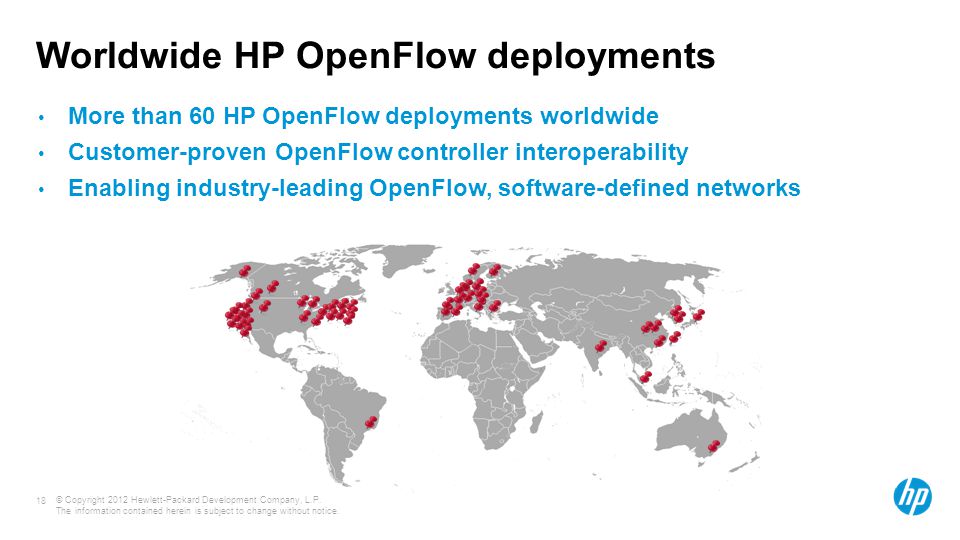

18 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 18 Worldwide HP OpenFlow deployments More than 60 HP OpenFlow deployments worldwide Customer-proven OpenFlow controller interoperability Enabling industry-leading OpenFlow, software-defined networks

19 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 19 Commercial availability of OpenFlow First Tier-one Networking vendor with commercial OpenFlow – Broadest fixed & modular switch portfolio supporting OpenFlow – Largest install base now supporting OpenFlow – Fully supported by HP, enterprise ready – No special licensing fee – Available for download HP.comHP.com

20 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 20 Commercially Available OpenFlow-enabled Platforms Leading Tier-one OpenFlow product portfolio Over 10 Million Ports

21 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 21 OpenFlow Portfolio Support HP 3500 Series Campus/Branch Access All Products Support OpenFlow v1.0 with K HP 8200 Series Campus Core HP 5400 Series Campus/Branch Access & Core

22 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 22 Enterprise-Grade Software-Defined Networks Pragmatic architecture: use what works, improve the rest  hybrid models Practical adoption: evolutionary deployment path Solid foundation: reliability, high availability, manageability, security Open ecosystem: standards-enabled solution development & certification Business-critical Power, AgilityThe Promise of SDNs Outcomes, not technology

23 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 23 HP Enterprise Grade Software-Defined Networks Solutions Control 3 rd party/custom controllers Network Applications Network Applications 3 rd party/custom applications Infrastructure HP + non-HP systems HP controllers Integrated Open API HP applications Integrated Multi- vendor SDNs Multi- vendor SDNs Integrated Open API Virtual Application Networks

24 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Little More on VAN

25 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 25 Virtualize by Extending a Control Plane Across the Entire Network Virtual Application Networks Intelligent Resilient Framework (IRF) Built on HP Innovations

26 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 26 IMC Virtual Application Network Manager Module Creating Virtual Application Networks Characterize Applications Virtualize the network Automate Orchestration Virtual Application Networks

27 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 27 IMC Virtual Application Network Manager Module Creating Virtual Application Networks Server CPUs VM Hypervisor

28 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 28 Virtual Application Networks

29 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 29 Rapid Application Deployment with VANs System AdminNetwork Admin Characterize the application 1 IMC VAN Manager Define attributes Virtualize the network 2 VM Manager IMC VMware Plug-in Choose connection profile Orchestrate the network 3 IMC VAN Manager VM 5 min vs. 30 days App Required App Delivered

30 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 30 Reduce Application Delivery from Months to Minutes Delivering Virtual Application Networks Today Characterize app using template Program virtual network resources Orchestrate network resources Hypervisor Management Intelligent Management Center VAN plug-in VAN Policy Engine VAN API HPN Access Switch HPN Data Center Fabric HPN Core Switch HPN Core Router VM vSwitch Manager Server NIC vSwitch/HP open vSwitch VAN Manager Components IMC Enterprise/Standard Components VAN Access Switch SW VAN Designer

31 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. 31 Delivering New Applications in Minutes versus Weeks Enable Cloud with SDN, OpenFlow and Virtual Application Networks Tune network to the application delivery requirements Virtualize the network end to end, from application to user Enable IT to manage the network with policies rather than CLI, scripts Single pane-of-glass management for the physical and virtual network Ensure choice with open, standards-based approach

32 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Thank you
