1. Platting – Subdividing the Land Surface – Subdivision Process – Development Process Fragmenting Space – Real Property Units

2. The Nature of Landscape Organization of Behavior
Goods
Service
Artifacts
Legislation
Regulation
Judicial Opinions
Organization of Space
Organization of Behavior
Law
Public Policy
Landscape
Evaluation

3. Landownership comprises
A spatial unit
Legal description
Jurisdiction
A behavioral unit – legal rights in that unit possessed
By individuals
By corporations
By governments
Both of these attributes have evolved over time
Some make no "sense" in the current setting
They can only be appreciated with reference to an appropriate historical setting

4. Section
Subdivision Plat
Township

5. A Context Land System Native American Land Cessions
Public Land Surveys
Public Land Conveyances
Legal System
Northwest Territory
Michigan Territory
Wisconsin Territory
Landowners Minnesota Territory
Landowners in Minnesota

6. Township Plats Me

7. Plats
A particular type of map showing actual or planned divisions of the land surface into streets and building lots. Shows the division of the land and features of the surface relevant to any use of the land – existing rights – pipeline easement, drainage easement – and the topography – hills, wetlands

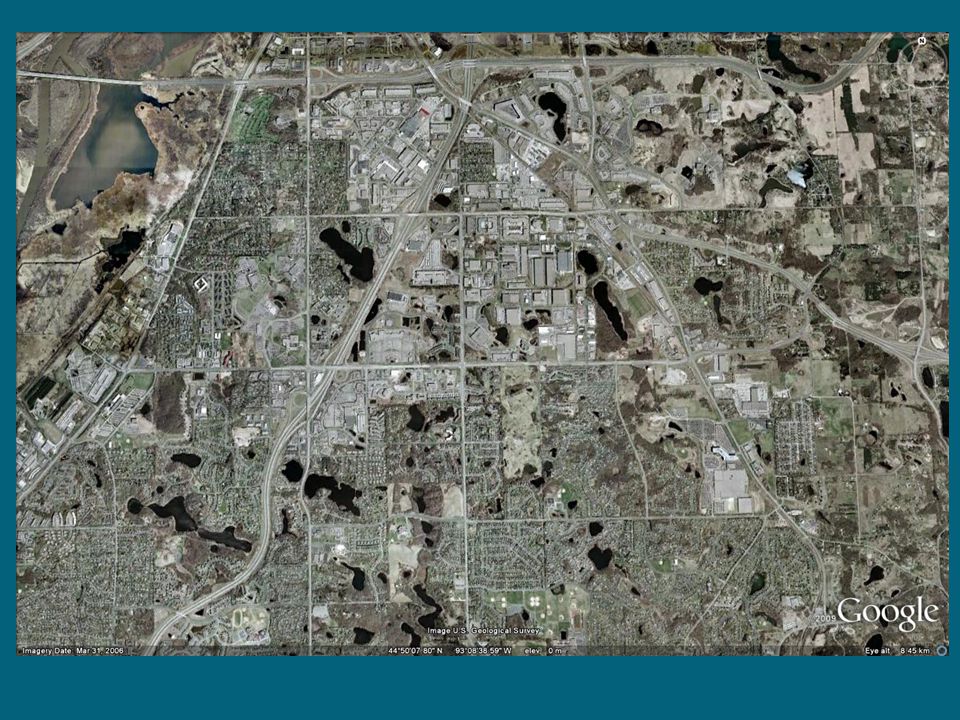

8. The first plats showed how deputy surveyors employed by the federal government subdivided the surface into townships and sections Google Earth General Land Office Townships

10. County Surveyors in Minnesota
“in restoring lost or obliterated government corners, the county surveyor shall follow the rules established by or pursuant to acts of Congress, and all such surveys shall be made in strict conformity to the original survey made by the United States”
“county boards shall procure and file with the county recorders of their respective counties certified copies of the original plats and field notes of the United States surveys”
“When the county board determines that the monuments established by the United States in the public lands survey to mark section, quarter section, and meander corners have been destroyed or are becoming obscure, it may employ a licensed surveyor to preserve, restore and mark the corners with a durable magnetic monument”

11. Later plats showed how counties allow this basic division to be further subdivided into blocks with streets, sidewalks, alleys and lots In order for plats to become valid, a local governing body - in Minnesota a county surveyor - must review and approve them Plats (Minnesota Statutes) Plats and Coordinate Surveys (Minnesota Statutes Chapter 505)

12. Modern Section 31 T28N R22W
Modern Corners Me

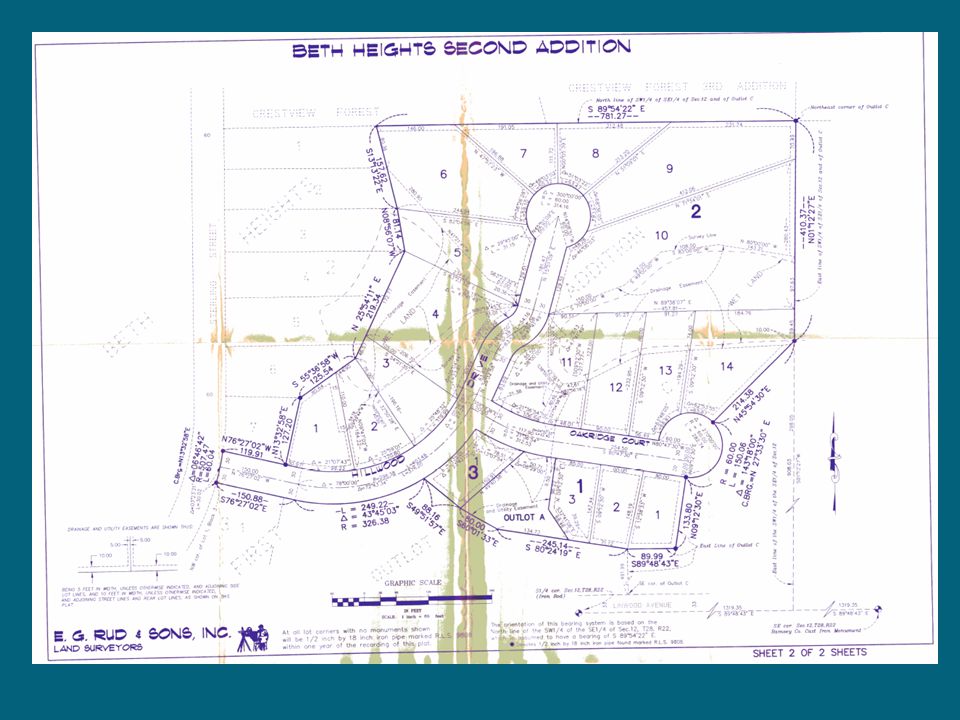

13. Subdivision Plat shows the division of land into lots and blocks, and may dedicate lands for public use
Manual of Guidelines for Platting in Minnesota

14. A common interest community plat shows the division of land for condominium, planned communities, and co-op purposes Minnesota Statutes Chapter 515 , 515A, 515B
Common Interest Community Plat Manual

15. Registered land survey is a survey performed to identify registered (Torrens) land Minnesota Statutes Chapter 508 – must be used for registered land - can be used for Abstract land
Ramsey County's Manual of Minimum Guidelines for Subdivision Plats (2007 draft)

16. Abstract Land (Recorder) Title – ownership interests – evidenced by an abstract of the documents that link the present owner with all past owners
Registered Land – Torrens (Registrar) Title – ownership interests – evidenced by a certificate of title issued by the District Court

18. County surveyors are responsible for maintaining the original corner monuments set by the deputies during the Minnesota Statutes 383D.65 and give the County Surveyor the authority to review and approve plats created unde rMS 505 and Common Interest Community (CIC) 515B, and 508 which creates Registered Land Surveys (RLS) Under Minnesota Statute county surveyor must approve Subdivision Plats, Registered Land Surveys (RLS), and Common Interest Community (CIC) Plats before they can be recorded All plats must be prepared by a land surveyor licensed to practice in the State of Minnesota - Minnesota Statute 505, 515, 515A, 515B, and

19. Hennepin County Survey Division
Instructions for making plats may be found in Hennepin County's manuals for new subdivisions plats and CIC's All plats adjoining a county road must be reviewed by the Transportation Department The Platting Process in Hennepin Minimum Plat Submittal Requirements The Plat Review Process Recording a Subdivision Plat in Hennepin County

20. Ramsey County Surveyor’s Office
Survey History
Subdivision Plats
Registered Land Surveys
Ramsey County's Manual of Minimum Guidelines for Subdivision Plats
Common Interests Community Plats
Recorded Plats and RLS
Half-Section Maps
Ramsey County Coordinates
GIS
Ramsey County Section Township Range Map

21. Dakota County Surveyor
Dakota County Plat Commission - The Contiguous Plat Ordinance No. 108 relates to plats and surveys in Dakota County on property contiguous with any existing or proposed county road, pursuant to Laws of Minnesota, 1973, Chapter 416, codified at Minnesota Statute 383D.65
The County Surveyor serves as the Secretary of the Plat Commission, which reviews all plats adjoining county roads
Dakota County PLS Control Map
Dakota Home & Property
Plats & Surveys – RLS Checking
Plat & CIC Checking
Plat Manuals
Plat Recording Policy

22. Goodhue County Plats and Maps
Douglas County Public Works, County Surveyor and GIS Division
Carver County Surveyor
GIS Mapping Applications
Plat Maps
Washington County Survey and Land Management Division
Platting land in St Paul (City of St. Paul)

23. Auditor’s Plat
Not formal subdivision In order to more easily identify existing parcels of real estate, Minnesota County Auditors sometimes employ a surveyor to draw a map of those existing parcels and give them a lot number designation simply for ease of reference in accounting for real estate taxes Those shorthand lot numbers are often used later by property owners to describe their property In spite of the fact that these plats are not formal, legal subdivisions, these maps are a source of information for determining lot sizes, location and dimensions of the real estate contained in them They also make it much easier to describe a parcel than is the case when relying on the longer, metes and bounds, description from which the lots or parcels contained in the Auditor's Plat originally came

24. My Property in Sunfish Lake
Dakota County PLS Control Map & Breakdowns Dakota County Standard Property Map Locator

25. Monuments Around my Property

26. Section 31 Township 28 North Range 22 West 4th PM

27. North ½ Section 31 Township 28 North Range 22 West 4th PM

28. South ½ Section 31 Township 28 North Range 22 West 4th PM

29. S1/2 Section 12 T 28N R22W 4th PM
40 acres
40 acres

30. SW1/4 of SE1/4 Section 12 2 1 4 5 3

31. Beth Heights

32. Beth Height First Addition

33. Pipeline Easement
Highway Easement

35. Highway Easement – Linwood Avenue

36. Pipeline Easement
