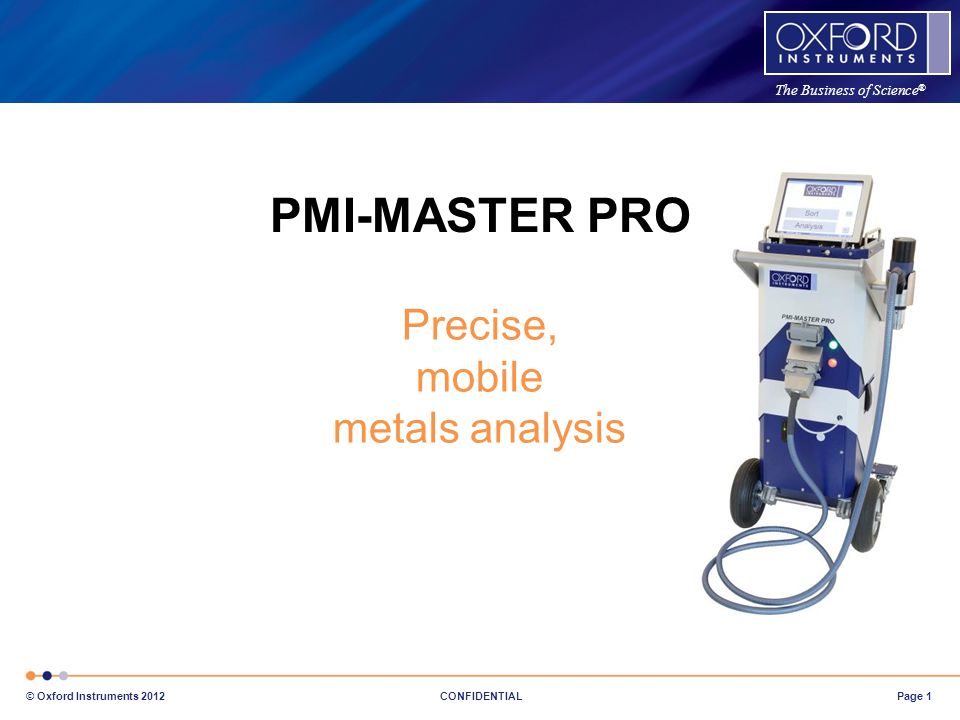

1. The Business of Science ® Page 1 © Oxford Instruments 2012 CONFIDENTIAL PMI-MASTER PRO Precise, mobile metals analysis

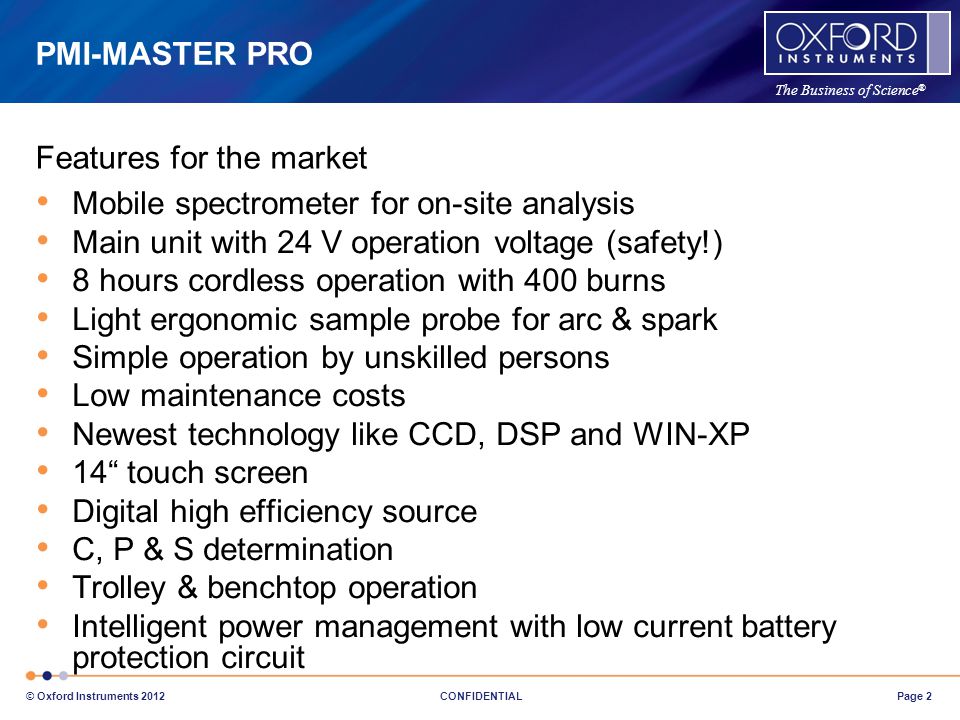

2. Page 2 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® Mobile spectrometer for on-site analysis Main unit with 24 V operation voltage (safety!) 8 hours cordless operation with 400 burns Light ergonomic sample probe for arc & spark Simple operation by unskilled persons Low maintenance costs Newest technology like CCD, DSP and WIN-XP 14“ touch screen Digital high efficiency source C, P & S determination Trolley & benchtop operation Intelligent power management with low current battery protection circuit Features for the market PMI-MASTER PRO

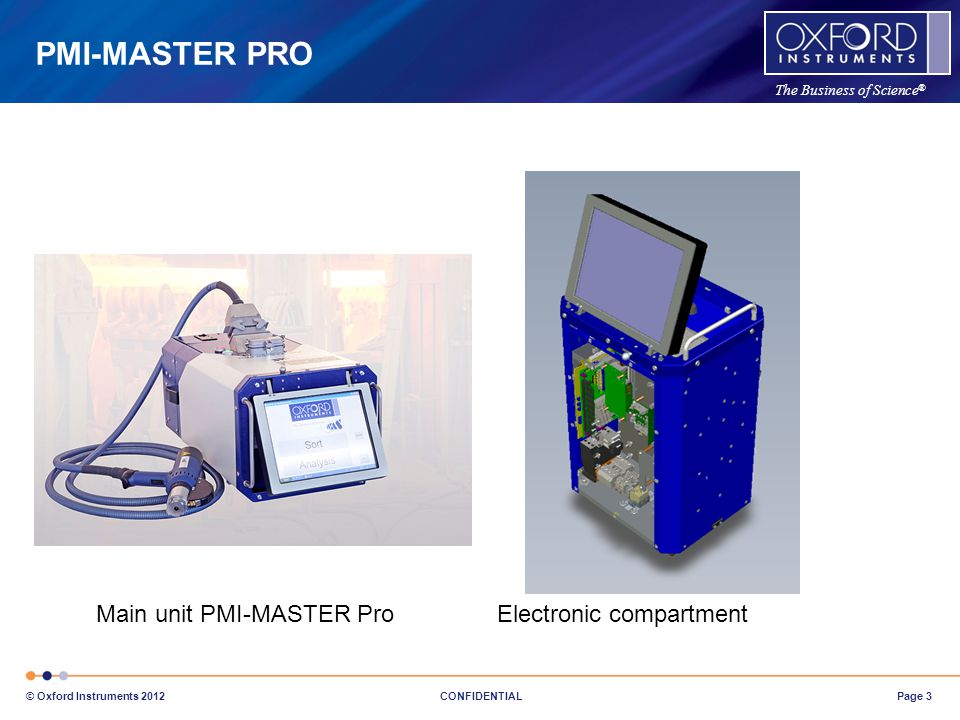

3. Page 3 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® Main unit PMI-MASTER ProElectronic compartment PMI-MASTER PRO

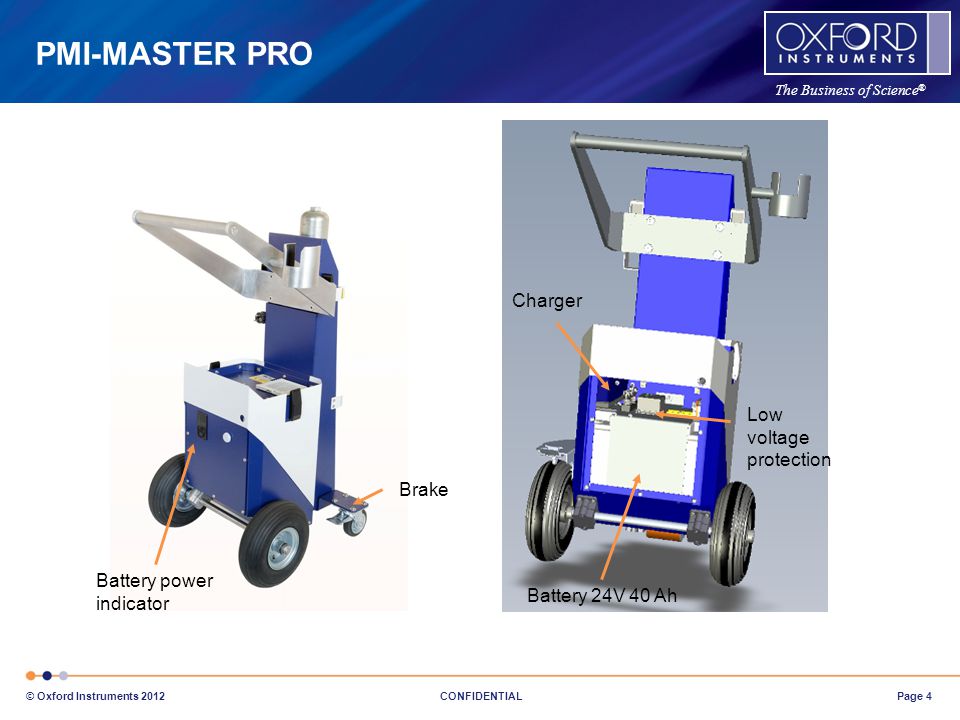

4. Page 4 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® Battery power indicator Battery 24V 40 Ah Low voltage protection Charger Brake PMI-MASTER PRO

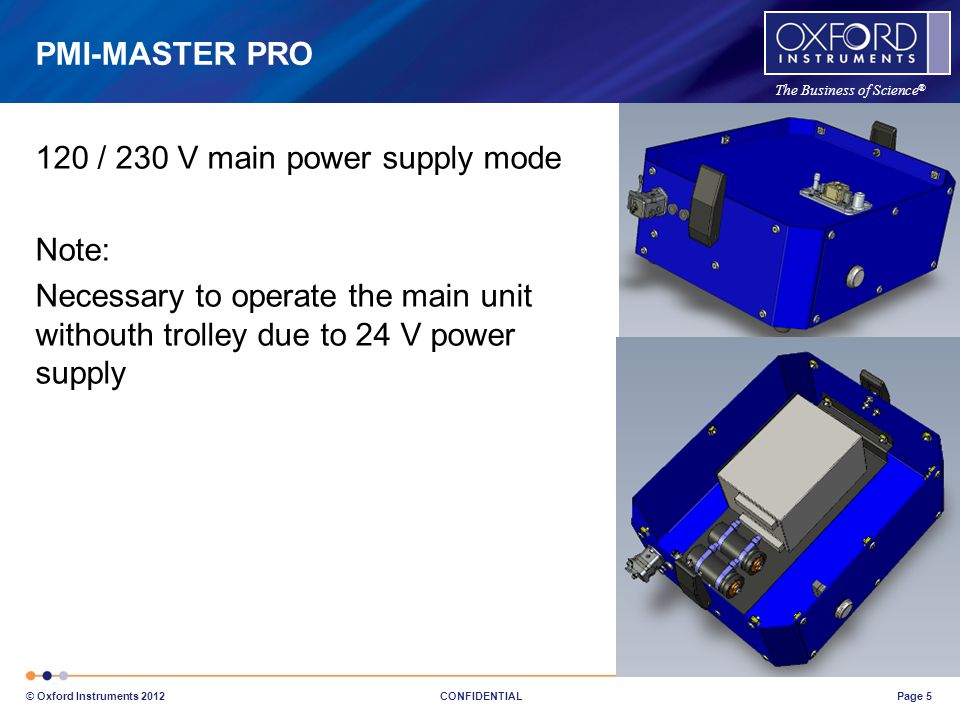

5. Page 5 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® 120 / 230 V main power supply mode Note: Necessary to operate the main unit withouth trolley due to 24 V power supply PMI-MASTER PRO

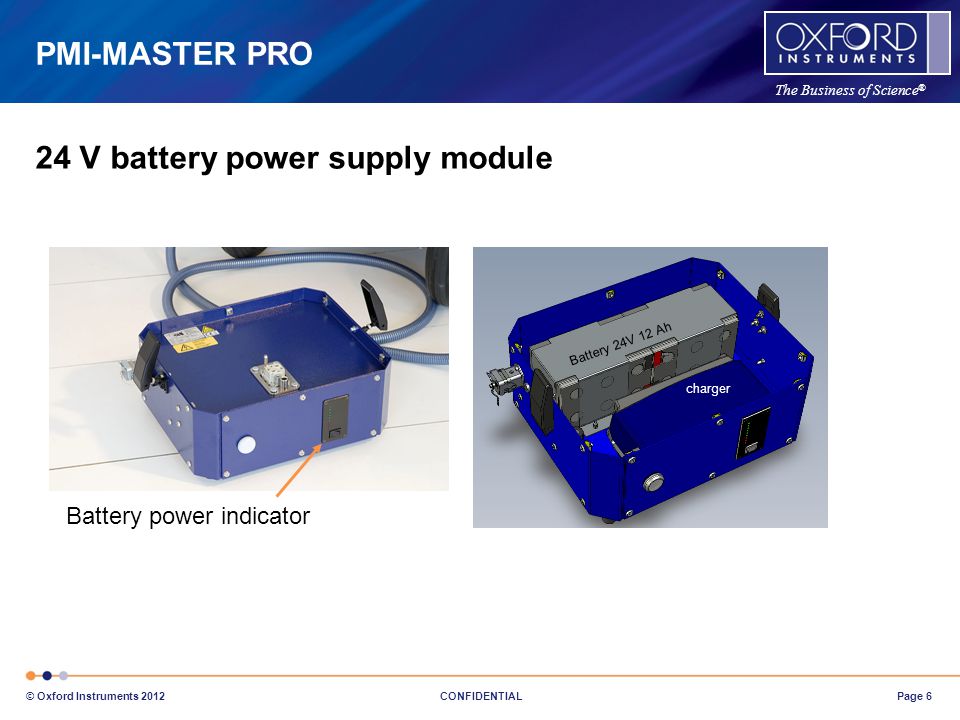

6. Page 6 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® Battery power indicator charger Battery 24V 12 Ah PMI-MASTER PRO 24 V battery power supply module

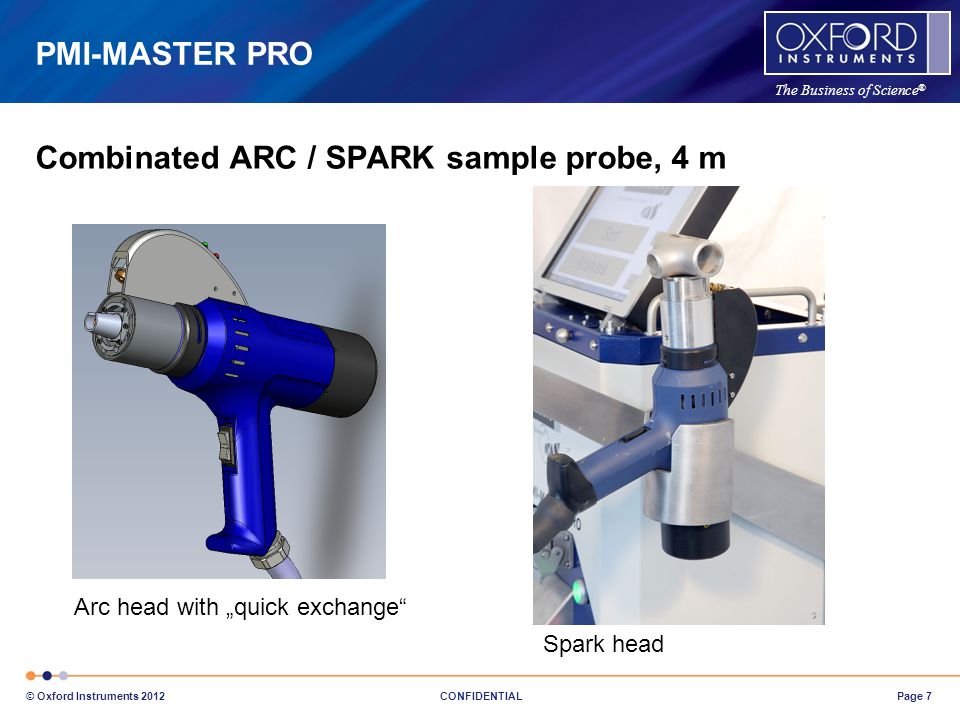

7. Page 7 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® Arc head with „quick exchange“ Spark head PMI-MASTER PRO Combinated ARC / SPARK sample probe, 4 m

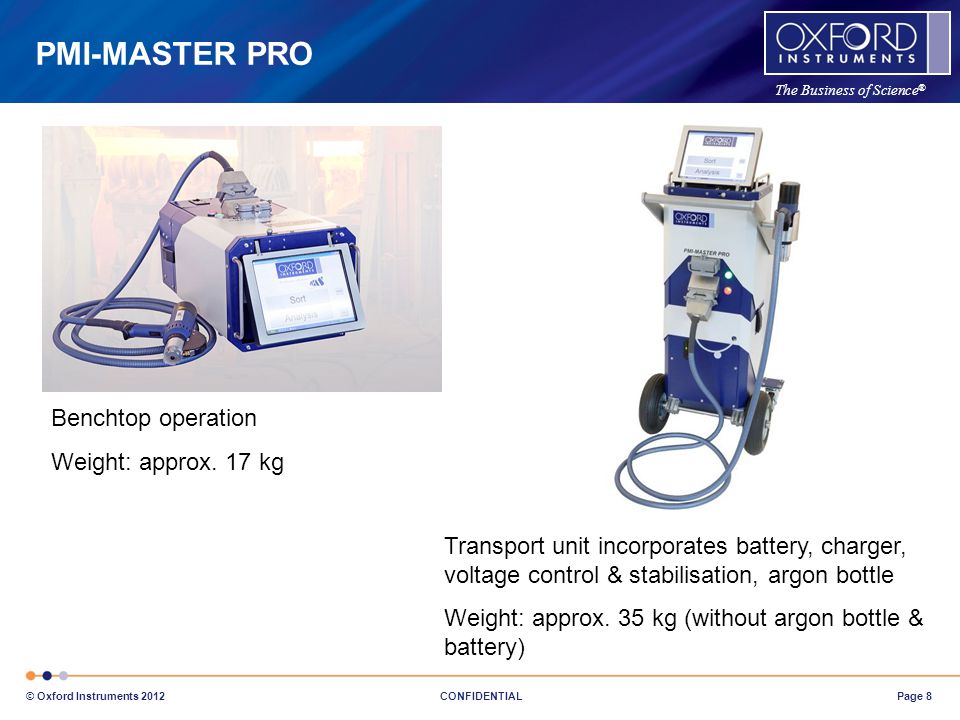

8. Page 8 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® Benchtop operation Weight: approx. 17 kg Transport unit incorporates battery, charger, voltage control & stabilisation, argon bottle Weight: approx. 35 kg (without argon bottle & battery) PMI-MASTER PRO

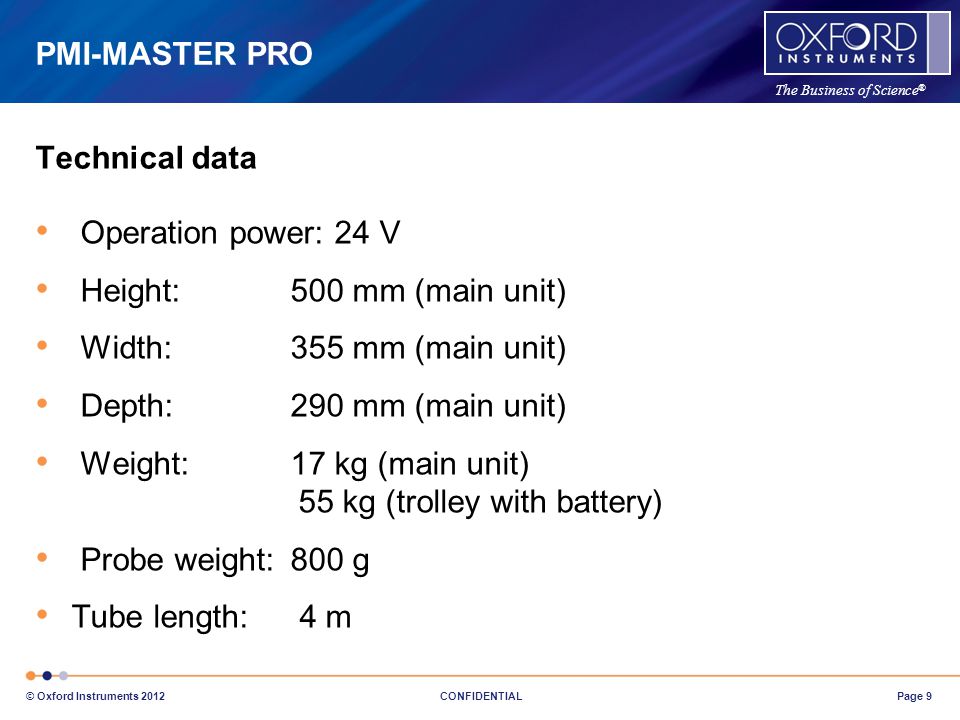

9. Page 9 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMI-MASTER PRO Operation power: 24 V Height: 500 mm (main unit) Width:355 mm (main unit) Depth: 290 mm (main unit) Weight: 17 kg (main unit) 55 kg (trolley with battery) Probe weight:800 g Tube length: 4 m Technical data

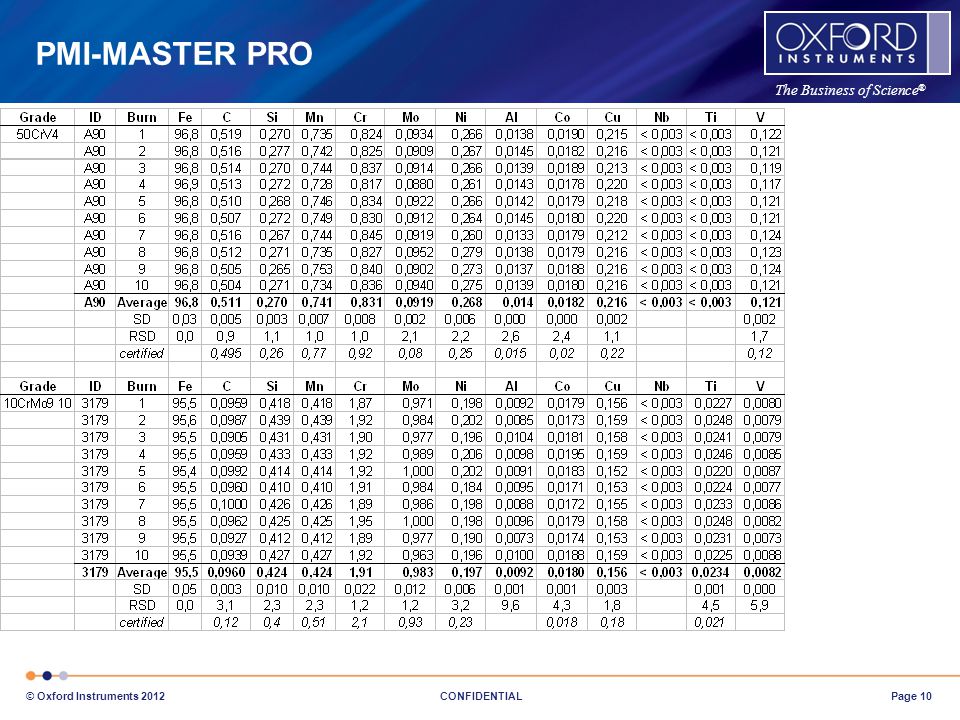

10. Page 10 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMI-MASTER PRO

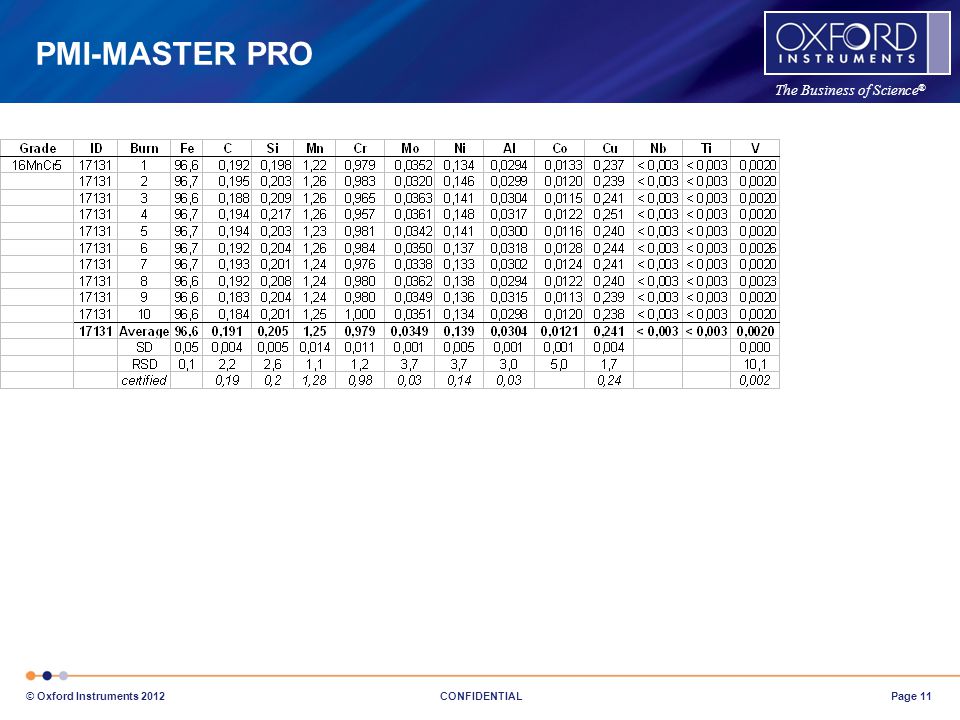

11. Page 11 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMI-MASTER PRO

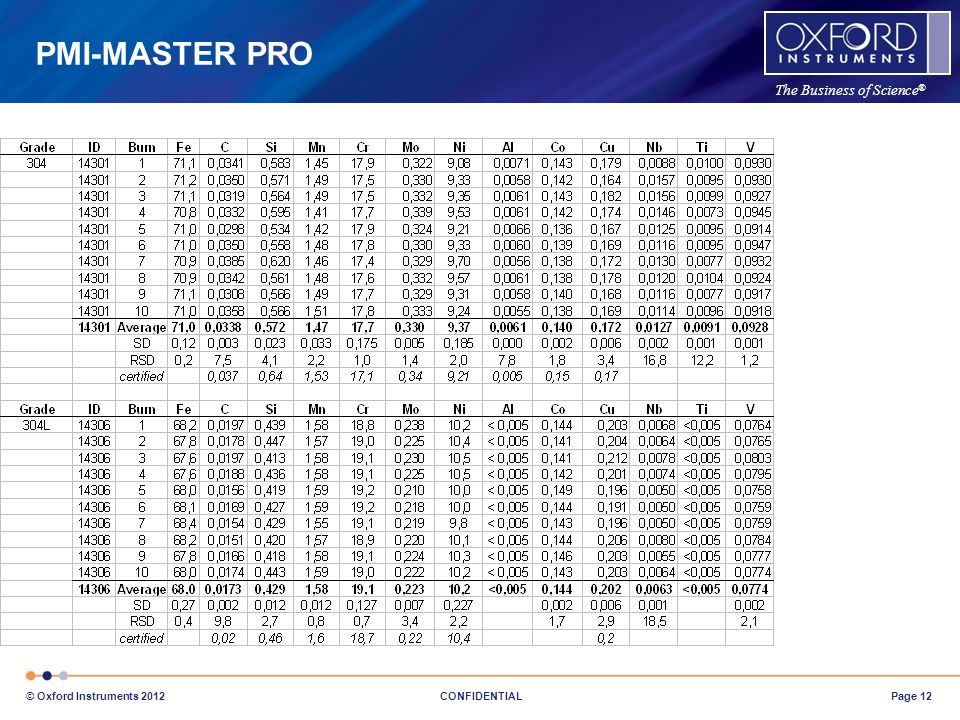

12. Page 12 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMI-MASTER PRO

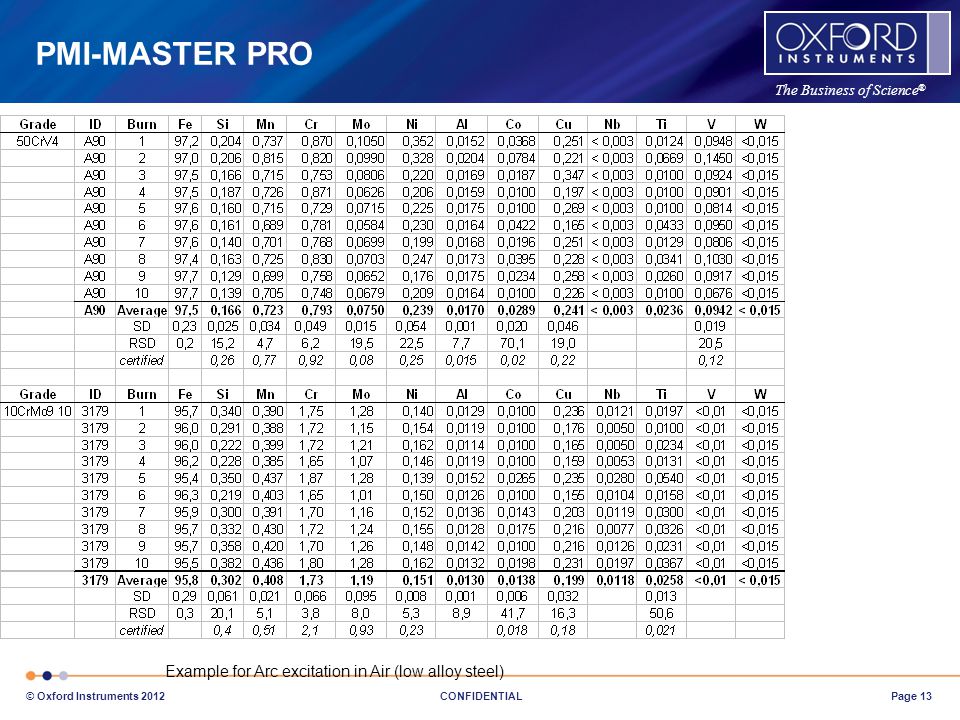

13. Page 13 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMI-MASTER PRO Example for Arc excitation in Air (low alloy steel)

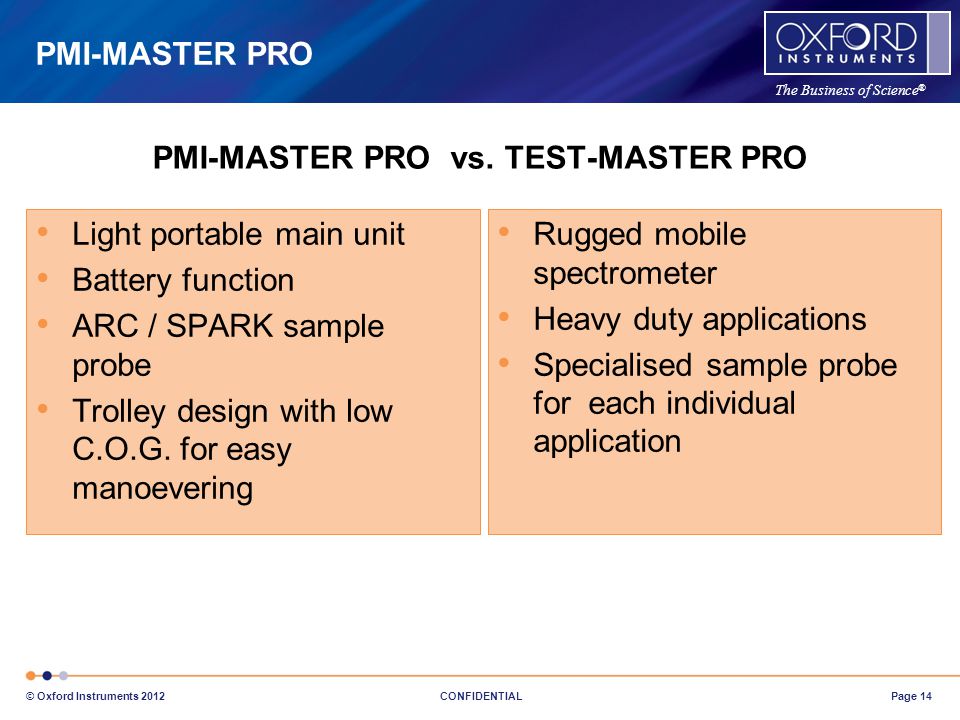

14. Page 14 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMI-MASTER PRO Light portable main unit Battery function ARC / SPARK sample probe Trolley design with low C.O.G. for easy manoevering PMI-MASTER PRO vs. TEST-MASTER PRO Rugged mobile spectrometer Heavy duty applications Specialised sample probe for each individual application

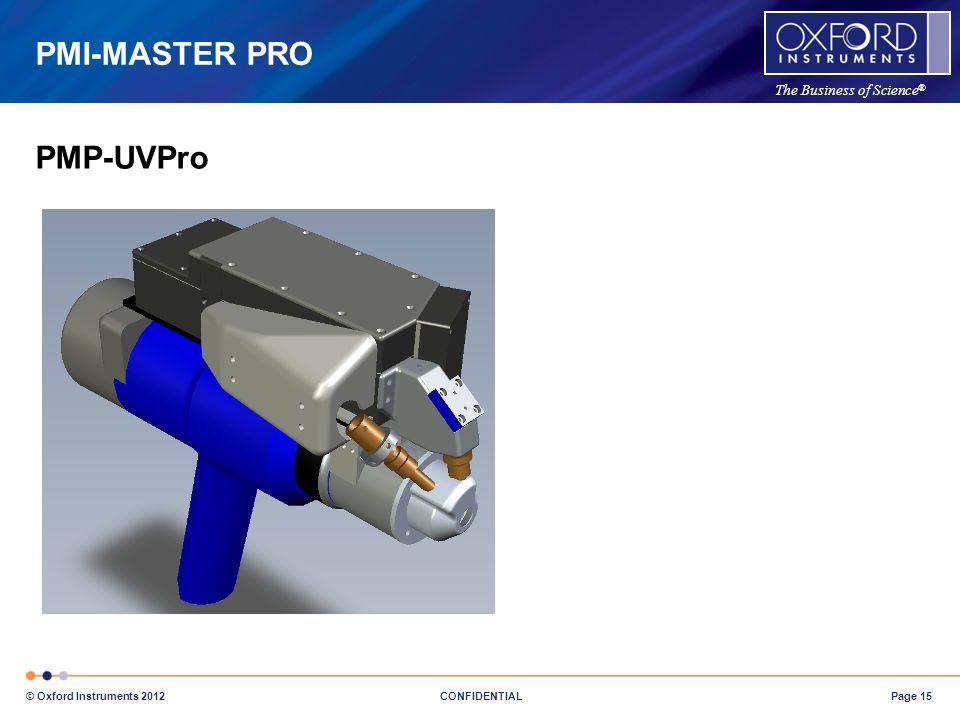

15. Page 15 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMP-UVPro PMI-MASTER PRO

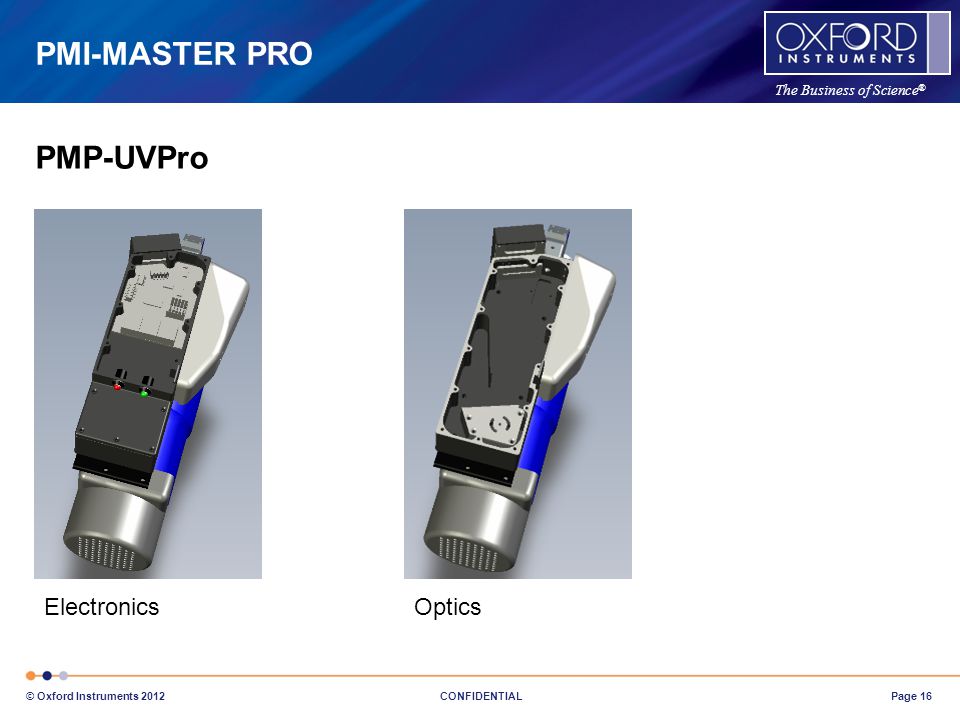

16. Page 16 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMP-UVPro PMI-MASTER PRO ElectronicsOptics

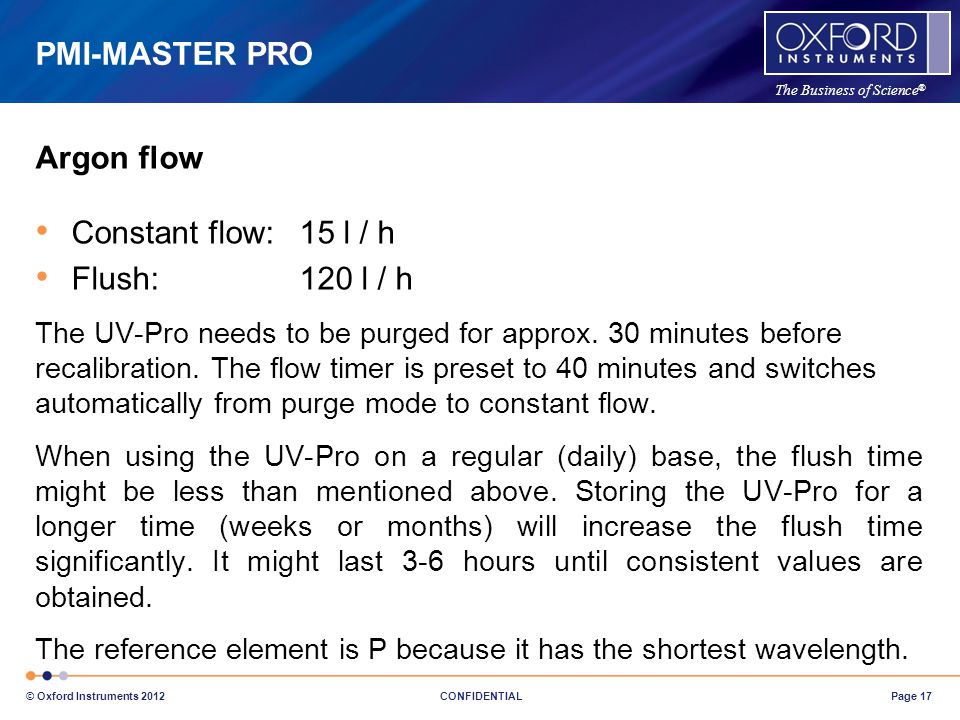

17. Page 17 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® Constant flow:15 l / h Flush:120 l / h The UV-Pro needs to be purged for approx. 30 minutes before recalibration. The flow timer is preset to 40 minutes and switches automatically from purge mode to constant flow. When using the UV-Pro on a regular (daily) base, the flush time might be less than mentioned above. Storing the UV-Pro for a longer time (weeks or months) will increase the flush time significantly. It might last 3-6 hours until consistent values are obtained. The reference element is P because it has the shortest wavelength. Argon flow PMI-MASTER PRO

18. Page 18 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® Boron with PMP UV-Pro PMI-MASTER PRO BEC: 100 ppm LOD:10 ppm Standard error of fit:5 ppm

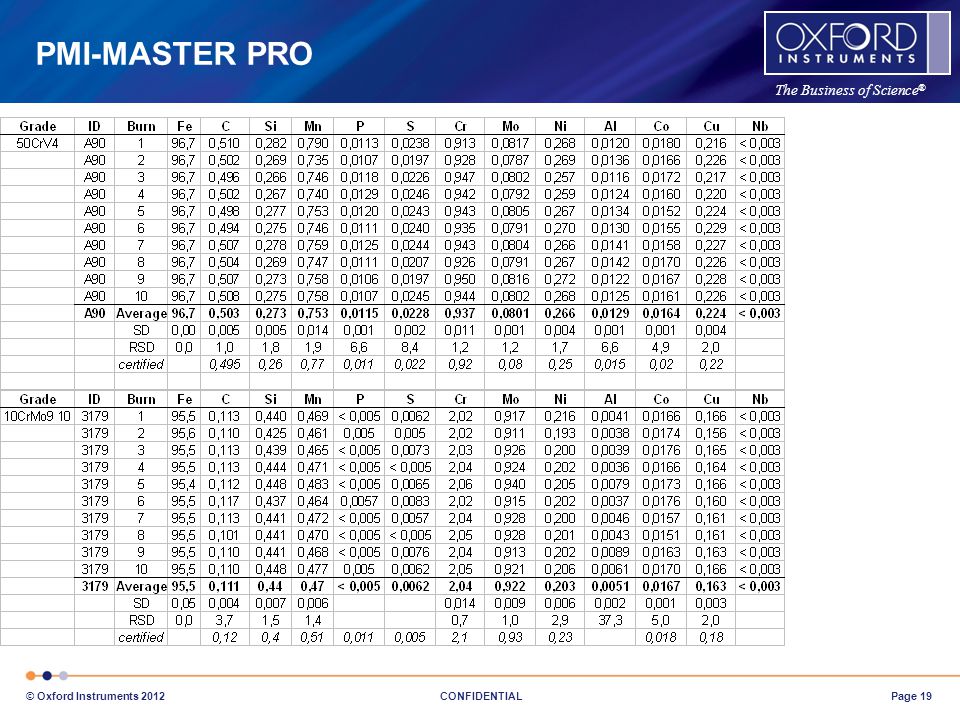

19. Page 19 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMI-MASTER PRO

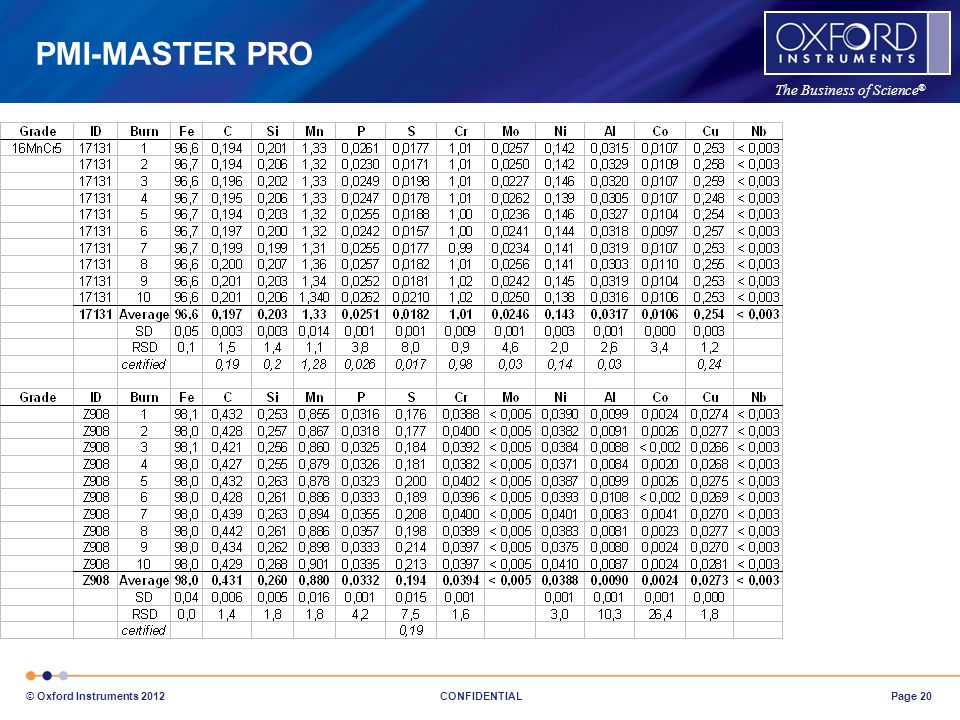

20. Page 20 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMI-MASTER PRO

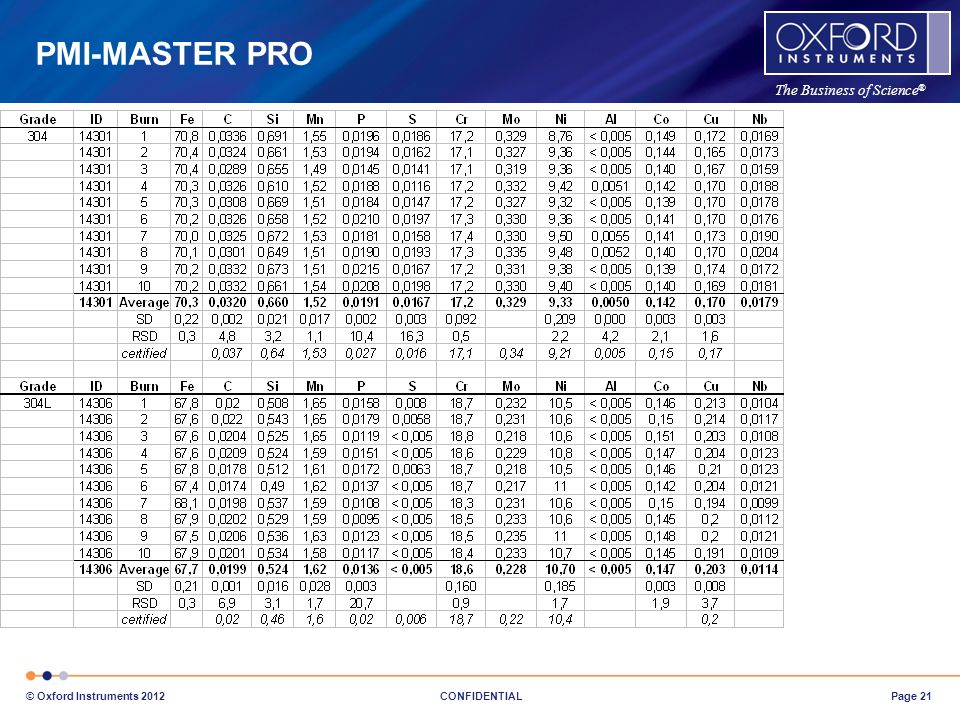

21. Page 21 © Oxford Instruments 2012 CONFIDENTIAL The Business of Science ® PMI-MASTER PRO
