Class Day Thirteen. Chapter 9 Stone & Concrete Masonry.

Similar presentations

Presentation on theme: "Class Day Thirteen. Chapter 9 Stone & Concrete Masonry."— Presentation transcript:

1 Class Day Thirteen

2 Chapter 9 Stone & Concrete Masonry

3 Stone compared to Brick Similarities: –Both stacked –Mortar Joints Differences: – Shape: Brick molded - Stone Cut and Carved Brick made/controlled – Stone provided by nature but shape may be altered.

4 Three Types of Building Stone IgneousSedimentaryMetamorphic

5 IGNEOUS ROCK Is rock that was formed by the cooling and solidification of a molten mass of rock material called magma. It is very hard and strong. SEDIMENTARY ROCK Is material that was deposited in particle state, moved by wind or water, then pressed under extreme earth pressure. METAMORPHIC ROCK Is material that used to be something else. Its original composition and texture has been altered by heat and pressure deep within the earth’s crust.

6 GRANITE is the major type of igneous rock that is prevalent in construction. The best example of granite used in Texas is the State Capital in Austin. SHALE, LIMESTONE, and SANDSTONE are examples of natural sedimentary rock. Most is relatively light in color, gray to white, and can be cut into relatively thin sheets for building veneer. Texas shell stone is an unusual example of sandstone rock. SLATE and MARBLE are the best examples of metamorphic rock. Colors are in a wide range from light to black. Slate can be cut thin enough to make roofing shingles. Marble is durable and hard and can be polished to a mirror surface finish, but is relatively porous.

7 Some color options of granite

8 Polished Surface Rough Texture

9 Texture Variances (Note the Effect on Appearance)

10 Shape Flat to Round

11 Exterior Application

12 Sedimentary Rock Limestone & Sandstone Porous, relatively weak by comparison Color Range – doesn’t have much character Surface Textures – does not take fine polish Sources – mid west region of U.S. region of U.S. Primary Uses – primarily veneer primarily veneer facing on building facing on building exteriors. exteriors.

13 Limestone with Granite

14 Simulated Limestone Cladding Actually is pre-cast concrete finished to look Like limestone – very durable

15 Metamorphic Rock Marble Slate

16 Marble - Exterior Application

17 Marble Flooring

18 Slate Roofing Shingles

19 Slate Flooring

20 Types of Building Stone Fieldstone Rubble Stone Dimension Stone

21 Stone Masonry Patterns Laid in Mortar Rubble has irregular shapes and sizes. Large pieces are laid at random will fill of smaller stones. Ashlar pattern has relatively square and rectangular pieces.

22 Random Rubble Stone

23 Stone Masonry  Rubble stone and ashlar pattern stone is laid in mortar beds much like brick. Stone may be laid to form the structural mass of wall, or it may be installed in a single facing layer to become a veneer attached to some other structural support.  Cut stone such as marble, granite, and sandstone are mechanically fastened in large sheets to a support system and fastened in place with steel cramps. Joints may be filled masonry grout.



26 Concrete Masonry Units  Concrete masonry units are made of concrete, except for modifications in the materials. Aggregates in masonry units are made of lighter weight material such as expanded shale rather than hard rock.  The units are cast in steel molds then placed in a controlled atmosphere where the cement is allowed to cure to the full strength of the mix.  Units are made in a variety of shapes and sizes for specific applications.


28 Typical Shape Bond Beam ‘Corner’ – Round & Square Combination

29 Spanning Openings in Concrete Masonry Walls Steel Lintels Block Lintels - Reinforced Bond Beam Pre cast Reinforced Concrete Lintel

30 CMU Installation

31 Layout & Lead Blocks

32 Installation of Mortar Bead

33 Lay CMU

34 Tooled Joints

35 Control Joint

36 Decorative CMUs Split face CMU

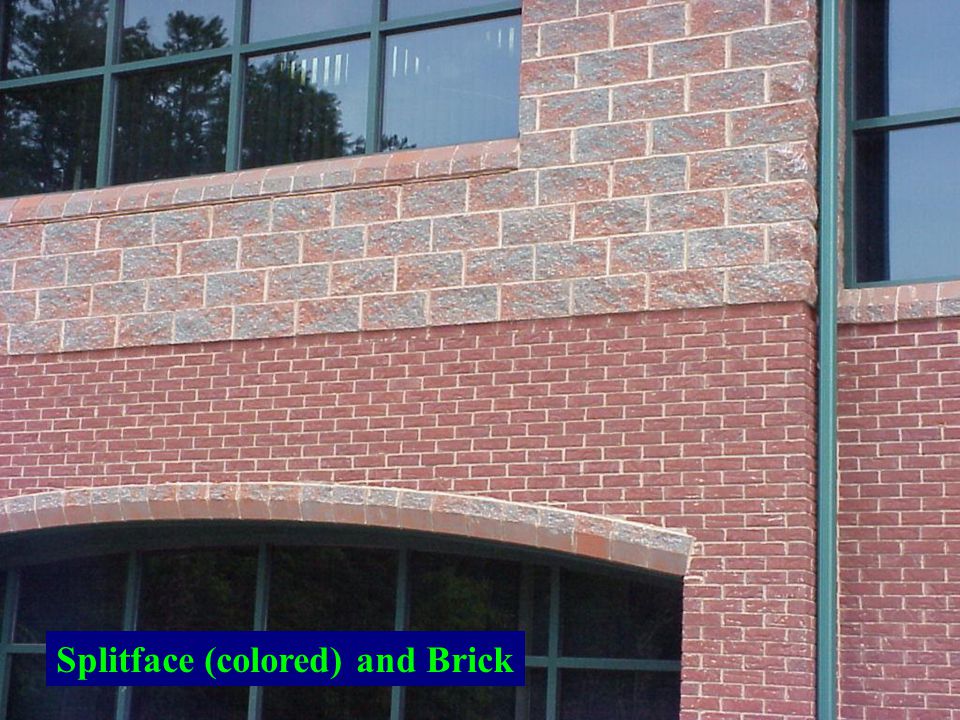

37 Splitface (colored) and Brick

38 Painted CMU

39 Ground face

40 Split face, Brick, & Tile

41 Special Shapes
