1 Circuit Breakers and Busbars

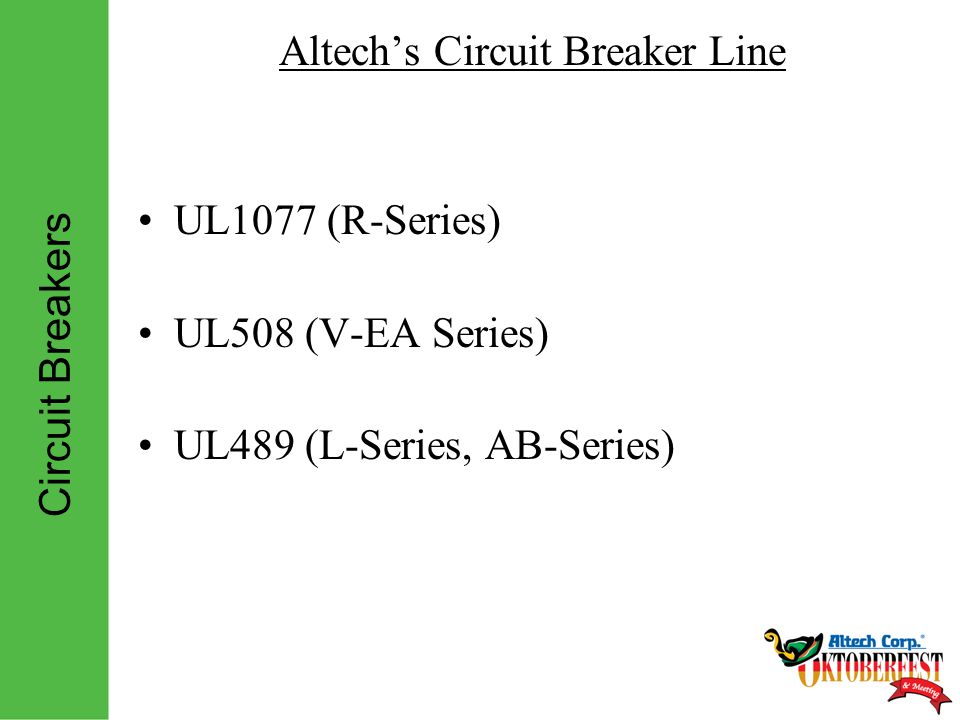

2 Circuit Breakers Altech’s Circuit Breaker Line UL1077 (R-Series) UL508 (V-EA Series) UL489 (L-Series, AB-Series)

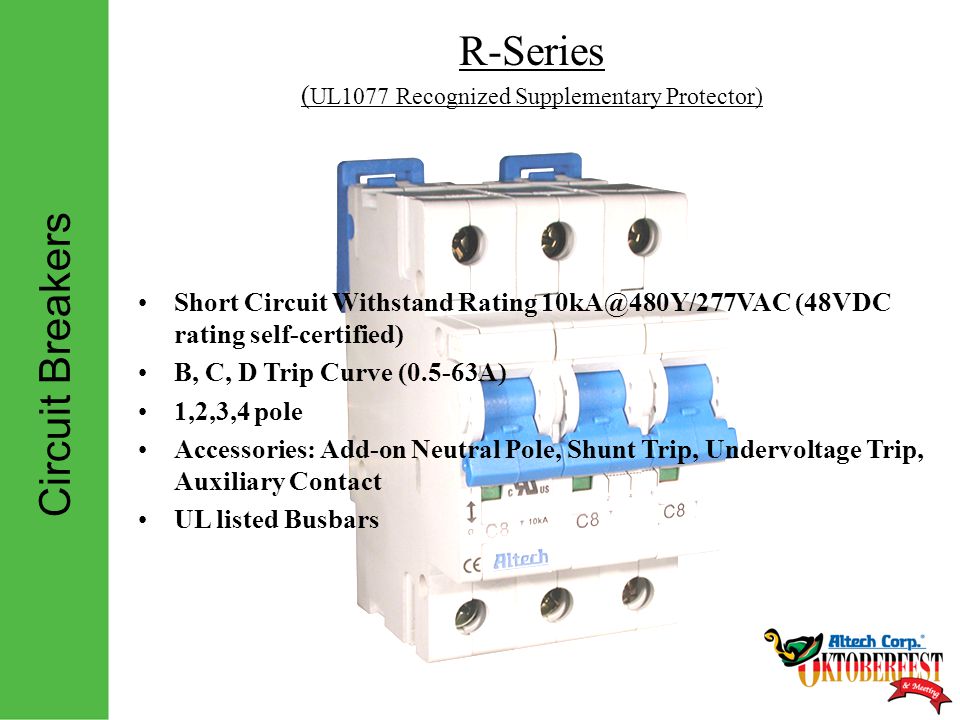

3 Circuit Breakers R-Series ( UL1077 Recognized Supplementary Protector) Short Circuit Withstand Rating 10kA@480Y/277VAC (48VDC rating self-certified) B, C, D Trip Curve (0.5-63A) 1,2,3,4 pole Accessories: Add-on Neutral Pole, Shunt Trip, Undervoltage Trip, Auxiliary Contact UL listed Busbars

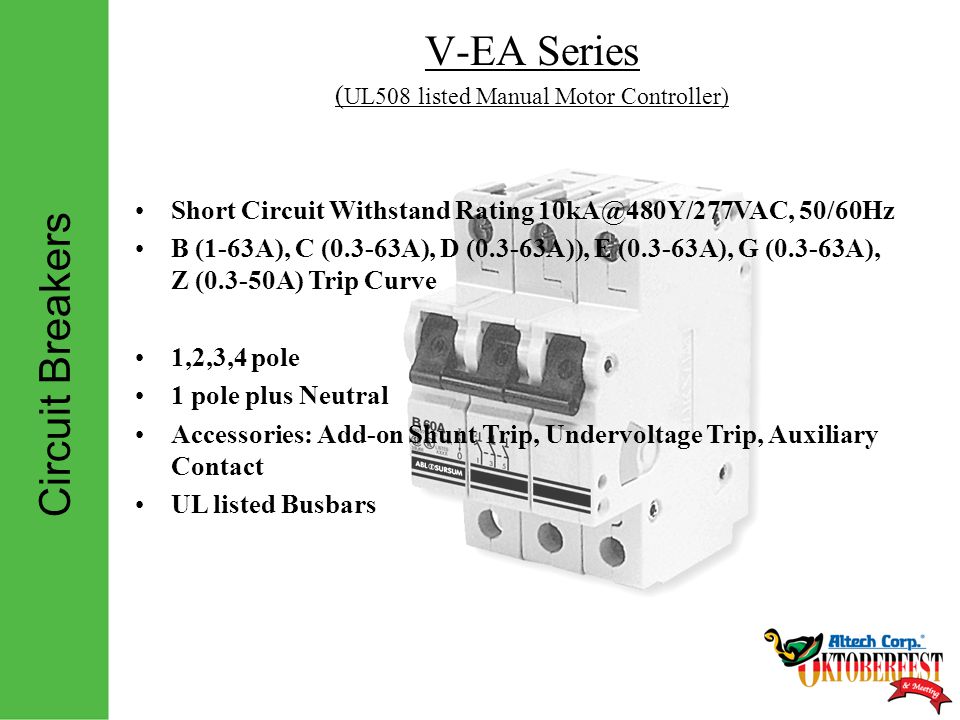

4 Circuit Breakers V-EA Series ( UL508 listed Manual Motor Controller) Short Circuit Withstand Rating 10kA@480Y/277VAC, 50/60Hz B (1-63A), C (0.3-63A), D (0.3-63A)), E (0.3-63A), G (0.3-63A), Z (0.3-50A) Trip Curve 1,2,3,4 pole 1 pole plus Neutral Accessories: Add-on Shunt Trip, Undervoltage Trip, Auxiliary Contact UL listed Busbars

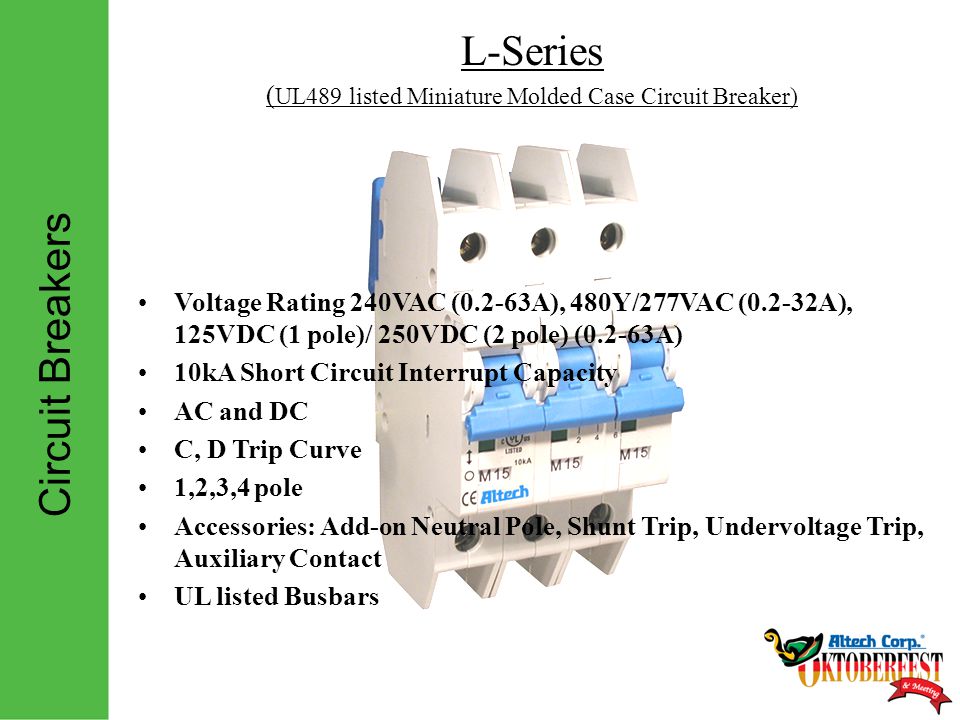

5 Circuit Breakers L-Series ( UL489 listed Miniature Molded Case Circuit Breaker) Voltage Rating 240VAC (0.2-63A), 480Y/277VAC (0.2-32A), 125VDC (1 pole)/ 250VDC (2 pole) (0.2-63A) 10kA Short Circuit Interrupt Capacity AC and DC C, D Trip Curve 1,2,3,4 pole Accessories: Add-on Neutral Pole, Shunt Trip, Undervoltage Trip, Auxiliary Contact UL listed Busbars

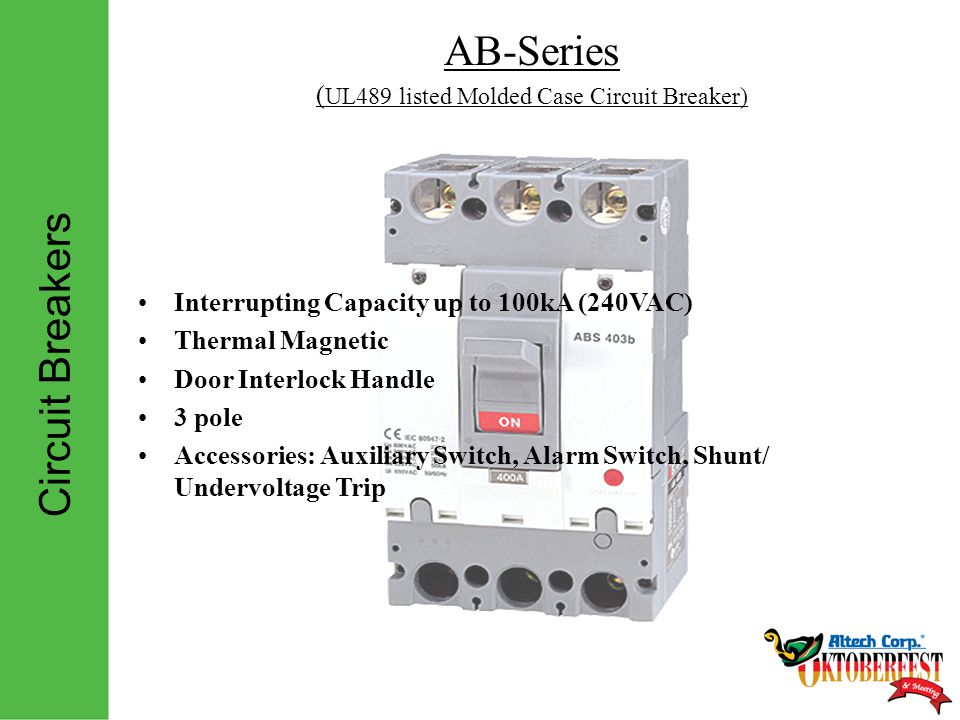

6 Circuit Breakers AB-Series ( UL489 listed Molded Case Circuit Breaker) Interrupting Capacity up to 100kA (240VAC) Thermal Magnetic Door Interlock Handle 3 pole Accessories: Auxiliary Switch, Alarm Switch, Shunt/ Undervoltage Trip

7 Circuit Breakers UL Standards and its Functions StandardFunction

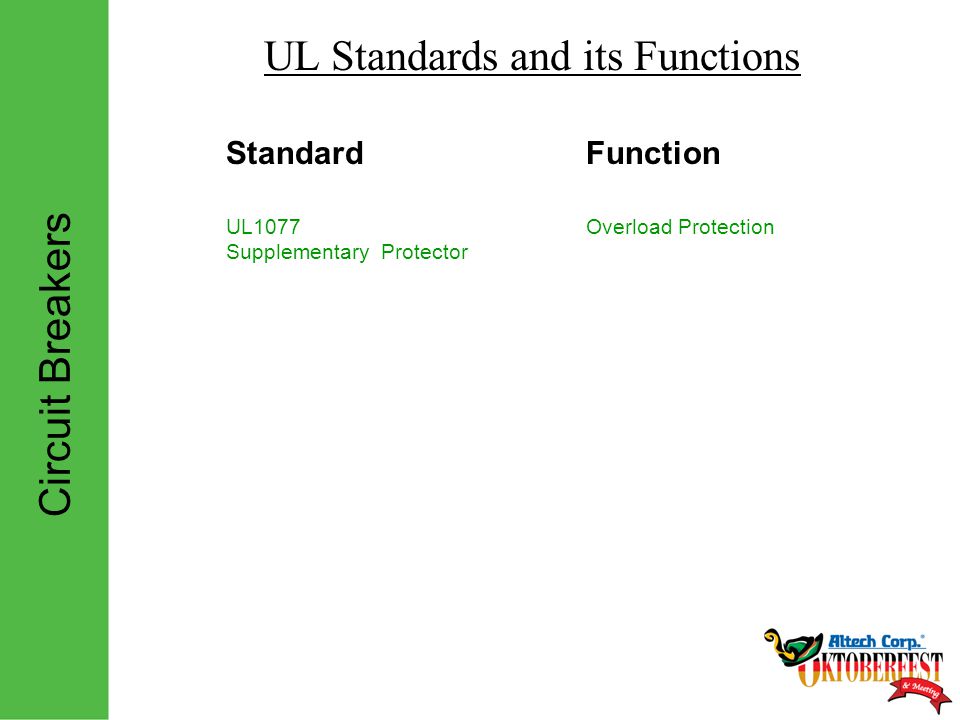

8 Circuit Breakers UL Standards and its Functions StandardFunction UL1077 Supplementary Protector Overload Protection

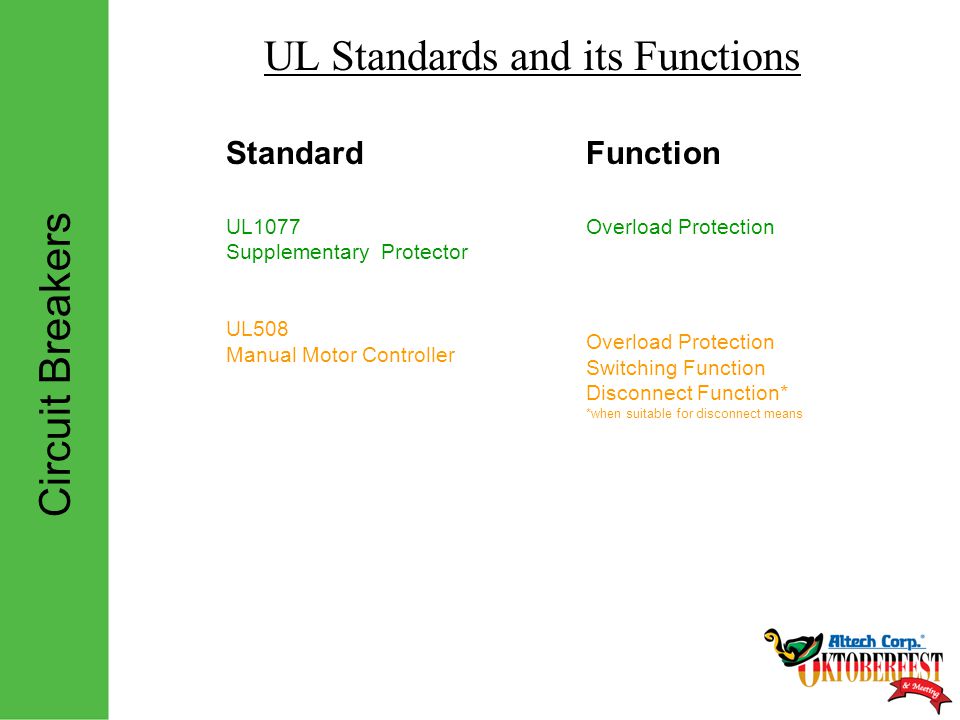

9 Circuit Breakers UL Standards and its Functions StandardFunction UL1077 Supplementary Protector UL508 Manual Motor Controller Overload Protection Overload Protection Switching Function Disconnect Function* *when suitable for disconnect means

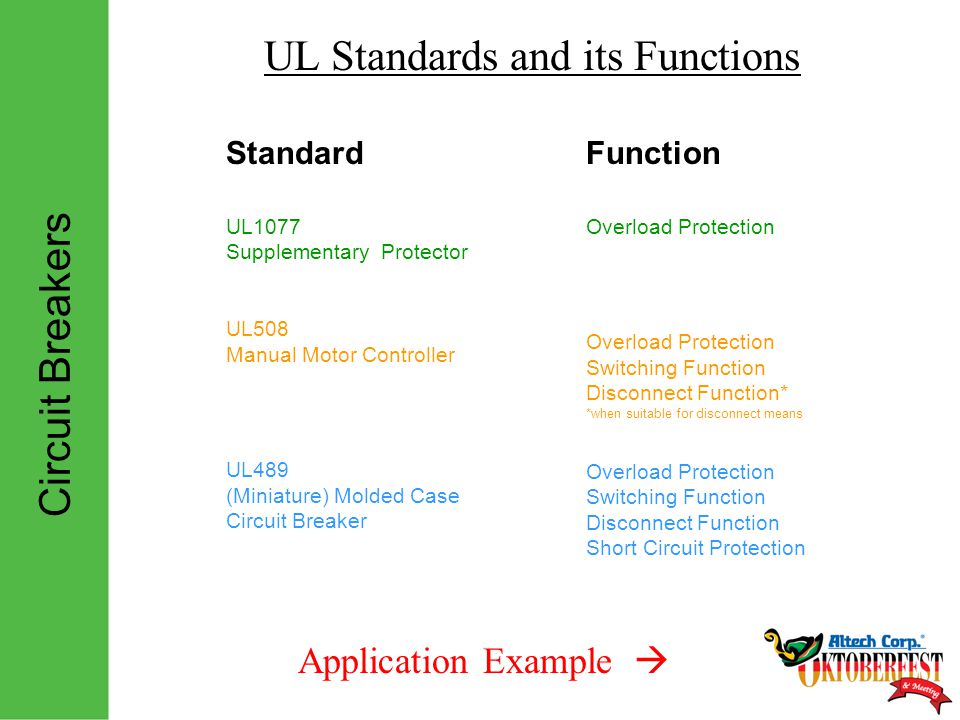

10 Circuit Breakers UL Standards and its Functions StandardFunction UL1077 Supplementary Protector UL508 Manual Motor Controller UL489 (Miniature) Molded Case Circuit Breaker Overload Protection Overload Protection Switching Function Disconnect Function* *when suitable for disconnect means Overload Protection Switching Function Disconnect Function Short Circuit Protection Application Example 

11 Circuit Breakers Typical UL508A Panel

12 Circuit Breakers Typical UL508A Panel

13 Circuit Breakers Typical UL508A Panel

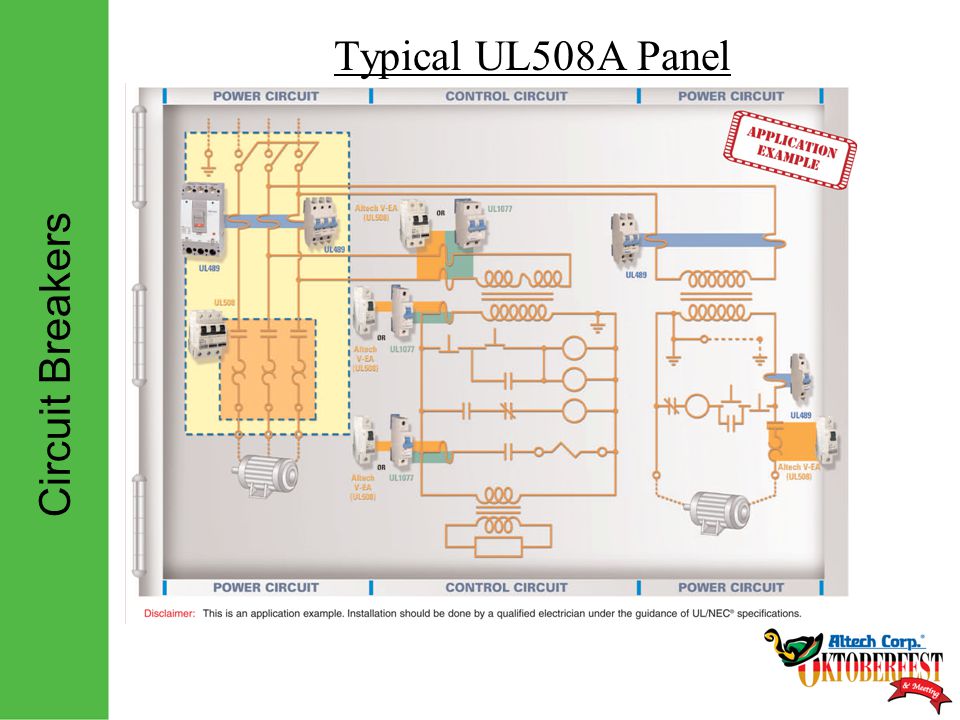

14 Circuit Breakers Typical UL508A Panel

15 Busbars Altech’s Busbar Line UL508 listed Busbars UL489 listed Busbars

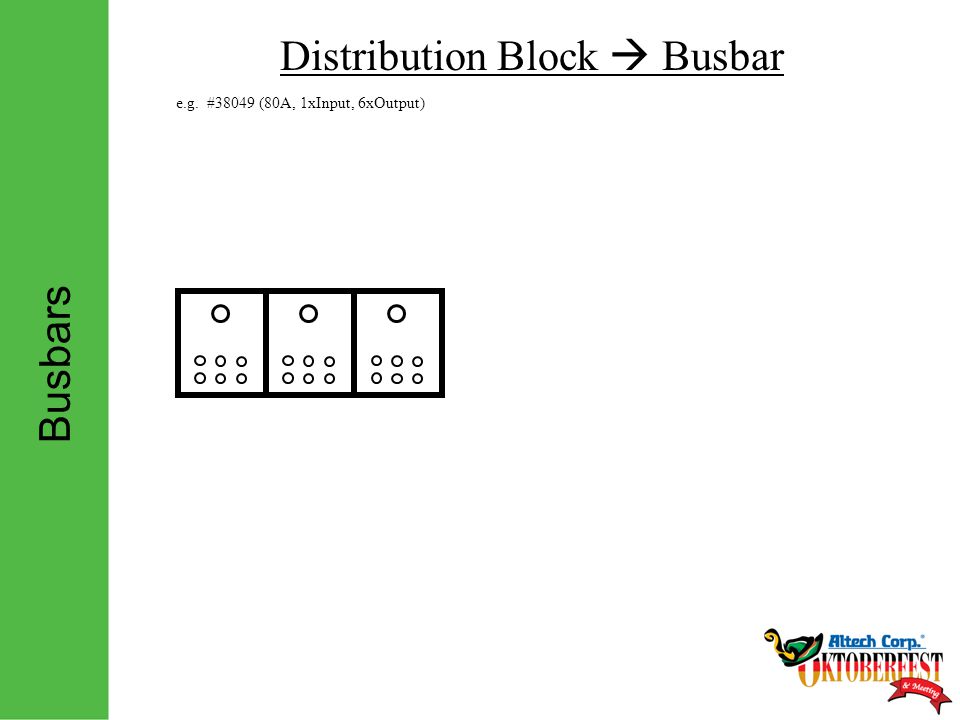

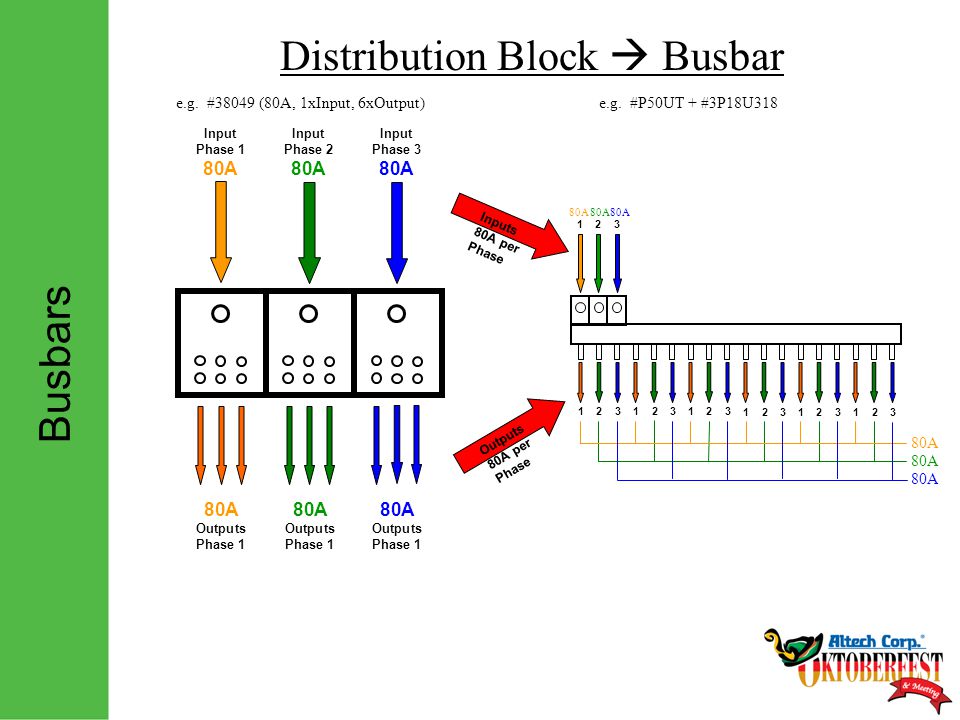

16 Busbars Distribution Block  Busbar e.g. #38049 (80A, 1xInput, 6xOutput)

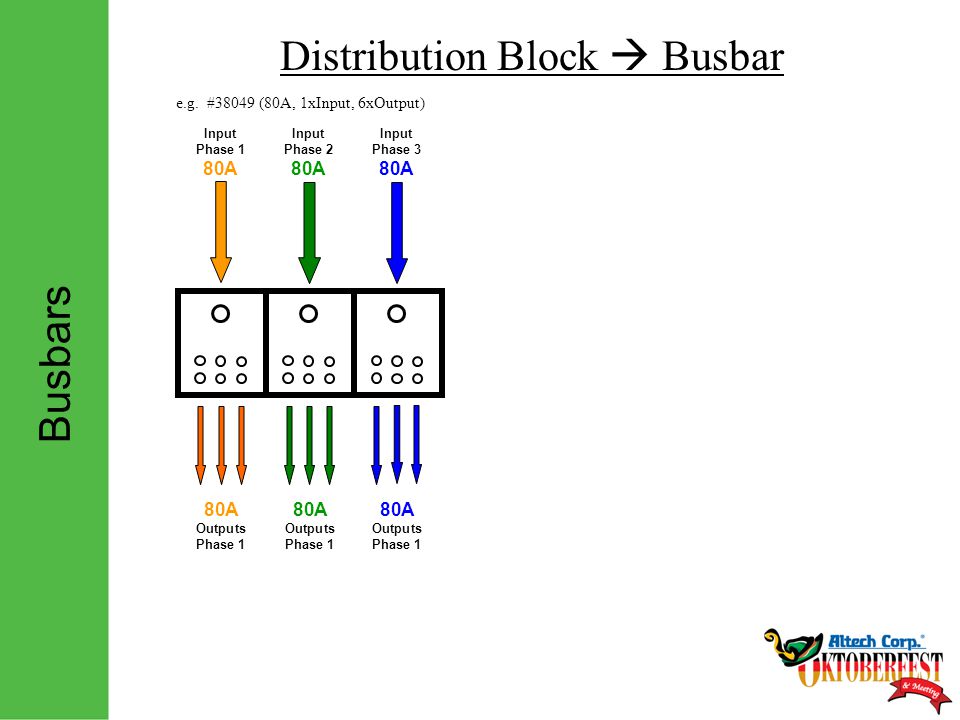

17 Busbars Distribution Block  Busbar Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A 80A Outputs Phase 1 e.g. #38049 (80A, 1xInput, 6xOutput)

18 Busbars Distribution Block  Busbar 80A Outputs Phase 1 Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A e.g. #38049 (80A, 1xInput, 6xOutput)e.g. #P50UT + #3P18U318

19 Busbars Distribution Block  Busbar Inputs 80A per Phase Outputs 80A per Phase 123 123 123 123 123 123 123 80A 80A Outputs Phase 1 Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A e.g. #38049 (80A, 1xInput, 6xOutput)e.g. #P50UT + #3P18U318 80A

20 Busbars Distribution Block  Busbar Inputs 80A per Phase Outputs 80A per Phase 123 123 123 123 123 123 123 80A 80A Outputs Phase 1 Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A e.g. #38049 (80A, 1xInput, 6xOutput)e.g. #P50UT + #3P18U318 80A

21 Busbars Distribution Block  Busbar Inputs 80A per Phase Outputs 80A per Phase 123 123 123 123 123 123 123 80A 80A Outputs Phase 1 Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A e.g. #38049 (80A, 1xInput, 6xOutput)e.g. #P50UT + #3P18U318 80A

22 Busbars Distribution Block  Busbar Inputs 80A per Phase Outputs 80A per Phase Busbar: -no wiring between distribution and control device -Installation-time saving 123 123 123 123 123 123 123 80A 80A Outputs Phase 1 Input Phase 1 80A Input Phase 2 80A Input Phase 3 80A e.g. #38049 (80A, 1xInput, 6xOutput)e.g. #P50UT + #3P18U318 80A

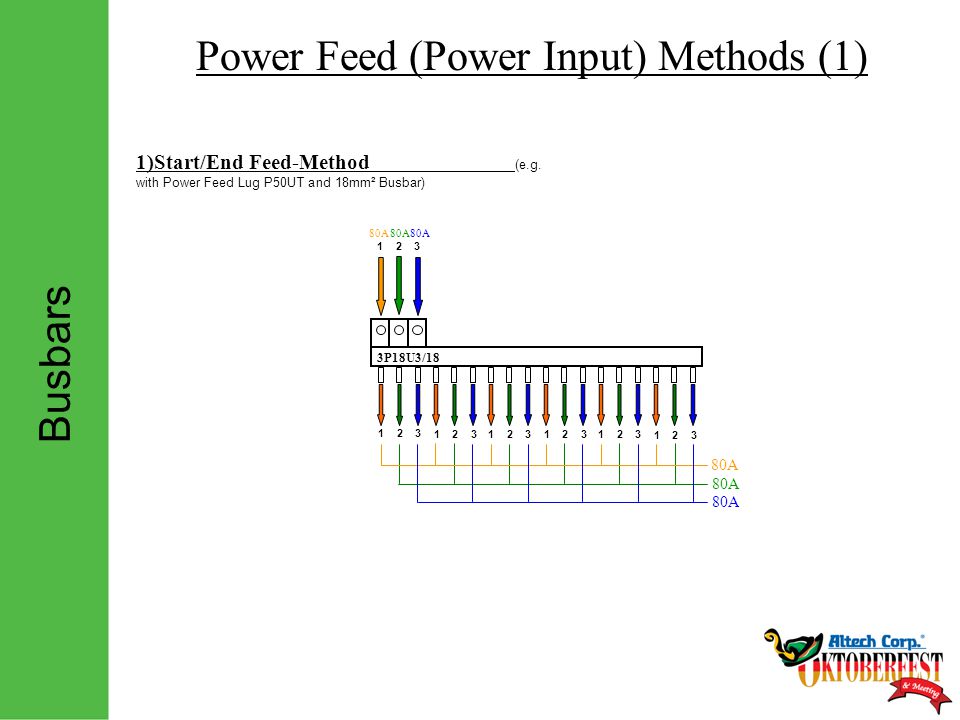

23 Busbars Power Feed (Power Input) Methods (1) 123 123 123123 123123 123 80A 1)Start/End Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 3P18U3/18

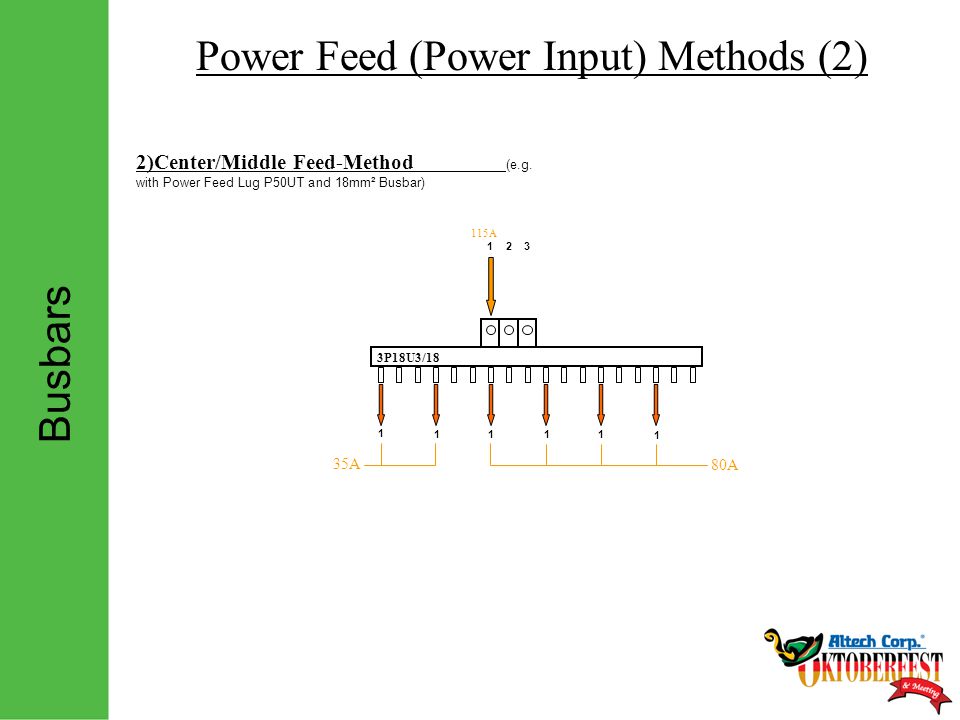

24 Busbars Power Feed (Power Input) Methods (2) 1 11 11 1 80A 123 115A 2)Center/Middle Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 35A 3P18U3/18

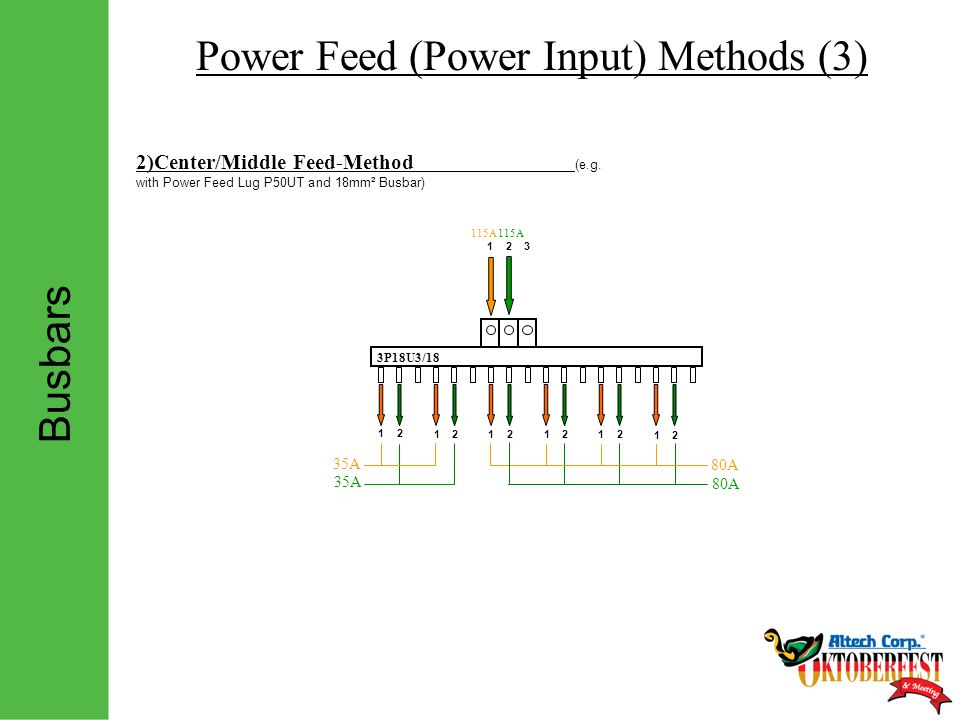

25 Busbars Power Feed (Power Input) Methods (3) 12 12 12 12 12 12 80A 123 115A 2)Center/Middle Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 35A 3P18U3/18

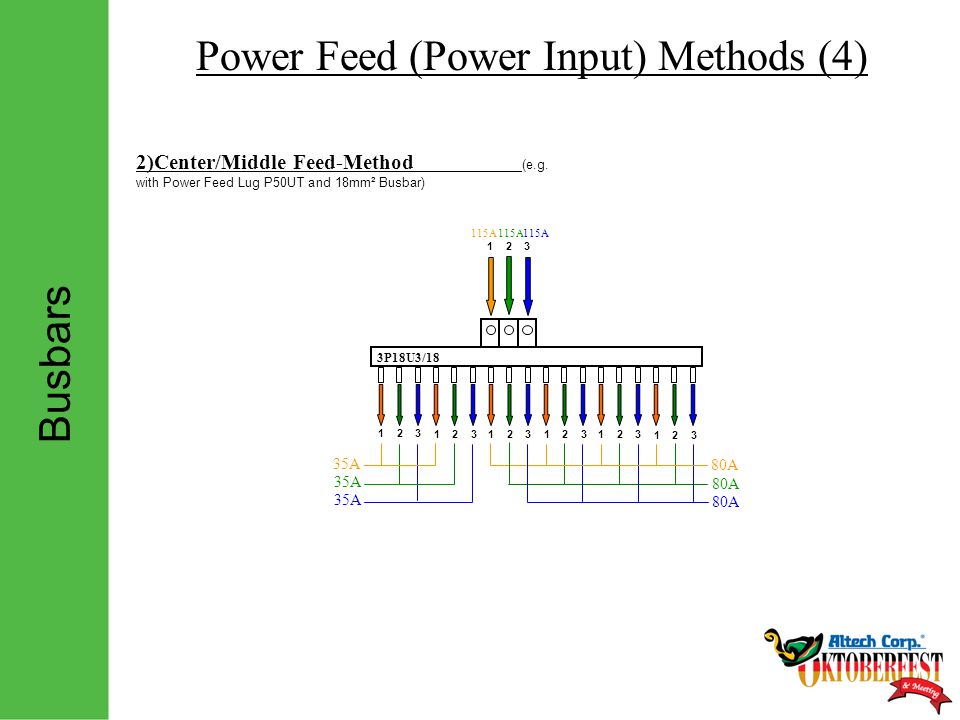

26 Busbars Power Feed (Power Input) Methods (4) 123 123 123 123 123 123 80A 123 115A 2)Center/Middle Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 35A 3P18U3/18

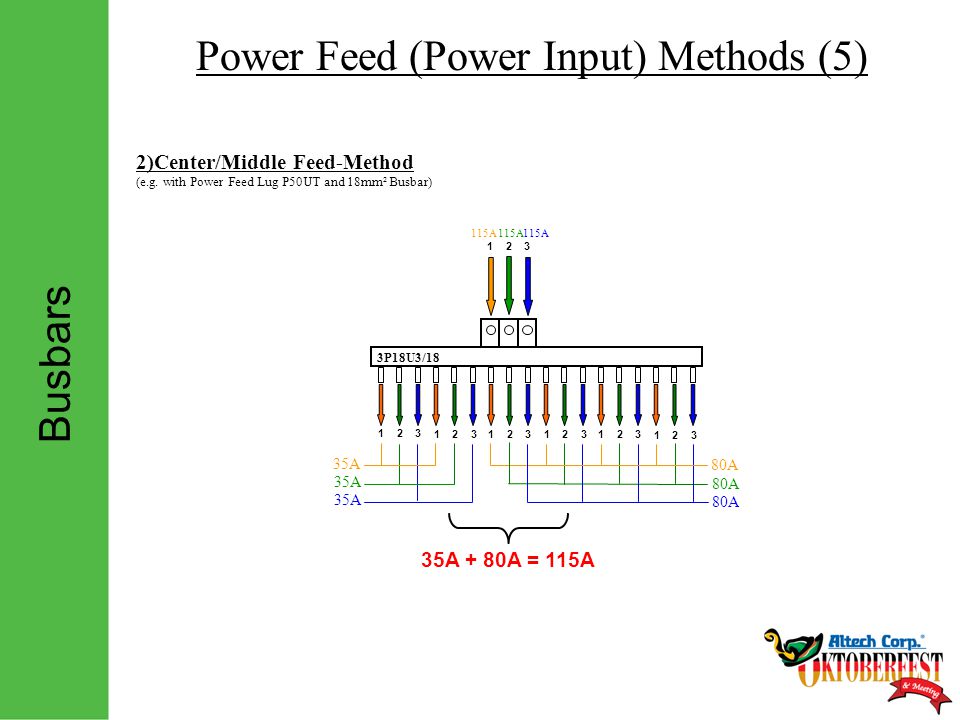

27 Busbars Power Feed (Power Input) Methods (5) 123 123 123 123 123 123 80A 123 115A 2)Center/Middle Feed-Method (e.g. with Power Feed Lug P50UT and 18mm² Busbar) 35A 35A + 80A = 115A 3P18U3/18

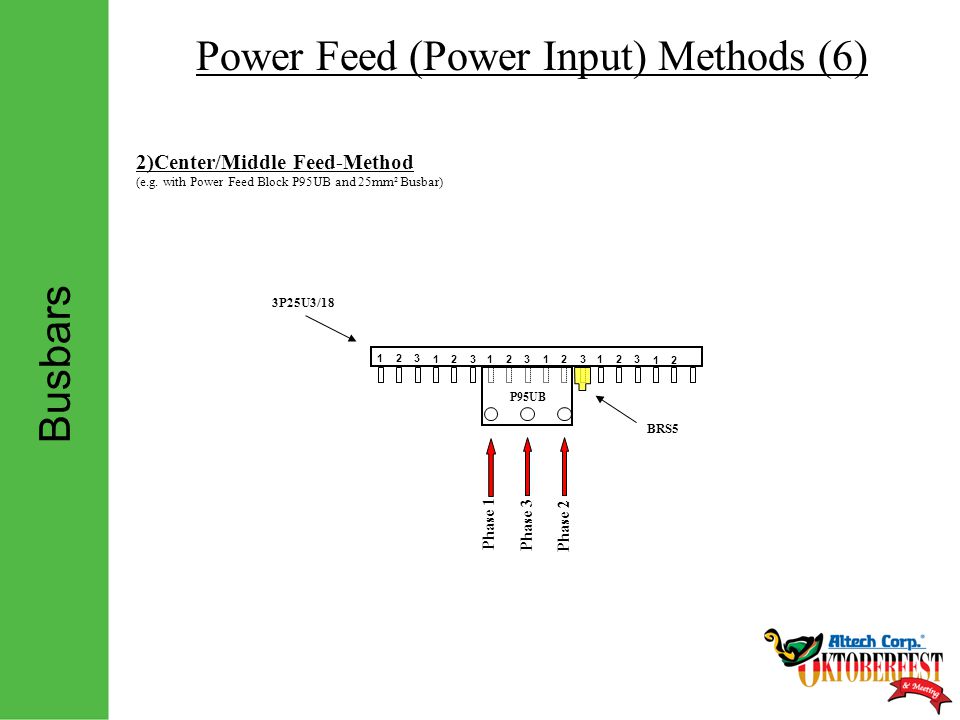

28 Busbars Power Feed (Power Input) Methods (6) 2)Center/Middle Feed-Method (e.g. with Power Feed Block P95UB and 25mm² Busbar) P95UB Phase 3 Phase 2 Phase 1 123 123 123 123 123 12 3P25U3/18 BRS5

29 Busbars Power Feed (Power Input) Methods (6) 1 1 1 1 100A 2)Center/Middle Feed-Method (e.g. with Power Feed Block P95UB and 25mm² Busbar) 100A 200A Input Phase 1 P95UB 3P25U3/18

30 Busbars Power Feed (Power Input) Methods (6) 12 12 12 12 100A 2)Center/Middle Feed-Method (e.g. with Power Feed Block P95UB and 25mm² Busbar) 100A 200A Input Phase 1 200A Input Phase 2 P95UB 3P25U3/18

31 Busbars Power Feed (Power Input) Methods (7) 123 123 123 123 100A 2)Center/Middle Feed-Method ( e.g. with Power Feed Block P95UB and 25mm² Busbar) 100A 200A Input Phase 1 200A Input Phase 3 200A Input Phase 2 P95UB 3P25U3/18

32 Busbars UL1077/508 Busbar System (1) Electrical Rating: 80A@480VAC (18mm² Pins), 100A@480VAC (25mm² Pins) 1,2,3 Phase Any possible Pin configuration (1-57Pins) ½ pole spacing (auxiliary switch) available Power feeding: Power Feed Lugs (115A), Direct Power Feed (80A), Power Feed Block (200A) UL508 listed

33 Busbars UL1077/508 Busbar System (2) Busbars can be cut to customers needs without loosing UL-approval UL recognized and listed for Altech’s R-Series, V-EA Series and MA Series of Manual Motor Controllers and Supplementary Protectors UL recognized and listed for use with most competitor’s UL1077 supplementary protectors and UL508 Manual Motor Controllers

34 Busbars UL489 Busbar System (1) Electrical Rating: 80A@480VAC (16mm² Pins) 1,2,3 Phase 6, 12, 18 Pin configuration Power feeding: Power Feed Lugs (115A), Direct Power Feed (80A) UL489 listed

35 Busbars UL489 Busbar System (2) Every Pin configuration possible by combination of existing 6, 12 and 18 Pin Busbars UL listed for Altech’s L-Series of Miniature Molded Case Circuit Breaker UL listed for use with most competitor’s UL489 Miniature Molded Case Circuit Breaker

36 Busbars Configuration of UL489 Busbars (1) UL489 Busbars are available in 3 different Pin Configurations per Phase (6, 12 and 18 Pins) They can’t be cut, since the creapage and clearance distance requirements from UL are too stringent. Therefore to obtain the desired No. of Pins, Busbars can and must be overlapped

37 Busbars Configuration of UL489 Busbars (2) 1)Busbars are overlapped backwards to each other Configuration Examples: 1 Phase Busbars3 Phase Busbars

38 Busbars Configuration of UL489 Busbars (3) 1)Busbars are overlapped backwards to each other 2)The Number of overlapping Pins of 2 Busbar must be a multiplier of the Number of Phases to keep existing Phase sequence. (Can be overlapped by more than the number of phases) Configuration Examples: 1 Phase Busbars3 Phase Busbars

39 Busbars Configuration of UL489 Busbars (4) 1)Busbars are overlapped backwards to each other 2)The Number of overlapping Pins of 2 Busbar must be a multiplier of the Number of Phases to keep existing Phase sequence. (Can be overlapped by more than the number of phases) 3)Any available combination of the 3 different Pin configurations is possible Configuration Examples: 1 Phase Busbars3 Phase Busbars
