1 2010/2011 BINDINGS

2 RAIDEN BINDING TECHNOLOGY

3 RAIDEN CHASSIS

4 FTI EVO 2 AIR CHASSIS AIRBAG CUSHIONING FOR TOE AND HEEL 2-BOLT ALUDISK ULTRALIGHT WEIGHT INVERTED CORING ENHANCES STRENGTH AND RESPONSE

5 FTI AIR CHASSIS FULL SIZE AIRBAG HEEL DAMPENING NEW 2-BOLT ALUDISK OPEN SUBFRAME ON THE HEEL ULTRALIGHT WEIGHT QUICK HEELCUP MICRO ADJUSTMENT

6 FTI CHASSIS MULTI DENSITY EVA HEELPAD NEW 2-BOLT ALUDISK INTEGRATED BASE CANTING CLOSED SUBFRAME ON THE HEEL LIGHT WEIGHT QUICK HEELCUP MICRO ADJUSTMENT 3°

7 PRECISION FIT 2 CHASSIS QUEEN SIZE AIRBAGS IN TOE AND HEEL ULTRA LIGHT WEIGHT DESIGN INVERTED CORING FOR STRENGTH AND RESPONSE TWO ANKLE STRAP MOUNTING POSITIONS

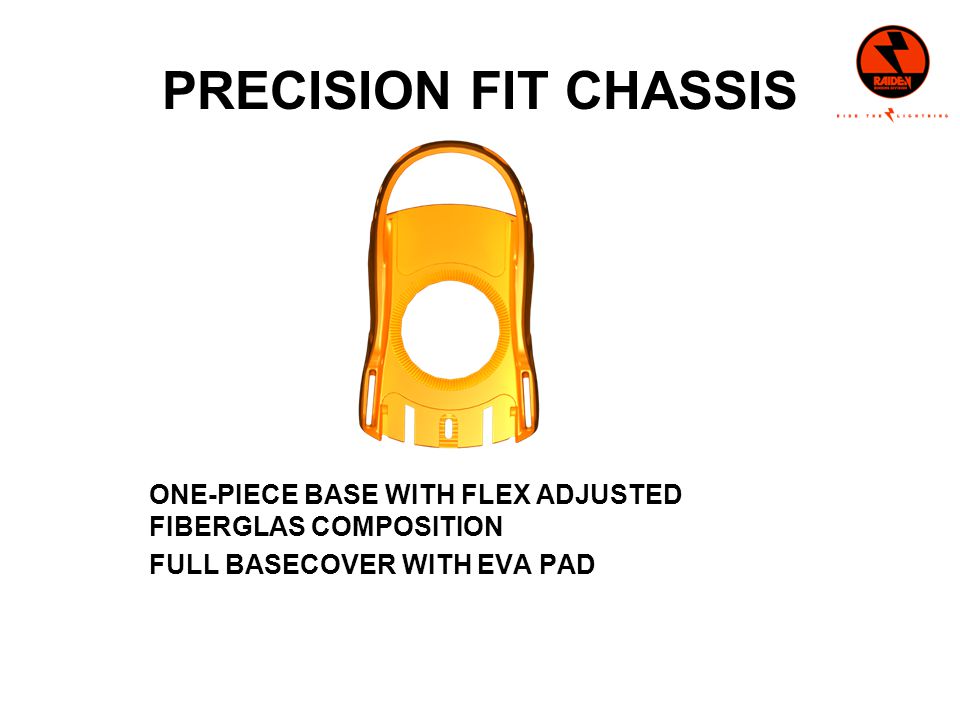

8 PRECISION FIT CHASSIS ONE-PIECE BASE WITH FLEX ADJUSTED FIBERGLAS COMPOSITION FULL BASECOVER WITH EVA PAD

9 RAIDEN DAMPENING

10 RAIDEN AIR DAMPENING AIRBAG SHOCK ABSORBING FOR TOE AND HEEL ULTRALIGHT WEIGHT PROVEN IMPACT ABSORBSION TECHNOLOGY ADDITIONAL GEL INSERTS TO ELIMINAT HIGH FREQUENCY SHOCKS

11 RAIDEN AIR DAMPENING FEA OPTIMIZED CUSHION COLUMNS NO MISS OF RESPONSE AND CONTROL

12 RAIDEN HIGHBACKS

13 ASYM HIGHBACK SUPPORT ASYM DESIGN FOR QUICKEST RESPONSE SUPPORT AXIS SHIFTED 5° INWARDS TO ALIGN THE PRESSURE TO THE MIDDLE OF THE BOOT LARGE WINDOWS TO REDUCE WEIGHT AND TORSION STIFFNESS

14 SYM HIBACK SUPPORT SYM SHAPE WITH MASSIVE CENTRE BAR LARGE WINDOWS TO REDUCE WEIGHT AND TORSION STIFFNESS

15 RAIDEN STRAPS

16 ANKLE STRAPS NEW 3-DIMENSIONAL PRE-MOULDED INTEGRATE FRAME NEW 3-DIMENSIONAL HOT PRESSED EVA PADDING FLEXIBLE AND LIGHT WEIGHT QUICK TRACK TOOLFREE LENGTH ADJUSTMENT HIGH ABRASION RESISTING MATERIALS

17 PREMIUM SLIM-CUT ANKLE STRAP LARGE FLEX WINDOW MAKES STRAP PLIABLE AND CONFORMING TO EVERY BOOT SHAPE EXTREMLY ERGONOMIC AND CUSHY THRU NEW 3D MOLDINGS BUILT WITH MOST PREMIUM MEMORY FOAMS AND LEATHER MATERIALS

18 PREMIUM CONTROL-CUT ANKLE STRAP LARGER OUTLINE AND MORE AREA TO COVER THE ANKLE INCREASED TOE-SIDE STIFFNESS TIGHT BOOT HOLD FOR ULTIMATE CONTROL AND POWER

19 QUICK TRACK CABLE STRAP INTERNAL STAINLESS STEEL CABLE ELIMINATES STRETCH AND BREAKAGE NO ELONGATION BEST FLEXIBILITY AND TOOL FREE ADJUSTMENT

20 REVERT TOE STRAP FOLLOWS THE SHAPE OF ANY BOOT TOE-BOX WORKS AS CAP STRAP AND TRADITIONAL NEOPRENE FOAMPAD ON THE INSIDE TOOL FREE CONVERSION AND ADJUSTMENT

21 S-CURVED LADDERS AND CONNECTOR STRAPS PRECURVED LADDERS STAY OUT OF THE WAY WHEN STEPPING INTO THE BINDING EFFORTLESS SLIDE INTO THE BUCKLES NO OUTSTICKING WHEN STRAP IS CLOSED

22 LSD LADDER SPEED DEVICE ALIGNS THE LADDER RIGHT INTO THE BUCKLE ULTRA FAST AND PRECISE HANDLING

23 RAIDEN BUCKLES

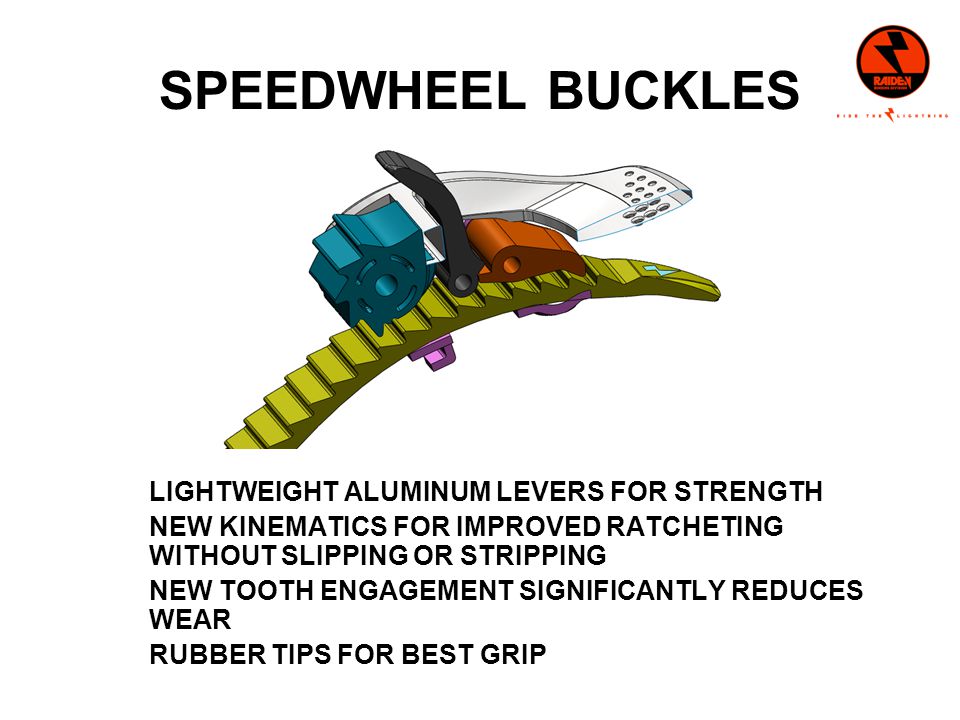

24 SPEEDWHEEL BUCKLES LIGHTWEIGHT ALUMINUM LEVERS FOR STRENGTH NEW KINEMATICS FOR IMPROVED RATCHETING WITHOUT SLIPPING OR STRIPPING NEW TOOTH ENGAGEMENT SIGNIFICANTLY REDUCES WEAR RUBBER TIPS FOR BEST GRIP

25 2010/2011 BINDING MODELS

26 MACHINE CHROME CARBON REINFORCED FTI EVO 2 AIR CHASSIS WITH 2-BOLT ALUMINUM DISK RAIDEN DUAL AIR DAMPENING ASYM TYPE R HIGHBACK WITH NUBUCK CUSHION NEW PREMIUM CONTROL CUT ANKLE STRAP WITH FLEX WINDOW AND CABLE CONNECTOR NEW REVERT WINDOW TOE STRAP NEW SPEEDWHEEL ALUMINUM BUCKLES WITH RUBBER TIPS AND LSD ALIGNMENT BOOT SIZES: M L RESPONSE RATING: 6

27 PHANTOM FIRESTORMTWO TONE FTI EVO 2 AIR CHASSIS WITH 2-BOLT ALUMINUM DISK RAIDEN DUAL AIR DAMPENING TYPE R HIGHBACK NEW PREMIUM SLIM CUT ANKLE STRAP WITH FLEX WINDOW AND CABLE CONNECTOR NEW REVERT WINDOW TOE STRAP NEW SPEEDWHEEL ALUMINUM BUCKLES WITH RUBBER TIPS AND LSD ALIGNMENT BOOTSIZES: M L RESPONSE RATING: 4

28 BATTERY FLASHBACKBLACK-CROC NEW FTI AIR CHASSIS WITH 2-BOLT ALUMINUM DISK RAIDEN AIR DAMPENING TYPE R HIGHBACK NEW PREMIUM SLIM CUT ANKLE STRAP WITH FLEX WINDOW AND CABLE CONNECTOR NEW REVERT WINDOW TOE STRAP NEW SPEEDWHEEL ALUMINUM BUCKLES WITH LSD ALIGNMENT BOOT SIZES: M L RESPONSE RATING: 4

29 BLACKHAWK BLACK-CHROMEWHITE-CHROME NEW FTI CHASSIS WITH 2-BOLT ALUMINUM DISK CANTED BASE PADDING WITH MULTI DENSITY EVA HEEL DAMPENING ASYM TYPE R HIGHBACK NEW PREMIUM CONTROL CUT ANKLE STRAP WITH CABLE CONNECTOR NEW REVERT WINDOW TOE STRAP NEW SPEEDWHEEL ALUMINUM BUCKLES WITH RUBBER TIPS BOOT SIZES: M L RESPONSE RATING: 5

30 ZERO ACID BLUEBLACK NEW FTI AIR CHASSIS WITH 2-BOLT ALU DISK RAIDEN AIR DAMPENING TYPE R HIGHBACK NEW PREMIUM SLIM CUT ANKLE STRAP NEW REVERT TOE STRAP NEW SPEEDWHEEL ALUMINUM BUCKLES BOOT SIZES: M L RESPONSE RATING: 4 DEEP PURPLE

31 PUSHER NICE DREAMSUP IN SMOKE PRECISION FIT 2 CHASSIS RAIDEN DUAL AIR DAMPENING ASYM HAMMER HIGHBACK NEW PREMIUM CONTROL CUT ANKLE STRAP WITH FLEX WINDOW NEW REVERT WINDOW TOE STRAP NEW SPEEDWHEEL ALUMINUM BUCKLES BOOT SIZES: M L RESPONSE RATING: 5

32 WIZARD TOXIC PINKBLACK - WHITE PRECISION FIT 2 CHASSIS RAIDEN AIR DAMPENING ASYM HAMMER HIGHBACK NEW PREMIUM SLIM CUT ANKLE STRAP NEW REVERT TOE STRAP NEW SPEEDWHEEL ALUMINUM BUCKLES BOOT SIZES: M L RESPONSE RATING: 3 WHITE

33 STRIKE CYANWHITE PRECISION FIT CHASSIS EVA DAMPENING HAMMER HIGHBACK NEW PREMIUM SLIM CUT ANKLE STRAP NEW REVERT TOE STRAP NEW SPEEDWHEEL ALUMINUM BUCKLES BOOT SIZES: M L XL RESPONSE RATING: 3 BLACK

34 ERIS MDGOLD NEW FTI AIR CHASSIS, WOMEN’S FLEX, WITH 2-BOLT ALU DISK RAIDEN AIR DAMPENING WOMEN’S ASYM TYPE S HIGHBACK NEW PREMIUM SLIM CUT ANKLE STRAPS WITH FLEX WINDOW NEW REVERT WINDOW TOE STRAP NEW SPEEDWHEEL WOMEN’S ALUMINUM BUCKLES WITH RUBBER TIPS AND LSD ALIGNMENT BOOT SIZES: S M RESPONSE RATING: 3

35 LYNX ORANGEWHITE PRECISION FIT WOMEN’S CHASSIS EVA DAMPENING WOMENS TYPE S HIGHBACK NEW PREMIUM SLIM CUT ANKLE STRAP NEW REVERT TOE STRAP NEW SPEEDWHEEL WOMEN’S ALUMINUM BUCKLES BOOT SIZES: S M RESPONSE RATING: 2 BLACK

36 DECO BLACK-WHITEBLACK PRECISION FIT WOMEN’S CHASSIS EVA DAMPENING WOMENS TYPE S HIGHBACK NEW PREMIUM SLIM CUT ANKLE STRAP NEW REVERT TOE STRAP NEW SPEEDWHEEL ALUMINUM BUCKLES BOOTSIZES: S M RESPONSE RATING: 2 WHITE

37 2010/2011 BINDINGS
