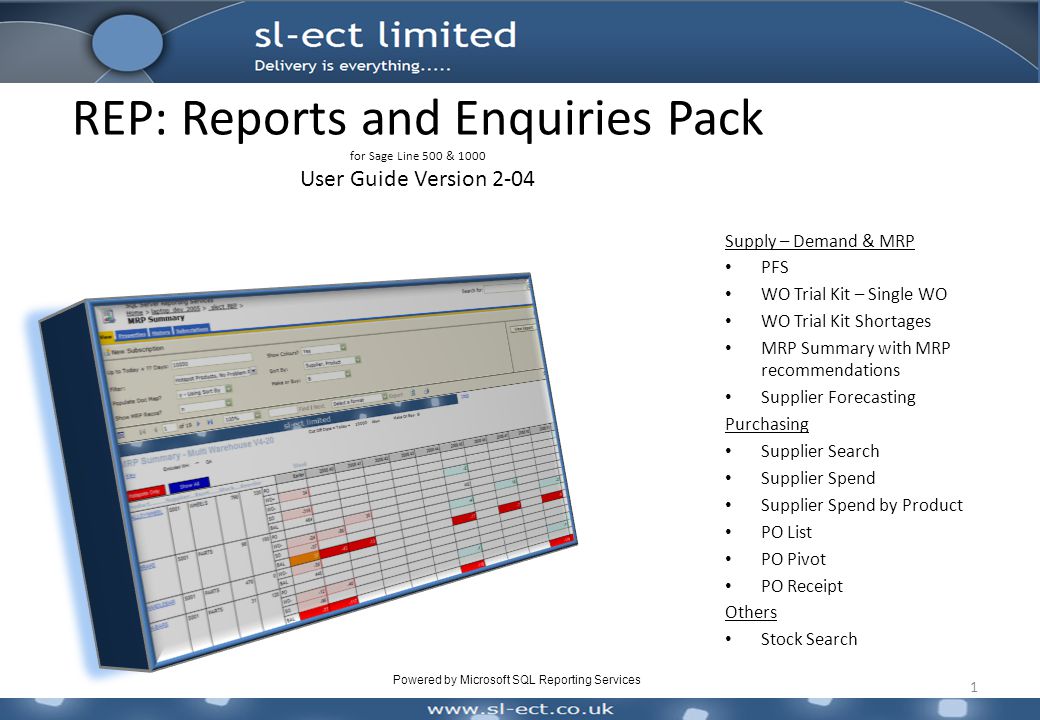

1 REP: Reports and Enquiries Pack for Sage Line 500 & 1000 User Guide Version Supply – Demand & MRP PFS WO Trial Kit – Single WO WO Trial Kit Shortages MRP Summary with MRP recommendations Supplier Forecasting Purchasing Supplier Search Supplier Spend Supplier Spend by Product PO List PO Pivot PO Receipt Others Stock Search Powered by Microsoft SQL Reporting Services

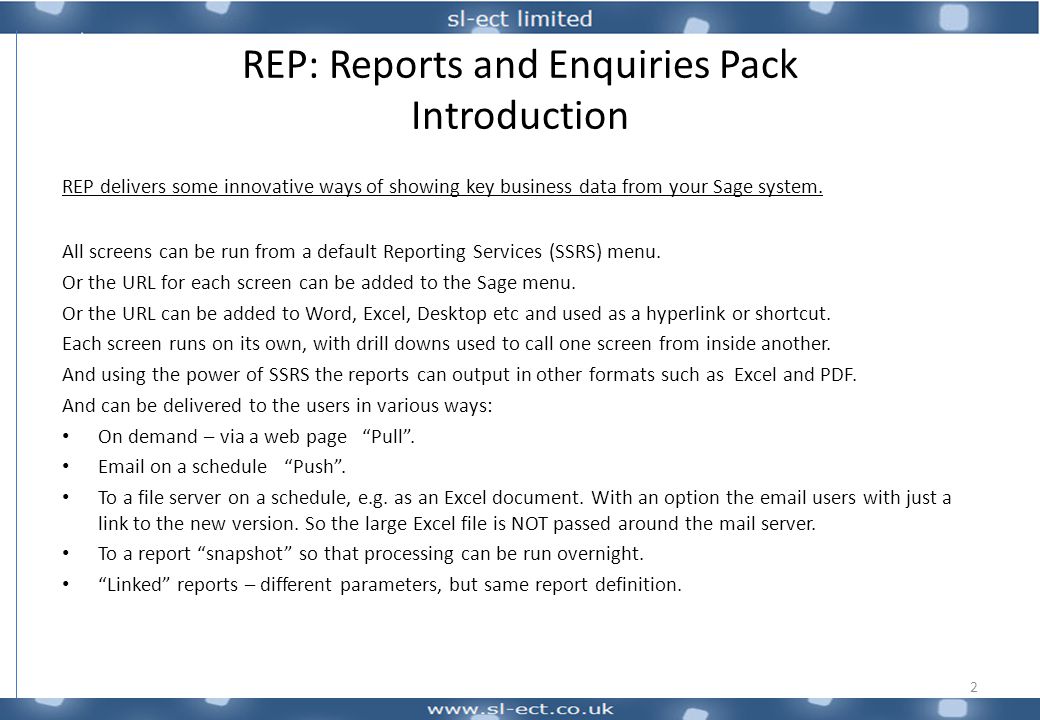

2 REP: Reports and Enquiries Pack Introduction REP delivers some innovative ways of showing key business data from your Sage system. All screens can be run from a default Reporting Services (SSRS) menu. Or the URL for each screen can be added to the Sage menu. Or the URL can be added to Word, Excel, Desktop etc and used as a hyperlink or shortcut. Each screen runs on its own, with drill downs used to call one screen from inside another. And using the power of SSRS the reports can output in other formats such as Excel and PDF. And can be delivered to the users in various ways: On demand – via a web page “Pull”. on a schedule “Push”. To a file server on a schedule, e.g. as an Excel document. With an option the users with just a link to the new version. So the large Excel file is NOT passed around the mail server. To a report “snapshot” so that processing can be run overnight. “Linked” reports – different parameters, but same report definition. 2

3 3

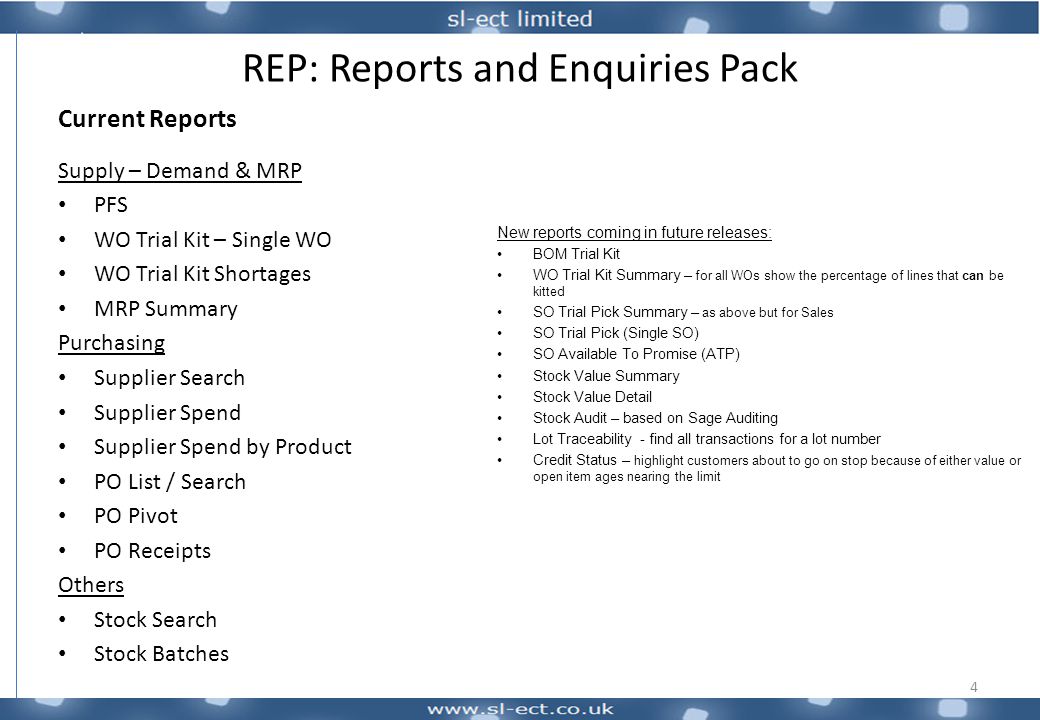

4 REP: Reports and Enquiries Pack Current Reports Supply – Demand & MRP PFS WO Trial Kit – Single WO WO Trial Kit Shortages MRP Summary Purchasing Supplier Search Supplier Spend Supplier Spend by Product PO List / Search PO Pivot PO Receipts Others Stock Search Stock Batches 4 New reports coming in future releases: BOM Trial Kit WO Trial Kit Summary – for all WOs show the percentage of lines that can be kitted SO Trial Pick Summary – as above but for Sales SO Trial Pick (Single SO) SO Available To Promise (ATP) Stock Value Summary Stock Value Detail Stock Audit – based on Sage Auditing Lot Traceability - find all transactions for a lot number Credit Status – highlight customers about to go on stop because of either value or open item ages nearing the limit

5 REP: Reports and Enquiries Pack Current Reports Supply–Demand & MRP

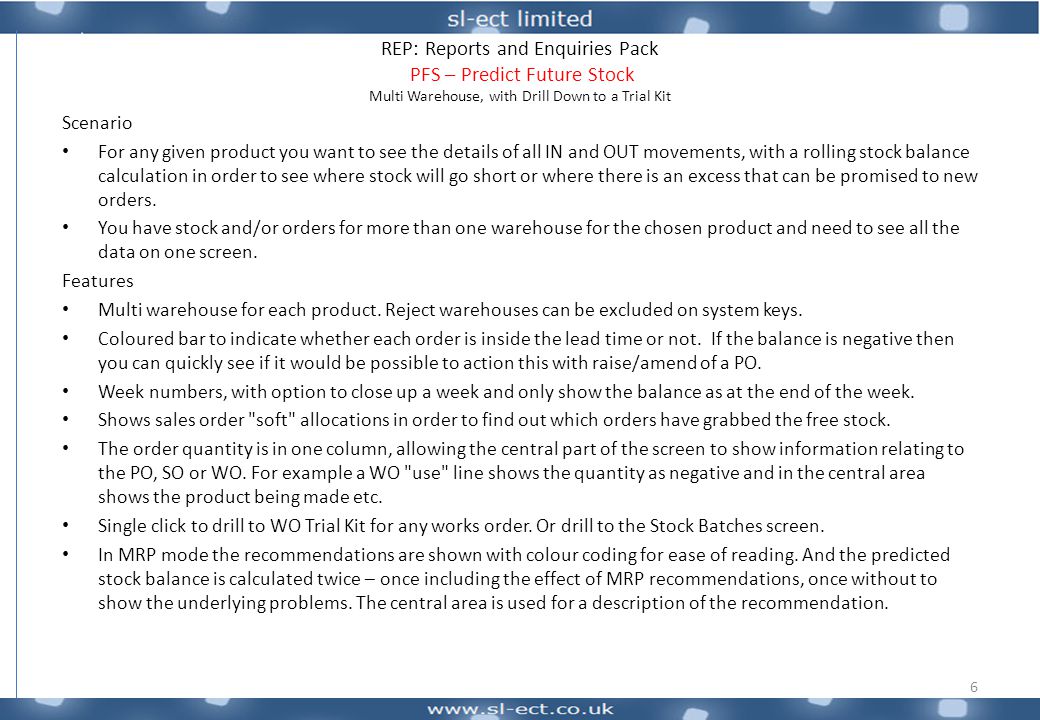

6 REP: Reports and Enquiries Pack PFS – Predict Future Stock Multi Warehouse, with Drill Down to a Trial Kit 6 Scenario For any given product you want to see the details of all IN and OUT movements, with a rolling stock balance calculation in order to see where stock will go short or where there is an excess that can be promised to new orders. You have stock and/or orders for more than one warehouse for the chosen product and need to see all the data on one screen. Features Multi warehouse for each product. Reject warehouses can be excluded on system keys. Coloured bar to indicate whether each order is inside the lead time or not. If the balance is negative then you can quickly see if it would be possible to action this with raise/amend of a PO. Week numbers, with option to close up a week and only show the balance as at the end of the week. Shows sales order "soft" allocations in order to find out which orders have grabbed the free stock. The order quantity is in one column, allowing the central part of the screen to show information relating to the PO, SO or WO. For example a WO "use" line shows the quantity as negative and in the central area shows the product being made etc. Single click to drill to WO Trial Kit for any works order. Or drill to the Stock Batches screen. In MRP mode the recommendations are shown with colour coding for ease of reading. And the predicted stock balance is calculated twice – once including the effect of MRP recommendations, once without to show the underlying problems. The central area is used for a description of the recommendation.

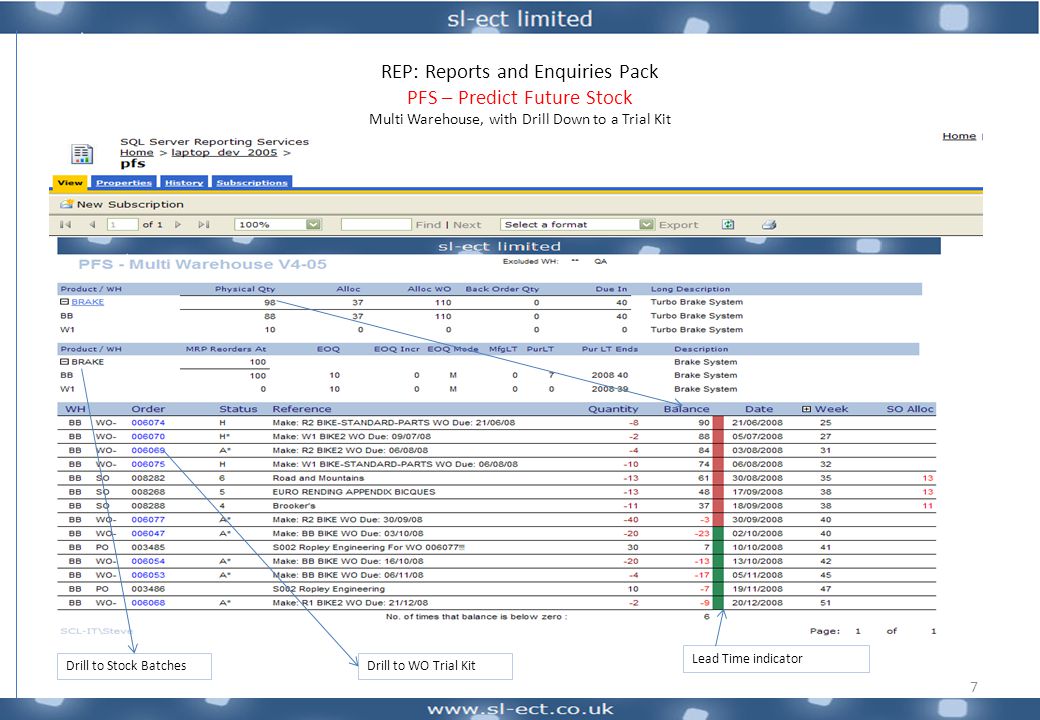

7 REP: Reports and Enquiries Pack PFS – Predict Future Stock Multi Warehouse, with Drill Down to a Trial Kit Drill to WO Trial Kit 7 Lead Time indicator Drill to Stock Batches

8 REP: Reports and Enquiries Pack PFS – Predict Future Stock – with MRP Recommendations Multi Warehouse, with Drill Down to a Trial Kit Balance from firm orders + MRP recos from the level above. 8 Balance including MRP recos for this product. Firm order MRP reco from level above to raise a new WO which will use this product as a component MRP recommendations for this product

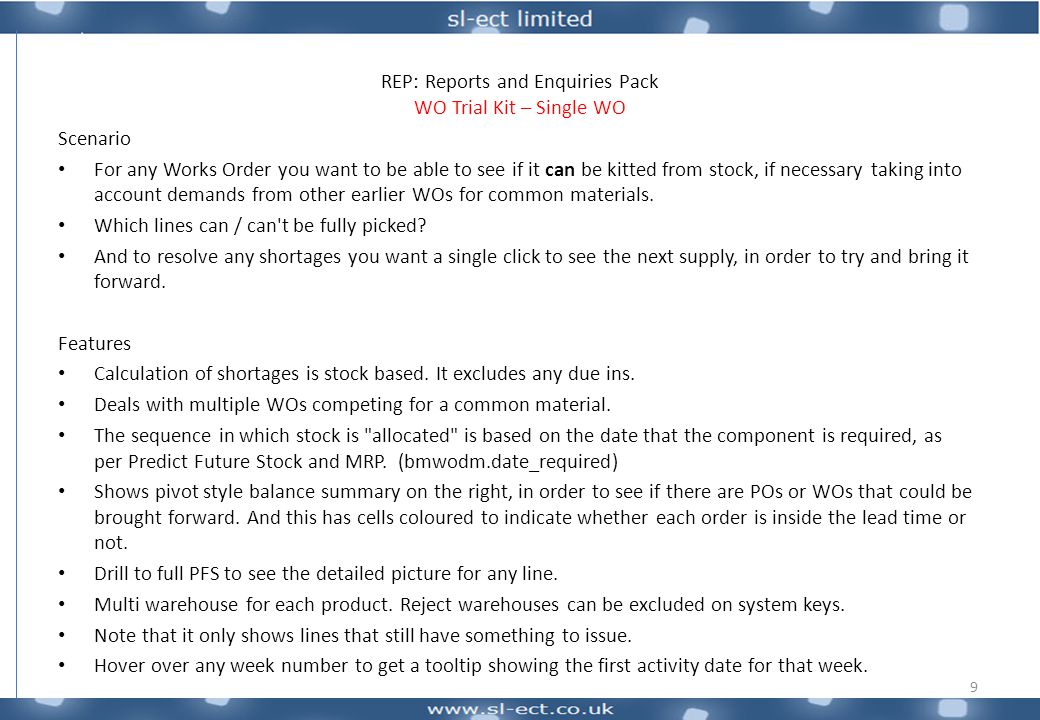

9 REP: Reports and Enquiries Pack WO Trial Kit – Single WO 9 Scenario For any Works Order you want to be able to see if it can be kitted from stock, if necessary taking into account demands from other earlier WOs for common materials. Which lines can / can't be fully picked? And to resolve any shortages you want a single click to see the next supply, in order to try and bring it forward. Features Calculation of shortages is stock based. It excludes any due ins. Deals with multiple WOs competing for a common material. The sequence in which stock is "allocated" is based on the date that the component is required, as per Predict Future Stock and MRP. (bmwodm.date_required) Shows pivot style balance summary on the right, in order to see if there are POs or WOs that could be brought forward. And this has cells coloured to indicate whether each order is inside the lead time or not. Drill to full PFS to see the detailed picture for any line. Multi warehouse for each product. Reject warehouses can be excluded on system keys. Note that it only shows lines that still have something to issue. Hover over any week number to get a tooltip showing the first activity date for that week.

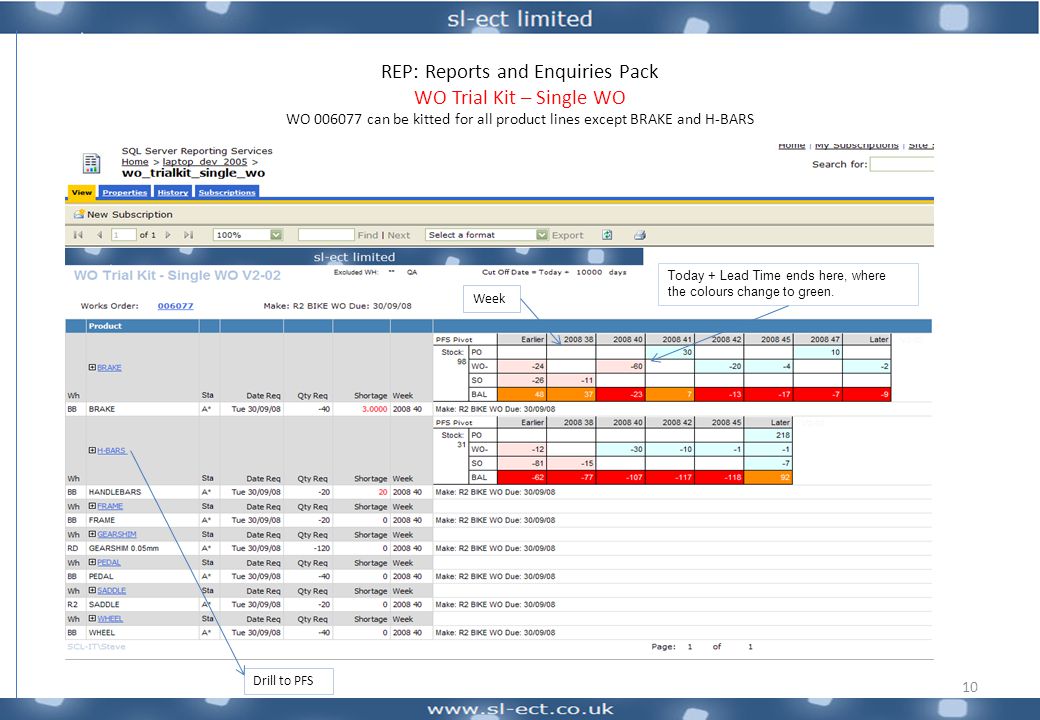

10 REP: Reports and Enquiries Pack WO Trial Kit – Single WO WO can be kitted for all product lines except BRAKE and H-BARS 10 Drill to PFS Today + Lead Time ends here, where the colours change to green. Week

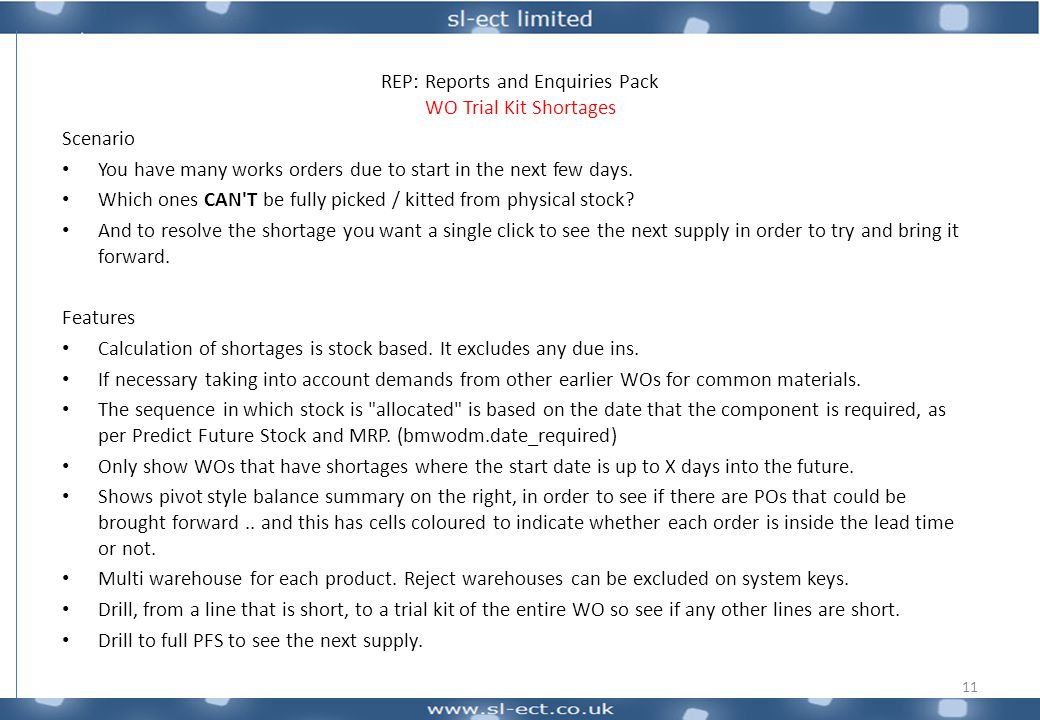

11 REP: Reports and Enquiries Pack WO Trial Kit Shortages 11 Scenario You have many works orders due to start in the next few days. Which ones CAN'T be fully picked / kitted from physical stock? And to resolve the shortage you want a single click to see the next supply in order to try and bring it forward. Features Calculation of shortages is stock based. It excludes any due ins. If necessary taking into account demands from other earlier WOs for common materials. The sequence in which stock is "allocated" is based on the date that the component is required, as per Predict Future Stock and MRP. (bmwodm.date_required) Only show WOs that have shortages where the start date is up to X days into the future. Shows pivot style balance summary on the right, in order to see if there are POs that could be brought forward.. and this has cells coloured to indicate whether each order is inside the lead time or not. Multi warehouse for each product. Reject warehouses can be excluded on system keys. Drill, from a line that is short, to a trial kit of the entire WO so see if any other lines are short. Drill to full PFS to see the next supply.

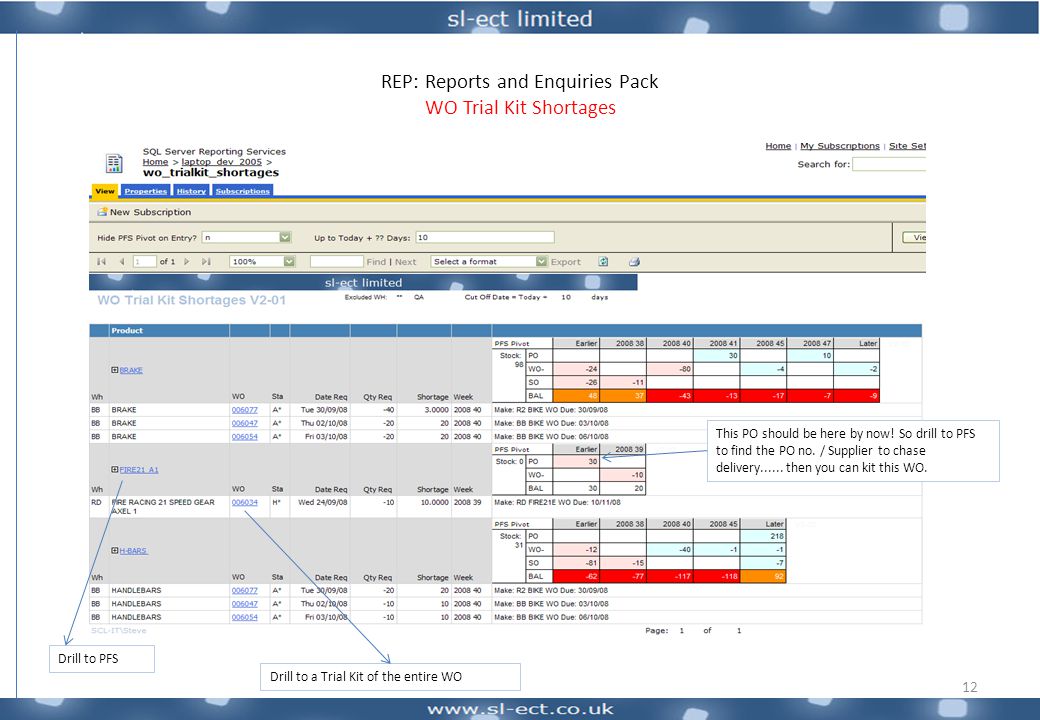

12 REP: Reports and Enquiries Pack WO Trial Kit Shortages 12 Drill to a Trial Kit of the entire WO This PO should be here by now! So drill to PFS to find the PO no. / Supplier to chase delivery then you can kit this WO. Drill to PFS

13 REP: Reports and Enquiries Pack MRP Summary with a summary of INs/OUTs per week and a drill down to a full PFS 13 Scenario Let's say that you did a full MRP 2 days ago and dealt with all the recommendations. But since then SOs and WOs have been increased or added, or there have been stock adjustments. So now if you could look on Predict Future Stock (PFS) for all products there may be some negative balances. This report shows you a summary, across the page, of the predicted stock balance for all product. And allows you to click once on a product to drill to a full PFS enquiry. Supplier chain... You have a preferred supplier set against a number of products and you want to send the supplier a concise summary of the supply and demand picture for those products. Run this with Make Or Buy = B and export it to Excel, choose the supplier account from the document map and send it to the supplier. Supplier Forecasting for the next 12 months: extend your Sales Forecast or MPS to cover a longer period, run MRP and then use this report to project the future demands per supplier. Features “Hotspots” & “Warmspots” show where the balance goes below zero or below the ROL. Multi warehouse for each product. Reject warehouses can be excluded on system keys. Shows pivot style predicted stock balance, in a weekly summary by order type. Option for Week + Day No. for more detail. Ie. Wednesday of week 47 would show as If activity on the Thursday a column for shows. Able to see the opening stock, PO due in, WO- demand, WO+ makes and SO demand per week, with the balance as at the end of the week. MRP Recommendations Mode: Immediately after running Sage MRP there is an option to show the recommendations on (at most) 4 extra rows. Giving a quick and visual way to decide if the recommendation should be actioned, but avoiding the 100s of lines of the standard report. In this mode the recommendations are shown with colour coding for ease of reading. And the predicted stock balance is calculated twice, once including the effect of the recommendations, once without in order to show the underlying problems. System keys determine the horizons for the “Earlier” and “Later” week numbers. Coloured edging to indicate whether each order is inside the lead time or not. Option to colour the whole cell as well as the edge. Select on Make or Buy. "A"s are converted to "M" or "B" according to whether a BOM exists. Drill to full PFS, showing MRP recommendations if required.

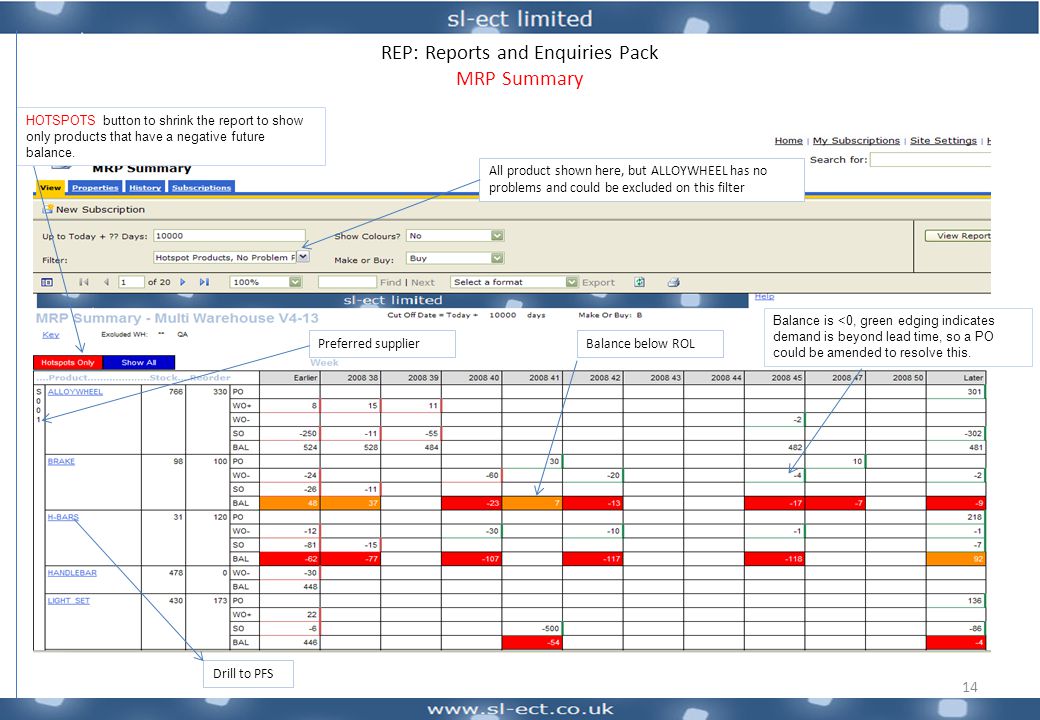

14 REP: Reports and Enquiries Pack MRP Summary 14 Drill to PFS Balance is <0, green edging indicates demand is beyond lead time, so a PO could be amended to resolve this. Preferred supplierBalance below ROL All product shown here, but ALLOYWHEEL has no problems and could be excluded on this filter HOTSPOTS button to shrink the report to show only products that have a negative future balance.

15 REP: Reports and Enquiries Pack MRP Summary – with MRP Recommendations 15 Drill to PFS, where MRP recos will show in detail. Date of first activity in the week BAL = Balance from firm orders + MRP recos from the level above. So this is negative and needs a new WO raising. BAM = Balance including MRP recos for this product. MRP reco to Raise new WO. MRP reco to Decrease the PO by 100. MRP reco to put PO Back from week 45 to week 46.

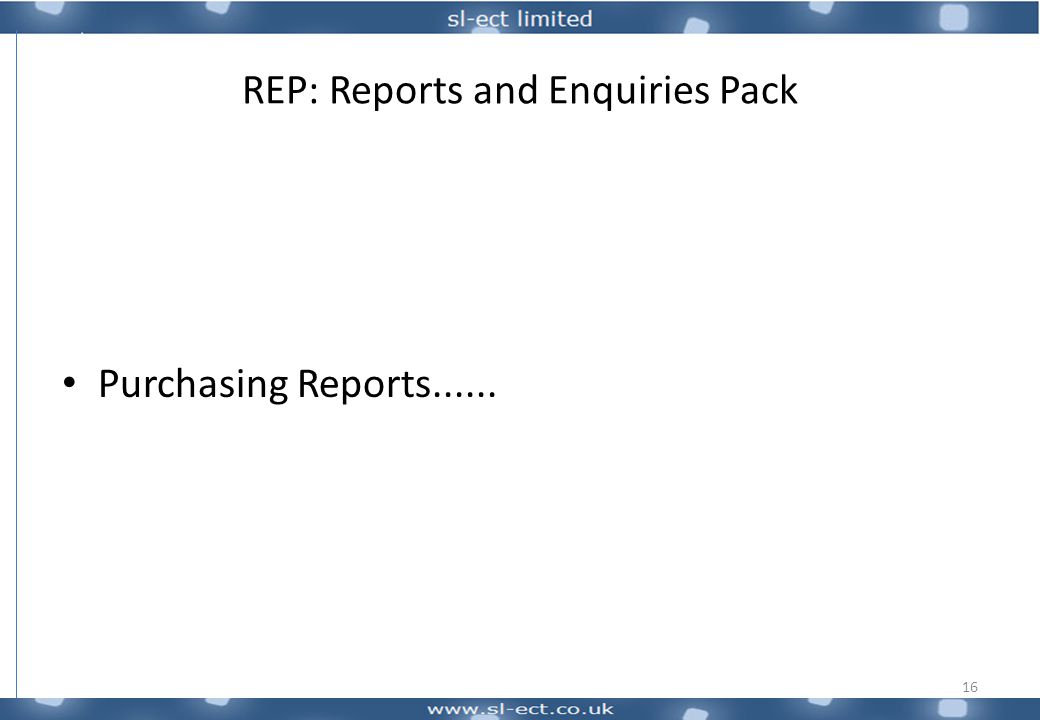

16 REP: Reports and Enquiries Pack Purchasing Reports

17 REP: Reports and Enquiries Pack Supplier Search Scenario You need to browse to find a supplier, but perhaps you only know part of the name, or maybe the post code. Having found the account code and it's basic details you want links to show a selection of other enquiries about that supplier. If a number of suppliers match the criteria then you want to keep the list alive and drill to other enquiries for many of the suppliers. Features Wild card search through all of these fields: – Supplier Code – Address and Post Code – Analysis 1-6 – Fax, BTX, Telex etc – And more… Search is not case sensitive. Drill down to the following reports: – PO Pivot – PO List – Supplier Spend 17

18 REP: Reports and Enquiries Pack Supplier Search Drill to PO Pivot Drill to PO List Drill to Supplier Spend Show more fields Eg. Fax, Analysis1-6 etc Wildcard search on all text fields. Enter name or Post Code etc 18

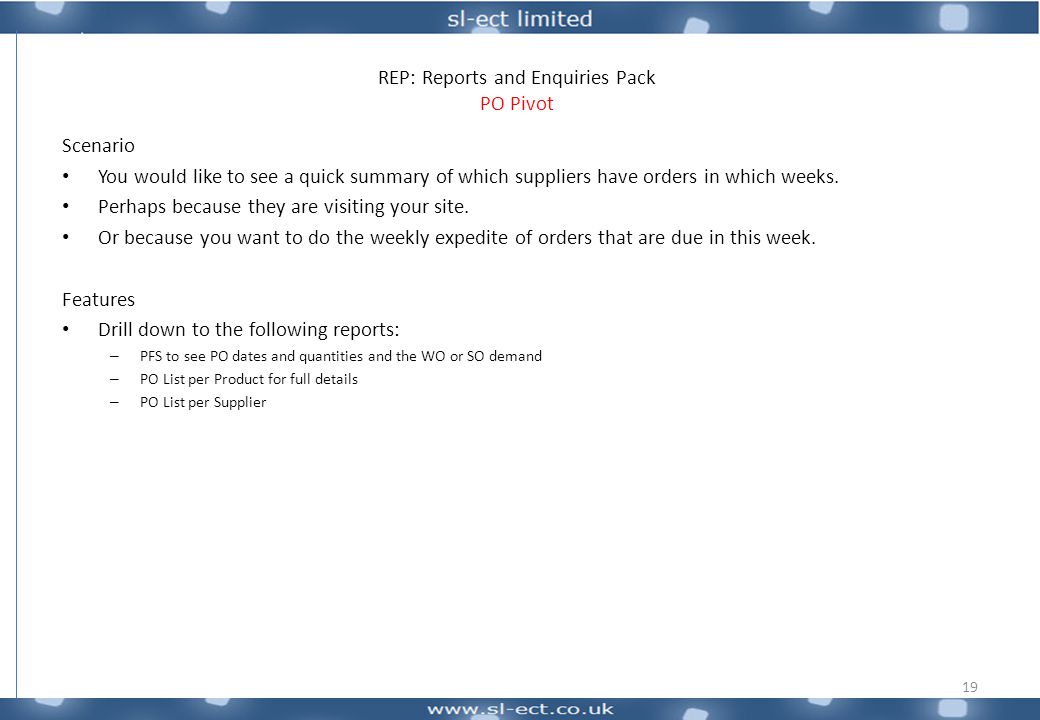

19 REP: Reports and Enquiries Pack PO Pivot Scenario You would like to see a quick summary of which suppliers have orders in which weeks. Perhaps because they are visiting your site. Or because you want to do the weekly expedite of orders that are due in this week. Features Drill down to the following reports: – PFS to see PO dates and quantities and the WO or SO demand – PO List per Product for full details – PO List per Supplier 19

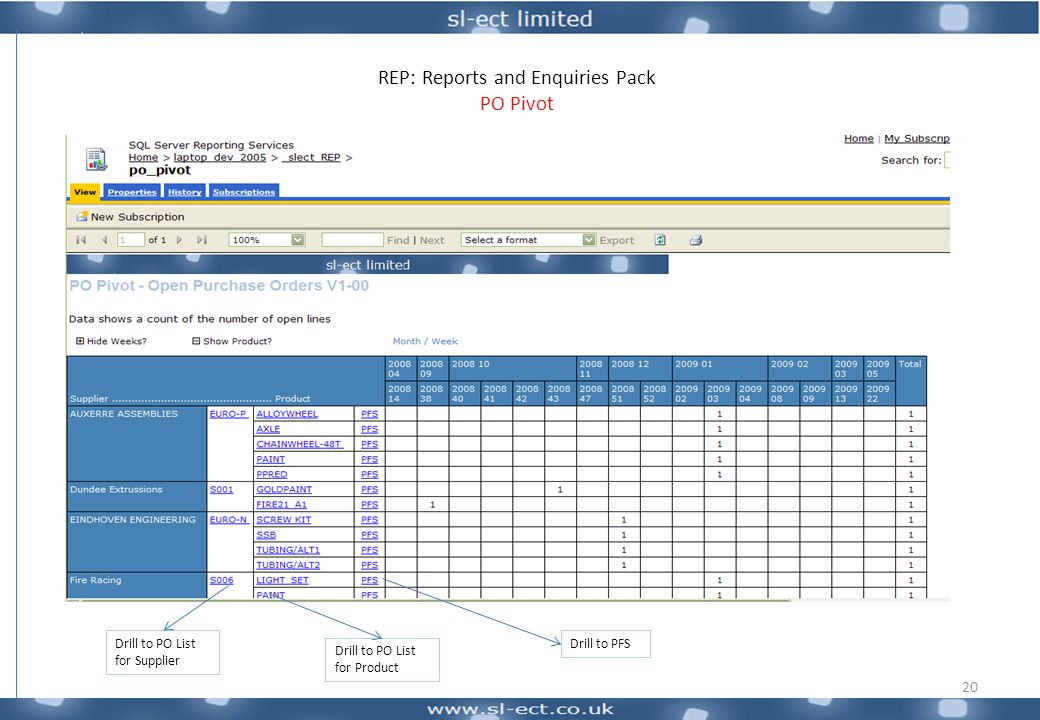

20 REP: Reports and Enquiries Pack PO Pivot Drill to PO List for Supplier Drill to PO List for Product Drill to PFS 20

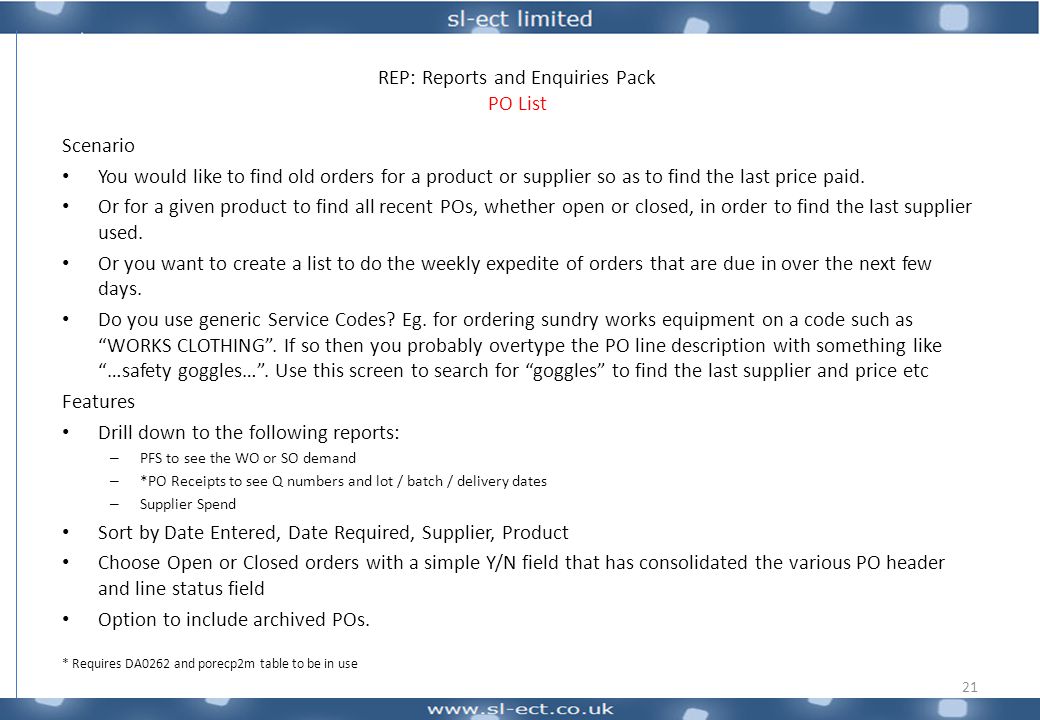

21 REP: Reports and Enquiries Pack PO List Scenario You would like to find old orders for a product or supplier so as to find the last price paid. Or for a given product to find all recent POs, whether open or closed, in order to find the last supplier used. Or you want to create a list to do the weekly expedite of orders that are due in over the next few days. Do you use generic Service Codes? Eg. for ordering sundry works equipment on a code such as “WORKS CLOTHING”. If so then you probably overtype the PO line description with something like “…safety goggles…”. Use this screen to search for “goggles” to find the last supplier and price etc Features Drill down to the following reports: – PFS to see the WO or SO demand – *PO Receipts to see Q numbers and lot / batch / delivery dates – Supplier Spend Sort by Date Entered, Date Required, Supplier, Product Choose Open or Closed orders with a simple Y/N field that has consolidated the various PO header and line status field Option to include archived POs. * Requires DA0262 and porecp2m table to be in use 21

22 REP: Reports and Enquiries Pack PO List Drill to Supplier SpendDrill to PO Receipts Drill to PFS Search for any string in the line description 22

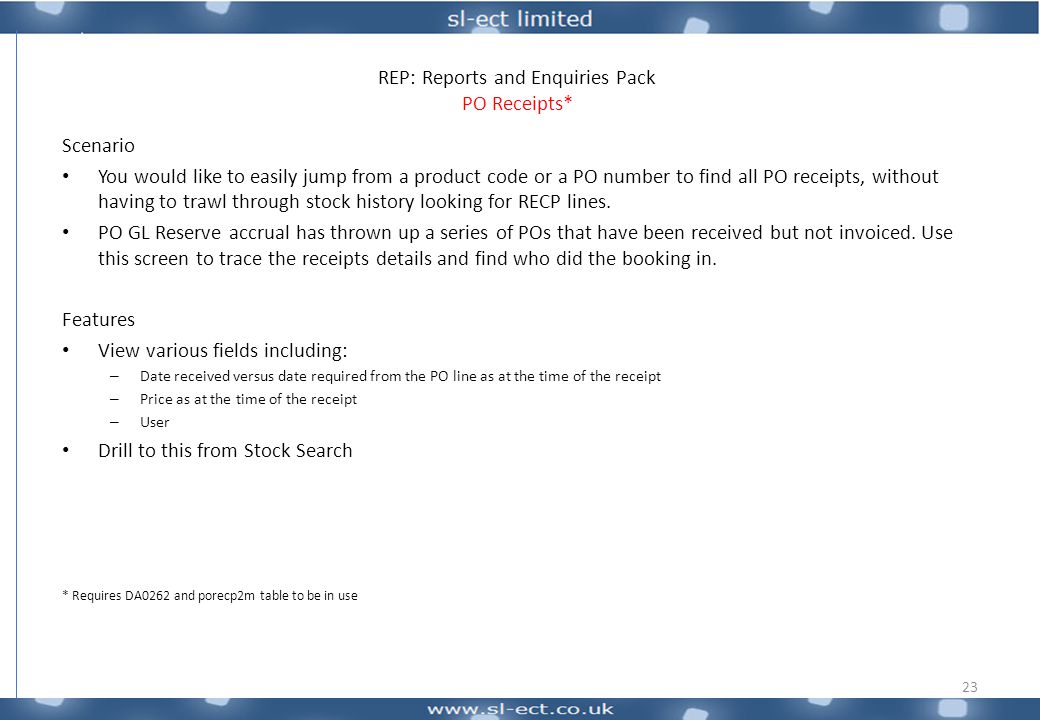

23 REP: Reports and Enquiries Pack PO Receipts* Scenario You would like to easily jump from a product code or a PO number to find all PO receipts, without having to trawl through stock history looking for RECP lines. PO GL Reserve accrual has thrown up a series of POs that have been received but not invoiced. Use this screen to trace the receipts details and find who did the booking in. Features View various fields including: – Date received versus date required from the PO line as at the time of the receipt – Price as at the time of the receipt – User Drill to this from Stock Search * Requires DA0262 and porecp2m table to be in use 23

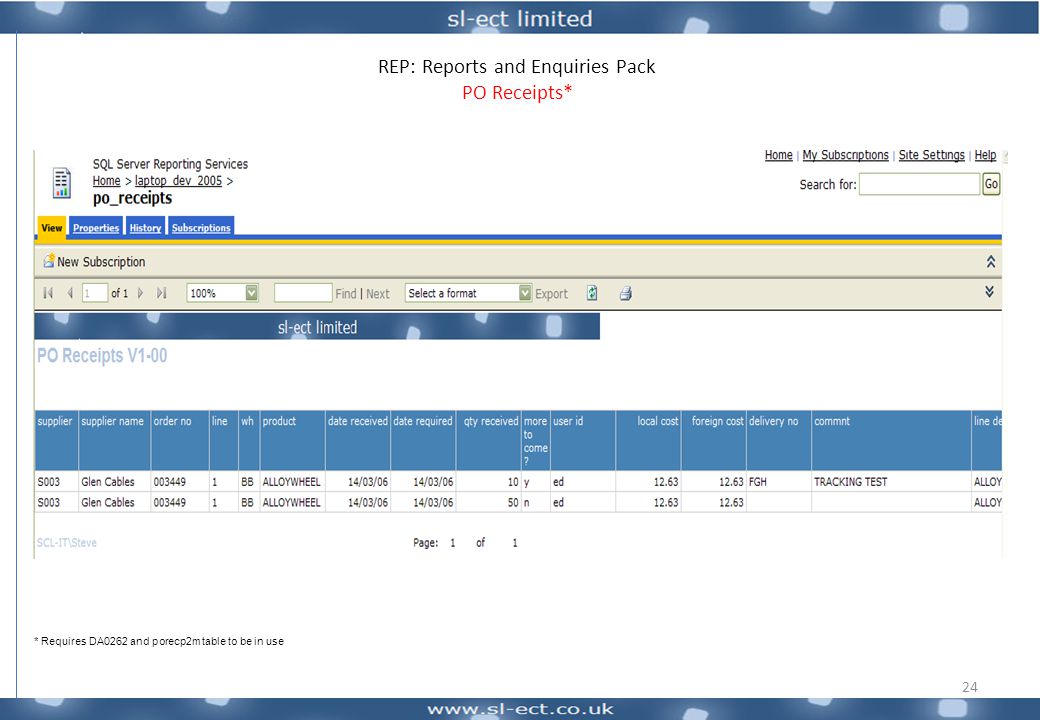

24 REP: Reports and Enquiries Pack PO Receipts* * Requires DA0262 and porecp2m table to be in use 24

25 REP: Reports and Enquiries Pack Supplier Spend Scenario You are about to negotiate new prices with a supplier and would like to look back at the spend in recent times. Or a particular product has been increasing in volume and you would like to see by how much in order to ask for bulk discounts. 2 Versions Supplier Spend – select a supplier and optionally expand to see the products Supplier Spend Per Product – select a product and optionally expand to see the suppliers Features Drill down to PO List from the supplier Show Quantity as well as value on the Per Product version 25

26 REP: Reports and Enquiries Pack Supplier Spend with expansion to see products Drill to PO List for Supplier Expand to show products 26

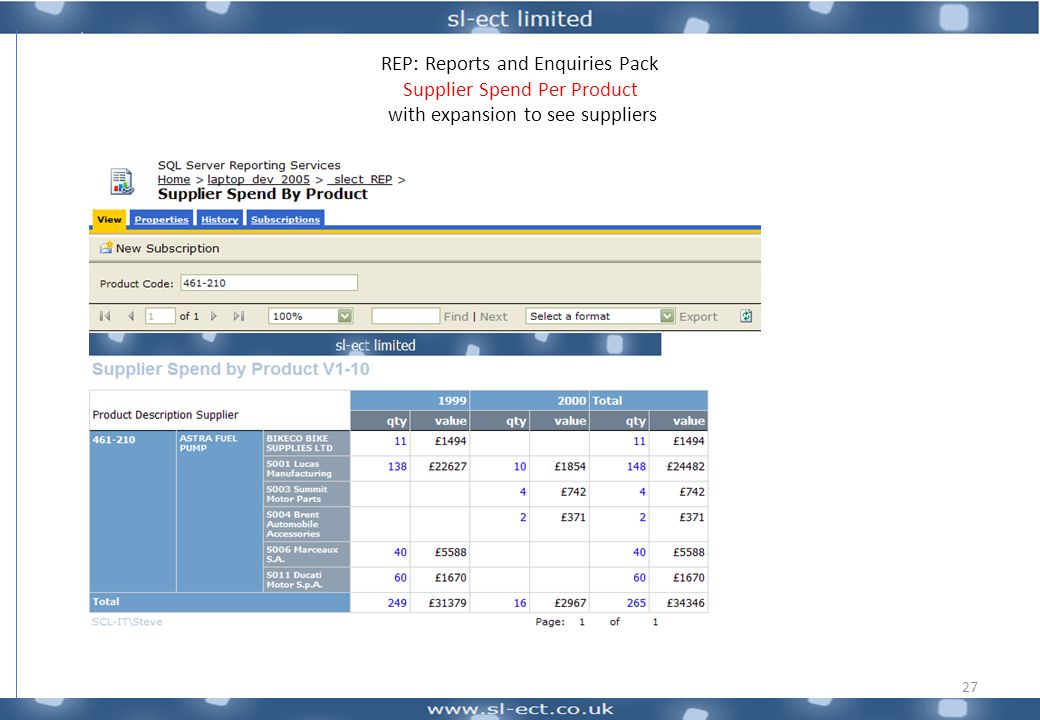

27 REP: Reports and Enquiries Pack Supplier Spend Per Product with expansion to see suppliers 27

28 REP: Reports and Enquiries Pack Other

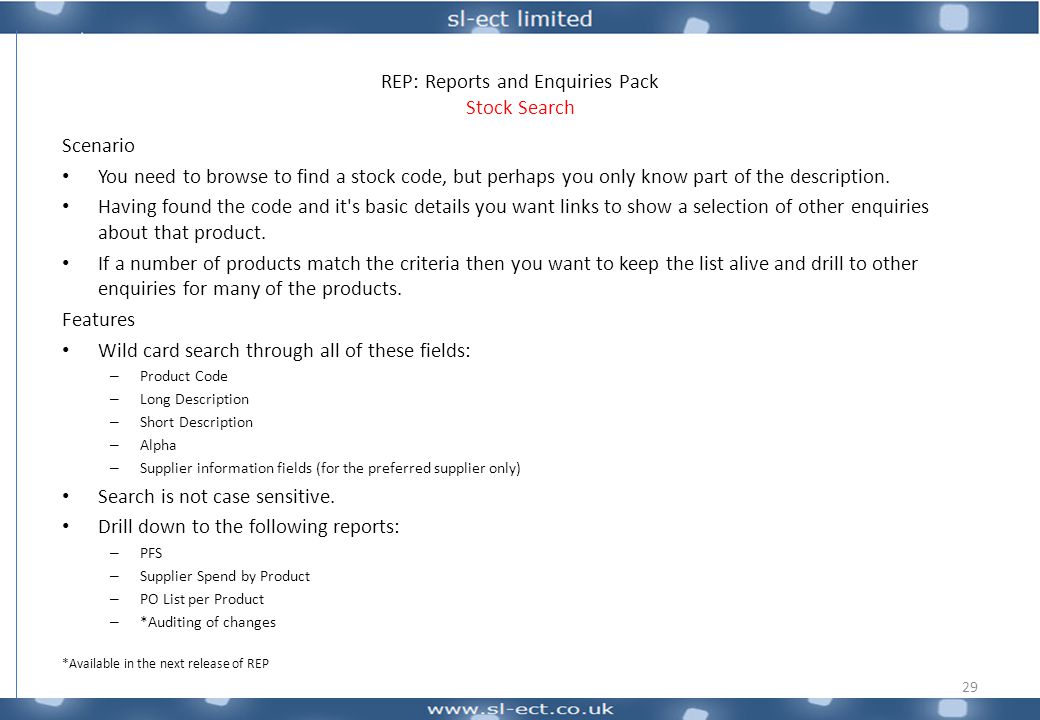

29 REP: Reports and Enquiries Pack Stock Search 29 Scenario You need to browse to find a stock code, but perhaps you only know part of the description. Having found the code and it's basic details you want links to show a selection of other enquiries about that product. If a number of products match the criteria then you want to keep the list alive and drill to other enquiries for many of the products. Features Wild card search through all of these fields: – Product Code – Long Description – Short Description – Alpha – Supplier information fields (for the preferred supplier only) Search is not case sensitive. Drill down to the following reports: – PFS – Supplier Spend by Product – PO List per Product – *Auditing of changes *Available in the next release of REP

30 REP: Reports and Enquiries Pack Stock Search Use %BIKE% as a wildcard search to return all products with BIKE in the code, descriptions or supplier info Drill to PFS for this product PEDAL is shown because it says “Bike” here Drill to see Stock Batches for this product, excluding 0 quantity records.

31 REP: Reports and Enquiries Pack Stock Batches 31 Scenario You would like to see all the stock batches for a given product. And you only want to see the relevant batches – ie. those with a quantity greater then zero. Features Shows all batches for the product, split by warehouse code where appropriate Drill down to this screen from the following reports: – PFS – Stock Search

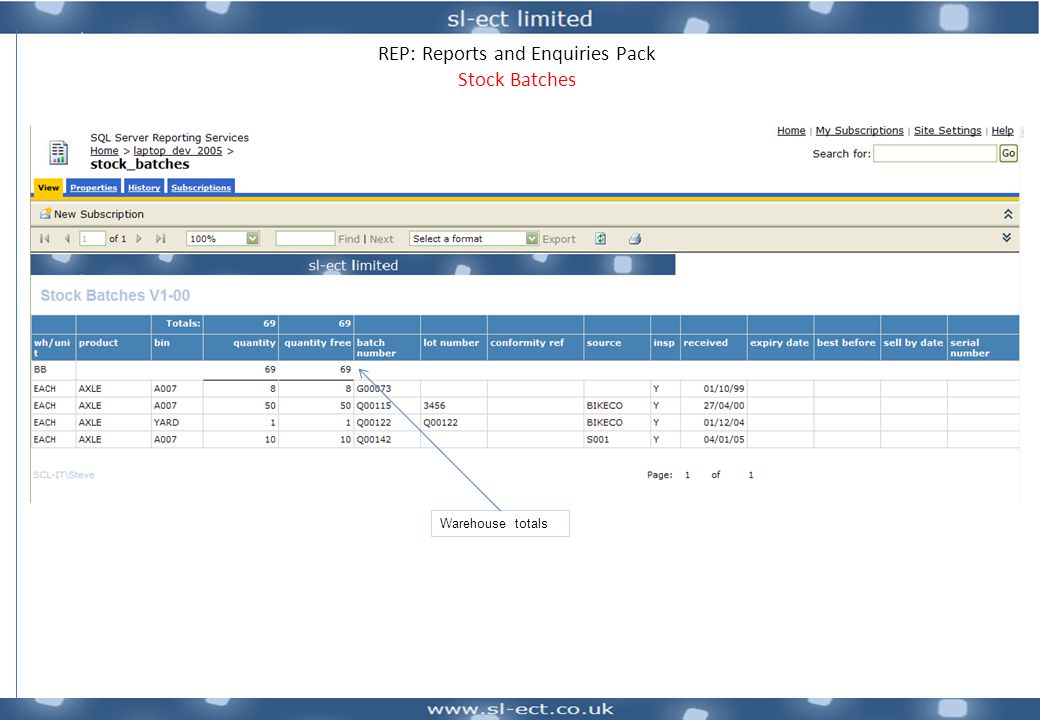

32 REP: Reports and Enquiries Pack Stock Batches Warehouse totals

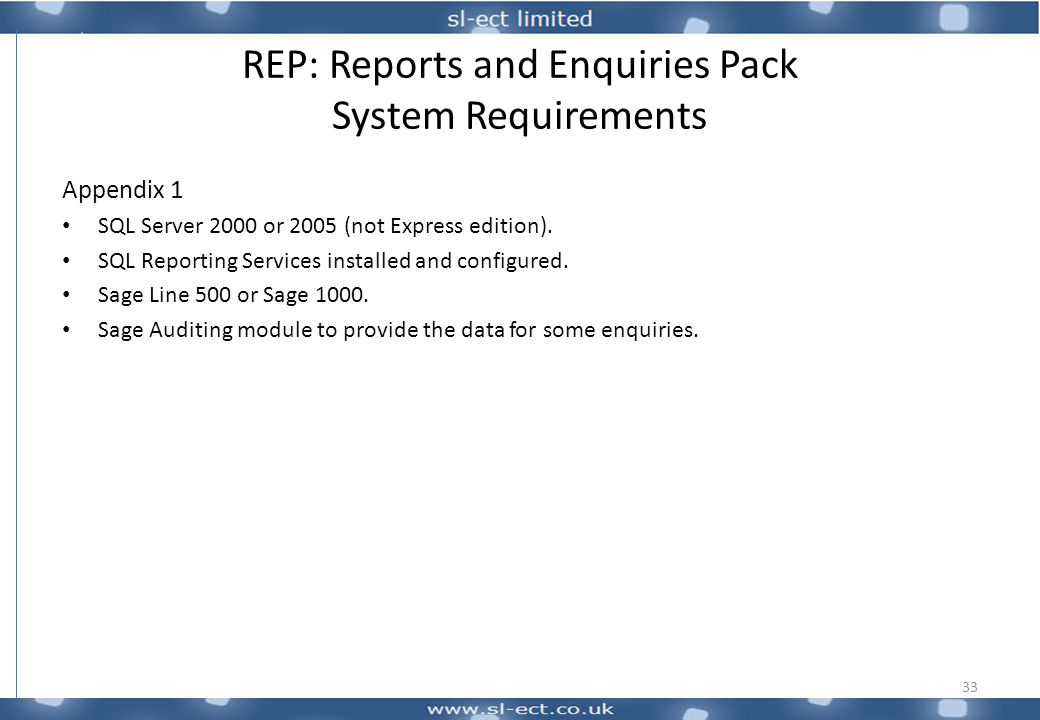

33 REP: Reports and Enquiries Pack System Requirements Appendix 1 SQL Server 2000 or 2005 (not Express edition). SQL Reporting Services installed and configured. Sage Line 500 or Sage Sage Auditing module to provide the data for some enquiries. 33

34 REP: Reports and Enquiries Pack System Keys Appendix 2 34 System KeysValueDescription SLECTPREFX77sl-ect Prefix for other system keys 77CUSTSL-ECTUsed to add customer specific functions 77PFSWH****List of WH to exclude 77PFSWHRJRJWH to exclude from PFS 77PFSMRPINYESInclude MRP recos? 77PFSFWDH 42 MRP/PFS Pivots - FWD Horizon if beyond Today + this 77PFSBKDH7MRP/PFS Pivots - BKWD Horizon if beyond Today - this 77PFSWODOF-14MRP/PFS/TrialKit WO detail date offset

35 REP: Reports and Enquiries Pack Xsort Appendix 3 How to affect the "Xsort" field and the Make Or Buy definition: The SQL View called scheme.slectrepX_stock_multiwh can be changed to suit each site. So it will never be overwritten by a version upgrade, but it MUST: a) Contain exactly 1 record for every product that you wish to show in the MRP Summary and Trial Kit screens b) Have certain mandatory fields: – product (string) – morb_combo (string) - used when selecting the Make Or Buy prompt – Xsort (string) - used for site specific sorting and the Document Map setting If the same product could exist in multiple warehouses then the above View must deal with this situation. For example if product ABC1 exists in 3 warehouses and you want to use AnalysisA as Xsort then you need to consider what happens if one of the warehouses has a blank value in AnalysisA, but the other 2 don't. In that case you would probably put Xsort = MAX(scheme.stockm.analysis_a). The same considerations must be made with regard to the Make Or Buy field. By default the system uses a lookup to another view called scheme.slectrep_morb_combo2. Note that this view may be overwritten on future upgrades. And remember that you can use your own Views instead and join them into scheme.slectrepX_stock_multiwh, which is under your control! 35

36 REP: Reports and Enquiries Pack Typical SSRS Menu 36

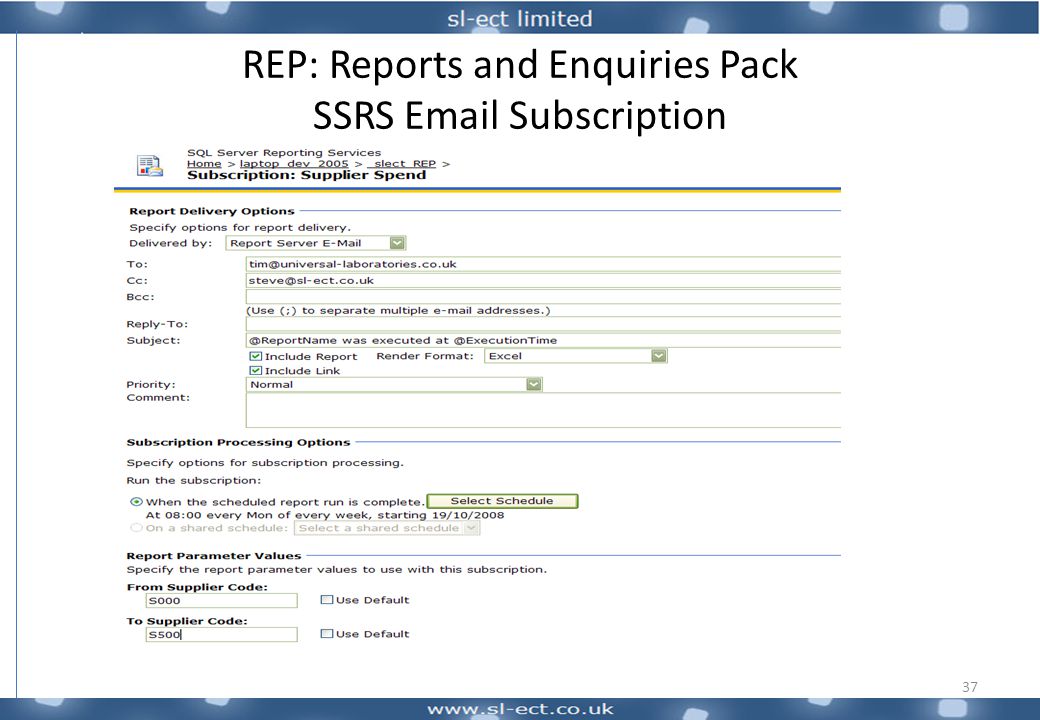

37 REP: Reports and Enquiries Pack SSRS Subscription 37

38 REP: Reports and Enquiries Pack Pricing 38 The price for the reports pack = £3000 Support per annum = £600 Which includes the following: All current reports and ongoing support of them. All future enhancements. All future new reports. 1 day onsite to install / test and to do a training session on how to get the most from the reports. The price does not depend on the number of users, nor on the number of Sage company databases that you run the reports against. And if there are any improvements needed to make the reports work better for yourselves we would be keen to look at building them in, as long as the changes would be beneficial to other Sage users. Contact : More info:
