KONICA MINOLTA PRINTING SOLUTIONS U.S.A., Inc. September 2006
2 magicolor 2480MF / 2490MF Essential business functions in a single compact desktop unit Desktop convenience combined with high-speed laser quality Based on the award-winning magicolor 2400 Series engine Easy to set up and use Versatile and cost effective All-in-One Color Laser Productivity Centers

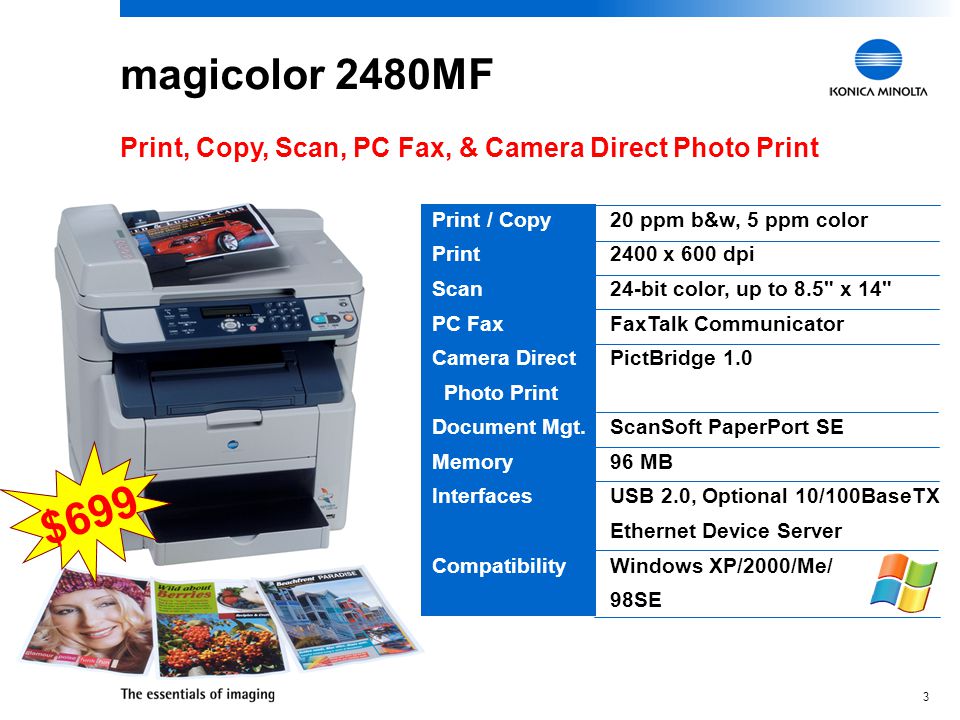

3 20 ppm b&w, 5 ppm color 2400 x 600 dpi 24-bit color, up to 8.5" x 14" FaxTalk Communicator PictBridge 1.0 ScanSoft PaperPort SE 96 MB USB 2.0, Optional 10/100BaseTX Ethernet Device Server Windows XP/2000/Me/ 98SE magicolor 2480MF Print, Copy, Scan, PC Fax, & Camera Direct Photo Print $699 Print / Copy Print Scan PC Fax Camera Direct Photo Print Document Mgt. Memory Interfaces Compatibility
4 20 ppm b&w, 5 ppm color 2400 x 600 dpi 24-bit color, up to 8.5" x 14" 33.6 Kbps Super G3 FaxTalk Communicator PictBridge 1.0 ScanSoft PaperPort SE 128 MB 10/100BaseTX Ethernet, USB 2.0 Windows Server 2003/XP/ 2000/Me/98SE magicolor 2490MF Print, Copy, Scan, Fax, PC Fax, & Camera Direct Photo Print $799 Print / Copy Print Scan Fax PC Fax Camera Direct Photo Print Document Mgt. Memory Interfaces Compatibility

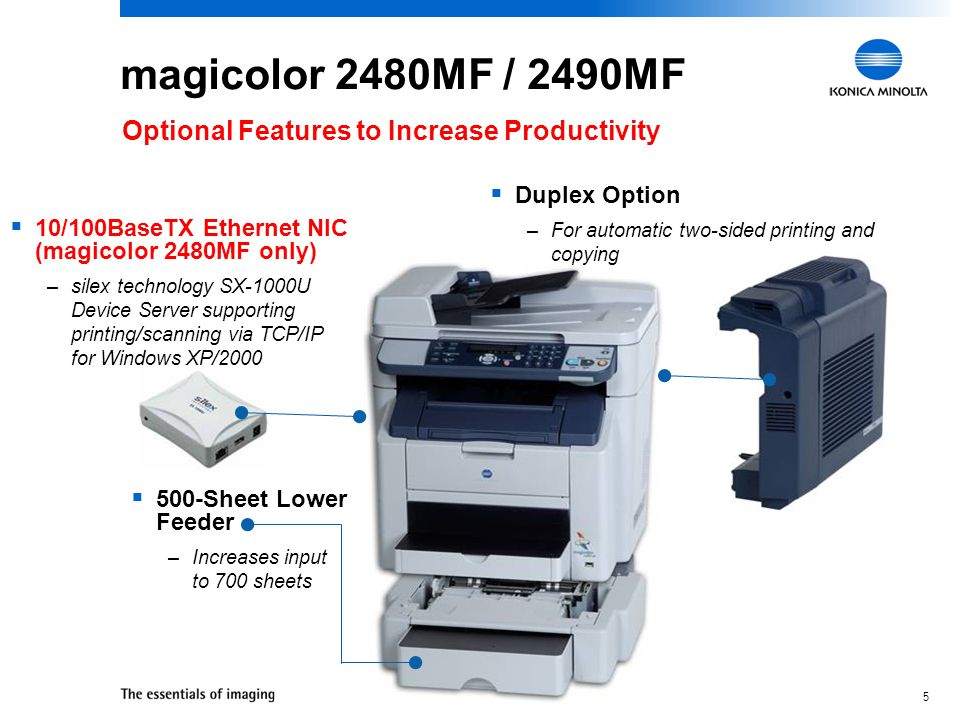

5 magicolor 2480MF / 2490MF Optional Features to Increase Productivity 500-Sheet Lower Feeder –Increases input to 700 sheets Duplex Option –For automatic two-sided printing and copying 10/100BaseTX Ethernet NIC (magicolor 2480MF only) –silex technology SX-1000U Device Server supporting printing/scanning via TCP/IP for Windows XP/2000

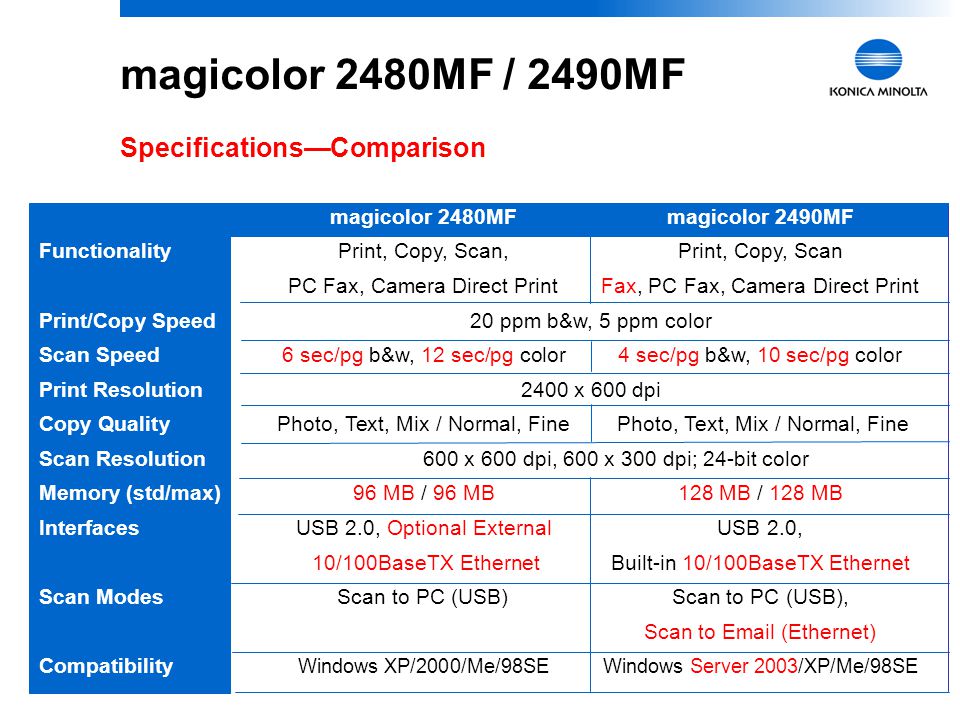

6 magicolor 2480MFmagicolor 2490MF FunctionalityPrint, Copy, Scan, Print, Copy, Scan PC Fax, Camera Direct PrintFax, PC Fax, Camera Direct Print Print/Copy Speed20 ppm b&w, 5 ppm color Scan Speed6 sec/pg b&w, 12 sec/pg color4 sec/pg b&w, 10 sec/pg color Print Resolution2400 x 600 dpi Copy QualityPhoto, Text, Mix / Normal, Fine Photo, Text, Mix / Normal, Fine Scan Resolution600 x 600 dpi, 600 x 300 dpi; 24-bit color Memory (std/max)96 MB / 96 MB128 MB / 128 MB InterfacesUSB 2.0, Optional ExternalUSB 2.0, 10/100BaseTX Ethernet Built-in 10/100BaseTX Ethernet Scan ModesScan to PC (USB)Scan to PC (USB), Scan to Email (Ethernet) Compatibility Windows XP/2000/Me/98SEWindows Server 2003/XP/Me/98SE magicolor 2480MF / 2490MF Specifications—Comparison
7 20 ppm 5 ppm 12 seconds/13 seconds* 21 seconds/22 seconds* 45 seconds (average) 2400 x 600 dpi 200 sheets std. / 700 max. Up to 8.5" x 14" Hi-Speed USB 2.0 Optional 10/100BaseTX Ethernet NIC** Built-in 10/100BaseTX Ethernet 96 MB / 128 MB 35,000 prints/month magicolor 2480MF / 2490MF Reliable Printers... * From an idle, ready state ** magicolor 2480MF only B&W Speed Color Speed B&W First Page Out Color First Page Out Warm-up Time Resolution Paper Input Media Sizes Interfaces Memory Duty Cycle

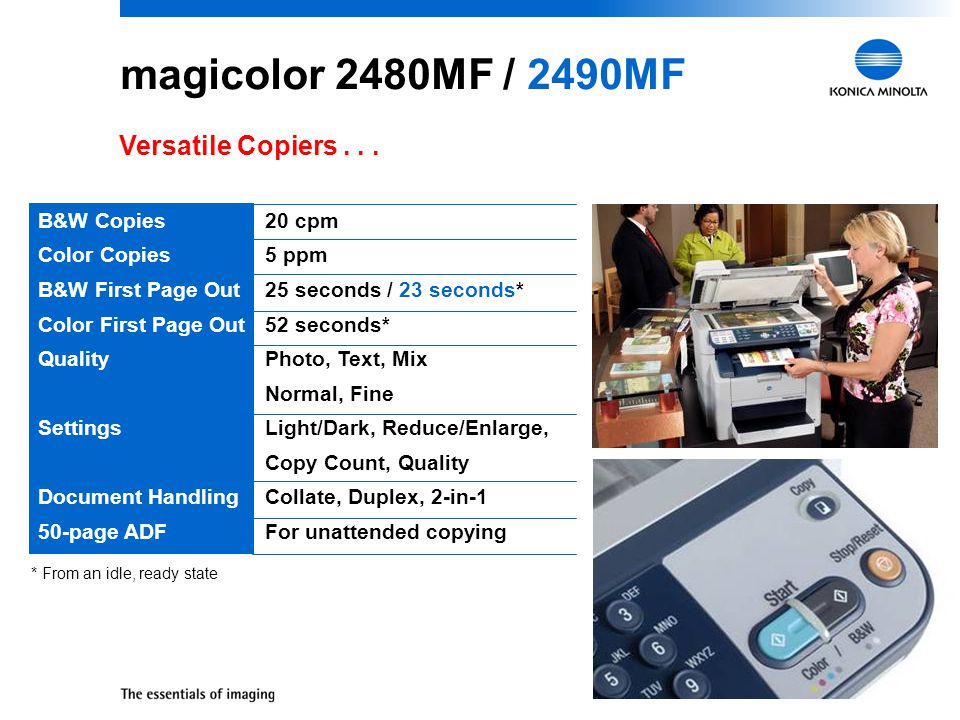

8 magicolor 2480MF / 2490MF Versatile Copiers... 20 cpm 5 ppm 25 seconds / 23 seconds* 52 seconds* Photo, Text, Mix Normal, Fine Light/Dark, Reduce/Enlarge, Copy Count, Quality Collate, Duplex, 2-in-1 For unattended copying * From an idle, ready state B&W Copies Color Copies B&W First Page Out Color First Page Out Quality Settings Document Handling 50-page ADF

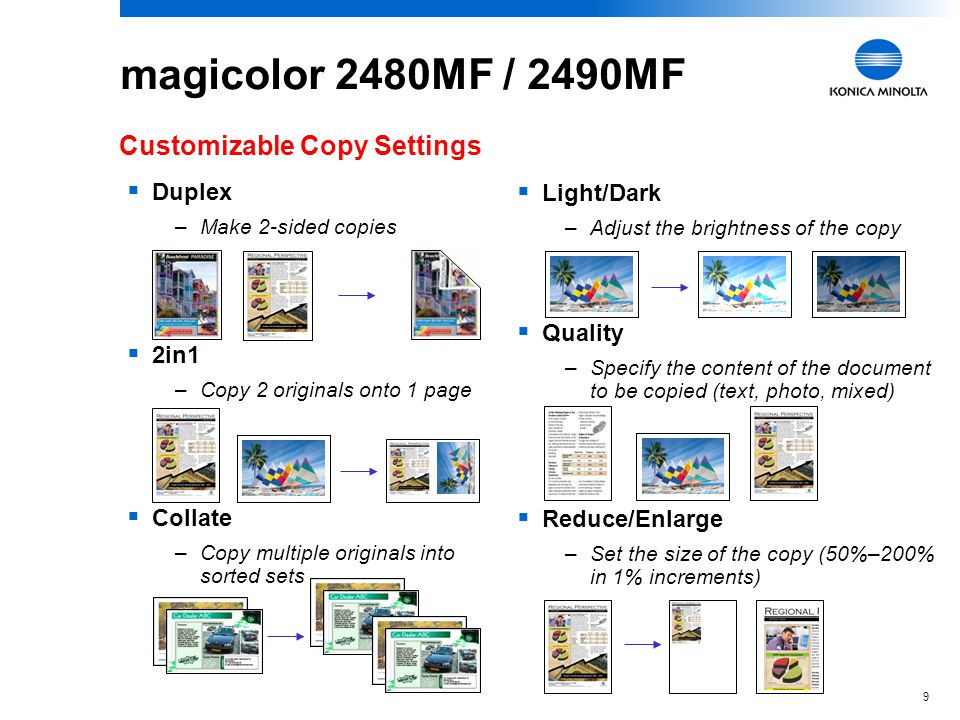

9 Light/Dark –Adjust the brightness of the copy Quality –Specify the content of the document to be copied (text, photo, mixed) Reduce/Enlarge –Set the size of the copy (50%–200% in 1% increments) Duplex –Make 2-sided copies 2in1 –Copy 2 originals onto 1 page Collate –Copy multiple originals into sorted sets Customizable Copy Settings magicolor 2480MF / 2490MF

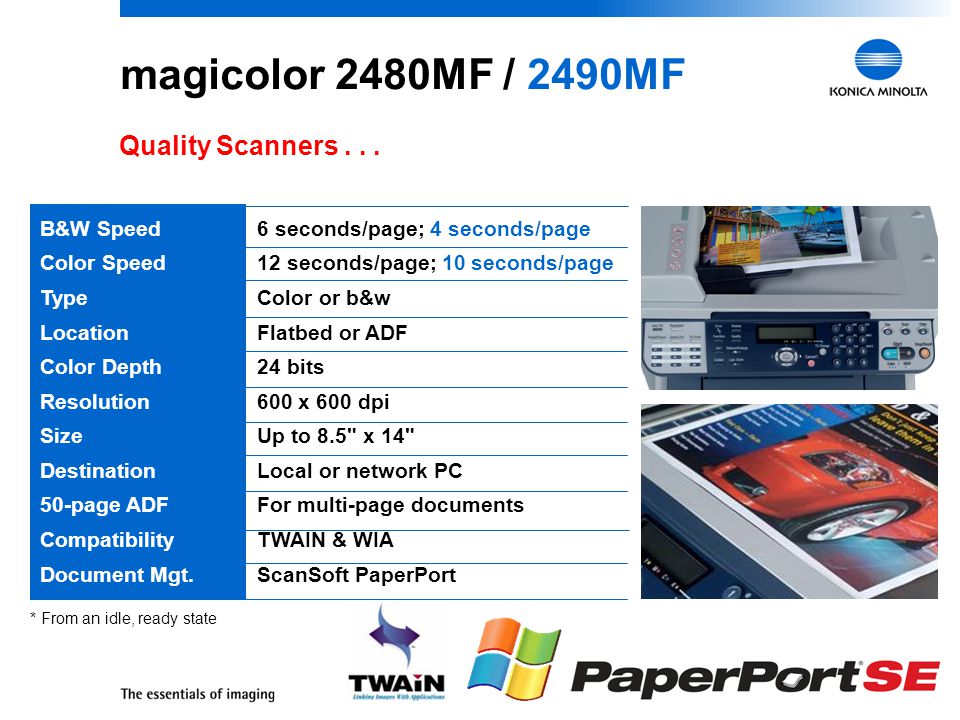

10 magicolor 2480MF / 2490MF Quality Scanners... * From an idle, ready state B&W Speed Color Speed Type Location Color Depth Resolution Size Destination 50-page ADF Compatibility Document Mgt. 6 seconds/page; 4 seconds/page 12 seconds/page; 10 seconds/page Color or b&w Flatbed or ADF 24 bits 600 x 600 dpi Up to 8.5" x 14" Local or network PC For multi-page documents TWAIN & WIA ScanSoft PaperPort
11 magicolor 2480MF / 2490MF ScanSoft PaperPort SE Document Management & Imaging Software Scan documents and photographs to PDF, JPEG, TIFF, and other formats Touch up and annotate scanned documents and images Organize scanned documents, digital photographs, and other image files visually Convert scanned documents to editable text via Optical Character Recognition (OCR)
12 magicolor 2490MF Scan to Email Scan directly to email via the Ethernet interface Scan single- or multi-page documents Attach scanned documents as PDF or TIFF files Email documents to one or several recipients worldwide Use speed dial keys to select recipients quickly 1. Insert document (ADF or flatbed) 3. Press Start 2. Press Scan & select recipient's address 4. Receive email

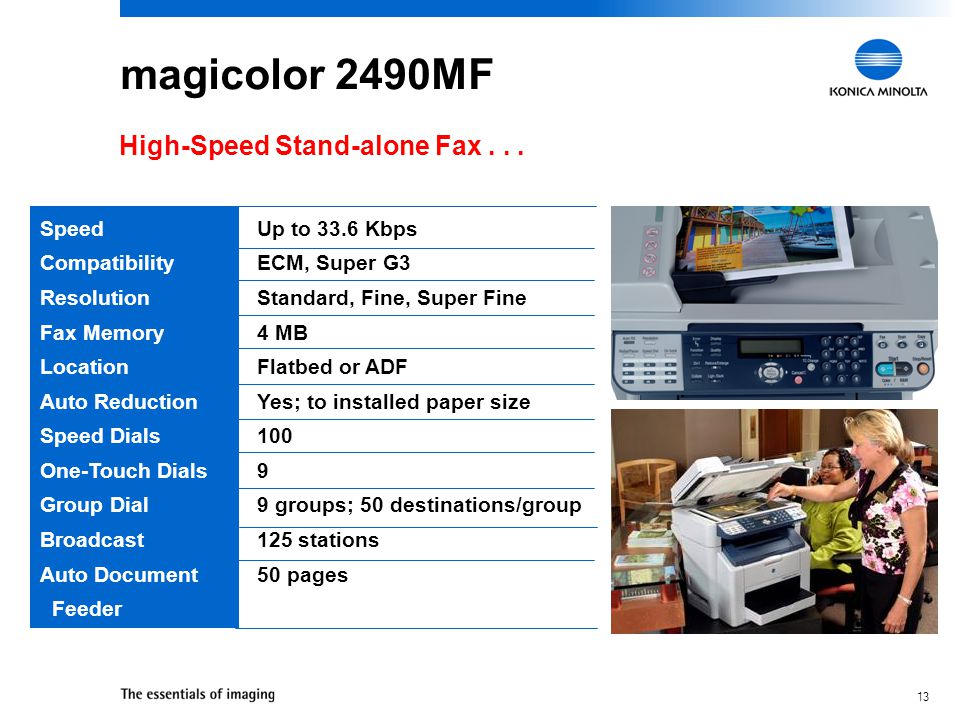

13 Up to 33.6 Kbps ECM, Super G3 Standard, Fine, Super Fine 4 MB Flatbed or ADF Yes; to installed paper size 100 9 9 groups; 50 destinations/group 125 stations 50 pages Speed Compatibility Resolution Fax Memory Location Auto Reduction Speed Dials One-Touch Dials Group Dial Broadcast Auto Document Feeder magicolor 2490MF High-Speed Stand-alone Fax...

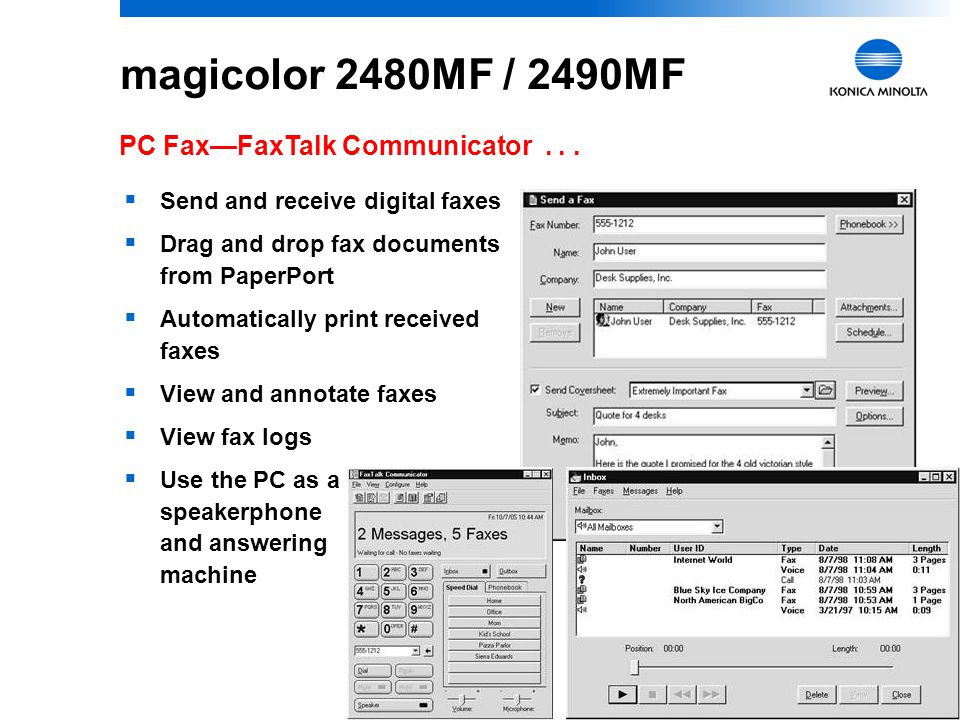

14 Send and receive digital faxes Drag and drop fax documents from PaperPort Automatically print received faxes View and annotate faxes View fax logs Use the PC as a speakerphone and answering machine magicolor 2480MF / 2490MF PC Fax—FaxTalk Communicator...
15 PictBridge 1.0 USB 1.1 Host Port Up to 8.5" x 11" No PC or special software required 1-up, 2-up, 3-up, 4-up, 6-up, or 8-up photos 4" x 6" borderless prints* Batch print Fit-to-page Index prints Multiple copies Plain paper or photo media Varied or duplicate images on the same page magicolor 2480MF / 2490MF Camera Direct Photo Printers... Compatibility Connection Photo Sizes Requirements Supported Functions (Other options may also be supported, depending on the camera model) * The magicolor 2480MF requires special media for 4" x 6" borderless prints. Go to printer.konicaminolta.com for a list of recommended media.

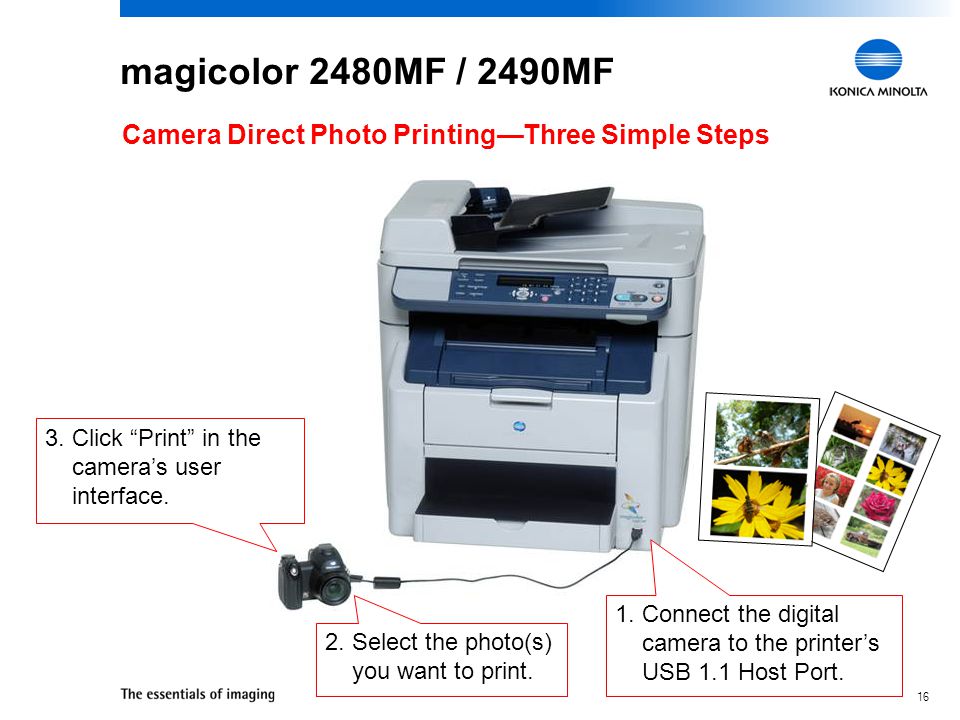

16 magicolor 2480MF / 2490MF 2. Select the photo(s) you want to print. 3. Click “Print” in the camera’s user interface. Camera Direct Photo Printing—Three Simple Steps 1. Connect the digital camera to the printer’s USB 1.1 Host Port.
17 A Perfect Fit for SOHO & SMB magicolor 2480MF / 2490MF Organizations seeking a one-product solution for their essential business functions Satellite and home offices with limited space that need the functionality of several office machines Small departments within corporate environments that require private document management Businesses moving up from other technologies: single-function devices, monochrome laser AIOs, and color inkjet AIOs Daily correspondenceCD-ROM & mailing labelsEnvelopes Email & web pagesBusiness papersMaps NewslettersSpreadsheets / chartsPhotographs PostersReportsInvoices What they’re producing... Recipes & Crafts
18 magicolor 2480MF / 2490MF Product Overview Adjustable 200-Sheet Multipurpose Tray Easy-Access Consumables Camera Direct Photo Printing via USB 1.1 Host Port Flatbed Copier/Scanner Laser Printer USB 2.0 10/100BaseTX Ethernet Optional 10/100BaseTX Ethernet (magicolor 2480MF) Easy-to-Use Control Panel 50-Sheet Auto Document Feeder (for Copying, Scanning, & Faxing) 100-Sheet Output Tray PC Fax Software Optional Duplexer (for Two-Sided Printing & Copying) Super G3 Fax Optional 500-Sheet Lower Feeder
19 magicolor 2480MF / 2490MF Thin-Layer Roller Fusing System Short Warmup Waste Toner Storage Integrated part of the OPC belt Wide-angle laser unit Small size Output tray 100 sheets Toner Carousel OPC Drum Lower feeder 500 sheets; optional Input tray 200 sheets ADF Input Tray 50 sheets; unattended copying & scanning ADF Output Tray Duplexer Optional Scan & copy Up to 8.5" x 14" via flatbed or Auto Document Feeder (ADF) Small footprint Full front access

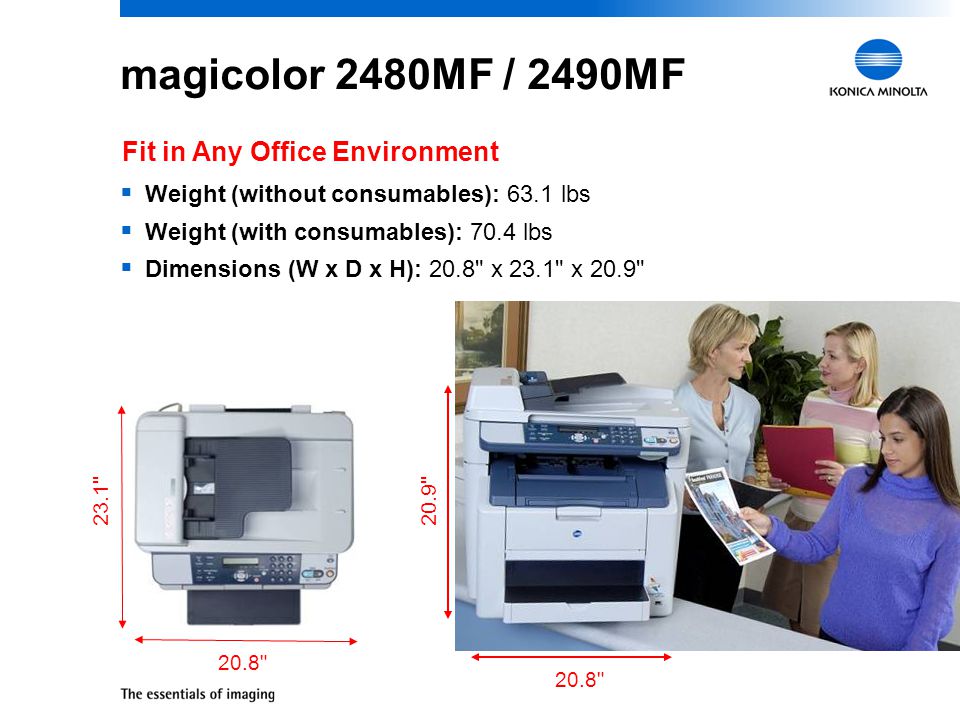

20 magicolor 2480MF / 2490MF 20.8" Fit in Any Office Environment Weight (without consumables): 63.1 lbs Weight (with consumables): 70.4 lbs Dimensions (W x D x H): 20.8" x 23.1" x 20.9" 23.1" 20.8" 20.9"
21 magicolor 2480MF / 2490MF Fast and Easy to Set Up Install in minutes— –From box to desktop Pre-installed supplies –Ensure quick setup Auto-install software –Guides users through driver installation
22 magicolor 2480MF / 2490MF Fast and Easy to Set Up magicolor 2480MF / 2490MF HP Color LaserJet 2840 31 min 1 sec 4 min 43 sec magicolor 2480MF / 2490MF vs. HP Color LaserJet 2840 Time required to set up the machine and print a configuration page

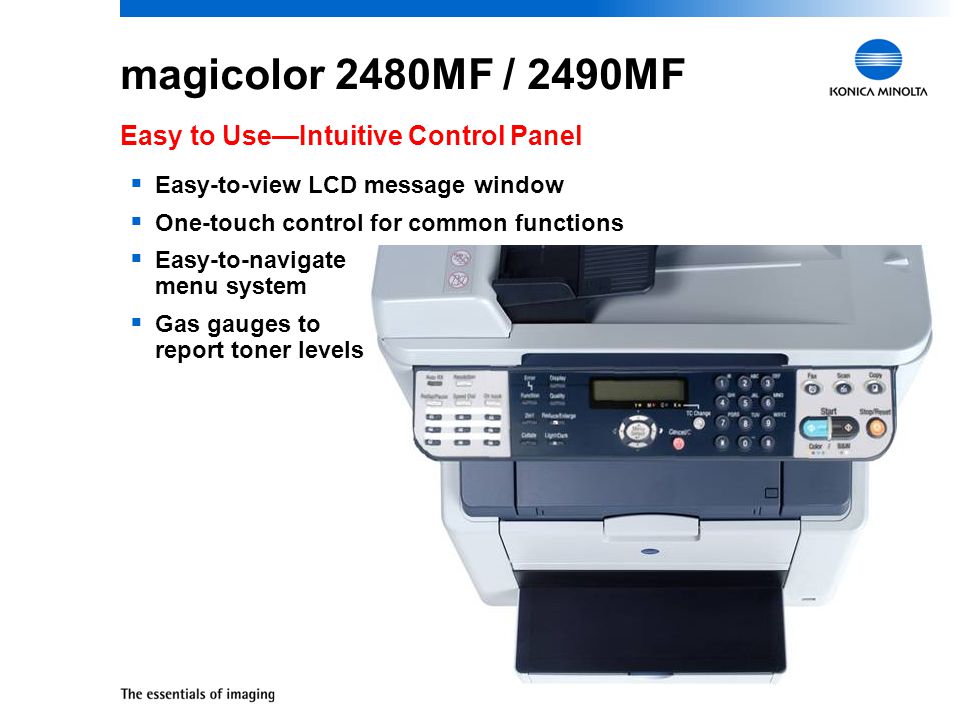

23 magicolor 2480MF / 2490MF Easy-to-view LCD message window One-touch control for common functions Easy-to-navigate menu system Gas gauges to report toner levels Easy to Use—Intuitive Control Panel
24 magicolor 2480MF One-touch control panel provides easy access to copy and configuration functions Easy to Use—Intuitive Control Panel Toner Levels Error Information Device Configuration Copy Settings Cancel Alphanumeric Keypad Copy Stop Reset Start Toner Replacement

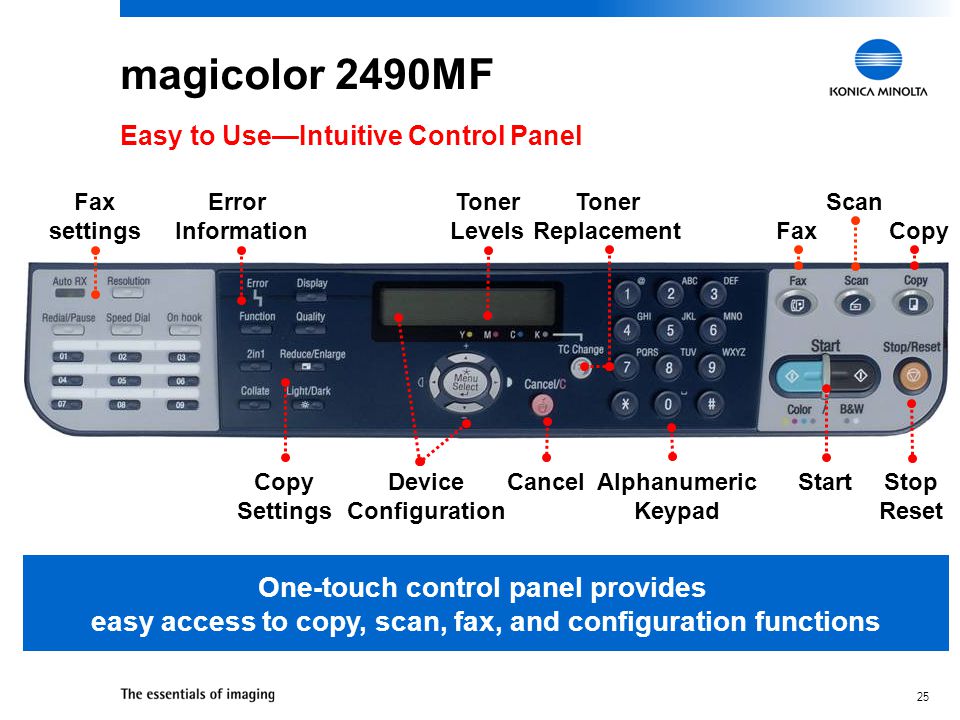

25 magicolor 2490MF One-touch control panel provides easy access to copy, scan, fax, and configuration functions Easy to Use—Intuitive Control Panel Toner Levels Error Information Device Configuration Copy Settings Cancel Alphanumeric Keypad Copy Stop Reset Start Toner Replacement Fax settings Fax Scan

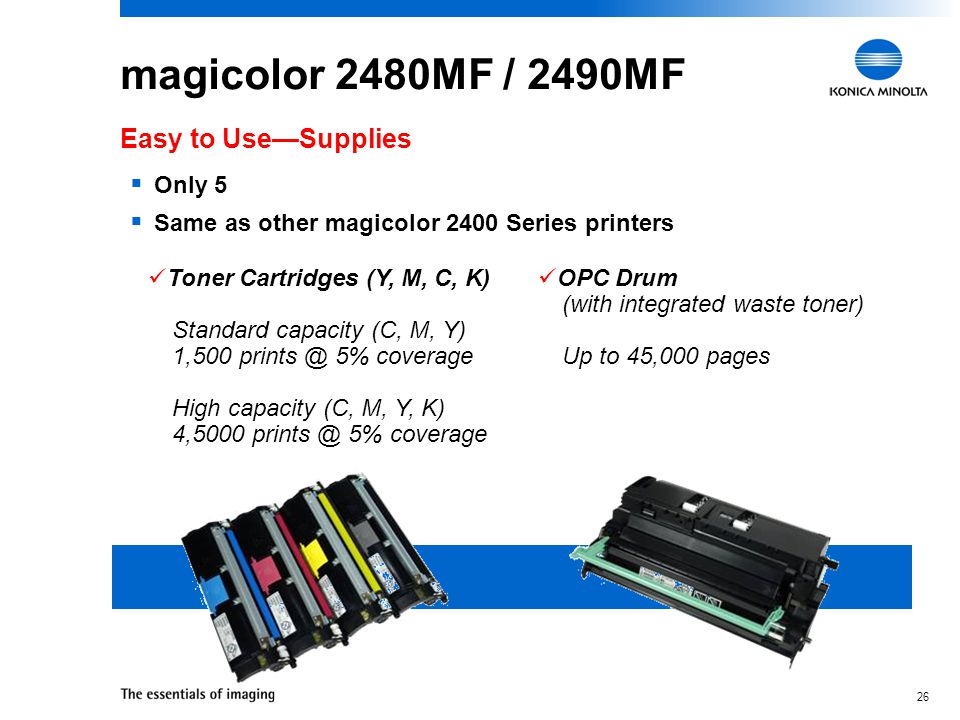

26 magicolor 2480MF / 2490MF Only 5 Same as other magicolor 2400 Series printers Easy to Use—Supplies Toner Cartridges (Y, M, C, K) Standard capacity (C, M, Y) 1,500 prints @ 5% coverage High capacity (C, M, Y, K) 4,5000 prints @ 5% coverage OPC Drum (with integrated waste toner) Up to 45,000 pages
27 magicolor 2480MF / 2490MF Easy to Use—Supplies Step-by-step replacement instructions inside Front access for easy replacement Accurate “gas gauge” reporting through control panel & status list Color-coded toner cartridges for fool-proof replacement

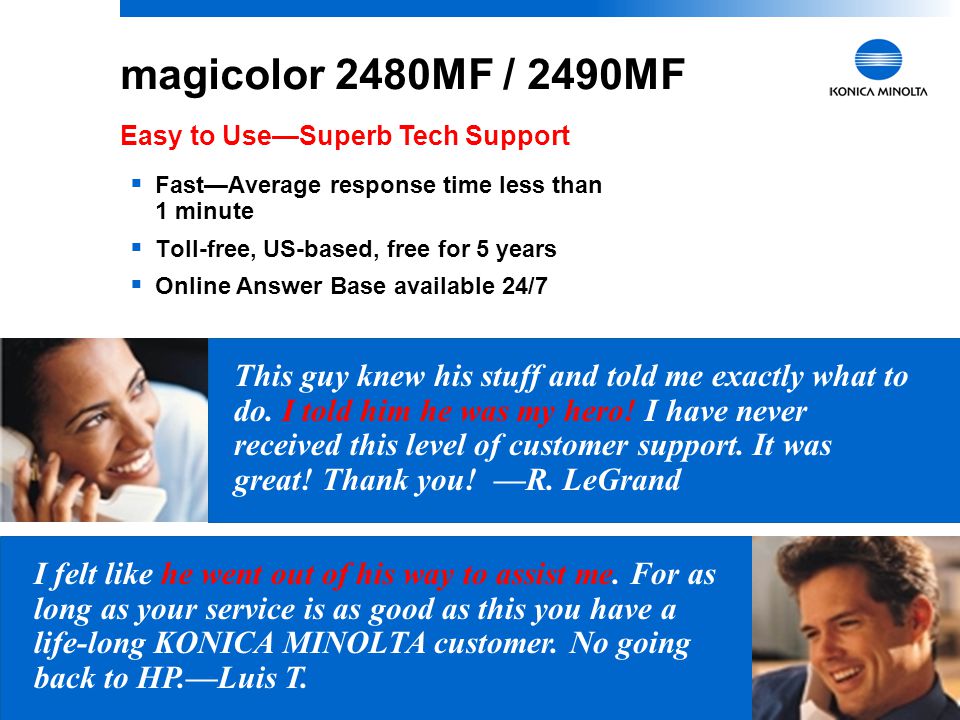

28 magicolor 2480MF / 2490MF Fast—Average response time less than 1 minute Toll-free, US-based, free for 5 years Online Answer Base available 24/7 Easy to Use—Superb Tech Support This guy knew his stuff and told me exactly what to do. I told him he was my hero! I have never received this level of customer support. It was great! Thank you! —R. LeGrand I felt like he went out of his way to assist me. For as long as your service is as good as this you have a life-long KONICA MINOLTA customer. No going back to HP.—Luis T.
29 magicolor 2480MF / 2490MF 2400 dpi print quality – Brilliant, true-to-life color documents & photos All resolutions print at full engine speed – Up to 20 ppm b&w, 5 ppm color Amazing Color

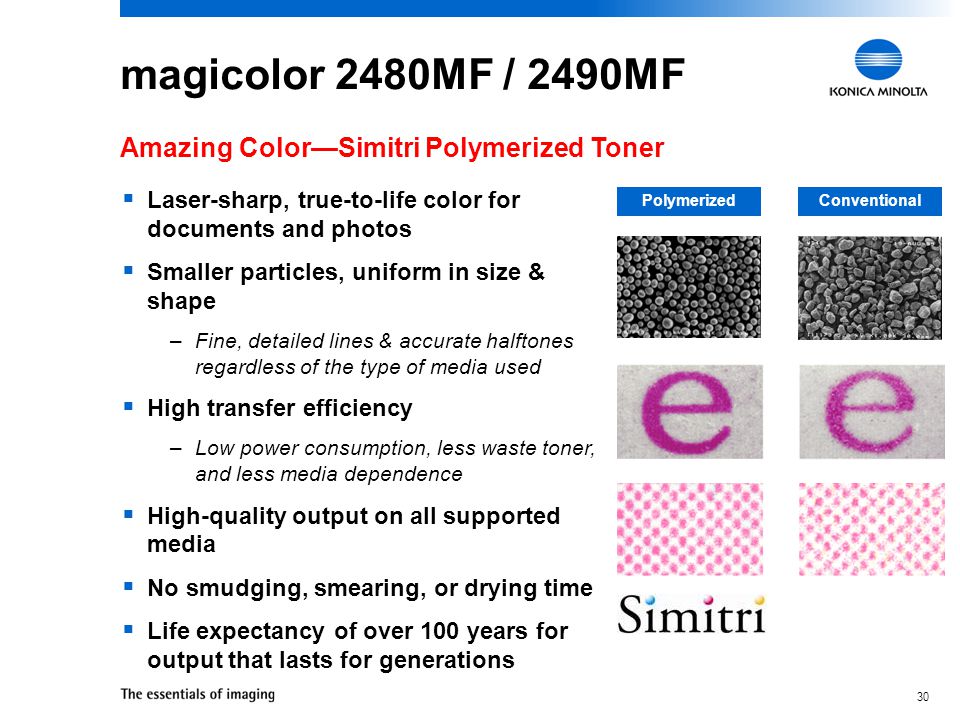

30 magicolor 2480MF / 2490MF Amazing Color—Simitri Polymerized Toner Laser-sharp, true-to-life color for documents and photos Smaller particles, uniform in size & shape –Fine, detailed lines & accurate halftones regardless of the type of media used High transfer efficiency –Low power consumption, less waste toner, and less media dependence High-quality output on all supported media No smudging, smearing, or drying time Life expectancy of over 100 years for output that lasts for generations PolymerizedConventional

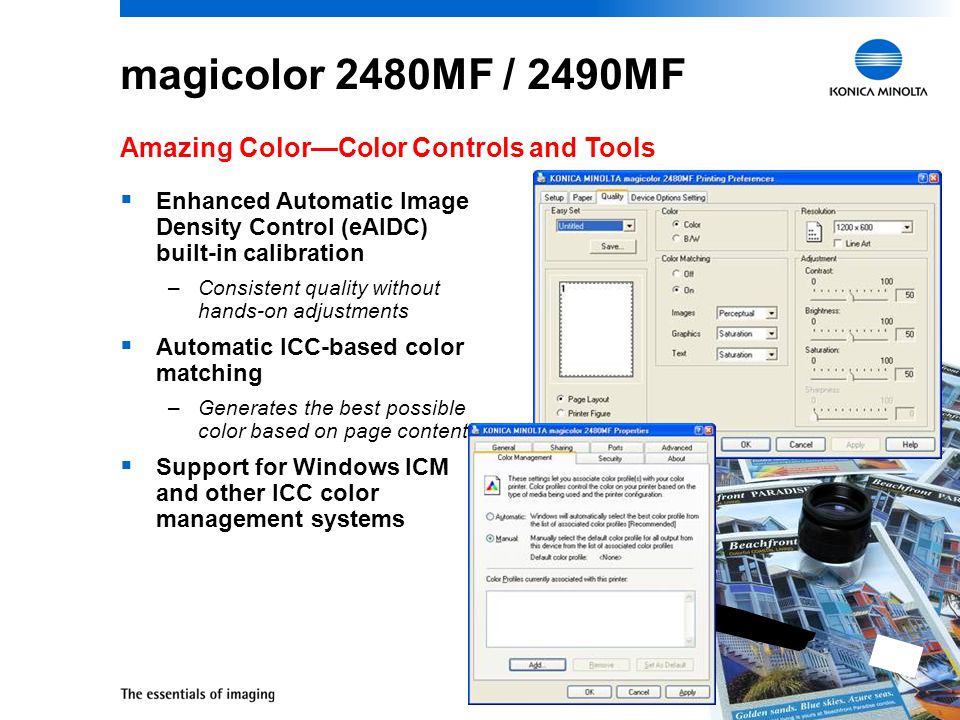

31 magicolor 2480MF / 2490MF Amazing Color—Color Controls and Tools Enhanced Automatic Image Density Control (eAIDC) built-in calibration –Consistent quality without hands-on adjustments Automatic ICC-based color matching –Generates the best possible color based on page contents Support for Windows ICM and other ICC color management systems

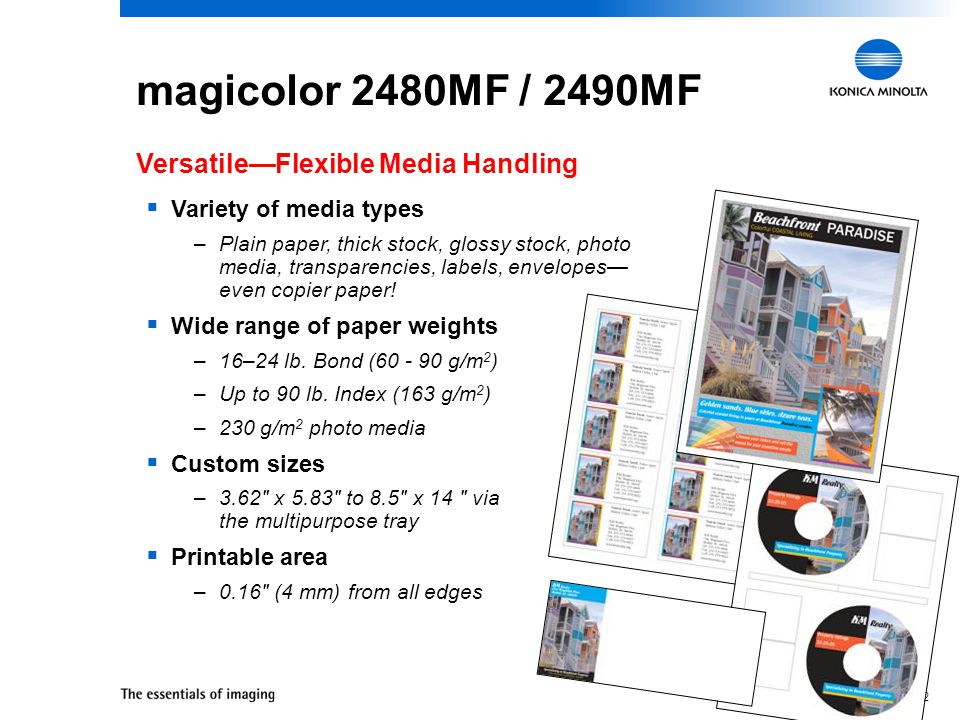

32 magicolor 2480MF / 2490MF Versatile—Flexible Media Handling Variety of media types –Plain paper, thick stock, glossy stock, photo media, transparencies, labels, envelopes— even copier paper! Wide range of paper weights –16–24 lb. Bond (60 - 90 g/m 2 ) –Up to 90 lb. Index (163 g/m 2 ) –230 g/m 2 photo media Custom sizes –3.62" x 5.83" to 8.5" x 14 " via the multipurpose tray Printable area –0.16" (4 mm) from all edges
33 Access from a web browser. Web-based management tool for real-time status and configuration magicolor 2490MF PageScope Web Connection – Consumables status – Network settings – Email configuration – Fax settings – Fax destination lists
34 magicolor 2480MF Epson AcuLaser CX11NHP CLJ 2820 FunctionalityPrint, copy, scan, PC Fax, Camera Direct Photo Print Print, copy, scan Speed—Color5 ppm 4 ppm Speed—B&W20 ppm25 ppm20 ppm Resolution2400 dpi2400 RITImageREt 2400 InterfaceUSB 2.0, optional EthernetUSB 2.0, Ethernet Auto Document Feeder Standard (50 sheets)NoStandard (50 sheets) 8.5" x 14" Support Flatbed and ADFADF only Duty Cycle35,000 pgs / month45,000 pgs/month30,000 pgs/month Paper Input200 std., 700 max180 std., 680 max.125 std., 375 max. Auto Duplex Prints & Copies OptionalNo Photo PrintPictBridge Camera Direct No Cost$699.00$699.99$699.00 Competitive Comparison
35 magicolor 2490MF Brother MFC-9420CN Epson AcuLaser CX11NF HP CLJ 2840 FunctionalityPrint, copy, scan, fax, PC Fax, Camera Direct Photo Print Print, copy, scan, fax, PC Fax Print, copy, scan, fax Speed—Color5 ppm8 ppm5 ppm4 ppm Speed—B&W20 ppm31 ppm25 ppm20 ppm Resolution2400 dpi 2400 RITImageREt 2400 InterfaceUSB 2.0, EthernetUSB 2.0, Ethernet, parallel USB 2.0, Ethernet Auto Document Feeder Standard (50 sheets)Standard (35 sheets)Standard (50 sheets) 8.5" x 14" SupportFlatbed and ADFADF only Duty Cycle35,000 pgs / month30,000 pgs/month45,000 pgs/month30,000 pgs/month Paper Input200 std., 700 max250 std., 780 max.180 std., 680 max.375 std., 375 max. Auto Duplex Prints & Copies OptionalNo Photo PrintPictBridge Camera Direct No Media card slots Cost$799.00$749.99$799.99$899.00 Competitive Comparison
36 1 hr. 38 sec. 44 min. 25 sec. 31 min. 12 sec. magicolor 2490MF 0:005:0010:0015:0020:0025:0030:0035:0040:0045:0050:0055:0060:00 magicolor 2490MF HP Color CLJ 2840 * Testing was performed using QualityLogic ® PageSense ®, the industry-standard printer performance testing tool for measuring and reporting throughput performance of printers and MFPs. magicolor 2490MF vs. Hewlett-Packard & Brother Speed Benchmark: QualityLogic test suite – 16 files, 257 pages Excel, PowerPoint, Word, Acrobat, Illustrator, CorelDRAW, Photoshop, QuarkXPress Brother MFC-9420CN FASTERS L O W E R 49% FASTER than HP 2840 30% FASTER than Brother 9420

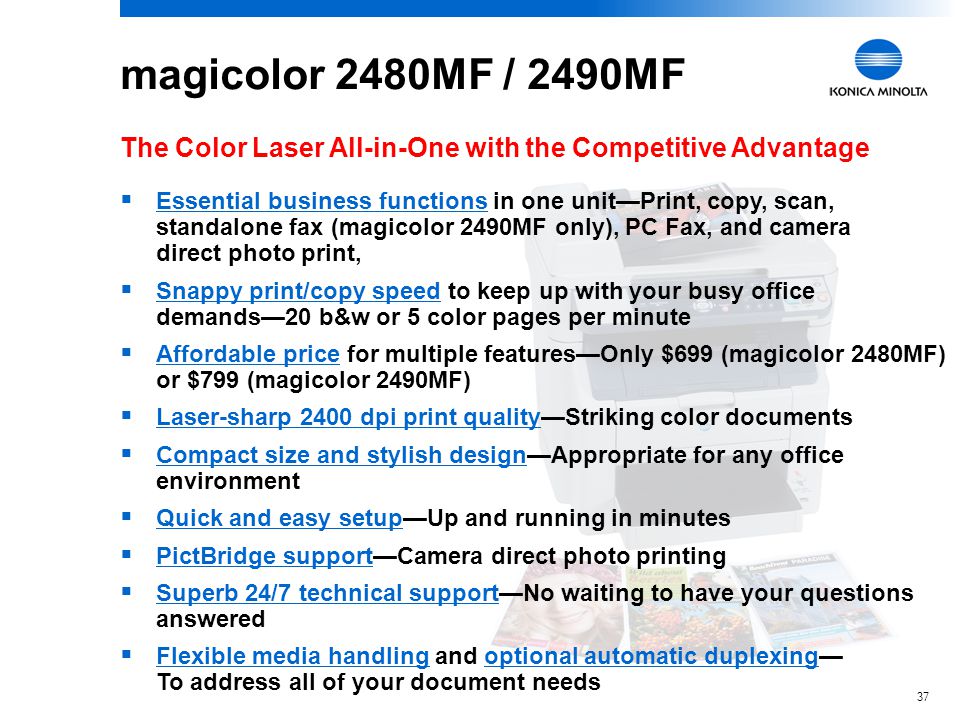

37 magicolor 2480MF / 2490MF The Color Laser All-in-One with the Competitive Advantage Essential business functions in one unit—Print, copy, scan, standalone fax (magicolor 2490MF only), PC Fax, and camera direct photo print, Snappy print/copy speed to keep up with your busy office demands—20 b&w or 5 color pages per minute Affordable price for multiple features—Only $699 (magicolor 2480MF) or $799 (magicolor 2490MF) Laser-sharp 2400 dpi print quality—Striking color documents Compact size and stylish design—Appropriate for any office environment Quick and easy setup—Up and running in minutes PictBridge support—Camera direct photo printing Superb 24/7 technical support—No waiting to have your questions answered Flexible media handling and optional automatic duplexing— To address all of your document needs
