1 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential PagePro 1250W Fast, affordable printing for small offices or home offices on a budget!

2 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential PagePro 1250W Overview PagePro 1250W 17 ppm monochrome Minolta engine/controller design True 1200 dpi resolution Microsoft Windows printing 150-sheet MPT input 100-sheet output (face-down)

3 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential Target Markets Small office – home office environments where space is a premium and budgets are tight, but productivity is still very important PagePro 1250W

4 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential PagePro 1250W 150-sheet MPT 100-sheet output Windows (GDI) printing Parallel, USB interfaces 8MB RAM 1200 dpi resolution High Quality Prints! Folds Out of the Way When Not in Use! Simple to Connect! Easy to Use! Holds Large Documents without Overflowing! Enough for Long Documents!

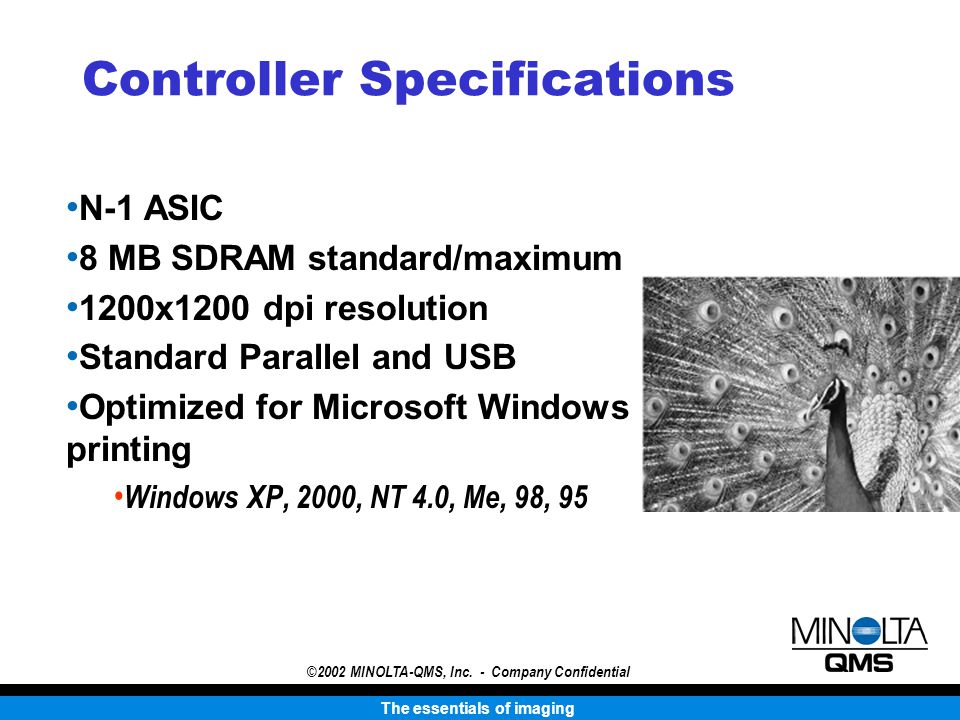

5 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential N-1 ASIC 8 MB SDRAM standard/maximum 1200x1200 dpi resolution Standard Parallel and USB Optimized for Microsoft Windows printing Windows XP, 2000, NT 4.0, Me, 98, 95 Controller Specifications

6 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential Engine Toner Cartridge* Starter: 1,500 prints Replacement: 3,000 prints or Hi-Cap 6,000 prints Drum Cartridge* 20,000 prints Weight - base unit 18.74 lbs. (8.5 kg) Dimensions - base unit 15.4" (W) x 16.1" (D) x 14.6" (H) (391 x 409 x 371 mm) Duty Cycle - max 15,000 impressions per month Energy Star compliant * Yield at 5% coverage

7 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential Host Computer Support Interfaces (Standard) Parallel USB Platform Support Windows 9x Windows Me Windows NT4 Windows 2000 Windows XP "Plug-and-Play"

8 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential Windows Printer Driver Use Easy Set to save settings for frequently printed documents

9 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential Windows Printer Driver Select Toner Save to reduce toner usage

10 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential Paper Handling Paper Input Std 150-sheet multipurpose tray Opt 500-sheet feeder (letter or A4) Paper Output Std 100-sheet face down tray Opt 20-sheet face up tray Paper Sizes Letter, A4, Legal, A5, B5, JIS B5, Invoice, Envelope, Chinese 16K, Chinese 32K Paper Weights 16-43 lb. Bond (60-163 g/m 2 ) through multipurpose tray 16-24 lb. Bond (60-90 g/m 2 ) through optional cassette

11 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential All prices listed in U.S. dollars PagePro 1250W Competition

12 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential Options & Accessories Paper Input 500-sheet cassette Letter or A4 Paper Output 20-sheet face-up tray Useful for reducing curl in thick stock

13 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential Consumables Toner 1,500-page starter included 3,000-page regular cartridge 6,000-page hi-capacity cartridge Drum 20,000 prints

14 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential New Packaging Four-color carton graphics designed for retail

15 The essentials of imaging ©2002 MINOLTA-QMS, Inc. - Company Confidential Full Line of Monochrome Printers PagePro 1250WPagePro 1250EPagePro 9100N 17 ppm Up to 8½ x14 150-sheet input Windows only Parallel + USB 1200 x 1200 dpi 17 ppm Up to 8½ x14 250-sheet input PostScript Level 2, PCL 6, PCL 5e Parallel + USB 1200 x 1200 dpi 35 ppm Up to 11 x 17 700-sheet input PostScript 3, PCL 6, PDF, HP-GL, line printer Fast Ethernet, Parallel, USB 1200 x 1200 dpi

16
