1. Industrial use of archaea for integrated Pollution Control-Waste Water, Gases , Soil Bioremediation, and the  Biodiversity Conservation
Euring. Bela TOZSER
Expert UN&EU Commission, Managing and Engineering Director ,
Envirosan DC
H-7100 Szekszárd, Rizling Str. 11. POB.:199.
Hungary
Web: envizont.eu

2. Table of contents Industrial use of archaea
Integrated, innovative complex for growth of archae
Opportunities of application and perspectives

3. Archaea Archaea are the smallest independently
living single-celled organisms on earth
Typical cells range in size from 0.5 to1.0 µm
in diameter
DNA lies free in the cell cytoplasm
A cell membrane comprised of phospholipids
surrounds the cell.
The cell wall is usually made up of
protein and carbohydrate and lipids.
Most of the time they undergo asexual reproduction,
mostly by dividing in half – some cells divide every 12–20 minutes, others take a lot longer.
All organisms require carbon, which provides building blocks for cell materials
Archaebacteria are also known as "extremophiles," thanks to their ability to survive in extreme environments such as very hot and very cold climates.

4. Archaea
Colored transmission electron micrograph of the archaea
Methanospirillum hungatii undergoing cell division
Archaea were originally thought to exist only in harsh environments
Were often described as ‚extremophiles’
They are widely distributed and are found alongside bacteria in many environments including soil and water.
The best described groups of Archaea are the methanogens that produce methane, and the extremophiles that grow under high salt or extreme temperatures.
Pyrodictum, for example, has an optimal growth temperature of 105°C.

5. Prokaryotic Cells First cell type on earth
Cell type of Bacteria and Archaea
No membrane bound nucleus
Nucleoid = region of DNA concentration
Organelles not bound by membranes

7. The archaebacteria have the following unique combination of traits:
Prokaryotic traits:
They are about 1 micrometer (μm) in diameter, the size of typical procaryotes.
They lack membrane-bound organelles.
They have nuclear bodies (nucleoids) rather than true, menbranee bound nuclei.
Their ribosomes are 70 S, the size of those found in typical prokaryotes.
Eukaryotic traits:
Their cell walls completely lack peptidoglycan.
Their protein synthesis machinery is sensitive to inhibitors that typically affect only eukaryotes and is resistant to many inhibitors that affect prokaryotes.
Some of their proteins, pigments, and biochemical processes closely resemble those found in eukaryotic cells.

8. Archaebacteria include three groups:
The methanogens, strict anaerobes that produce methane (CH4) from carbon dioxide and hydrogen.
Extreme halophiles, which require high concentrations of salt for survival.
Thermoacidophiles, which normally grow in hot, acidic environments.

9. Enzymes and proteins from organisms that grow near and above 100 °C
Hyperthermophile group includes some methanogenic and sulfate- reducing species
Only a few species are saccharolytic.
Most of the hyperthermophiles absolutely depend on the reduction of elemental sulfur (S0) to H2S for significant growth,
The fermentative pathways appear to depend upon enzymes that contain tungsten

10. Extremophiles as a source of novel enzymes for industrial application
Extremophilic microorganisms are adapted to survive in ecological niches:
high temperatures,
extremes of pH,
high salt concentrations
high pressure.
These microorganisms produce unique biocatalysts which operateunder extreme conditions
Selected extracellular-polymer-degrading enzymes and other enzymes could be used in food, chemical and pharmaceutical industries and in environmental biotechnology.
(amylases, pullulanases, cyclodextrin glycosyltransferases, cellulases, xylanases, chitinases, proteinases, esterases, glucose isomerases, alcohol dehydrogenases and DNA-modifying enzymes )
A scanning electron micrograph of a ten-million-year-old Archaea.

11. Biotechnological applications of archaeal biomasses
Biological methanogenesis is applied to the anaerobic treatment of
sewage sludge,
agricultural, municipal and industrial wastes
Methanogens are a group of microorganisms that obtain energy for growth from the reaction leading to methane production.
Many bioreactor configurations have been exploited
to increase the efficiency of anaerobic digestion,
such as
the rotating biological contactor,
the anaerobic baffle reactor
the upflow anaerobic sludge blanket reactor,
several large-scale plants are in operation

12. Archaeal enzymes of biotechnological interest
Natural and modified archaeal enzymes present huge possibilities for industrial applications
Many archaeal enzymes involved in carbohydrate metabolism - special interest to the industrial biotechnology sector.
The starch processing industry can profit from the exploitation of thermostable enzymes.
Another promising application of hyperthermophilic archaeal enzymes is in trehalose production.
Several other polymer-degrading enzymes isolated from archaea could play important roles in the chemical, pharmaceutical, paper, pulp or waste treatment industries. (xylanases and cellulases)
Some archaeal metabolites have potential industrial applications.
(proteins, osmotically active substances, exopolysaccharides and special lipids )
Archaeal lipids have been proposed as monomers for bioelectronics

13. The solution from Envirosan DC.
-CliEnvHeP3BiC-
Climate-, environment-, and healthprotecting, bioenergetical, biotechnological and biorefinery Complex
With the multifunctional climate-, environment-, healthprotecting, bioenergetical, biotechnological and biorefinery system the following functions can be realized:
Utilization in the environment protection
Bioenergetical utilization
Biotechnological – health protectional utilization
Environmental utilization
Biorefinery utilization

14. -CliEnvHeP3BiC-

16. Utilization in the environment protection at the following emissioners:
CO2- and other GHG bioconversion, real zero carbon emission and O2 output – carbon quotas can be sold, valuable bioproduct production
Cement industry
Energy industry
Chemical industry
Vehicles
Food industry
Biofuels
Lime-burners
Biogas plants
Pyrolysis plants
Zero carbon emission of waste-fields
Bioenergetical utilization:
With the help of the climate-protecting processes, the system produces energy- and energy sources
The increase of the energetical effectiveness of the biogas plant
Production of biofuels
Hidrothermal gasification
Combined processes: trigen energy
Bioenergetical and biotechnologigal utilization of thermal waters and the dissolved gases of thermal waters
Biofuel production
Landfill gas use without any kind of emission
Energetical use of soiled gas wells
Bio - batteries

18.  Biotechnological – health protectional utilization
Functional food producing
Production of C5, C6 sugar with versatile utilization
Animal feed, protected protein- and fat production for ruminant animals, fish- and crabfeed, hatcheries, increase of spawn- and caviar production
Products with iodin content in case of nuclear radiation
Propagation of tribe-yeasts
Pharmaceutical groundmaterials, fine-biochemicals, vegetal stem-cells from archeas, medicinal fungus, herbs cells produced in closed/sterile system
Balneotherapy, wellness products
Beauty-care, skin-care, biocosmetics
Biotechnological care of the crop, pest control
Complex utilization of carbon-dioxide stations for high-end biotechnological development
Microalgaes, archaea for space-traveling and submarines
Synthesis-gas-production, biomaterials,
biopolymers, bio building blocks, bioresins

19. Environmental utilization
Reduce of the salt content of thermal-, and seawater with use of halofil micro-organisms
Intesification of waste water cleaning
Nitrogen reduce of the fermentations fluid of the biogas plants, odour reducing/prevention
Disposal of harmful wastes
Elimination of radioactive pollution
Regeneration of polluted soils (heavy metals, biological degradatible pollutions)
Propagation of micro-organisms for soil- and pest control for seed-corn treatment
Enrichment of soils: biofertilizer
Water-, and soil regeneration polluted with red-sludge
Water protection, restoration of biodiversity
Utilization of non-fermentable organic waste (pyrolysis)
Environment rehabilitation
Decrease of air pollution
Waste management, utilization of organic wastes
Air conditioning of closed areas, like spaceships, submarines

20. Biorefinery utilization
biofuel diversification
biochemicals
biocharbohydtrates
bioresins
Biochemicals
The projects are adoptable for any geographycal locations.
The size and complexity of the system is variable,
The product-range is broadable.
The size, the product-mix and the product volumes are changeable in connection with the market needs.
From the container-form system to the bigggest giga-complexes is every form possible.
It is posible to connect the system to polluting plants like heating plants, biogas plants, sewage farms, waste-fields etc.

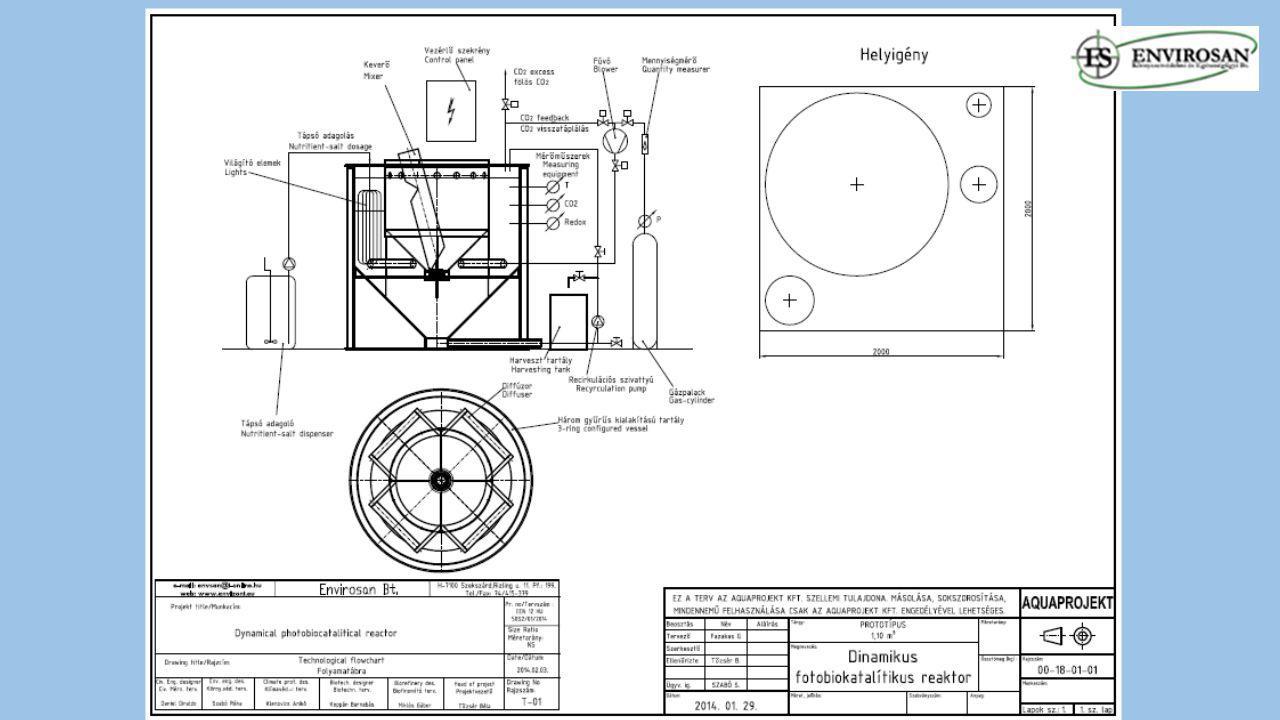

21. Fully Automatised Dynamical Photocatalitical Bioreactor

23. Intensification of biomethanisation process of anaerobical digestion- archae contribution up to 30% incresing of process yield
High integration of biotechnological, environment and climate protection processes,
very high efficiency in pollution control of waste-water : archae and microalgae
for increasing of biological treatment efficiency
CO2 GHG – atmospheric pollutants and extreme climate phenomena producing gases bioconvarsation to valuable energetical and biotechnological products
waste to energy factory of complex with anaerobical intensified digesters ,
pirolysis reactors for non biodegradable organical wastes, biorefinery capacities for diversification of biofuels
contribution to soil bioremediation , biodiversity conservation by high quality biofertilizers

24. Dynamical photocatalytical bioreactors
Capacities are harmonized to pollutant emissions, waste cantities, the complex is caracterized by really zero carbon emission
Use to complex valorification of natural resources : CO2- gas fields, thermal, mineral, brine, treated waste watwers, sea water
Design of whole complex with multiple use and different size is fully finalized simulated, redy for developing of execution projects
Fully authomatized and on-line monitorized processes, complex instrumentation, data processing and IT

25. Opportunities of application and perspectives
Adaptability to specifique needs of China Asia, Europe and Worldwide
The implementations represent high social impacts for improving the quality of environment, protection of health, reducing the extreme climate phenomena, production of high amount of renewable energies.
The economical efficiency is very high comparable to traditional processes by decresing of reactor capacities, investment and operational costs, valuable bioenergetical and biotechnological products,high amount of tradable CO2
The concrete technico-economical parameters will be determined by feasibility studies-
Boundless perspectives by introducing in industrial use of new archae, combinations of process with other microorganisms, development of technical contents
The use of this complex ensure the biotechnology and bioenergy based sustainable development

26. Summary
The use of archaea in framework of integrated industrial complexes for pollution control, waste water, gases,soil bioremediation, biofertilization and biodiversityconservation open new perspectives for increase the technical and economical efficiency of climate- environment- health protection, bioenergy production from waste, therefore for sustainable development.

27. References
Xiang X, Chen L, Huang X, Luo Y, She Q, Huang L (2005). "Sulfolobus tengchongensis spindle-shaped virus STSV1: virus-host interactions and genomic features". J. Virol. 79 (14):
Ng SY, Chaban B, Jarrell KF (2006). "Archaeal flagella, bacterial flagella and type IV pili: a comparison of genes and posttranslational modifications". J. Mol. Microbiol. Biotechnol. 11 (3–5)
Francis CA, Beman JM, Kuypers MM (May 2007). "New processes and players in the nitrogen cycle: the microbial ecology of anaerobic and archaeal ammonia oxidation".ISME J 1 (1): 19–27
Schiraldi C, Giuliano M, De Rosa M (2002). "Perspectives on biotechnological applications of archaea" (PDF). Archaea 1 (2): 75–86.
Egorova K, Antranikian G (2005). "Industrial relevance of thermophilic Archaea". Current Opinion in Microbiology
Schink B (June 1997). "Energetics of syntrophic cooperation in methanogenic degradation". Microbiol. Mol. Biol. Rev. 61 (2): 262–80
an Hoek AH, van Alen TA, Sprakel VS, et al. (1 February 2000). "Multiple acquisition of methanogenic archaeal symbionts by anaerobic ciliates". Mol. Biol. Evol. 17 (2):
Baker BJ, Comolli LR, Dick GJ, Hauser LJ, Hyatt D, Dill BD, Land ML, VerBerkmoes NC, Hettich RL, Banfield JF (May 2010). "Enigmatic, ultrasmall, uncultivated Archaeaa". Proceedings of the National Academy of Sciences of the United States of America 107 (19)
Schaechter, M (2009). Archaea (Overview) in The Desk Encyclopedia of Microbiology, 2nd edition. San Diego and London: Elsevier Academic Press
Howland, John L. (2000). The Surprising Archaea: Discovering Another Domain of Life. Oxford: Oxford University Press.
Martinko JM, Madigan MT (2005). Brock Biology of Microorganisms (11th ed.). Englewood Cliffs, N.J: Prentice Hall.
