1 SMC2804WBRP-G Barricade™ g 2.4GHz 54Mbps Wireless Cable/DSL Broadband Router with USB Print Server SMC2804WBRP-G

2 SMC2804WBRP-G Who is the target customer? SMB, SOHO, and home users What does it do? Provides Internet access for up to 253 users by sharing a single-user account Supports both 10/100 Mbps wired and up to 54 Mbps wireless clients Guarantees 100% compatibility with existing b wireless networking equipment

3 SMC2804WBRP-G Unit Size 13 x 8,5 x 3,2 cm, Weight 370g

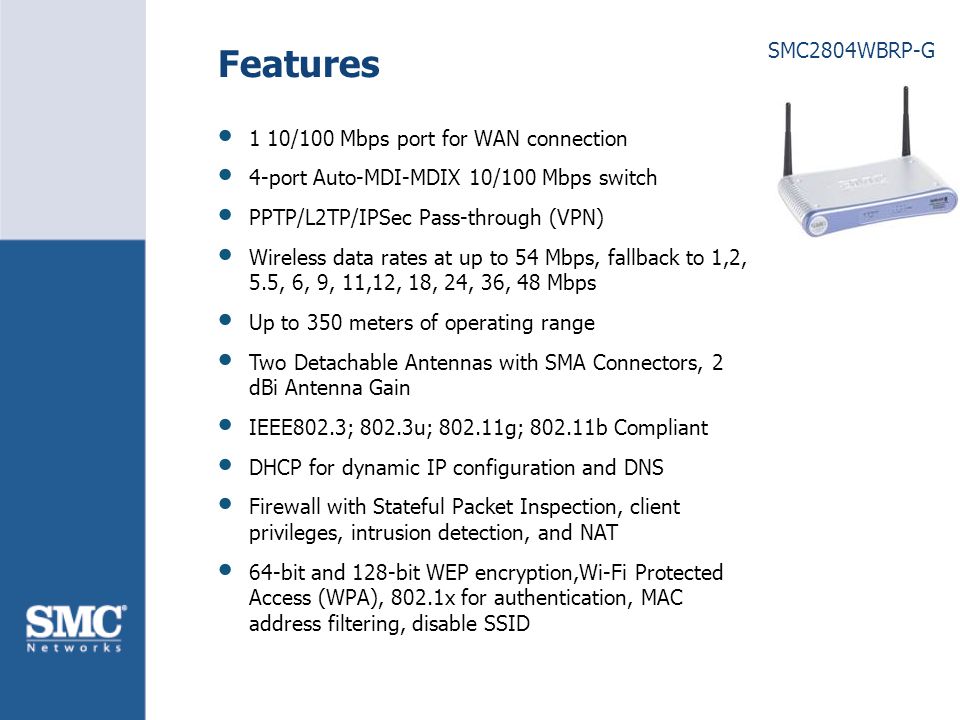

4 SMC2804WBRP-G Features 1 10/100 Mbps port for WAN connection 4-port Auto-MDI-MDIX 10/100 Mbps switch PPTP/L2TP/IPSec Pass-through (VPN) Wireless data rates at up to 54 Mbps, fallback to 1,2, 5.5, 6, 9, 11,12, 18, 24, 36, 48 Mbps Up to 350 meters of operating range Two Detachable Antennas with SMA Connectors, 2 dBi Antenna Gain IEEE802.3; 802.3u; g; b Compliant DHCP for dynamic IP configuration and DNS Firewall with Stateful Packet Inspection, client privileges, intrusion detection, and NAT 64-bit and 128-bit WEP encryption,Wi-Fi Protected Access (WPA), 802.1x for authentication, MAC address filtering, disable SSID

5 SMC2804WBRP-G What is special about this product? USB 1.1 Printer Port Prism Nitro™ technology to extend wireless range Platform independent – works with PC, Mac, or Linux Access Control based on a pre defined-scheduled time, IP address filtering, and Mac Address Filtering Detects common hacker attack patterns and alerts via when a hacker attempts to enter your network. Provides switching, IP sharing and firewall security in one single device Graphical user interface software for installation, configuration, and management on any operating system that supports TCP/IP 2 Detachable Antennas with SMA Connectors allow for replacement with high gain antennas for better range and coverage Block certain web sites by entering either a URL address or just a keyword Dynamic DNS (dynDNS.org, TZO.COM)

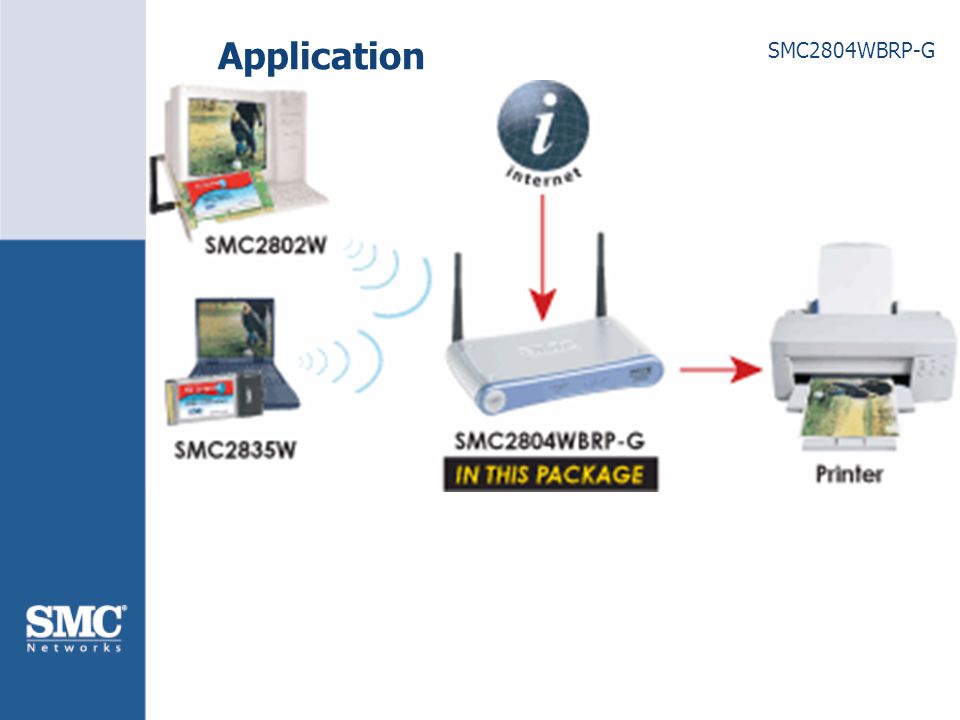

6 SMC2804WBRP-G Application

7 SMC2804WBRP-G Competitive overview

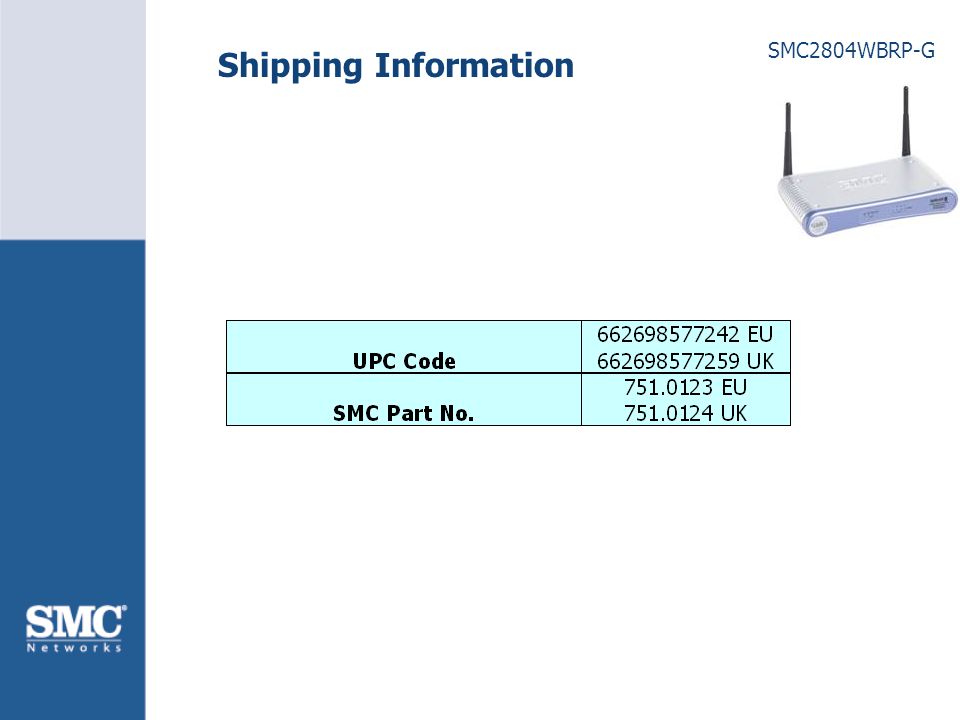

8 SMC2804WBRP-G Shipping Information
