Series 15 Product Introduction
Finelite Brings You Affordable Indirect Lighting Easy to install Indirect Lighting 10-Day Shipping for custom wired systems. And now…Indirect Lighting for Low Ceiling Applications Review the familiar solutions for low ceiling lighting
Parabolic Downlights Parabolic Downlights Can result in deep wall shadows reinforcing cave effect in low ceiling environments. Traditional low ceiling solutions do not deliver as much as the Series 15.
Lensed Troffers Inexpensive solution, but increases glare on computer screens. Can be used to evenly light a room, but generally at great energy expense. Difficult to maintain. Lensed Troffers Traditional low ceiling solutions do not deliver as much as the Series 15.

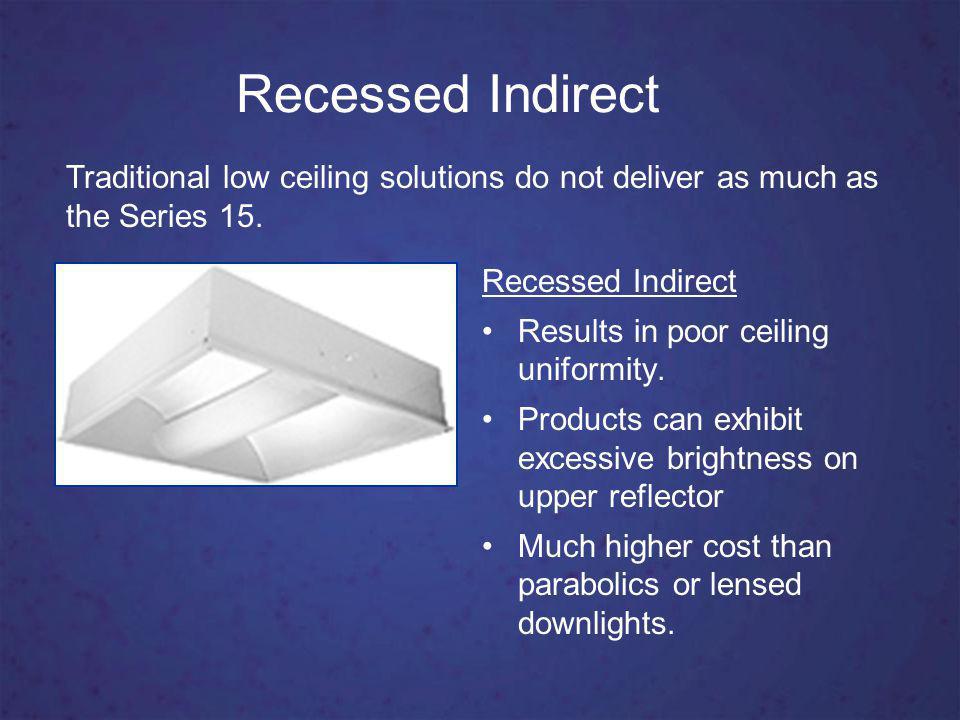

Recessed Indirect Results in poor ceiling uniformity. Products can exhibit excessive brightness on upper reflector Much higher cost than parabolics or lensed downlights. Recessed Indirect Traditional low ceiling solutions do not deliver as much as the Series 15.

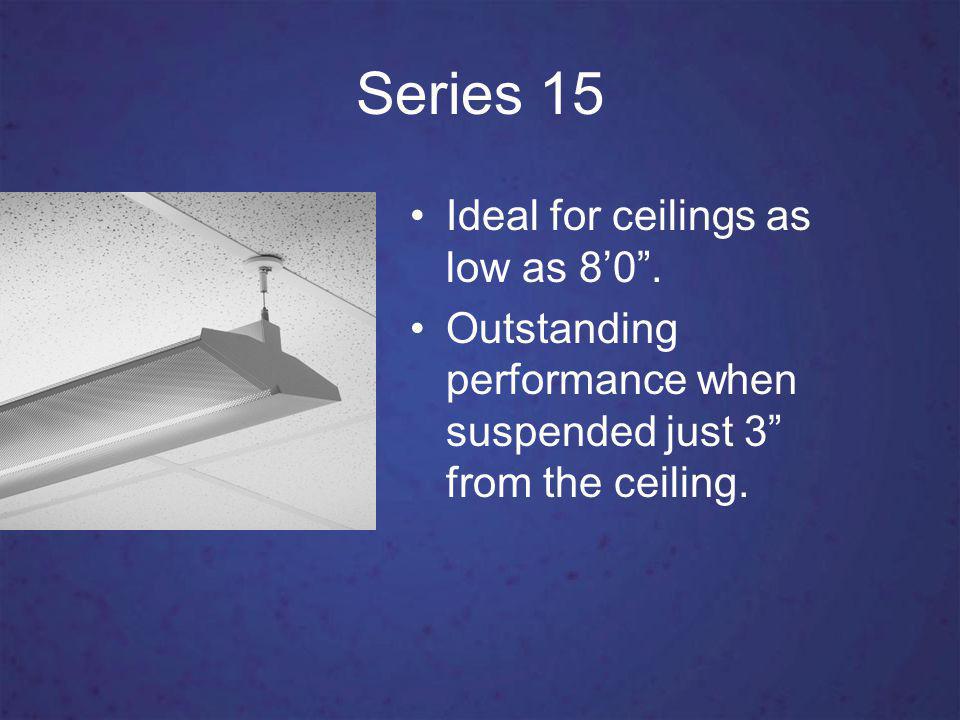

Series 15 Ideal for ceilings as low as 80. Outstanding performance when suspended just 3 from the ceiling.
Series 15 Distinctive look Superior optical performance Competitively Priced Backed by Finelites amazing service. 10-Day Shipping
Details Make the Difference Superior Visual Cutoff o Perforated side reflectors prevent direct view to the lamp at 90º for added comfort. Easy Access o Finelite developed a unique latch mechanism which makes changing lamps quick and easy. Factory Installed Aligner Sleeve o Finelite factory installs aligner sleeves at each joint for added strength resulting in long, straight rows.
Optical Performance Performance Results (80 Ceiling and 3 Suspension) Lighting Performance Power Density (w/sq. ft 2 ) 1T5HO on 16 Centers44FC 8:1 Ceiling Uniformity 0.84 w/ft 2 1T8 on 12 Centers30FC 7:1 Ceiling Uniformity 0.60 w/ft 2 See the S15 AppGuide for more incredible results.

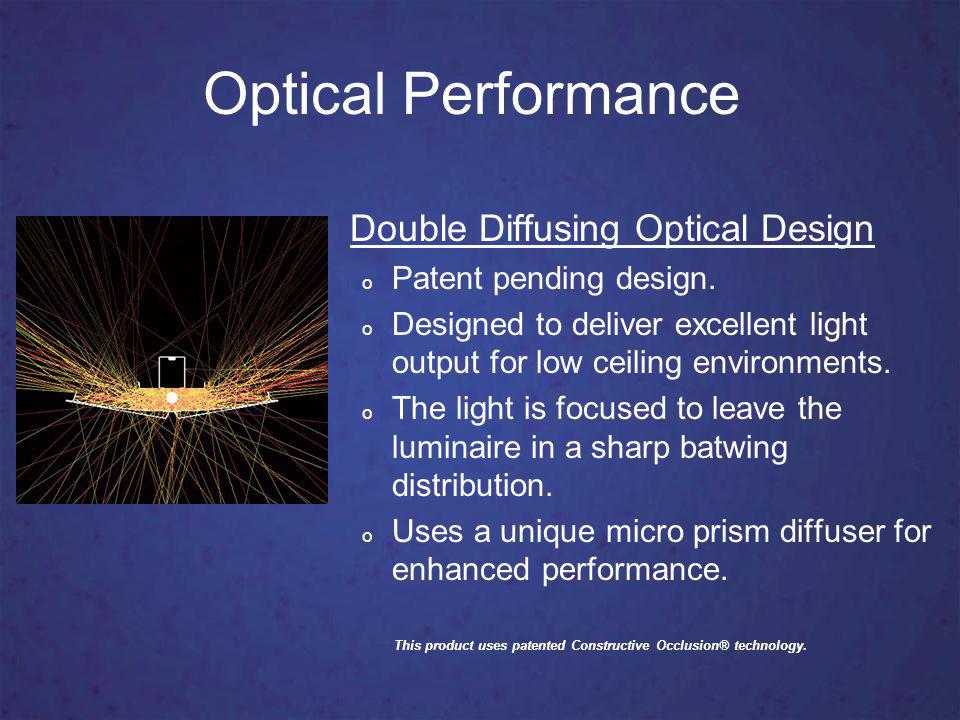

Optical Performance Double Diffusing Optical Design o Patent pending design. o Designed to deliver excellent light output for low ceiling environments. o The light is focused to leave the luminaire in a sharp batwing distribution. o Uses a unique micro prism diffuser for enhanced performance. This product uses patented Constructive Occlusion® technology.
Optical Performance 96% Reflective Paint o Finelite uses 96% reflective paint on all reflective surfaces of Series 15 for maximum efficiency.

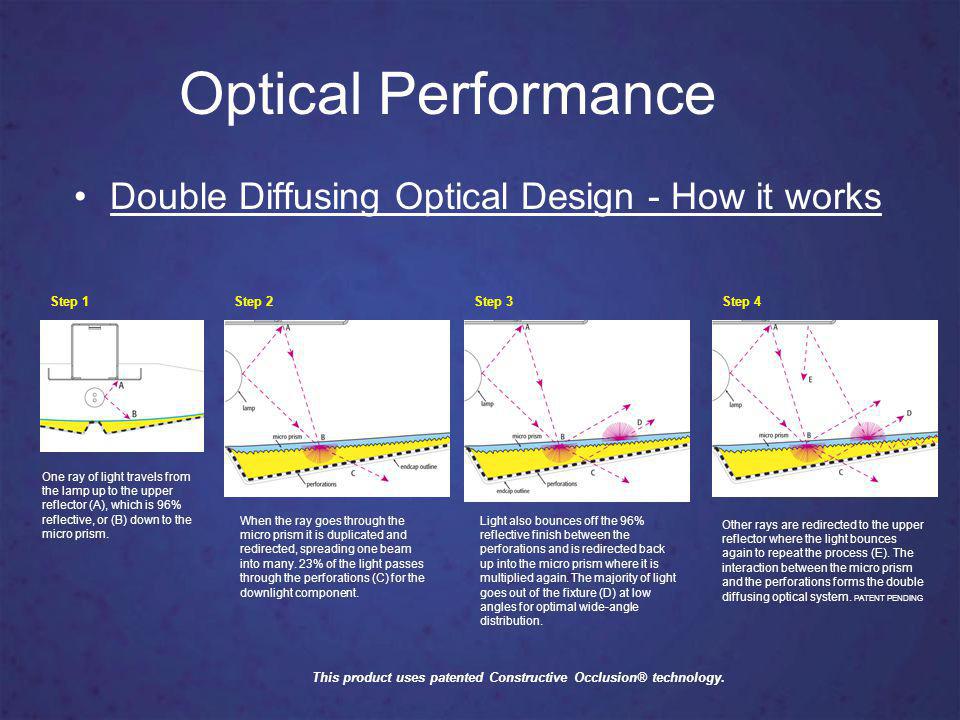

Optical Performance Double Diffusing Optical Design - How it works One ray of light travels from the lamp up to the upper reflector (A), which is 96% reflective, or (B) down to the micro prism. When the ray goes through the micro prism it is duplicated and redirected, spreading one beam into many. 23% of the light passes through the perforations (C) for the downlight component. Light also bounces off the 96% reflective finish between the perforations and is redirected back up into the micro prism where it is multiplied again. The majority of light goes out of the fixture (D) at low angles for optimal wide-angle distribution. Other rays are redirected to the upper reflector where the light bounces again to repeat the process (E). The interaction between the micro prism and the perforations forms the double diffusing optical system. PATENT PENDING Step 1Step 2Step 3Step 4 This product uses patented Constructive Occlusion® technology.
Optical Performance Light Engine o The optical system creates a light engine in the area between the upper reflector and lower diffuser, pooling the light from the source. o Results Similar appearance regardless of lamp type. Similar ceiling uniformity regardless of lamp type or cross-section.
Mounting Series 15 is available with three mounting styles FA Cables - the standard option is an FA50 aircraft cables which enables you to change suspension from 50 to 3. Standoff Mount (SO) - The fixture is suspended on an attractive 3 stem. Surface Mount (SM) - S15 can also be mounted directly to the ceiling or walls.

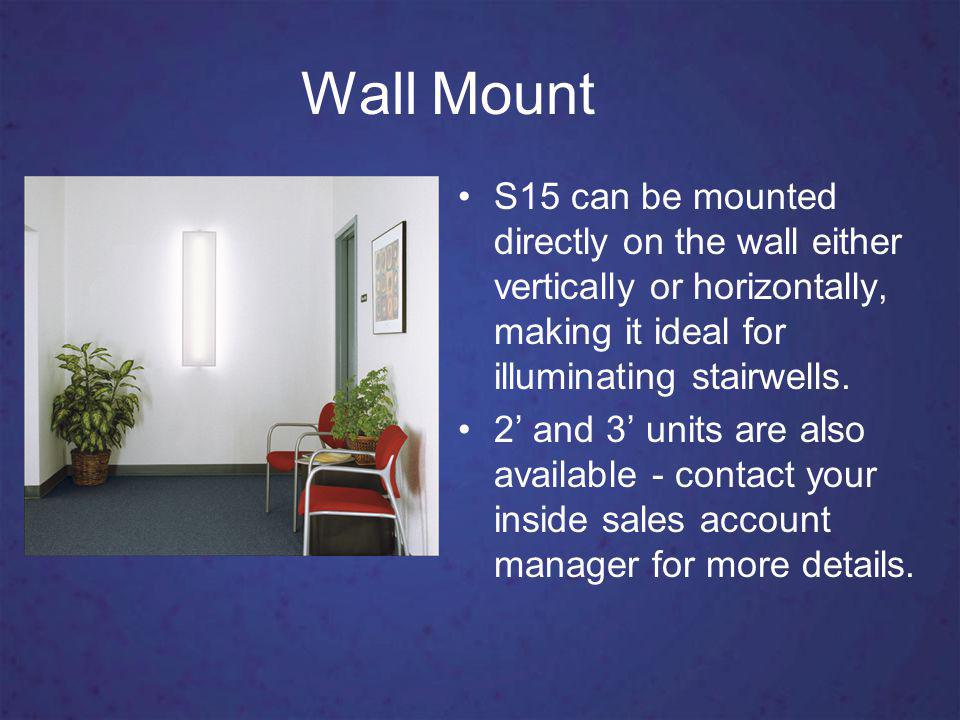

Wall Mount S15 can be mounted directly on the wall either vertically or horizontally, making it ideal for illuminating stairwells. 2 and 3 units are also available - contact your inside sales account manager for more details.

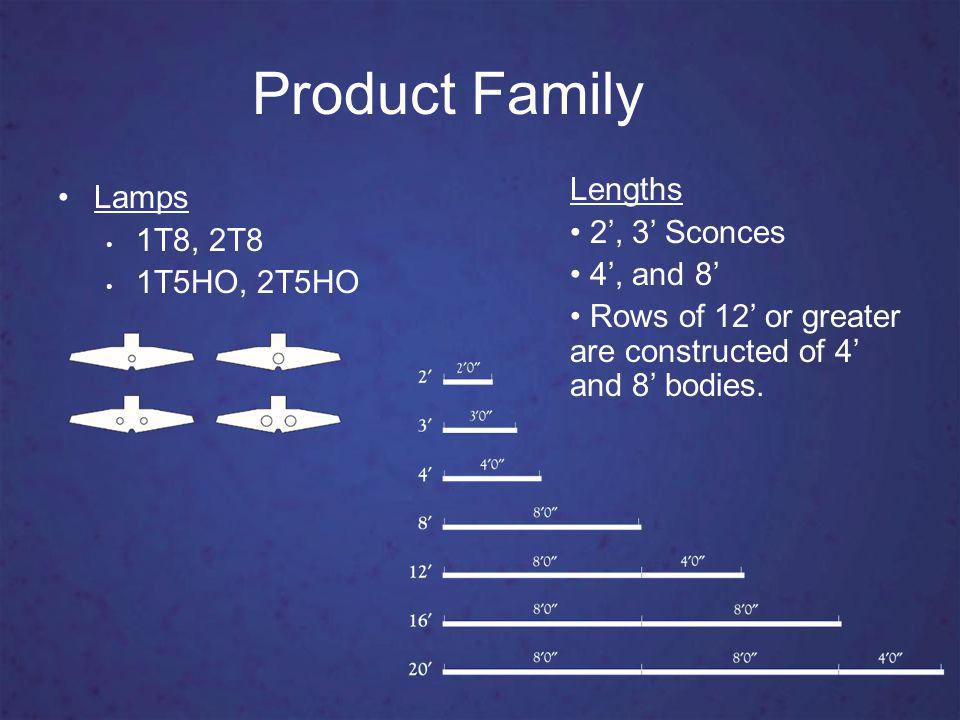

Product Family Lamps 1T8, 2T8 1T5HO, 2T5HO Lengths 2, 3 Sconces 4, and 8 Rows of 12 or greater are constructed of 4 and 8 bodies.
Painted Finish Series 15 is finished in 96% reflective white powder coat paint for long lasting beauty and performance. Custom Finishes are not offered with S15 due to the impact on performance.

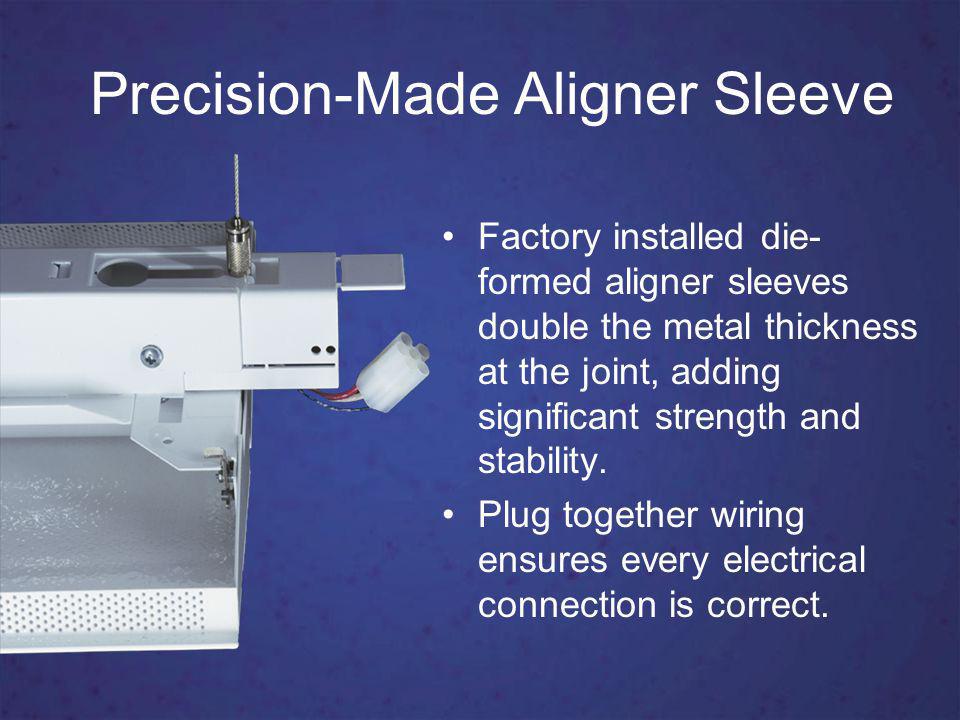

Precision-Made Aligner Sleeve Factory installed die- formed aligner sleeves double the metal thickness at the joint, adding significant strength and stability. Plug together wiring ensures every electrical connection is correct.

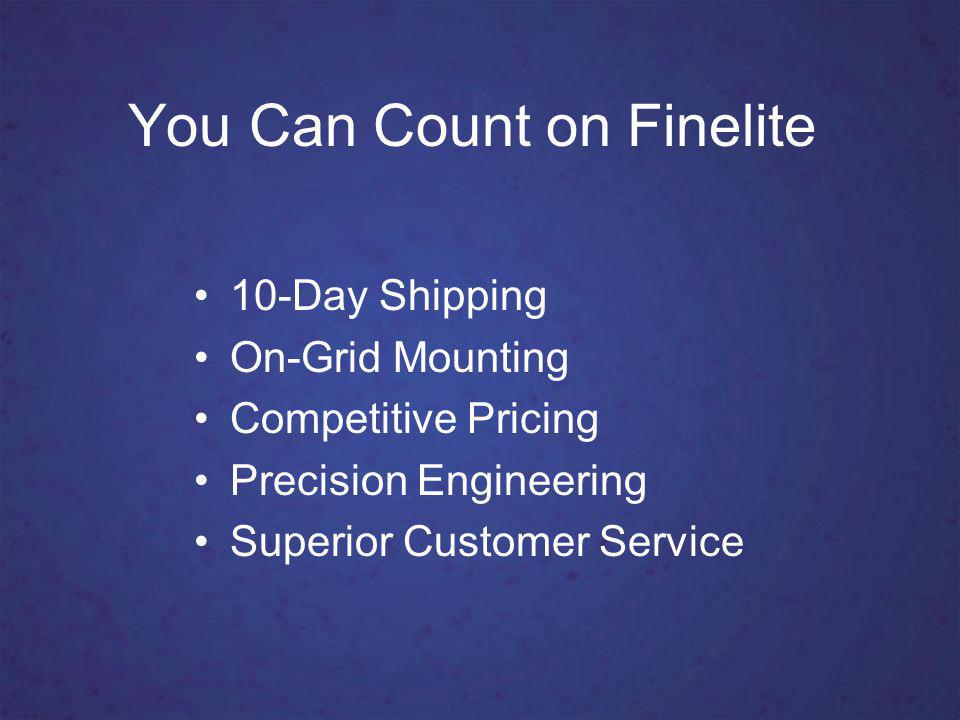

You Can Count on Finelite 10-Day Shipping On-Grid Mounting Competitive Pricing Precision Engineering Superior Customer Service
