1. 1 Lilin Camera Presentation 2007

2. 2 PIH-4048 PIH-4028 PIH-8198 PIH-8158 PIH-8088 PIH-8048 PIH-8028 PIH-8178 Lilin Digital Super Low Lux Color Camera Super Hi-Resolution Day & Night Color Camera

3. 3 Index 1.Wide Dynamic Range Day & Night Camera PIH-8178………P.4~6 2.Super Hi-Resolution Day&Night Camera PIH-81 Series…P.7~9 3.Day & Night Camera PIH-80 Series………………………P.10~11 4.Integrated Varifocal Camera PIH-40 Series……………P.12~13

4. 4 Resolution Power MIC Built-IN High Sensitivity Point Type IR CUT Built-IN Mechanical IR CUT Power AC 90~260 V max Direct Input Power Consumption 5.3 W MIC Resolution Sony Vertical Double- Density Interline CCD Color 480TVL 0.005Lux Mono 520TVL 0.001Lux Lens Sony SS II Wide Dynamic Range Camera Appearance & Function-PIH-8178N

5. 5 Metal Case “High Hardness Metal Material”: 1.Dissipate “Camera Heat” equally and quickly. 2.Extend the life of electronic parts and camera stability. Mechanical IR Cut Filter 1.“Fixed: Monochrome mode” 2.“Auto:Color/Mono auto-exchange” 3.“External Control: Change by control point” Wide Dynamic Range Camera Appearance & Function-PIH-8178N Wide Dynamic Range Provide high quality image and show the light and dark part distinctly. Slow-Speed Shutter The slow shutter offers an optimal brightness level in low light conditions.

6. 6 Image Export 1.“180 Flip” 2.“Top/Bottom Reversal” 3.“Left/Right Reversal” 4.“Negative Film” Wide Dynamic Range Camera Appearance & Function-PIH-8178N Adjustable Electronic Shutter “11 Level Electronic Shutter Speed” Application: 1.“Lower Strong Light” 2.“Plate Identification”. Digital OSD function menu, Optical/Digital Zoom in 1.“Digital OSD”: Adjust camera from monitor screen. 2.11 sub-functions,63 variables. 3.Digital zoom in:”1-2.56x”. Safety Feature Power ： Dual Ground Design 。 Power Cord ： Standard 18AWG x 2C 。 Surge ： Built-in 5V Surge Protection Device. Customization Customizable: AC 12/24V, cable/connector, case color, OEM. Privacy Mask “Up to 16 privacy masks”

7. 7 Resolution Power MIC Built-IN High Sensitivity Point Type IR CUT Built-IN Mechanical IR CUT Power AC 90~260 V max Direct Input Power Consumption 4.8 W MIC Resolution Sony ExView HAD Sony Super HAD Color 540TVL 0.05Lux B/W 600TVL 0.01Lux Lens Super Hi-Resolution Day/Night Camera Appearance and Functions-8198/8158 Sony HQ 1

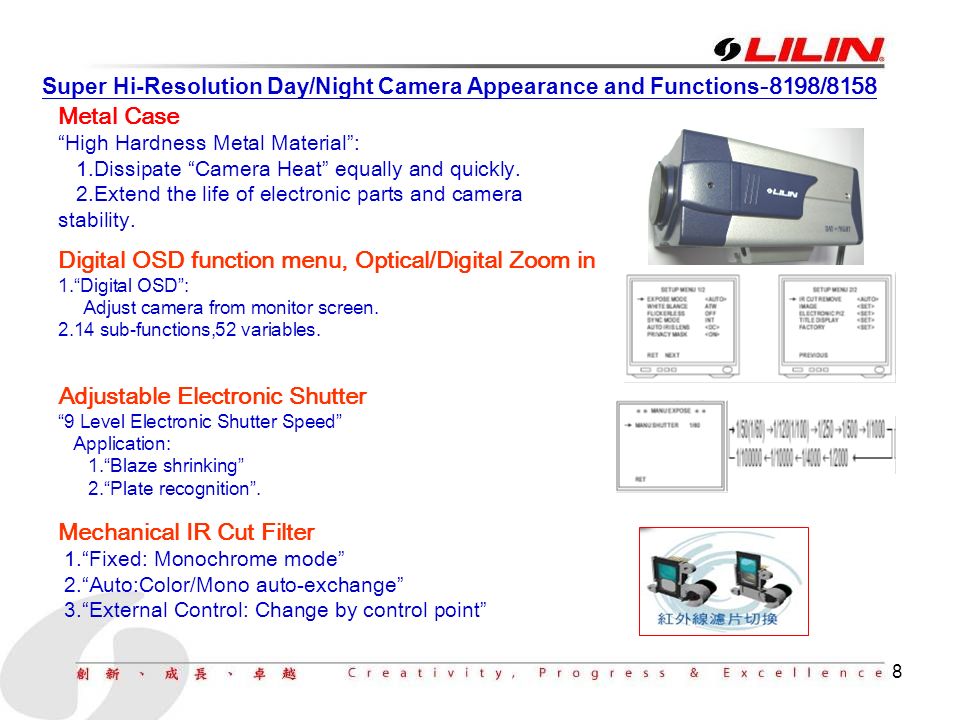

8. 8 Metal Case “High Hardness Metal Material”: 1.Dissipate “Camera Heat” equally and quickly. 2.Extend the life of electronic parts and camera stability. Super Hi-Resolution Day/Night Camera Appearance and Functions-8198/8158 Mechanical IR Cut Filter 1.“Fixed: Monochrome mode” 2.“Auto:Color/Mono auto-exchange” 3.“External Control: Change by control point” Digital OSD function menu, Optical/Digital Zoom in 1.“Digital OSD”: Adjust camera from monitor screen. 2.14 sub-functions,52 variables. Adjustable Electronic Shutter “9 Level Electronic Shutter Speed” Application: 1.“Blaze shrinking” 2.“Plate recognition”.

9. 9 Super Hi-Resolution Day/Night Camera Appearance and Functions-8198/8158 MIC, Power 1, Built-in High sensitivity, point type microphone. 2.“AC90-260 Direct Input autotransformer” Privacy Mask “Up to 8 privacy masks” Image Exporting, 5 Section Back Light Compensation, OSD Character Display 1.“Negative Film” 2.“Left/Right Reverse” 3.“Manual 5 Section Back Light Compensation” 4.“OSD display” 5.“Built-in 80 fonts” Safety Feature Power ： Dual Ground Design 。 Power Cord ： Standard 18AWG x 2C 。 Surge ： Built-in 5V Surge Protection Device. Customization Customizable: AC 12/24V, cable/connector, case color, OEM. MIC

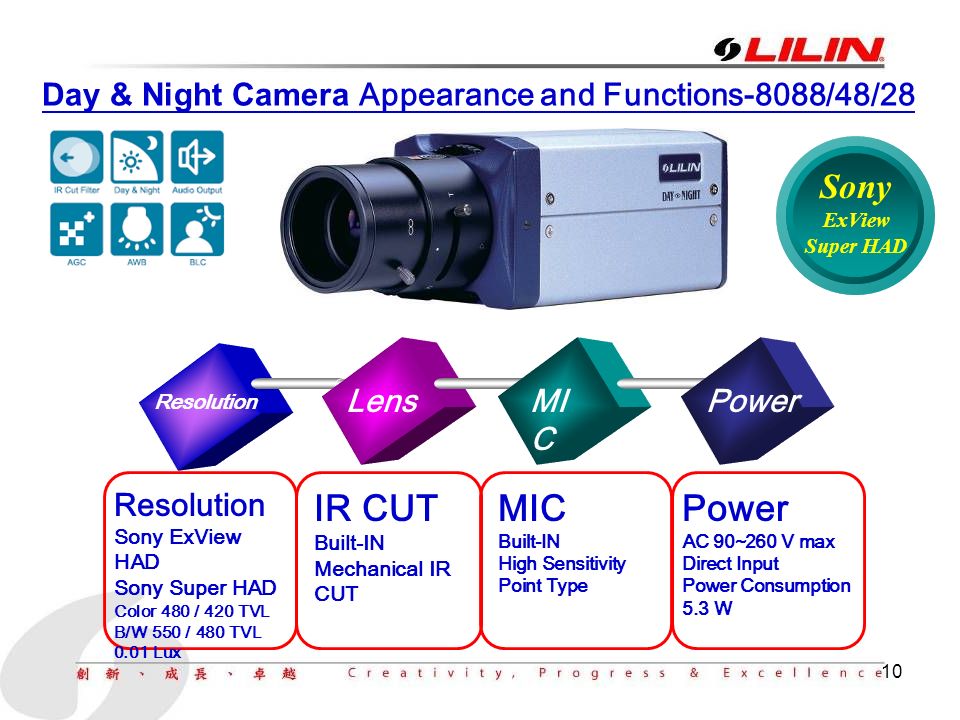

10. 10 Resolution Power MIC Built-IN High Sensitivity Point Type IR CUT Built-IN Mechanical IR CUT Power AC 90~260 V max Direct Input Power Consumption 5.3 W MI C Resolution Sony ExView HAD Sony Super HAD Color 480 / 420 TVL B/W 550 / 480 TVL 0.01 Lux Lens Day & Night Camera Appearance and Functions-8088/48/28 Sony ExView Super HAD

11. 11 Safety Feature Power ： Dual Grounding Design 。 Power Cord ： Standard 18AWG x 2C 。 Surge ： Built-in 5V Surge Protection Device. Customization Customizable: AC 12/24V, cable/connector, case color, OEM. MIC, Power 1.Built-in High sensitivity, point type microphone. 2.“AC90- 260 Direct Input autotransformer” Mechanical IR Cut Filter 1.“Fixed: Color/Black & White one mode” 2.“Auto:Color/B&W auto-exchange”. Aluminum Case “High Hardness Aluminum Material”: 1.Dissipate “IR Heat” equally and quickly. 2.Extend the life of electronic parts and camera. 3.Professional silver textured : Dust and discolor proof Day & Night Camera Appearance and Functions-8088/48/28 MIC

12. 12 Integrated Varifocal Camera Appearance and Features-4048/28 Resolution Power MIC Built-IN High Sensitivity Point Type Lens Built-in 3x auto iris manual varifocal lens 3~9 mm F1.4 Integrated Dust Proof Design Power AC 90~260 V max Direct Input Power Consumption 4.3 W MIC Resolution Sony Super HAD Color 480TVL Color 420TVL 0.1 Lux Lens Sony Super HAD

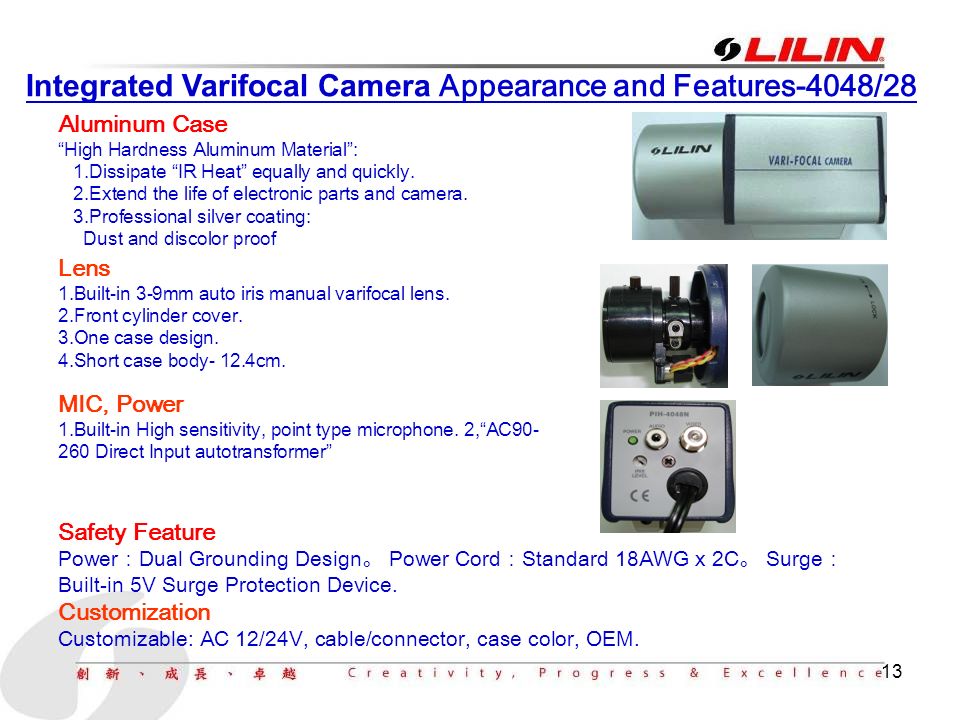

13. 13 Safety Feature Power ： Dual Grounding Design 。 Power Cord ： Standard 18AWG x 2C 。 Surge ： Built-in 5V Surge Protection Device. Customization Customizable: AC 12/24V, cable/connector, case color, OEM. MIC, Power 1.Built-in High sensitivity, point type microphone. 2,“AC90- 260 Direct Input autotransformer” Lens 1.Built-in 3-9mm auto iris manual varifocal lens. 2.Front cylinder cover. 3.One case design. 4.Short case body- 12.4cm. Aluminum Case “High Hardness Aluminum Material”: 1.Dissipate “IR Heat” equally and quickly. 2.Extend the life of electronic parts and camera. 3.Professional silver coating: Dust and discolor proof Integrated Varifocal Camera Appearance and Features-4048/28

14. 14 Conclusion ： 1. ISO certificated 2. ROHS standard 3. Lower defective rate. 4. Fine QI,QC and QA 5. Power circuit protection: 5V Surge Absorber 6. Sony Lens and DSP processor equipped: Always high quality image Lilin insists to provide the best products to customers.

15. 15 Thank you!
