1. lindab | we simplify construction Indoor Climate Solutions Professor Plus NEW! For a PLUS on capacity NEW! For a PLUS on capacity

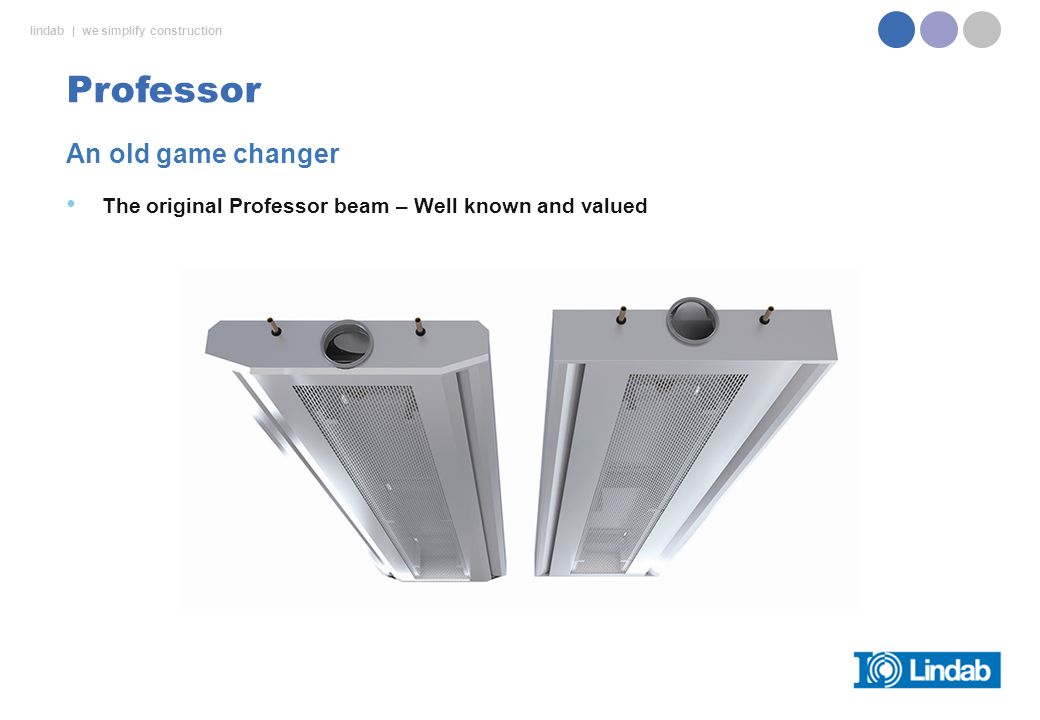

2. lindab | we simplify construction The original Professor beam – Well known and valued An old game changer Professor

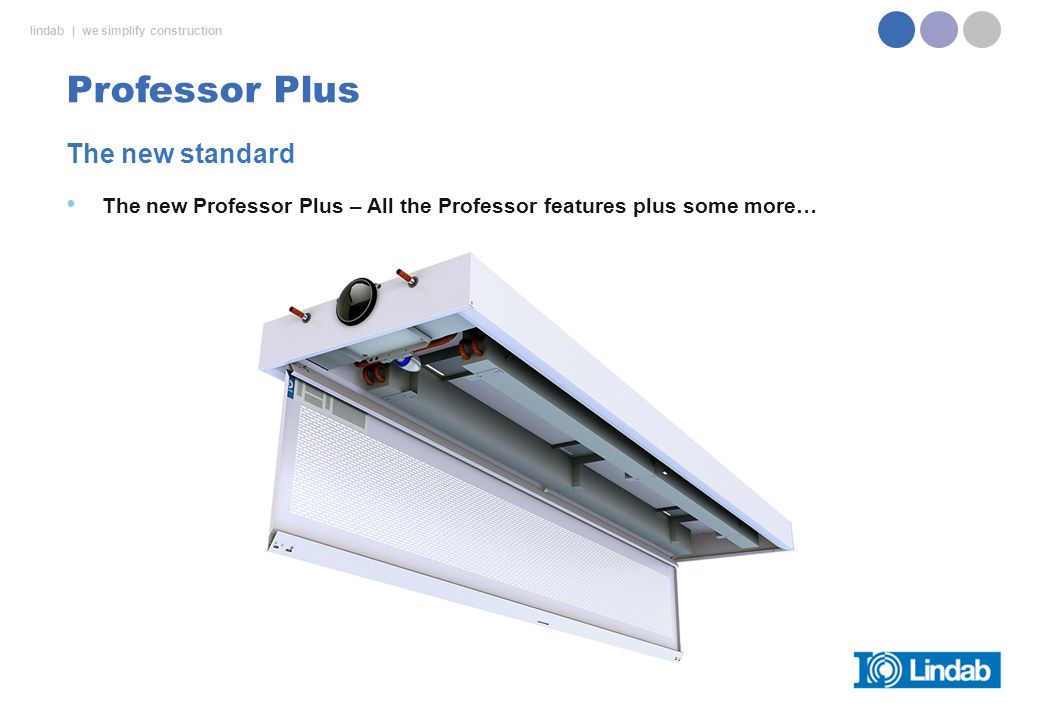

3. lindab | we simplify construction The new Professor Plus – All the Professor features plus some more… The new standard Professor Plus

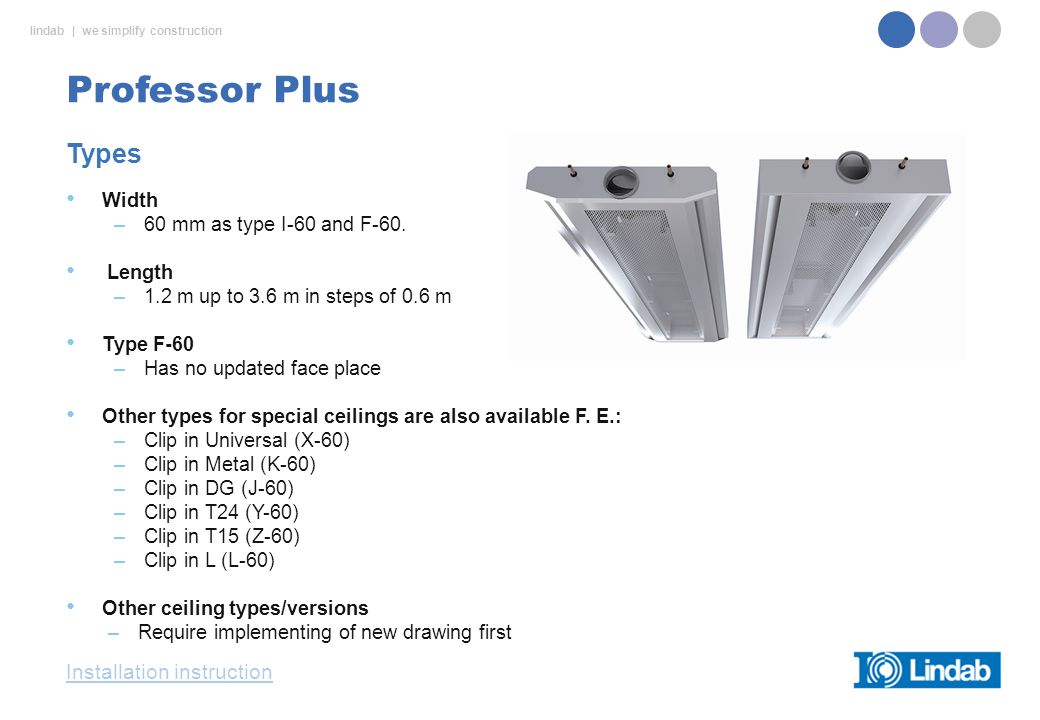

4. lindab | we simplify construction Width –60 mm as type I-60 and F-60. Length –1.2 m up to 3.6 m in steps of 0.6 m Type F-60 –Has no updated face place Other types for special ceilings are also available F. E.: –Clip in Universal (X-60) –Clip in Metal (K-60) –Clip in DG (J-60) –Clip in T24 (Y-60) –Clip in T15 (Z-60) –Clip in L (L-60) Other ceiling types/versions –Require implementing of new drawing first Types Professor Plus Installation instruction

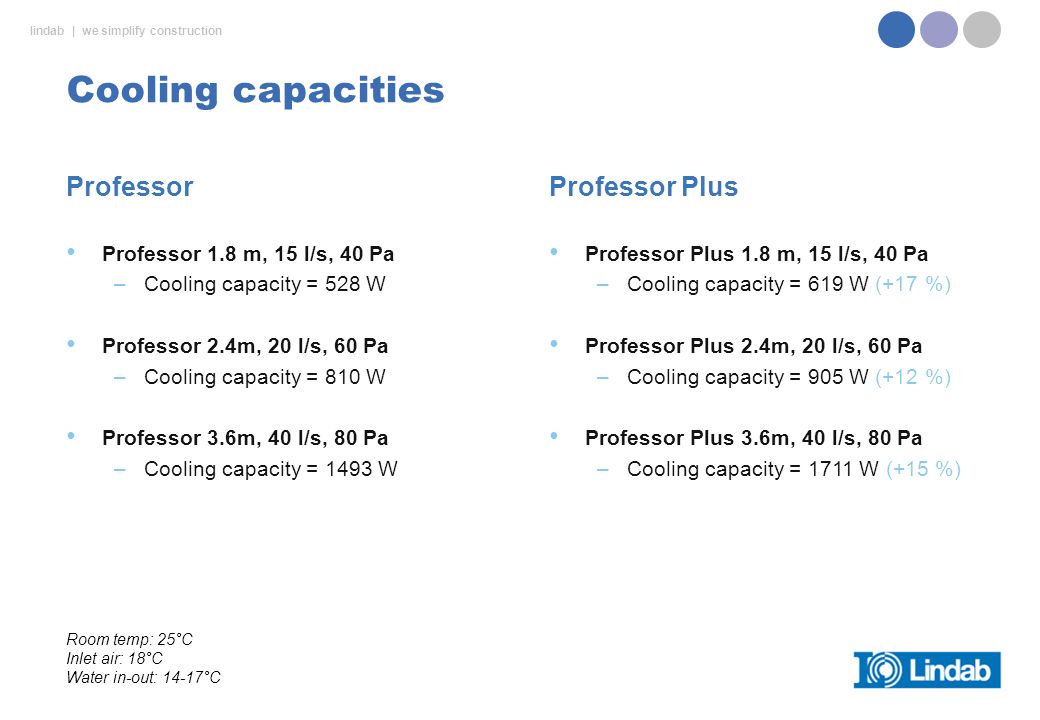

5. lindab | we simplify construction Professor 1.8 m, 15 l/s, 40 Pa –Cooling capacity = 528 W Professor 2.4m, 20 l/s, 60 Pa –Cooling capacity = 810 W Professor 3.6m, 40 l/s, 80 Pa –Cooling capacity = 1493 W Professor Plus 1.8 m, 15 l/s, 40 Pa –Cooling capacity = 619 W (+17 %) Professor Plus 2.4m, 20 l/s, 60 Pa –Cooling capacity = 905 W (+12 %) Professor Plus 3.6m, 40 l/s, 80 Pa –Cooling capacity = 1711 W (+15 %) ProfessorProfessor Plus Cooling capacities Room temp: 25°C Inlet air: 18°C Water in-out: 14-17°C

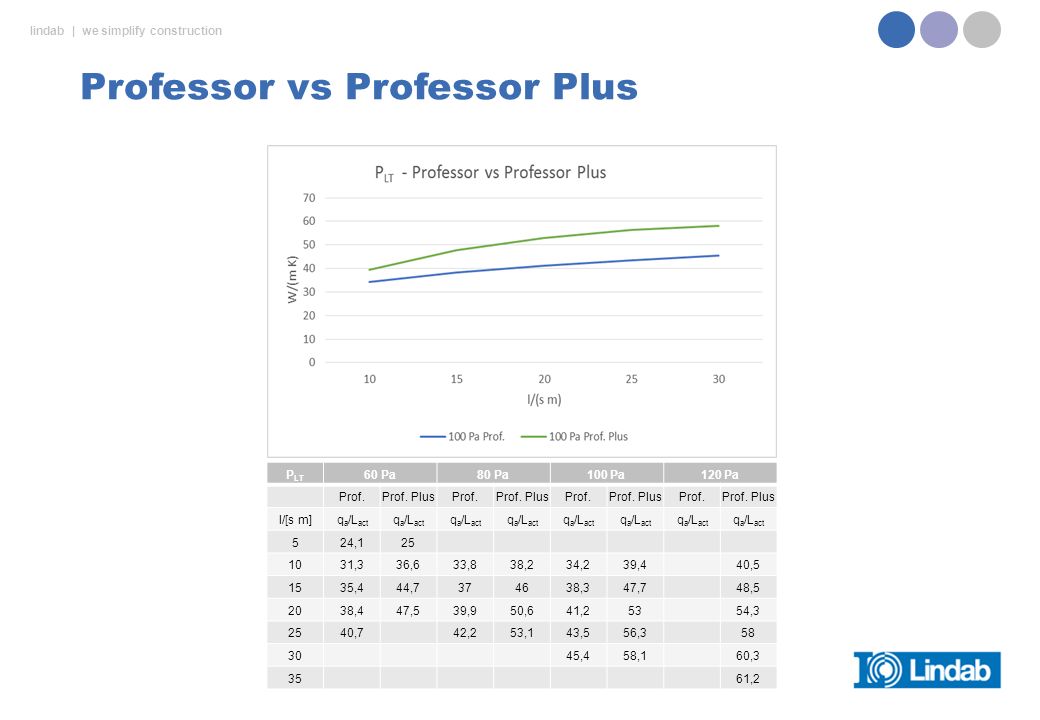

6. lindab | we simplify construction Professor vs Professor Plus P LT 60 Pa80 Pa100 Pa120 Pa Prof.Prof. PlusProf.Prof. PlusProf.Prof. PlusProf.Prof. Plus l/[s m]q a /L act 524,125 1031,336,633,838,234,239,440,5 1535,444,7374638,347,748,5 2038,447,539,950,641,25354,3 2540,742,253,143,556,358 3045,458,160,3 3561,2

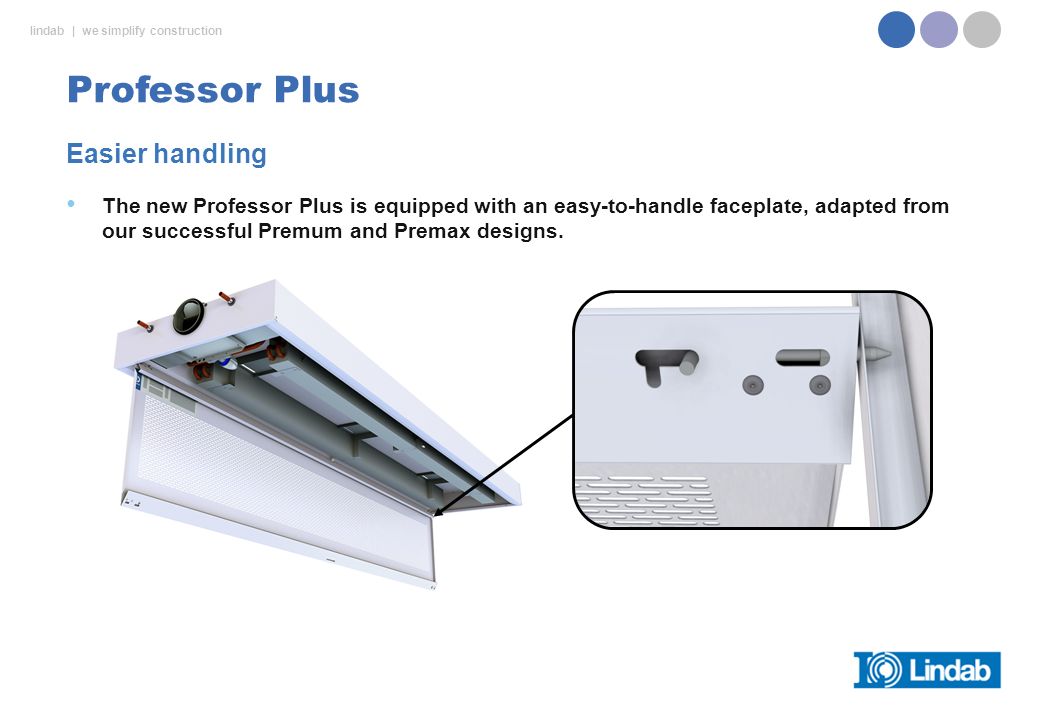

7. lindab | we simplify construction The new Professor Plus is equipped with an easy-to-handle faceplate, adapted from our successful Premum and Premax designs. Easier handling Professor Plus

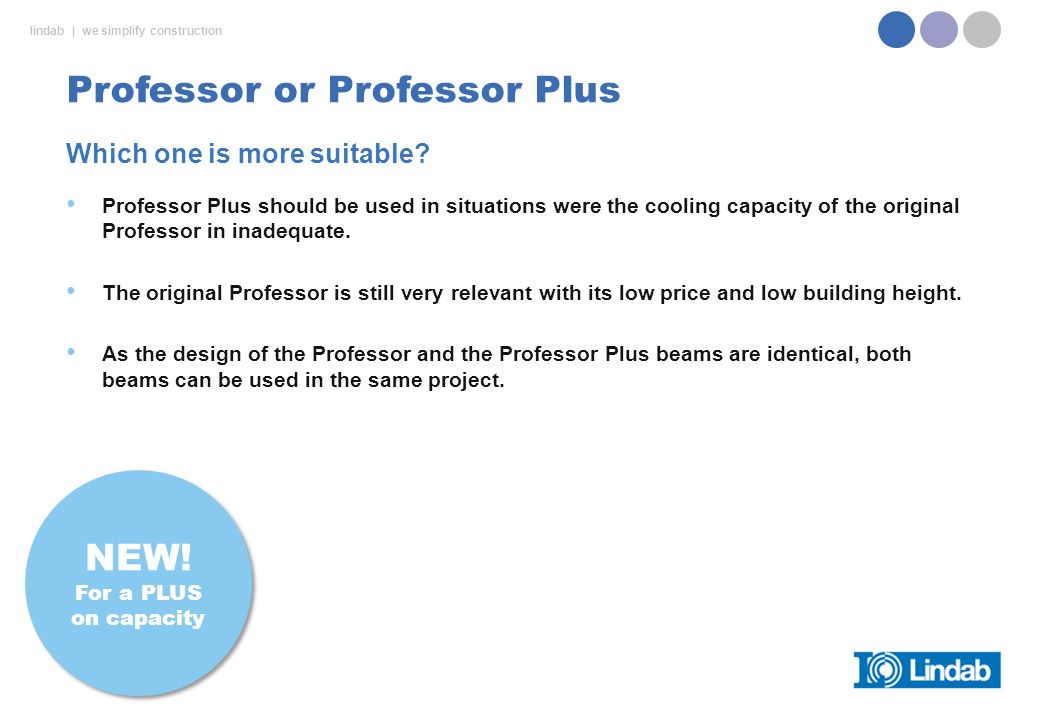

8. lindab | we simplify construction Professor Plus should be used in situations were the cooling capacity of the original Professor in inadequate. The original Professor is still very relevant with its low price and low building height. As the design of the Professor and the Professor Plus beams are identical, both beams can be used in the same project. Which one is more suitable? Professor or Professor Plus NEW! For a PLUS on capacity NEW! For a PLUS on capacity

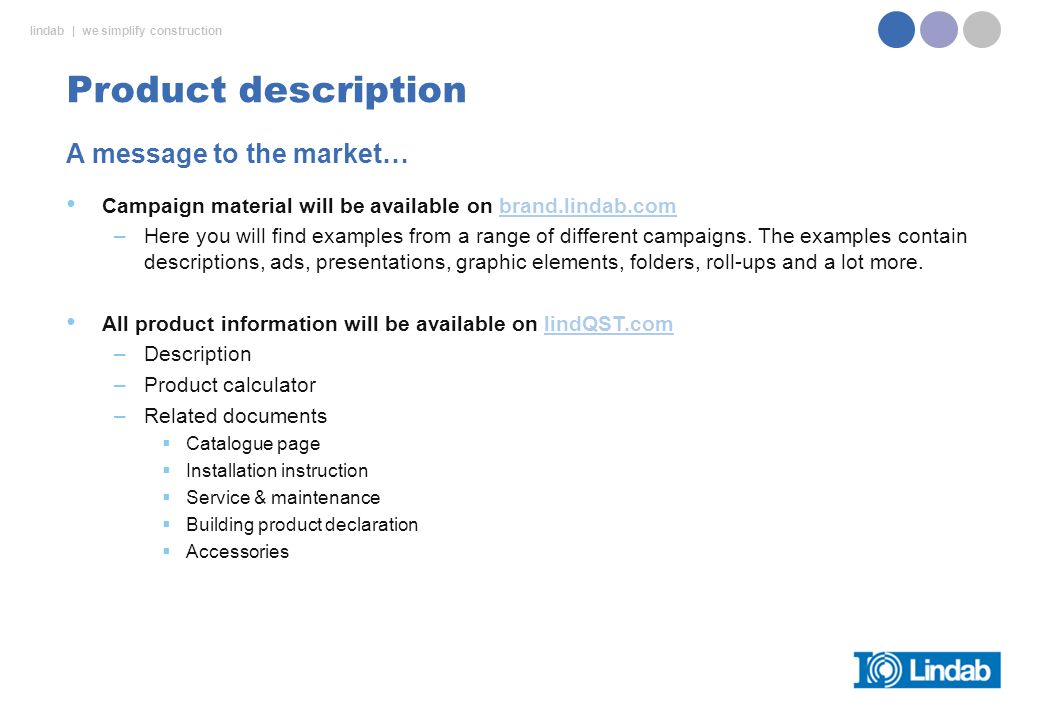

9. lindab | we simplify construction Campaign material will be available on brand.lindab.combrand.lindab.com –Here you will find examples from a range of different campaigns. The examples contain descriptions, ads, presentations, graphic elements, folders, roll-ups and a lot more. All product information will be available on lindQST.comlindQST.com –Description –Product calculator –Related documents  Catalogue page  Installation instruction  Service & maintenance  Building product declaration  Accessories A message to the market… Product description
