1
Home Automation Network Solution
2

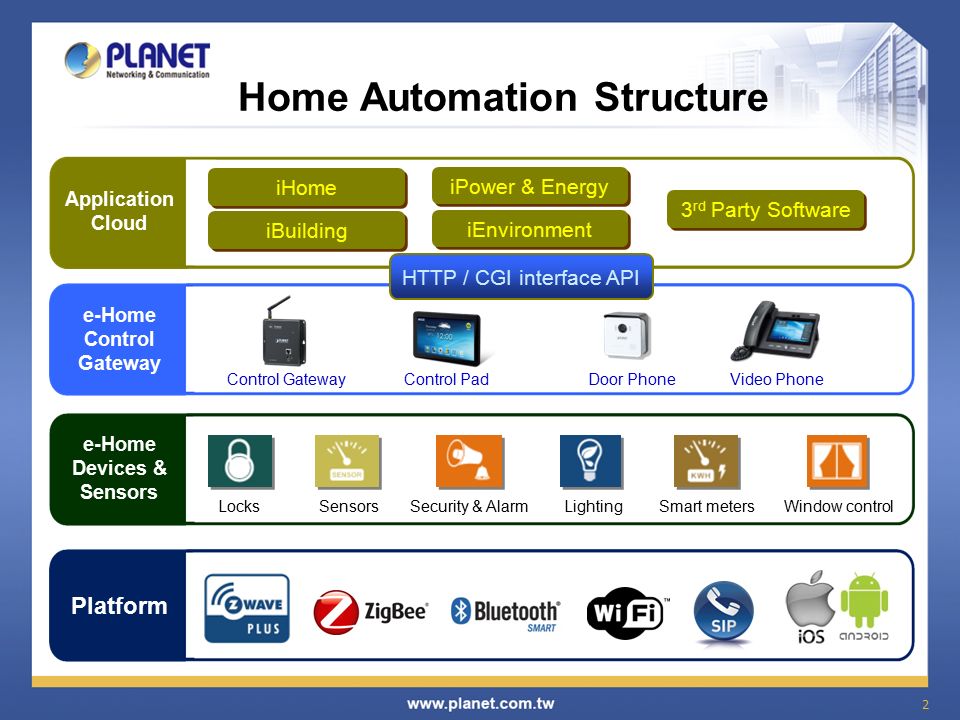

2 Platform Application Cloud 3 rd Party Software iBuilding iPower & Energy iEnvironment iHome e-Home Devices & Sensors LocksSensorsSecurity & AlarmLightingSmart metersWindow control Home Automation Structure e-Home Control Gateway Door PhoneVideo PhoneControl Pad HTTP / CGI interface API
3

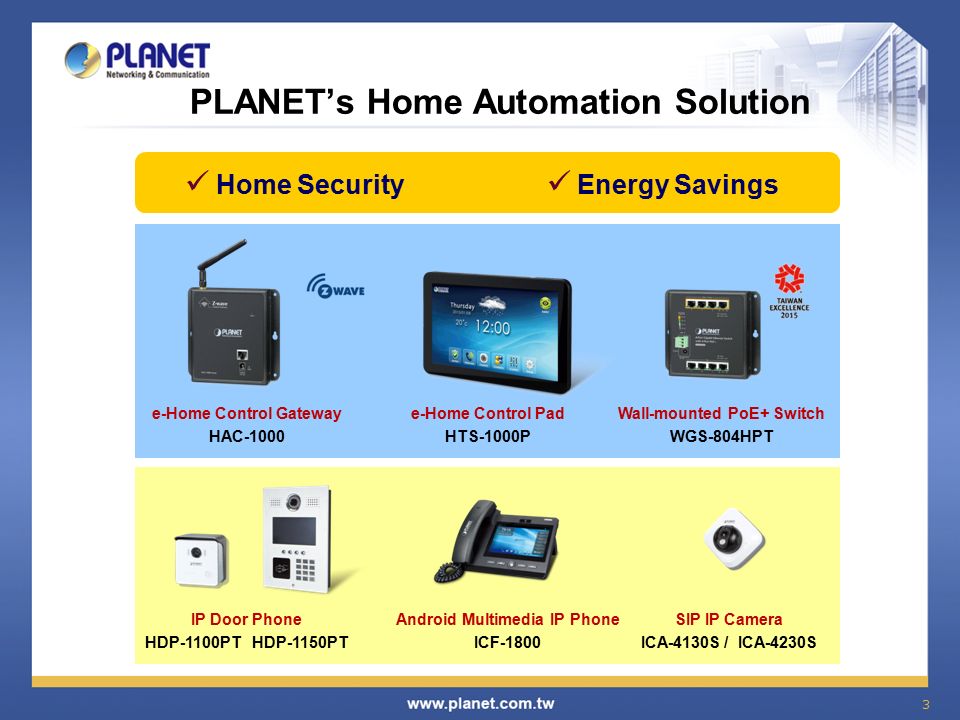

3 PLANET’s Home Automation Solution e-Home Control Gateway HAC-1000 Android Multimedia IP Phone ICF-1800 IP Door Phone HDP-1100PT HDP-1150PT e-Home Control Pad HTS-1000P Home Security Energy Savings Wall-mounted PoE+ Switch WGS-804HPT SIP IP Camera ICA-4130S / ICA-4230S
4

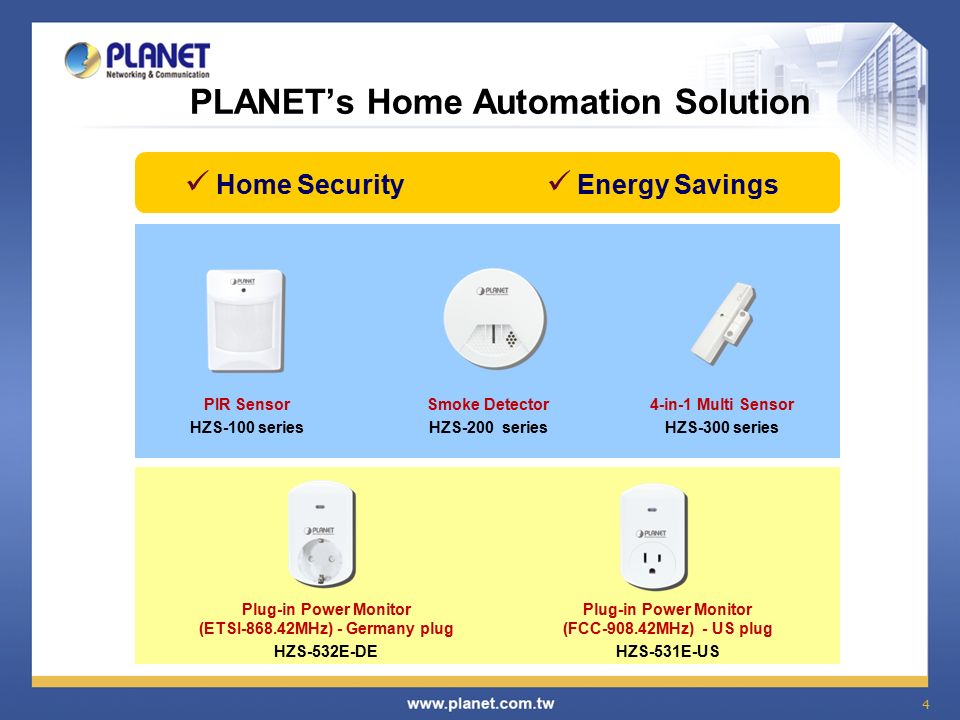

4 PLANET’s Home Automation Solution PIR Sensor HZS-100 series Plug-in Power Monitor (ETSI-868.42MHz) - Germany plug HZS-532E-DE Smoke Detector HZS-200 series Home Security Energy Savings 4-in-1 Multi Sensor HZS-300 series Plug-in Power Monitor (FCC-908.42MHz) - US plug HZS-531E-US
5

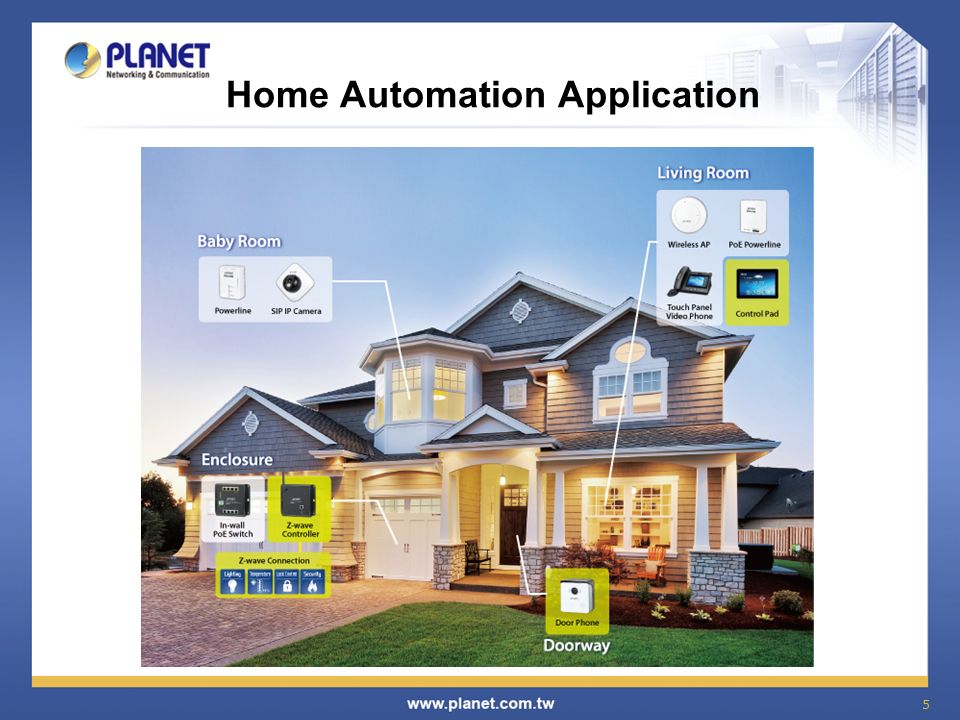

5 Home Automation Application
6

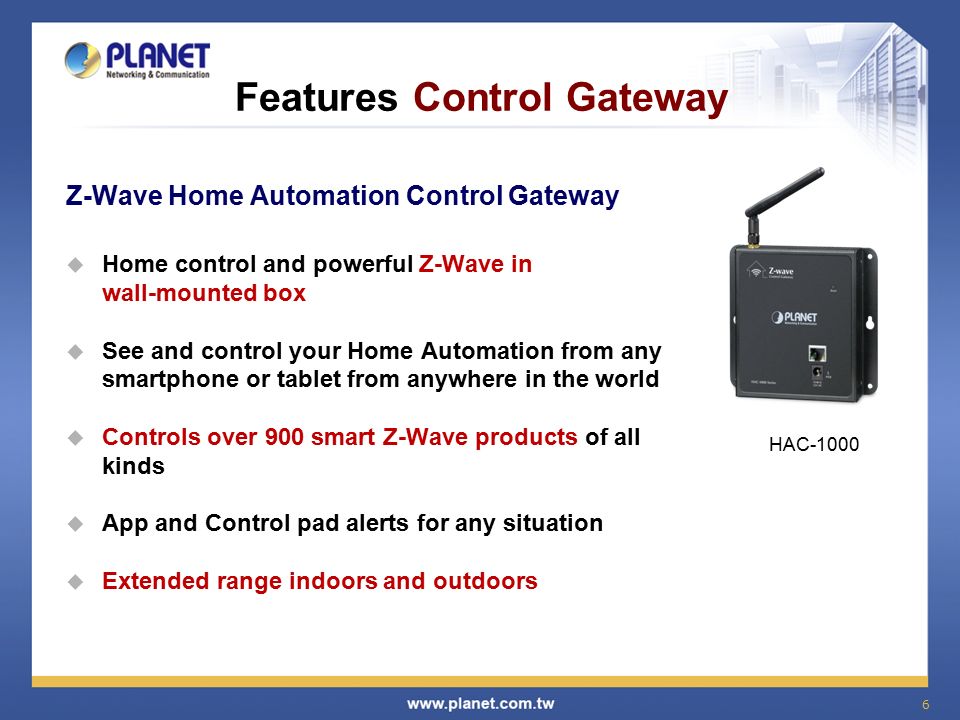

6 Features Control Gateway Z-Wave Home Automation Control Gateway Home control and powerful Z-Wave in wall-mounted box See and control your Home Automation from any smartphone or tablet from anywhere in the world Controls over 900 smart Z-Wave products of all kinds App and Control pad alerts for any situation Extended range indoors and outdoors HAC-1000
7

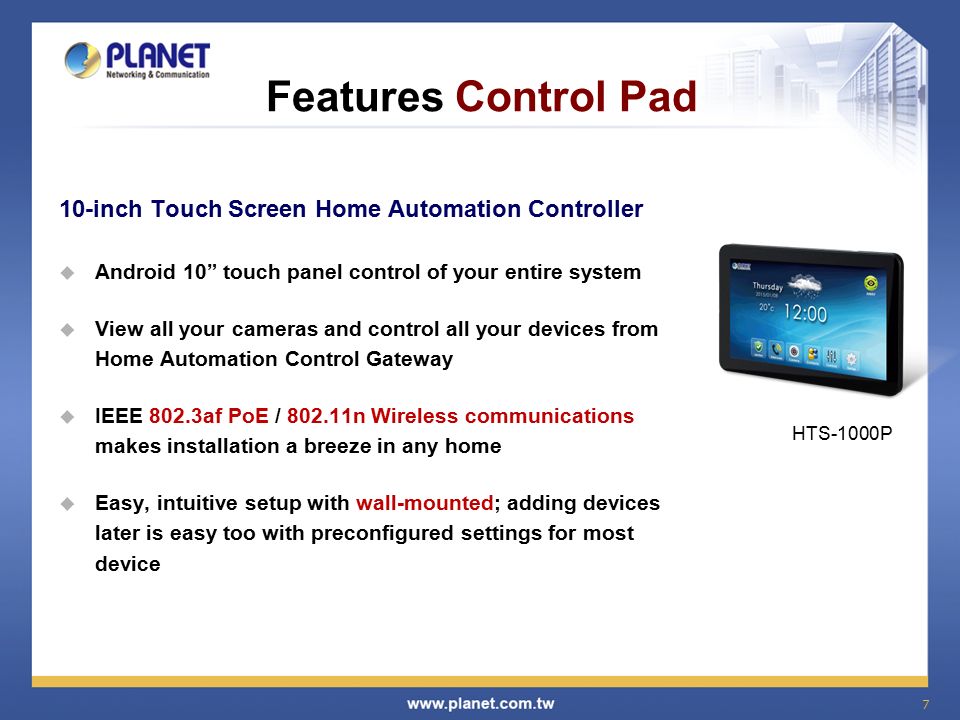

7 Features Control Pad 10-inch Touch Screen Home Automation Controller Android 10” touch panel control of your entire system View all your cameras and control all your devices from Home Automation Control Gateway IEEE 802.3af PoE / 802.11n Wireless communications makes installation a breeze in any home Easy, intuitive setup with wall-mounted; adding devices later is easy too with preconfigured settings for most device HTS-1000P
8
8 Features Door Phone SIP Door Phone with PoE SIP 2.0 (RFC 3261 compliant) HD camera with 112 degrees Wide Range Video View angle H.264 / MJPEG Video codec and SIP / RTSP protocol IEEE 802.3af Power over Ethernet compliant Built-in one Call Button & Hardware Acoustic Echo Cancellation Built-in One Relay output for door lock or lighting control Built-in One DI port for Door sensor, PIR, Emergency button HDP-1100PT HDP-1150PT
9

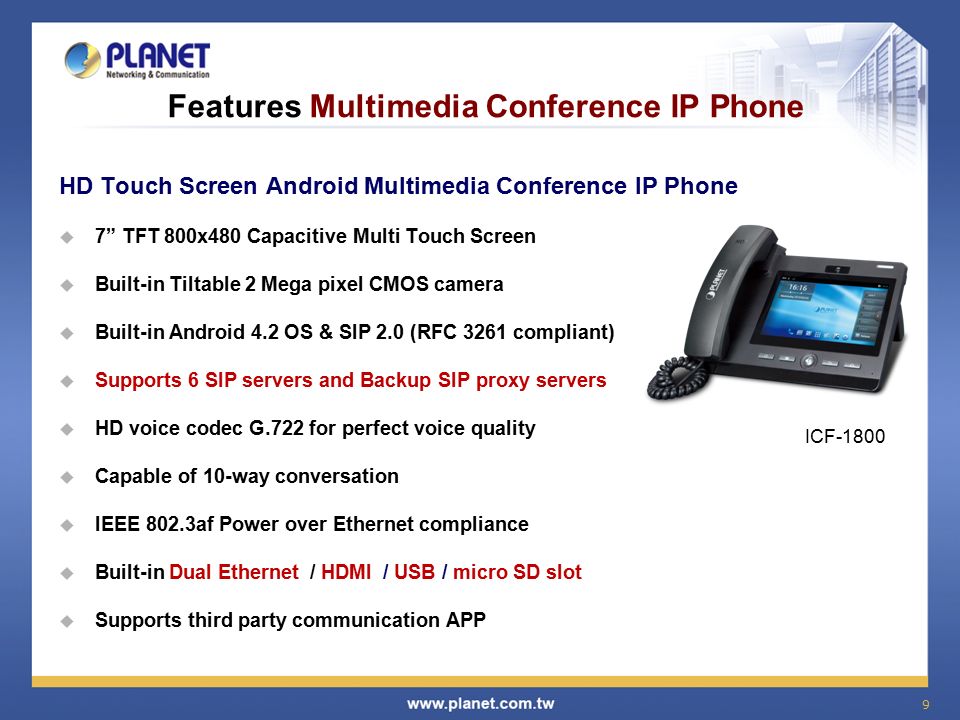

9 Features Multimedia Conference IP Phone HD Touch Screen Android Multimedia Conference IP Phone 7” TFT 800x480 Capacitive Multi Touch Screen Built-in Tiltable 2 Mega pixel CMOS camera Built-in Android 4.2 OS & SIP 2.0 (RFC 3261 compliant) Supports 6 SIP servers and Backup SIP proxy servers HD voice codec G.722 for perfect voice quality Capable of 10-way conversation IEEE 802.3af Power over Ethernet compliance Built-in Dual Ethernet / HDMI / USB / micro SD slot Supports third party communication APP ICF-1800
10

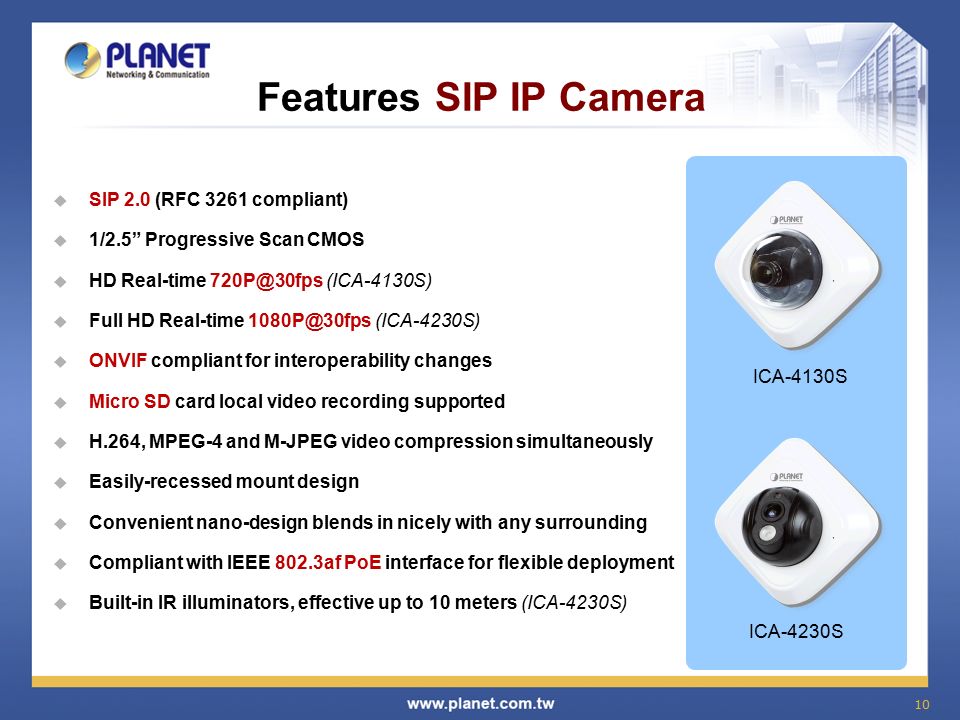

10 SIP 2.0 (RFC 3261 compliant) 1/2.5” Progressive Scan CMOS HD Real-time 720P@30fps (ICA-4130S) Full HD Real-time 1080P@30fps (ICA-4230S) ONVIF compliant for interoperability changes Micro SD card local video recording supported H.264, MPEG-4 and M-JPEG video compression simultaneously Easily-recessed mount design Convenient nano-design blends in nicely with any surrounding Compliant with IEEE 802.3af PoE interface for flexible deployment Built-in IR illuminators, effective up to 10 meters (ICA-4230S) Features SIP IP Camera ICA-4130S ICA-4230S
11

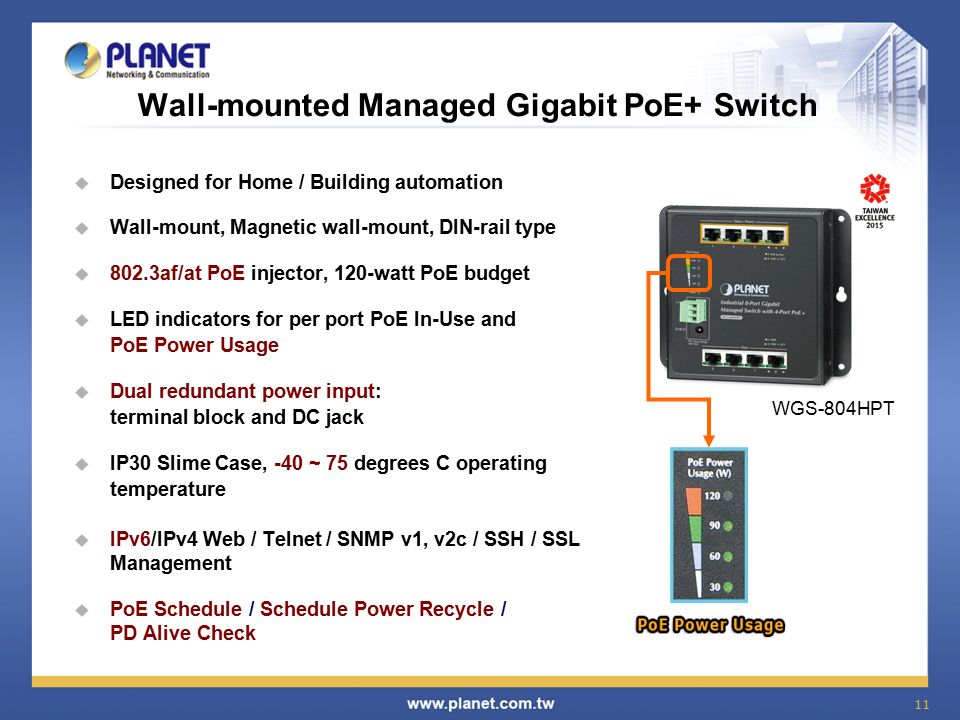

11 Wall-mounted Managed Gigabit PoE+ Switch Designed for Home / Building automation Wall-mount, Magnetic wall-mount, DIN-rail type 802.3af/at PoE injector, 120-watt PoE budget LED indicators for per port PoE In-Use and PoE Power Usage Dual redundant power input: terminal block and DC jack IP30 Slime Case, -40 ~ 75 degrees C operating temperature IPv6/IPv4 Web / Telnet / SNMP v1, v2c / SSH / SSL Management PoE Schedule / Schedule Power Recycle / PD Alive Check WGS-804HPT
12
12 Wall-mounted PoE+ Switch Application
