3 / 19 Product Overview Front View of ICA-HM127 DC Iris Control Port 1/2.5“ 3M Progressive Sensor 2048*1536@20fps (4:3) 1920*1080@30fps (16:9) MIC IN
4 / 19 Product Overview Rear View of ICA-HM127 RJ-45 LAN 10/100Mbps DC 12V, 1A DI/DO (2/1) SD Card Microphone Input Reset Button Audio Out Video Output
5 / 19 Product Features H.264, MPEG4 and M-JPEG Multi Codec High quality 3MP CMOS sensor (2048*1536@20fps) QXGA IEEE 802.3af Standard PoE Interface External I/O Trigger for Various Surveillance Application 3 Motion Detection Area / E-mail and FTP Alert Day/Night Switch with ICR (IR-cut Filter Removable) → → → IPv6 / ONVIF Supported
6 / 19 Product Features Multi-Streaming & Mobile View User A can get H.264 / M-JPEG, QXGA / 1080p / Quad-VGA / 720p / VGA / QVGA resolution from ICA-HM127. At the same time, another user, say User B can have M-JPEG, VGA resolution view by Mobile Phone. One network camera can fit to various remote network environment at the same time. 2048 x1536 QXGA 1920 x 1080 1080p 1280 x 960 Quad-VGA 640 x 480 VGA Multi-Streaming H.264/M-JPEG H.264/M-JPEG@2048 x1536 (QXGA) M-JPEG M-JPEG@640x480 (VGA)
7 / 19 Product Features 3 motion detection areas / Trigger With the support for motion detection, once there is any moving activity in the specified area, the camera can soon send a message to the manager by email or upload recording/picture onto FTP, SAMBA, E-mail and SD Card. Digital Output Email FTP/SAMBA SD Card

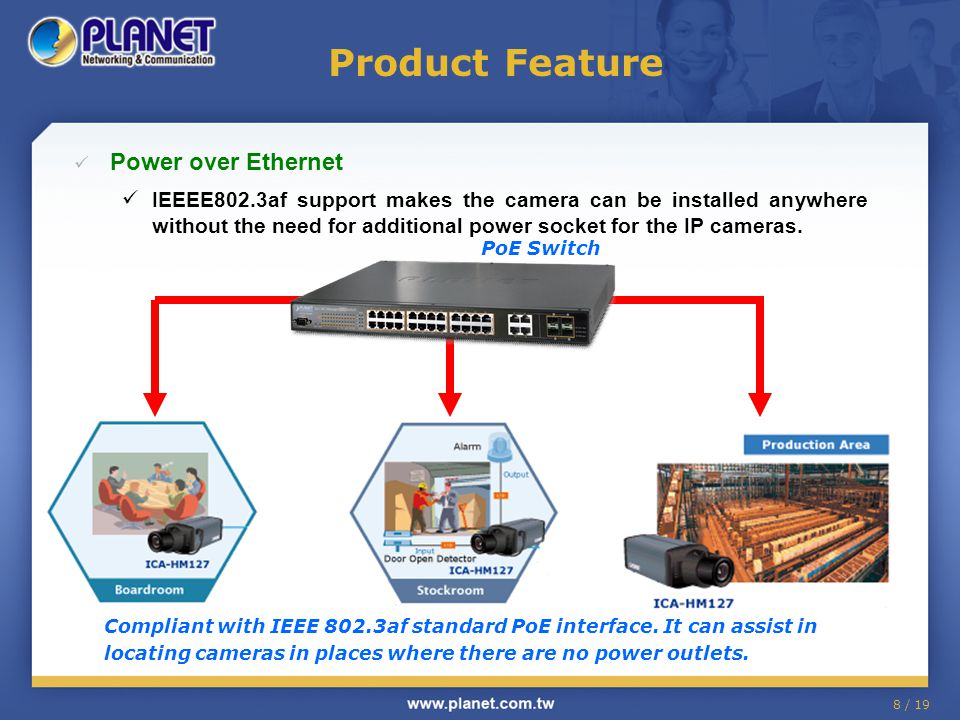

8 / 19 Power over Ethernet IEEEE802.3af support makes the camera can be installed anywhere without the need for additional power socket for the IP cameras. Compliant with IEEE 802.3af standard PoE interface. It can assist in locating cameras in places where there are no power outlets. PoE Switch Product Feature
9 / 19 Product Features IR-Cut Removable (ICR) With ICR features, ICA-HM127 can better video quality in the low light environments. Color image in day time, black & white image in dark place.
10 / 19 Product Feature Support 2-way Audio With 2-Way audio function, IP camera becomes a bridge that helps users to talk to other people. Via two IP cameras, users can easily communicate to each other no mater for a international meeting or a personal chat.
11 / 19 Built-in SD/SDHC Slot for record storage Supports one SD memory card slot for localized event and schedule recording of video stream of the IP camera. Product Features +
12 / 19 Management View Video & Administration Record / Snapshot Advanced Management Digit Output Switching Video Format View Screen Full Screen
13 / 19 Product Application Provide various surveillance applications Build-in two digital input (DI) Makes installation easier by allowing the use of a single Ethernet cable to power the camera Allow users to handle the entire camera in one consoleHear and talk to people in cameras viewing area through your computer one digital output (DO) 2-way audio Cam Viewer 3 Central Management Supports Dual Streams Simultaneously H.264 compression provides savings in network bandwidth and storage cost IEEE 802.3af Power Over Ethernet Build-in Two DI and one DO for External sensor and alarms
14 / 19 Product Comparison Model Features ICA-HM127ICA-HM126 / HM126R Sensor 1/2.5“ Progressive CMOS1/2.7“ Progressive CMOS Sensor size in megapixel 3.0MP (4:3)Full-HD (16:9) Lens f = 3.1-8mm, F1.2 DC-iris, C/CS mount f = 4.0 mm, F1.5 DC-iris, C/CS mount Day & Night - ICR VV Sensibility (Lux) 0.05 lux (color) 0 lux (B/W) 0.2 lux (color) 0.02 lux (B/W) Image Compression H.264 / MPEG-4/ M-JPEGH.264 / M-JPEG Max resolution 2048 x 1536 / 1920 x 10801920 x 1080 Max. frame 20 / 30 (Real-time)15 / 30 (Real-time) PoE VV Save-to-NAS (SAMBA) VV 3GPP VV 2-Way Audio VV IPv6 / ONVIF V / V DI / DO 2 / 11 / 1 Storage SD/SDHC
15 / 19 Product Comparison Model Features PLANET ICA-HM127Axis P1346 Sensor 1/2.5“ Progressive CMOS1/3“ Progressive CMOS Sensor size in megapixel 3.0MP (4:3) Lens f = 3.1-8mm, F1.2 DC-iris, C/CS mount f = 3.5-10mm, F1.6 DC-iris, C/CS mount Day & Night - ICR VV Image Compression H.264 / MPEG-4/ M-JPEG Max resolution 2048 x 1536 Max. frame 20 PoE VV IPv6 / ONVIF VV 2-Way Audio VV Save-to-NAS (SAMBA) V- 3GPP V- RS-485 V- Video Out V- DI / DO 2 / 11 / 1 Storage SD/SDHC
17 / 19 Target Markets IP Surveillance System Integrator SMB Office / Home Security Reseller Target Customers Who buy our Box IP Camera ICA-HM126 / ICA-HM126R Who buy our Outdoor Box IP Camera ICA-HM351 Who buy our Analog Camera CAM-BX42 / CAM-BX53 Appendix Sales Target
