“There is nothing more important than our customers” RoamAbout Wireless Product Portfolio Customer Presentation
2
© 2007 Enterasys Networks, Inc. All rights reserved. 2 Enterasys RoamAbout WLAN Solutions RoamAbout Product Portfolio Management Applications Advanced Features of Thin Mode WLANs
3

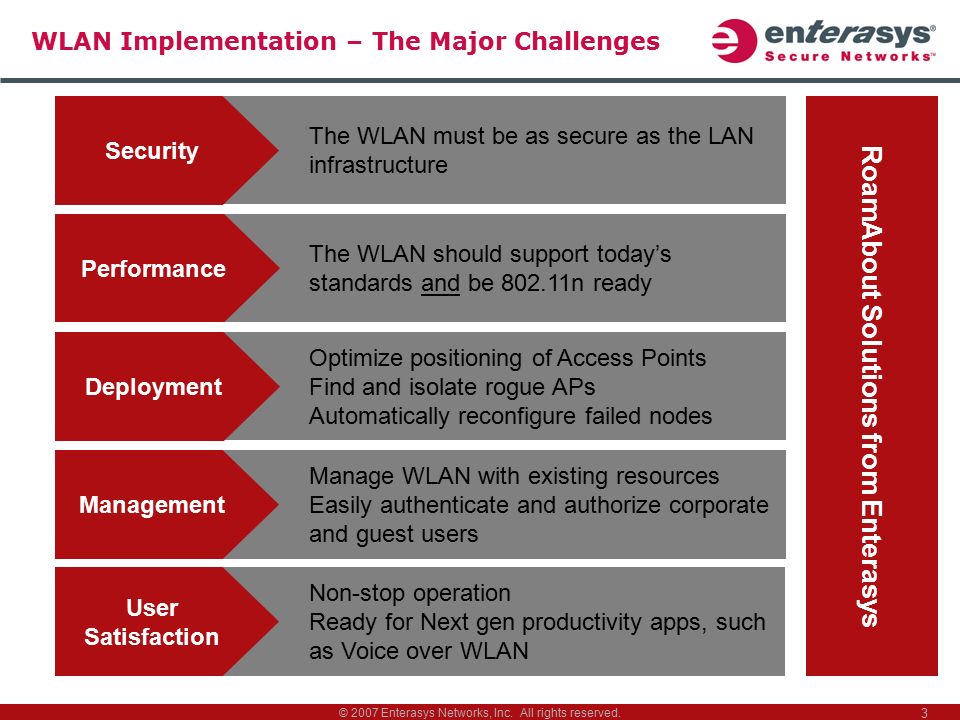

© 2007 Enterasys Networks, Inc. All rights reserved. 3 WLAN Implementation – The Major Challenges Security The WLAN must be as secure as the LAN infrastructure Performance The WLAN should support today’s standards and be 802.11n ready Deployment Optimize positioning of Access Points Find and isolate rogue APs Automatically reconfigure failed nodes Management Manage WLAN with existing resources Easily authenticate and authorize corporate and guest users User Satisfaction Non-stop operation Ready for Next gen productivity apps, such as Voice over WLAN RoamAbout Solutions from Enterasys
4

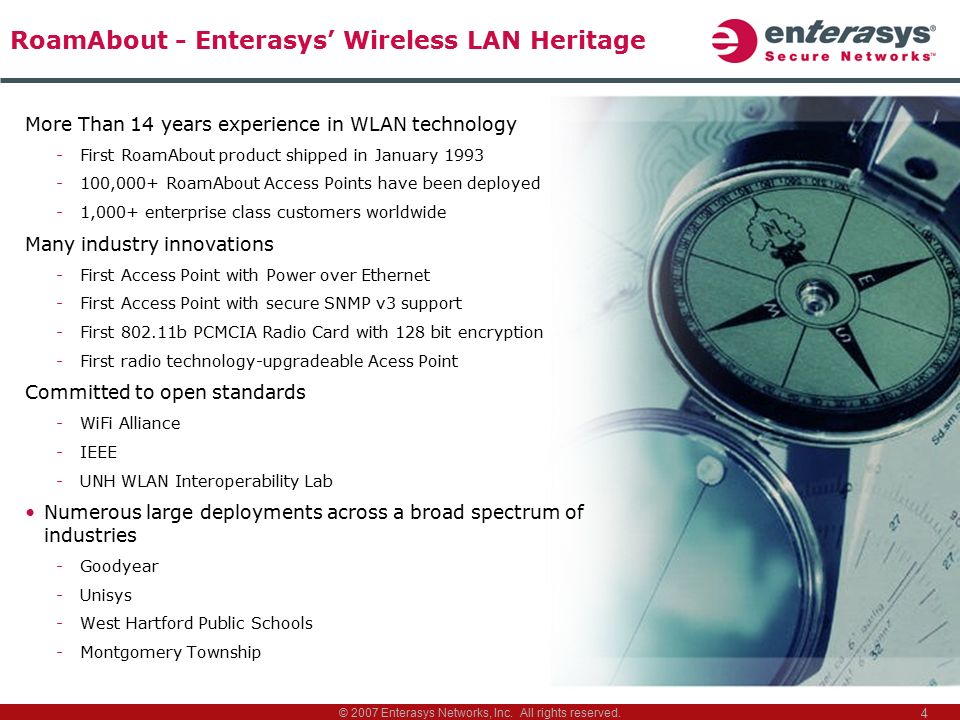

© 2007 Enterasys Networks, Inc. All rights reserved. 4 RoamAbout - Enterasys’ Wireless LAN Heritage More Than 14 years experience in WLAN technology First RoamAbout product shipped in January 1993 100,000+ RoamAbout Access Points have been deployed 1,000+ enterprise class customers worldwide Many industry innovations First Access Point with Power over Ethernet First Access Point with secure SNMP v3 support First 802.11b PCMCIA Radio Card with 128 bit encryption First radio technology-upgradeable Acess Point Committed to open standards WiFi Alliance IEEE UNH WLAN Interoperability Lab Numerous large deployments across a broad spectrum of industries Goodyear Unisys West Hartford Public Schools Montgomery Township
5
© 2007 Enterasys Networks, Inc. All rights reserved. 5 Secure Networks Enterasys’ embedded security architecture for wired & wireless networks Wireless Switches The intelligence for next gen wireless networks Provides ACL policy, centralized management, plug and play deployment, L3 mobility, rogue detection, reliability, and load balancing Access Points Performance, security and 802.11 standards compliance WLAN Management Software Operations center for network Site Survey Tools Helps size and optimize wireless network for customer environment RoamAbout – A Flexible Product Portfolio Today
6

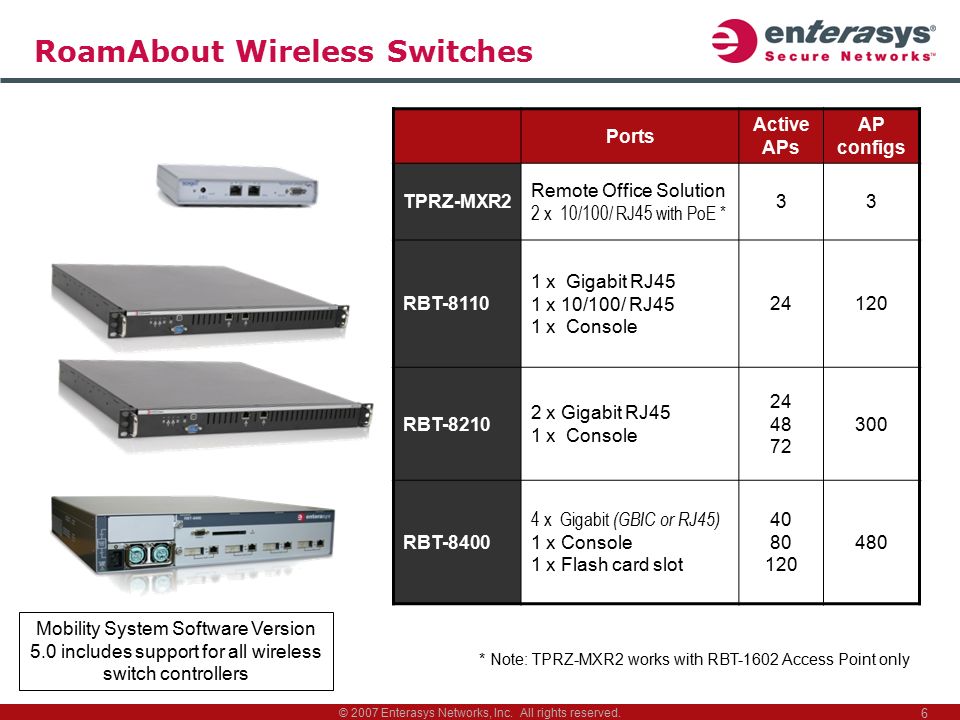

© 2007 Enterasys Networks, Inc. All rights reserved. 6 RoamAbout Wireless Switches Ports Active APs AP configs TPRZ-MXR2 Remote Office Solution 2 x 10/100/ RJ45 with PoE * 33 RBT-8110 1 x Gigabit RJ45 1 x 10/100/ RJ45 1 x Console 24120 RBT-8210 2 x Gigabit RJ45 1 x Console 24 48 72 300 RBT-8400 4 x Gigabit (GBIC or RJ45) 1 x Console 1 x Flash card slot 40 80 120 480 Mobility System Software Version 5.0 includes support for all wireless switch controllers * Note: TPRZ-MXR2 works with RBT-1602 Access Point only
7

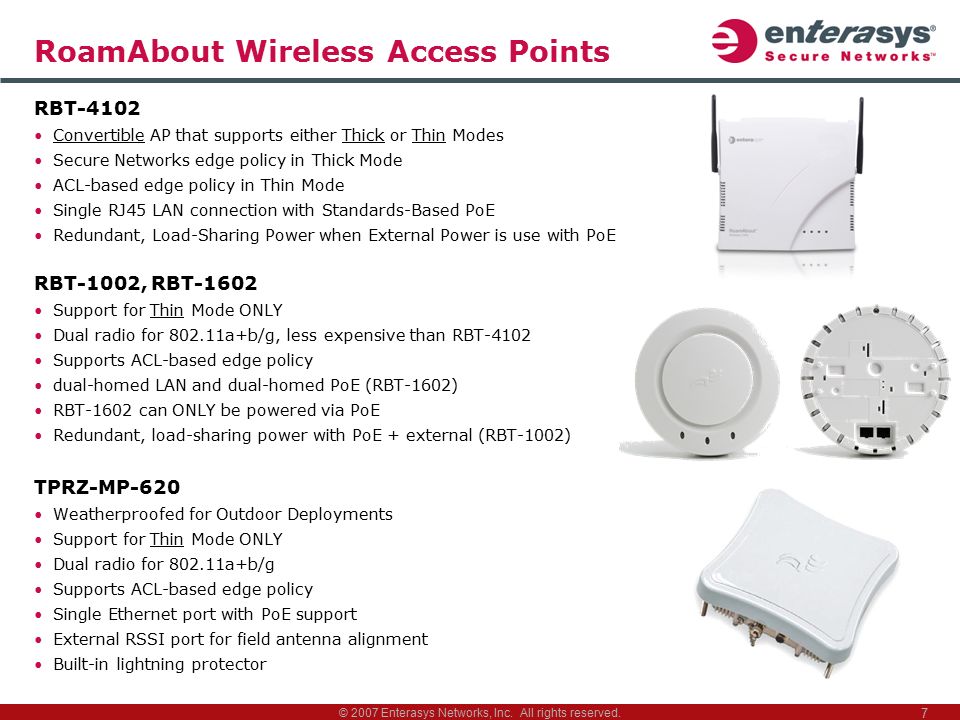

© 2007 Enterasys Networks, Inc. All rights reserved. 7 RBT-4102 Convertible AP that supports either Thick or Thin Modes Secure Networks edge policy in Thick Mode ACL-based edge policy in Thin Mode Single RJ45 LAN connection with Standards-Based PoE Redundant, Load-Sharing Power when External Power is use with PoE RBT-1002, RBT-1602 Support for Thin Mode ONLY Dual radio for 802.11a+b/g, less expensive than RBT-4102 Supports ACL-based edge policy dual-homed LAN and dual-homed PoE (RBT-1602) RBT-1602 can ONLY be powered via PoE Redundant, load-sharing power with PoE + external (RBT-1002) TPRZ-MP-620 Weatherproofed for Outdoor Deployments Support for Thin Mode ONLY Dual radio for 802.11a+b/g Supports ACL-based edge policy Single Ethernet port with PoE support External RSSI port for field antenna alignment Built-in lightning protector RoamAbout Wireless Access Points
8
© 2007 Enterasys Networks, Inc. All rights reserved. 8 Enterasys RoamAbout WLAN Solutions RoamAbout Product Portfolio Management Applications Advanced Features of Thin Mode WLANs
9

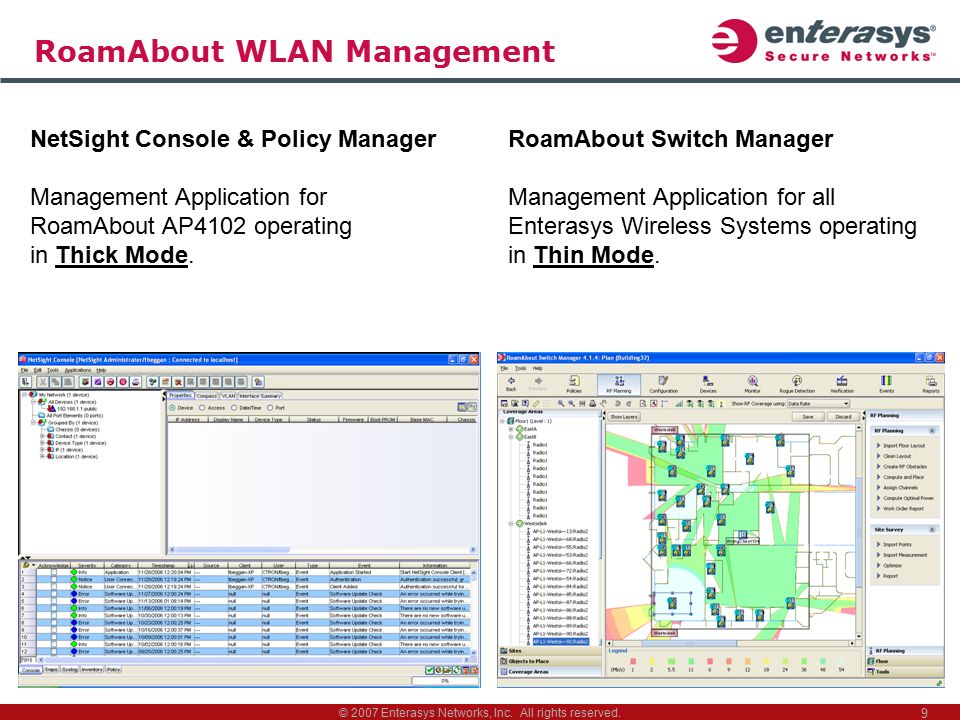

© 2007 Enterasys Networks, Inc. All rights reserved. 9 RoamAbout WLAN Management NetSight Console & Policy Manager Management Application for RoamAbout AP4102 operating in Thick Mode. RoamAbout Switch Manager Management Application for all Enterasys Wireless Systems operating in Thin Mode.
10

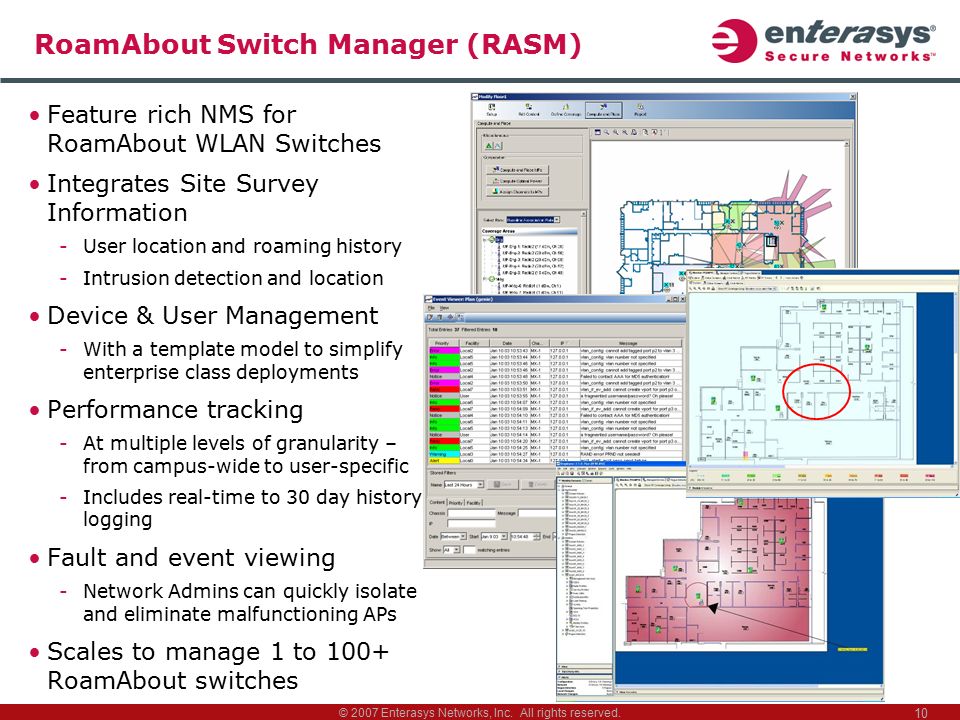

© 2007 Enterasys Networks, Inc. All rights reserved. 10 RoamAbout Switch Manager (RASM) Feature rich NMS for RoamAbout WLAN Switches Integrates Site Survey Information User location and roaming history Intrusion detection and location Device & User Management With a template model to simplify enterprise class deployments Performance tracking At multiple levels of granularity – from campus-wide to user-specific Includes real-time to 30 day history logging Fault and event viewing Network Admins can quickly isolate and eliminate malfunctioning APs Scales to manage 1 to 100+ RoamAbout switches
11

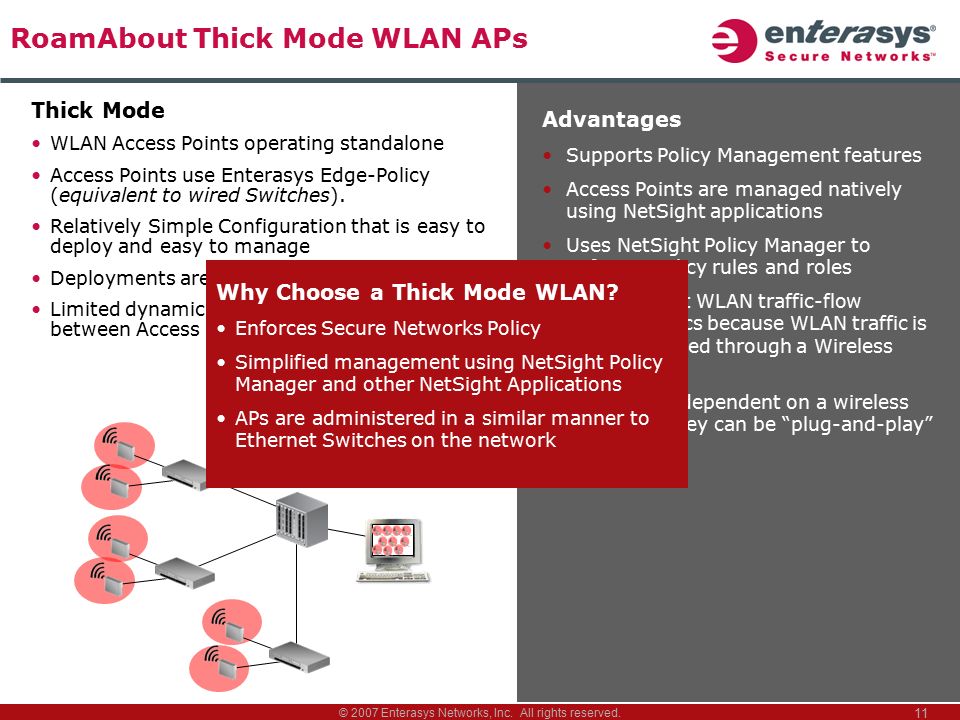

© 2007 Enterasys Networks, Inc. All rights reserved. 11 Thick Mode WLAN Access Points operating standalone Access Points use Enterasys Edge-Policy (equivalent to wired Switches). Relatively Simple Configuration that is easy to deploy and easy to manage Deployments are relatively static Limited dynamic mobility for users moving between Access Points RoamAbout Thick Mode WLAN APs Advantages Supports Policy Management features Access Points are managed natively using NetSight applications Uses NetSight Policy Manager to enforces policy rules and roles Very efficient WLAN traffic-flow characteristics because WLAN traffic is not aggregated through a Wireless Switch APs are not dependent on a wireless switch, so they can be “plug-and-play” Why Choose a Thick Mode WLAN? Enforces Secure Networks Policy Simplified management using NetSight Policy Manager and other NetSight Applications APs are administered in a similar manner to Ethernet Switches on the network
12

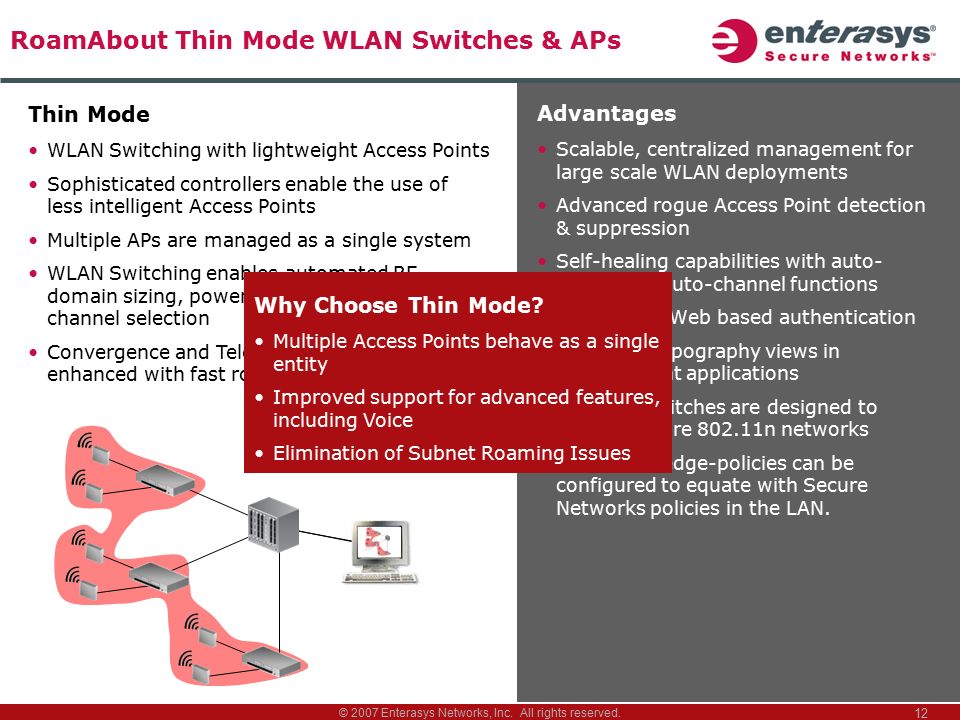

© 2007 Enterasys Networks, Inc. All rights reserved. 12 RoamAbout Thin Mode WLAN Switches & APs Thin Mode WLAN Switching with lightweight Access Points Sophisticated controllers enable the use of less intelligent Access Points Multiple APs are managed as a single system WLAN Switching enables automated RF domain sizing, power adjustments and channel selection Convergence and Telephony apps are enhanced with fast roaming capability Advantages Scalable, centralized management for large scale WLAN deployments Advanced rogue Access Point detection & suppression Self-healing capabilities with auto- power and auto-channel functions Support for Web based authentication Supports Topography views in management applications Wireless Switches are designed to support future 802.11n networks ACL-based edge-policies can be configured to equate with Secure Networks policies in the LAN. Why Choose Thin Mode? Multiple Access Points behave as a single entity Improved support for advanced features, including Voice Elimination of Subnet Roaming Issues
13
© 2007 Enterasys Networks, Inc. All rights reserved. 13 Enterasys RoamAbout WLAN Solutions RoamAbout Product Portfolio Management Applications Advanced Features of Thin Mode WLANs
14

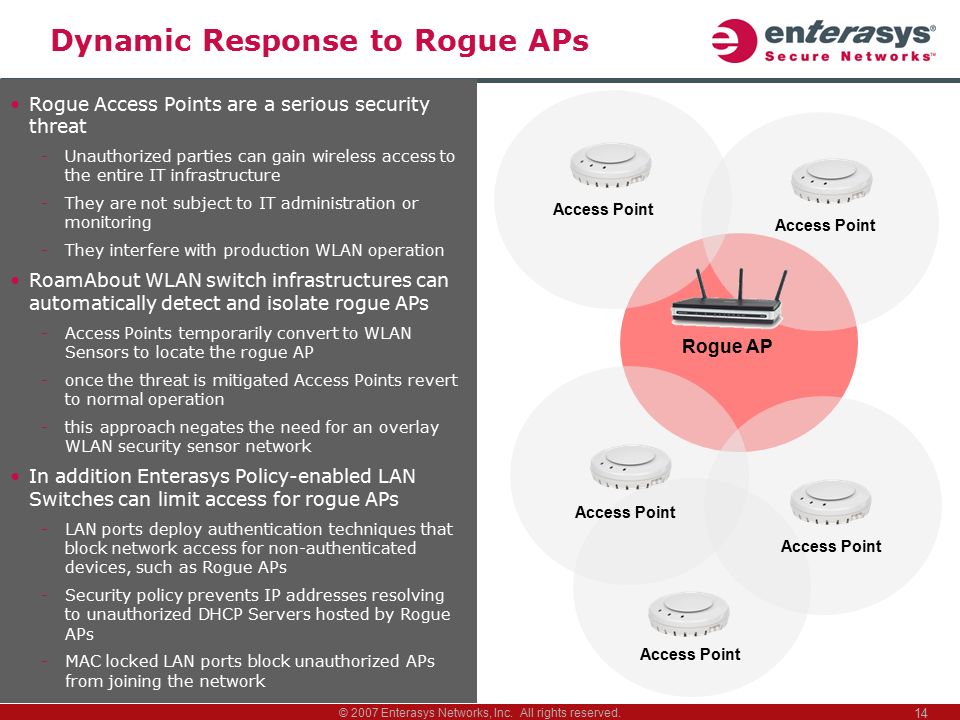

© 2007 Enterasys Networks, Inc. All rights reserved. 14 Dynamic Response to Rogue APs Rogue AP Rogue Access Points are a serious security threat Unauthorized parties can gain wireless access to the entire IT infrastructure They are not subject to IT administration or monitoring They interfere with production WLAN operation RoamAbout WLAN switch infrastructures can automatically detect and isolate rogue APs Access Points temporarily convert to WLAN Sensors to locate the rogue AP once the threat is mitigated Access Points revert to normal operation this approach negates the need for an overlay WLAN security sensor network In addition Enterasys Policy-enabled LAN Switches can limit access for rogue APs LAN ports deploy authentication techniques that block network access for non-authenticated devices, such as Rogue APs Security policy prevents IP addresses resolving to unauthorized DHCP Servers hosted by Rogue APs MAC locked LAN ports block unauthorized APs from joining the network Access Point
15
© 2007 Enterasys Networks, Inc. All rights reserved. 15 WLAN Switch Automation Tools Simplify IT Administration Self healing infrastructure ensures business continuity Adjacent APs detect and respond to AP failure or RF degradation Clients are automatically migrated to fully functional APs Dynamic load balancing addresses the “over-subscribed AP” challenge Automatic frequency selection and power control for adjacent APs Changes are localized, do not cascade throughout the network Option to dedicate bandwidth to QOS sensitive applications such as video and voice Access Point
16

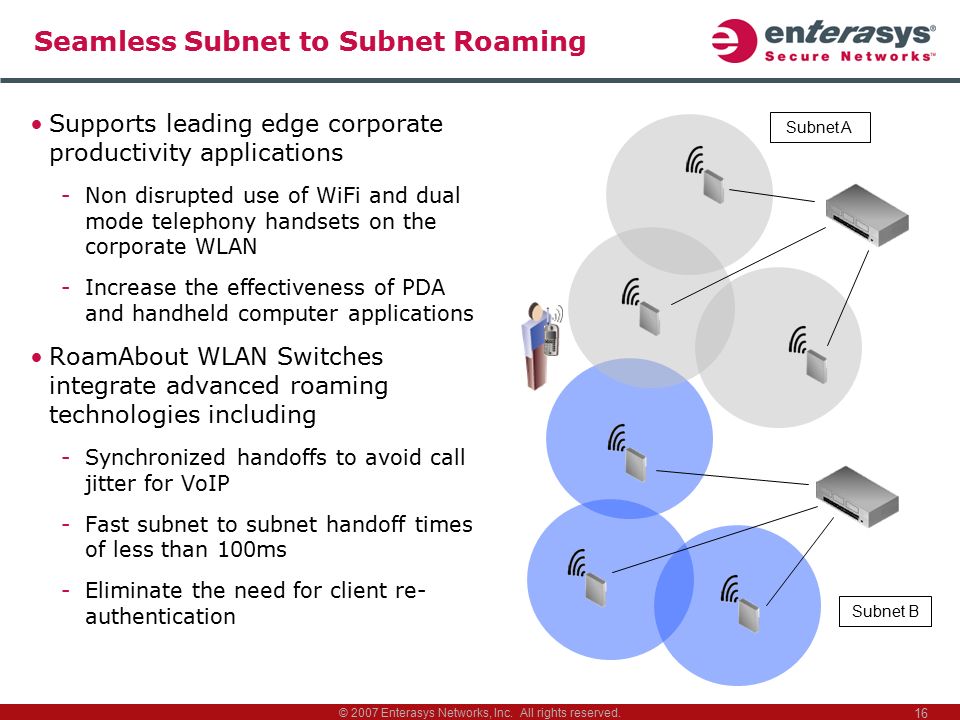

© 2007 Enterasys Networks, Inc. All rights reserved. 16 Seamless Subnet to Subnet Roaming Supports leading edge corporate productivity applications Non disrupted use of WiFi and dual mode telephony handsets on the corporate WLAN Increase the effectiveness of PDA and handheld computer applications RoamAbout WLAN Switches integrate advanced roaming technologies including Synchronized handoffs to avoid call jitter for VoIP Fast subnet to subnet handoff times of less than 100ms Eliminate the need for client re- authentication Subnet A Subnet B
17

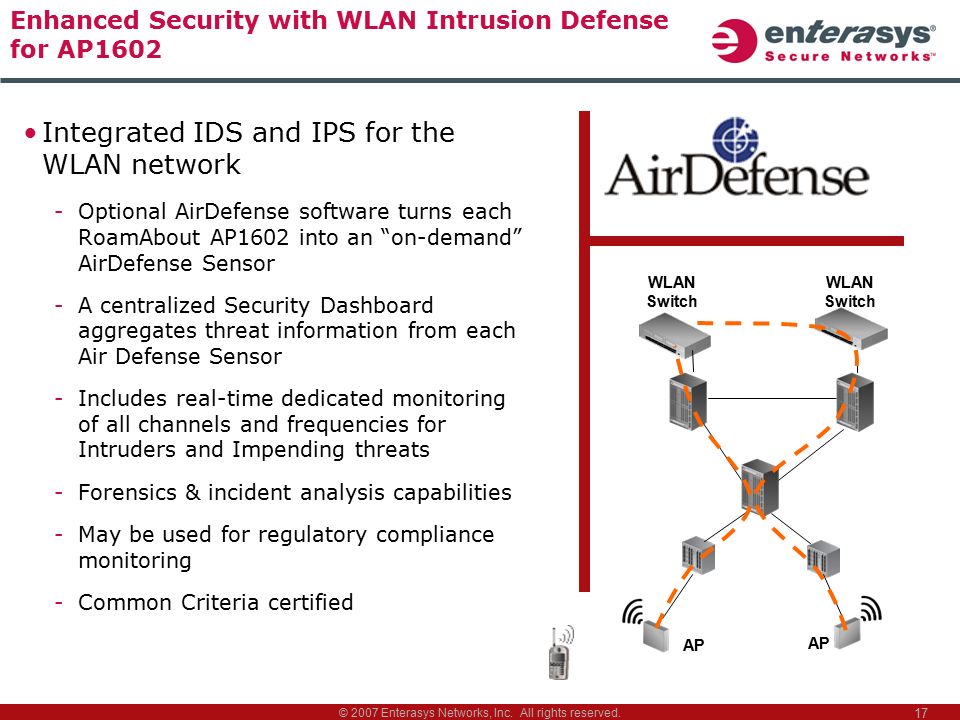

© 2007 Enterasys Networks, Inc. All rights reserved. 17 Enhanced Security with WLAN Intrusion Defense for AP1602 Integrated IDS and IPS for the WLAN network Optional AirDefense software turns each RoamAbout AP1602 into an “on-demand” AirDefense Sensor A centralized Security Dashboard aggregates threat information from each Air Defense Sensor Includes real-time dedicated monitoring of all channels and frequencies for Intruders and Impending threats Forensics & incident analysis capabilities May be used for regulatory compliance monitoring Common Criteria certified WLAN Switch AP WLAN Switch AP
18
© 2007 Enterasys Networks, Inc. All rights reserved. 18 Real Time Asset Tracking & Location The ability to rapidly locate mobile assets is a key competitive advantage for many industries Tracking raw materials and WIP in a manufacturing setting Locating patients and medical diagnostic equipment within a healthcare facility Managing inventory and shipments in a warehouse Automated asset tracking improves productivity While increaing cycle count accuracy and reducing operational costs RoamAbout switch infrastructures support real-time location services Using WiFi Tags and 3 rd party Location Servers Operates with products from AeroScout and Ekahau Location Server © Copyright (c) 2000-2005 Ekahau, Inc. All rights reserved.
19
“There is nothing more important than our customers” Wireless Networking Vision
20

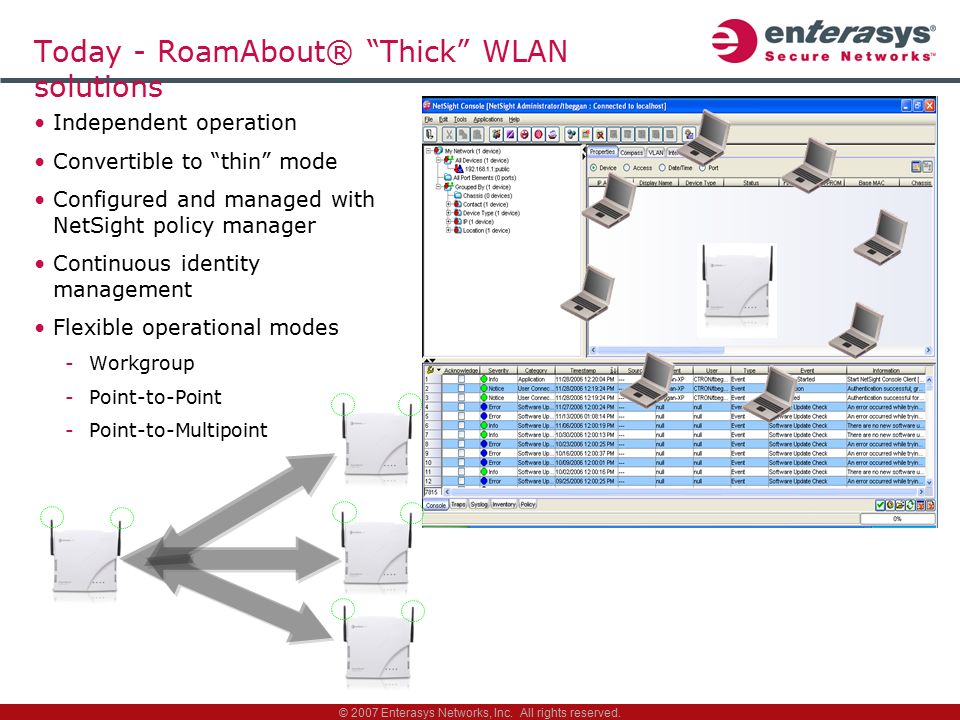

© 2007 Enterasys Networks, Inc. All rights reserved. Today - RoamAbout® “Thick” WLAN solutions Independent operation Convertible to “thin” mode Configured and managed with NetSight policy manager Continuous identity management Flexible operational modes Workgroup Point-to-Point Point-to-Multipoint
21

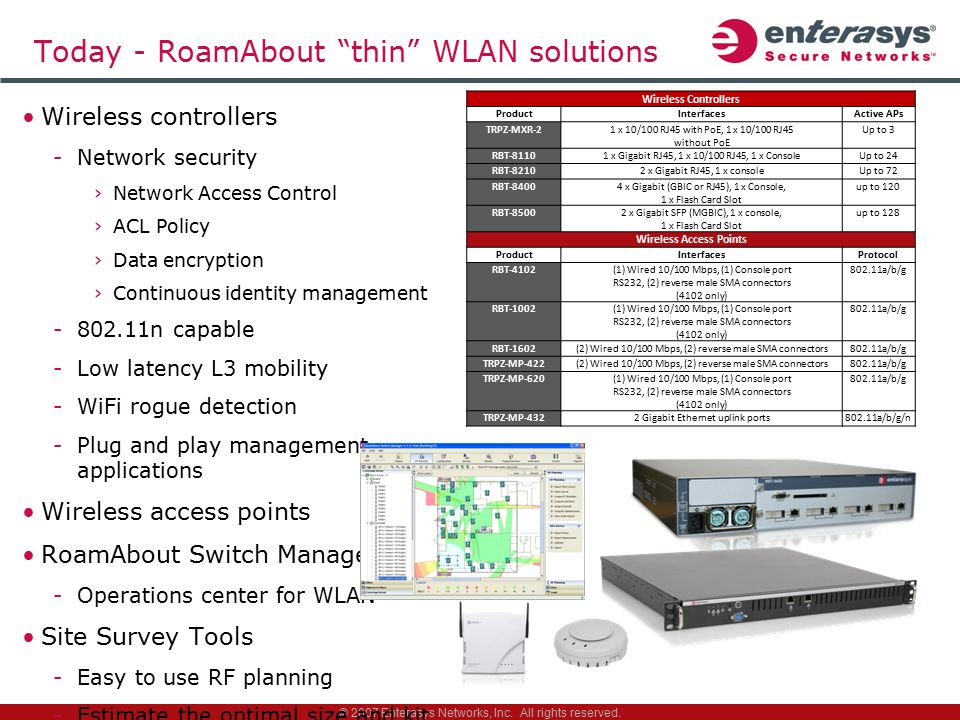

© 2007 Enterasys Networks, Inc. All rights reserved. Today - RoamAbout “thin” WLAN solutions Wireless controllers Network security ›Network Access Control ›ACL Policy ›Data encryption ›Continuous identity management 802.11n capable Low latency L3 mobility WiFi rogue detection Plug and play management applications Wireless access points RoamAbout Switch Manager Operations center for WLAN Site Survey Tools Easy to use RF planning Estimate the optimal size and kit list Wireless Controllers ProductInterfacesActive APs TRPZ-MXR-21 x 10/100 RJ45 with PoE, 1 x 10/100 RJ45 without PoE Up to 3 RBT-81101 x Gigabit RJ45, 1 x 10/100 RJ45, 1 x ConsoleUp to 24 RBT-82102 x Gigabit RJ45, 1 x consoleUp to 72 RBT-84004 x Gigabit (GBIC or RJ45), 1 x Console, 1 x Flash Card Slot up to 120 RBT-85002 x Gigabit SFP (MGBIC), 1 x console, 1 x Flash Card Slot up to 128 Wireless Access Points ProductInterfacesProtocol RBT-4102(1) Wired 10/100 Mbps, (1) Console port RS232, (2) reverse male SMA connectors (4102 only) 802.11a/b/g RBT-1002(1) Wired 10/100 Mbps, (1) Console port RS232, (2) reverse male SMA connectors (4102 only) 802.11a/b/g RBT-1602(2) Wired 10/100 Mbps, (2) reverse male SMA connectors802.11a/b/g TRPZ-MP-422(2) Wired 10/100 Mbps, (2) reverse male SMA connectors802.11a/b/g TRPZ-MP-620(1) Wired 10/100 Mbps, (1) Console port RS232, (2) reverse male SMA connectors (4102 only) 802.11a/b/g TRPZ-MP-4322 Gigabit Ethernet uplink ports802.11a/b/g/n
22

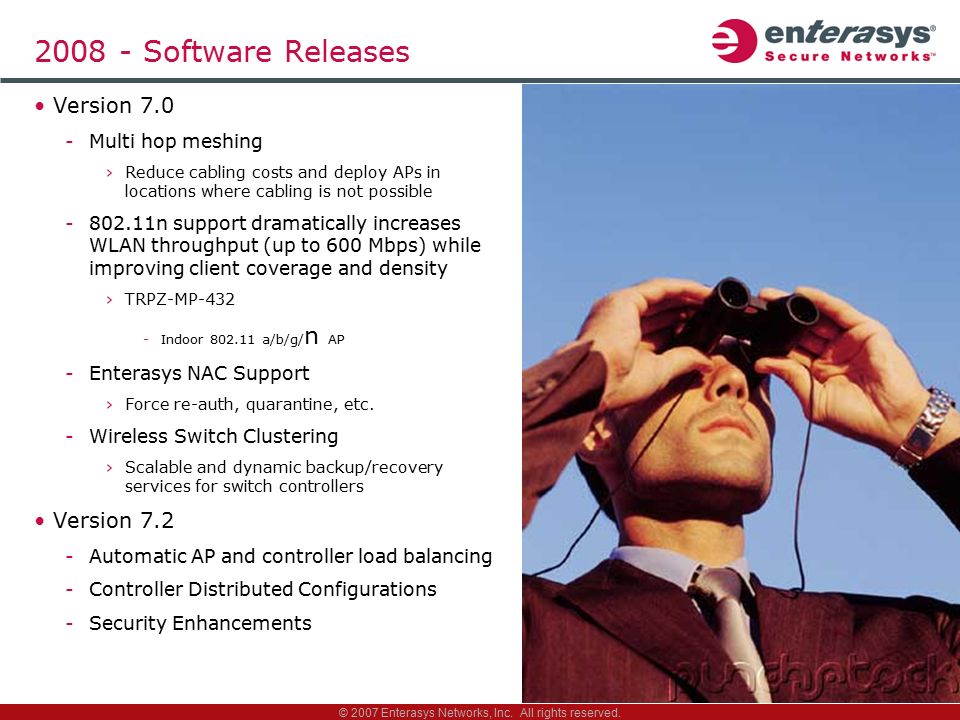

© 2007 Enterasys Networks, Inc. All rights reserved. 2008 - Software Releases Version 7.0 Multi hop meshing ›Reduce cabling costs and deploy APs in locations where cabling is not possible 802.11n support dramatically increases WLAN throughput (up to 600 Mbps) while improving client coverage and density ›TRPZ-MP-432 Indoor 802.11 a/b/g/ n AP Enterasys NAC Support ›Force re-auth, quarantine, etc. Wireless Switch Clustering ›Scalable and dynamic backup/recovery services for switch controllers Version 7.2 Automatic AP and controller load balancing Controller Distributed Configurations Security Enhancements
23

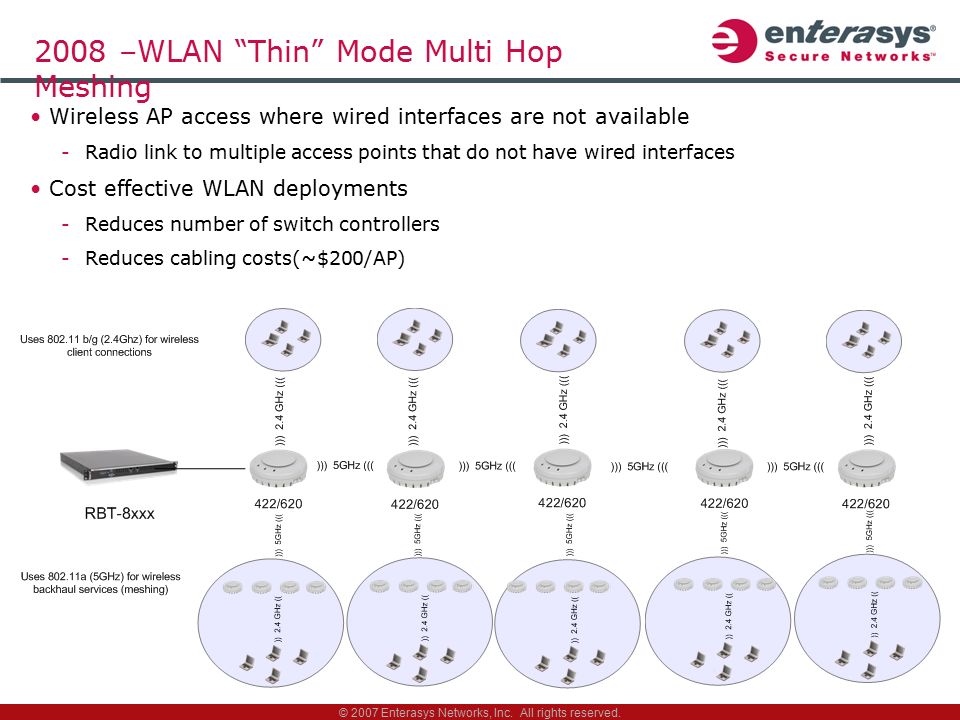

© 2007 Enterasys Networks, Inc. All rights reserved. 2008 –WLAN “Thin” Mode Multi Hop Meshing Wireless AP access where wired interfaces are not available Radio link to multiple access points that do not have wired interfaces Cost effective WLAN deployments Reduces number of switch controllers Reduces cabling costs(~$200/AP)
24

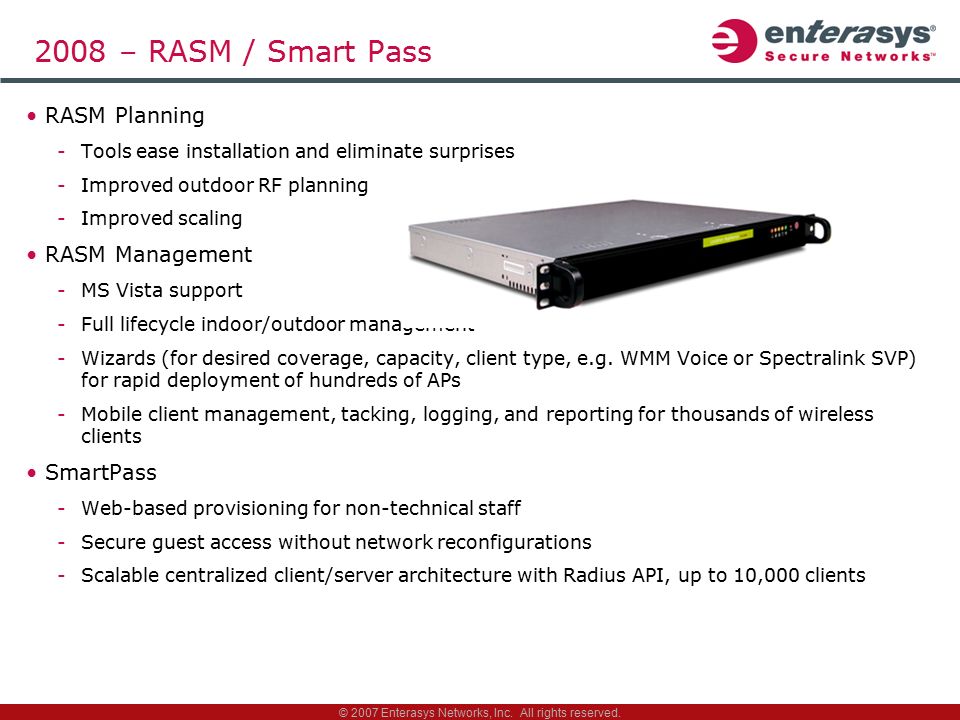

© 2007 Enterasys Networks, Inc. All rights reserved. 2008 – RASM / Smart Pass RASM Planning Tools ease installation and eliminate surprises Improved outdoor RF planning Improved scaling RASM Management MS Vista support Full lifecycle indoor/outdoor management Wizards (for desired coverage, capacity, client type, e.g. WMM Voice or Spectralink SVP) for rapid deployment of hundreds of APs Mobile client management, tacking, logging, and reporting for thousands of wireless clients SmartPass Web-based provisioning for non-technical staff Secure guest access without network reconfigurations Scalable centralized client/server architecture with Radius API, up to 10,000 clients
25

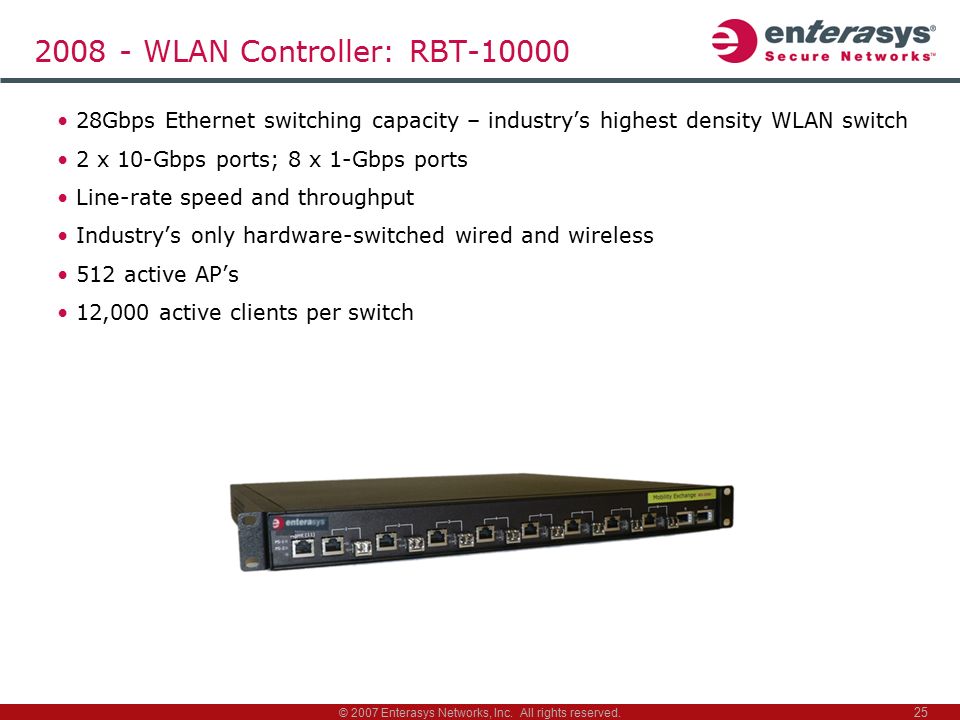

© 2007 Enterasys Networks, Inc. All rights reserved. 2008 - WLAN Controller: RBT-10000 28Gbps Ethernet switching capacity – industry’s highest density WLAN switch 2 x 10-Gbps ports; 8 x 1-Gbps ports Line-rate speed and throughput Industry’s only hardware-switched wired and wireless 512 active AP’s 12,000 active clients per switch 25
26

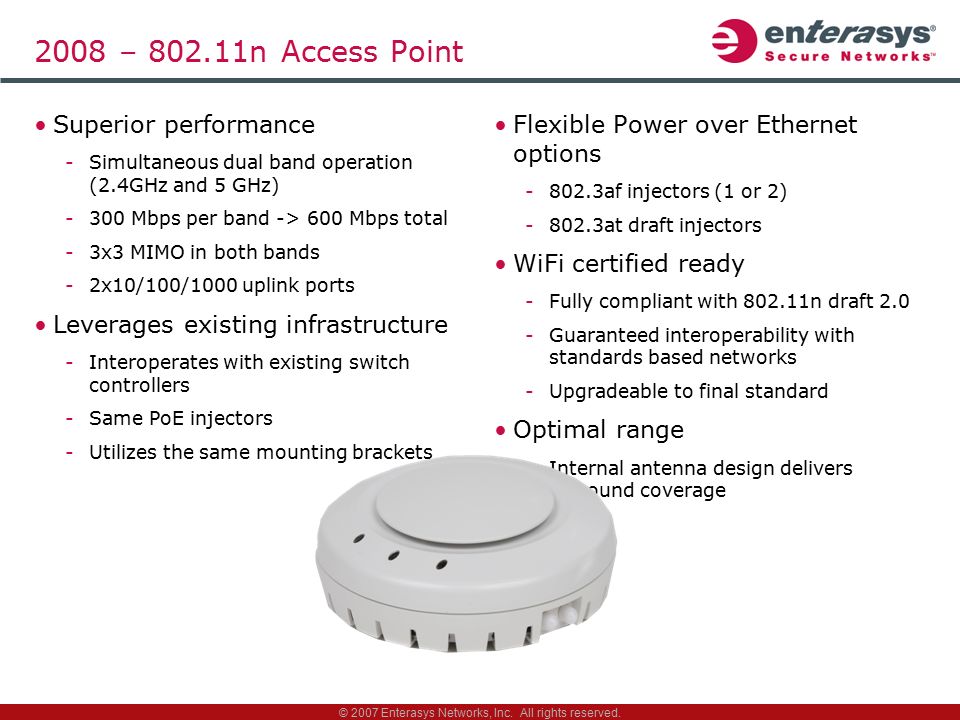

© 2007 Enterasys Networks, Inc. All rights reserved. 2008 – 802.11n Access Point Superior performance Simultaneous dual band operation (2.4GHz and 5 GHz) 300 Mbps per band -> 600 Mbps total 3x3 MIMO in both bands 2x10/100/1000 uplink ports Leverages existing infrastructure Interoperates with existing switch controllers Same PoE injectors Utilizes the same mounting brackets Flexible Power over Ethernet options 802.3af injectors (1 or 2) 802.3at draft injectors WiFi certified ready Fully compliant with 802.11n draft 2.0 Guaranteed interoperability with standards based networks Upgradeable to final standard Optimal range Internal antenna design delivers surround coverage
27

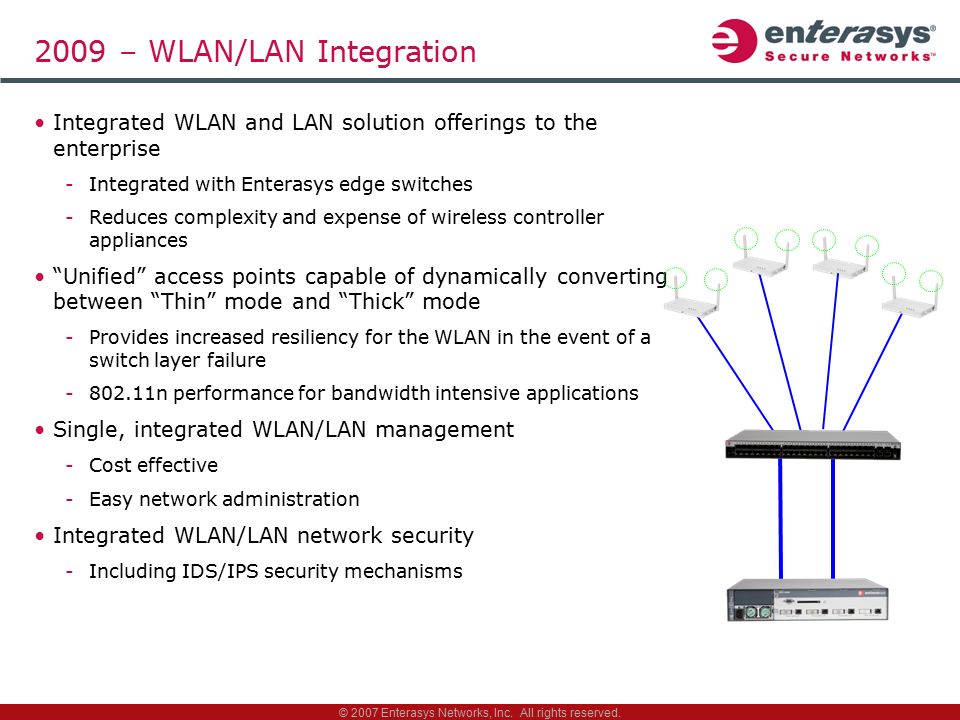

© 2007 Enterasys Networks, Inc. All rights reserved. 2009 – WLAN/LAN Integration Integrated WLAN and LAN solution offerings to the enterprise Integrated with Enterasys edge switches Reduces complexity and expense of wireless controller appliances “Unified” access points capable of dynamically converting between “Thin” mode and “Thick” mode Provides increased resiliency for the WLAN in the event of a switch layer failure 802.11n performance for bandwidth intensive applications Single, integrated WLAN/LAN management Cost effective Easy network administration Integrated WLAN/LAN network security Including IDS/IPS security mechanisms
28

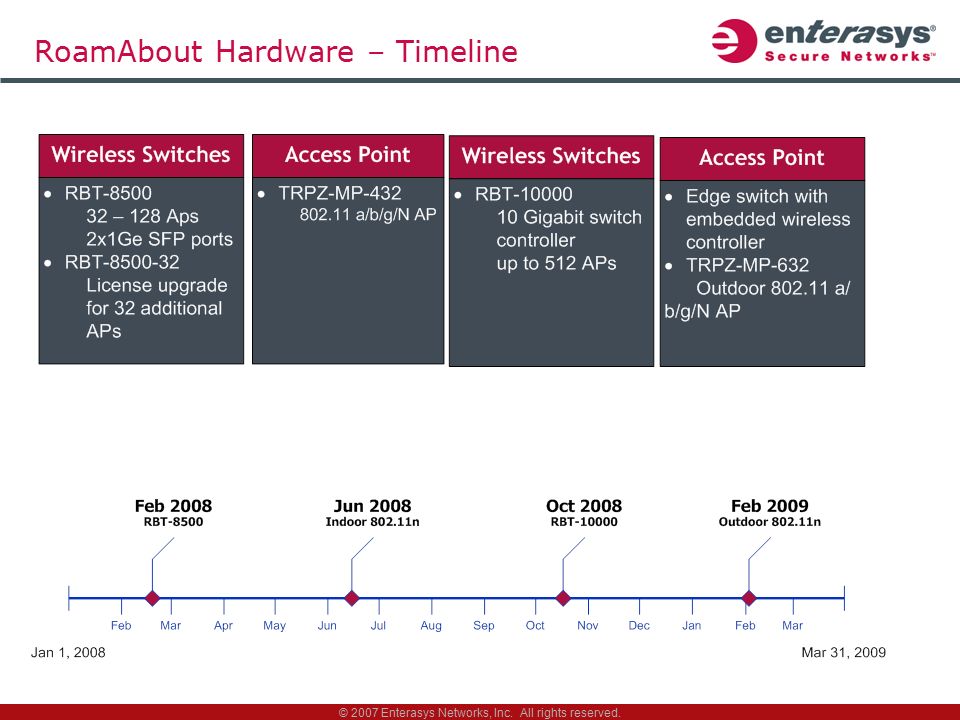

© 2007 Enterasys Networks, Inc. All rights reserved. RoamAbout Hardware – Timeline
29

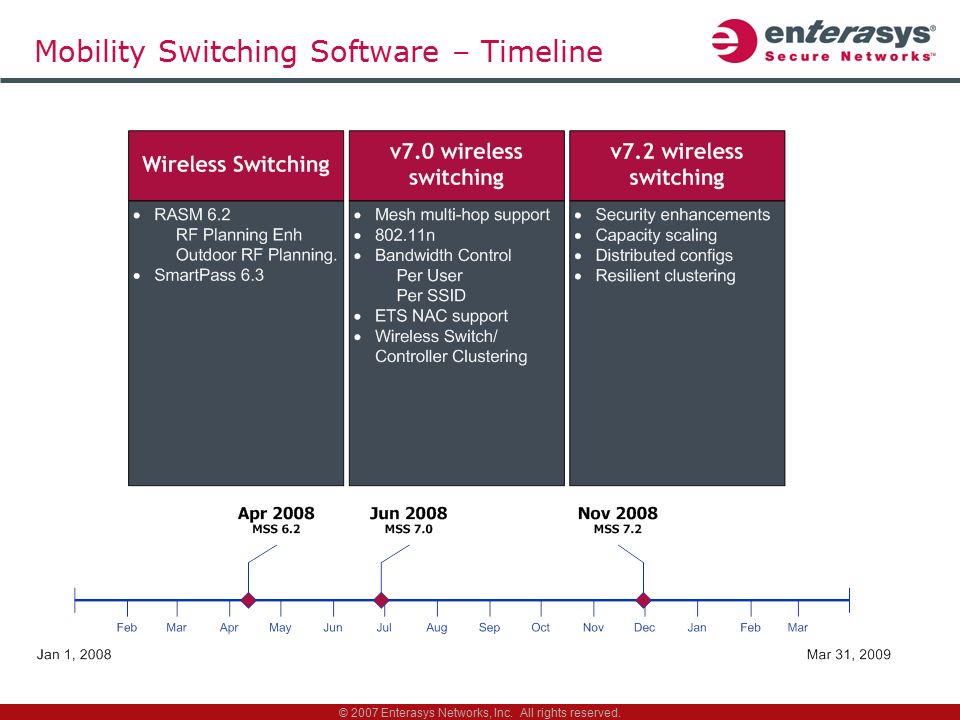

© 2007 Enterasys Networks, Inc. All rights reserved. Mobility Switching Software – Timeline
30
© 2007 Enterasys Networks, Inc. All rights reserved. 30 Thank you
31
© 2007 Enterasys Networks, Inc. All rights reserved. 31 Enterasys RoamAbout WLAN Solutions Additional Slides
32

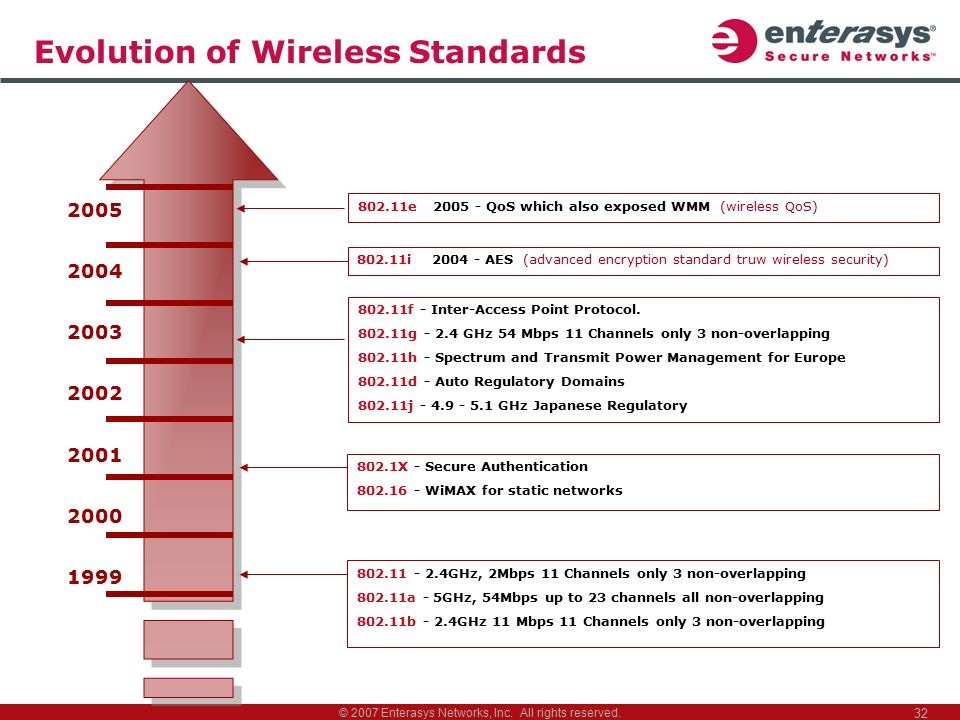

© 2007 Enterasys Networks, Inc. All rights reserved. 32 Evolution of Wireless Standards 1999 2000 2001 2002 2003 2004 2005 802.11 - 2.4GHz, 2Mbps 11 Channels only 3 non-overlapping 802.11a - 5GHz, 54Mbps up to 23 channels all non-overlapping 802.11b - 2.4GHz 11 Mbps 11 Channels only 3 non-overlapping 802.1X - Secure Authentication 802.16 - WiMAX for static networks 802.11f - Inter-Access Point Protocol. 802.11g - 2.4 GHz 54 Mbps 11 Channels only 3 non-overlapping 802.11h - Spectrum and Transmit Power Management for Europe 802.11d - Auto Regulatory Domains 802.11j - 4.9 - 5.1 GHz Japanese Regulatory 802.11i 2004 - AES (advanced encryption standard truw wireless security)802.11e 2005 - QoS which also exposed WMM (wireless QoS)
33

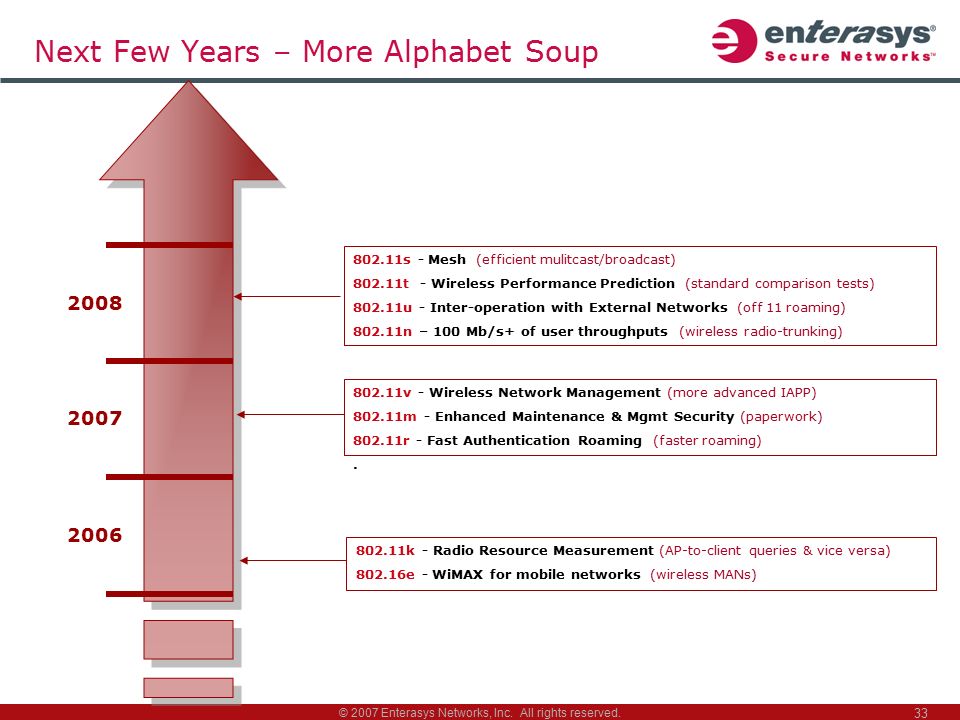

© 2007 Enterasys Networks, Inc. All rights reserved. 33 Next Few Years – More Alphabet Soup 2006 2007 2008 802.11k - Radio Resource Measurement (AP-to-client queries & vice versa) 802.16e - WiMAX for mobile networks (wireless MANs) 802.11v - Wireless Network Management (more advanced IAPP) 802.11m - Enhanced Maintenance & Mgmt Security (paperwork) 802.11r - Fast Authentication Roaming (faster roaming). 802.11s - Mesh (efficient mulitcast/broadcast) 802.11t - Wireless Performance Prediction (standard comparison tests) 802.11u - Inter-operation with External Networks (off 11 roaming) 802.11n – 100 Mb/s+ of user throughputs (wireless radio-trunking)
34

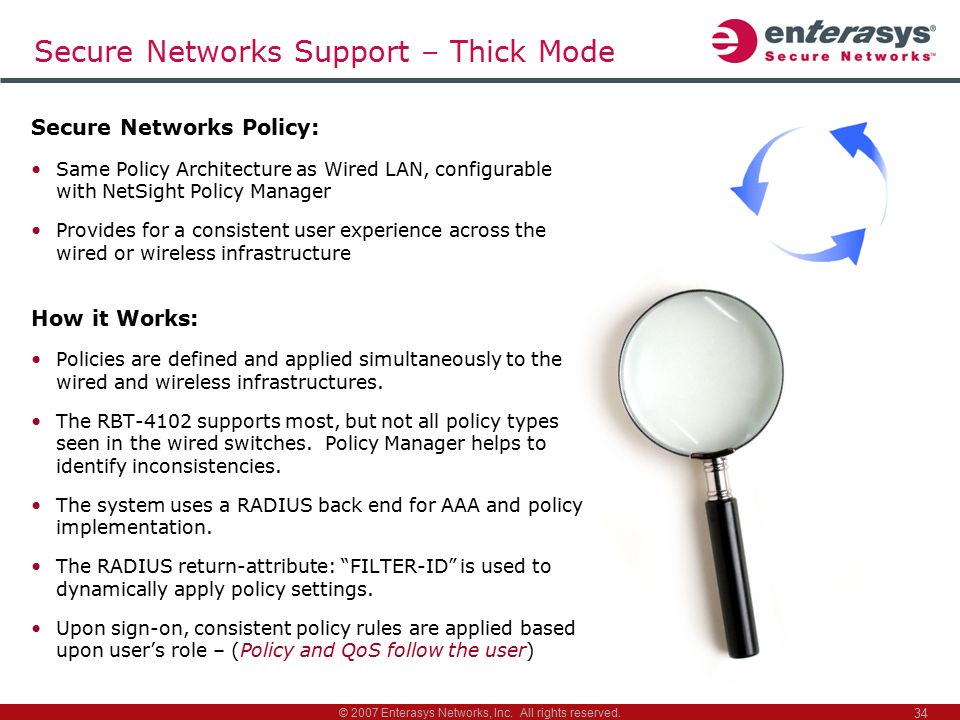

© 2007 Enterasys Networks, Inc. All rights reserved. 34 Secure Networks Support – Thick Mode Secure Networks Policy: Same Policy Architecture as Wired LAN, configurable with NetSight Policy Manager Provides for a consistent user experience across the wired or wireless infrastructure How it Works: Policies are defined and applied simultaneously to the wired and wireless infrastructures. The RBT-4102 supports most, but not all policy types seen in the wired switches. Policy Manager helps to identify inconsistencies. The system uses a RADIUS back end for AAA and policy implementation. The RADIUS return-attribute: “FILTER-ID” is used to dynamically apply policy settings. Upon sign-on, consistent policy rules are applied based upon user’s role – (Policy and QoS follow the user)
35
© 2007 Enterasys Networks, Inc. All rights reserved. 35 Secure Networks Support – Thin Mode ACL-Based Policy: Uses dynamically-applied ACL’s to closely replicate the Secure Networks policies existing on the Wired LAN Provides for a consistent user experience across the wired or wireless infrastructure How it Works: Policy is defined for the wired and wireless infrastructures using Secure Networks policy for wired devices and analogous ACL-based policies in wireless. Both systems share the RADIUS back end for AAA and policy implementation The RADIUS return-attribute: “FILTER-ID” is used to dynamically apply policy settings. Upon sign-on, consistent policy rules are applied based upon user’s role – (Policy and QoS follow the user)
36
© 2007 Enterasys Networks, Inc. All rights reserved. 36 RoamAbout Firmware Version 4.1.11.0 AE UNITED ARAB EMIRATES AR ARGENTINA AU AUSTRALIA BR BRAZIL CN CHINA EG EGYPT IL ISRAEL IN INDIA JP JAPAN (W52/W53) KR KOREA, REPUBLIC OF KW KUWAIT MY MALAYSIA NZ NEW ZEALAND PH PHILIPPINES SA SAUDI ARABIA SG SINGAPORE TH THAILAND TW TAIWAN VE VENEZUELA VN VIETNAM ZA SOUTH AFRICA Added Support for Specified Countries Thick Mode
37
© 2007 Enterasys Networks, Inc. All rights reserved. 37 Approaches to WLAN Architectures Thick Architecture Limited Control Features Centralized Architecture Controllers can be Bottlenecks Direct Path Forwarding Intelligent Switching Distributed Forwarding for Latency- sensitive Applications Centralized Forwarding for Other Applications (e.g. security-sensitive) Control Management Efficient Traffic Control Management Efficient Traffic Control Management Efficient Traffic
38

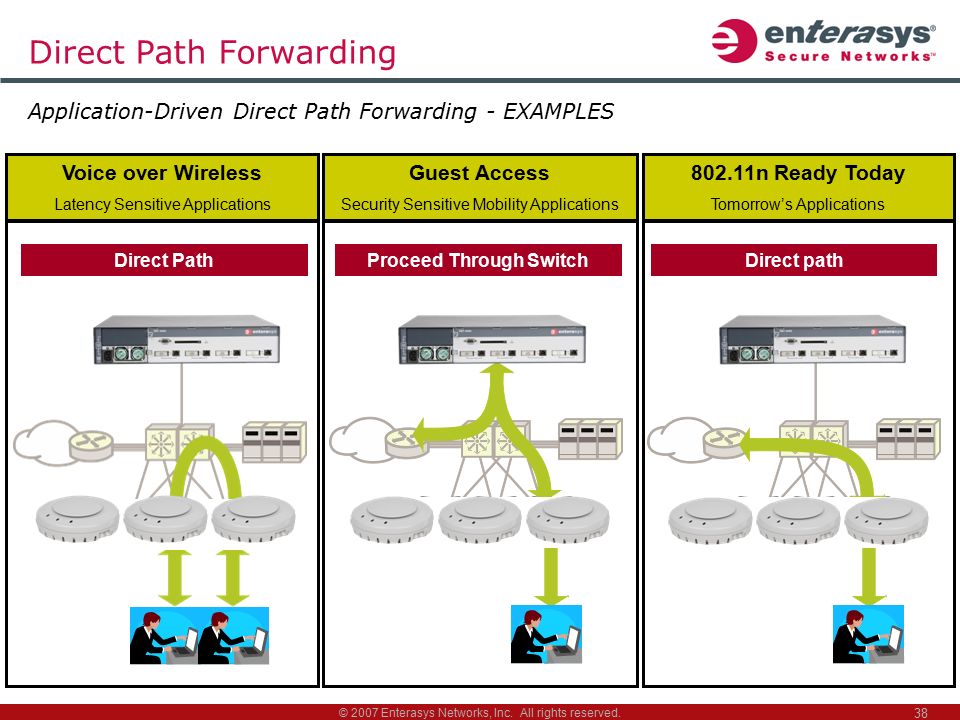

© 2007 Enterasys Networks, Inc. All rights reserved. 38 Direct Path Forwarding Application-Driven Direct Path Forwarding - EXAMPLES Voice over Wireless Latency Sensitive Applications Guest Access Security Sensitive Mobility Applications 802.11n Ready Today Tomorrow’s Applications Direct PathProceed Through SwitchDirect path
39

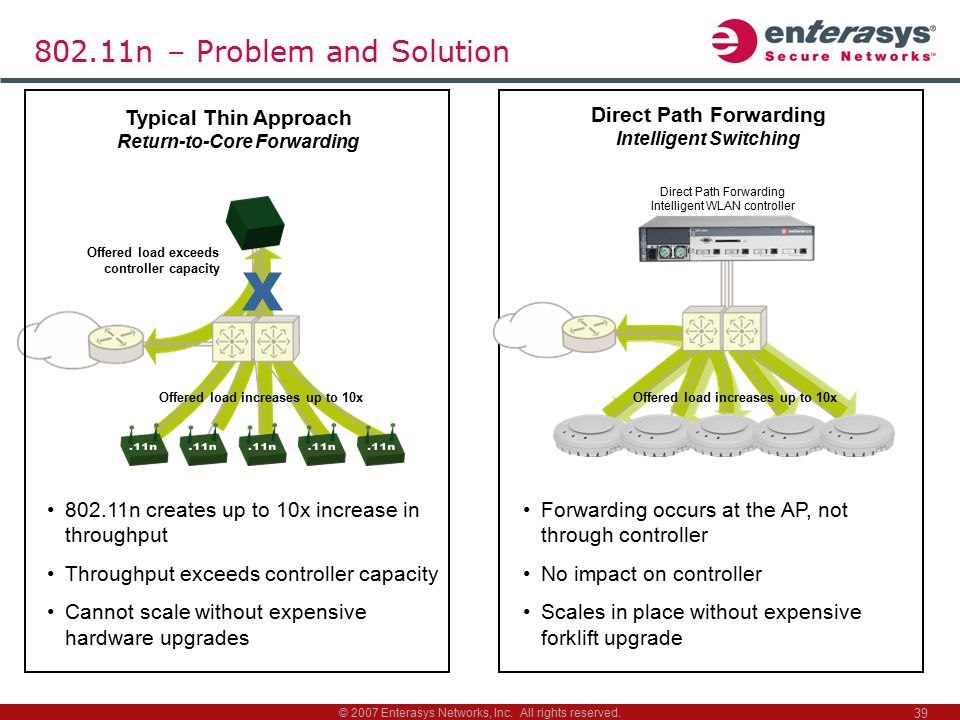

© 2007 Enterasys Networks, Inc. All rights reserved. 39 802.11n – Problem and Solution 802.11n creates up to 10x increase in throughput Throughput exceeds controller capacity Cannot scale without expensive hardware upgrades Typical Thin Approach Return-to-Core Forwarding Direct Path Forwarding Intelligent Switching Forwarding occurs at the AP, not through controller No impact on controller Scales in place without expensive forklift upgrade Offered load increases up to 10x X Offered load exceeds controller capacity Direct Path Forwarding Intelligent WLAN controller Offered load increases up to 10x
