1. ENDNOTE X7 ….. Bibliographies Made Easy RESEARCH SUPPORT DIVISION PERPUSTAKAAN SULTANAH ZANARIAH

2. EndNote is a bibliographical management software package designed to help you to organize bibliographic references and create a bibliography. Endnote allows you to search, retrieve relevant citations, and builds your bibliography, all within one WHAT IS ENDNOTE ?

3. On completion of this tutorial you should be able to better create and manage EndNotes libraries. You will acquiring the ability to: 1. Identify key capabilities of Endnote, and strategies for using EndNote effectively. 2. Find your way around the EndNote program (screens and menus) and learn where to find answers to questions about EndNote. 3. Create EndNote libraries and enter references in them by typing. 4. Search for and add references by connecting to remote databases through the internet. 5. Import references from downloaded files into EndNote. 6. Use EndNote with Microsoft Word to create and format citations. OBJECTIVES

4. DOWNLOAD ENDNOTE FROM cyberubp.utm.mycyberubp.utm.my Login ACID username and password

6. GETTING STARTED - CREATE LIBRARY

7. ENDNOTE LIBRARY – BASIC ELEMENTS

8. ENDNOTE LIBRARY – TOOLBAR ELEMENTS

9. ENDNOTE LIBRARY – REFERENCE WINDOW

10. ENDNOTE LIBRARY – PDF & QUICK EDIT Changes in reference entries can also be done using the Quick Edit/Preview/PDF window

11. ENDNOTE – CREATING/IMPORTING REFERENCES References might be - Created manually (e.g via References menu) - Imported from a bibliographic database via an online search within Endnote (see Tools menu) - Imported from files (e.g created by exporting references from bibliographic databases or library catalogues to them, see File menu) - Exported from a database or library catalogue (e.g NEBIS) directly to an Endnote library. - By importing pdf files that contain the DOI.

12. CREATE REFERENCE MANUALLY Click the New References button. A blank form will be displayed Select the correct Reference Type for the publication you wish to cite When you have finished entering all the information, click on the small cross to save the reference

13. ATTACHING IMAGES Open the record you wish to use, then click the Attach Figure (drawing pin) icon Click the Choose File button and browse to where you have the image saved. Click the OK button Scroll down the reference screen to see your image. Double-click on it to see the full-sized image. Add a caption to describe the image If you are using images in your writing you must provide a caption for each one, and this must include a citation for the source of the image.

14. IMPORTING RECORDS FROM DATABASES When you search databases to find journal articles, books and other information it is usually possible to import the records you find directly into Endnote. This has the advantage of allowing you to import references accurately. Most databases contain a download or export button that will send your search results directly to Endnote, pick the correct import option and start the import process automatically. Before you try to import any records into Endnote you should make sure your reference list displayed

15. IMPORTING REFERENCES FROM WEB OF KNOWLEDGE 1. Type your keywords and click the Search button 2. At the results screen, tick some of the checkboxes next to the results you want. 3. Scroll down to the bottom of the page. 4. Tick the plus Abstract box. 5. Click the Endnote button

16. EDITTING RECORDS Sometimes the records you import will have titles all in capital letters, or with each word capitalised. This will create incorrectly formatted references in your bibliography, so you will need to edit these records. The above reference will now be correctly formatted, as such : Click the Change Case button and make your selection. As a general rule, article and chapter titles are in sentence case, i.e capital letter for the first word and proper nouns only. Book and journal titles usually have a capital letter for all the main words. Open the record and highlight the text you wish to correct

17. IMPORTING REFERENCES FROM EBSCOHOST At the result page, click the Add to Folder link for each of the reference you want to save When you have finished making your selection, scroll up to the top of the page and click the Folder View lin k

18. Click the Select box, so that all the records are ticked Click the Export icon Click the Direct Export to Endnote, Procite…button, Then click the Save button

19. AUTOMATIC IMPORT OF PDF ARTICLES Click the Find Full text icon. A copyright notice will be displayed – click the OK button Click one item in the Reference List, go to Edit menu and choose Select All.

20. AUTOMATIC IMPORT OF PDF ARTICLES If the download has been successful, you will see a paperclip icon in the Reference List. If Endnote is unable to attach the PDF file it will attempt to find and attach URLs to your records. To read the PDF file click to the record and click Open Dile icon (yellow folder)

21. ATTACHING PDF MANUALLY If Endnote cannot find and attach the PDF for you automatically, you can save the file then attach it to the reference manually. Before you start save the file to your PC. Open the record, scroll down to the File Attachments Go to File Attachments and select Attach File Browse to where you have the file saved, then click the Open button. The file will now be attached to the Endnote record. Double click on the PDF icon to open it.

22. DRAG AND DROP PDF 1.Drag and drop the PDF into a particular referencing or any part of the line. The attachment will automatically be attached to the referencing. 2.Drag and drop the PDF into the “Reference” window, and the attachment + referencing will be automatically sorted out for you. 3.Drag the referencing to a particular folder if you want to save it.

23. HOW TO REMOVE ATTACHMENT? Right click on the tab, and “remove”

24. IMPORTING REFERENCES FROM GOOGLE SCHOLAR Click the Settings link at the top of the screen Scroll down to the bottom of the page, and select Endnote from the Bibliography menu Click the Save button

25. From now on, when you search Google Scholar, there will be an Import into Endnote link after each record.

26. ONLINE SEARCH FOR BOOK RECORDS If Online Search is not already displayed in the Groups panel click the Integrated Library & Online Search Click the British Library Link. If it is not already visible click more.. And select it from the list. A search form will open. Type in the details for the book you want. All matching results will be retrieved into Endnote, so your search should be as specific as possible.

27. If your search has been successful you will see a box like this. Click OK button Click to highlight any of the records that you do not want to keep. Right click on the highlighted area and select Move References to Trash. You can also use the Delete key to delete references. Any remaining records will be retained in your All References folder

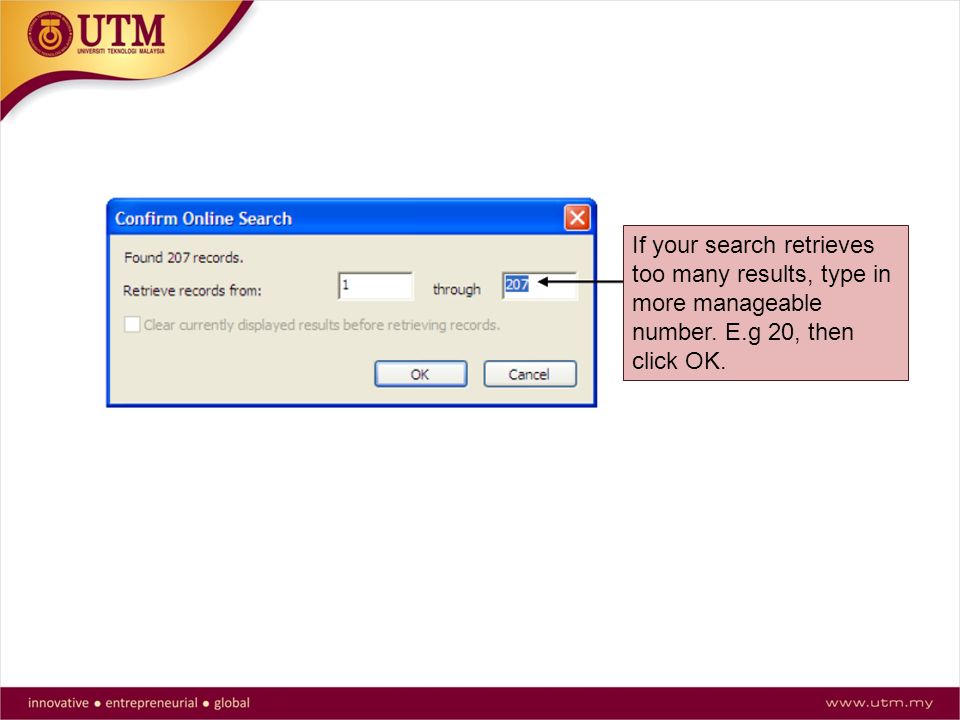

28. If your search retrieves too many results, type in more manageable number. E.g 20, then click OK.

29. FIND AND DELETE DUPLICATES

30. 1.A verification box will appear to verify which duplicate you would like to keep 2.Alternatively you can delete those duplicates which are highlighted in blue when you execute “Find Duplicate”

31. FIND REFERENCE UPDATES 1.Double click on an article 2.Check for Updates

32. 3. Those highlighted in blue are found updates in WoS, Cross Ref and PubMed. 4. Choose update all fields

33. ORGANISING YOUR REFERENCES CREATING CUSTOM GROUP Go to the Groups menu and select Create Group. A box will appear in the Groups pane. Type in a descriptive name for the group you have just made. Click away from the box to save the name you have just typed.

34. You can start filling references in groups by dragging and dropping them from the Reference List pane onto the group name You can also file references by right-clicking on the data, going to Add References to, then selecting the group.

35. CREATING SMART GROUP Type in a descriptive name for your group Type in keywords that will match some of your references. Select Any Field from the menu. Click the Create button Any references you have in your Endnote Library which match the search criteria for your Smart Group will automatically be filed in the Group, as will any future references you add.

36. CREATING A GROUP SET If you make custom groups and/or smart groups to help you organise your references, before long you might end up with a large number of groups. To help you organise your groups you can create group sets. From the Groups menu select Create Group Set Give your group set a name

37. Use your mouse to drag a group and drop it underneath the name of the group set

38. CITE WHILE YOU WRITE Endnote works with Word to easily and quickly cite references, and create a paper with properly formatted citations, a bibliography, figures, and tables. This is all done using Cite While You Write (CWYW) toolbar. The Endnote toolbar either be a separate tab on the ribbon or be installed in the Add-ins tab.

39. INSERTING CITATIONS AND BIBLIOGRAPHIES INTO A DOCUMENT In Endnote : In the document click the place where you wish to place a citation in the text. Remember to leave a space between the last character and your cursor, and that your citation is placed before the fullstop at the end of your sentence Click the Go to EndNote button. This will open your EndNote Library Click to the reference you want to use Click the Insert Citation button

40. Return to your Word document. The citation looks like this – the bracket { } and the number # indicate this is a temporary citation To format your citation and bibliography click the Instant Formatting is Off button and select Turn Instant Formatting on Select the style you want from the menu

41. You should now have a correctly formatted citation and a bibliography at the end of your document

42. CHANGING THE CITATION FORMAT In your writing you will often integrate the author’s name into your text, for example : Wrigley & Fagg (1989) described the ….. In this case, you do not repeat the authors’ name in a citation at the end of the section To format your citation, place your cursor where you want the author’s name to be – usually this will be at the start of your paraphrase Highlight the reference you want, then click the Insert Citation button

43. Right-click on the citation you have just inserted, Go to Edit Citation(s) And select Display as : Author (Year)

44. There may also be times where you have mentioned both the authors and the date of an article in your text, (for example, In his paper of 2008, Fourie reported that…) and therefore do not need either in your citation. You do still need the reference in your bibliography, and you should use Endnote to insert this. Your citation will now be correctly formatted. i.e author’s names incorporated into the sentence, separated with the word ‘and’, and followed by the date in parentheses Type the year and author into your text Place your cursor where you would normally add the citation, i.e at the end of the sentence. Go to Endnote and add the citation in the usual way

45. Right-click on the citation you have just inserted Go to Edit Citation(s), then select Show Only in Bibliography The citation will be removed from your text, but the coding remains which ensures that the reference will stay in your bibliography

46. POWER POINT Endnote X7 also has tools to insert citations and references in a Microsoft Powerpoint presentation. This functionality is only available for Windows Click the Endnote X7 tab in PowerPoint. In Endnote Library, click to highlight your reference Create a Text Box where you want your reference to go Select the style. Click the Insert Selected Reference(s) button. The reference will be inserted in the Text Box.

47. The Endnote tools in PowerPoint do not have the same level of functionality as those in Word. I you need to change your style, or edit citations or references, you will need to delete them and start again If you wish, you can also put citations into your text, by using the Insert Citation button

48. THANK YOU !
