1. OLTAC Meeting - Oct. 31, 20121 UPSTATE FRESHWATER INSTITUTE

2. OLTAC Meeting - Oct. 31, 20122

3. 3

4. 4

5. 5

6. 6

7. 7

8. 8

9. 9

10. 10

11. OLTAC Meeting - Oct. 31, 201211 Summer average TP = 20 µg/L

12. OLTAC Meeting - Oct. 31, 201212 minor bloom > 15 µg/L Summer average Chl-a = 6.5 µg/L

13. OLTAC Meeting - Oct. 31, 201213

14. OLTAC Meeting - Oct. 31, 201214

15. OLTAC Meeting - Oct. 31, 201215

16. OLTAC Meeting - Oct. 31, 201216 summer average = 2.0 meters

17. OLTAC Meeting - Oct. 31, 201217

18. OLTAC Meeting - Oct. 31, 201218

19. OLTAC Meeting - Oct. 31, 201219 Nitrate – hypolimnetic composite Soluble reactive phosphorus – 15 meter sample

20. OLTAC Meeting - Oct. 31, 201220 Percent of monthly geometric means <200 cfu/100ml

21. OLTAC Meeting - Oct. 31, 201221

22. OLTAC Meeting - Oct. 31, 201222  Metro 001 Outfall was in full compliance with ammonia and phosphorus limits  Tributaries were largely in compliance with AWQS, with the following noteworthy exceptions:  Excursions of the standard for fecal coliform bacteria were widespread  Water quality standards for pH, ammonia, and nitrite were exceeded at Allied East Flume  Water quality conditions at South Deep met most standards, with the following exceptions:  Dissolved oxygen in the lower waters  Total dissolved solids  Nitrite (at 12 meters on 2 dates)  The standard for fecal coliform bacteria was exceeded at a single nearshore sampling site near the mouth of Onondaga Creek

23. OLTAC Meeting - Oct. 31, 201223

24. Meteorological Conditions OLTAC Meeting - Oct. 31, 201224

25. Total Phosphorus and Chlorophyll-a Concentrations in the Upper Waters OLTAC Meeting - Oct. 31, 201225 Summer average = 21 µg/L (to date) Summer average = 5.2 µg/L (to date)

26. Compliance with SPDES Permit Limits OLTAC Meeting - Oct. 31, 201226

27. Secchi Disk Transparency OLTAC Meeting - Oct. 31, 201227 Summer average = 2.0 m (to date)

28. Dissolved Oxygen Patterns OLTAC Meeting - Oct. 31, 201228

29. Regulation of Sediment P Release by Nitrate OLTAC Meeting - Oct. 31, 201229

30. OLTAC Meeting - Oct. 31, 201230 Assessing Compliance with the AWQS for Fecal Coliform Bacteria Percent of monthly geometric means <200 cfu/100ml (April-August 2012)

31. Assessing Compliance with the Swimming Safety Guidance Value (Secchi disk >4 ft. or 1.2 m) OLTAC Meeting - Oct. 31, 201231 April-August 2012

32. Time Series of Specific Conductance - 2012 Values Versus 10-Year Average OLTAC Meeting - Oct. 31, 201232

33. Chloride and Total Dissolved Solids Concentrations in the Metro Effluent OLTAC Meeting - Oct. 31, 201233

34. OLTAC Meeting - Oct. 31, 201234 Color Contours of Specific Conductance and Nitrate - Near the Metro Outfall

35. OLTAC Meeting - Oct. 31, 201235 Color Contours of Specific Conductance and Nitrate - at South Deep

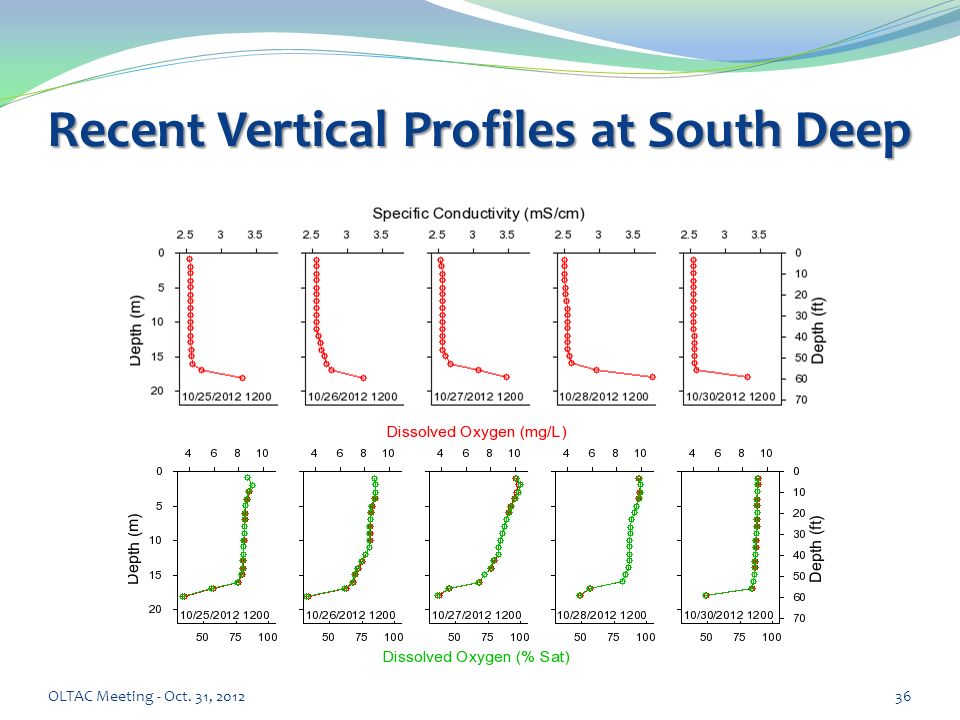

36. Recent Vertical Profiles at South Deep OLTAC Meeting - Oct. 31, 201236

37. OLTAC Meeting - Oct. 31, 201237

38. Time Series of Fecal Coliform Counts in Onondaga Creek, 1998-2011 OLTAC Meeting - Oct. 31, 201238

39. Annual Average Fecal Coliform Counts - Onondaga Creek OLTAC Meeting - Oct. 31, 201239 Dry weather defined as less than 0.08 inches of rainfall over the preceding 60 hours

40. OLTAC Meeting - Oct. 31, 201240  Trend analysis is complicated by extreme temporal variability (>5 orders of magnitude), uneven intensity of sampling, and potential effects from multiple management actions (gray and green infrastructure projects)  A more rigorous analysis will be included in the 2012 AMP Report  1998-2012 data: Onondaga Creek, Harbor Brook, Ley Creek, Ninemile Creek  Conduct power analyses to establish realistic expectations  Consider trends other than monotonic trends (e.g., step changes)  Assess seasonal variations  Look at alternate thresholds for dry and wet weather conditions  Explore potential covariates (e.g., flow, temperature, phosphorus)

41. OLTAC Meeting - Oct. 31, 201241  Appropriate application of the AWQS for fecal coliform bacteria  Sampling frequency  Wet weather samples NYSDEC Water Quality Standard for Fecal Coliforms: “The monthly geometric mean, from a minimum of five examinations, shall not exceed 200 per 100 mL”
