2. 2 Why choose the laser bridge? Reduces prodution time Possibility to do very complicated embroideries and engravings. Possibility to use different machines under the laser bride

3. 3 Production time reduction. Laser Bridge System 1)Loading laser cut on stitching file. 2)Stiching directing on final fabric 3)Laser cut Production time considerably decreased 1)Before you must cut with the plotter the single components for the appliqués and you must separate them in groups 2)A basting to see where to put the appliqué on the fabric 3)The appliqué gets glued to the fabric 4)Final sewing to fix it Long production time Traditional method of preparing appliqués

4. 4 Laser cut system speed with galvanometric head. The laser runs from the source to a galvanometric head where a mirror system sends the laser on the embroidery machine; with this system the laser beam achieves an incredibly high manoeuvring speed. With traditional plotter systems, the laser must be moved continuously on a Cartesian axis in order to make the same job that the galvanometric head system can achieve in few seconds. Cuting time = 15 seconds

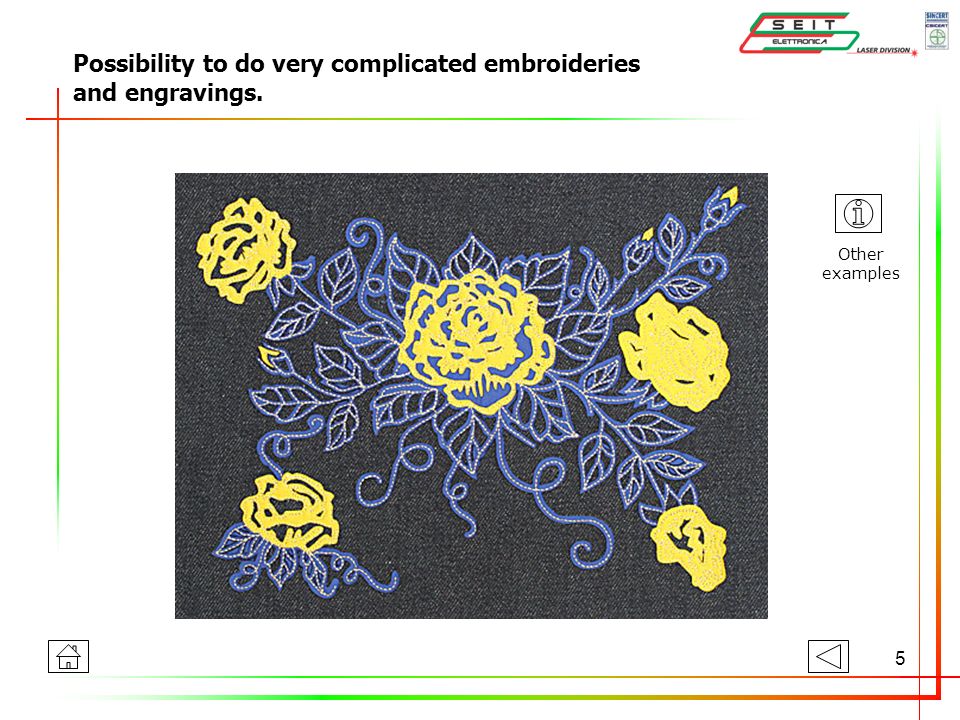

5. 5 Possibility to do very complicated embroideries and engravings. Other examples

6. 6 GENERAL PRESENTATION Seit Elettronica, certified ISO 9001-2000 Vision, is a worldwide leader in the production of laser machinery for cutting and engraving.ISO 9001-2000 Vision The firm is placed in Valdobbiadene, in the province of Treviso, few kilometers from Vicenza and Venice. Seit Elettronica proposes its machinery for the laser engraving and cutting, the fusion welding since 1979, and today as before, it achieves the whole production cycle inside the firm thanks to its mechanic and electronic metal structural work departments. Moreover there are a modern design office and a laboratory for the research and the development.mechanic and electronic metal structural work departments. Moreover there are a modern design office and a laboratory for the research and the development The Seit laser department produces CO2 and Nd:YAG laser systems for several applications. Our knowledge of the laser technology together with the most modern engineering has allowed us to create the laser bridge technology. First in the world to develop this technology, with two patents obtained for this revolutionary system and always the first in the continue development and increase of this product and of the other ones.

7. 7 PRODUCTS Laser Bridge SL5 ZOOM Laser Bridge SL4 Roller for Laser Bridge Plotter for Laser Bridge Cartesian Plotter for Laser Cut Galvanometric Plotter SLPlotter Galvanometric Roller SLRoller Label cutter LCM 05

8. 8 LASER BRIDGE SL5 ZOOM New revolutionary laser bridge SL5 ZOOM for multihead embroidery machines with the new and exclusive SEIT LASER 5 ZOOM system with variable field which allows to modify the laser field work from 100 x 100 to 500 x 500 mm. variable field General Description Technical Features Adavanced Funtionalities Technical Data Scroll Bar Software Assembling, Test and assistance

9. 9 LASER BRIDGE SL5 ZOOM ADAVANCED FUNTIONALITIES: Authomatic recognition of the image contours and direct import as tolerance colors vectors Direct conversion into laser cut of the Windows “True Type” fonts Creation and modify of the vectors lines directly from software through functionality of “Laser Draw Fusion” Possibility of suspending the work on machine 1 and transferring on machine 2, then reprise on machine 1 Times and mode of cutting report

10. 10 LASER BRIDGE SL5 ZOOM TECHNICAL FEATURES: Cooling system with water thermostatic control chiller for a continuos and steady dispensing of power (included) Cooled elements: laser source, power supplies, head with galvanometric scanning Indipendent control of the protective bell with multipoint system for smoke aspiration. Possibility of independent setting of the protective bell and of the head of marking (for works on already made article); possibility of box “always up” or “always down” on machine heads Laser driver: control software “Seit Magic Driver” of all the functions and of connection with the embroidery machine Movement system “Direct Driver” without reducer for a higher speed and precision of setting Security system “Pharo Radar"Pharo Radar

11. 11 LASER BRIDGE SL5 ZOOM GENERAL DESCRIPTION: NEW revolutionary laser bridge “SL5 ZOOM” for multihead embroidery machines with the new and exclusive “SL5 ZOOM” system with variable field which allows to modify the laser field work from 100 x 100 to 500 x 500 mm guaranteeing the maximum quality and precision of cut and marking.This new galvanometric head allows in fact to optimize the dimension of the spot of the laser based on the chosen workspace. Cutting an area of 125 x 125 mm, as an example, the dimension of the laser beam is only 117µm. This extraordinary functionality, usable also with the new pulsed laser (advised for the cut of the leather), allows the thinnest and extremely precise cut also on 3 to 4 mm of thickness with a pulsed laser of 100 or 150W of power. Thanks to the functionality of the new software Seit Magic Driver we offer a versatility and precision never seen before The laser bridge can be used with one or more manufactoring machines (one or more Embroidery machines of any brand or type and/or a motorised plotter and/or a roller fabric system. Thanks to the scroll bar extension, in any moment it will be possible to decide to increase the length of the laser bridge to add other Embridery machines or other devices.

12. 12 LASER BRIDGE SL5 ZOOM TECHNICAL DATA : Laser sourceSealed CO 2 laser Laser head with galvanometric scanningmax speed 9 m/sec Laser nominal power25W - 50W - 100W Laser effective power34W - 68W - 120W Laser pulse nominal power100W - 150W Laser max power pulse150W - 375W Work fieldfrom 100x100 mm to 500x500 mm Translation speed of the machinesmax 2,5 m/sec Test desk – useful area 600x600 mm Personal Computer with monitor LCD 17 inches included

13. 13 The bridge on which we install the laser machine hasn’t a standard size, it is furnished according to the specific request of the costumer basing on the layout of the space in which it will be collocated. The possible extention of the scroll bar is effected on the left side of it. LASER BRIDGE SL5 ZOOM SCROLL BAR :

14. 14 DEDICATED SOFTWARE : Authomatic fractionation of the cuts exceeding from the work area of the head Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" Importation of any machine format code: (DST, DSB, DSZ, ecc.) with possibility of inserting of the laser cut Importation of any vector format (ai, cdr, etc.) Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector Direct importation of bitmap images for photoengraving Fine software correction of the cuts for every single machine installed under the laser bridge Possibility of reprise of the cut from any position Regulation of the cuts for every single head of the embroidery machine Licence for “Laser Draw Fusion” (compatible "Corel draw 12")

15. 15 LASER BRIDGE SL5 ZOOM BREIF FILM:

16. 16 DEDICATED SOFTWARE : Authomatic fractionation of the cuts exceeding from the work area of the head Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" Importation of any machine format code: (DST, DSB, DSZ, ecc.) with possibility of inserting of the laser cut Importation of any vector format (ai, cdr, etc.) Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector Direct importation of bitmap images for photoengraving Fine software correction of the cuts for every single machine installed under the laser bridge Possibility of reprise of the cut from any position Regulation of the cuts for every single head of the embroidery machine Licence for “Laser Draw Fusion” (compatible "Corel draw 12")

17. 17 LASER BRIDGE SL5 ZOOM ASSEMBLING, TEST AND ASSISTANCE: SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of Laser Bridge SL5 ZOOM. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc.) must be indicated previously.

18. 18 SOFTWARE Seit Magic Driver Seit Laser Design Fusion Embroidery and Vector Files Seit Laser Design Fusion (laser cut is inserted and saved in *.pxf) Seit Magic Driver File for Laser Bridge (*.pxs) File for Embroidery machine

19. 19 FILES THAT CAN BE IMPORTED IN SEIT DESIGN LASER FUSION: Puylse Embroidery Files (*.PXF) Outline Files (*.POF, *.PED, *.KWK) Stitch Files (*.PSF, *.PCH) Tajima Stitch files (*.DST) Tajima TBF files (*.TBF) Wilcom Emb Files (*.EMB) Babylock/Bernina/Brother (*.PEC) Babylock/Bernina/Brother (*.PES) Barudan Stitch Files (*.DSB) Elna/Janome/Kenmore (*.SEW) Janome/New Home 10000 (*.JEF) Melco Condensed Files (*.CND) Melco Expanded Files (*.EXP) Pfaff Stitch Files (*.PCM, *.PCS) Poem/Singer EU/Viking Huskygram(*.CSD) Proel Files (*.PUM, *.ARC) Saurer Files (*.PAT, *.T15) Singer PSW (*.XXX) Viking Husquarna (*.HUS) Viking SHV (*.SHV) Zangz/ZSK Stitch Files (*.DSZ) EMBROIDERY FILES : Adobe (*.AI) AutoDesk (*.DXF) EPS Images (*.EPS) HP-GL (*.PLT; *.HPG; *.HPGL) CorelDraw (*.CDR; *.CMX) Windows Metafiles (*.WMF; *.EMF) VECTOR FILES :

20. 20 Examples of Emboidery machines that work with the Laser Bridge. Barudan Barudan Z Brother Happy Happy DST Melco PFAFF Renaissance SWF Tajima(Default) Tajima (Chenille) Tajima (Tbf) Tajima TMCE -100 Chenille Tajima TMLH Toyota ZSK others…..

21. 21 SECURITY SYSTEMS: Pharo radar Emergency button Continuos emergency cable along the machine (if for example the operator forgets an object on the Embroidery machine, where the radar does not detect it, a person can stop the device simply by pulling the cable in any point of the machine).

22. 22 LASER BRIDGE SL4 Revolutionary laser bridge SL4 for multihead embroidery machines, with the new software Laser Driver and Laser Draw Fusion, it allows perfect cut and engraving of any image and character for different production lines. General Description Technical Features Adavanced Funtionalities Technical Data Scroll Bar Software Assembling, Test and assistance

23. 23 LASER BRIDGE SL4 GENERAL DESCRIPTION: Revolutionary laser bridge SL4 for multihead embroidery machines endowed with the new control software Seit Magic Driver which allows the direct conversion into laser cut and engraving of the fonts “True Type” Windows, moreover thanks to the Functionality Laser Draw Fusion we can create and modify vector lines and drawings directly from the software, by converting theme into works of cut and engraving for different production lines. The laser bridge can be used with one or more manufactoring machines (one or more Embroidery machines of any brand or type and/or a motorised plotter and/or a roller fabric system. Thanks to the scroll bar extension, in any moment it will be possible to decide to increase the length of the laser bridge to add other Embridery machines or other devices.

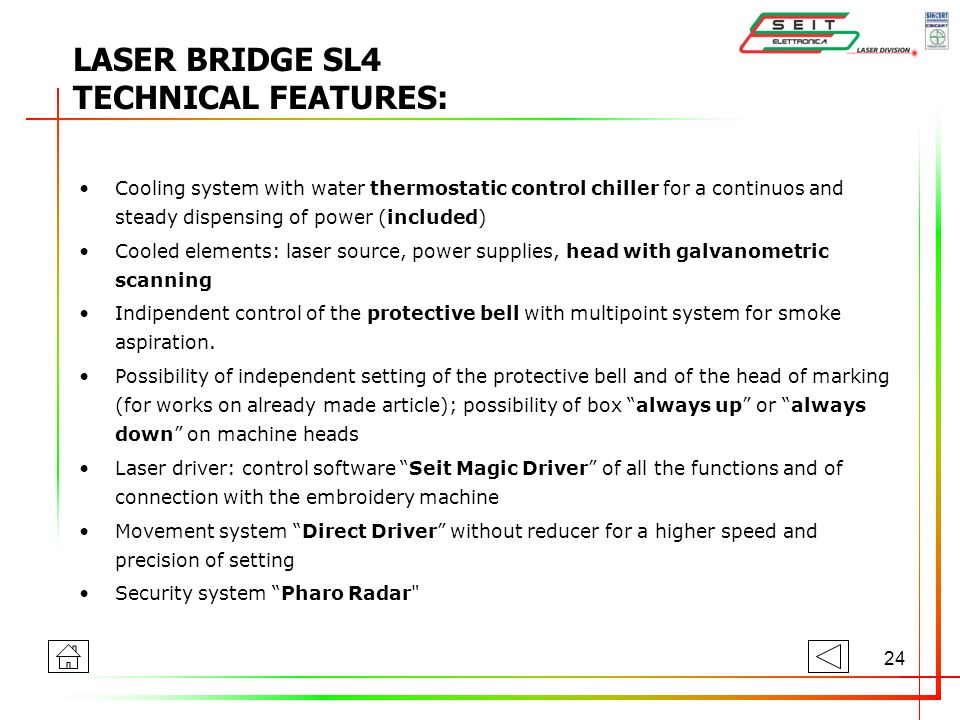

24. 24 LASER BRIDGE SL4 TECHNICAL FEATURES: Cooling system with water thermostatic control chiller for a continuos and steady dispensing of power (included) Cooled elements: laser source, power supplies, head with galvanometric scanning Indipendent control of the protective bell with multipoint system for smoke aspiration. Possibility of independent setting of the protective bell and of the head of marking (for works on already made article); possibility of box “always up” or “always down” on machine heads Laser driver: control software “Seit Magic Driver” of all the functions and of connection with the embroidery machine Movement system “Direct Driver” without reducer for a higher speed and precision of setting Security system “Pharo Radar"

25. 25 LASER BRIDGE SL4 ADVANCED FUNCTIONALITIES: Authomatic recognition of the image contours and direct import as tolerance colors vectors Direct conversion into laser cut of the Windows “True Type” fonts Creation and modify of the vectors lines directly from software through functionality of “Laser Draw Fusion” Possibility of suspending the work on machine 1 and transferring on machine 2, then reprise on machine 1 Times and mode of cutting report

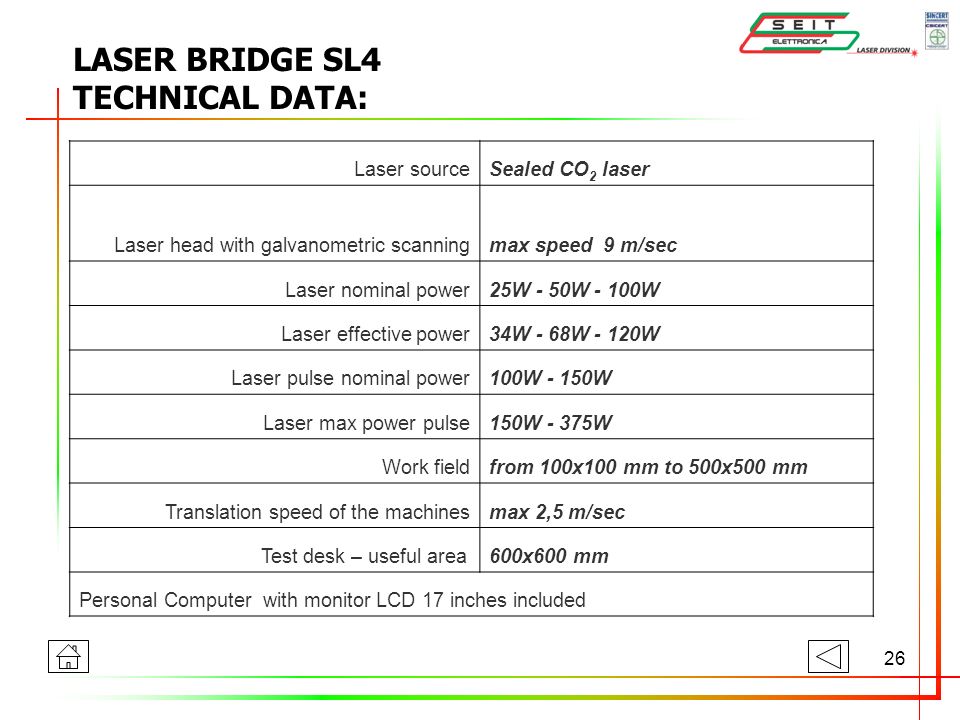

26. 26 LASER BRIDGE SL4 TECHNICAL DATA: Laser sourceSealed CO 2 laser Laser head with galvanometric scanningmax speed 9 m/sec Laser nominal power25W - 50W - 100W Laser effective power34W - 68W - 120W Laser pulse nominal power100W - 150W Laser max power pulse150W - 375W Work fieldfrom 100x100 mm to 500x500 mm Translation speed of the machinesmax 2,5 m/sec Test desk – useful area 600x600 mm Personal Computer with monitor LCD 17 inches included

27. 27 LASER BRIDGE SL4 SCROLL BAR: The bridge on which we install the laser machine hasn’t a standard size, it is furnished according to the specific request of the costumer basing on the layout of the space in which it will be collocated. The possible extention of the scroll bar is effected on the left side of it.

28. 28 DEDICATED SOFTWARE: Authomatic fractionation of the cuts exceeding from the work area of the head Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" Importation of any machine format code: (DST, DSB, DSZ, ecc.) with possibility of inserting of the laser cut Importation of any vector format (ai, cdr, etc.) Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector Direct importation of bitmap images for photoengraving Fine software correction of the cuts for every single machine installed under the laser bridge Possibility of reprise of the cut from any position Regulation of the cuts for every single head of the embroidery machine Licence for “Laser Draw Fusion” (compatible "Corel draw 12")

29. 29 LASER BRIDGE SL4 ASSEMBLING, TEST AND ASSISTANCE: SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of Laser Bridge SL4. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc.) must be indicated previously.

30. 30 VIDEOS Labels Small patches Leather Roller for Laser Bridge Plotter for Laser Bridge Harley Saurer Plotter 1 Plotter 2 Saurer GT Supports for frames

31. 31 ROLLER FOR LASER BRIDGE The roller for laser bridge is a winder-unwinder of fabric which together with a multihead embroidery machine under the laser bridge allows to work directly on the fabric without interfere with the embroidery machine work. Generale Description Technical Data Software Other photos

32. 32 ROLLER FOR LASER BRIDGE DESCRIZIONE GENERALE The roller for laser bridge is a winder-unwinder of fabric which, set under the laser bridge has use of functionality of the control software Seit Magic Driver for the work directly on the roll of the fabric guaranteeing precision and quality of cut and engraving. The software, alternating in automatic way the work on the embroidery machine and on the roller, eliminates the useless times by guaranteeing the highest return of your laser bridge.

33. 33 ROLLER FOR LASER BRIDGE TECHNICAL DATA: Power source220 – 500W Length roll1800 mm Size2285x1400x860 mm Control software Seit magic Driver

34. 34 ROLLER FOR LASER BRIDGE OTHER PHOTOS:

35. 35 DEDICATED SOFTWARE: Authomatic fractionation of the cuts exceeding from the work area of the head Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" Importation of any machine format code: (DST, DSB, DSZ, ecc.) with possibility of inserting of the laser cut Importation of any vector format (ai, cdr, etc.) Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector Direct importation of bitmap images for photoengraving Fine software correction of the cuts for every single machine installed under the laser bridge Possibility of reprise of the cut from any position Regulation of the cuts for every single head of the embroidery machine Licence for “Laser Draw Fusion” (compatible "Corel draw 12")

36. 36 PLOTTER FOR LASER BRIDGE The plotter for laser bridge is a work desk (with the automatic movimentatio on the “Y” axes) which, positioned under the laser bridge, allows particular workings on already made articles or on frames of other machines with extreme facility, without interfere with the embroidery machine work. Generale Description Technical Data Software Other photos

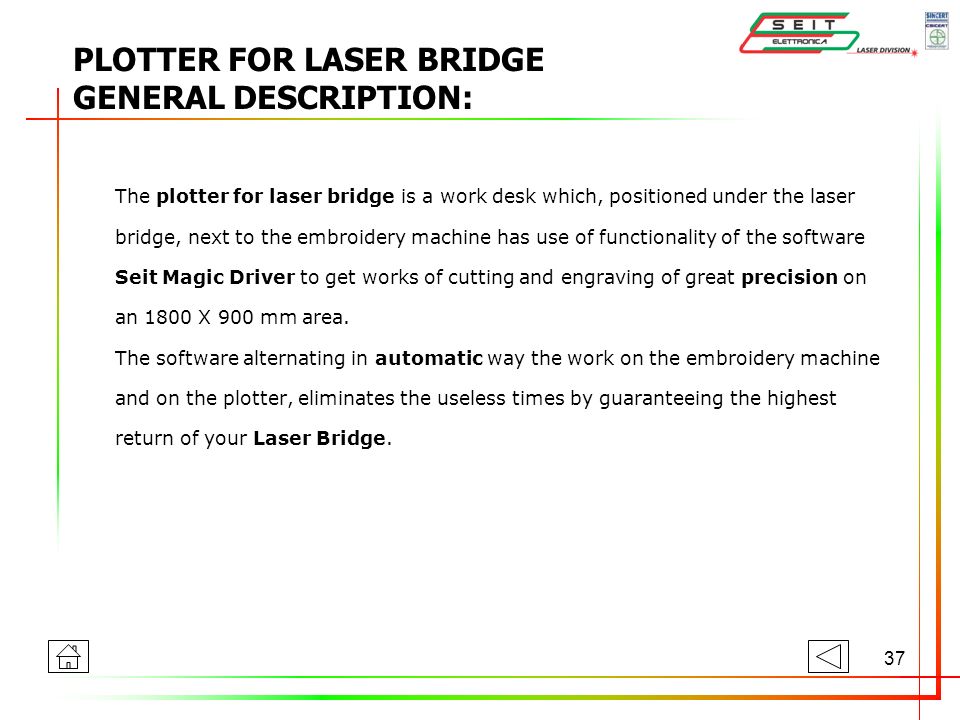

37. 37 PLOTTER FOR LASER BRIDGE GENERAL DESCRIPTION: The plotter for laser bridge is a work desk which, positioned under the laser bridge, next to the embroidery machine has use of functionality of the software Seit Magic Driver to get works of cutting and engraving of great precision on an 1800 X 900 mm area. The software alternating in automatic way the work on the embroidery machine and on the plotter, eliminates the useless times by guaranteeing the highest return of your Laser Bridge.

38. 38 PLOTTER FOR LASER BRIDGE TECHNICAL DATA: Power source220 – 1000W Work desk1800x900 mm Control software Seit magic Driver Latching for frames of any other embroidery machine

39. 39 PLOTTER FOR LASER BRIDGE OTHER PHOTOS:

40. 40 DEDICATED SOFTWARE: Authomatic fractionation of the cuts exceeding from the work area of the head Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards" Importation of any machine format code: (DST, DSB, DSZ, ecc.) with possibility of inserting of the laser cut Importation of any vector format (ai, cdr, etc.) Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector Direct importation of bitmap images for photoengraving Fine software correction of the cuts for every single machine installed under the laser bridge Possibility of reprise of the cut from any position Regulation of the cuts for every single head of the embroidery machine Licence for “Laser Draw Fusion” (compatible "Corel draw 12")

41. 41 GALVANOMETRIC PLOTTER SLPlotter The galvanometric plotter SLPlotter is a independent work desk (with the automatic movimentation on “Y” axes), endowed with its own laser source muoving on the “X” axes, SLPlotter uses the functionality of the software Seit magic Driver offering velocity, Precision and flexibility. General Description Technical features Advanced Functionalities Technical Data Software Assembling, Test and Assistance

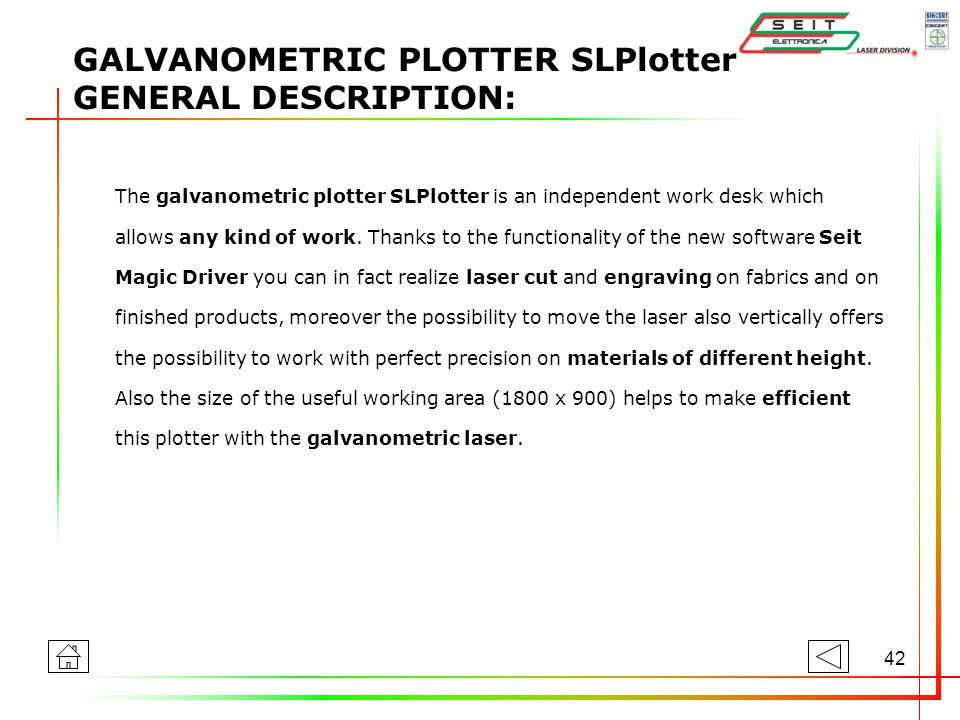

42. 42 GALVANOMETRIC PLOTTER SLPlotter GENERAL DESCRIPTION: The galvanometric plotter SLPlotter is an independent work desk which allows any kind of work. Thanks to the functionality of the new software Seit Magic Driver you can in fact realize laser cut and engraving on fabrics and on finished products, moreover the possibility to move the laser also vertically offers the possibility to work with perfect precision on materials of different height. Also the size of the useful working area (1800 x 900) helps to make efficient this plotter with the galvanometric laser.

43. 43 GALVANOMETRIC PLOTTER SLPlotter TECHNICAL FEATURES: Cooling system with water thermostatic control chiller for a continuos and steady dispensing of power (included) Cooled elements: laser source, power supplies, head with galvanometric scanning

44. 44 GALVANOMETRIC PLOTTER SLPlotter ADVANCED FUNCTIONALITIES: Authomatic recognition of the image contours and direct import as tolerance colors vectors Direct conversion into laser cut of the Windows "True Type" fonts Creation and modify of the vectors lines directly from software through functionality of "Laser Draw Fusion" Times and mode of cutting report

45. 45 GALVANOMETRIC PLOTTER SLPlotter TECHNICAL DATA : Power source220v – 500w Laser sourceSealed CO2 laser Laser head with galvanometric scanningmax speed 9m/sec Laser nominal power25W – 50W -100W Laser effective power34W - 68W - 120W Laser pulse nominal power100W - 150W Laser max power pulse150W - 375W Laser Work field300 x 300 mm Work field1800 x 900 mm Translation speed of the machinesmax 2,5 m/sec Personal Computer with monitor LCD 17 inches included Equipped with external protection barrier, smoke aspiration system and protection bell according with the european normatives.

46. 46 GALVANOMETRIC PLOTTER SLPlotter ASSEMBLING, TEST AND ASSISTANCE : SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of SLPlotter. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc.) must be indicated previously.

47. 47 DEDICATED SOFTWARE: Authomatic fractionation of the cuts exceeding from the work area of the head Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards” Importation of any machine format code: (DST, DSB, DSZ, ecc.) with possibility of inserting of the laser cut Importation of any vector format (ai, cdr, etc.) Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector Direct importation of bitmap images for photoengraving Fine software correction of the cuts for every single machine installed under the laser bridge Possibility of reprise of the cut from any position Regulation of the cuts for every single head of the embroidery machine Licence for “Laser Draw Fusion” (compatible "Corel draw 12")

48. 48 GALVANOMETRIC ROLLER SLRoller The galvanometric SLroller is a winder-unwinder endowed of its own laser source which, using the functionality of the software Seit magic driver offers velocity, precision, flexibility and great comfort for every work on fabric. General Description Technical features Advanced Functionalities Technical Data Software Assembling, Test and Assistance

49. 49 GALVANOMETRIC ROLLER SLRoller GENERAL DESCRIPTION: The galvanometric SLRoller is a winder-unwinder endowed of its own laser source which allows it, thanks to the software Seit Magic Driver, to engrave, inlay and to make micro pierces pieces of fabric in a continuos cycle. SLRoller is the best solution for those who need a great number of applications in short times without forget the precision.

50. 50 GALVANOMETRIC ROLLER SLRoller TECHNICAL FEATURES: Cooling system with water thermostatic control chiller for a continuos and steady dispensing of power (included) Cooled elements: laser source, power supplies, head with galvanometric scanning Indipendent control of the protective bell with multipoint system for smoke aspiring

51. 51 GALVANOMETRIC ROLLER SLRoller ADVANCED FUNCTIONALITIES: Riconoscimento automatico dei contorni d’immagine ed importazione diretta come vettori con tolleranza dei colori Conversione diretta in taglio laser dei caratteri "True Type" di Windows Creazione e modifica delle linee vettoriali direttamente da software tramite funzionalità del "Laser Draw Fusion" Rapporto dei tempi e delle modalità di taglio

52. 52 GALVANOMETRIC ROLLER SLRoller TECHNICAL DATA: Power suply220v – 500w Laser sourceSealed CO2 laser Laser head with galvanometric scanningmax speed 9 m/sec Laser nominal power25W – 50W – 100W Laser effective power34W - 68W - 120W Laser pulse nominal power100W - 150W Laser max power pulse150W - 375W Length roll1800 mm Cutting / Marking areaasse x = 1.800 mm asse y = 300 mm Dimension2285x1400x860 mm Personal Computer with monitor LCD 17 inches included Equipped with external protection barrier, smoke aspiration system and protection bell according with the european normative.

53. 53 GALVANOMETRIC ROLLER SLRoller ASSEMBLING, TEST AND ASSISTANCE : SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of SLRoller. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc.) must be indicated previously.

54. 54 DEDICATED SOFTWARE: Authomatic fractionation of the cuts exceeding from the work area of the head Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards Importation of any machine format code: (DST, DSB, DSZ, ecc.) with possibility of inserting of the laser cut Importation of any vector format (ai, cdr, etc.) Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector Direct importation of bitmap images for photoengraving Fine software correction of the cuts for every single machine installed under the laser bridge Possibility of reprise of the cut from any position Regulation of the cuts for every single head of the embroidery machine Licence for “Laser Draw Fusion” (compatible "Corel draw 12")

55. 55 LABELS CUTTER LCM 05 Machine endowed of laser source with galvanometric head for the cut and the engraving of labels. Thanks to the software Seit Laser Mark it is possible to make any kind of cut and engraving on every roll fabric. General Description Technical features Advanced Functionalities Technical Data Software Assembling, Test and Assistance

56. 56 LABELS CUTTER LCM 05 GENERAL DESCRIPTION: The Labels cutter LCM 05 is a modern Machine endowed of laser source with galvanometric head available in several powers, which allows the most difficult works on any fabrics in roll. LCM 05 can work in different modes, being endowed of optical sensors, it is possible to operate in manual mode, in automatic mode by regulating a measured step or automatic by the reading of the label. LCM 05 allows also to insert a grid tray to use as a small plotter.

57. 57 LABELS CUTTER LCM 05 TECHNICAL FEATURES: SEIT Controllo avanzamento nastro a mezzo encoder Extractable drawer with cutting area 300x300 mm to work on samples Winding system for textile fabric waste with n°3 motorized rewinders with automatic control Software control in window enviroment All controls and setups are controled by software and they get memorized with the laser cut file decreasing start up time since the setup is loaded during the opening of the laser cut file. Laser cooling with chiller to guarantee a constant water temperature to achieve a better out put power stability and life time of the laser source.

58. 58 LABELS CUTTER LCM 05 ADVANCED FUNCTIONALITIES : Authomatic recognition of the image contours and direct import as tolerance colors vectors Direct conversion into laser cut of the Windows “True Type” fonts Creation and modify of the vectors lines directly from software through functionality of “Laser Draw Fusion” Times and mode of cutting report

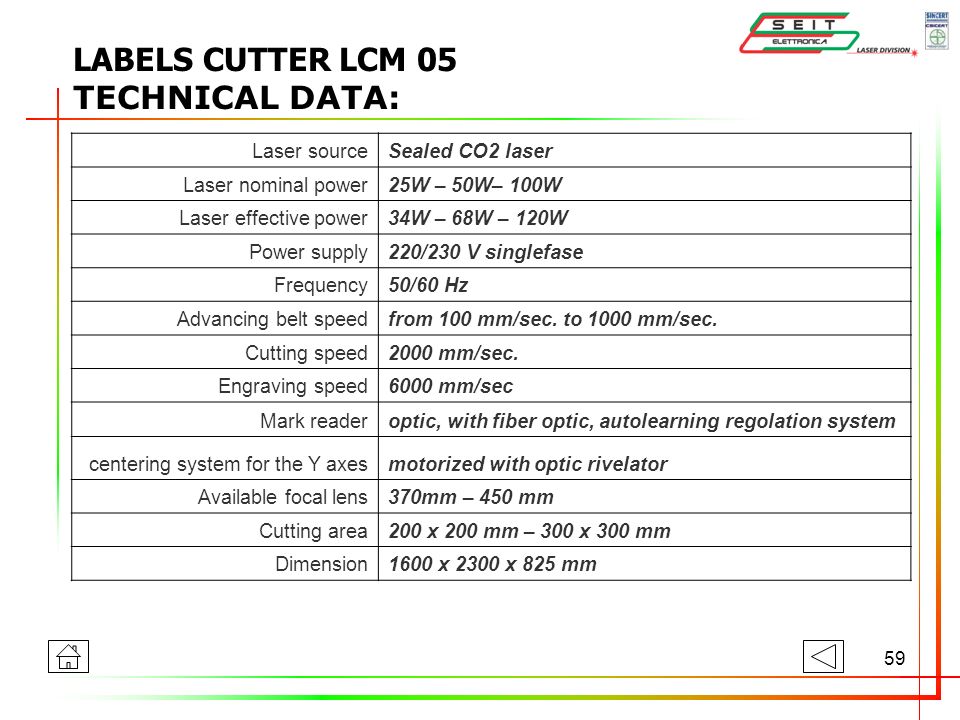

59. 59 LABELS CUTTER LCM 05 TECHNICAL DATA: Laser sourceSealed CO2 laser Laser nominal power25W – 50W– 100W Laser effective power34W – 68W – 120W Power supply220/230 V singlefase Frequency50/60 Hz Advancing belt speedfrom 100 mm/sec. to 1000 mm/sec. Cutting speed2000 mm/sec. Engraving speed6000 mm/sec Mark readeroptic, with fiber optic, autolearning regolation system centering system for the Y axesmotorized with optic rivelator Available focal lens370mm – 450 mm Cutting area200 x 200 mm – 300 x 300 mm Dimension1600 x 2300 x 825 mm

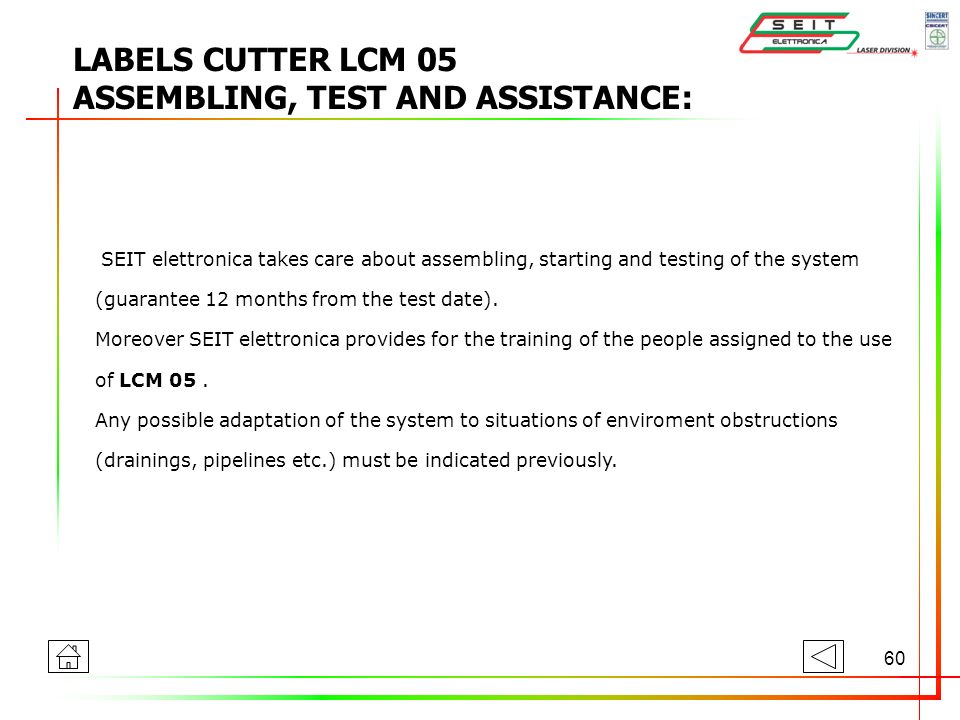

60. 60 LABELS CUTTER LCM 05 ASSEMBLING, TEST AND ASSISTANCE : SEIT elettronica takes care about assembling, starting and testing of the system (guarantee 12 months from the test date). Moreover SEIT elettronica provides for the training of the people assigned to the use of LCM 05. Any possible adaptation of the system to situations of enviroment obstructions (drainings, pipelines etc.) must be indicated previously.

61. 61 DEDICATED SOFTWARE: Authomatic fractionation of the cuts exceeding from the work area of the head Control for the conjunction of multiple cuts both in axes "X"and in axis "Y“ Cut sequences: "forwards", "backwards", "forwards-backwards", "backwards-forwards” Importation of any machine format code: (DST, DSB, DSZ, ecc.) with possibility of inserting of the laser cut Importation of any vector format (ai, cdr, etc.) Definition of the parameters of power, velocity, repetition and height of the fabric for every single vector Direct importation of bitmap images for photoengraving Fine software correction of the cuts for every single machine installed under the laser bridge Possibility of reprise of the cut from any position Regulation of the cuts for every single head of the embroidery machine Licence for “Laser Draw Fusion” (compatible "Corel draw 12")

62. 62 CERTIFIED QUALITY ISO 9001 - 2000 VISION Seit Elettronica considers the quality a primary target and it has developed a Quality System which involves all the company’s functions, from the project to the production and to the selling. In 1999 in fact it obtained the Quality Certification according to the ISO 9001- 2000 VISION regulamentation.

63. 63 CARTESIAN PLOTTER FOR LASER CUT The Cartesian Plotter, available in several sizes and powers, is a fix and independent work desk with its own laser source. General description Technical data Other photos

64. 64 CARTESIAN PLOTTER FOR LASER CUT GENERAL DESCRIPTION: The Cartesian Plotter, available in several sizes and powers, is a fix work desk for the laser cut and the engraving of fabrics, ready clothes or works directly on the frame. The machine uses the functionalities of the software laser cut that guarantees precision and quality of cut.

65. 65 CARTESIAN PLOTTER FOR LASER CUT TECHNICAL DATA: Laser sourceSealed CO2 laser Cooling systemwater Laser nominal power25W - 50W - 100W Laser effective power34W - 68W - 120W -Voltage220-230 50 Hz MovimentationCNC Work field900x600 / 1200x900 / 1600x1000 / 1600x2100 mm Work tablebee nest table Cutting speed0-800 mm/sec Marking speed0-1000 mm/sec Precision+/- 0.03 mm Dimension 1320x1020x1080 / 1900x1190x1390 / 1910x1380 x1270 / 2220x1680x1270 / 2983x 2520x1100 mm Reading system (optional)CCD Camera

66. 66 CARTESIAN PLOTTER FOR LASER CUT OTHER PHOTOS: SLP 160/210 Roller for SLP 160/210

67. 67 FIVE DEPARTMENTS WORKING SIMULTANEOUSLY TO GRANT THE QUALITY : MECHANIC DEPARTMENT Seit Elettronica is endowed of a mechanic workroom equipped with the most modern numeric control machinery used by our qualified technicians. It allows to realize inside the firm every part and to guarantee to our costumers a high quality of the achieved product. ELECTRONIC DEPARTMENT In order to guarantee the high quality of its products, Seit Elettronica projects and realizes inside it also the electronic parts (technologic heart above all others) not only regarding the wirings, but also producing and assembling with automatic welding lines the electronic boards that equip every machine. METAL STRUCTURAL WORK DEPARTMENT Every covering equipping the machinery Seit Elettronica is realized in this department provided of modern automatic machines. From the cut of the plate, to the punching, to the bending, to the wiring of the parts, our qualified carpenters achieve with precision the projects entrusted to them. PROJECT OFFICE Inside a modern equipped office, a team of mechanic and electronic engineers project and design every particular of the sophisticated machinery produced by Seit Elettronica. Thanks to the help of the most modern technologies of computer simulation, every part is designed and tested virtually and physically to know in advance its functionality. RESEARCH AND DEVELOPMENT LABORATORY In close collaboration with the project office and with the market office, this department tests the machinery, finds the problems and suggests solutions and improvements. Thanks also to the knowledge of our technicians, it allows to make at any moment personalized tests of any material or particular works to satisfy the requirements of any our costumer. Moreover the laboratory has the task to find and test new components and technologic solutions allowing this way to Seit to offer not only a product which is always technologically forefront and above all tested in every parts according to our qualitative standards.
