1. Plant Structure

2. Plant Body Plan The apical–basal pattern and the radial pattern are parts of the plant body plan They arise through orderly development

3. Plant Body Plan Plant development differs from that of animals The plant body is modular, and the growth of stems and roots is “indeterminate” Leaves, flowers, and fruits show “determinate” growth.

4. Plant Cells Some produce a thick secondary wall Adjacent cells are connected by plasmodesmata extending through both cell walls

5. Angiosperms Monocots –have a single cotyledon –narrow leaves with parallel veins –flower parts in multiples of three –stems with scattered vascular bundles Dicots (eudicots) –have two cotyledons –broad leaves with netlike veins –flower parts in fours or fives –vascular bundles in a ring

6. Figure 34.1 Monocots & Dicots

7. Plant Tissue Systems Vascular tissue system conducts water, minerals, and the products of photosynthesis Dermal tissue system protects the body surface Ground tissue system produces and stores food materials; serves as “anchor”

8. Vegetative Organs Include: roots, which form a root system stems and leaves, which form a shoot system

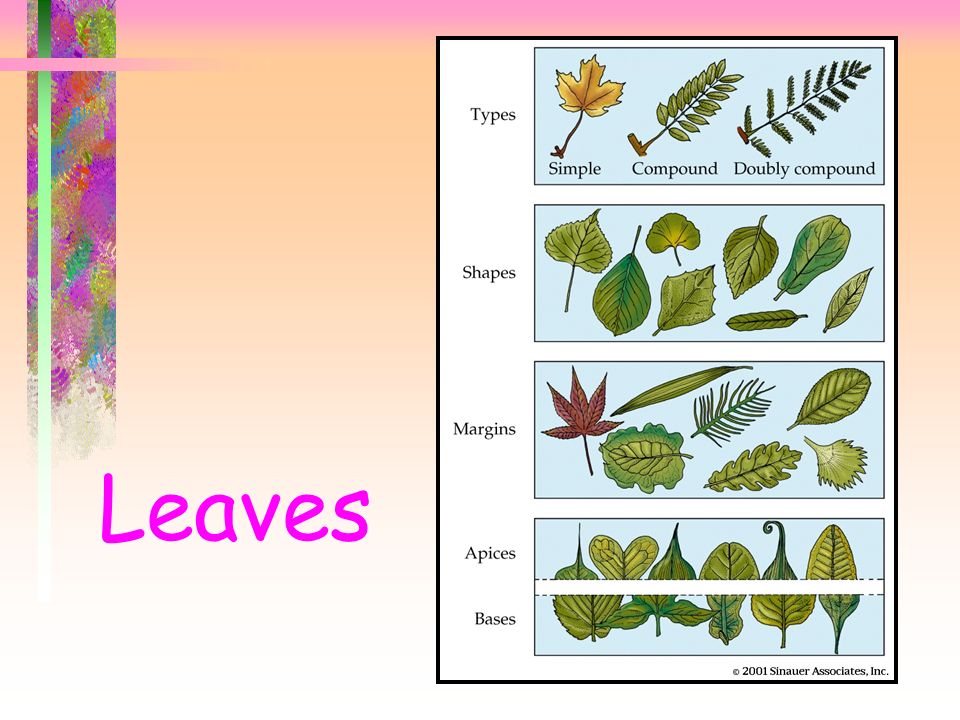

9. Leaves

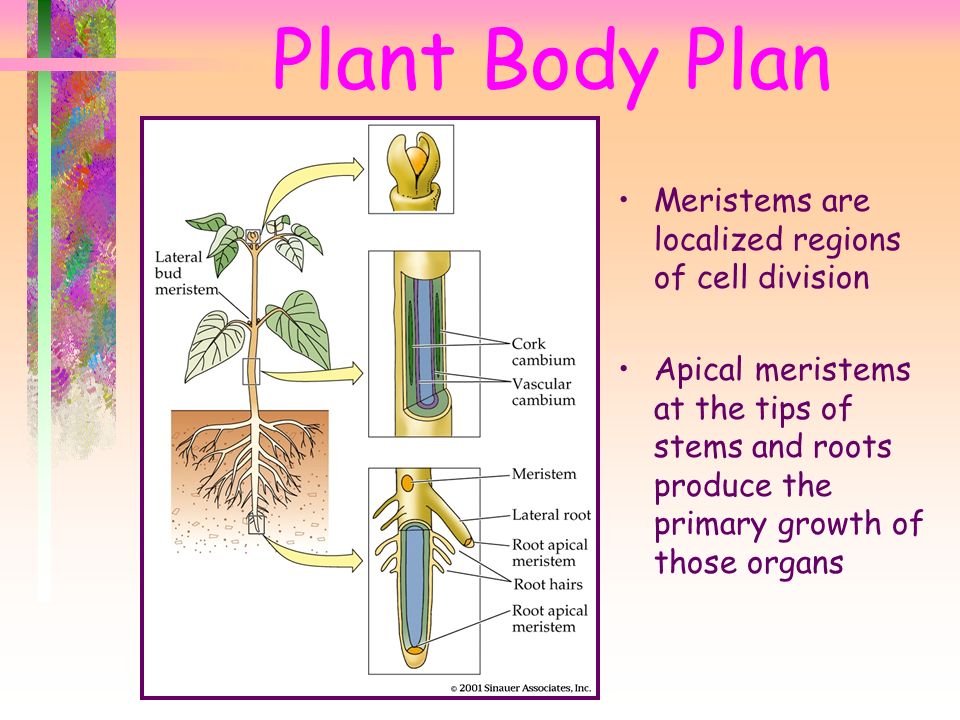

10. Plant Body Plan Meristems are localized regions of cell division Apical meristems at the tips of stems and roots produce the primary growth of those organs

11. Plant Body Plan Shoot apical and root apical meristems give rise to primary meristems

12. Plant Body Plan In some plants, the products of primary growth make up the entire plant body Other plants show secondary growth Two lateral meristems, the vascular cambium and cork cambium, are responsible for secondary growth

13. Plant Body Plan Young roots have apical meristems that gives rise to the root cap and 3 primary meristems 3 primary meristems produce the three tissue systems

14. Plant Body Plan Root tips have three zones: the zones of cell division, cell elongation, and cell differentiation

15. Plant Body Plan The dermal tissue system consists of the epidermis, part of which forms root hairs responsible for absorbing water and minerals

16. Roots The cortex of a young root surrounds the endodermis which controls access to the stele (pericycle, xylem, phloem)

17. Roots Lateral roots arise in the pericycle Monocot roots have a central pith region

18. Real Images - Roots DicotsMonocots

19. Real Roots

20. Stems Vascular tissue in young stems is divided into vascular bundles, each containing xylem and phloem Pith occupies the center of the eudicot stem Cortex lies to the outside of vascular bundles in eudicots, and pith rays lie between them.

21. Stems Monocots: vascular bundle scattered Dicots: vascular bundle in a ring xylem phloem

22. Stems – real images DicotsMonocots

23. Stems and Roots Many dicot stems and roots show secondary growth, in which vascular and cork cambiam give rise to secondary xylem and phloem As secondary growth continues, wood and bark are produced

24. Figure 34.19 – Part 2 Secondary Growth

27. Photosynthesis Mesophyll is the photosynthetic tissue of a leaf Veins bring water and minerals to the mesophyll and carry products of photosynthesis to other parts of the plant body

28. Photosynthesis A waxy cuticle prevents water loss from the leaf, but is impermeable to carbon dioxide Guard cells control opening of stomata, leaf openings that allow CO 2 to enter and water to escape

29. Figure 34.23 Cross-section of Leaf

30. Stomata
