1. Objective COM11 ESSIP Plan 2013 Adriatik KOKONA DSS/EIPR 13.09.2013

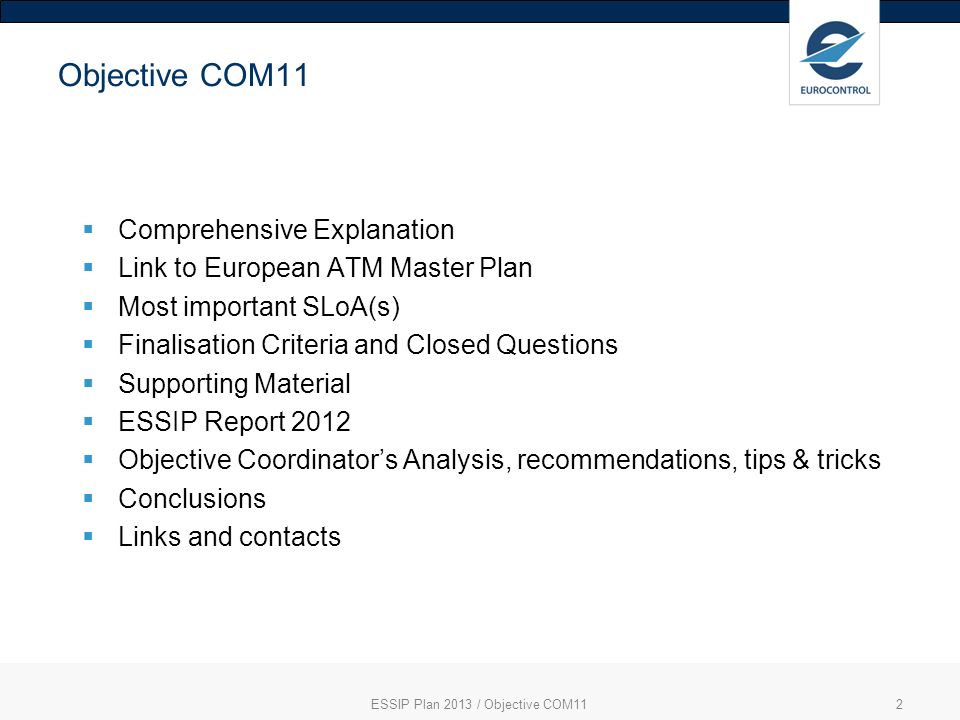

2. ESSIP Plan 2013 / Objective COM112 Objective COM11 Comprehensive Explanation Link to European ATM Master Plan Most important SLoA(s) Finalisation Criteria and Closed Questions Supporting Material ESSIP Report 2012 Objective Coordinators Analysis, recommendations, tips & tricks Conclusions Links and contacts

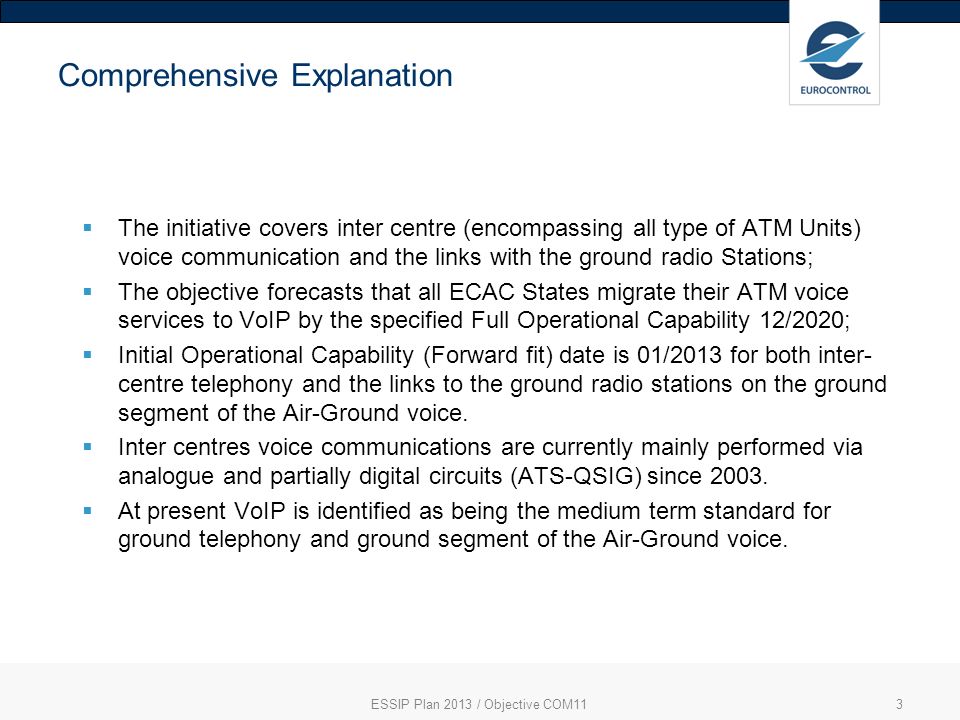

3. ESSIP Plan 2013 / Objective COM113 Comprehensive Explanation The initiative covers inter centre (encompassing all type of ATM Units) voice communication and the links with the ground radio Stations; The objective forecasts that all ECAC States migrate their ATM voice services to VoIP by the specified Full Operational Capability 12/2020; Initial Operational Capability (Forward fit) date is 01/2013 for both inter- centre telephony and the links to the ground radio stations on the ground segment of the Air-Ground voice. Inter centres voice communications are currently mainly performed via analogue and partially digital circuits (ATS-QSIG) since 2003. At present VoIP is identified as being the medium term standard for ground telephony and ground segment of the Air-Ground voice.

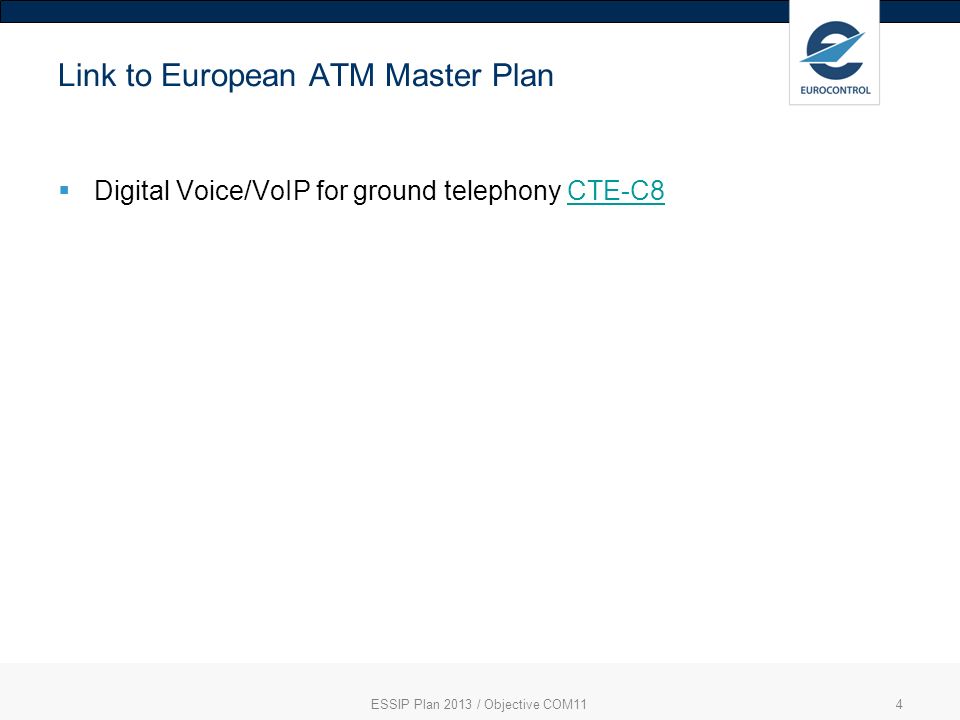

4. ESSIP Plan 2013 / Objective COM114 Link to European ATM Master Plan Digital Voice/VoIP for ground telephony CTE-C8CTE-C8

5. ESSIP Plan 2013 / Objective COM115 Most important SLoA(s) COM11-ASP03 Upgrade and put into service Voice Communication Systems to support VoIP inter-centre telephony (12/2020) COM11-ASP04 Upgrade and put into service Voice Communication Systems to support VoIP links to the ground radio stations (12/2020)

6. ESSIP Plan 2013 / Objective COM116 Finalisation Criteria and Closed Questions Voice communications systems have been upgraded; The technical file (TF) with evidences of compliance and the EC declaration of verification of systems (DoV) has been delivered to the competent National Supervisory Authority (NSA); Upgraded voice communication systems have been put into service

7. ESSIP Plan 2013 / Objective COM117 Regulation and Supporting Material EC - Regulation (EU) No 1034/2011-(OJ L 271, 18.10.2011, p.15) - Regulation (EU) No 1034/2011 of 17 October 2011 on safety oversight in air traffic management and air navigation services and amending Regulation (EU) No 691/2010 10/2011; EC - Regulation (EU) No 1034/2011-(OJ L 271, 18.10.2011, p.15) - Regulation (EU) No 1034/2011 of 17 October 2011 on safety oversight in air traffic management and air navigation services and amending Regulation (EU) No 691/2010 10/2011; EUROCONTROL - ESARR 1 Safety Oversight in ATM EUROCONTROL - ESARR 4 Risk Assessment and Mitigation in ATM EUROCAE - ED-136 - Voice over Internet Protocol (VoIP) Air Traffic Management (ATM) System Operational and Technical Requirements 02/2009; EUROCAE - ED-136 - Voice over Internet Protocol (VoIP) Air Traffic Management (ATM) System Operational and Technical Requirements 02/2009 EUROCAE - ED-137B - Interoperability Standards for VoIP ATM Components (Volume 1: Radio - Volume 2: Telephone - Volume 3: European Legacy Telephone Interworking - Volume 4: Recording - Volume 5: Supervision) 01/2012; EUROCAE - ED-137B - Interoperability Standards for VoIP ATM Components (Volume 1: Radio - Volume 2: Telephone - Volume 3: European Legacy Telephone Interworking - Volume 4: Recording - Volume 5: Supervision) 01/2012 EUROCAE - ED-138 - Network Requirements and Performances for Voice over Internet Protocol (VoIP) Air Traffic Management (ATM) Systems (Part 1: Network Specification – Part 2: Network Design Guideline) - 28.02.2009; EUROCAE - ED-138 - Network Requirements and Performances for Voice over Internet Protocol (VoIP) Air Traffic Management (ATM) Systems (Part 1: Network Specification – Part 2: Network Design Guideline) - 28.02.2009 EUROCONTROL - SIP v ATS-QSIG Gateway Interworking Test Specification - Edition 1.2 / 09/2011; EUROCONTROL - SIP v ATS-QSIG Gateway Interworking Test Specification - Edition 1.2 / 09/2011 EUROCONTROL - SIP v ATS-R2 Gateway Interworking Test Specification - Edition 1.2 / 09/2011; EUROCONTROL - VOTER - Edition 1.0.0 / 02/2012; EUROCONTROL - VoIP in ATM Cross-Reference Matrix - Edition 1.0 / 09/2011; EUROCONTROL - VoIP in ATM Cross-Reference Matrix - Edition 1.0 / 09/2011 EUROCONTROL - VoIP in ATM Telephony Test case specification - Edition 1.1 / 09/2011. EUROCONTROL - VoIP in ATM Telephony Test case specification - Edition 1.1 / 09/2011

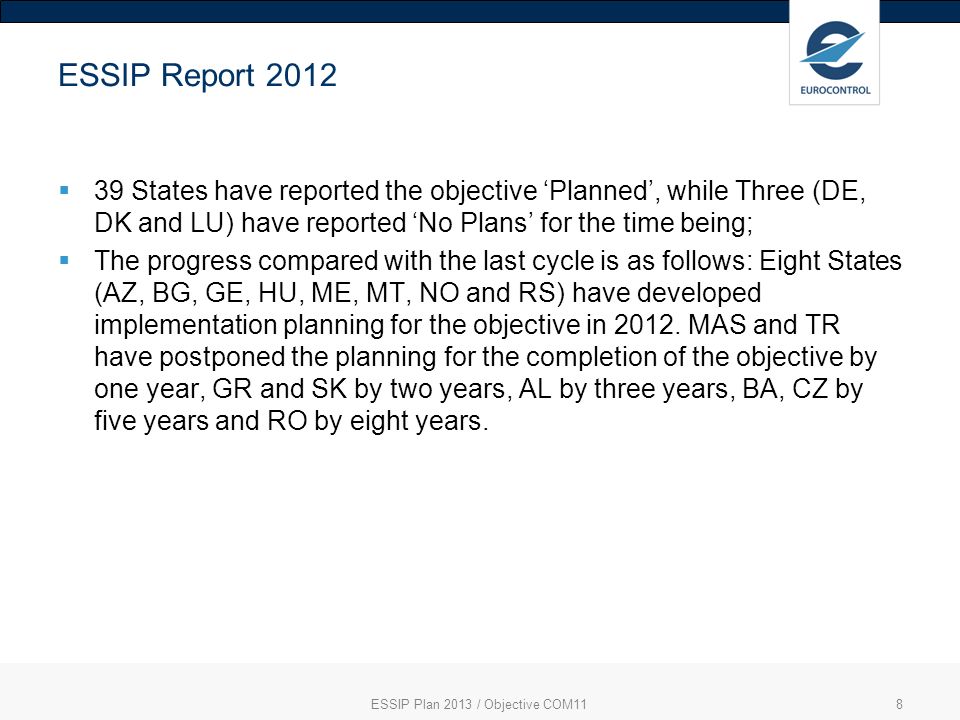

8. ESSIP Plan 2013 / Objective COM118 ESSIP Report 2012 39 States have reported the objective Planned, while Three (DE, DK and LU) have reported No Plans for the time being; The progress compared with the last cycle is as follows: Eight States (AZ, BG, GE, HU, ME, MT, NO and RS) have developed implementation planning for the objective in 2012. MAS and TR have postponed the planning for the completion of the objective by one year, GR and SK by two years, AL by three years, BA, CZ by five years and RO by eight years.

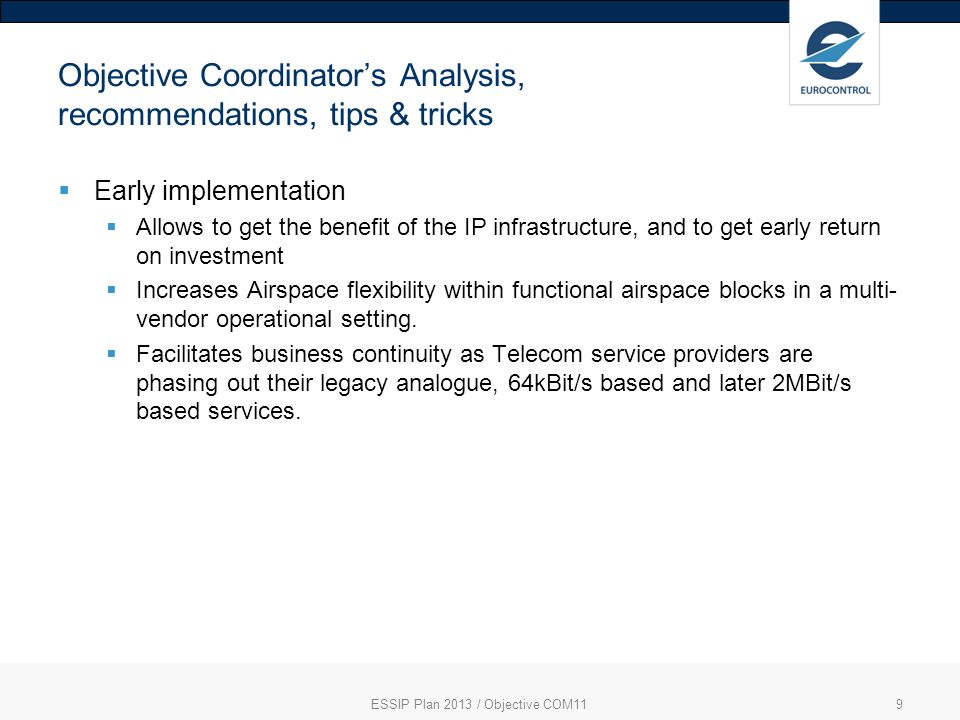

9. ESSIP Plan 2013 / Objective COM119 Objective Coordinators Analysis, recommendations, tips & tricks Early implementation Allows to get the benefit of the IP infrastructure, and to get early return on investment Increases Airspace flexibility within functional airspace blocks in a multi- vendor operational setting. Facilitates business continuity as Telecom service providers are phasing out their legacy analogue, 64kBit/s based and later 2MBit/s based services.

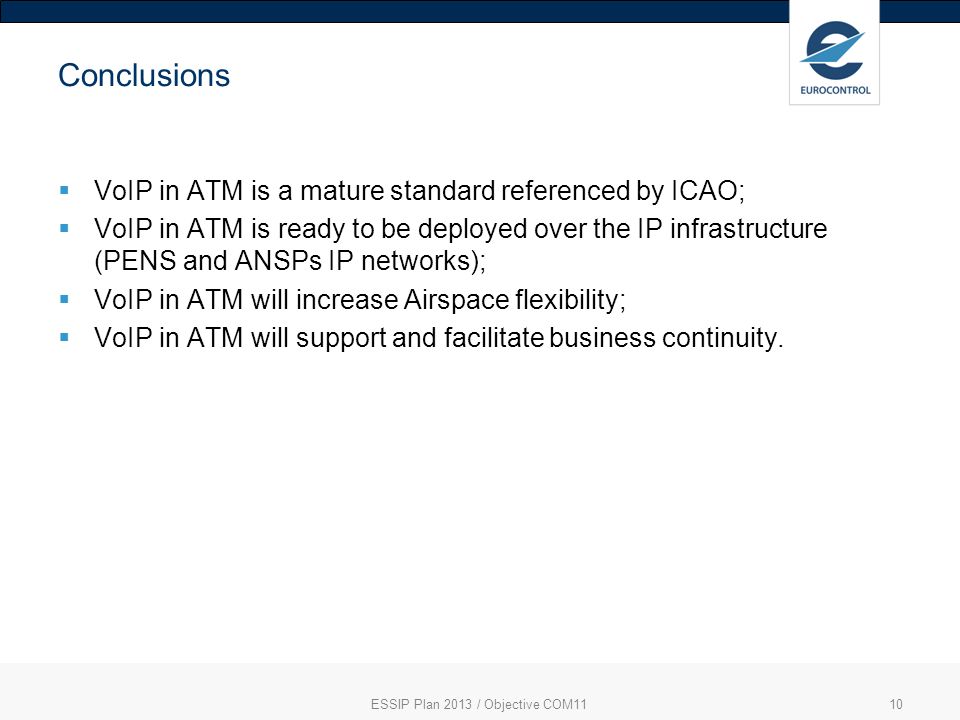

10. ESSIP Plan 2013 / Objective COM1110 Conclusions VoIP in ATM is a mature standard referenced by ICAO; VoIP in ATM is ready to be deployed over the IP infrastructure (PENS and ANSPs IP networks); VoIP in ATM will increase Airspace flexibility; VoIP in ATM will support and facilitate business continuity.

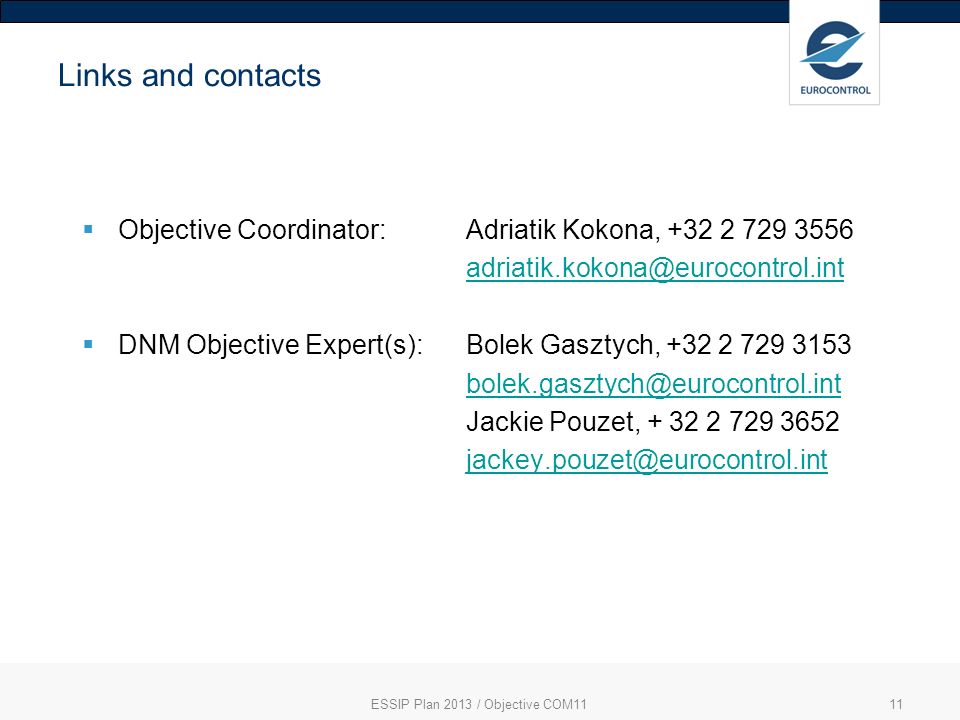

11. ESSIP Plan 2013 / Objective COM1111 Links and contacts Objective Coordinator: Adriatik Kokona, +32 2 729 3556 adriatik.kokona@eurocontrol.int DNM Objective Expert(s): Bolek Gasztych, +32 2 729 3153 bolek.gasztych@eurocontrol.int Jackie Pouzet, + 32 2 729 3652 jackey.pouzet@eurocontrol.int
