1. درس مدارهای منطقی دانشگاه قم http://lc-qom.blogfa.com/ Programmable Logic (PAL, PLA) تهیه شده توسط حسین امیرخانی مبتنی بر اسلایدهای درس مدارهای منطقی دانشگاه امیرکبیر http://ceit.aut.ac.ir/~szamani/index_files/logic.htm

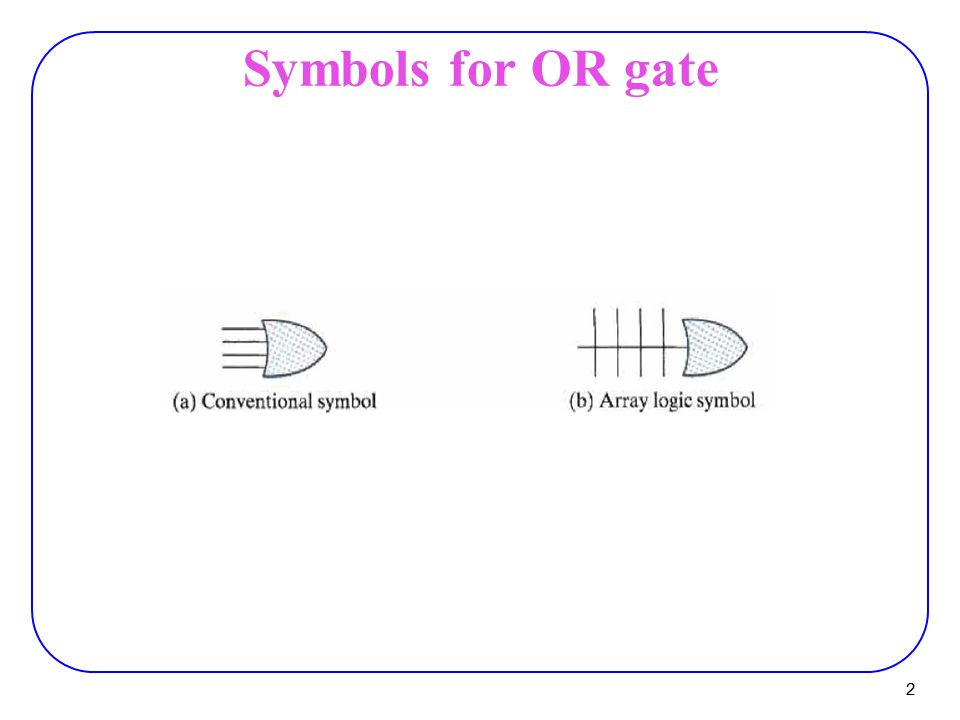

2. Symbols for OR gate 2

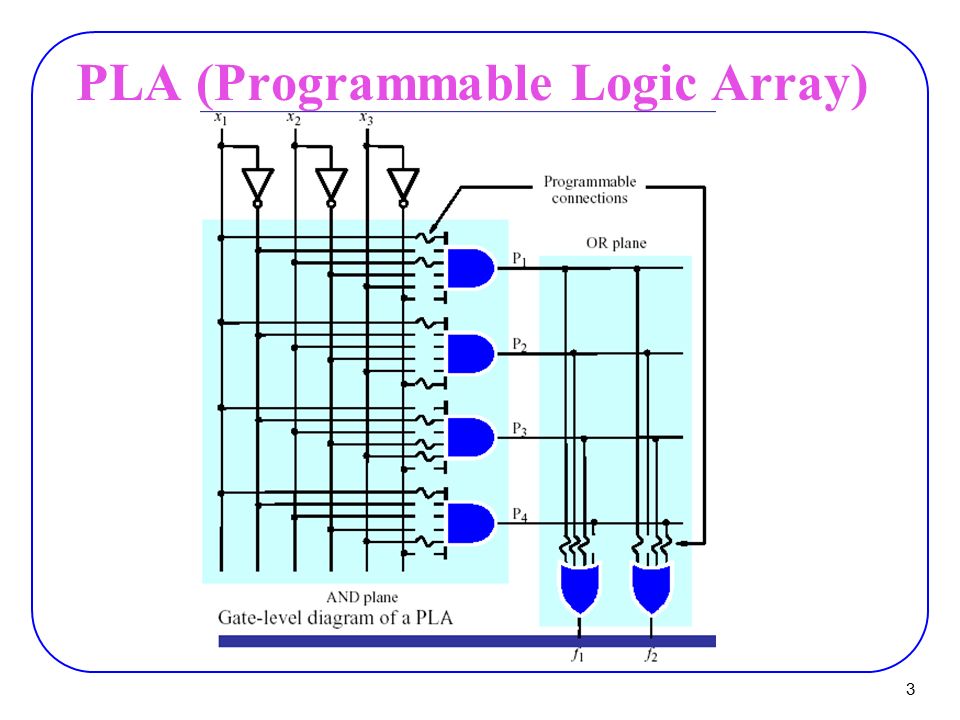

3. 3 PLA (Programmable Logic Array)

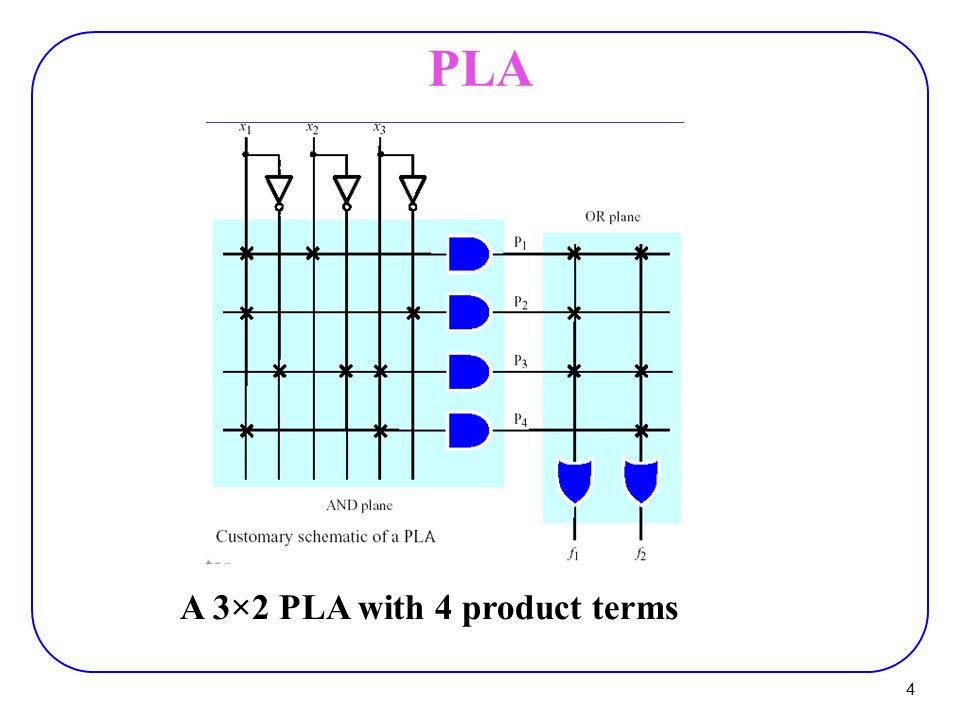

4. 4 PLA A 3×2 PLA with 4 product terms

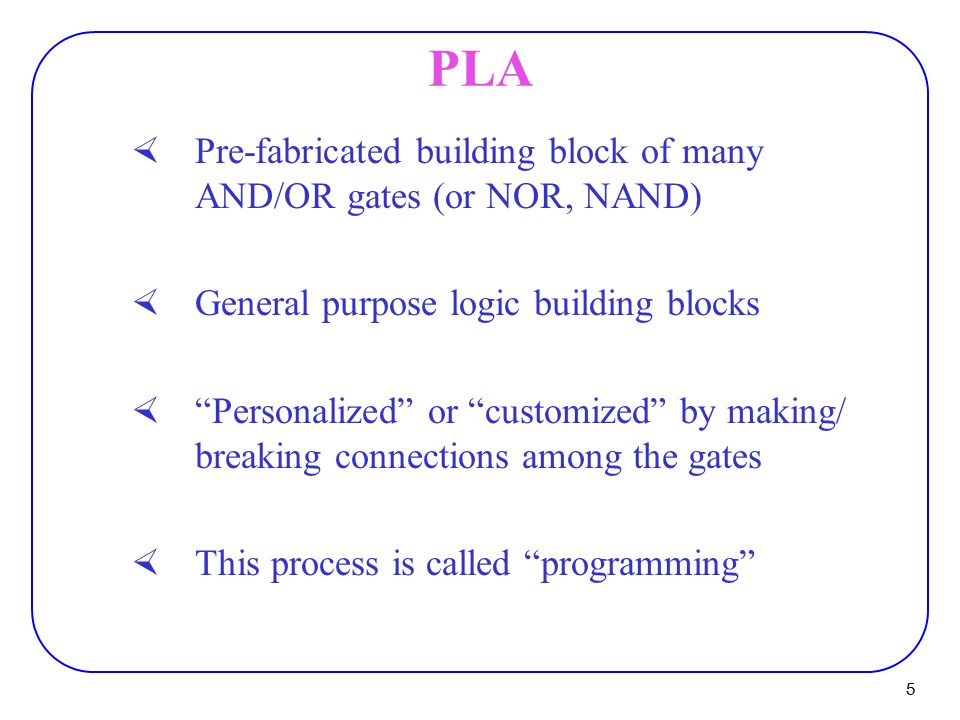

5. 5 PLA  Pre-fabricated building block of many AND/OR gates (or NOR, NAND)  General purpose logic building blocks  “Personalized” or “customized” by making/ breaking connections among the gates  This process is called “programming”

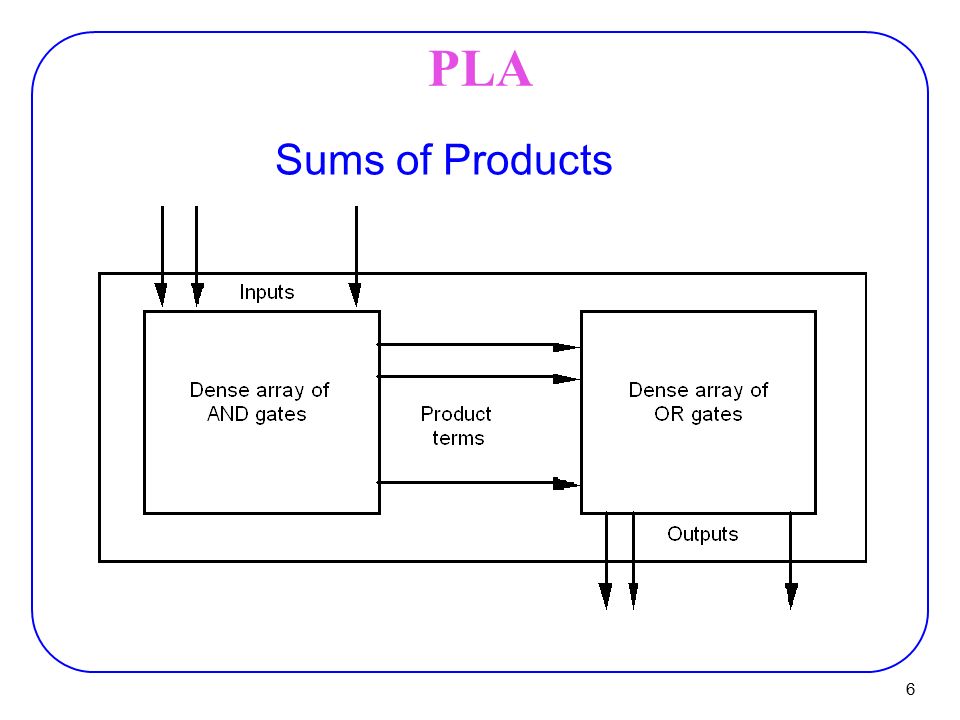

6. 6 PLA Sums of Products

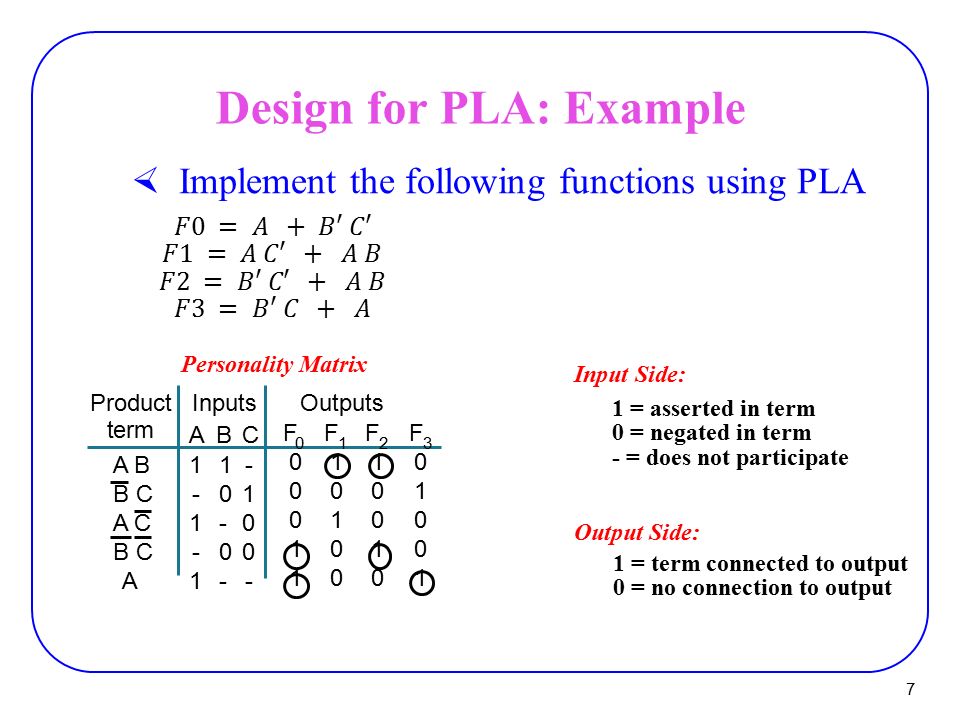

7. 7 Design for PLA: Example  Implement the following functions using PLA Personality Matrix 1 = asserted in term 0 = negated in term - = does not participate Input Side: 1 = term connected to output 0 = no connection to output Output Side: OutputsInputsProduct term A 1 - 1 - 1 B 1 0 - 0 - C - 1 0 0 - F 0 0 0 0 1 1 F 1 1 0 1 0 0 F 2 1 0 0 1 0 F 3 0 1 0 0 1 A B B C A C B C A

8. 8 Personality Matrix OutputsInputsProduct term A 1 - 1 - 1 B 1 0 - 0 - C - 1 0 0 - F 0 0 0 0 1 1 F 1 1 0 1 0 0 F 2 1 0 0 1 0 F 3 0 1 0 0 1 A B B C A C B C A Design for PLA: Example

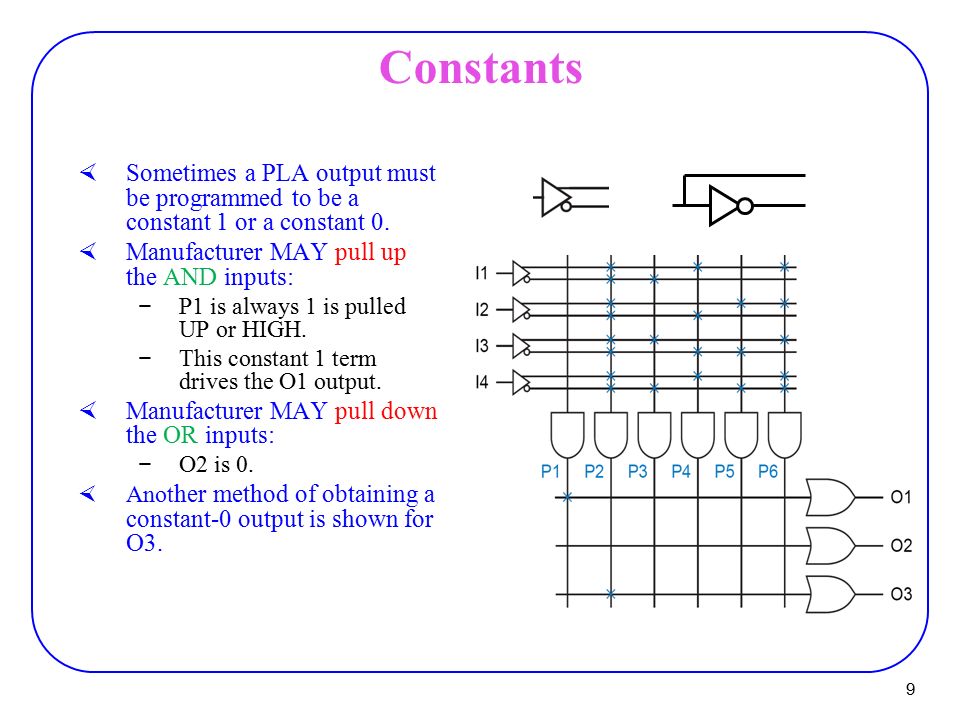

9. 9 Constants  Sometimes a PLA output must be programmed to be a constant 1 or a constant 0.  Manufacturer MAY pull up the AND inputs: − P1 is always 1 is pulled UP or HIGH. − This constant 1 term drives the O1 output.  Manufacturer MAY pull down the OR inputs: − O2 is 0.  Anot her method of obtaining a constant-0 output is shown for O3.

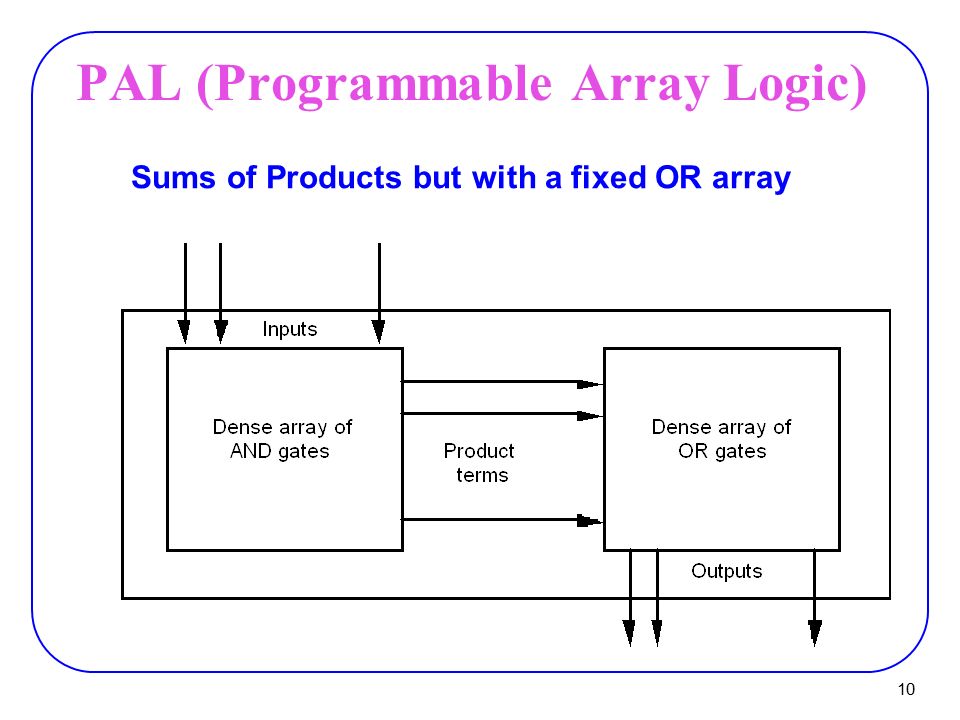

10. 10 PAL (Programmable Array Logic) Sums of Products but with a fixed OR array

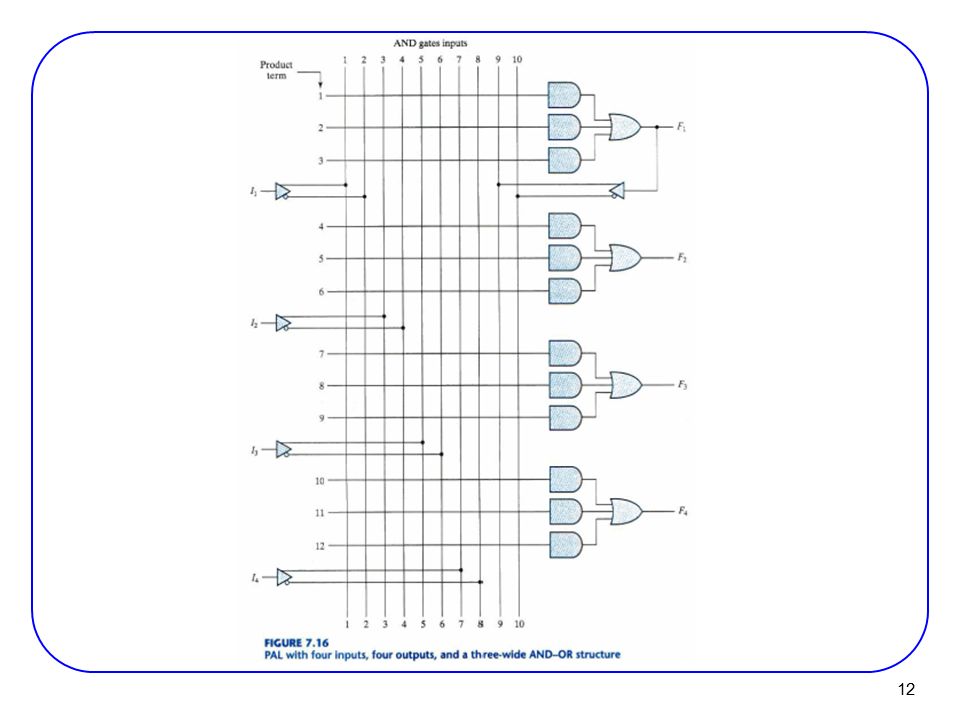

11. 11 PAL inputs 1 st output section 2 nd output section 3 rd output section 4 th output section Only functions with at most four products can be implemented

12. 12

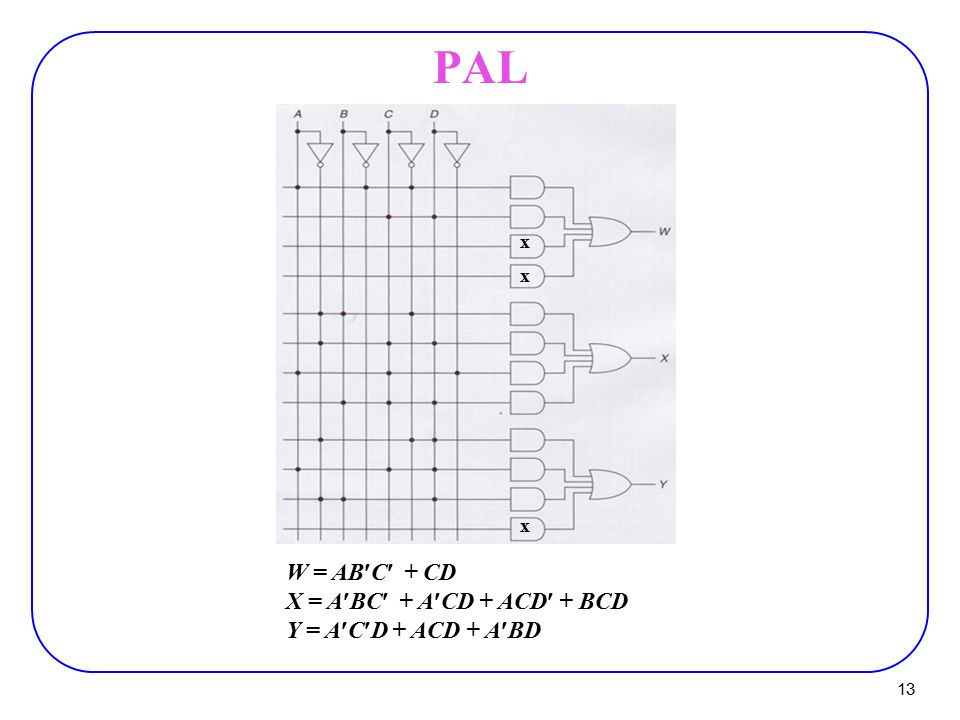

13. 13 PAL W = ABC + CD X = ABC + ACD + ACD + BCD Y = ACD + ACD + ABD x x x

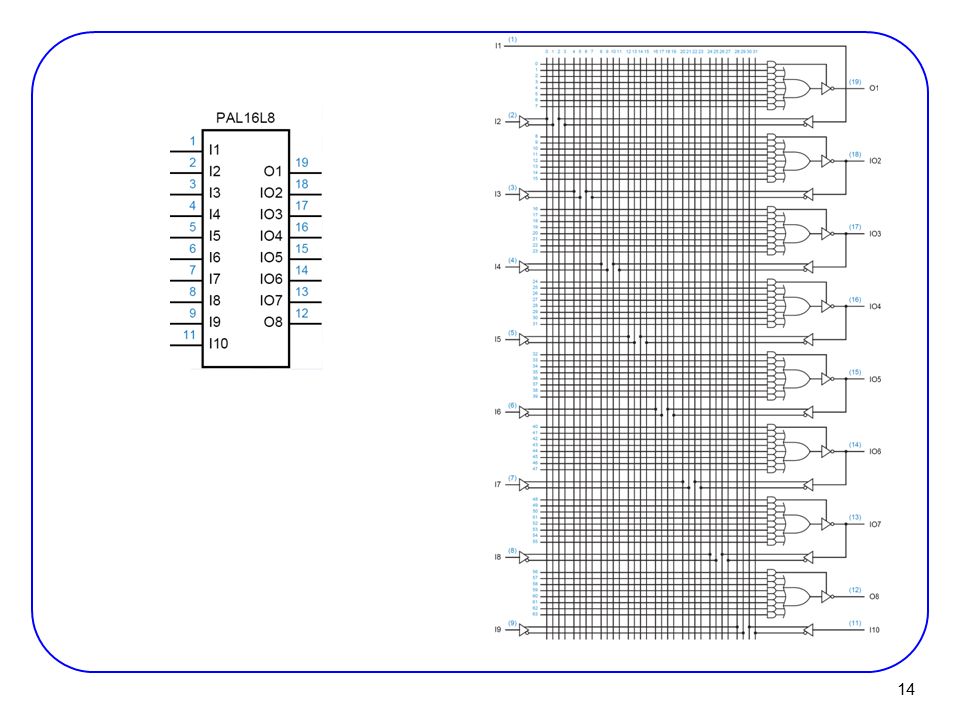

14. 14

15. Final Remark 15 A Programmable Logic achieves higher flexibility at the cost of lower speed!

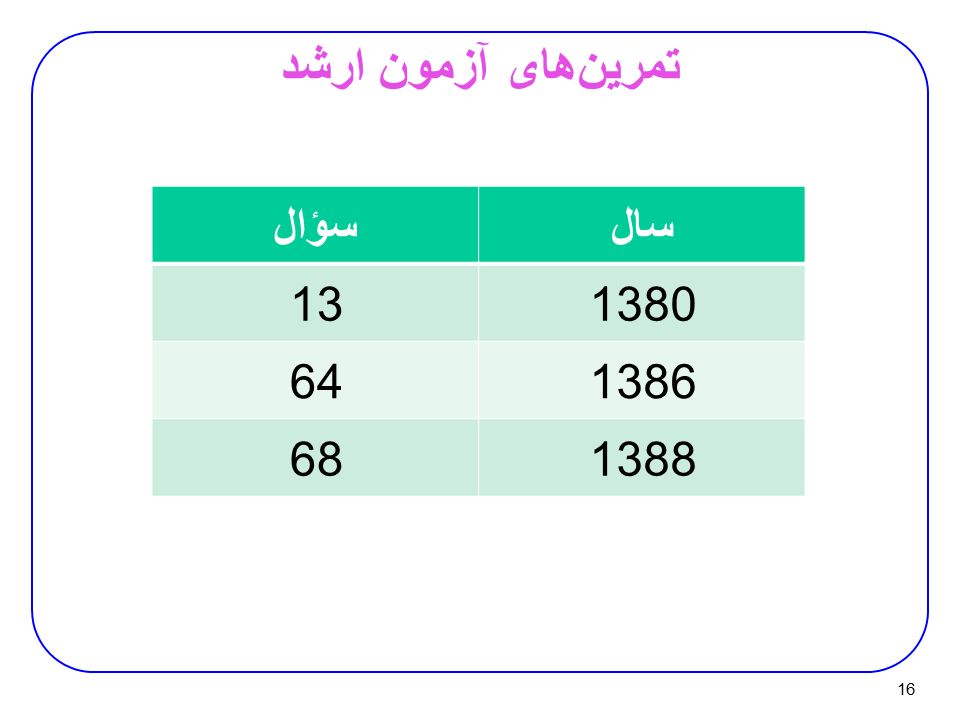

16. تمرین‌های آزمون ارشد سؤالسال 131380 641386 681388 16
