1. What’s New in Microsoft SQL Server 2012 for Business Intelligence Bryan Smith brysmi@microsoft.com

2. AlwaysOn Reliable Secondaries FileTable ColumnStore Index 15k Partitions SQL Server Data Tools Power View BI Semantic Model Data Quality Services Full-Text Search Performance Distributed Replay Reporting Alerts ODBC Driver for Linux Statistical Semantic Search Windows Server Core Support Multiple Secondaries Availability Groups Default Scheme for Windows Groups T-SQL Enhancements Full Globe Spatial SSMS to Windows Azure Platform PowerPivot Enhancements Master Data Management Excel Add-in PowerShell 2.0 Support PHP & Java Connectivity SQL Audit for All Editions CDC Support for SSIS New SSIS Design Surface Online Operation Enhancements Multi-site Clustering Unstructured Data Performance Resource Governor Enhancements Database Recovery Advisor HA for StreamInsight Flexible Failover Policy Extended Events Enhancements Contained Database Authentication SharePoint Active Directory Support SQL Server Express LocalDB User-defined Audit Audit Filtering Audit Resilience FTS Support for Czech and Greek AlwaysOn Connection Director Ad Hoc Reporting SSIS Troubleshooting SSIS Package Management T-SQL Debugger Enhancements Spatial 2D Support Unstructured Data Performance

3. Rapid data discovery Managed self-service BI Credible, consistent data Complete DW solutions Rapid data discovery Managed self-service BI Credible, consistent data Complete DW solutions Scale on demand Fast time to market Extend any data, anywhere Optimized productivity Scale on demand Fast time to market Extend any data, anywhere Optimized productivity Required 9s & protection Blazing-fast performance Organizational compliance Peace of mind Required 9s & protection Blazing-fast performance Organizational compliance Peace of mind MISSION CRITICAL CONFIDENCE CLOUD ON YOUR TERMS BREAKTHROUGH INSIGHT Unlock new insights with pervasive data discovery across the organization Create business solutions fast, on your terms across server & private or public cloud Enable mission critical performance & availability at an appropriate TCO

4. AlwaysOn Reliable Secondaries FileTable 15k Partitions SQL Server Data Tools BI Semantic Model Data Quality Services Full-Text Search Performance Distributed Replay Reporting Alerts ODBC Driver for Linux Statistical Semantic Search Windows Server Core Support Multiple Secondaries Availability Groups Default Scheme for Windows Groups T-SQL Enhancements Full Globe Spatial SSMS to Windows Azure Platform PowerPivot Enhancements Master Data Management Excel Add-in PowerShell 2.0 Support PHP & Java Connectivity SQL Audit for All Editions CDC Support for SSIS New SSIS Design Surface Online Operation Enhancements Multi-site Clustering Unstructured Data Performance Resource Governor Enhancements Database Recovery Advisor HA for StreamInsight Flexible Failover Policy Extended Events Enhancements Contained Database Authentication SharePoint Active Directory Support SQL Server Express LocalDB User-defined Audit Audit Filtering Audit Resilience FTS Support for Czech and Greek AlwaysOn Connection Director Ad Hoc Reporting SSIS Troubleshooting SSIS Package Management T-SQL Debugger Enhancements Spatial 2D Support Unstructured Data Performance ColumnStore Index Power View

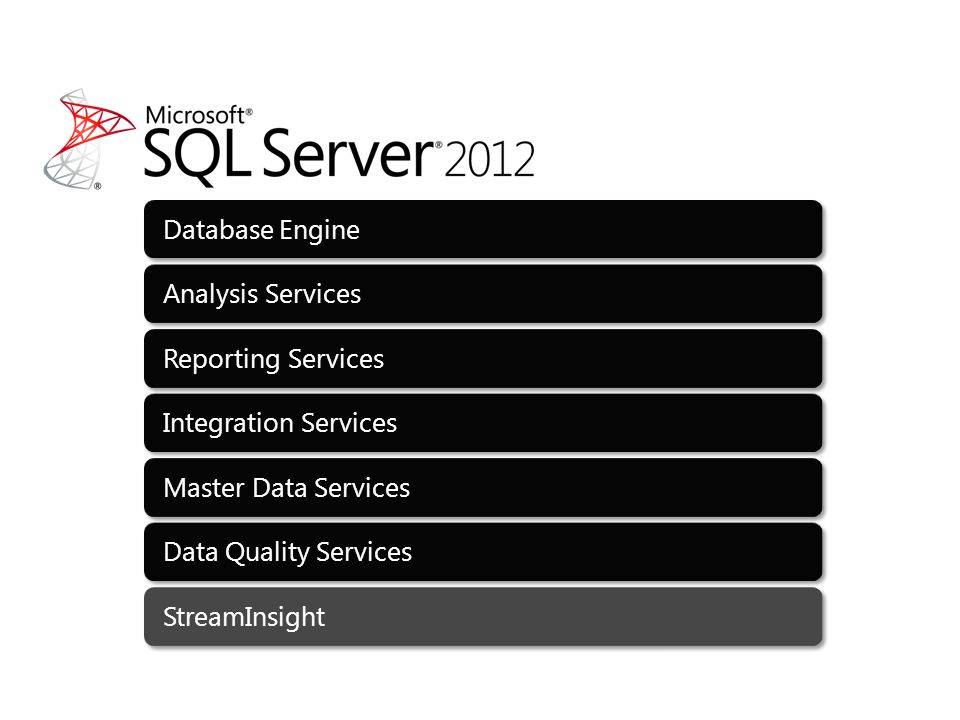

5. Database Engine Analysis Services Integration Services Master Data Services Data Quality Services Reporting Services StreamInsight

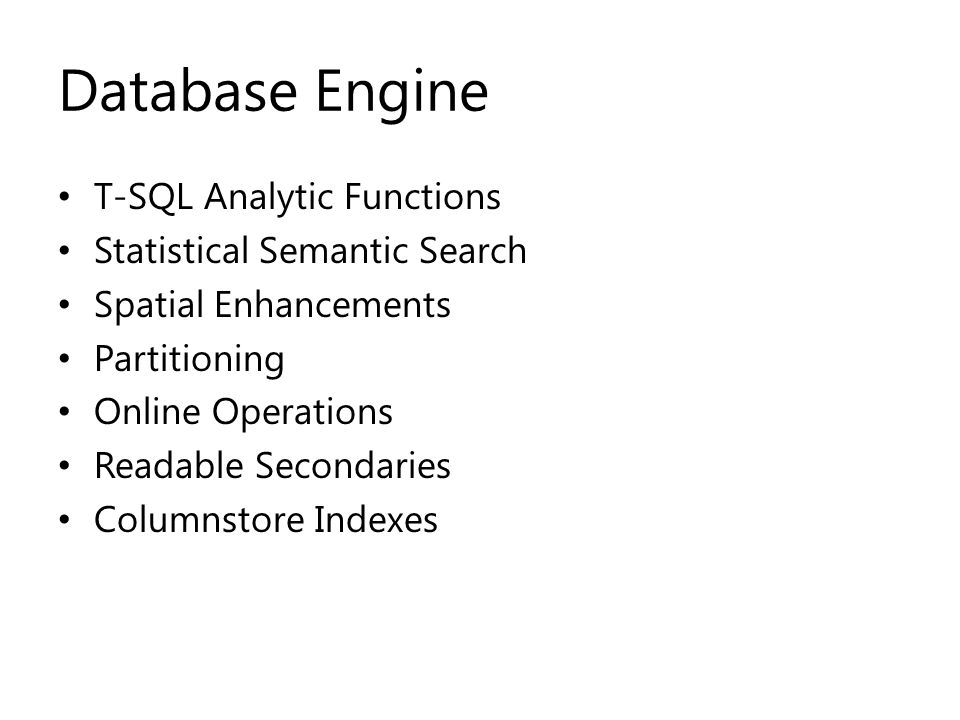

6. Database Engine T-SQL Analytic Functions Statistical Semantic Search Spatial Enhancements Partitioning Online Operations Readable Secondaries Columnstore Indexes

7. Analytic Functions CUME_DIST PERCENT_RANK PERCENTILE_CONT PERCENTILE_DISC FIRST_VALUE LAST_VALUE LEAD LAG

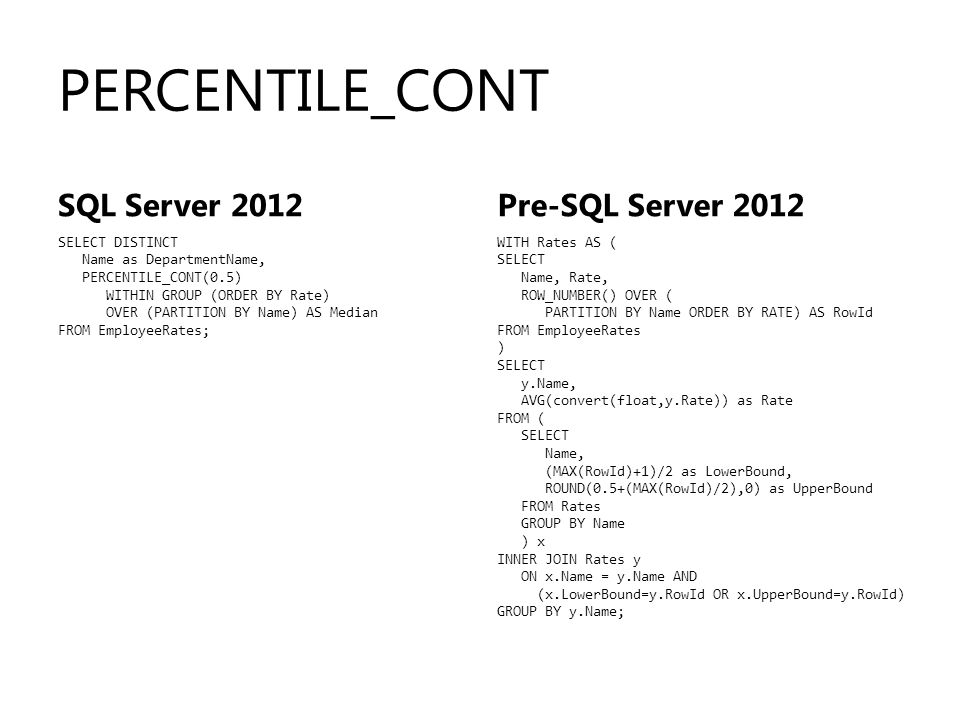

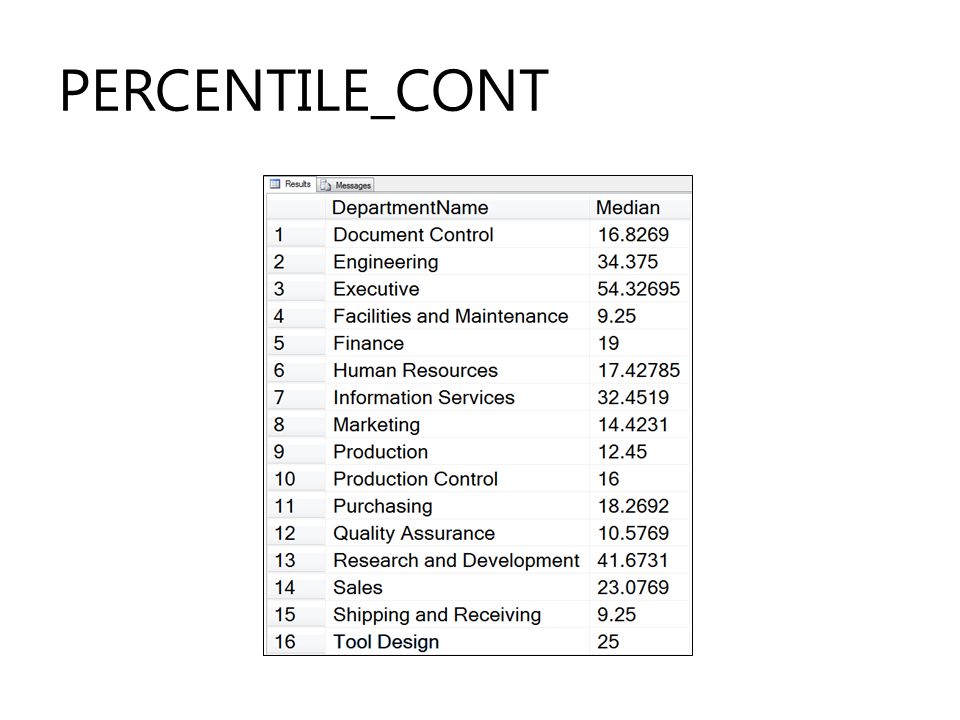

8. PERCENTILE_CONT

9. SQL Server 2012 SELECT DISTINCT Name as DepartmentName, PERCENTILE_CONT(0.5) WITHIN GROUP (ORDER BY Rate) OVER (PARTITION BY Name) AS Median FROM EmployeeRates; Pre-SQL Server 2012 WITH Rates AS ( SELECT Name, Rate, ROW_NUMBER() OVER ( PARTITION BY Name ORDER BY RATE) AS RowId FROM EmployeeRates ) SELECT y.Name, AVG(convert(float,y.Rate)) as Rate FROM ( SELECT Name, (MAX(RowId)+1)/2 as LowerBound, ROUND(0.5+(MAX(RowId)/2),0) as UpperBound FROM Rates GROUP BY Name ) x INNER JOIN Rates y ON x.Name = y.Name AND (x.LowerBound=y.RowId OR x.UpperBound=y.RowId) GROUP BY y.Name;

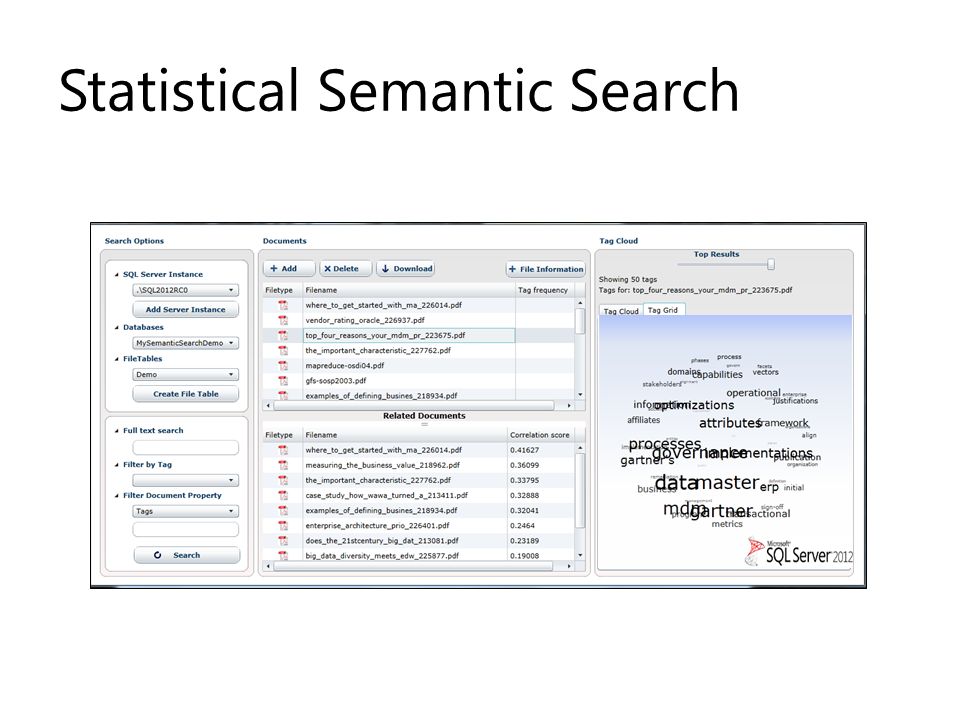

10. Statistical Semantic Search

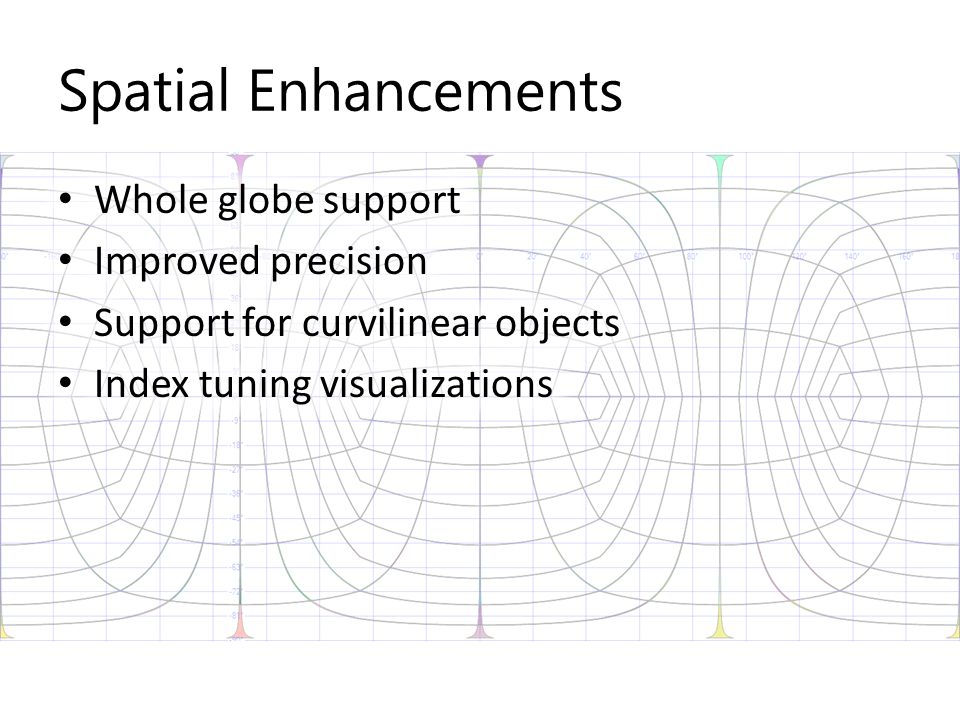

11. Spatial Enhancements

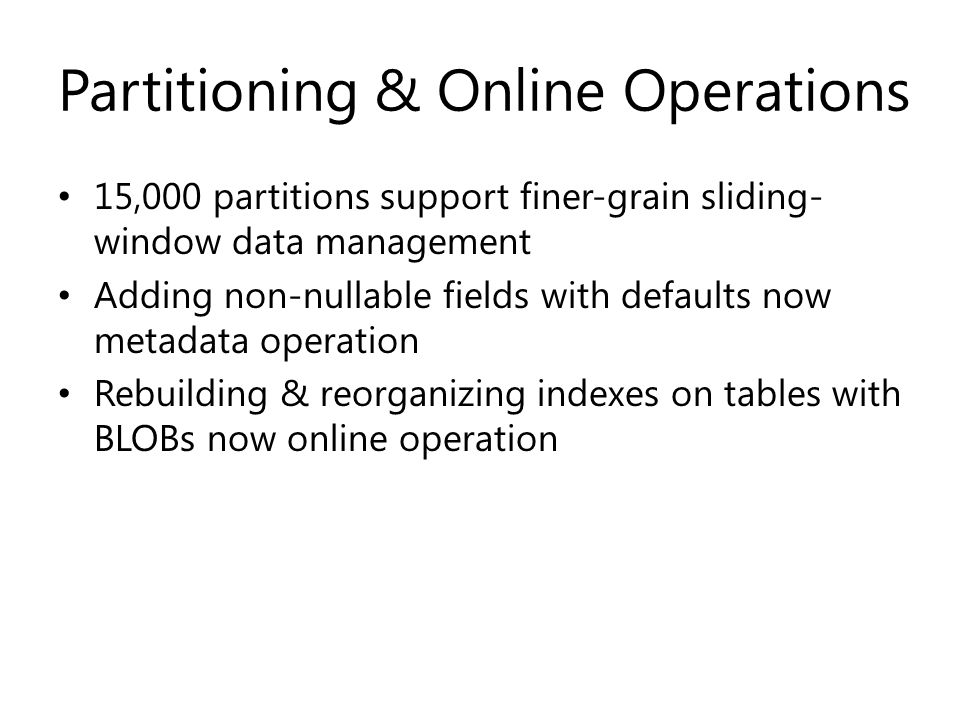

12. Partitioning & Online Operations 15,000 partitions support finer-grain sliding- window data management Adding non-nullable fields with defaults now metadata operation Rebuilding & reorganizing indexes on tables with BLOBs now online operation

13. AlwaysOn Readable Secondaries Virtual Network Name

14. Columnstore Indexes DateCustomerProductQuantityAmount April 1, 2011Mr. SmithABC15.00 April 1, 2011Ms. JohnsonABC420.00 April 1, 2011Mr. WilliamsXYZ16.50 April 1, 2011Ms. JonesJKL28.00 April 2, 2011Mr. BrownABC15.00 April 2, 2011Ms. DavisMNO220.00 April 2, 2011Mr. MillerJKL520.00 April 2, 2011Mr. SmithABC1050.00 April 3, 2011Ms. WilsonPQR26.00 April 3, 2011Ms. MooreABC420.00 April 3, 2011Mr. TaylorMNO990.00 April 3, 2011Mr. SmithJKL14.00 April 3, 2011Ms. ThomasABC1050.00 SELECT Date, SUM(Amount) FROM FactSales WHERE Product='ABC' GROUP BY Date April 1, 2011Mr. Smith ABC 15.00 April 1, 2011Ms. Johnson ABC 420.00 April 1, 2011Mr. Williams XYZ 16.50 April 1, 2011Ms. Jones JKL 28.00

15. DateCustomerProductQuantityAmount April 1, 2011Mr. SmithABC15.00 April 1, 2011Ms. JohnsonABC420.00 April 1, 2011Mr. WilliamsXYZ16.50 April 1, 2011Ms. JonesJKL28.00 April 2, 2011Mr. BrownABC15.00 April 2, 2011Ms. DavisMNO220.00 April 2, 2011Mr. MillerJKL520.00 April 2, 2011Mr. SmithABC1050.00 April 3, 2011Ms. WilsonPQR26.00 April 3, 2011Ms. MooreABC420.00 April 3, 2011Mr. TaylorMNO990.00 April 3, 2011Mr. SmithJKL14.00 April 3, 2011Ms. ThomasABC1050.00 April 1, 2011 April 2, 2011 April 3, 2011 ABC XYZ JKL ABC MNO ABC XYZ MNO PQR JKL ABC SELECT Date, SUM(Amount) FROM FactSales WHERE Product='ABC' GROUP BY Date Columnstore Indexes 5.00 20.00 6.50 8.00 5.00 20.00 50.00 6.00 20.00 90.00 4.00 50.00

16. Columnstore Indexes Secondary index using xVelocity storage Supports traditional data types Read-only in 2012 RTM – Use partition-swapping in ETL

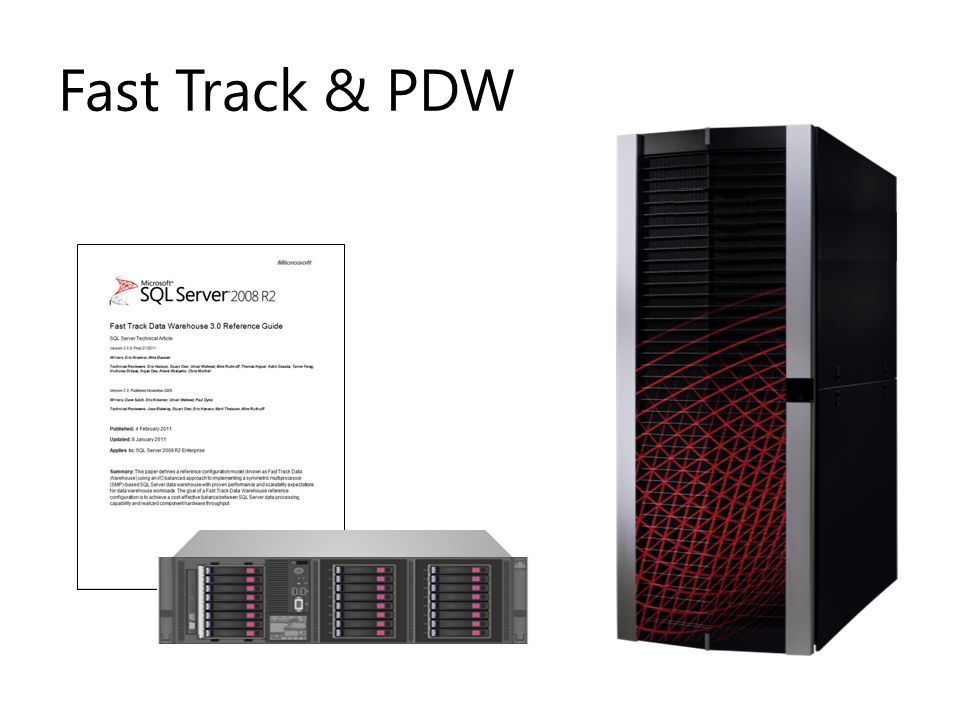

17. Fast Track & PDW

18. Analysis Services MultidimensionalTabular PowerPivotMultidimensional Data Model Deployment Mode

19. Data Models Multidimensional Tabular 2008 R22010

20. Data Models Multidimensional Data as points More metadata-driven Traditional DW platforms IT-only development Indirect support for Power View Tabular Data as rows & columns Less metadata-driven Wider range of data sources IT or business development Direct support for Power View

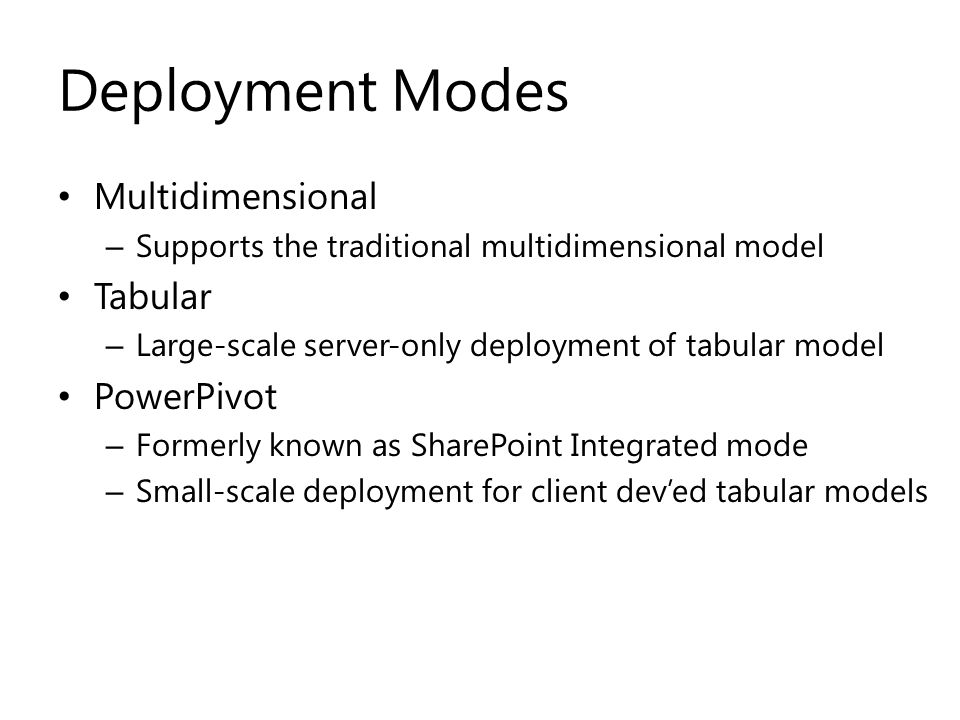

21. Deployment Modes Multidimensional – Supports the traditional multidimensional model Tabular – Large-scale server-only deployment of tabular model PowerPivot – Formerly known as SharePoint Integrated mode – Small-scale deployment for client dev’ed tabular models

22. Feature Comparisons MultidimensionalTabularPowerPivot ActionsYesNo AggregationsYes Calculated MeasuresYes Custom AssembliesYesNo Custom RollupsYesNo Distinct CountYesYes (via DAX) DrillthroughYesNoYes (detail opens in separate worksheet) HierarchiesYes KPIsYes Linked objectsYesNoYes (linked tables) Many-to-many relationshipsYesNo Parent-child HierarchiesYesYes (via DAX) PartitionsYes No PerspectivesYes Semi-additive MeasuresYes TranslationsYesNo User-defined HierarchiesYes WritebackYesNo

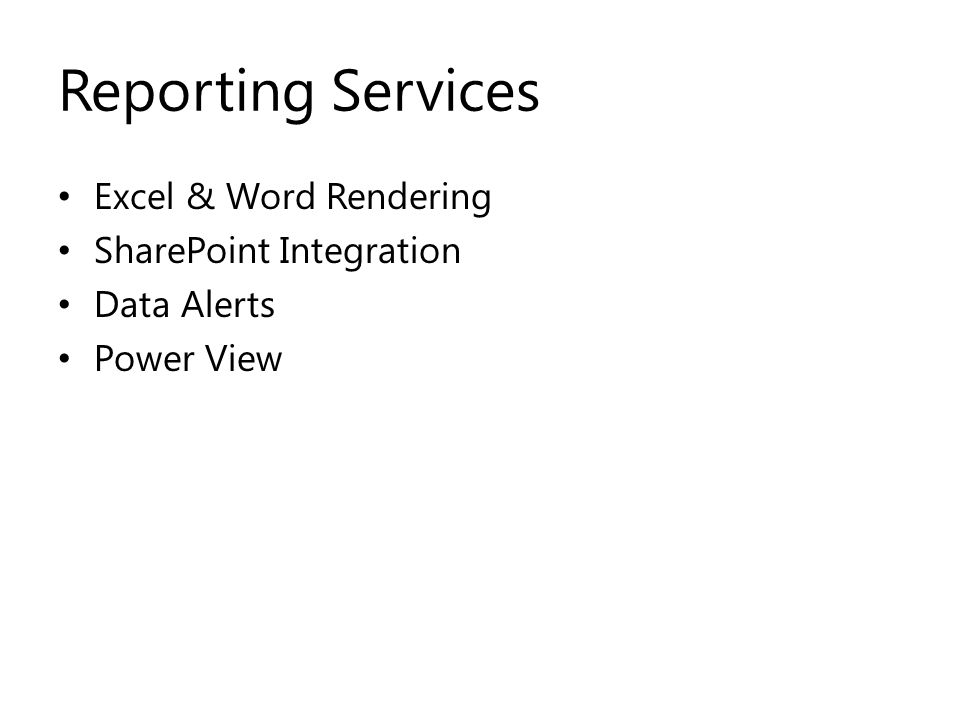

23. Reporting Services Excel & Word Rendering SharePoint Integration Data Alerts Power View

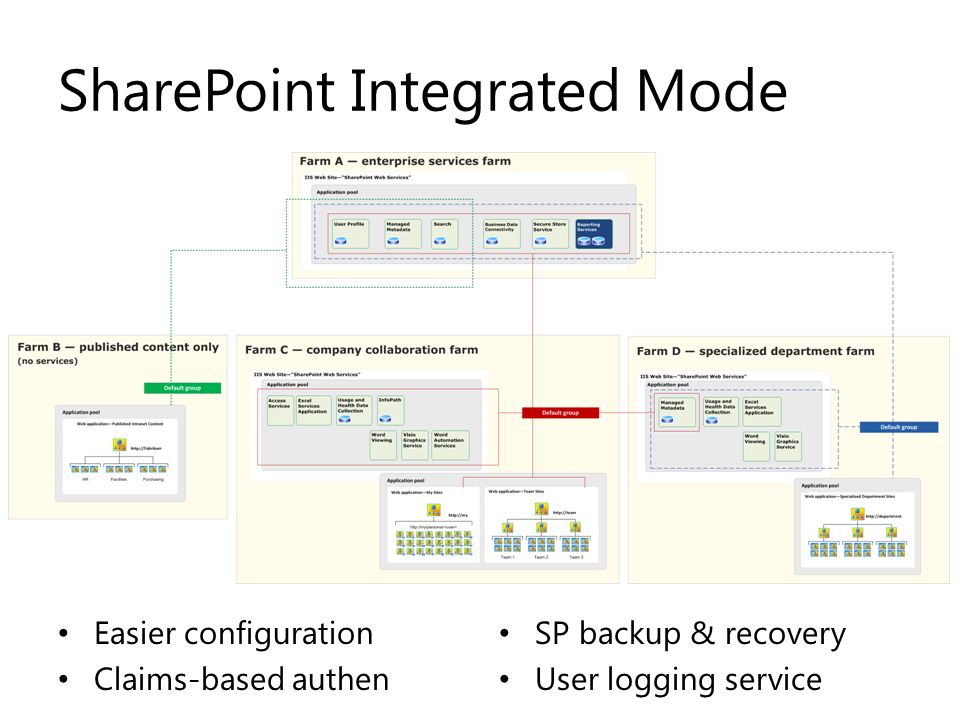

24. SharePoint Integrated Mode Easier configuration Claims-based authen SP backup & recovery User logging service

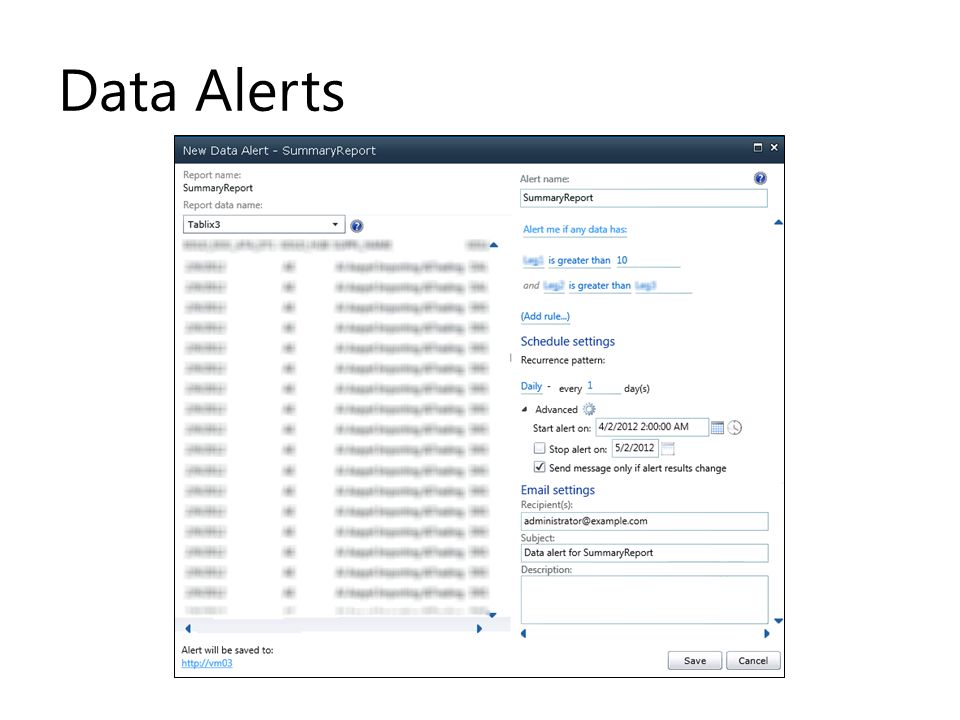

25. Data Alerts

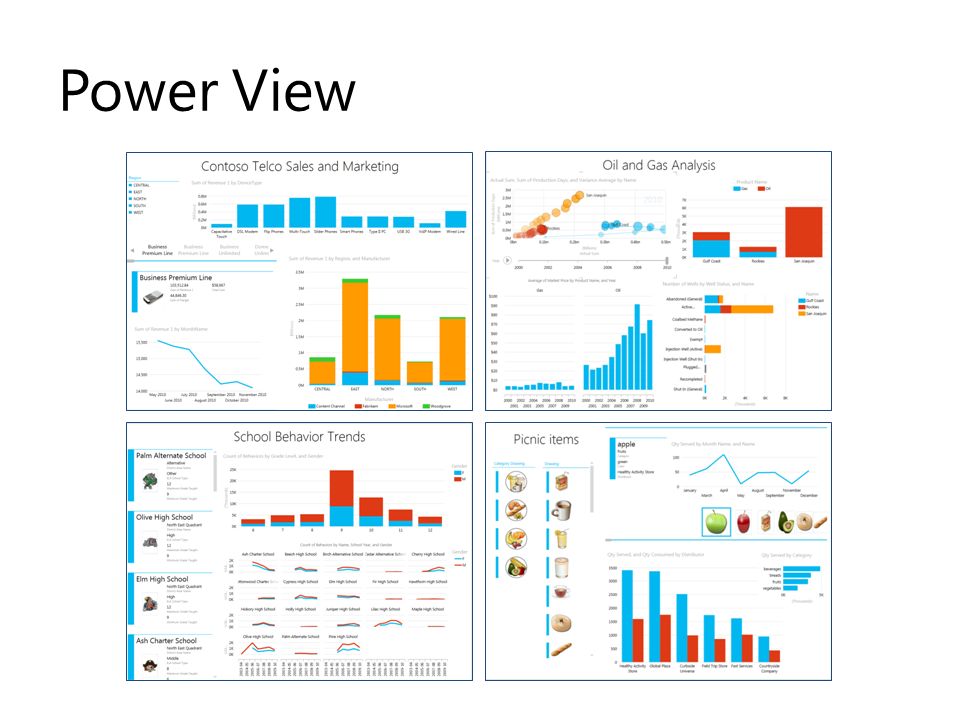

26. Power View

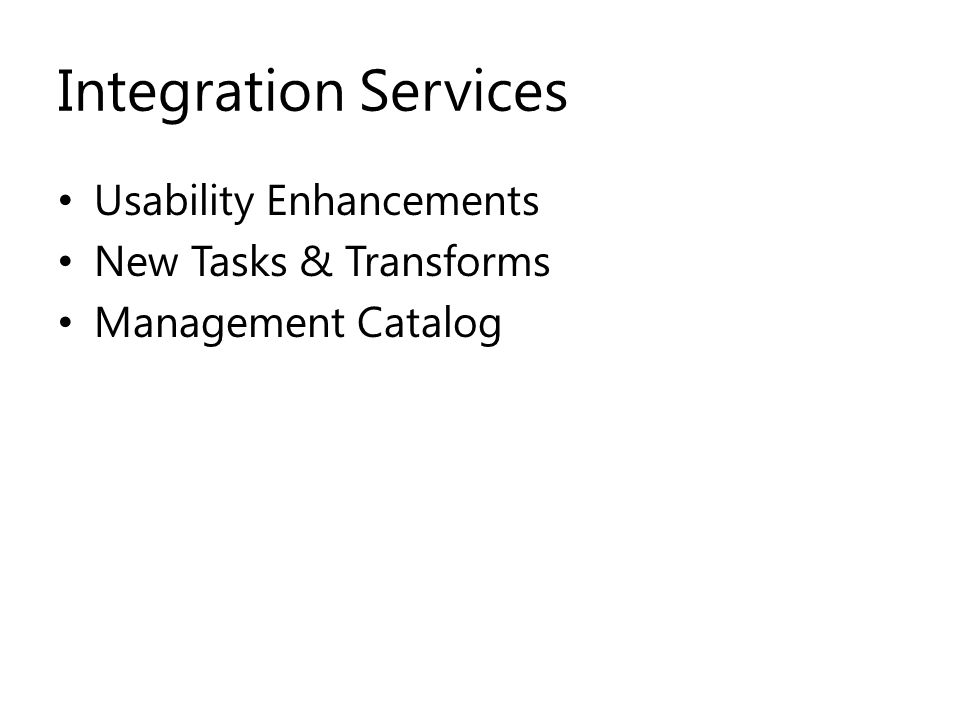

27. Integration Services Usability Enhancements New Tasks & Transforms Management Catalog

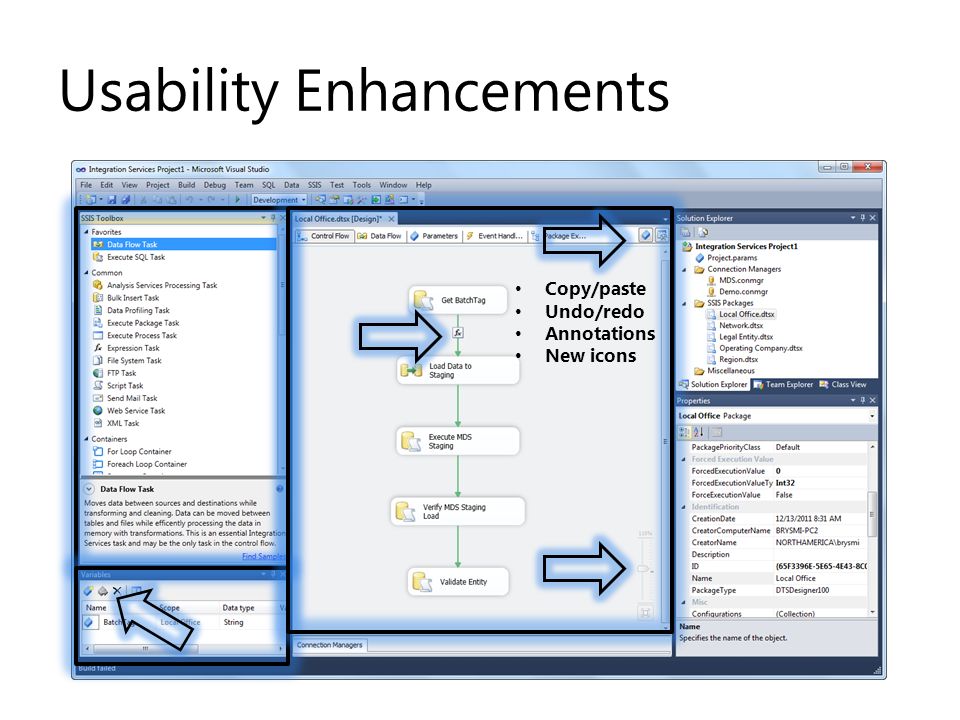

28. Usability Enhancements Copy/paste Undo/redo Annotations New icons

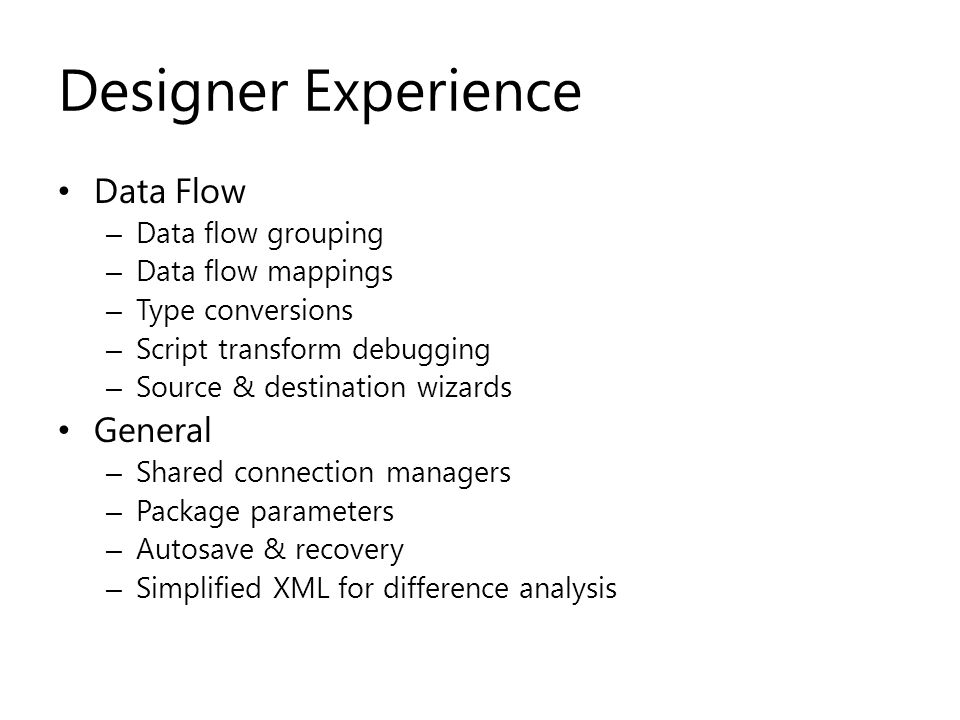

29. Designer Experience Data Flow – Data flow grouping – Data flow mappings – Type conversions – Script transform debugging – Source & destination wizards General – Shared connection managers – Package parameters – Autosave & recovery – Simplified XML for difference analysis

30. Functionality Data Quality Services Integration Change Data Capture Task & Transforms – Works with SQL Server & Oracle (with Oracle Log Miner)

31. Change Data Capture CDC Control Task (Control Flow) – c – Retrieves & stores CDC state CDC Source (Data Flow) – c – Retrieves data from source using CDC CDC Splitter (Data Flow) – x – Splits pipeline based on source operation

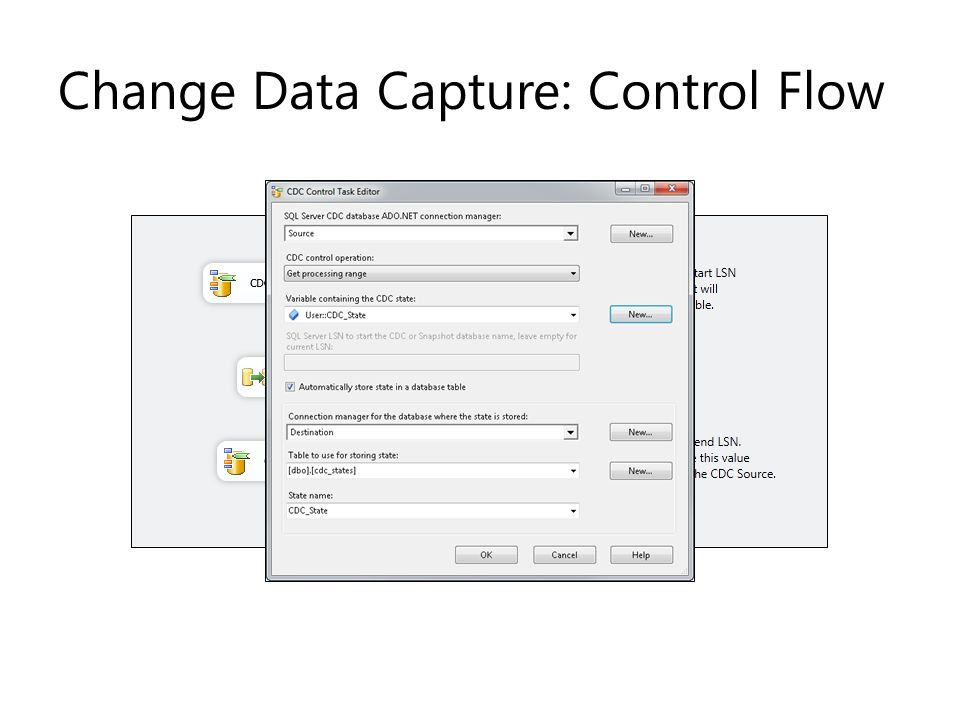

32. Change Data Capture: Control Flow

33. Change Data Capture: Data Flow

34. Management Project-based deployment to catalog database – Package-level security – Provides versioning and centralized logging – Maintains centralized configurations Package management, execution, & monitoring through SSMS, T-SQL, & PowerShell – Advanced data flow troubleshooting with data taps – Package performance tracking through DMVs – Built-in reporting & dashboard

35. Data Quality Services

36. Master Data Services

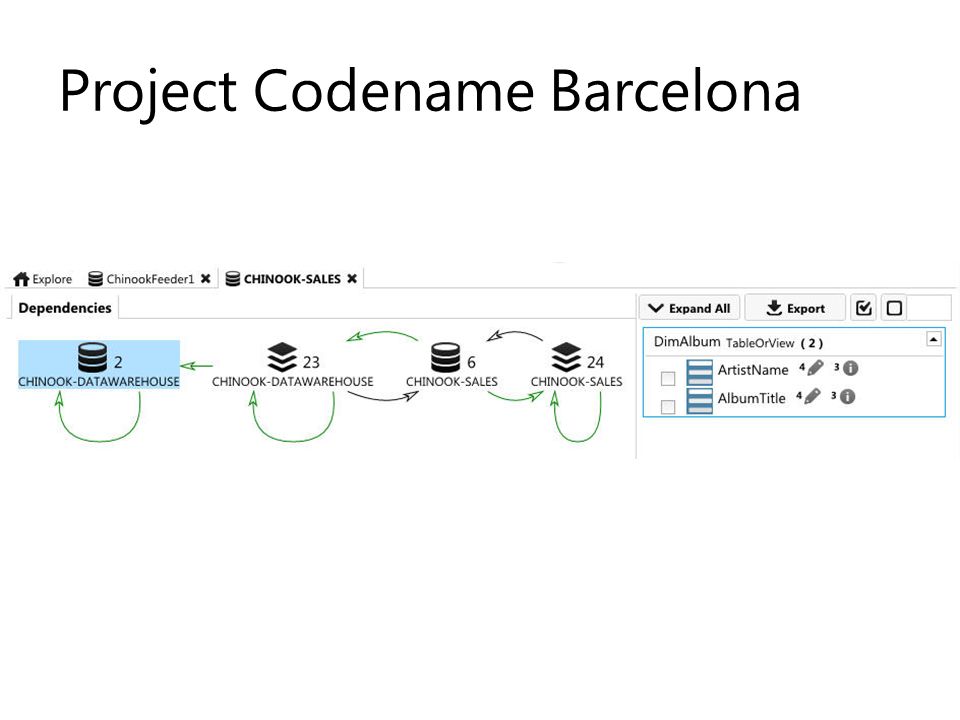

37. Project Codename Barcelona

38. Big Data Hive Linux Windows Windows Azure Java JavaScript.NET ODBC for Hive Reporting Services Excel & PowerPivot Connectors Analysis Services

39. Certifications Microsoft Certified Technical Specialist (MCTS) Microsoft Certified IT Professional (MCITP) – Data Platform 70-465: Designing Database Solutions with Microsoft SQL Server 2012 70-464: Developing Microsoft SQL Server 2012 Databases 70-463: Implementing Data Warehouses with Microsoft SQL Server 2012 70-462: Administering a Microsoft SQL Server 2012 Database 70-461: Querying Microsoft SQL Server – Business Intelligence 70-467: Designing Business Intelligence Solutions with Microsoft SQL Server 2012 70-466: Implementing Data Models & Reports with Microsoft SQL Server 2012 70-463: Implementing Data Warehouses with Microsoft SQL Server 2012 40-462: Administering a Microsoft SQL Server 2012 Database 70-461: Querying Microsoft SQL Server Microsoft Certified Master – Data Platform – Business Intelligence

40. Community Events SQL Saturday #107 – Houston, TX PASS SQL Rally – Dallas, TX Microsoft TechEd – Orlando, FL SQL Saturday #125 – Oklahoma City, OK PASS Summit – Seattle, WA

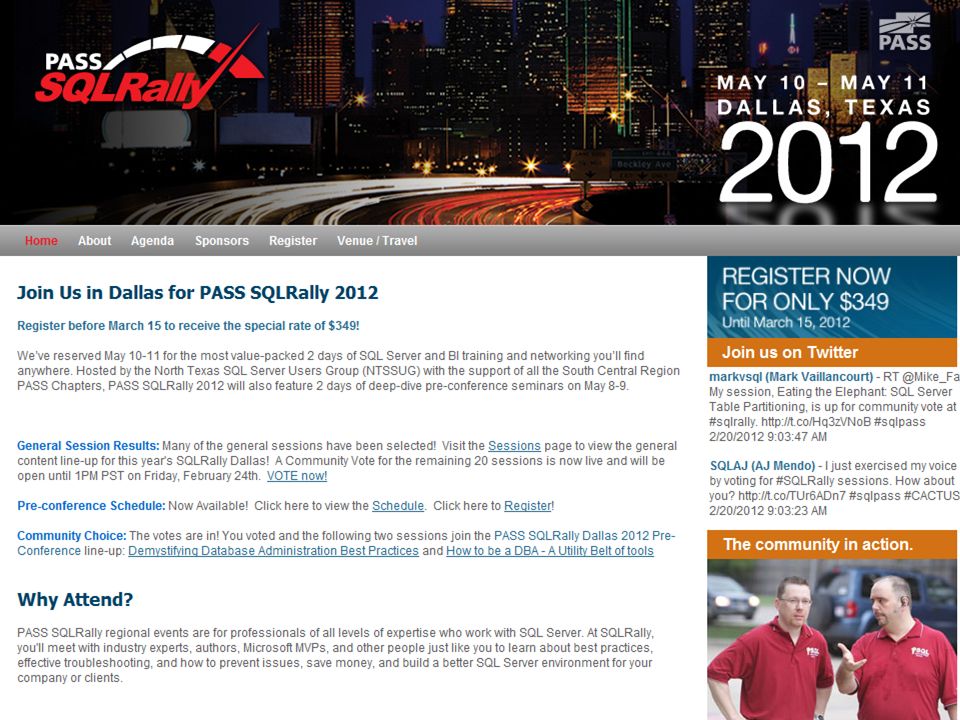

42. SQL Rally

48. PERCENT_DISC

49. PERCENTILE_DISC SQL Server 2012 SELECT DISTINCT Name as DepartmentName, PERCENTILE_DISC(0.5) WITHIN GROUP (ORDER BY Rate) OVER (PARTITION BY Name) AS Median FROM EmployeeRates; Pre-SQL Server 2012 WITH Rates AS ( SELECT Name, Rate, ROW_NUMBER() OVER ( PARTITION BY Name ORDER BY RATE) AS RowId FROM EmployeeRates ) SELECT y.Name, convert(float,y.Rate) as Rate FROM ( SELECT Name, ROUND((MAX(RowId)-1)/2 + 0.5,0) as MedianId FROM Rates GROUP BY Name ) x INNER JOIN Rates y ON x.Name = y.Name AND x.MedianId=y.RowId;

50. Multidimensional Enhancements Scale & Performance – Scalable String Storage for MOLAP – DistinctCount Performance Improvements in ROLAP Administration – Resource Usage Class for Command End & Query End Events – Locks Acquired, Locks Released & Locks Waiting Trace Events – PowerShell cmdlets for AMO Applies to both Multidimensional and Tabular deployments Development – SSDT/BIDS in Visual Studio 2010

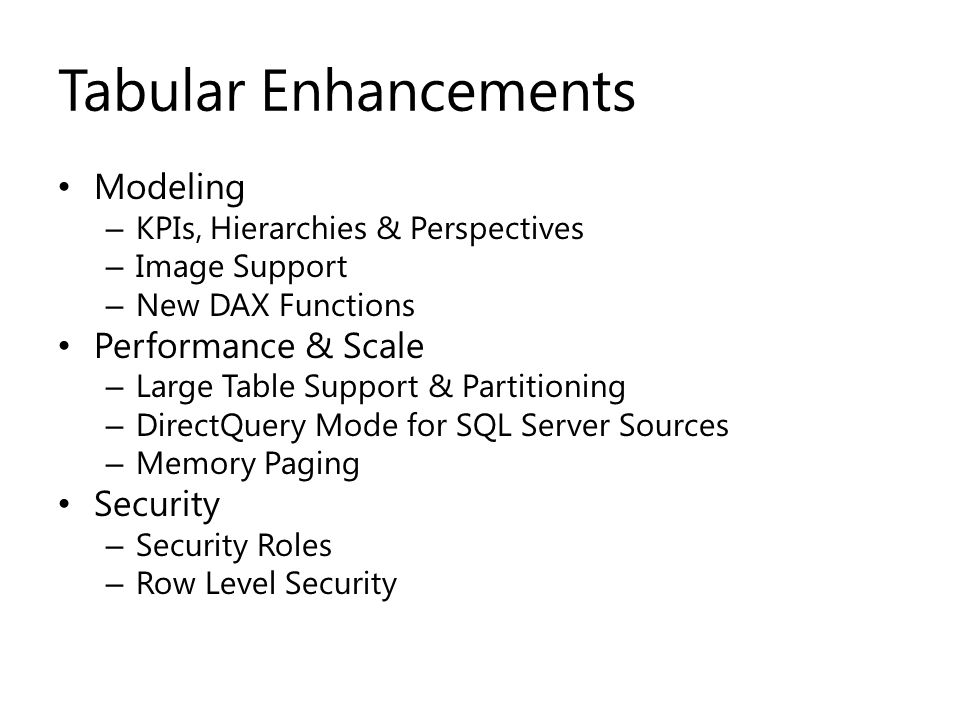

51. Tabular Enhancements Modeling – KPIs, Hierarchies & Perspectives – Image Support – New DAX Functions Performance & Scale – Large Table Support & Partitioning – DirectQuery Mode for SQL Server Sources – Memory Paging Security – Security Roles – Row Level Security

52. Tabular Enhancements Development – Enhanced Excel Add-In (PowerPivot Deployment) – SSDT/BIDS in Visual Studio 2010 (Tabular Deployment) Administration – PowerPivot Configuration Tool (PowerPivot Deployment) – Automatic Workbook Upgrade (PowerPivot Deployment) – PowerShell cmdlets for AMO (Tabular Deployment) – PowerShell for PowerPivot (PowerPivot Deployment) – SharePoint Configuration & Server Health Rules (PowerPivot Deployment) – SSMS Administration (Tabular Deployment)

53. New DAX Functions USERELATIONSHIP DISTINCTCOUNT CROSSJOIN, GENERATE & GENERATEALL TOPN, RANK.EQ & RANKX STDEV.S, STDEV.P, STDEVX.S & STDEVX.P VAR.P, VARX.S, VARX.S & VARX.P SUMMARIZE, ROW & ADDCOLUMNS LOOKUPVALUE & CONTAINS PATH, PATHCONTAINS, PATHITEM, PATHITEMREVERSE & PATHLENGTH SWITCH ALLSELECTED, ISCROSSFILTERED, ISFILTERED, HASONEVALUE, HASONEFILTER & FILTERS CURRENCY
