ServerProtect 5 for NT and NW Jennifer O. Chua January 2001 TDSC Trend Development and Support Center Source: Several ServerProtect PDF files eLearning.

ServerProtect 5 for NT and NW Jennifer O. Chua January 2001 TDSC Trend Development and Support Center Source: Several ServerProtect PDF files eLearning Level 2 by Anne Jacqueline To (TDSC) eDoctor Training Kit Version 2

Table of Contents Introduction and Installation Managing ServerProtect Configuring ServerProtect Maintaining ServerProtect Troubleshooting Frequently Asked Questions Error Codes Contacting Support and Solution Bank

Installation and Deployment

Three-Tier Architecture

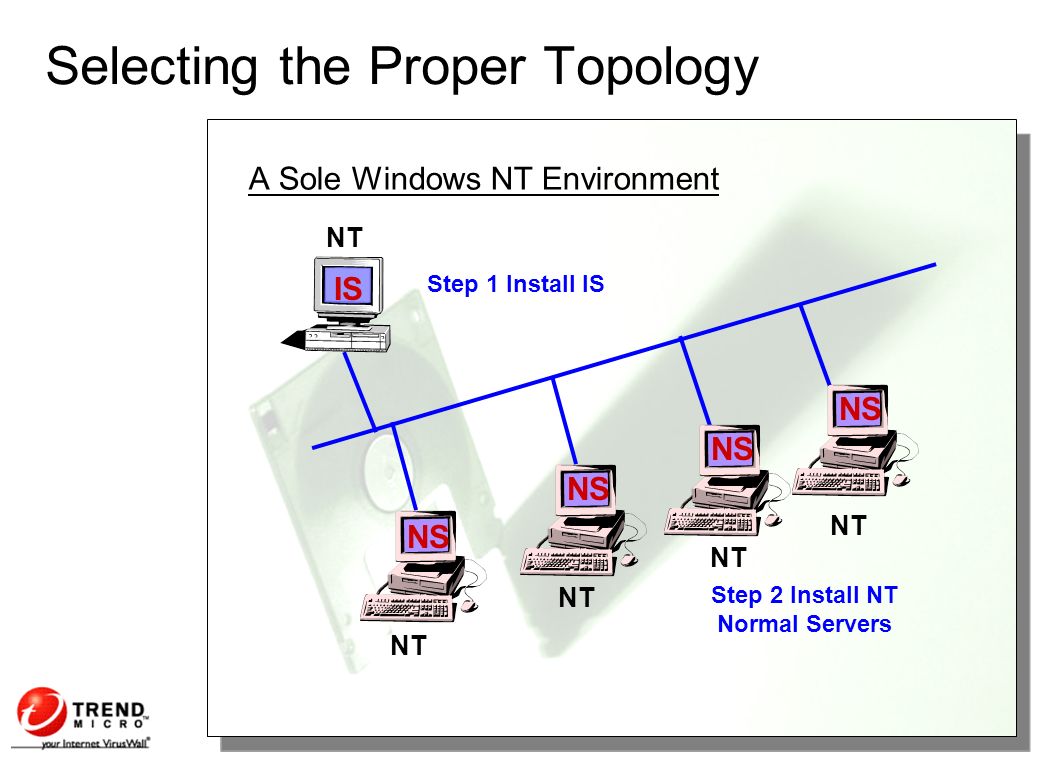

Selecting the Proper Topology A Sole Windows NT Environment NT Step 1 Install IS Step 2 Install NT Normal Servers IS NS

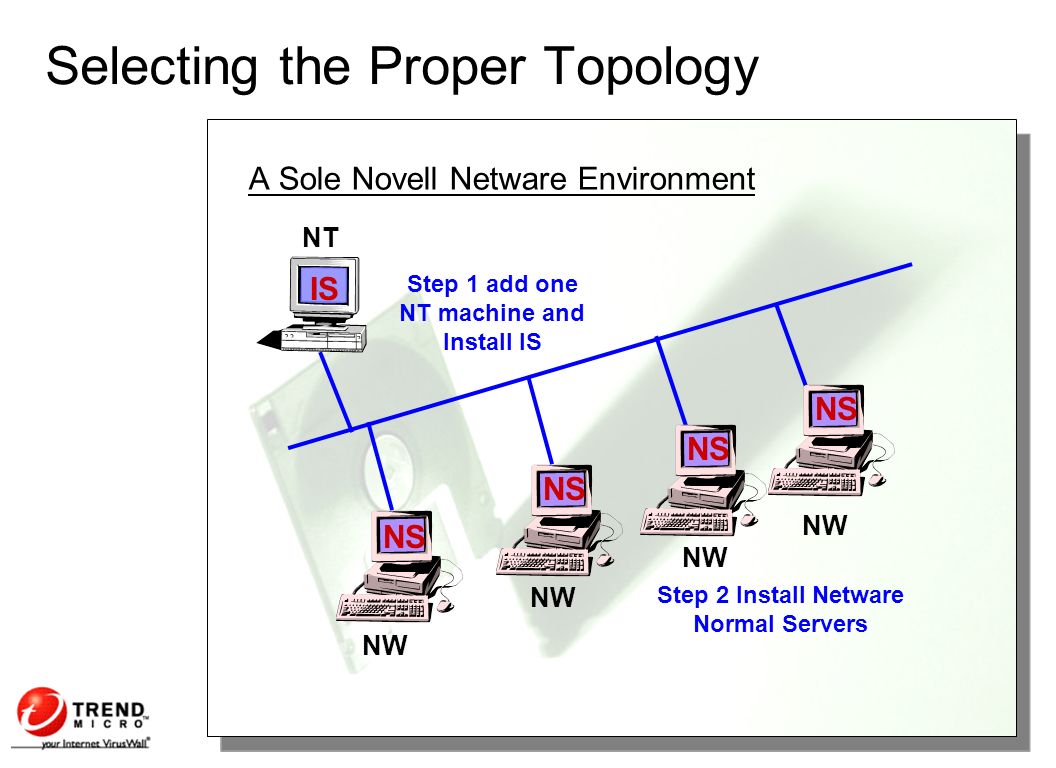

Selecting the Proper Topology A Sole Novell Netware Environment NW Step 1 add one NT machine and Install IS Step 2 Install Netware Normal Servers NT IS NS

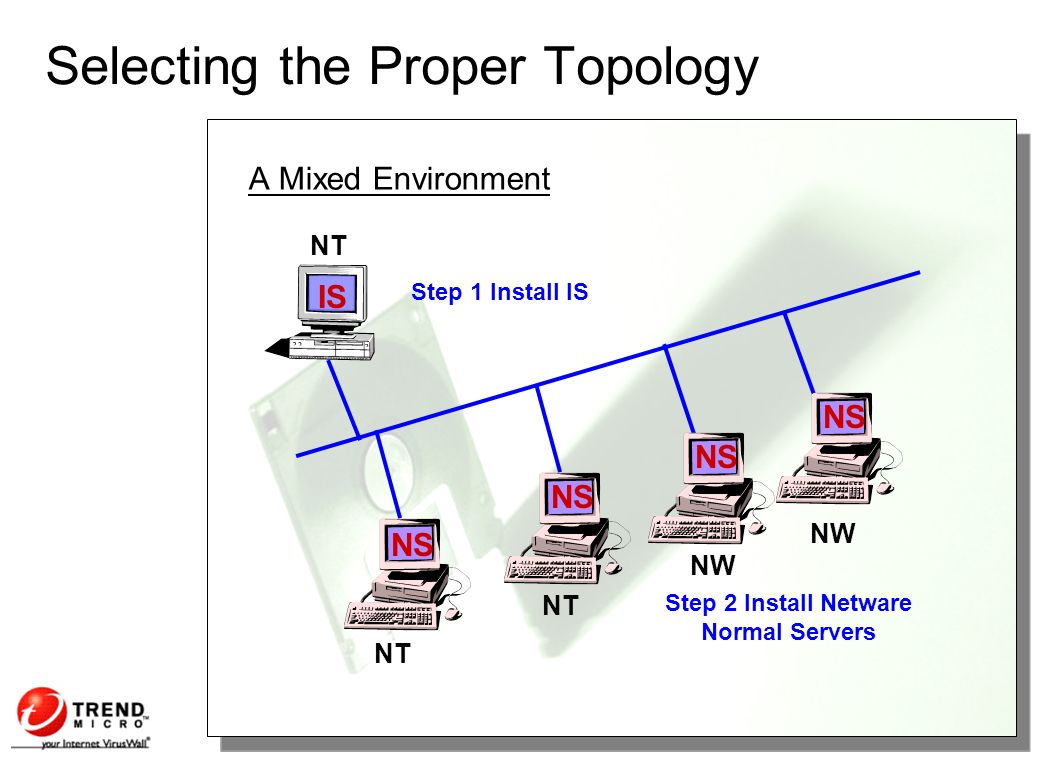

Selecting the Proper Topology A Mixed Environment NT NW Step 1 Install IS Step 2 Install Netware Normal Servers IS NS

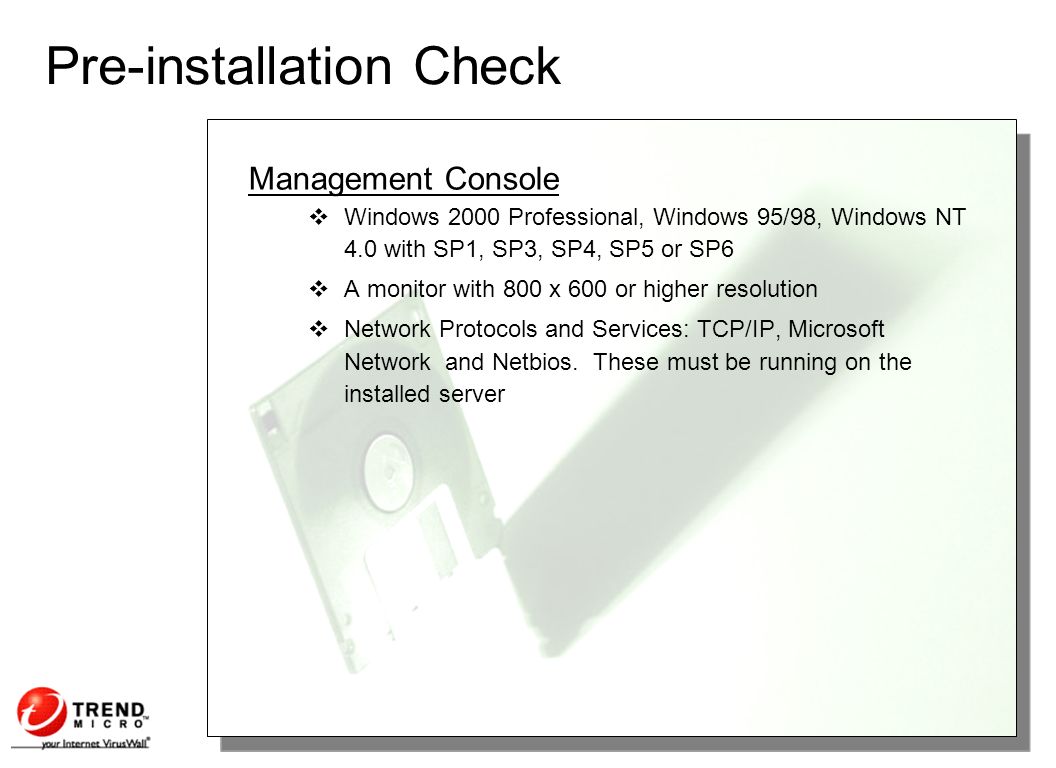

Pre-installation Check Management Console  Windows 2000 Professional, Windows 95/98, Windows NT 4.0 with SP1, SP3, SP4, SP5 or SP6  A monitor with 800 x 600 or higher resolution  Network Protocols and Services: TCP/IP, Microsoft Network and Netbios. These must be running on the installed server

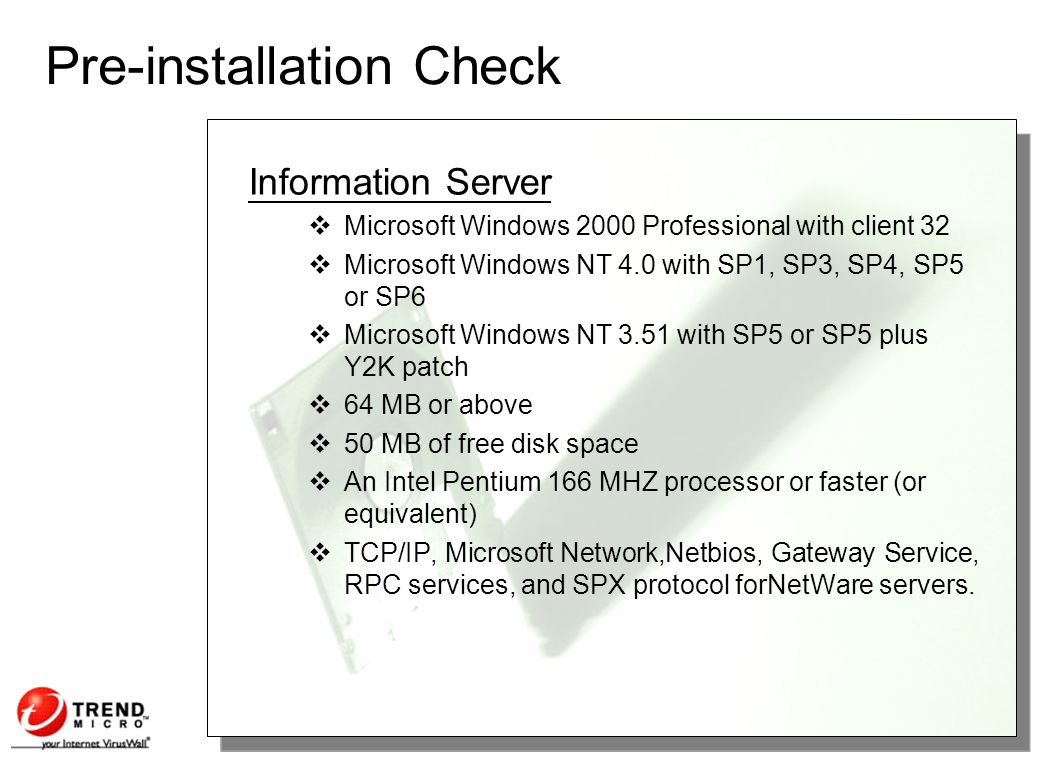

Pre-installation Check Information Server  Microsoft Windows 2000 Professional with client 32  Microsoft Windows NT 4.0 with SP1, SP3, SP4, SP5 or SP6  Microsoft Windows NT 3.51 with SP5 or SP5 plus Y2K patch  64 MB or above  50 MB of free disk space  An Intel Pentium 166 MHZ processor or faster (or equivalent)  TCP/IP, Microsoft Network,Netbios, Gateway Service, RPC services, and SPX protocol forNetWare servers.

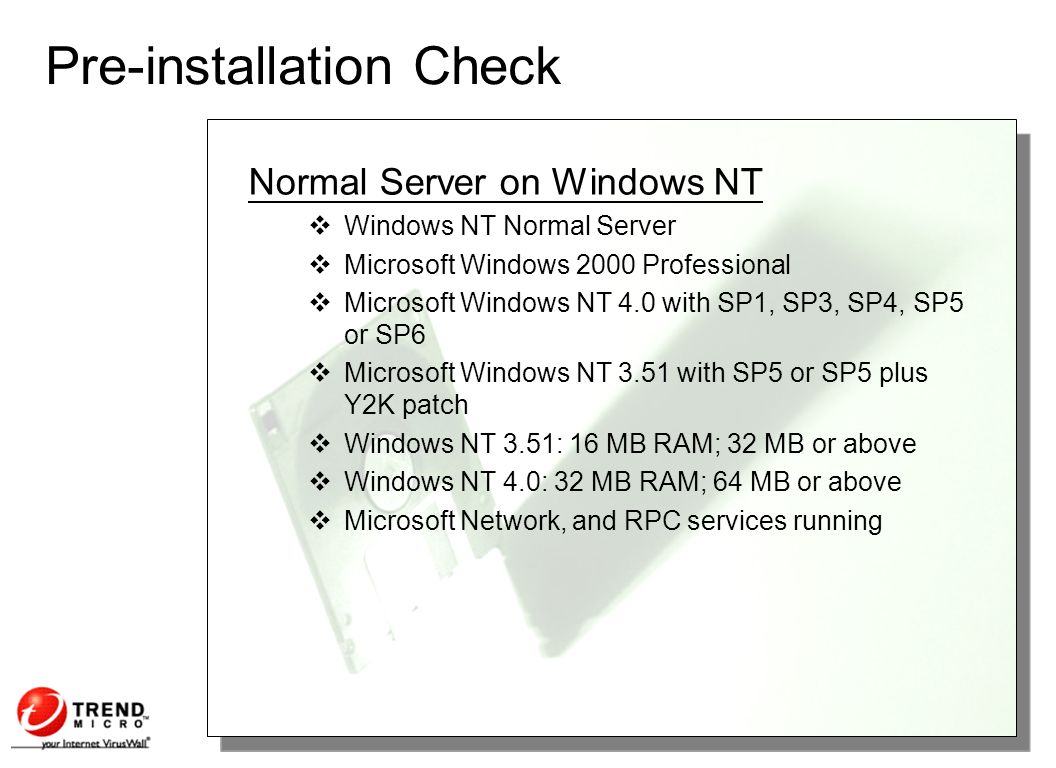

Pre-installation Check Normal Server on Windows NT  Windows NT Normal Server  Microsoft Windows 2000 Professional  Microsoft Windows NT 4.0 with SP1, SP3, SP4, SP5 or SP6  Microsoft Windows NT 3.51 with SP5 or SP5 plus Y2K patch  Windows NT 3.51: 16 MB RAM; 32 MB or above  Windows NT 4.0: 32 MB RAM; 64 MB or above  Microsoft Network, and RPC services running

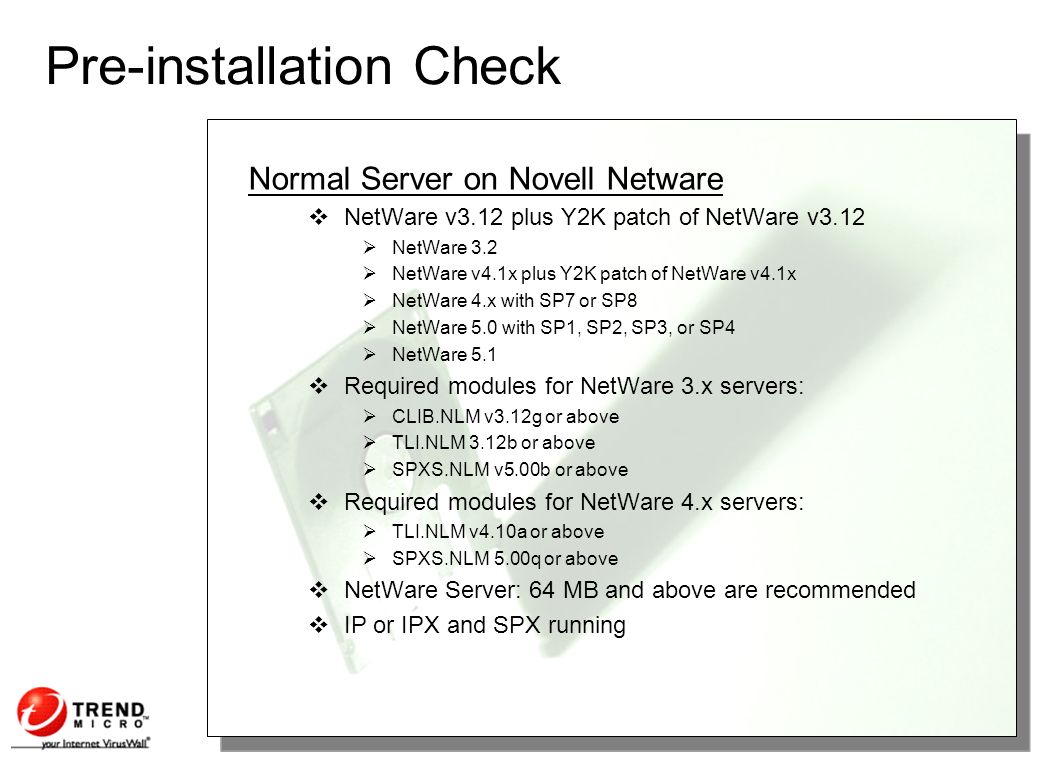

Pre-installation Check Normal Server on Novell Netware  NetWare v3.12 plus Y2K patch of NetWare v3.12  NetWare 3.2  NetWare v4.1x plus Y2K patch of NetWare v4.1x  NetWare 4.x with SP7 or SP8  NetWare 5.0 with SP1, SP2, SP3, or SP4  NetWare 5.1  Required modules for NetWare 3.x servers:  CLIB.NLM v3.12g or above  TLI.NLM 3.12b or above  SPXS.NLM v5.00b or above  Required modules for NetWare 4.x servers:  TLI.NLM v4.10a or above  SPXS.NLM 5.00q or above  NetWare Server: 64 MB and above are recommended  IP or IPX and SPX running

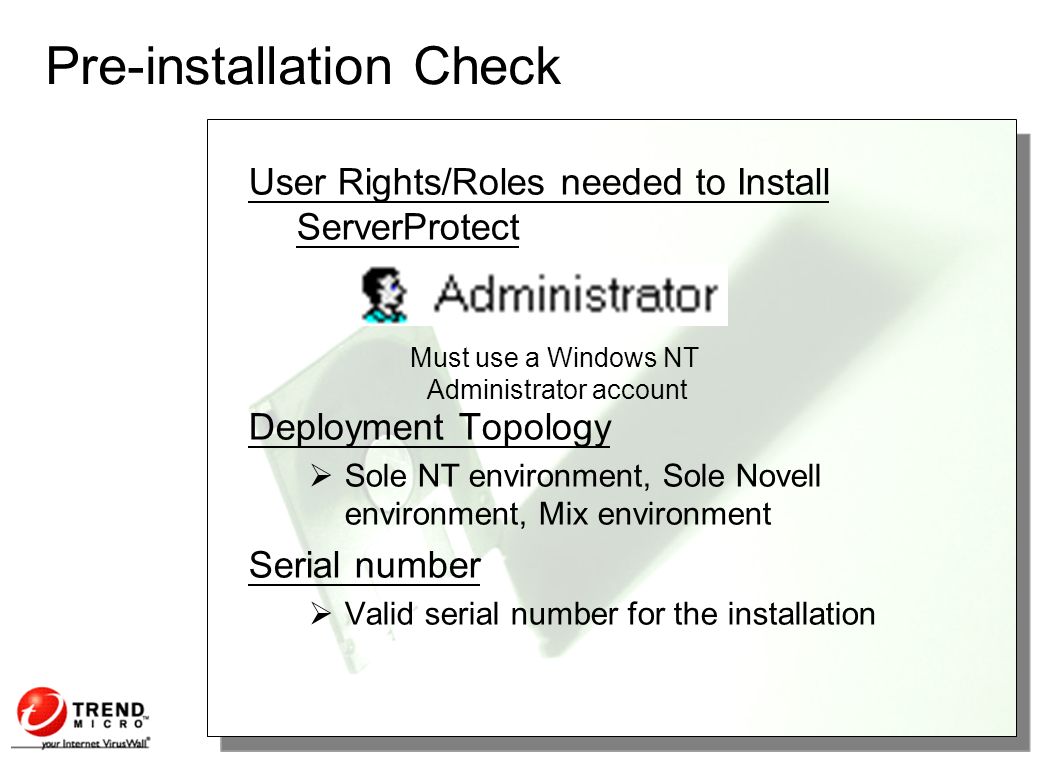

Pre-installation Check User Rights/Roles needed to Install ServerProtect Deployment Topology  Sole NT environment, Sole Novell environment, Mix environment Serial number  Valid serial number for the installation Must use a Windows NT Administrator account

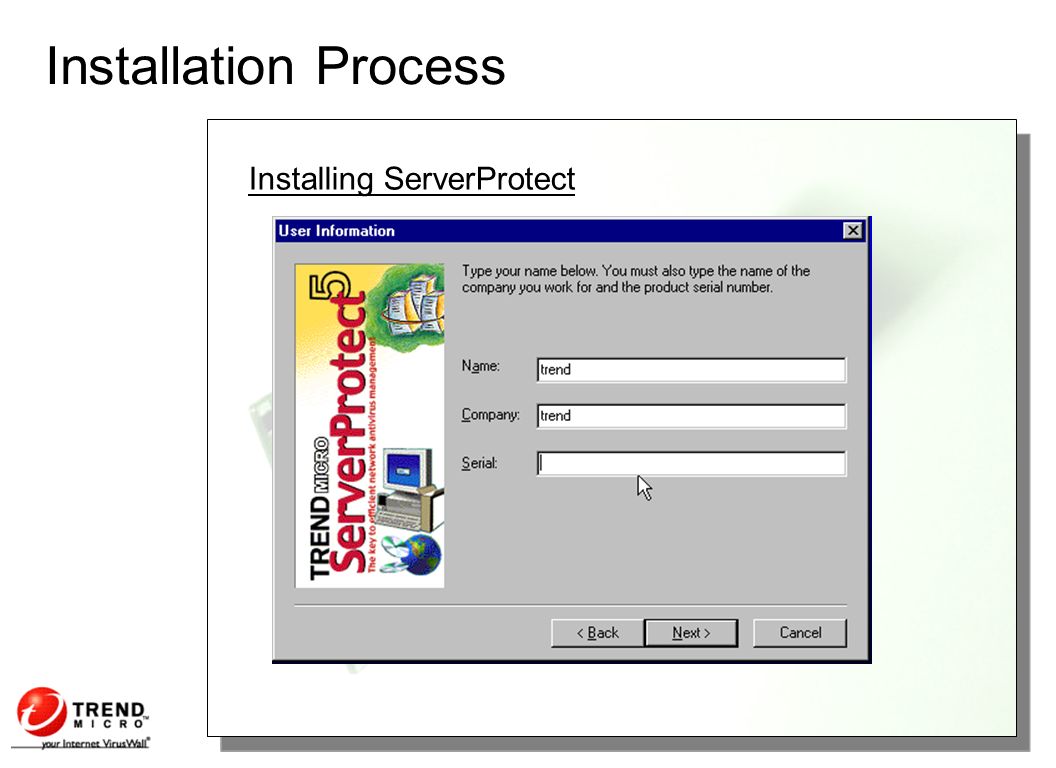

Installation Process Installing ServerProtect

Installation Process Installing a Full Set of ServerProtect

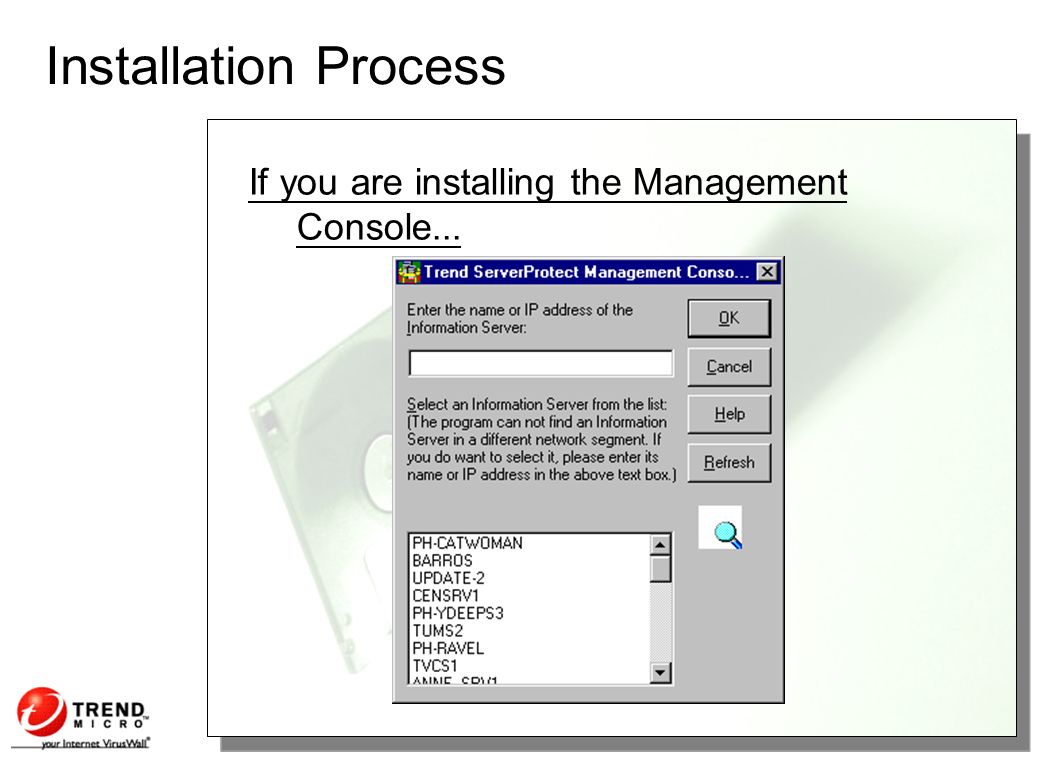

Installation Process If you are installing the Management Console...

Installation Process If you are installing an Information Server...

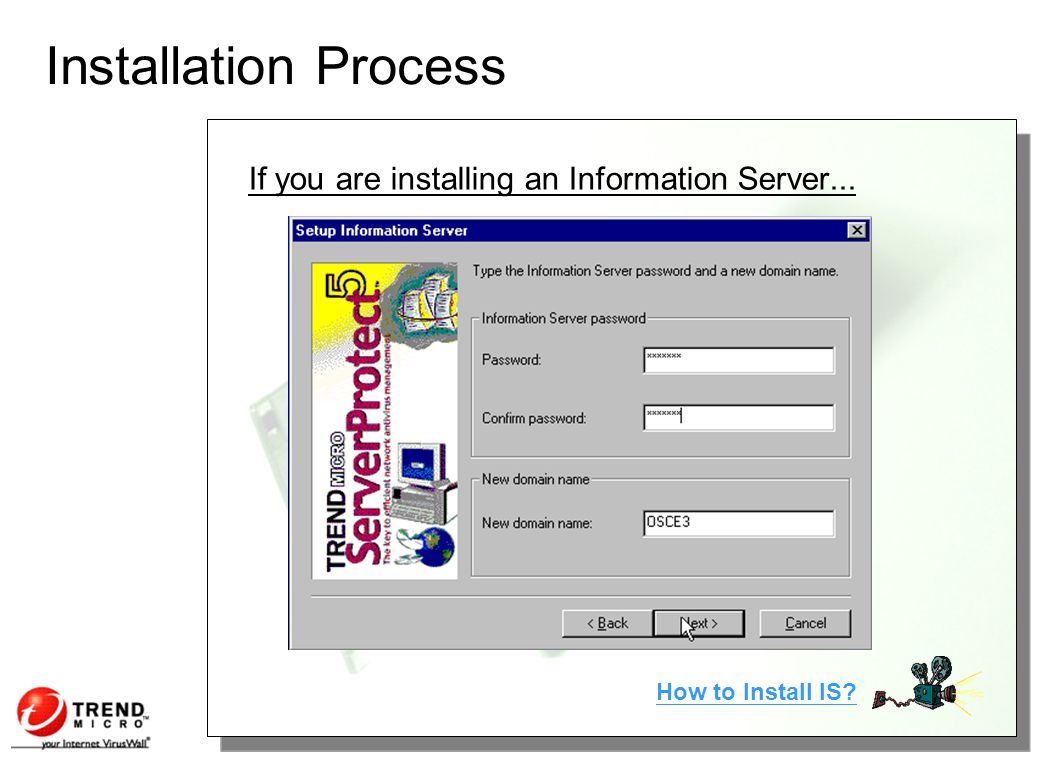

Installation Process If you are installing an Information Server... How to Install IS?

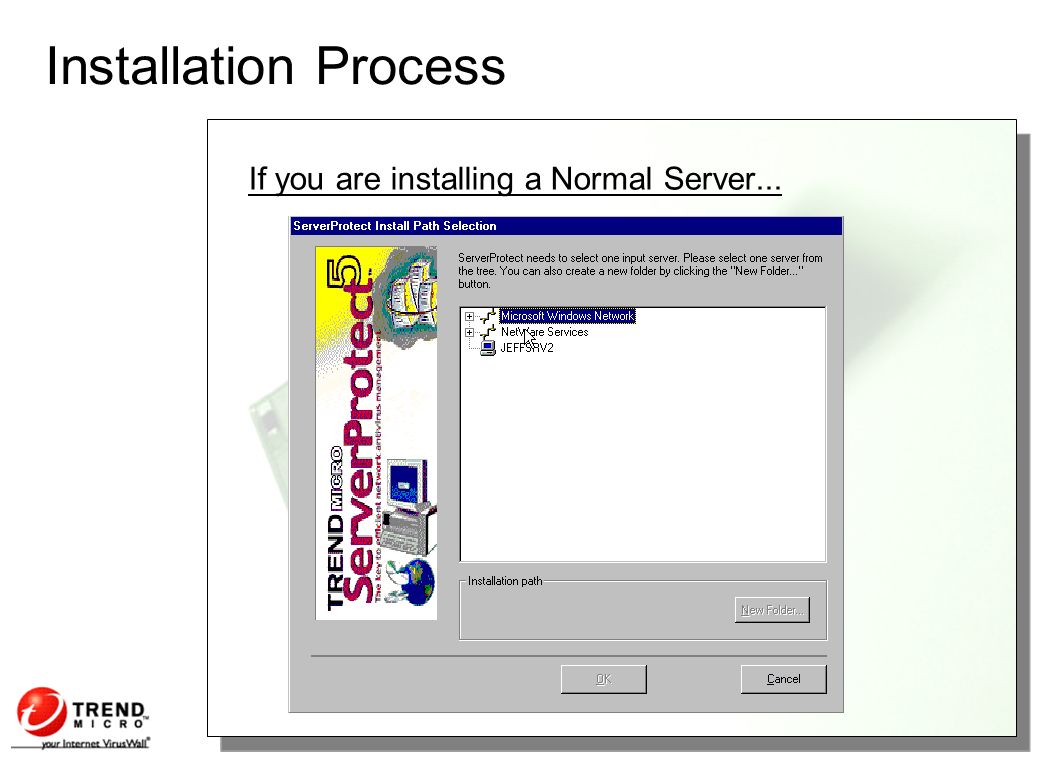

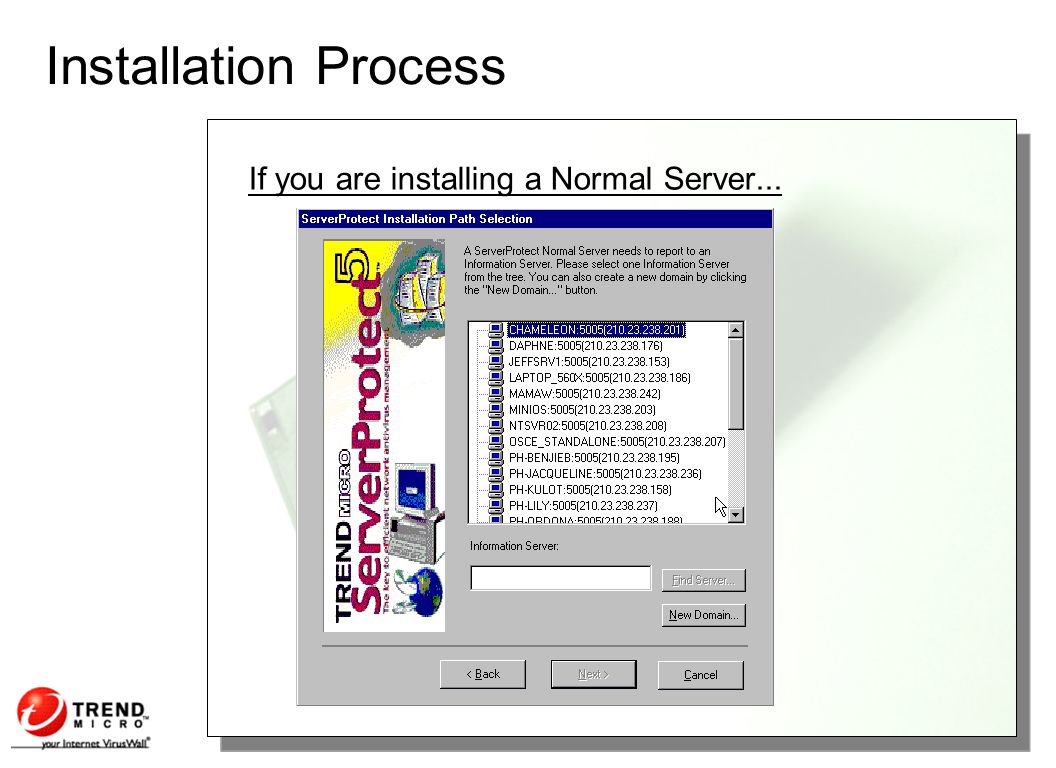

Installation Process If you are installing a Normal Server...

Installation Process If you are installing a Normal Server... If the to-be installed Normal Server runs Novell NetWare Installing an NT Normal Server via the Setup program Installing a NW Normal Server in a Pure TCP/IP setup Installing a NW Normal Server in a IPX/SPX setup

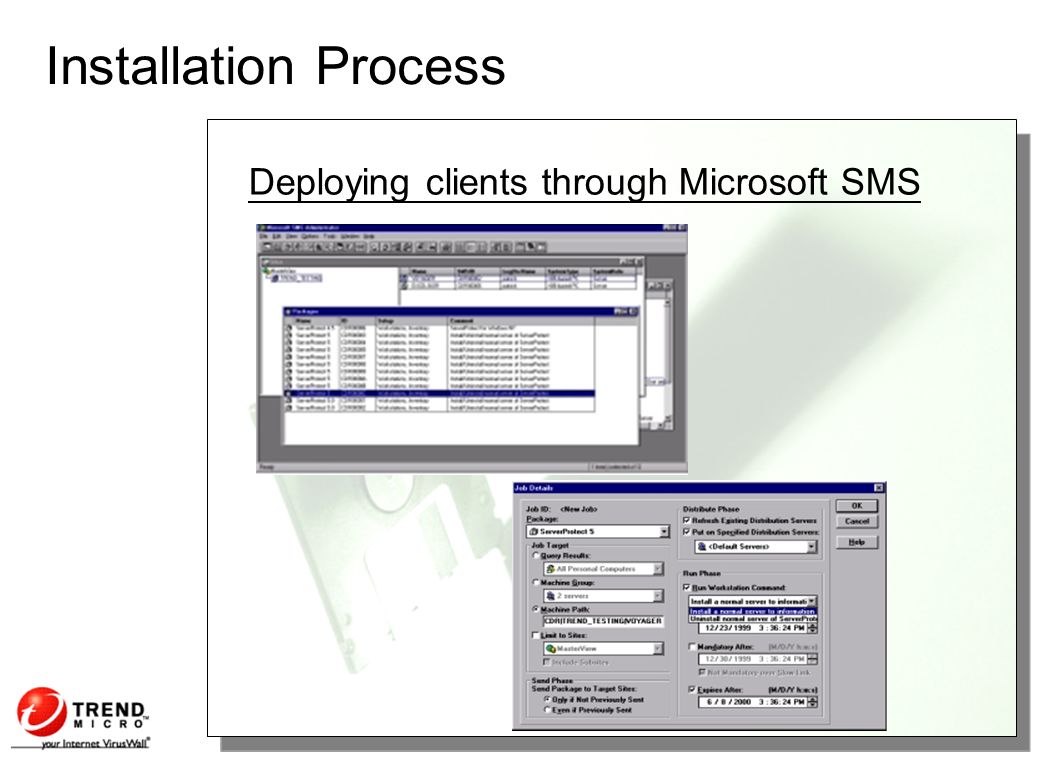

Installation Process Deploying clients through Microsoft SMS

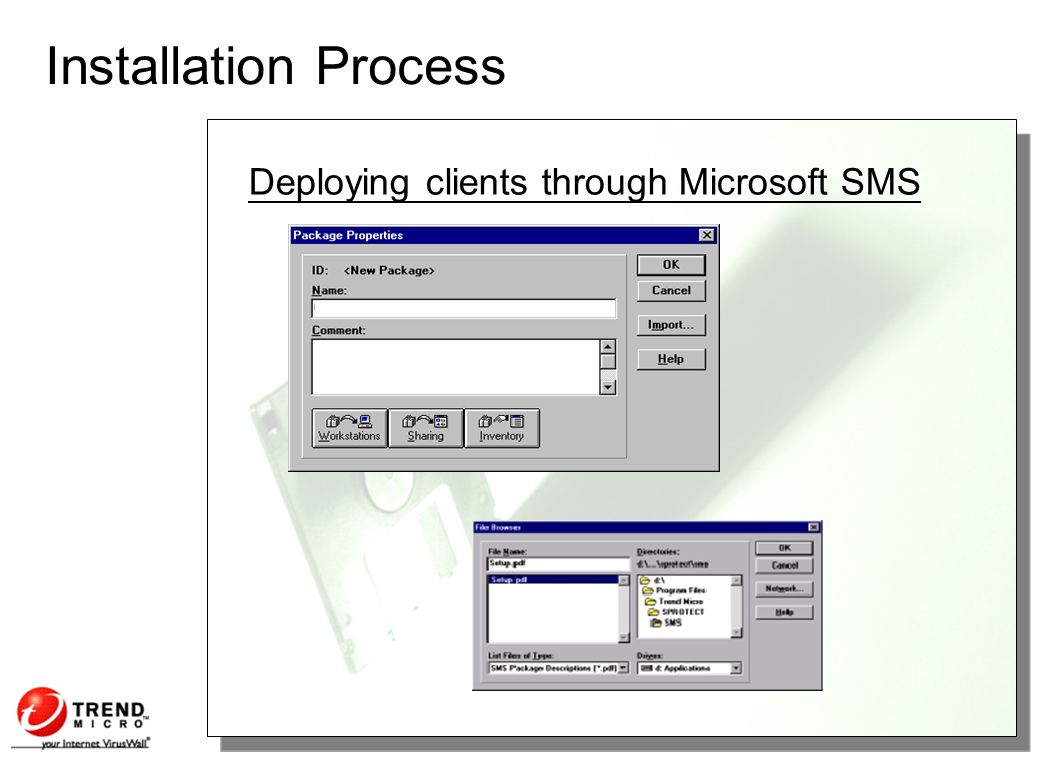

Installation Process Deploying clients through Microsoft SMS Install/Uninstall normal server of ServerProtect ServerProtect 5

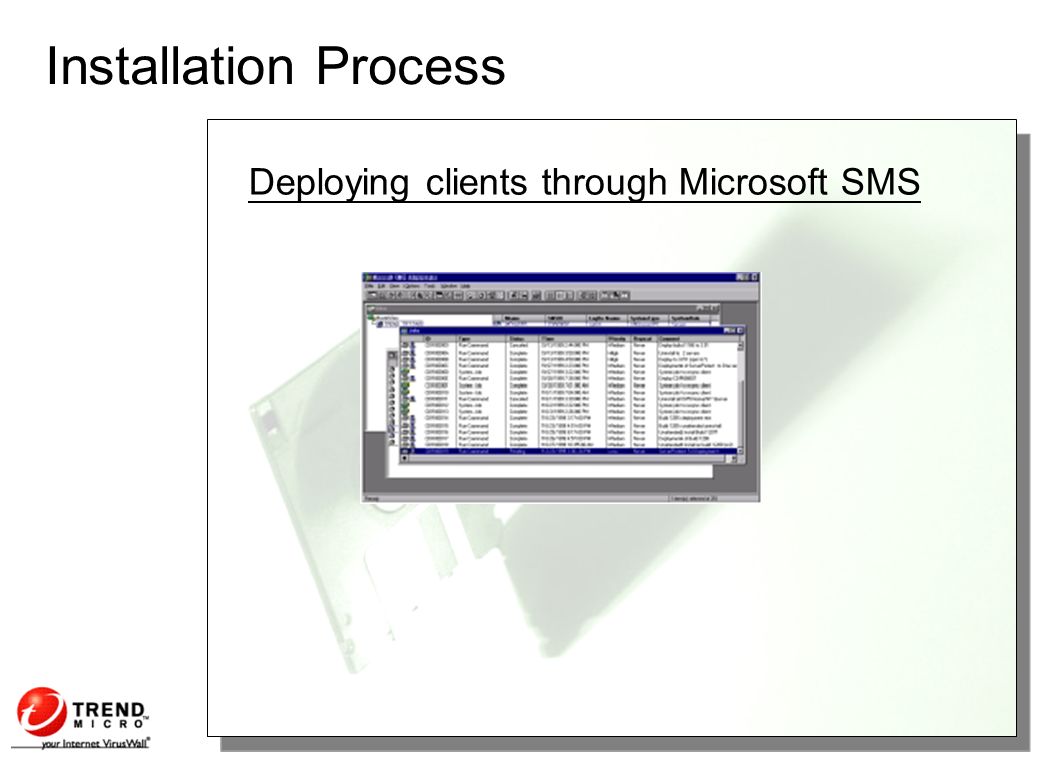

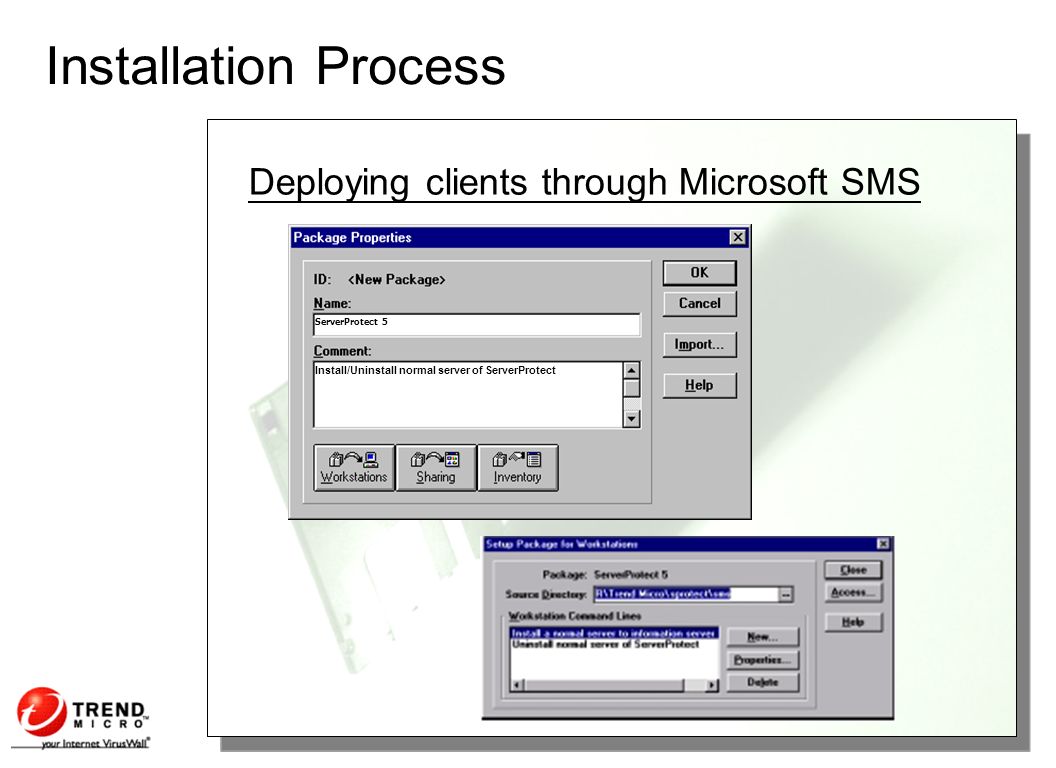

Installation Process Deploying clients through Microsoft SMS

After Installation… … a program group entry for the Management Console will be created

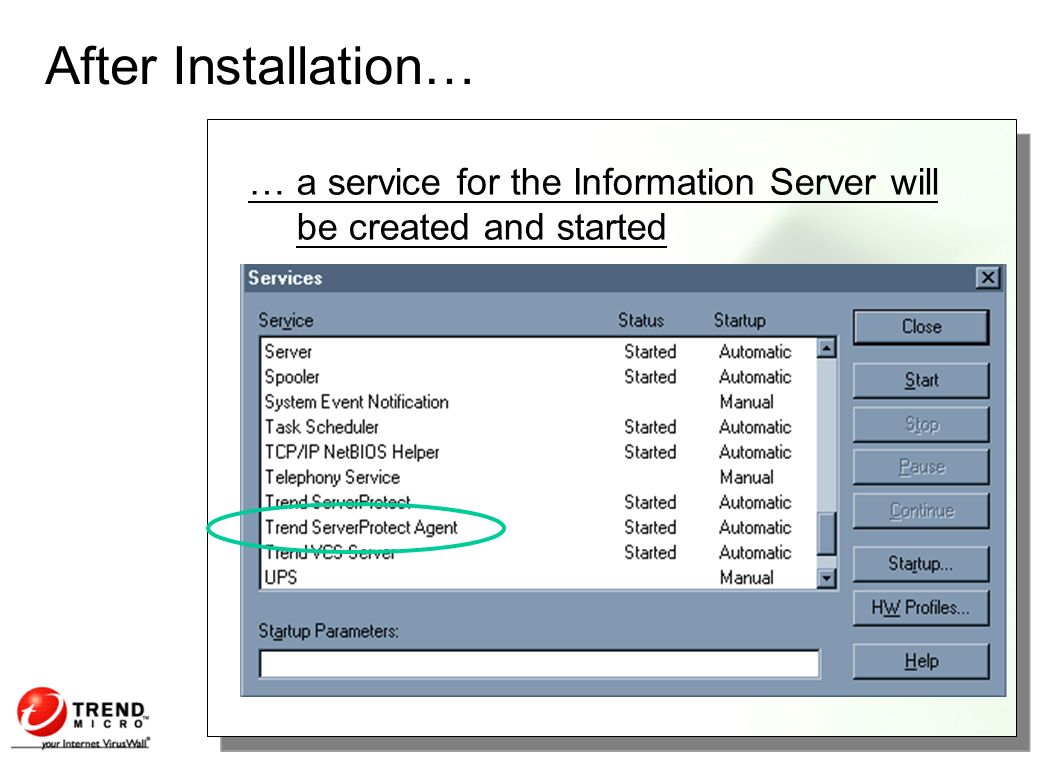

After Installation… … a service for the Information Server will be created and started

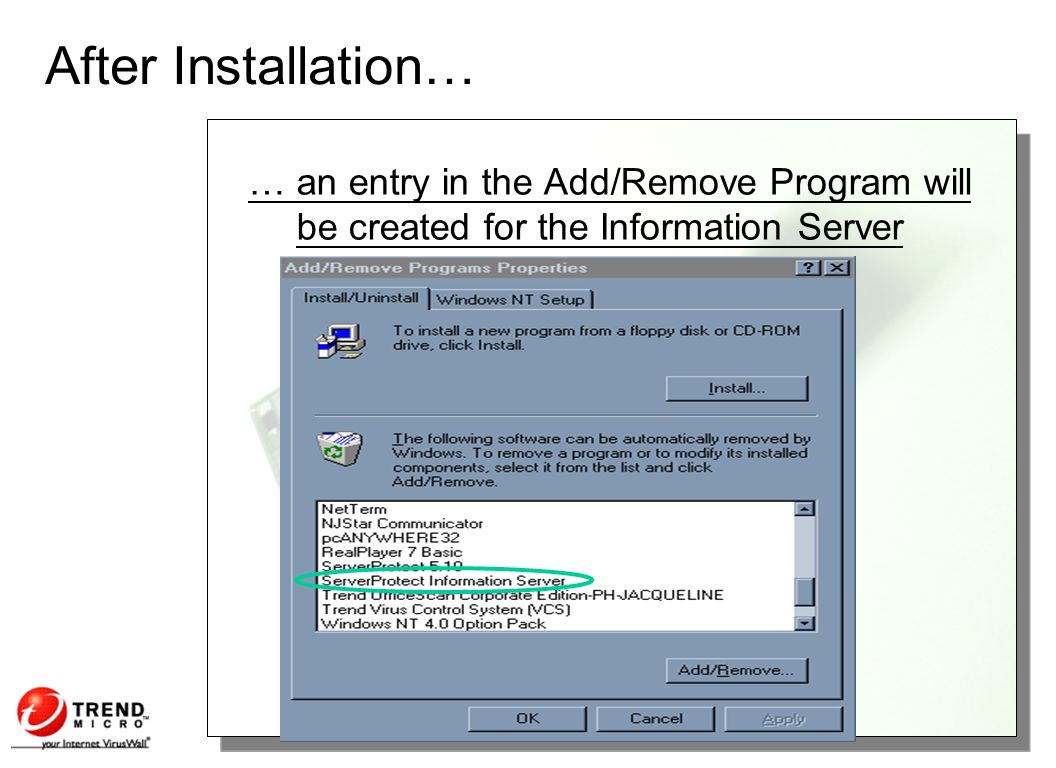

After Installation… … an entry in the Add/Remove Program will be created for the Information Server

After Installation… … a service for the Normal Server will be created and started

After Installation… … an entry in the Add/Remove Program will be created for the Normal Server

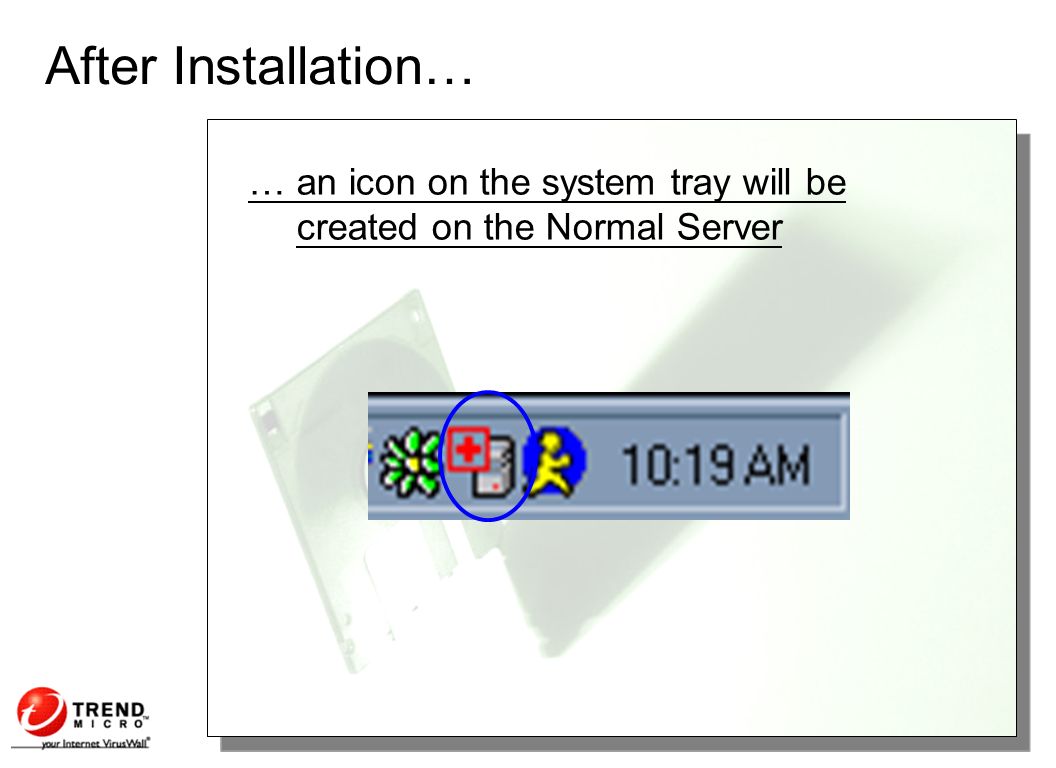

After Installation… … an icon on the system tray will be created on the Normal Server

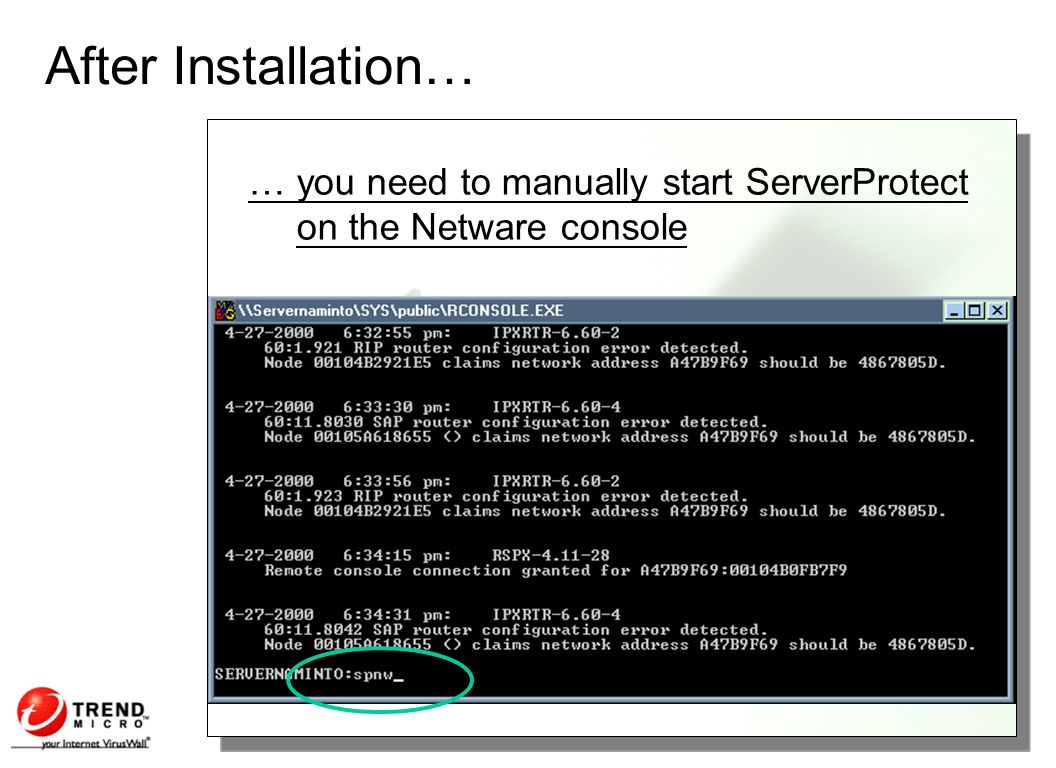

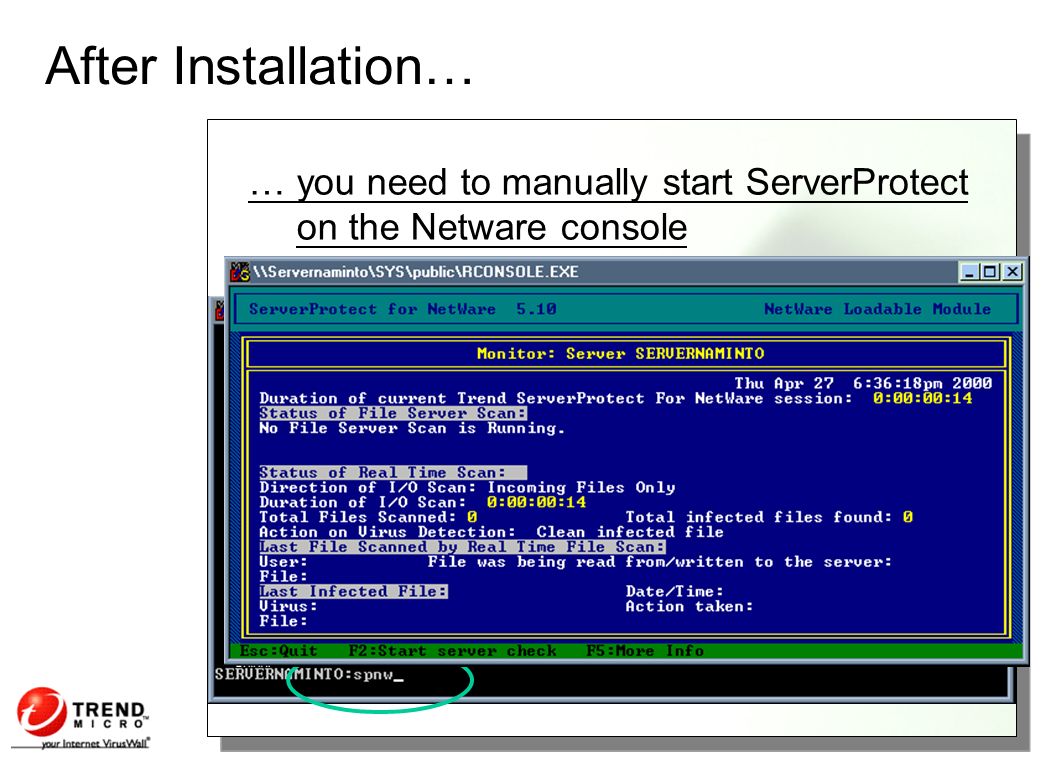

After Installation… … you need to manually start ServerProtect on the Netware console

Upgrading ServerProtect

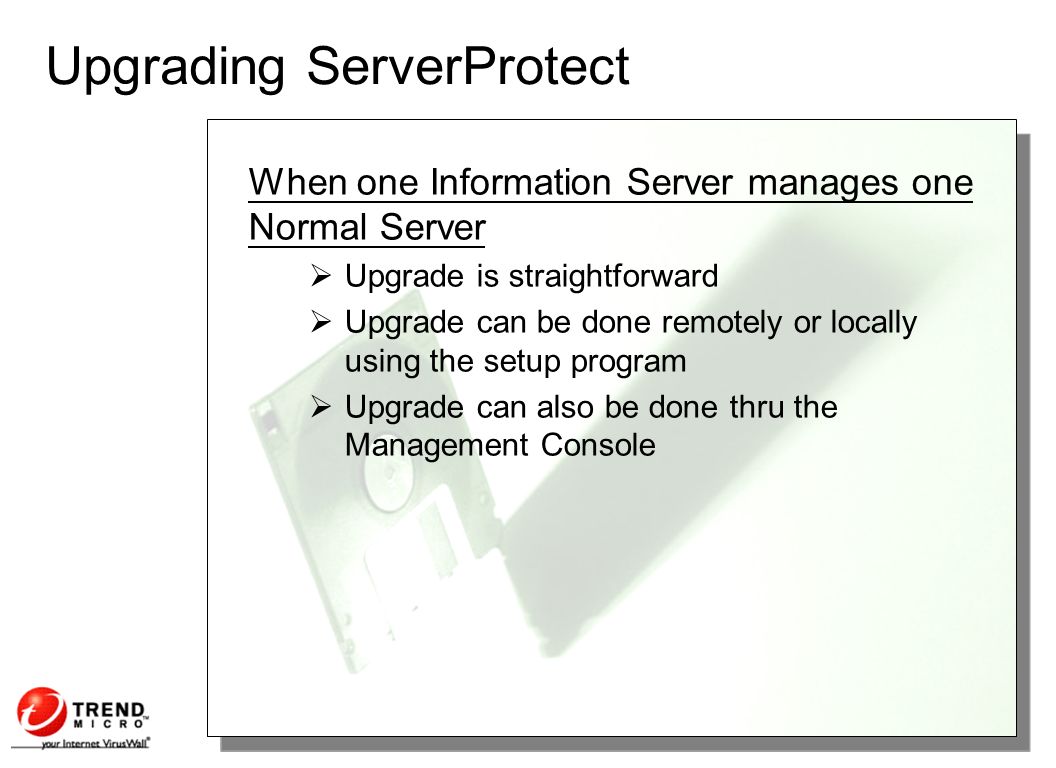

When one Information Server manages one Normal Server  Upgrade is straightforward  Upgrade can be done remotely or locally using the setup program  Upgrade can also be done thru the Management Console

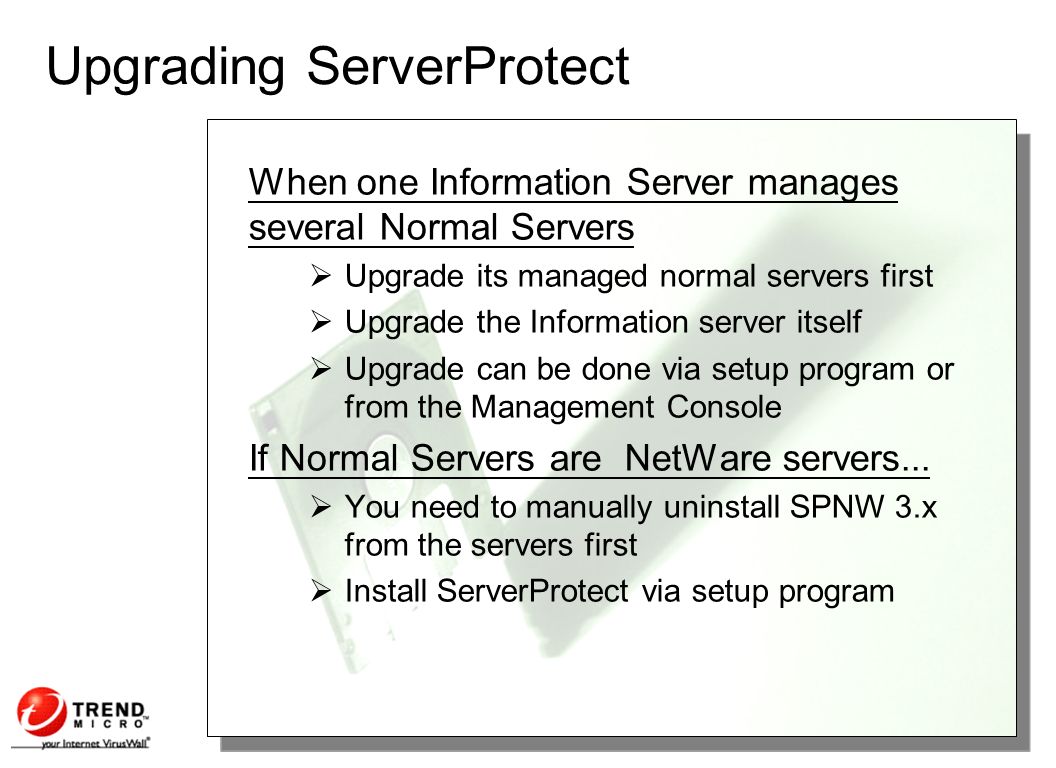

Upgrading ServerProtect When one Information Server manages several Normal Servers  Upgrade its managed normal servers first  Upgrade the Information server itself  Upgrade can be done via setup program or from the Management Console If Normal Servers are NetWare servers...  You need to manually uninstall SPNW 3.x from the servers first  Install ServerProtect via setup program

Upgrading ServerProtect When several Information Servers manage groups of Normal Servers on the network  Upgrade is similar as having one Information Server  Upgrade the Information Server with its associated Normal Server at one time  Upgrade the other Information Servers  Upgrade can be done via setup program or from the Management Console  It is recommended that you upgrade from the Management Console

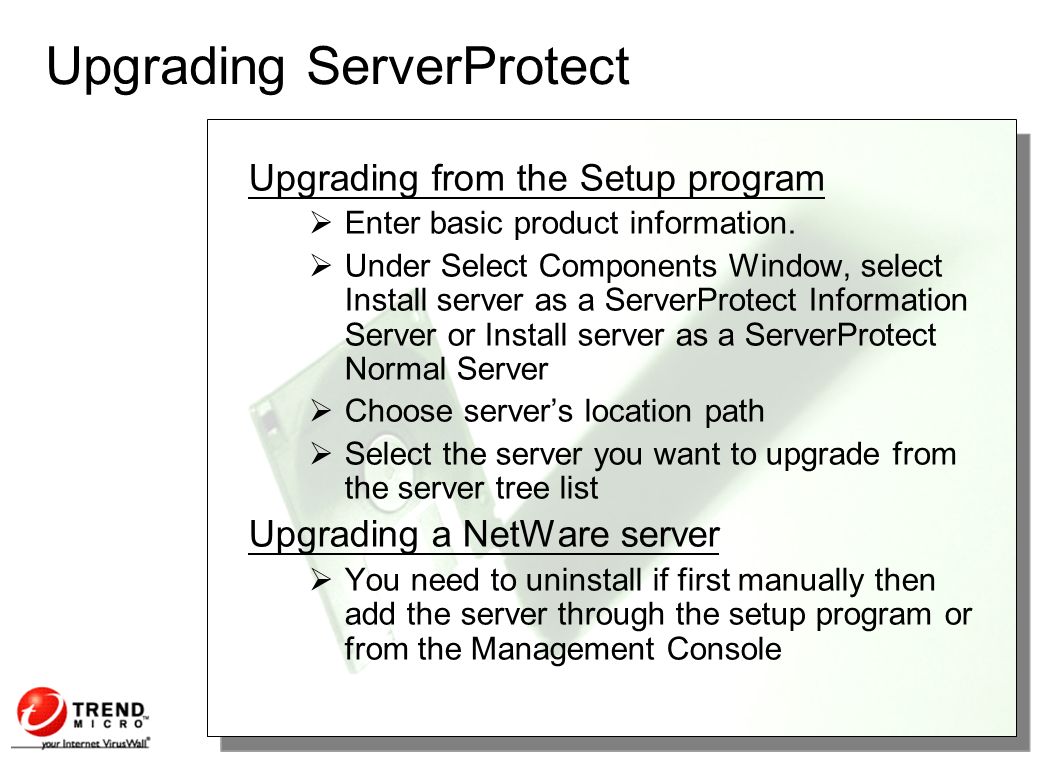

Upgrading ServerProtect Upgrading from the Setup program  Enter basic product information.  Under Select Components Window, select Install server as a ServerProtect Information Server or Install server as a ServerProtect Normal Server  Choose server’s location path  Select the server you want to upgrade from the server tree list Upgrading a NetWare server  You need to uninstall if first manually then add the server through the setup program or from the Management Console

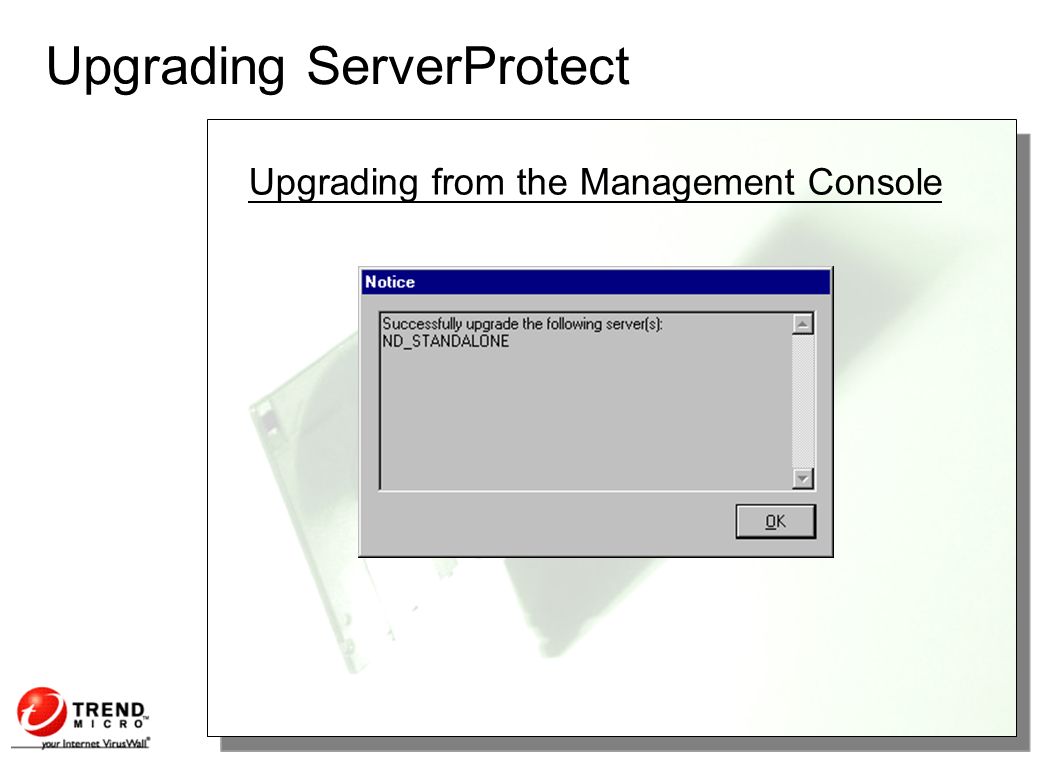

Upgrading ServerProtect Upgrading from the Management Console

Converting ServerProtect Trial Version

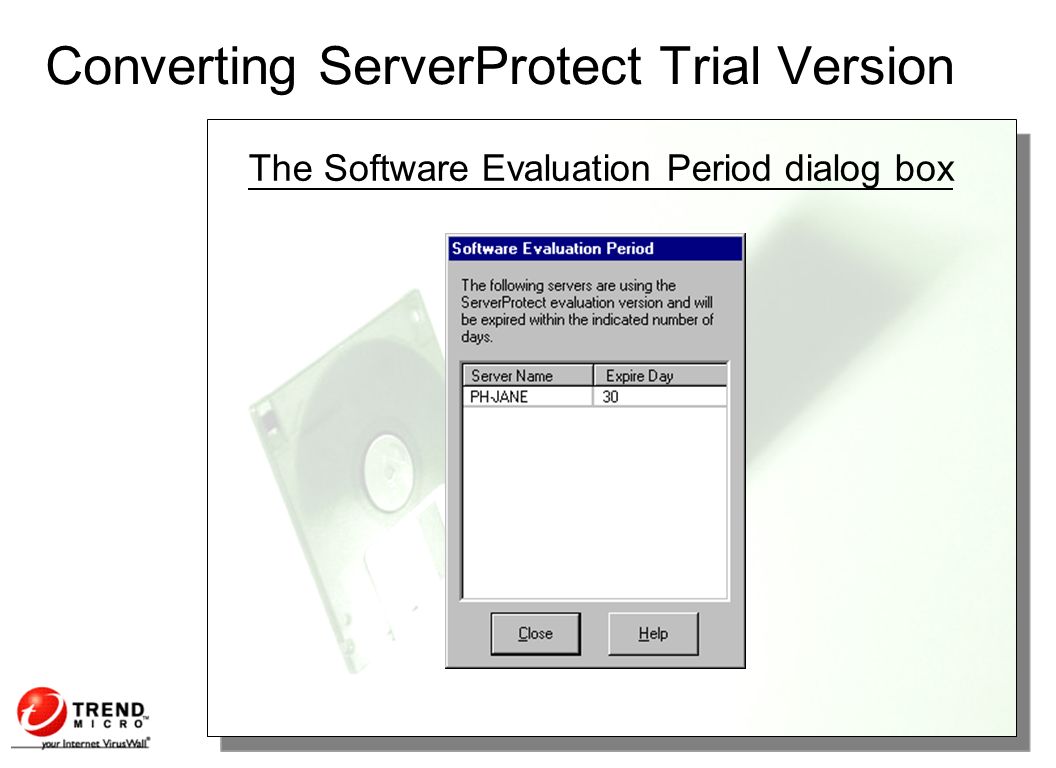

The Software Evaluation Period dialog box

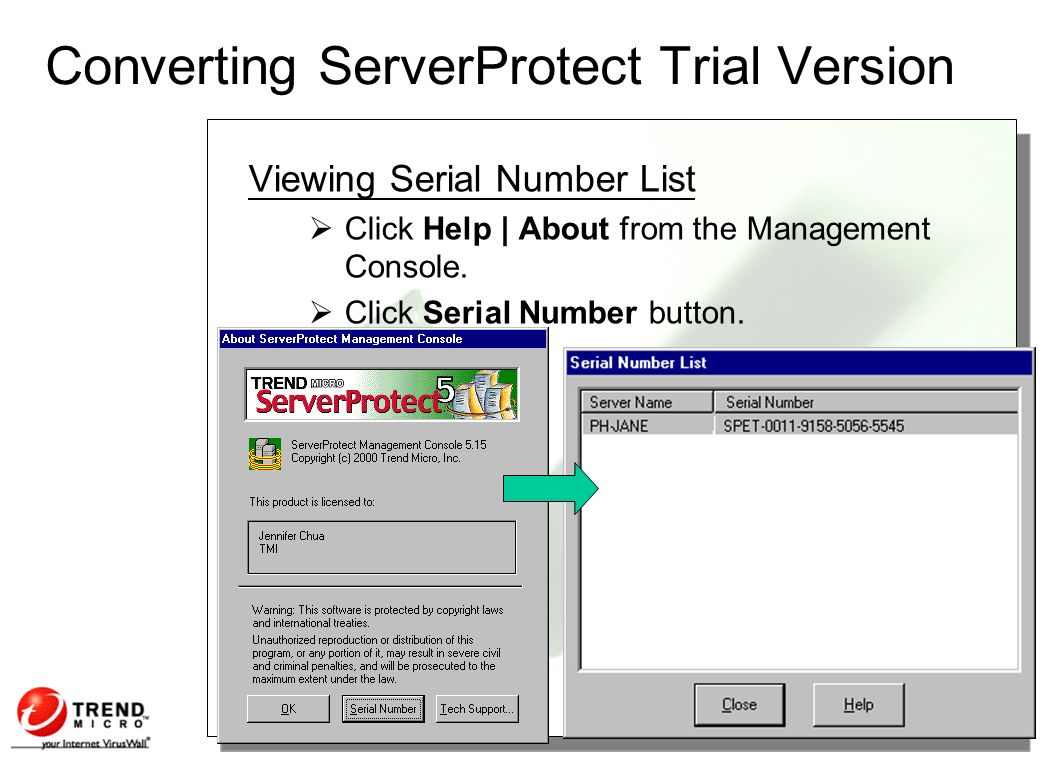

Viewing Serial Number List  Click Help | About from the Management Console.  Click Serial Number button. Converting ServerProtect Trial Version

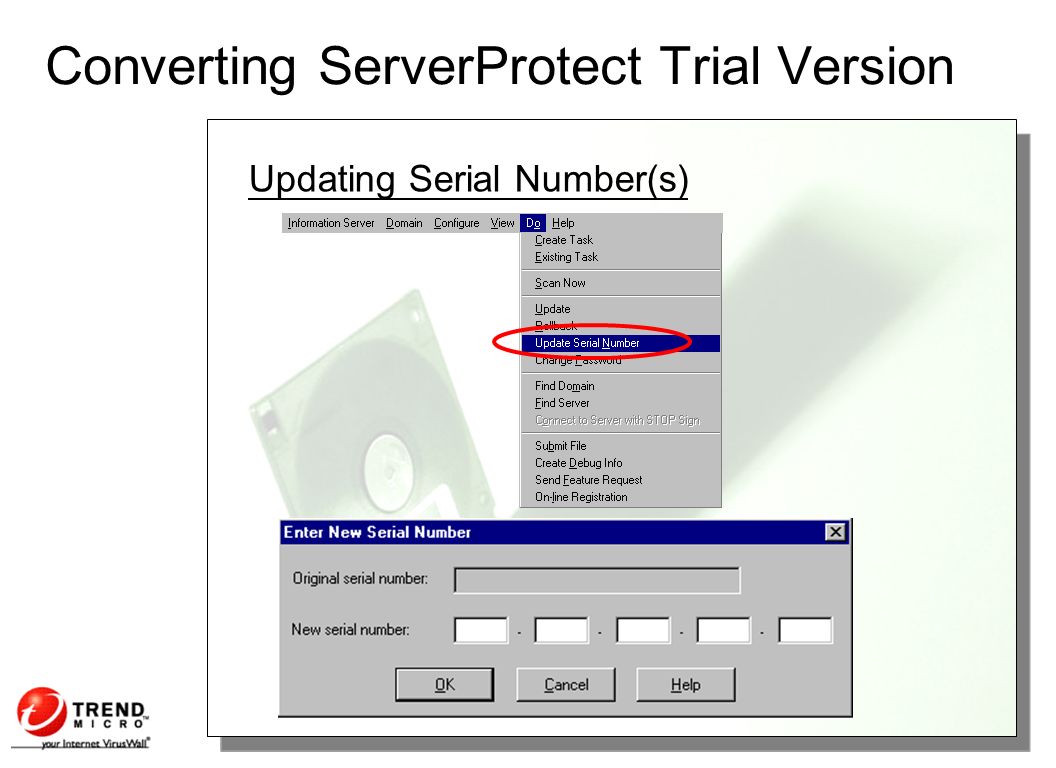

Updating Serial Number(s)

Uninstalling ServerProtect

Uninstalling the Normal Server Service For Windows 2000/Windows NT 4.0  Remotely from the Management Console  Multi-select servers from the console  Select Domain | Uninstall ServerProtect  All selected servers will be remotely uninstalled  Locally from the Add/Remove program How to remotely uninstall NS? How to locally uninstall NS?

Uninstalling the Normal Server Service For Windows NT 3.51  Remotely from the Management Console  Multi-select servers from the console  Select Domain | Uninstall ServerProtect  All selected servers will be remotely uninstalled  Locally from the Windows NT command prompt  "c:\program files\trend\sprotect\SpUninst" NT

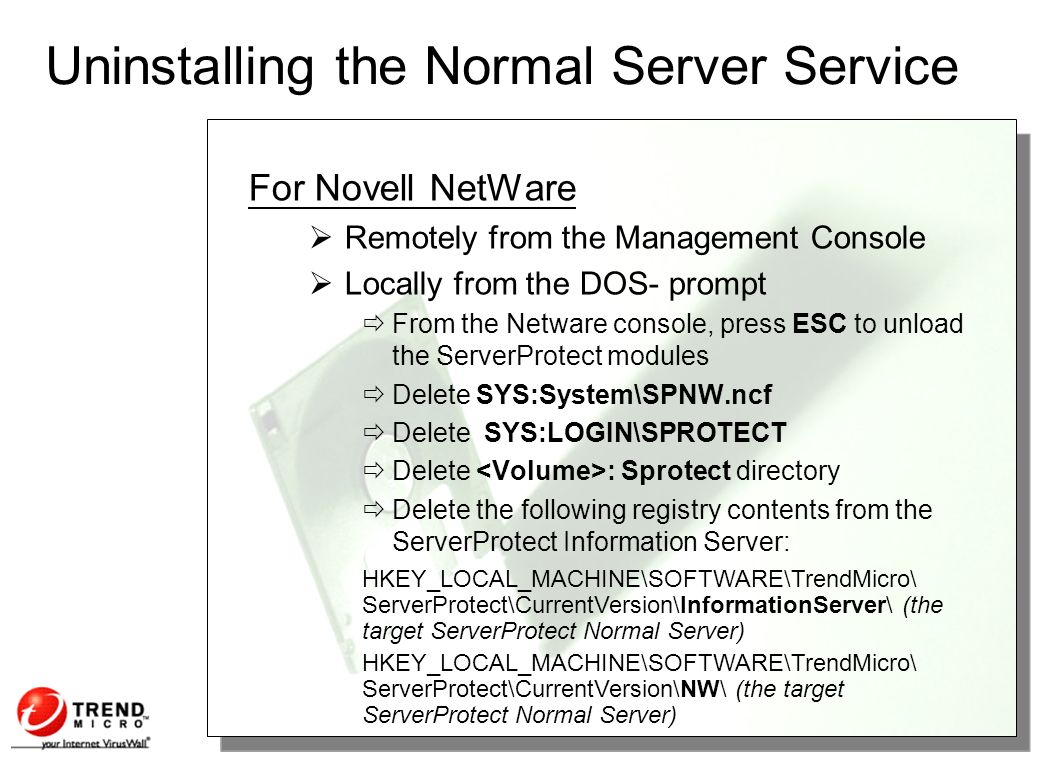

Uninstalling the Normal Server Service For Novell NetWare  Remotely from the Management Console  Locally from the DOS- prompt  From the Netware console, press ESC to unload the ServerProtect modules  Delete SYS:System\SPNW.ncf  Delete SYS:LOGIN\SPROTECT  Delete : Sprotect directory  Delete the following registry contents from the ServerProtect Information Server: HKEY_LOCAL_MACHINE\SOFTWARE\TrendMicro\ ServerProtect\CurrentVersion\InformationServer\ (the target ServerProtect Normal Server) HKEY_LOCAL_MACHINE\SOFTWARE\TrendMicro\ ServerProtect\CurrentVersion\NW\ (the target ServerProtect Normal Server)

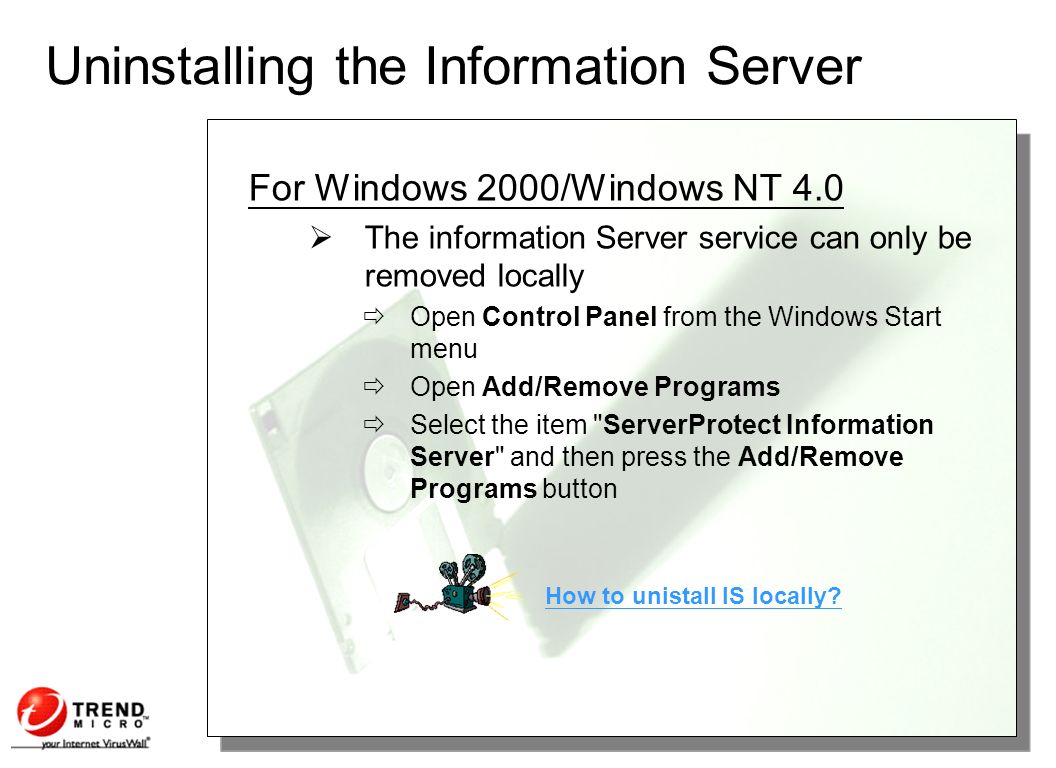

Uninstalling the Information Server For Windows 2000/Windows NT 4.0  The information Server service can only be removed locally  Open Control Panel from the Windows Start menu  Open Add/Remove Programs  Select the item "ServerProtect Information Server" and then press the Add/Remove Programs button How to unistall IS locally?

Uninstalling the Information Server For Windows 3.51  The information Server service can only be removed locally  Open Windows NT command prompt  "c:\program files\trend\sprotect\SpUninst" IS

Uninstalling the Management Console From the Program Group Menu  Uninstalling the ServerProtect Management Console is straightforward.  Just select Trend ServerProtect Management Console | Uninstall ServerProtect Management Console from the Windows Start menu. How to uninstall the Console?

Uninstalling the Information Server From the Windows Command Prompt  The information Server service can only be removed locally  Open Windows Command Prompt  "c:\program files\trend\sprotect\SpUninst" ADMIN

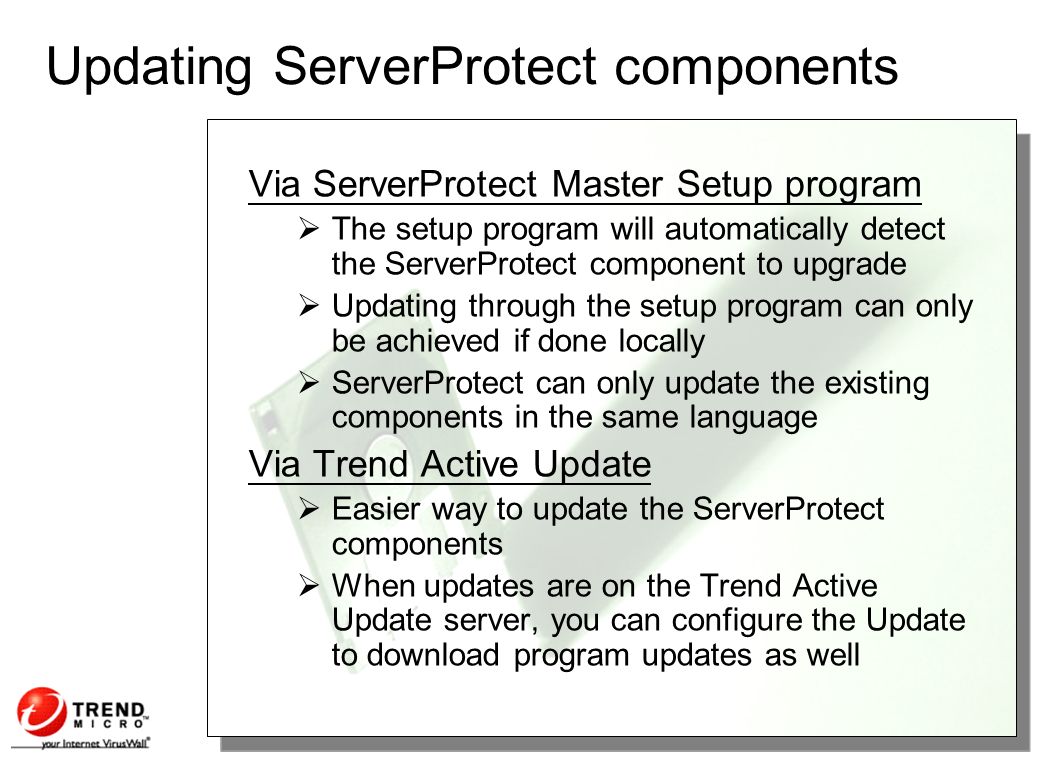

Updating ServerProtect components Via ServerProtect Master Setup program  The setup program will automatically detect the ServerProtect component to upgrade  Updating through the setup program can only be achieved if done locally  ServerProtect can only update the existing components in the same language Via Trend Active Update  Easier way to update the ServerProtect components  When updates are on the Trend Active Update server, you can configure the Update to download program updates as well

ServerProtect Management Console

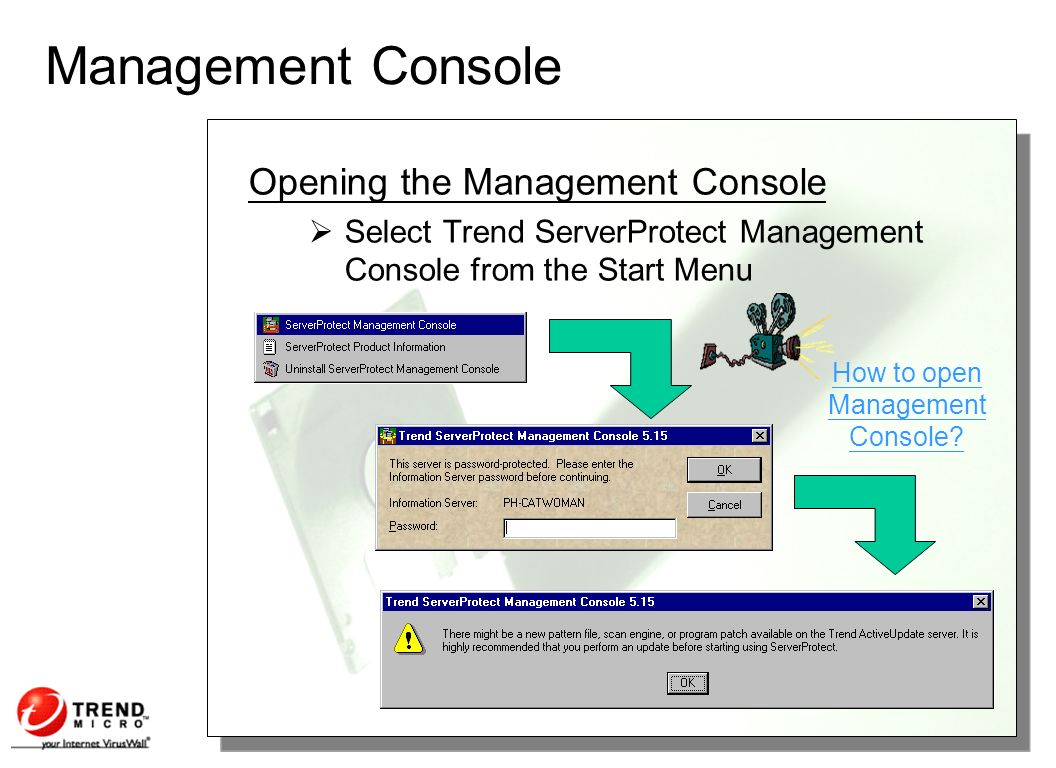

Management Console Opening the Management Console  Select Trend ServerProtect Management Console from the Start Menu How to open Management Console?

Management Console Side Bar Information Server Main Menu Column Field Domain Normal Server (ServerProtect Server) Domain Browser Tree Configuration Area

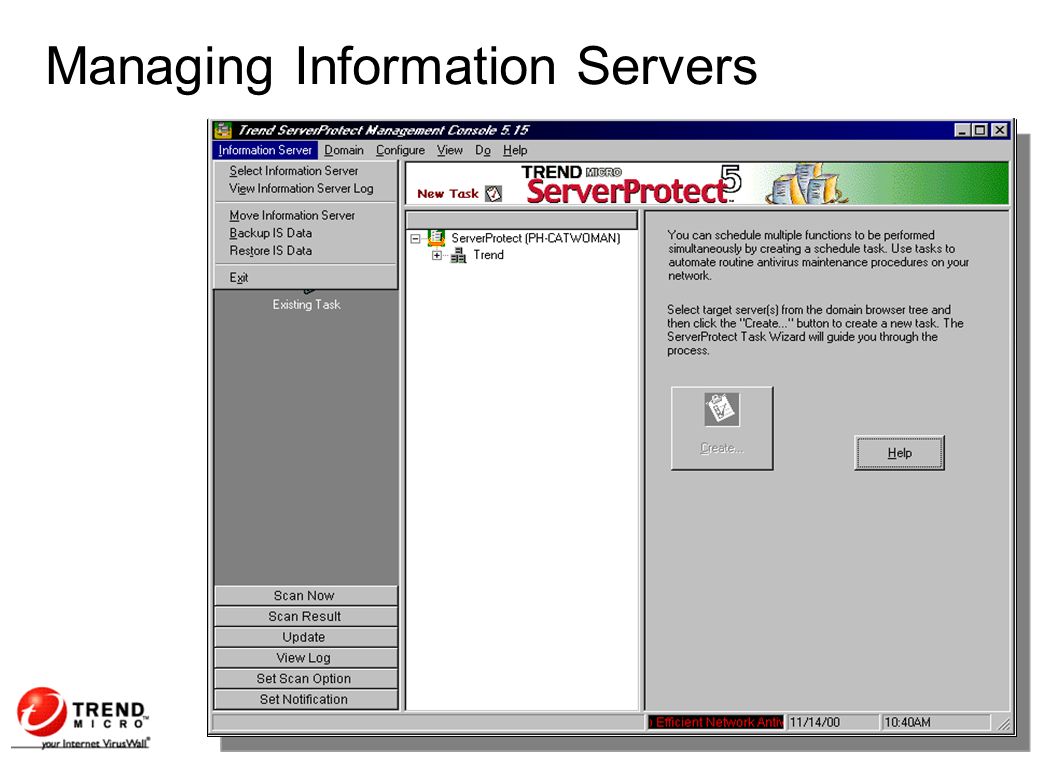

Managing Information Servers

Selecting Information Servers

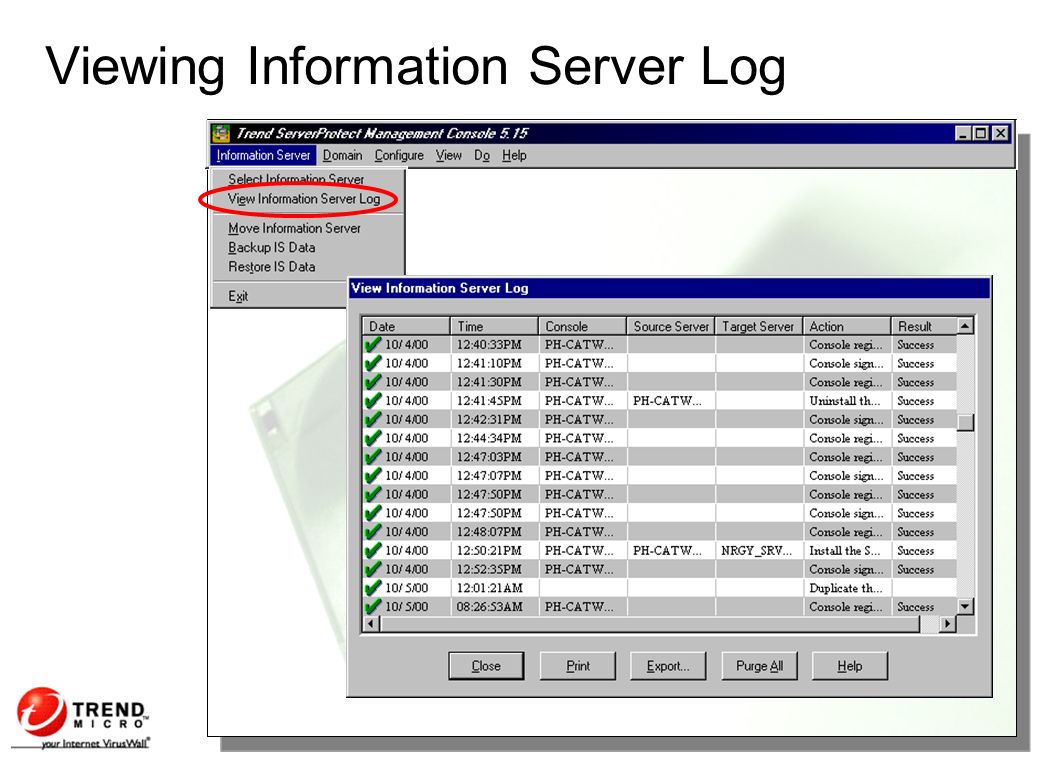

Viewing Information Server Log

Moving Information Servers

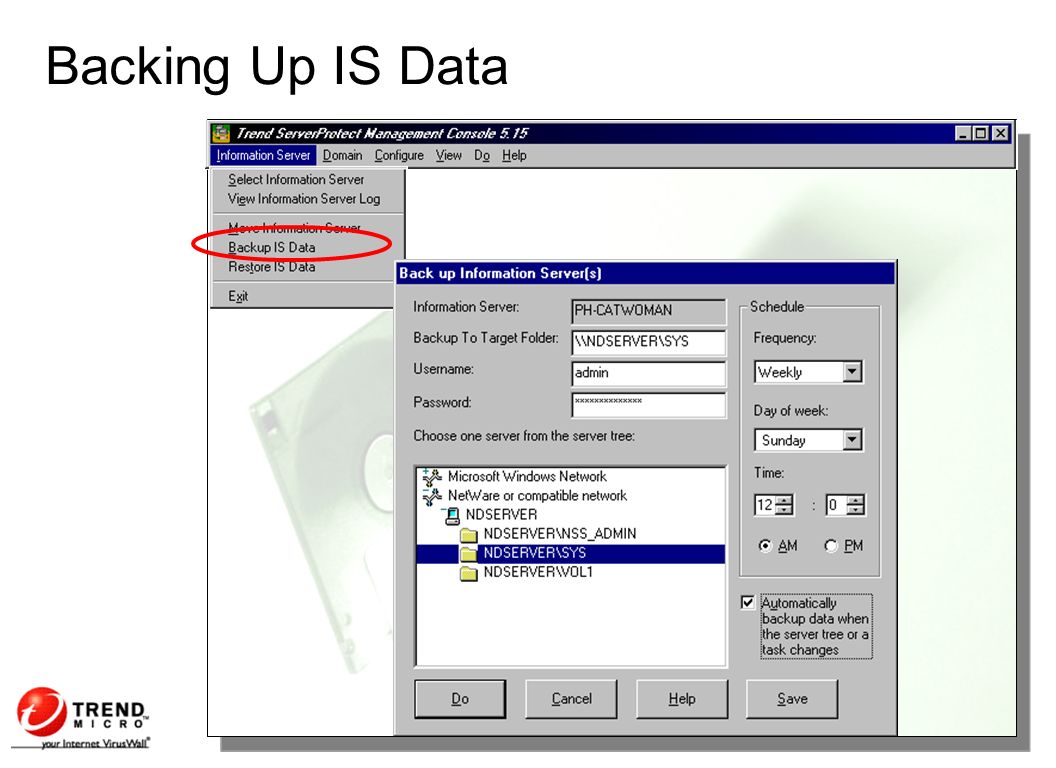

Backing Up IS Data

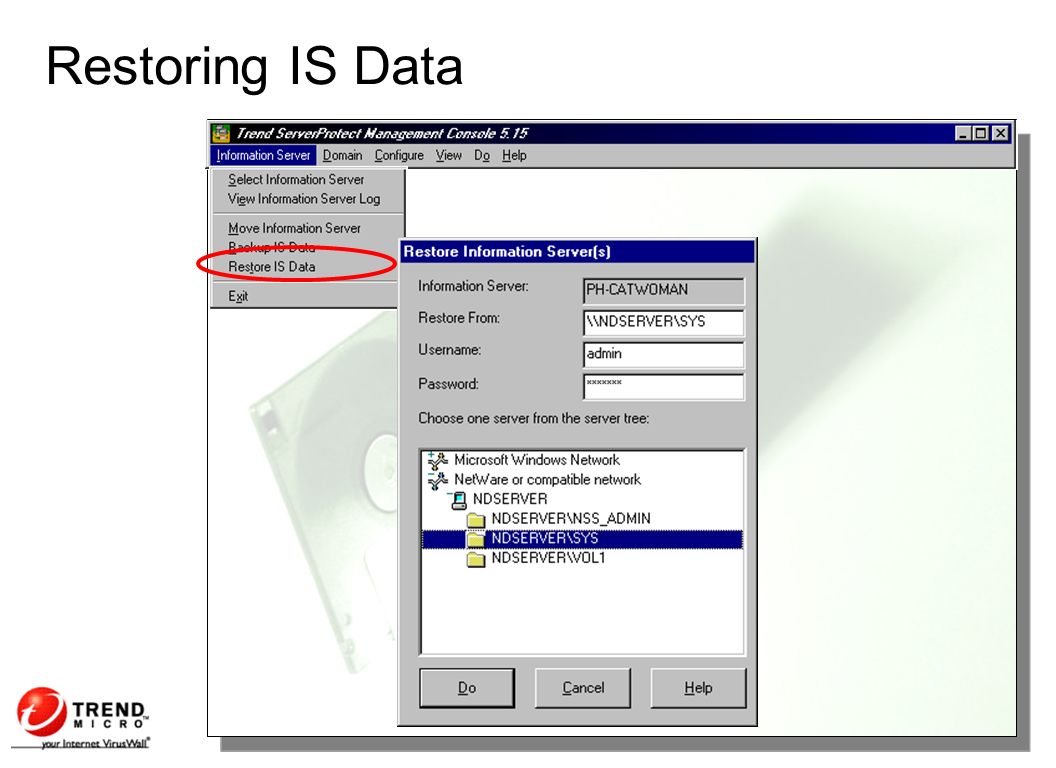

Restoring IS Data

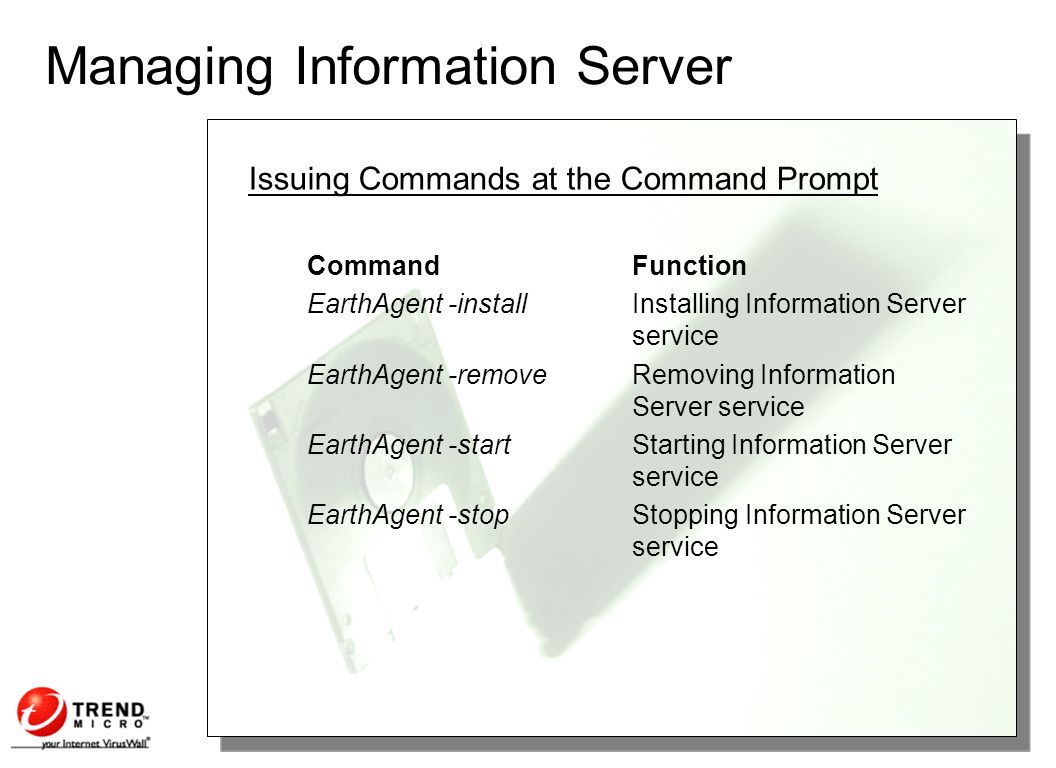

Managing Information Server Issuing Commands at the Command Prompt Command Function EarthAgent -install Installing Information Server service EarthAgent -remove Removing Information Server service EarthAgent -start Starting Information Server service EarthAgent -stop Stopping Information Server service

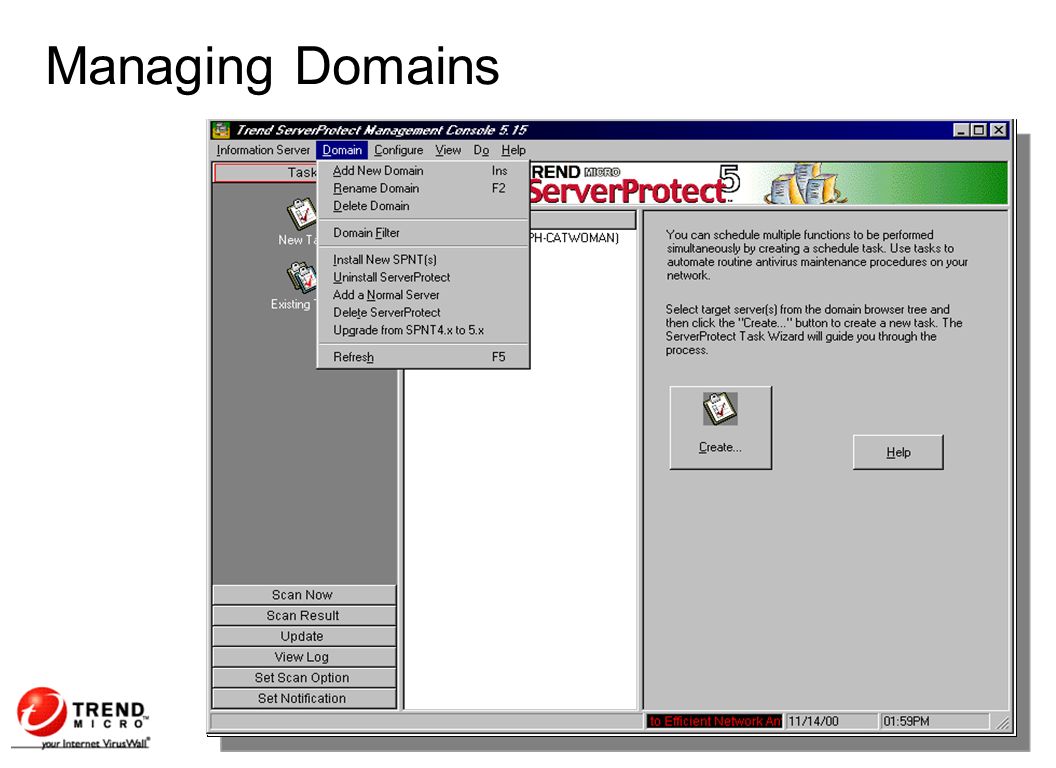

Managing Domains

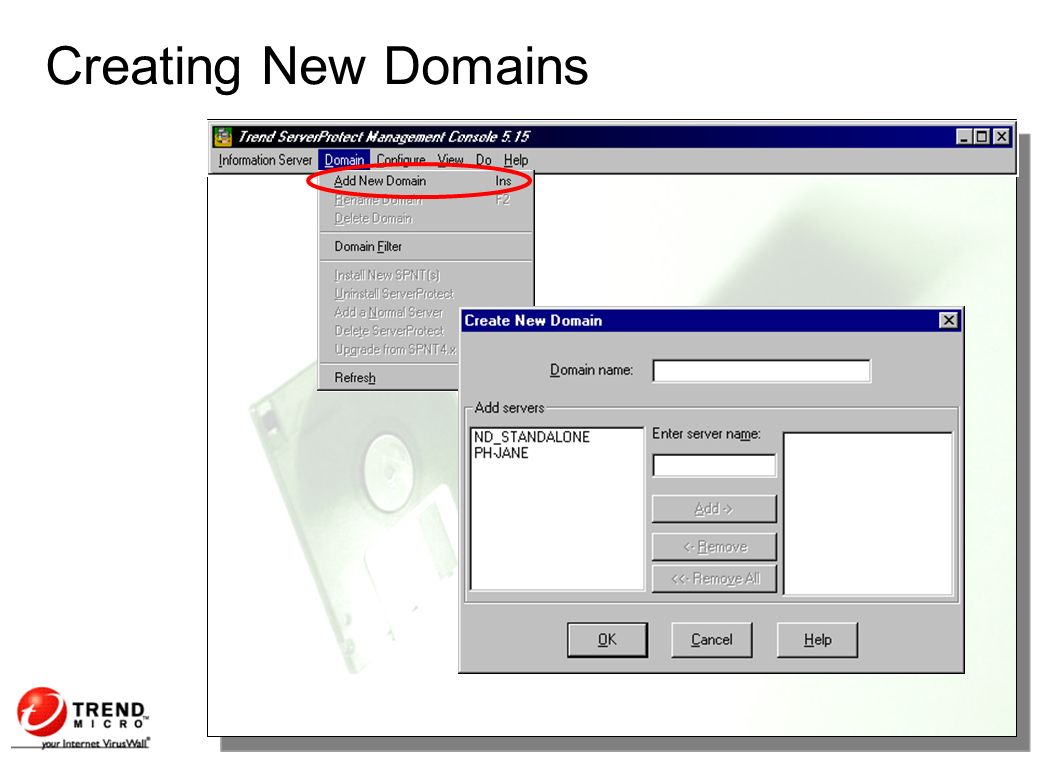

Creating New Domains

Renaming Domains

Deleting Domains

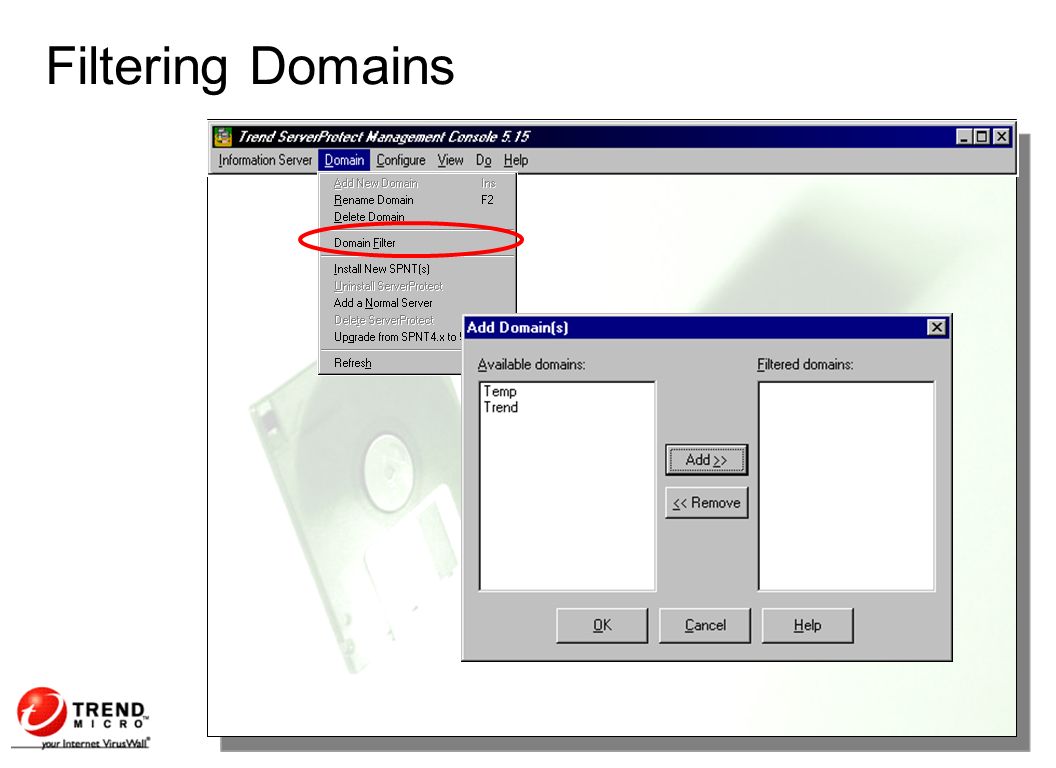

Filtering Domains

Managing Normal Servers

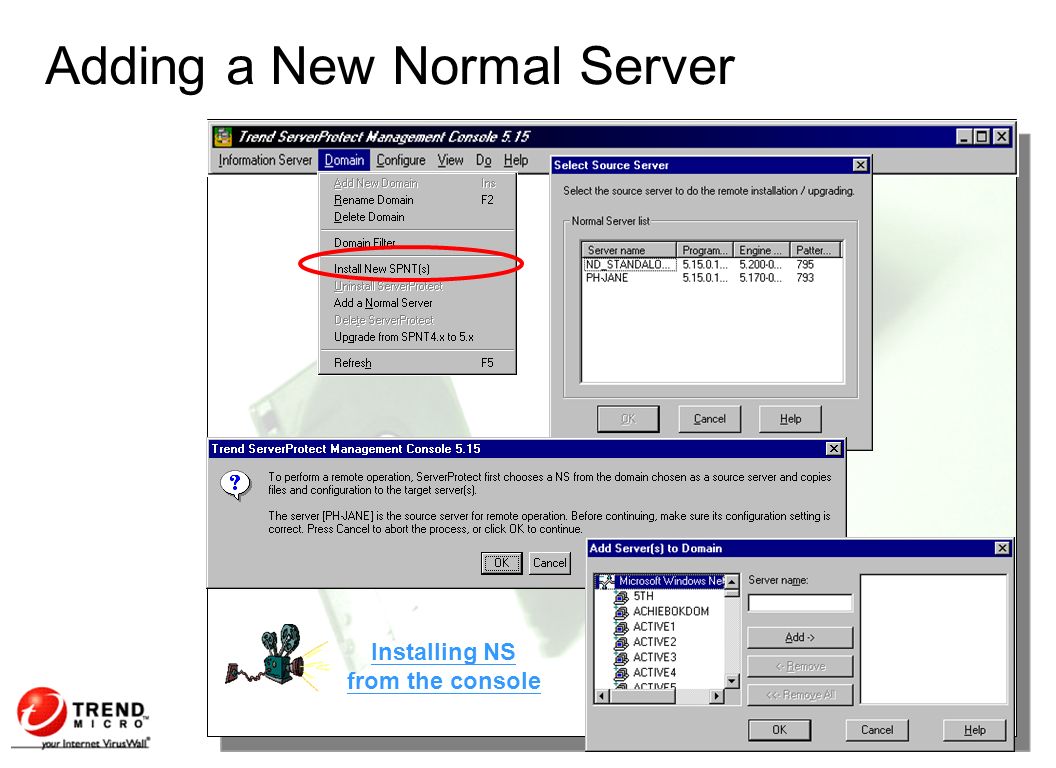

Adding a New Normal Server Installing NS from the console

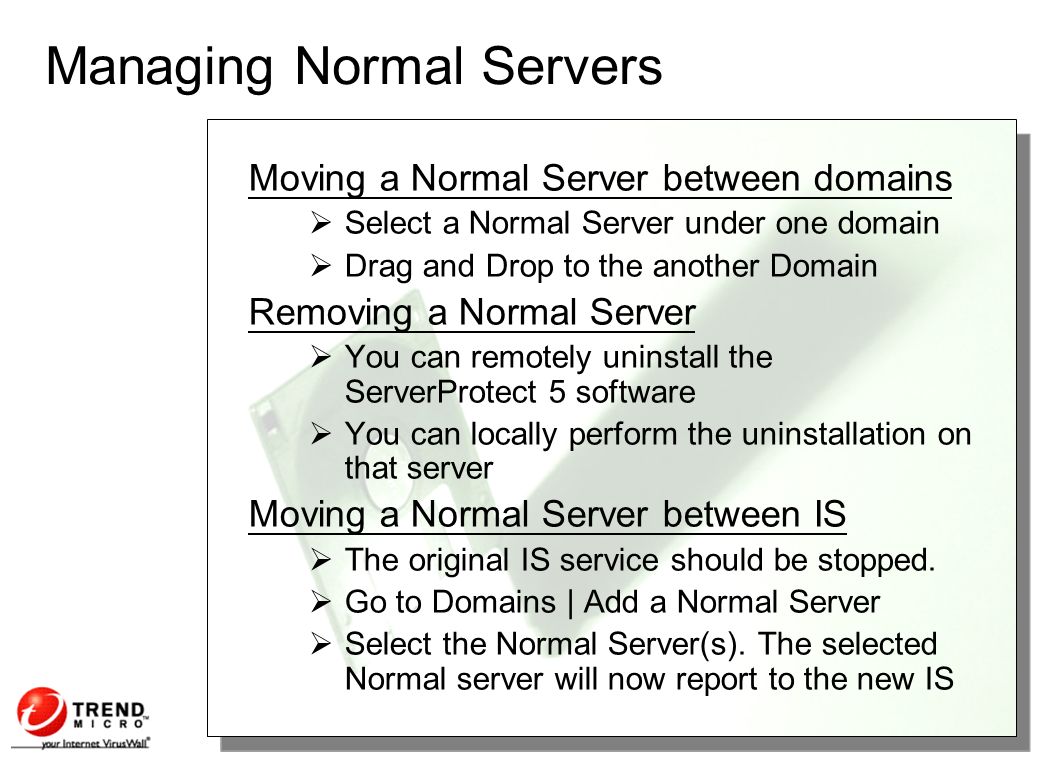

Managing Normal Servers Moving a Normal Server between domains  Select a Normal Server under one domain  Drag and Drop to the another Domain Removing a Normal Server  You can remotely uninstall the ServerProtect 5 software  You can locally perform the uninstallation on that server Moving a Normal Server between IS  The original IS service should be stopped.  Go to Domains | Add a Normal Server  Select the Normal Server(s). The selected Normal server will now report to the new IS

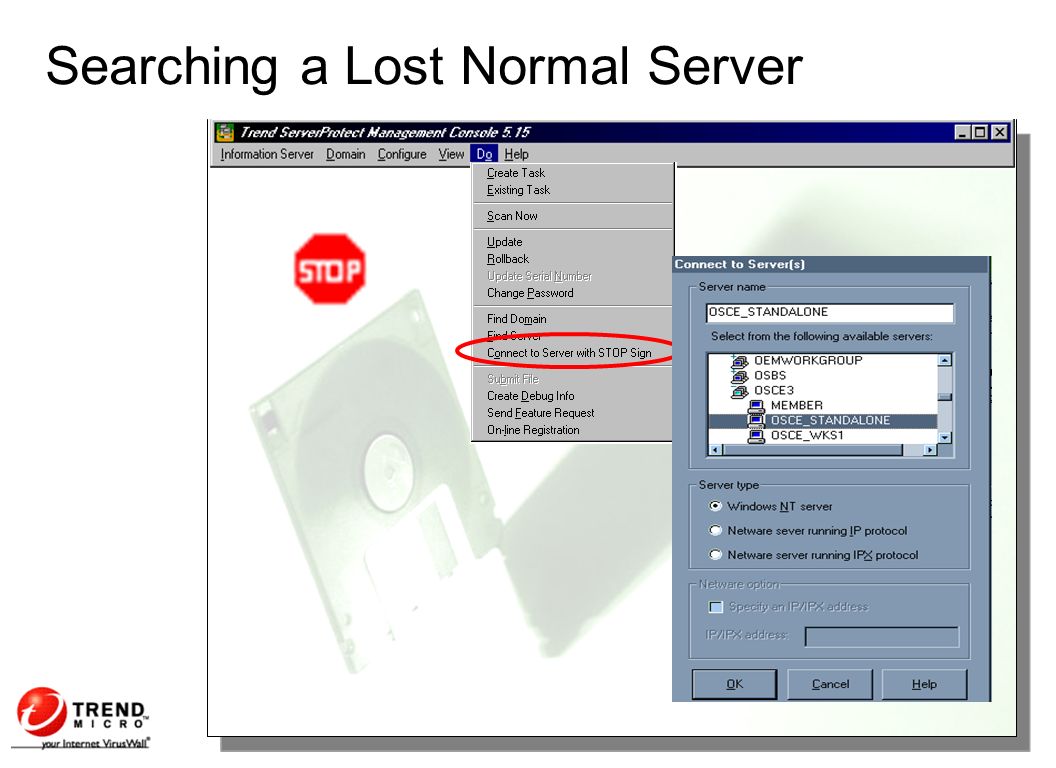

Searching a Lost Normal Server

Deleting a Non-responding Normal Server

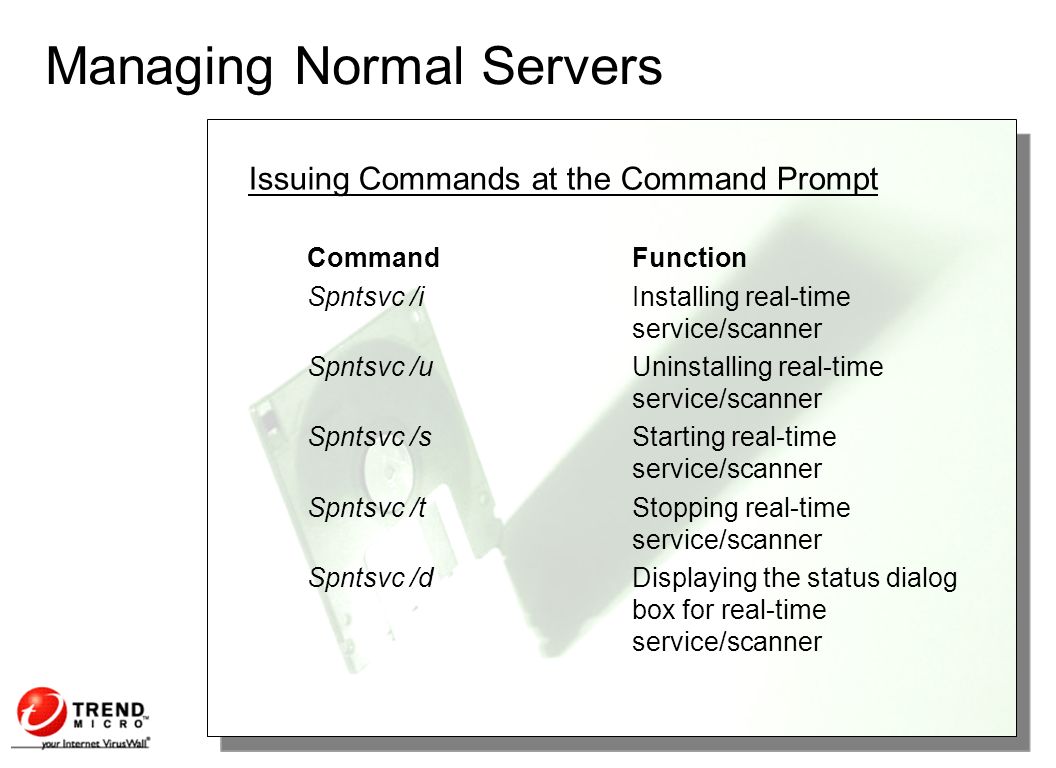

Managing Normal Servers Issuing Commands at the Command Prompt Command Function Spntsvc /i Installing real-time service/scanner Spntsvc /u Uninstalling real-time service/scanner Spntsvc /s Starting real-time service/scanner Spntsvc /t Stopping real-time service/scanner Spntsvc /d Displaying the status dialog box for real-time service/scanner

Configuring and Performing Task

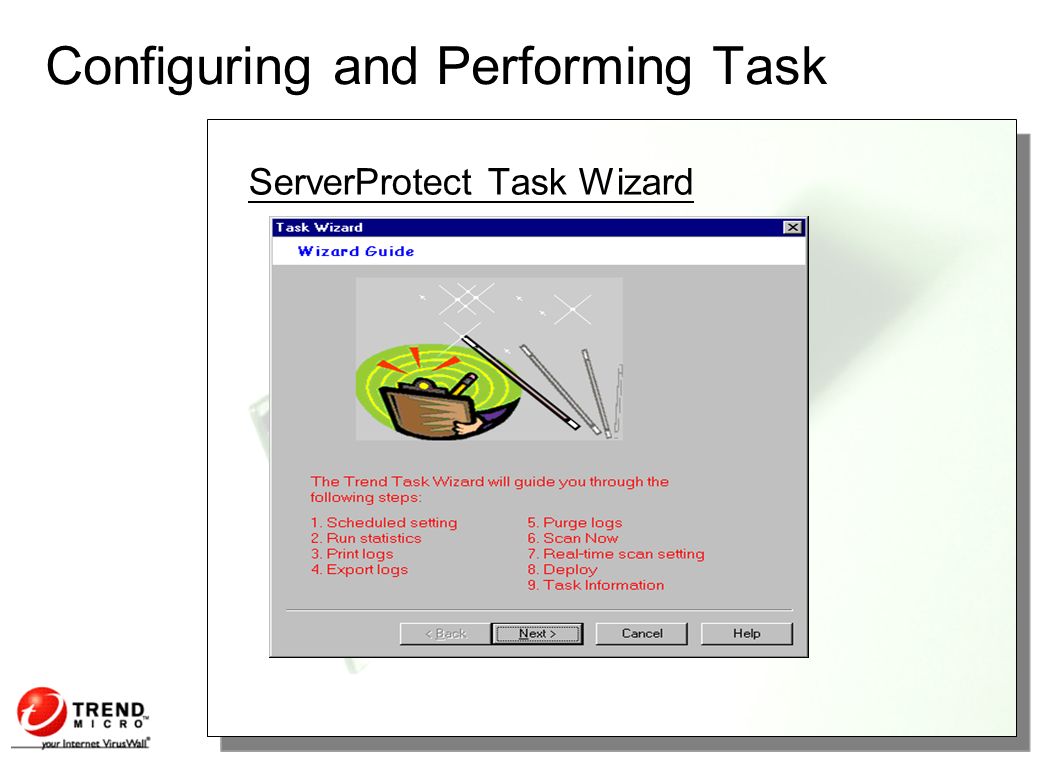

ServerProtect Task Wizard

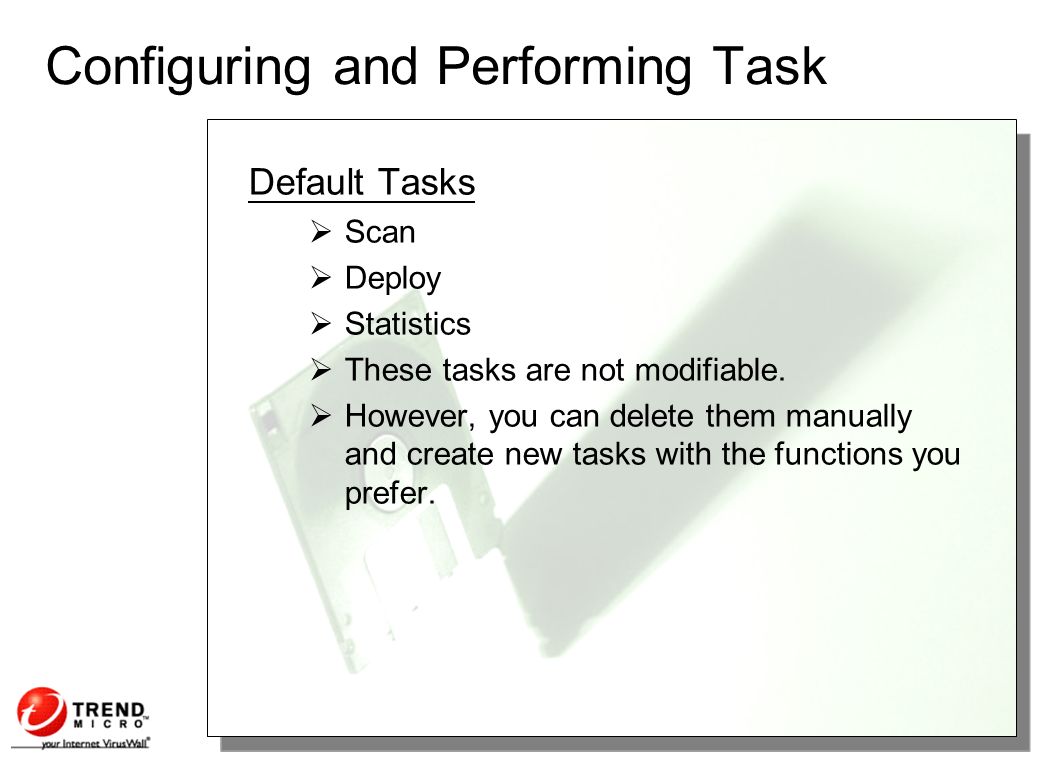

Configuring and Performing Task Default Tasks  Scan  Deploy  Statistics  These tasks are not modifiable.  However, you can delete them manually and create new tasks with the functions you prefer.

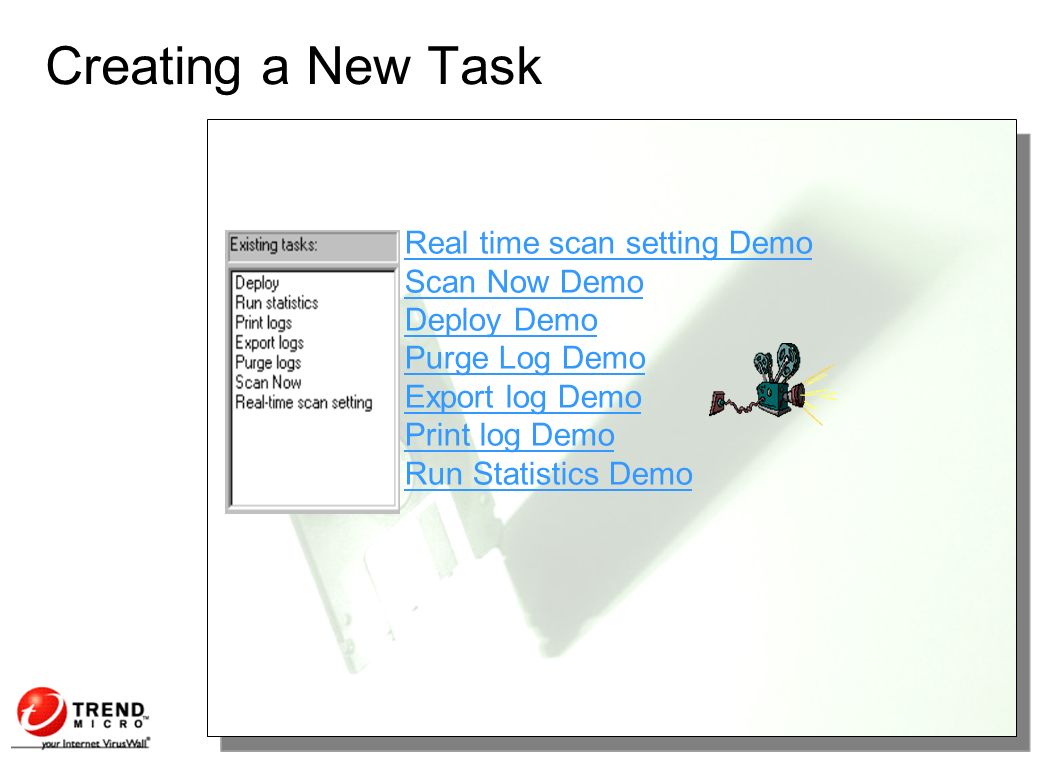

Creating a New Task How to do a scheduled scan? Equivalent Click this

Real time scan setting Demo Scan Now Demo Deploy Demo Purge Log Demo Export log Demo Print log Demo Run Statistics Demo Creating a New Task

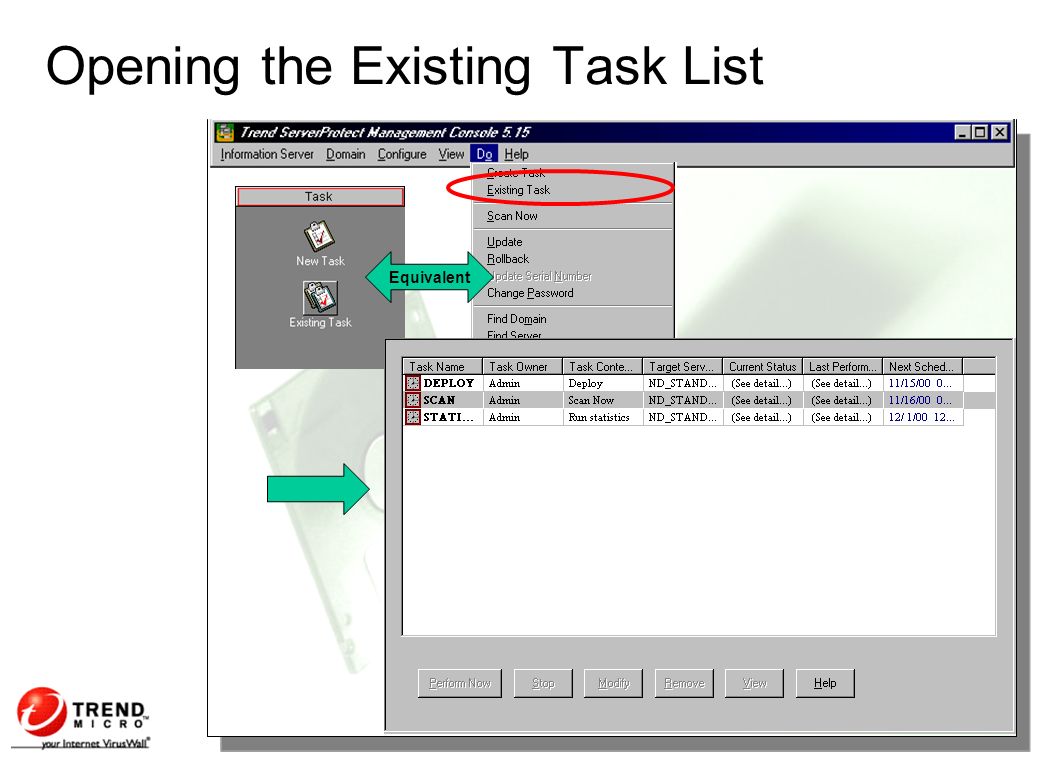

Opening the Existing Task List Equivalent

Running an Existing Task Equivalent Perform Now

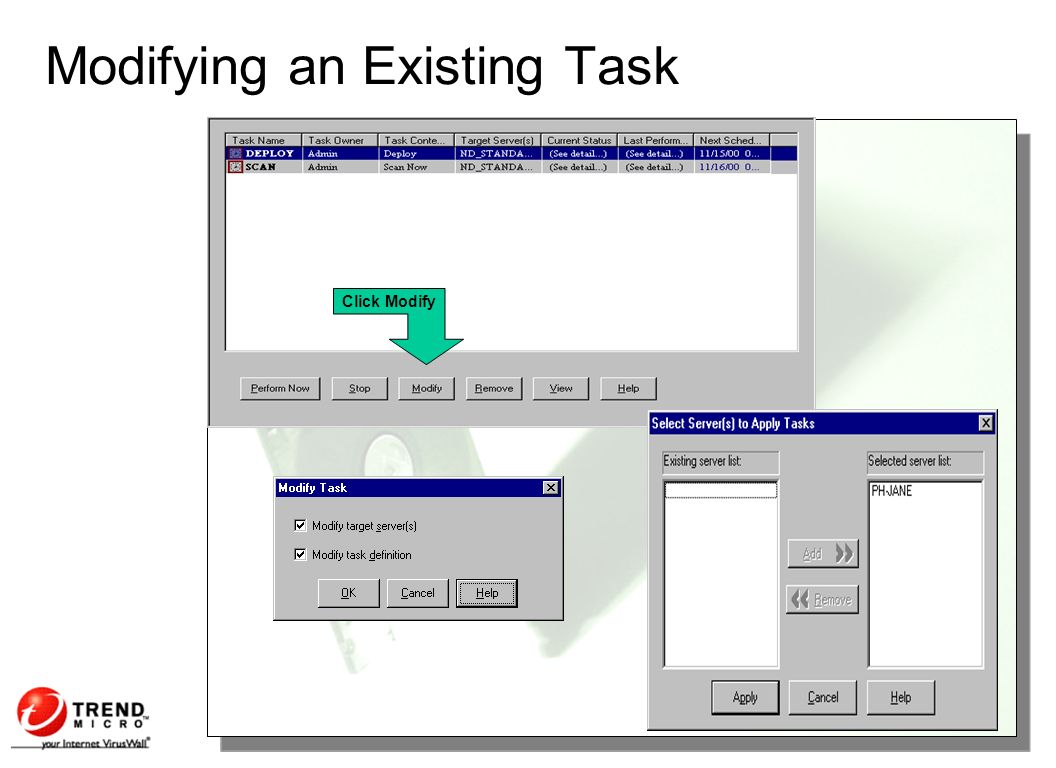

Modifying an Existing Task Click Modify

Modifying an Existing Task

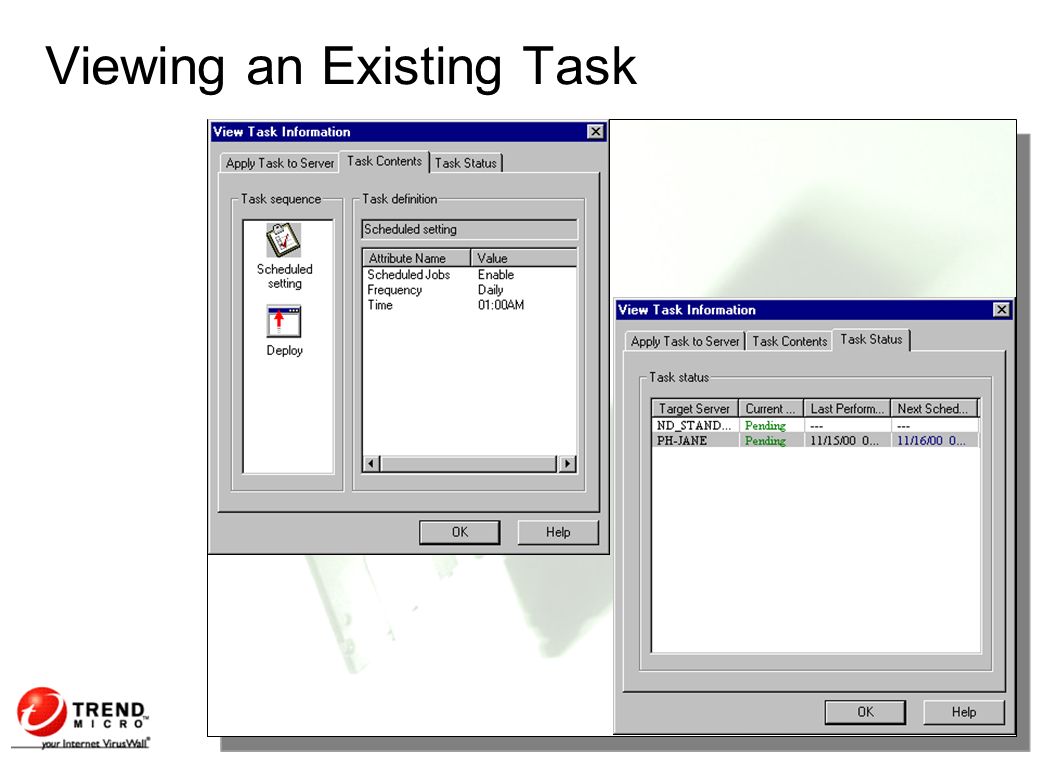

Viewing an Existing Task Click View

Viewing an Existing Task

Removing (deleting) an Existing Task Click Remove

Configuring Virus Scanning

Actions Taken on Infected Files Click this

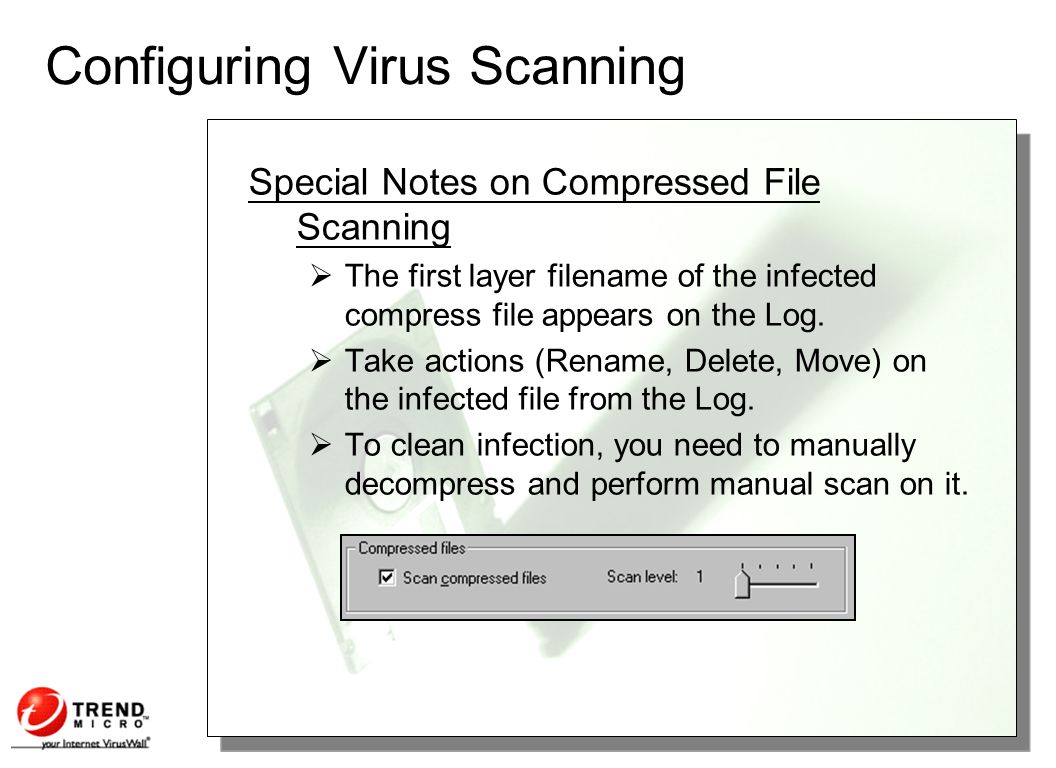

Configuring Virus Scanning Special Notes on Compressed File Scanning  The first layer filename of the infected compress file appears on the Log.  Take actions (Rename, Delete, Move) on the infected file from the Log.  To clean infection, you need to manually decompress and perform manual scan on it.

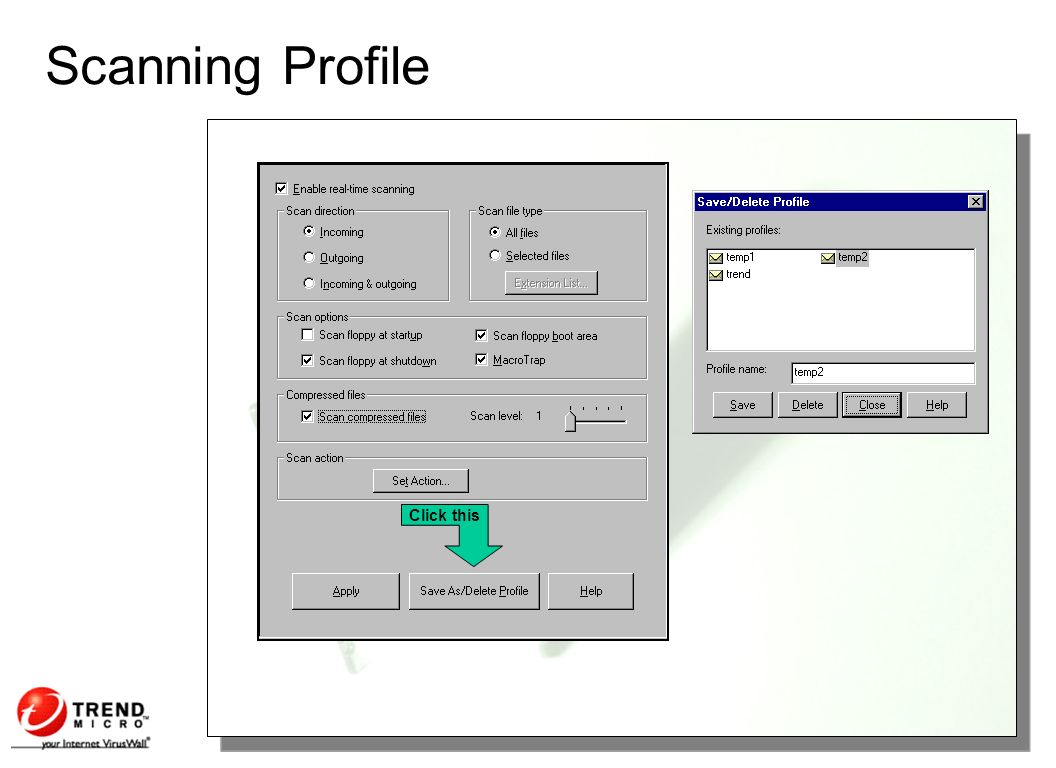

Scanning Profile Click this

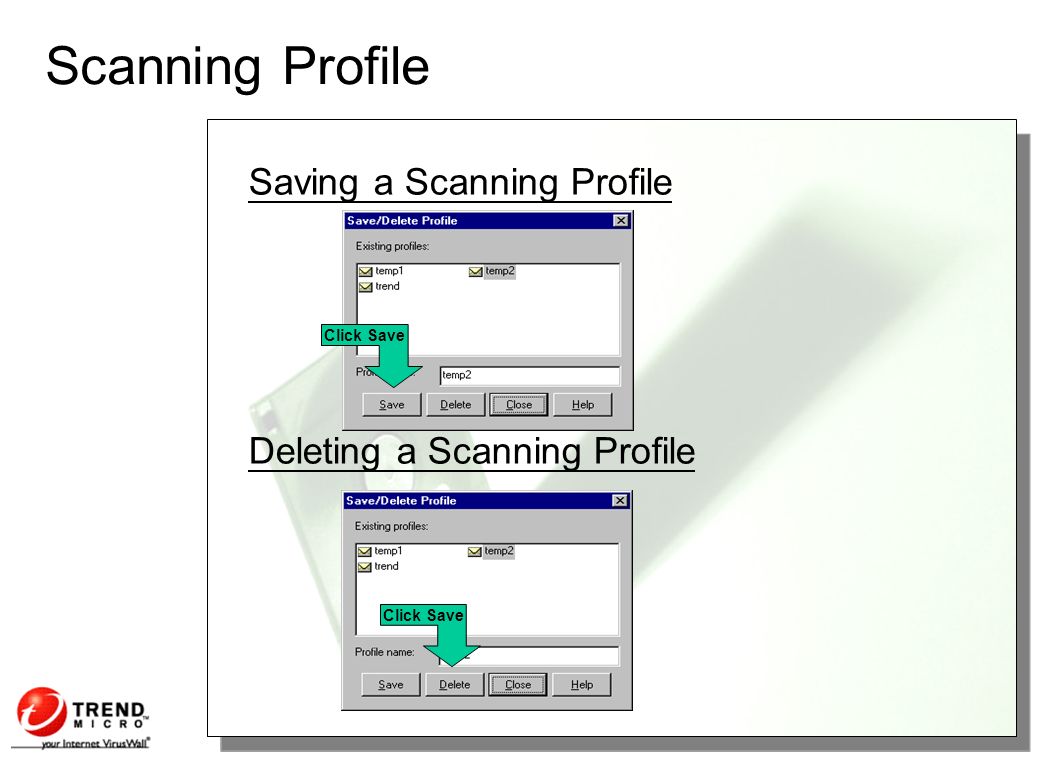

Scanning Profile Saving a Scanning Profile Deleting a Scanning Profile Click Save

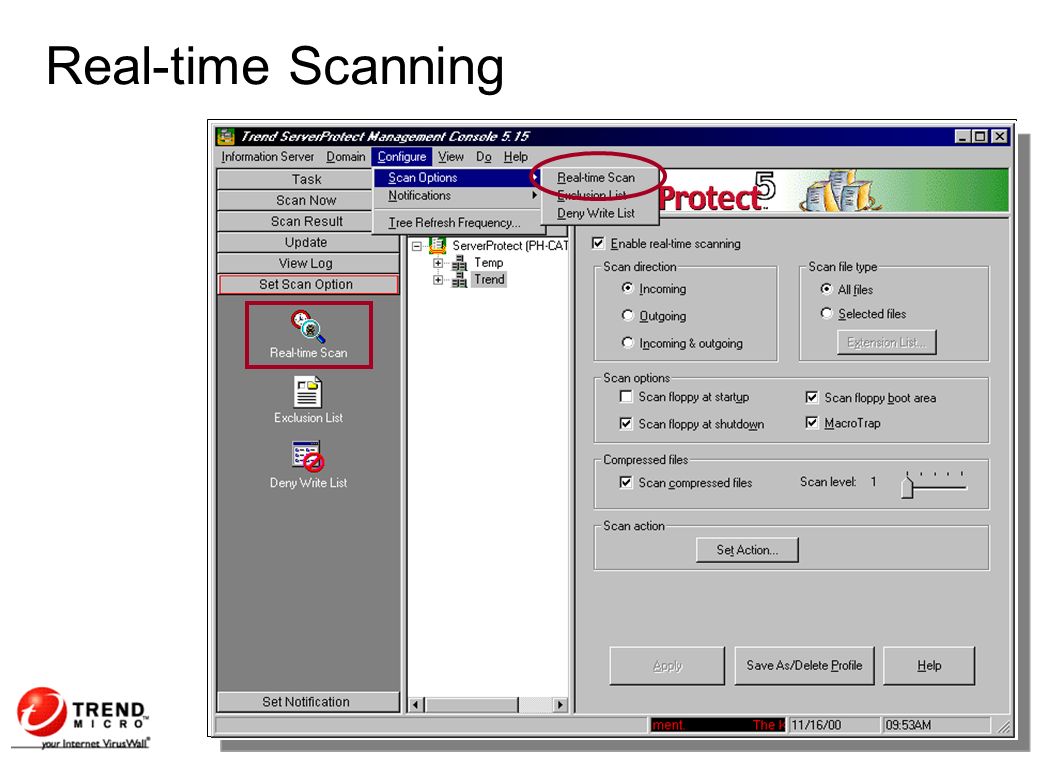

Real-time Scanning

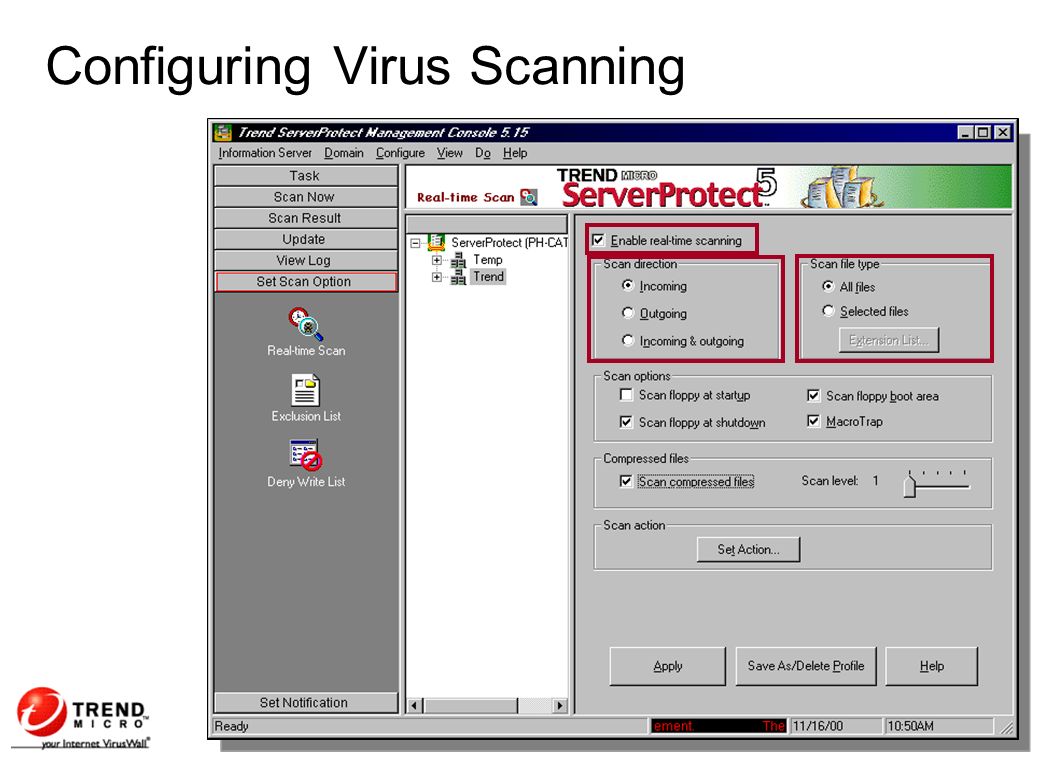

Configuring Virus Scanning

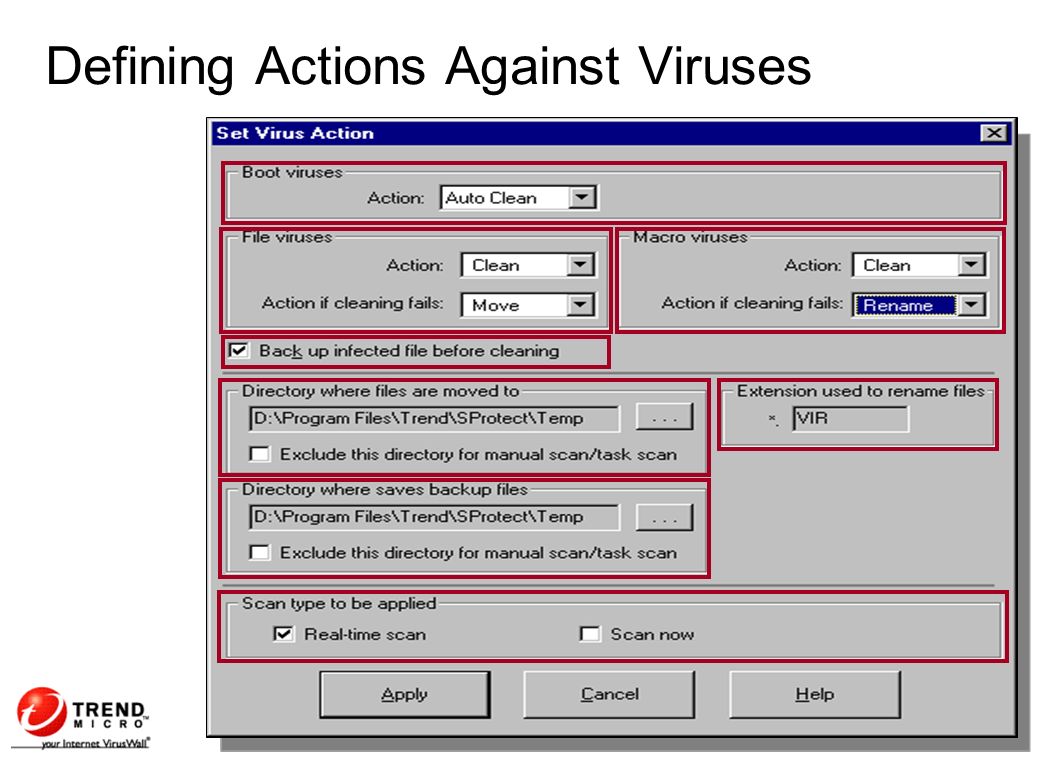

Defining Actions Against Viruses

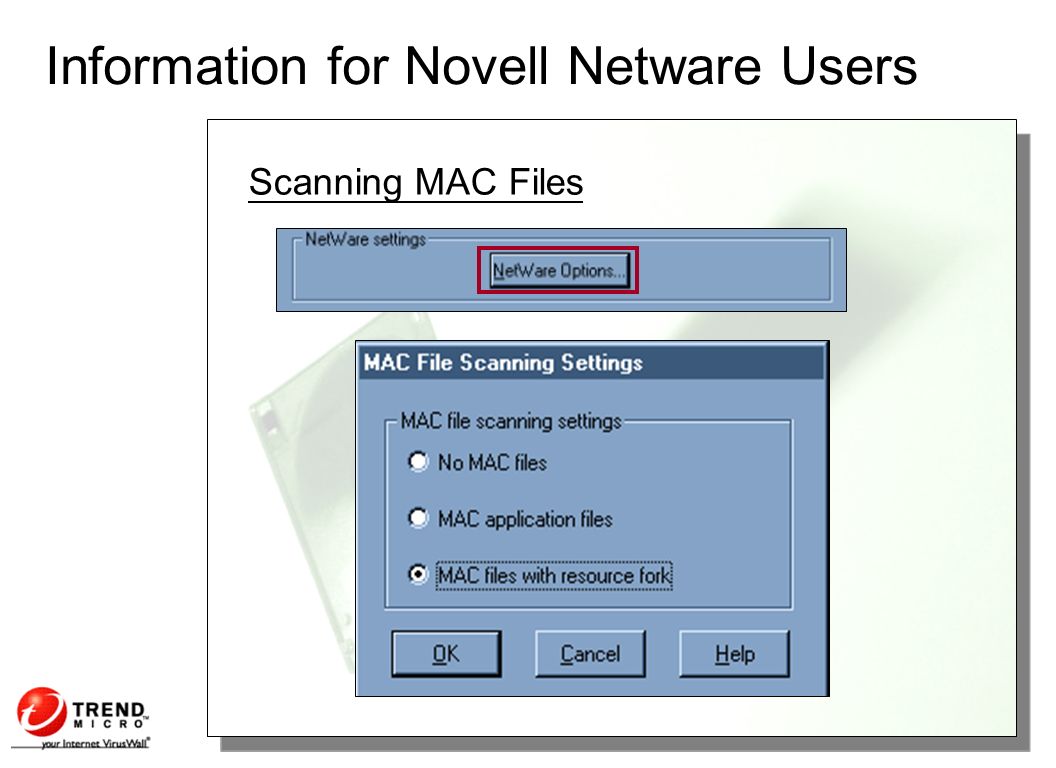

Information for Novell Netware Users Scanning MAC Files

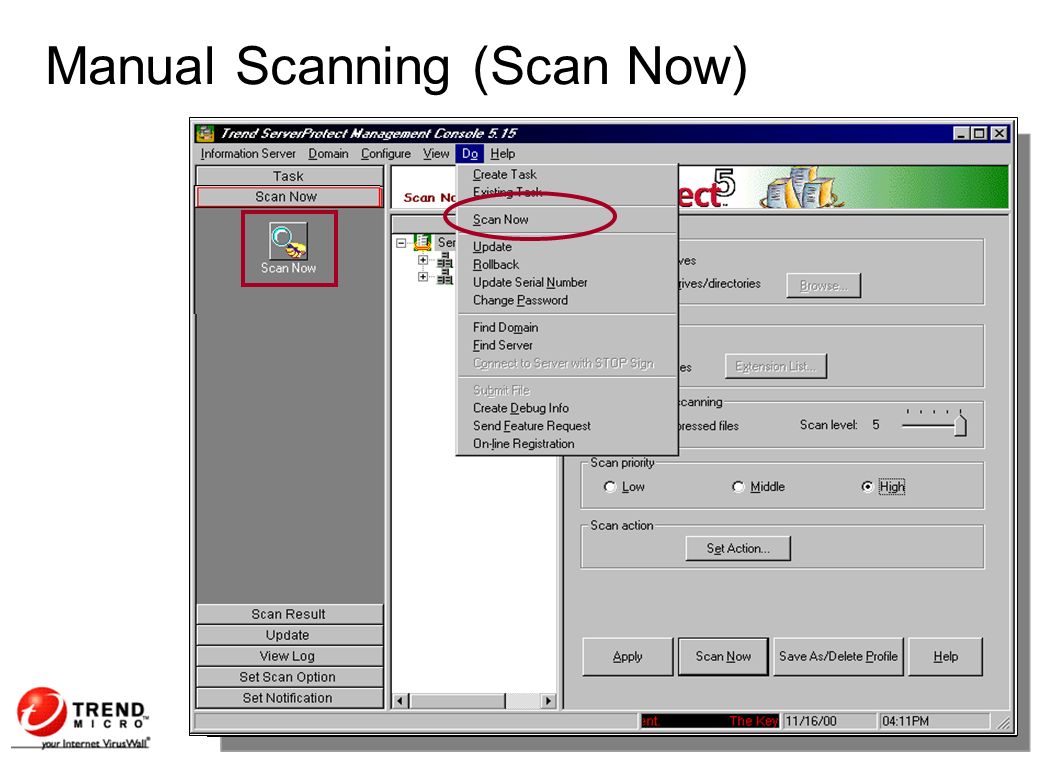

Manual Scanning (Scan Now)

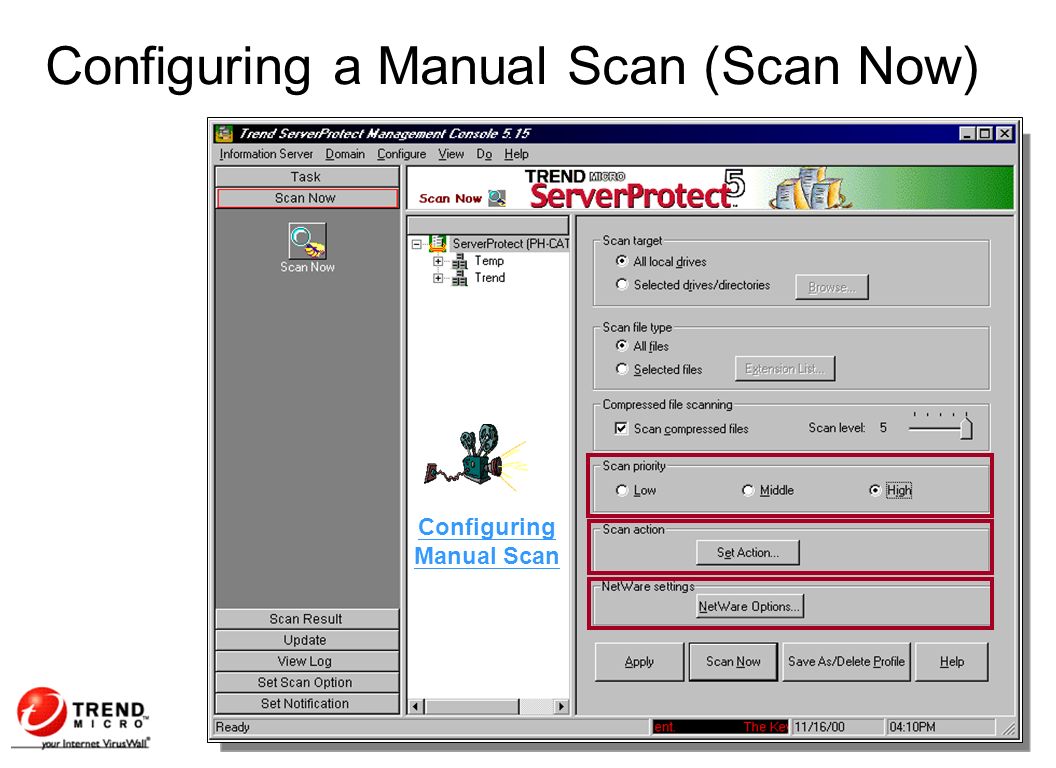

Configuring a Manual Scan (Scan Now)

Configuring Manual Scan

Scheduled Scanning

Configuring a Scheduled Scan How to do a scheduled scan?

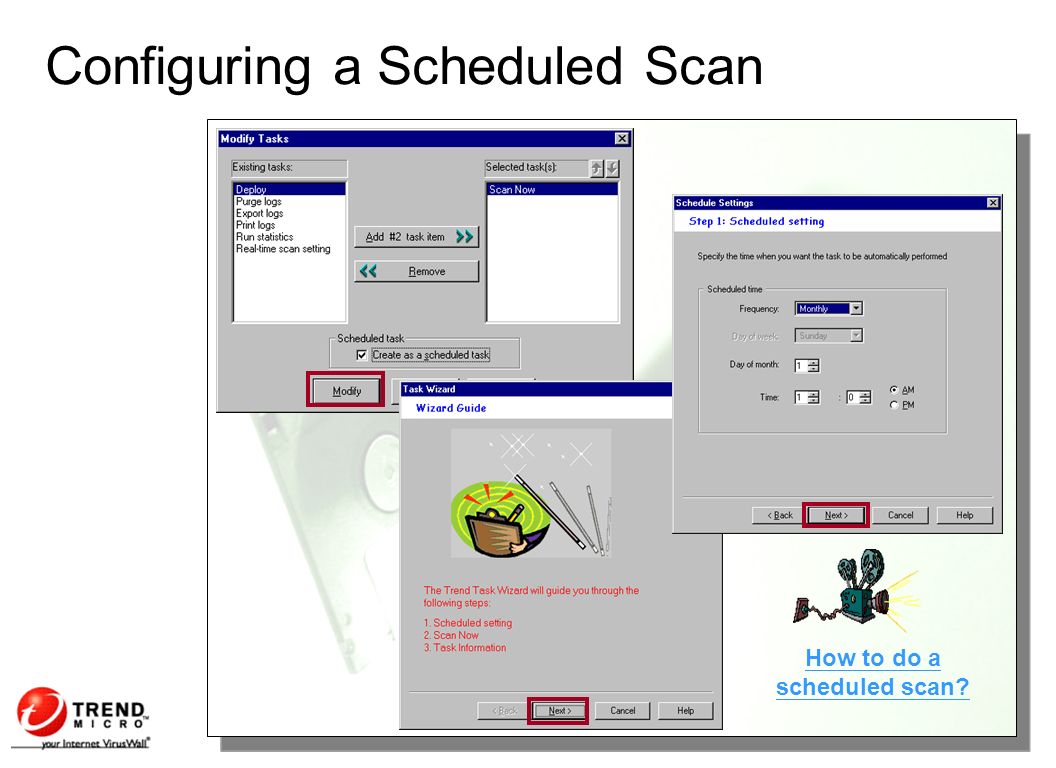

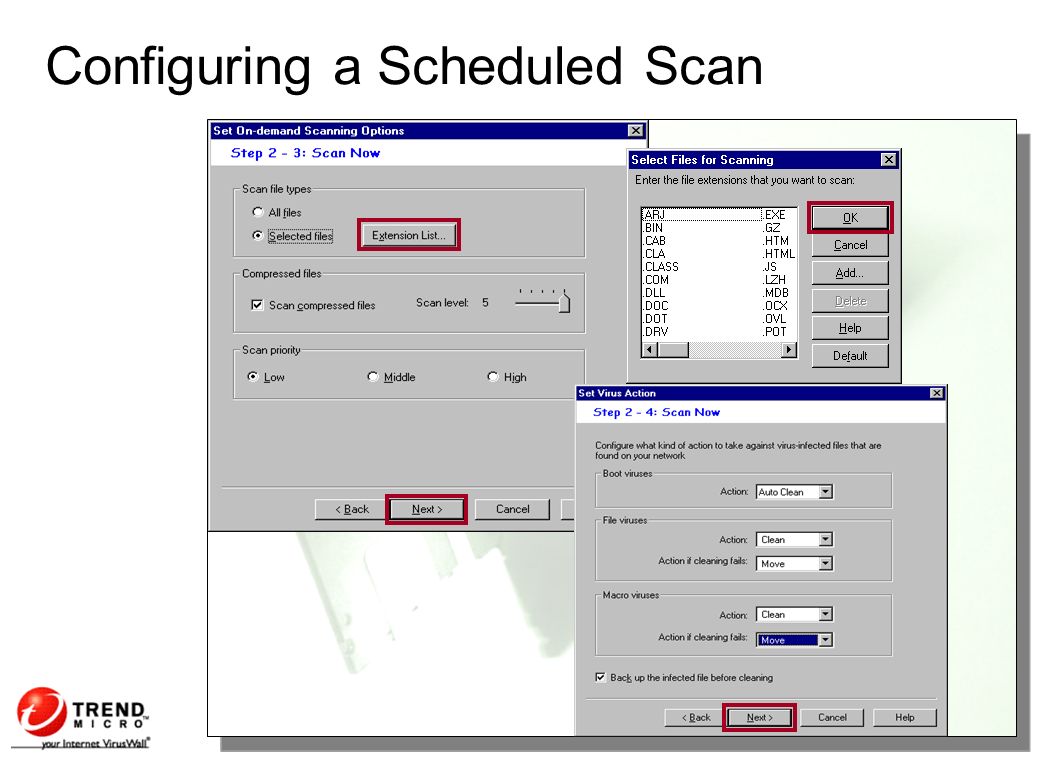

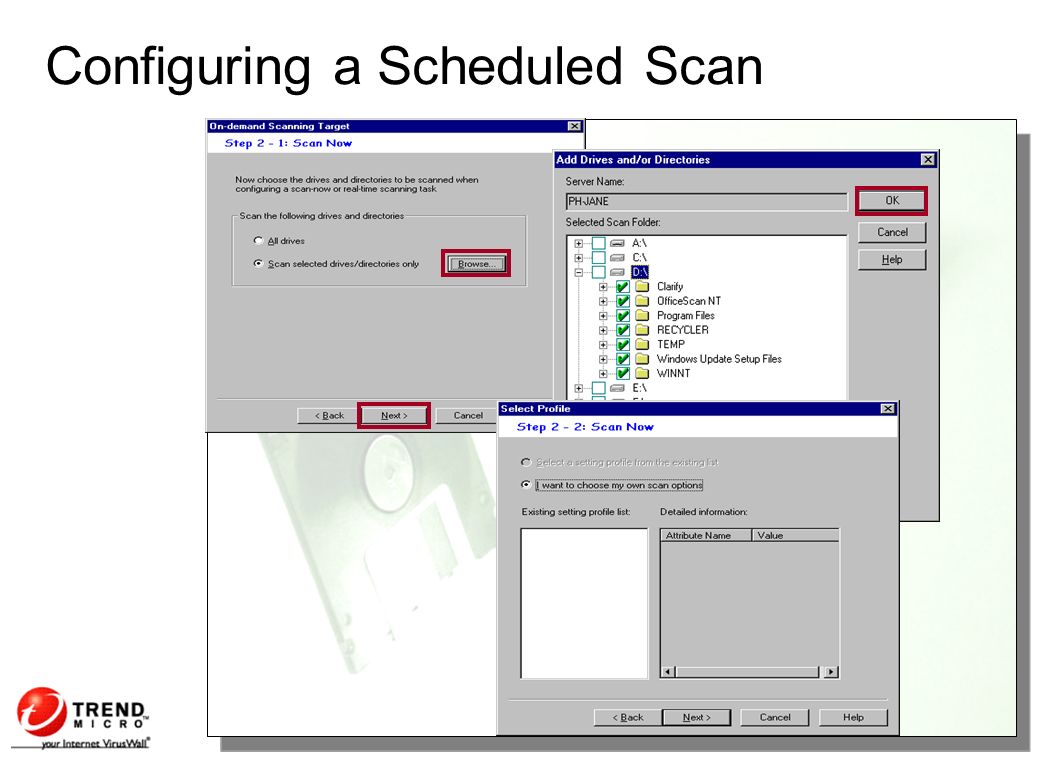

Configuring a Scheduled Scan

Configuring Exclusion List

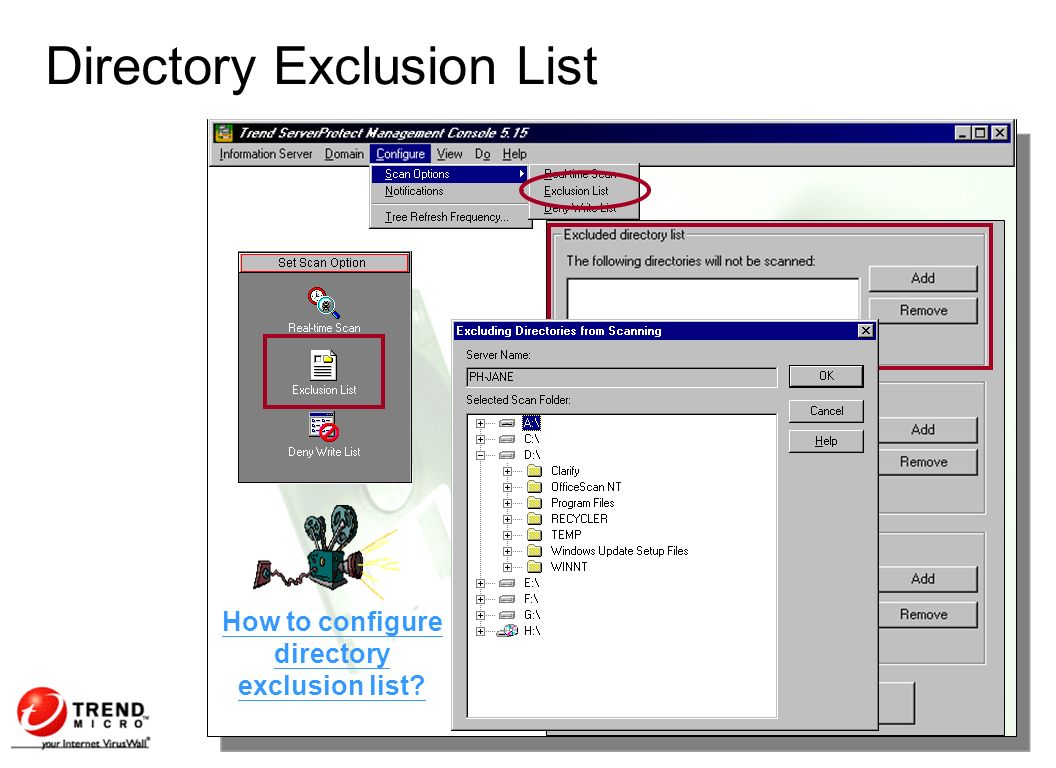

Directory Exclusion List How to configure directory exclusion list?

File Exclusion List How to configure file exclusion list?

Virus Exclusion List How to configure virus exclusion list?

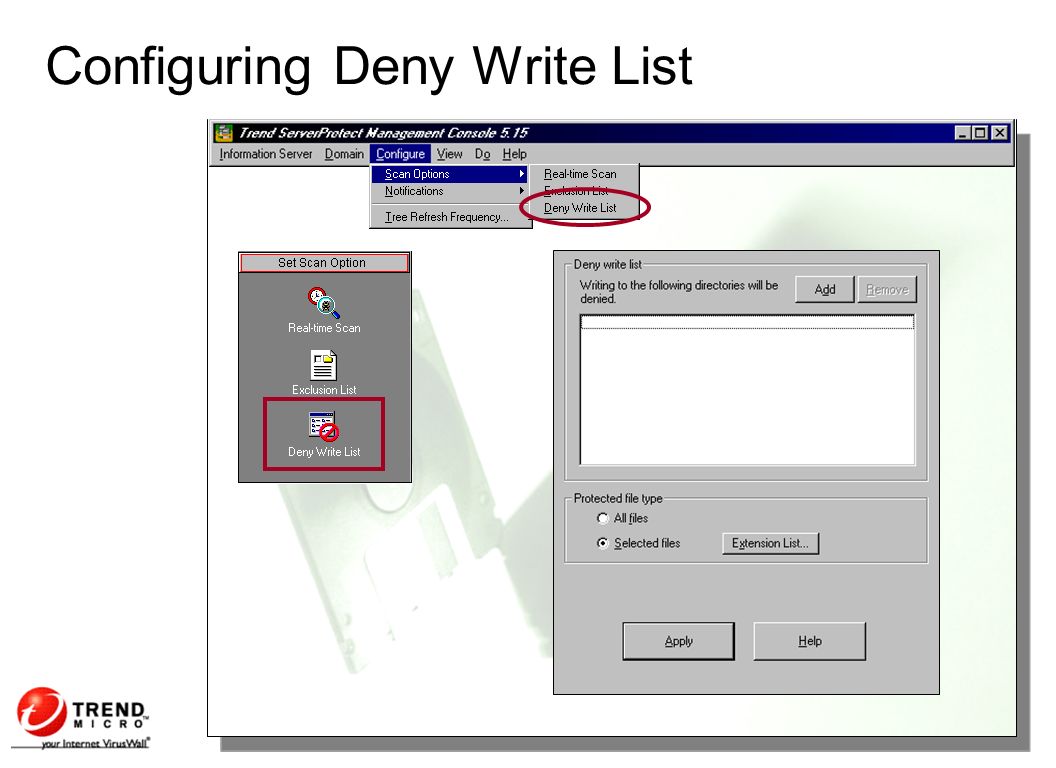

Configuring Deny Write List

Configuring Deny Write List - Folder How to configure NT Deny Write Directory List?

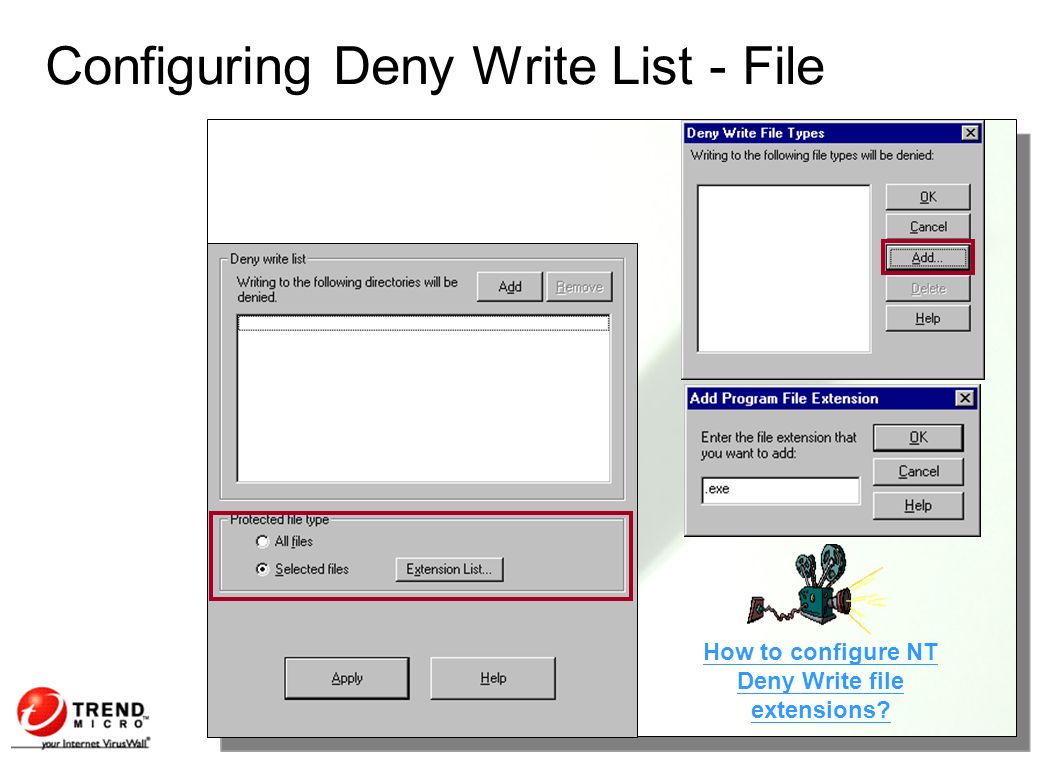

Configuring Deny Write List - File How to configure NT Deny Write file extensions?

Removing Deny Write List

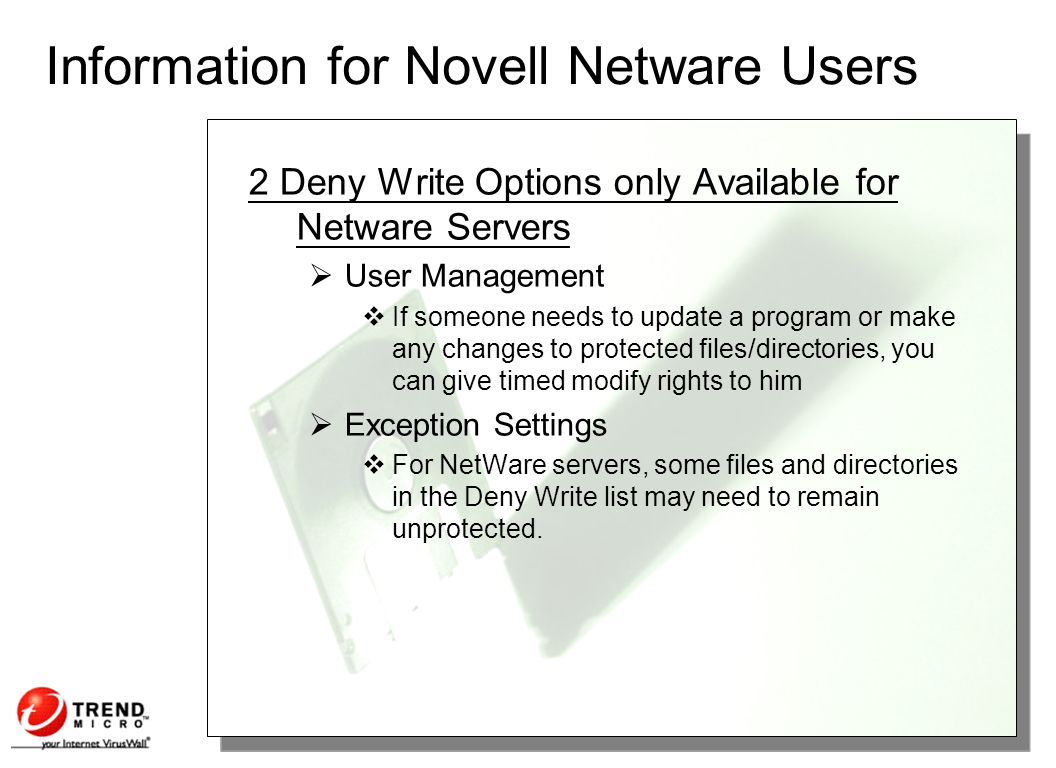

Information for Novell Netware Users 2 Deny Write Options only Available for Netware Servers  User Management  If someone needs to update a program or make any changes to protected files/directories, you can give timed modify rights to him  Exception Settings  For NetWare servers, some files and directories in the Deny Write list may need to remain unprotected.

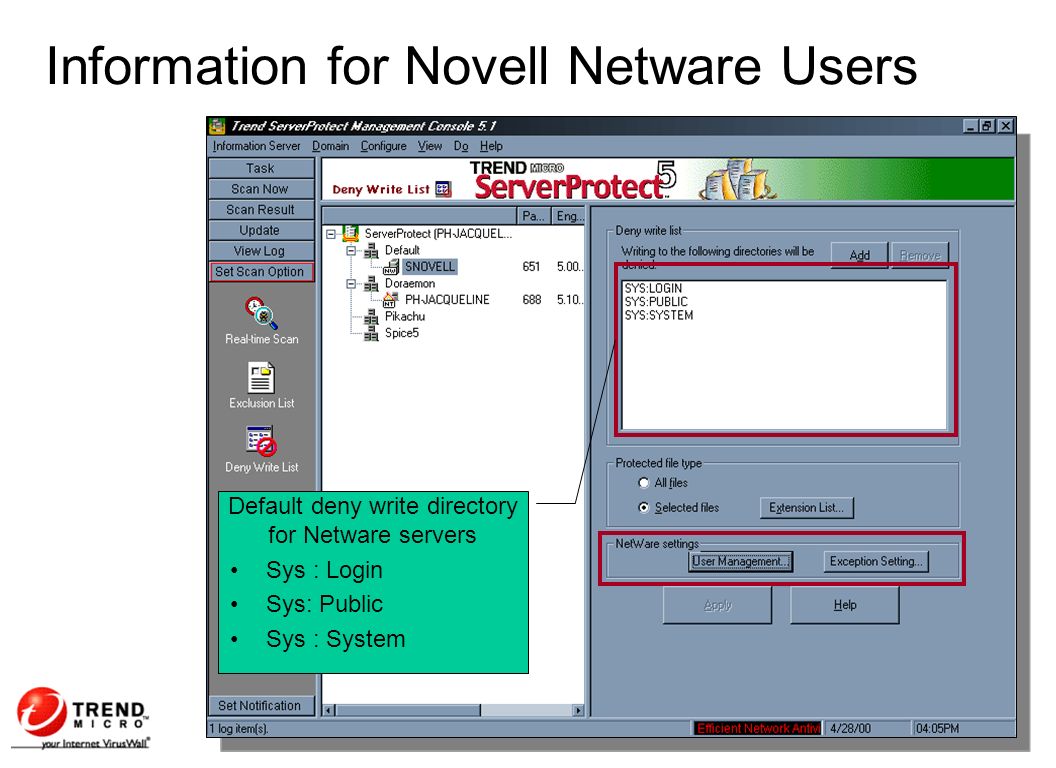

Information for Novell Netware Users Default deny write directory for Netware servers Sys : Login Sys: Public Sys : System

Granting Temporary Modify Rights to User User Management… Step 1 Add user Step 2 Set time to allow the user to allow modify rights Step 3 Click Set

Restricting Modify Rights to Selected Users User Management… NetWare servers can have more control over the network by restricting users who have modify rights on the network files.

Creating Exception Files/Directories in the Deny Write List Exception Setting… For NetWare servers, some files and directories in the Deny Write list may need to remain unprotected.

Configuring Notifications

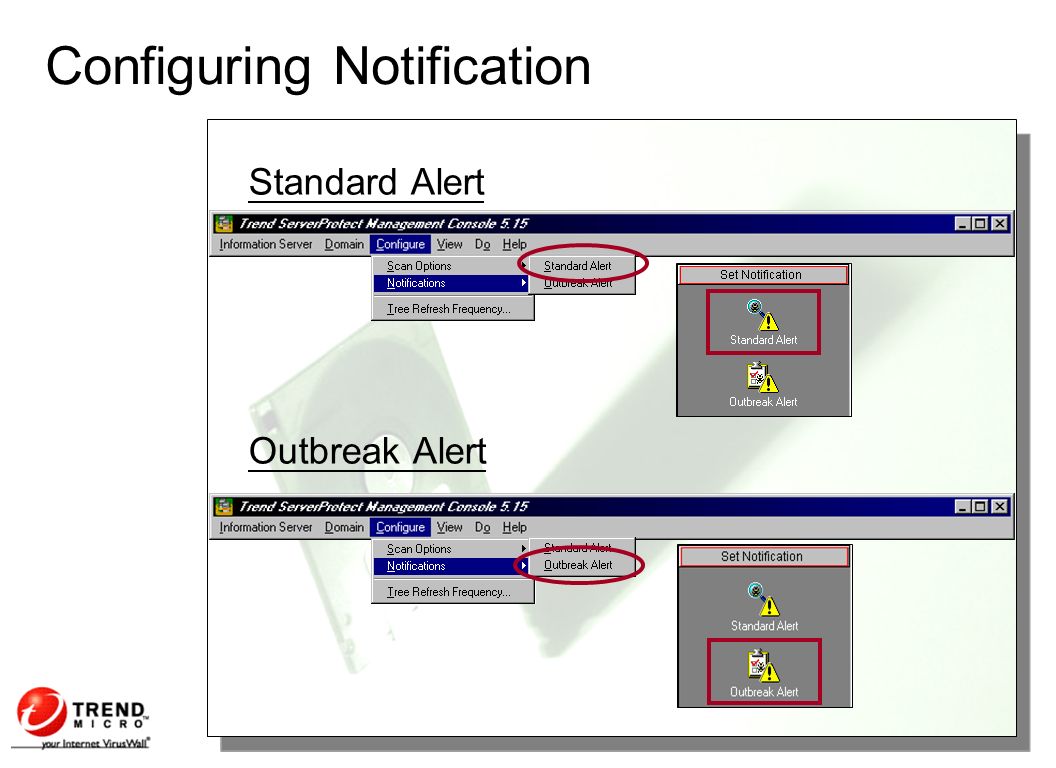

Configuring Notification Standard Alert Outbreak Alert

Notification Events

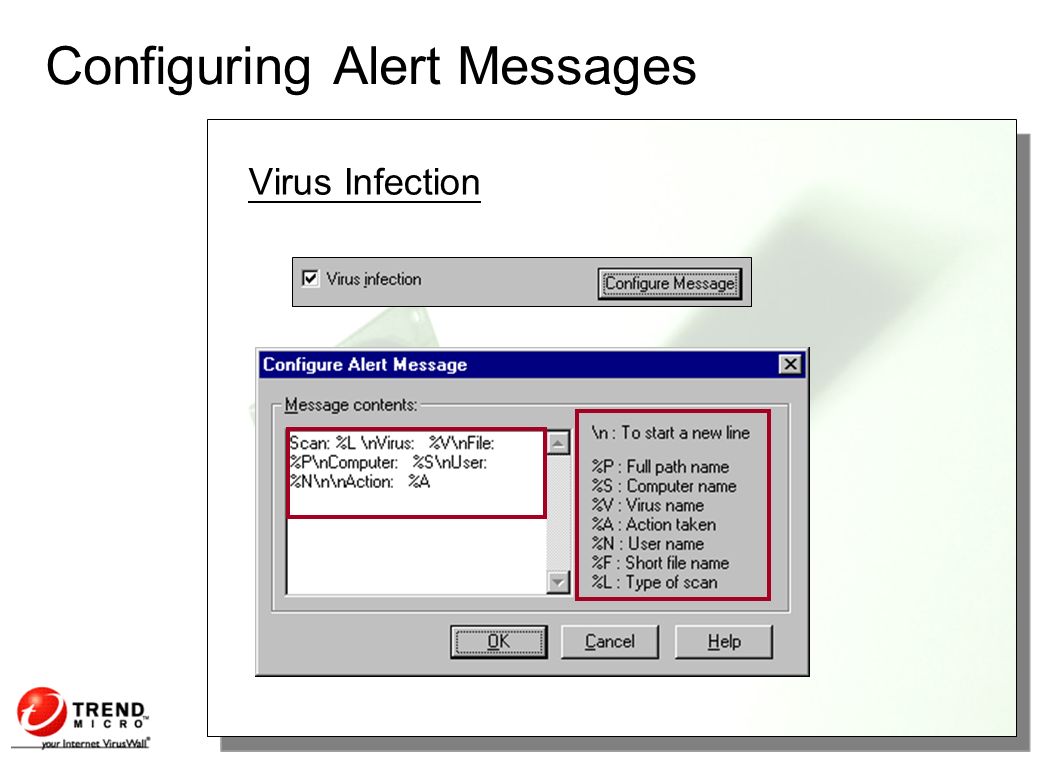

Configuring Alert Messages Virus Infection

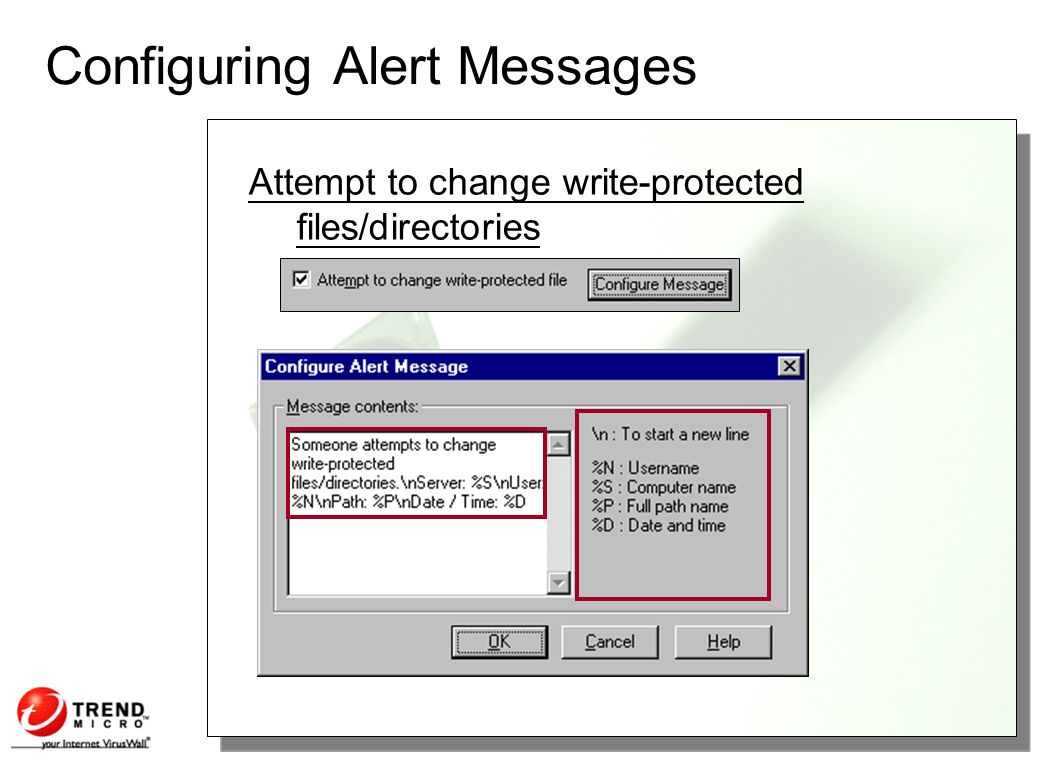

Configuring Alert Messages Attempt to change write-protected files/directories

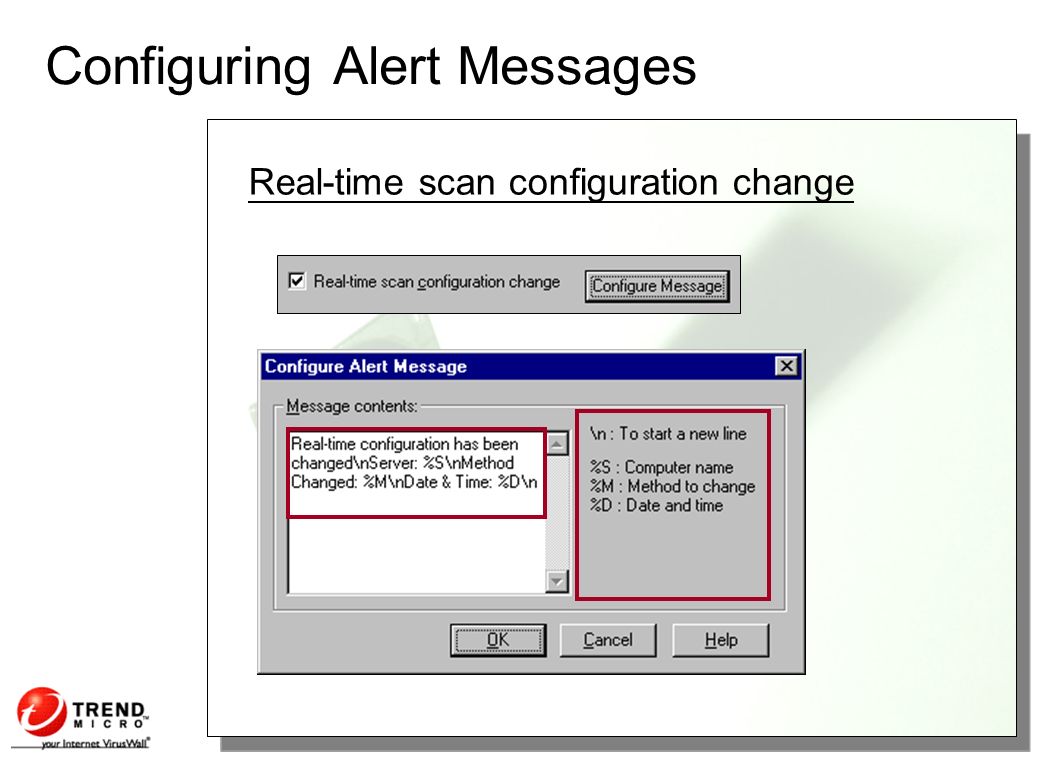

Configuring Alert Messages Real-time scan configuration change

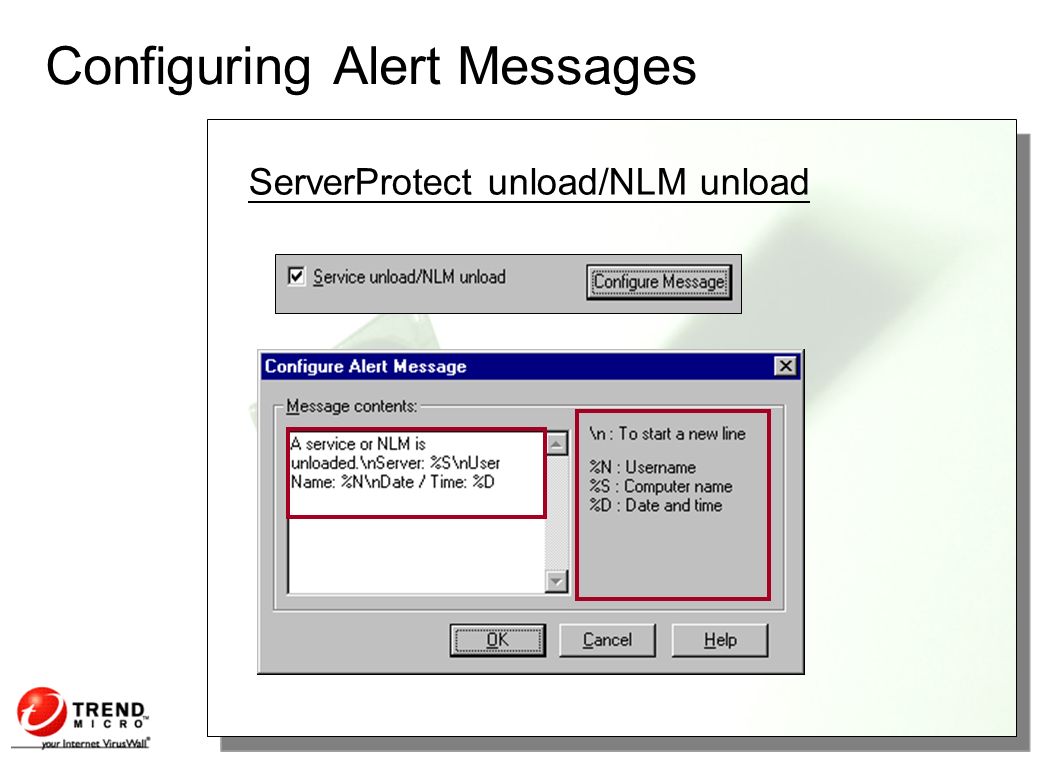

Configuring Alert Messages ServerProtect unload/NLM unload

Configuring Alert Messages Virus pattern out-of-date

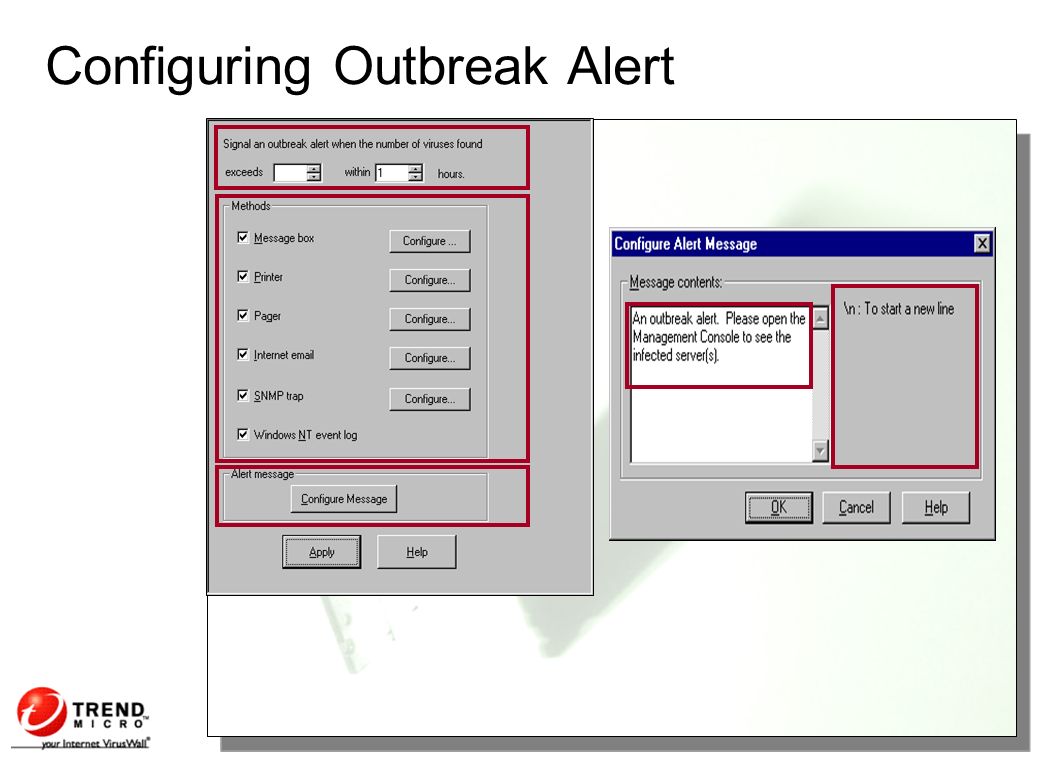

Configuring Outbreak Alert

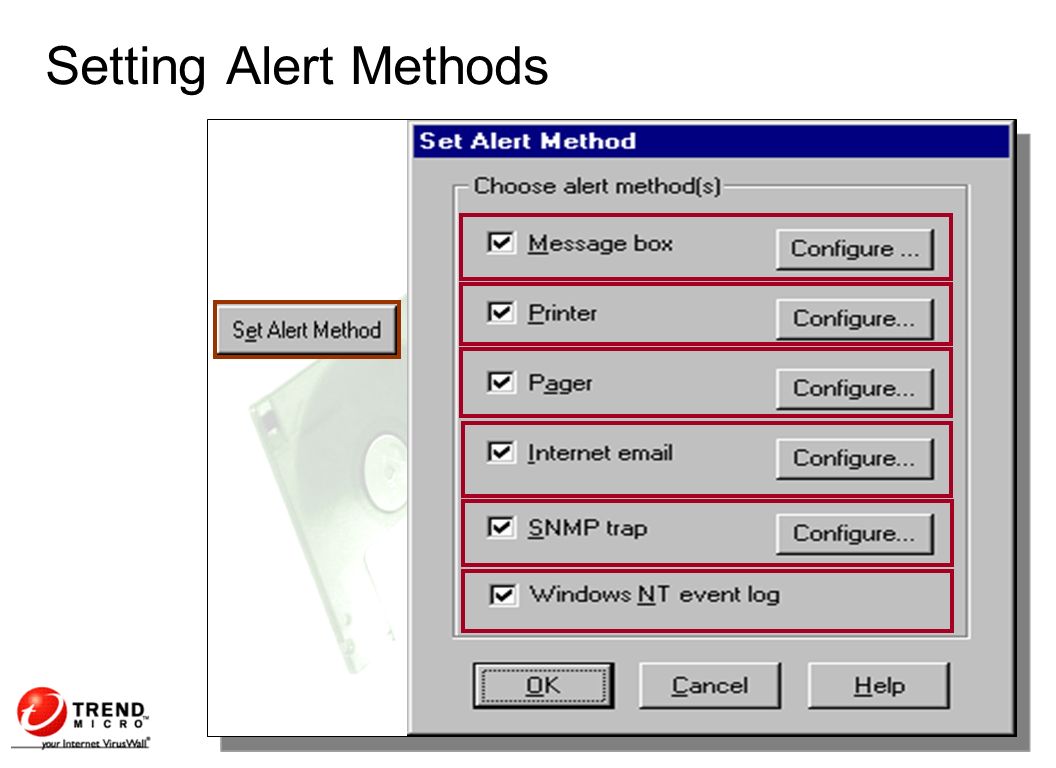

Setting Alert Methods

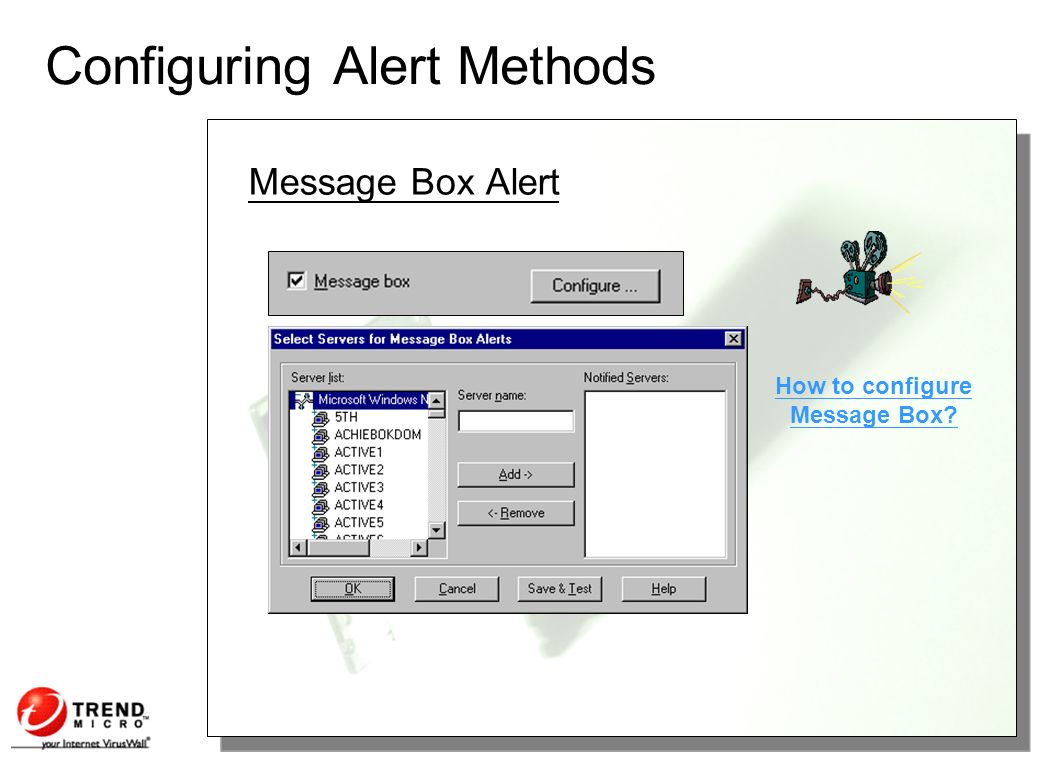

Configuring Alert Methods Message Box Alert How to configure Message Box?

Configuring Alert Methods Printer Alert How to configure printer alert?

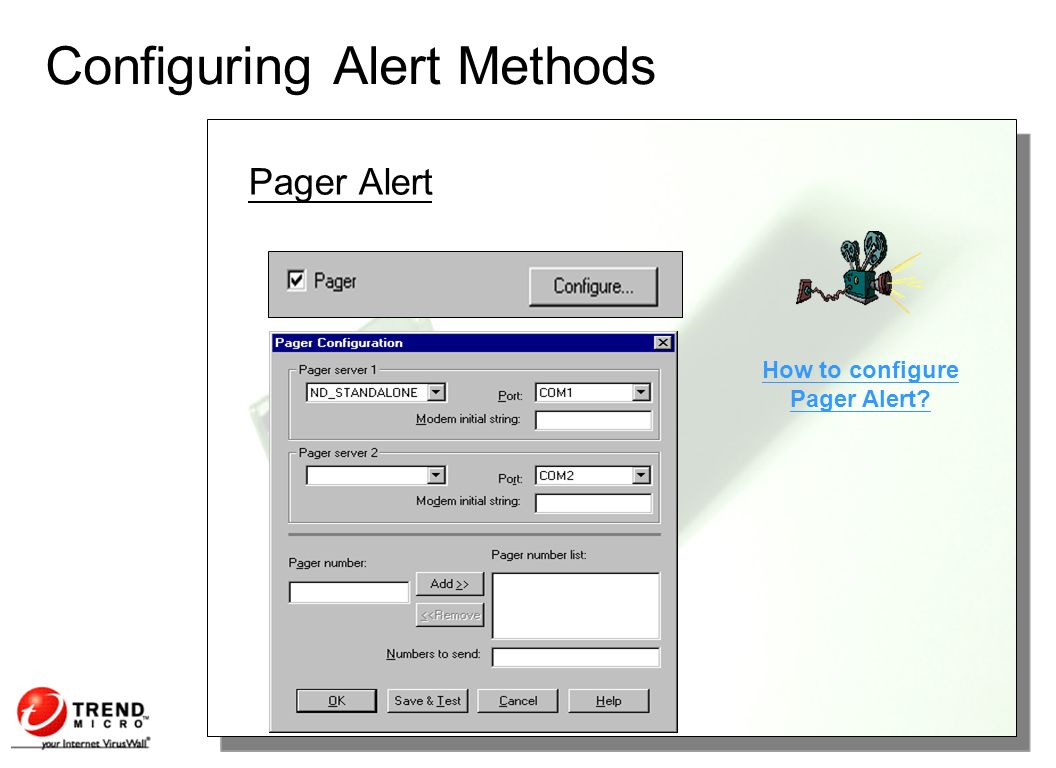

Configuring Alert Methods Pager Alert How to configure Pager Alert?

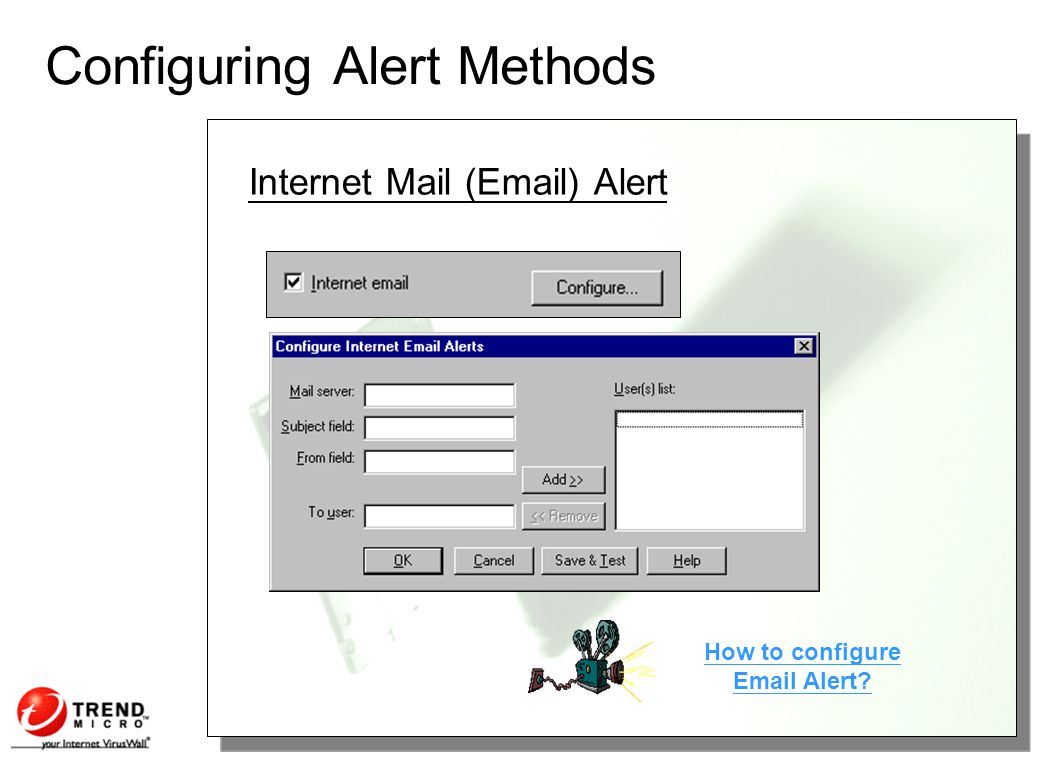

Configuring Alert Methods Internet Mail (Email) Alert How to configure Email Alert?

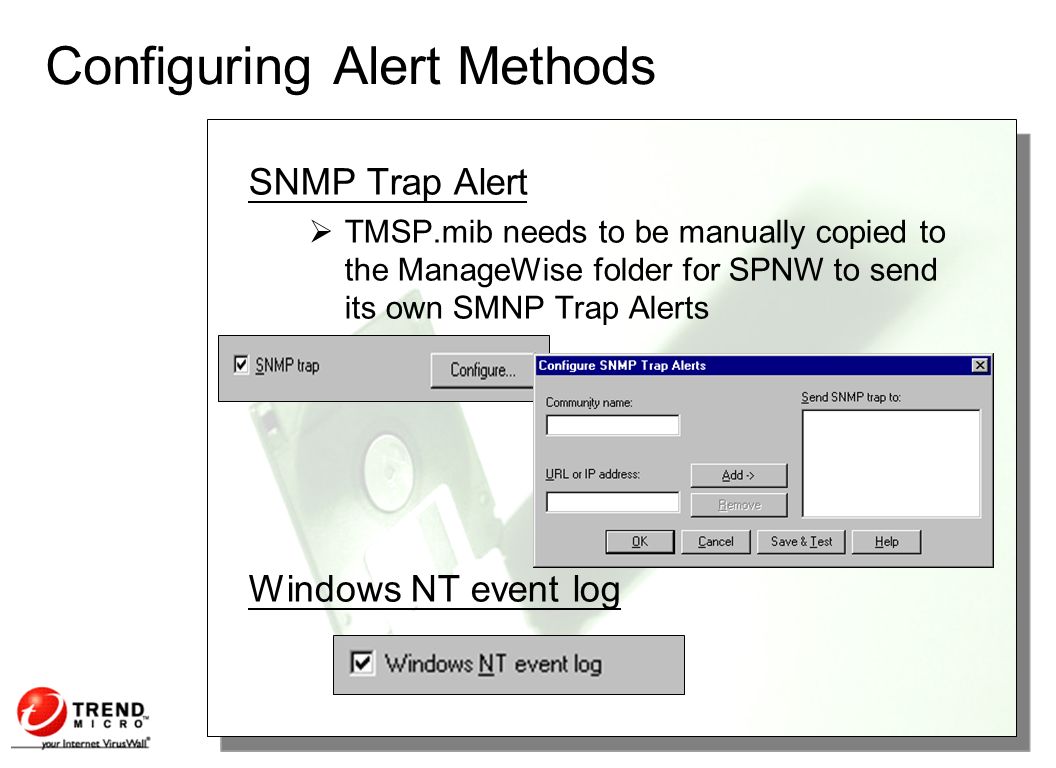

SNMP Trap Alert  TMSP.mib needs to be manually copied to the ManageWise folder for SPNW to send its own SMNP Trap Alerts Windows NT event log Configuring Alert Methods

Configuring Updates

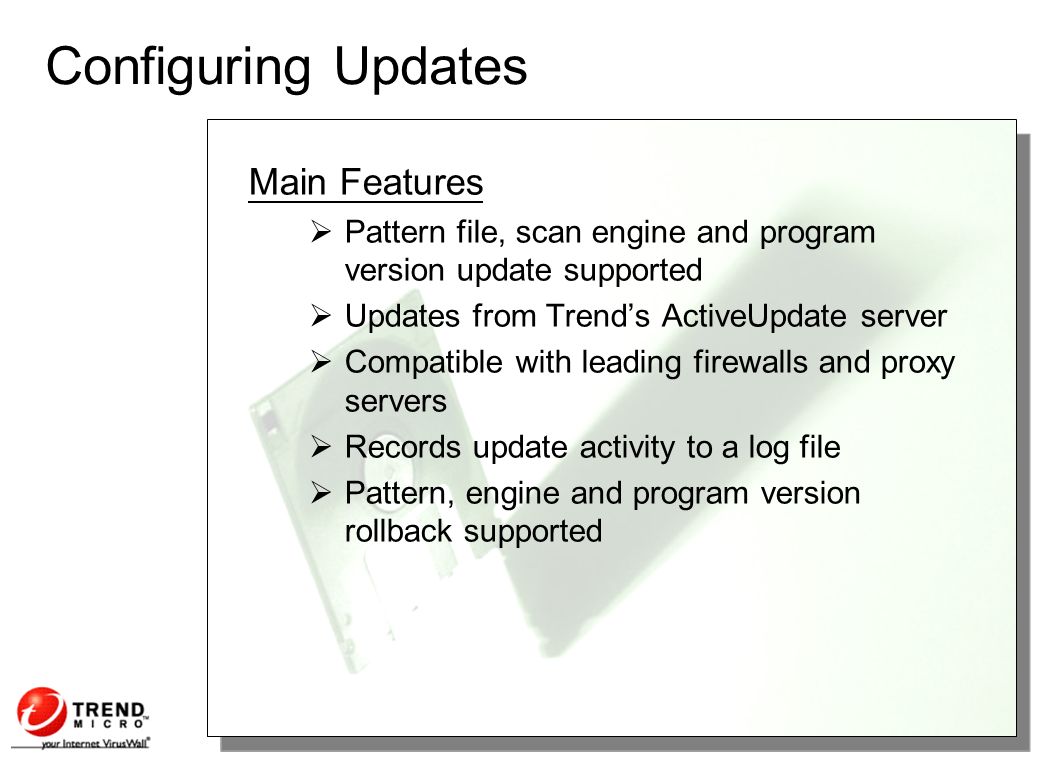

Main Features  Pattern file, scan engine and program version update supported  Updates from Trend’s ActiveUpdate server  Compatible with leading firewalls and proxy servers  Records update activity to a log file  Pattern, engine and program version rollback supported

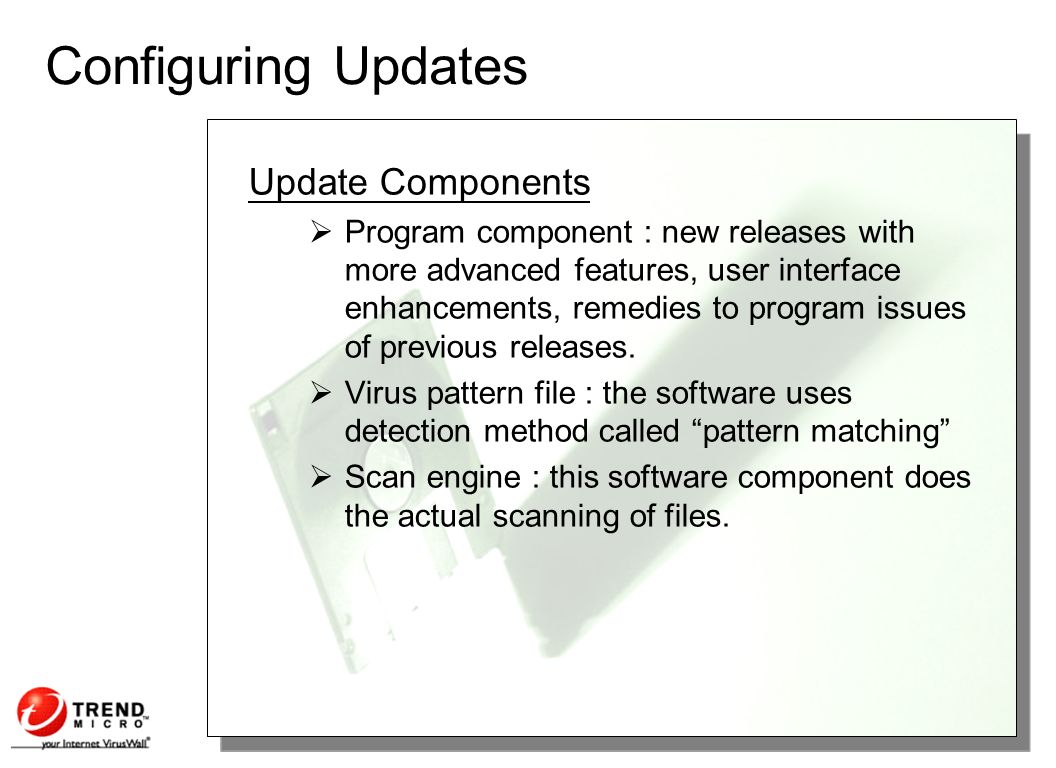

Configuring Updates Update Components  Program component : new releases with more advanced features, user interface enhancements, remedies to program issues of previous releases.  Virus pattern file : the software uses detection method called “pattern matching”  Scan engine : this software component does the actual scanning of files.

Configuring Updates How ServerProtect performs update  Downloading updates : downloading of the latest updates to an Information Server  Deploying updates : deploying the updates from an Information Server to the rest of the Normal Servers  Automatically downloading and deploying updates : Scheduling the downloading of updates on the Information Server and the creating a scheduled task to automatically deploy the updates to the Normal server

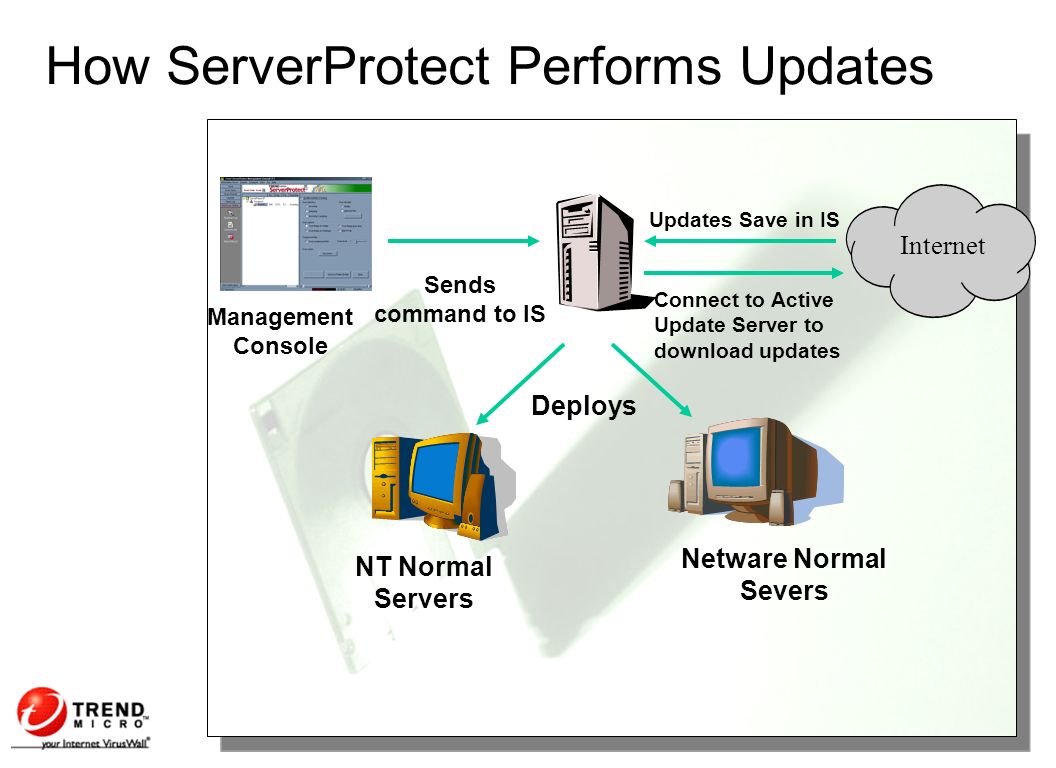

How ServerProtect Performs Updates Management Console Sends command to IS Connect to Active Update Server to download updates Updates Save in IS NT Normal Servers Netware Normal Severs Deploys Internet

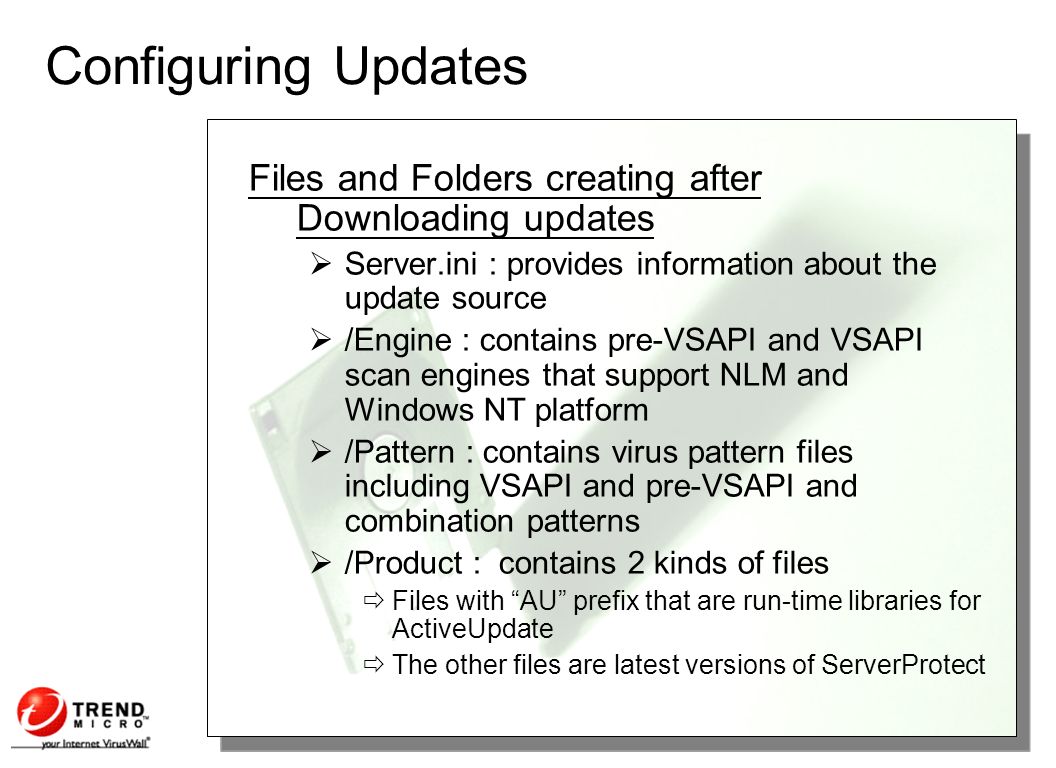

Configuring Updates Files and Folders creating after Downloading updates  Server.ini : provides information about the update source  /Engine : contains pre-VSAPI and VSAPI scan engines that support NLM and Windows NT platform  /Pattern : contains virus pattern files including VSAPI and pre-VSAPI and combination patterns  /Product : contains 2 kinds of files  Files with “AU” prefix that are run-time libraries for ActiveUpdate  The other files are latest versions of ServerProtect

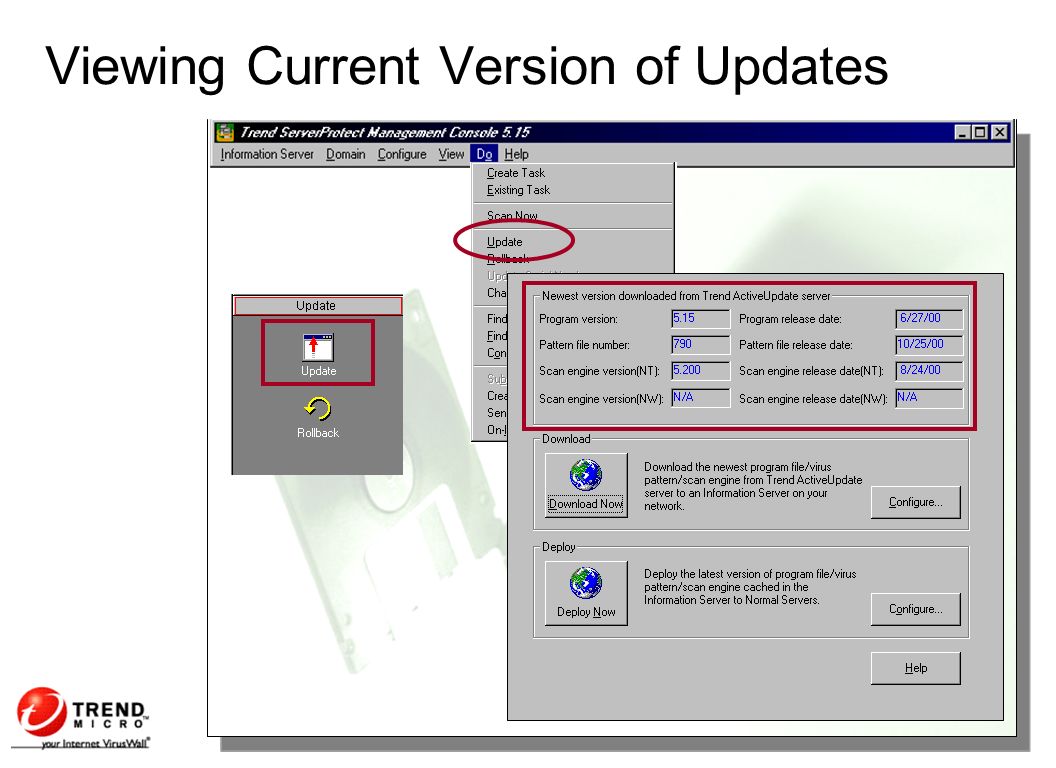

Viewing Current Version of Updates

Downloading Updates How to Download Update for IS (first time)

Configuring Download Settings From Internet From the Network

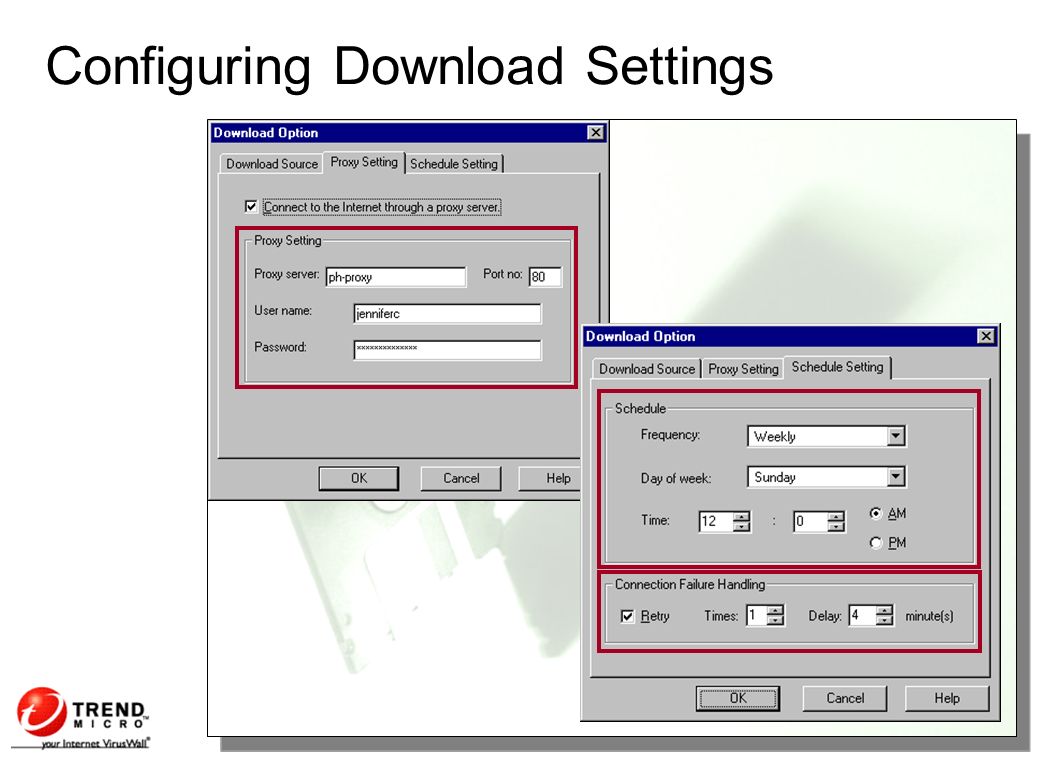

Configuring Download Settings

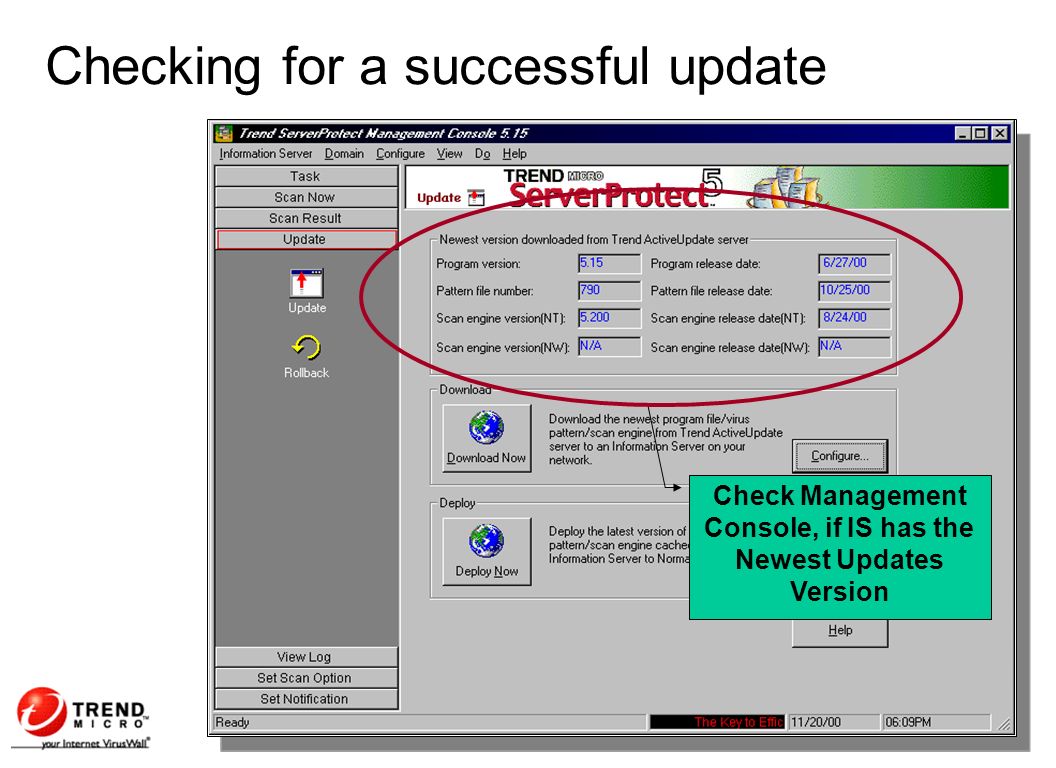

Checking for a successful update Check Management Console, if IS has the Newest Updates Version

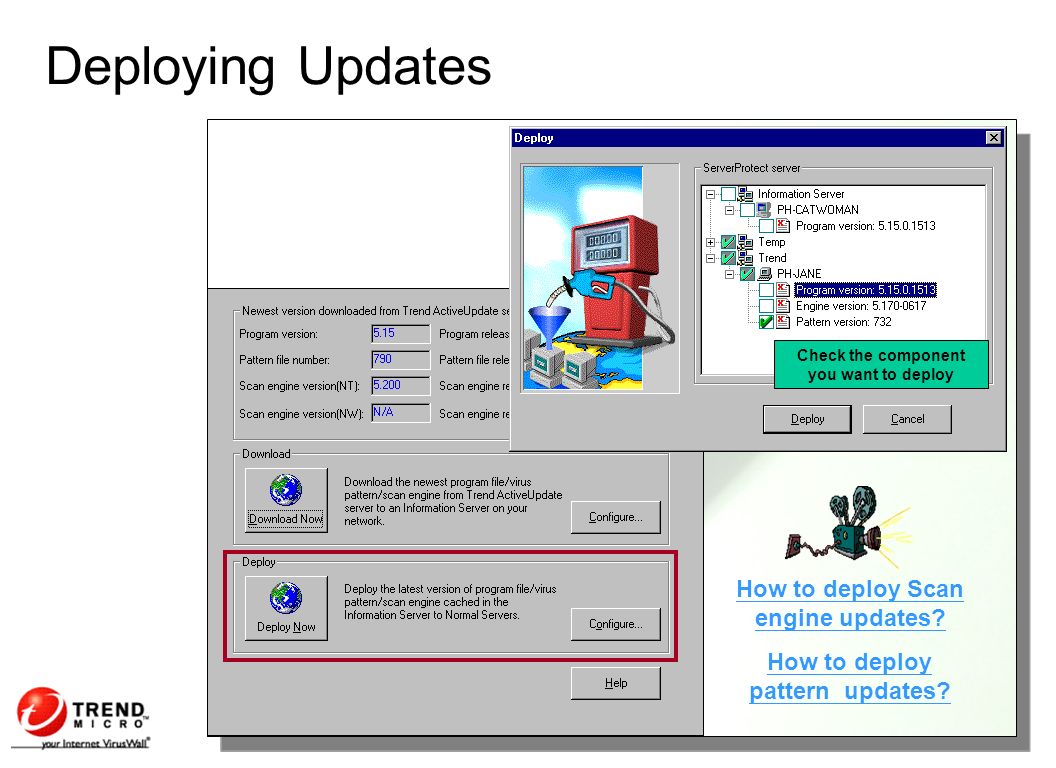

Deploying Updates How to deploy Scan engine updates? How to deploy pattern updates? Check the component you want to deploy

Configuring a Scheduled Deployment Existing Task New Task

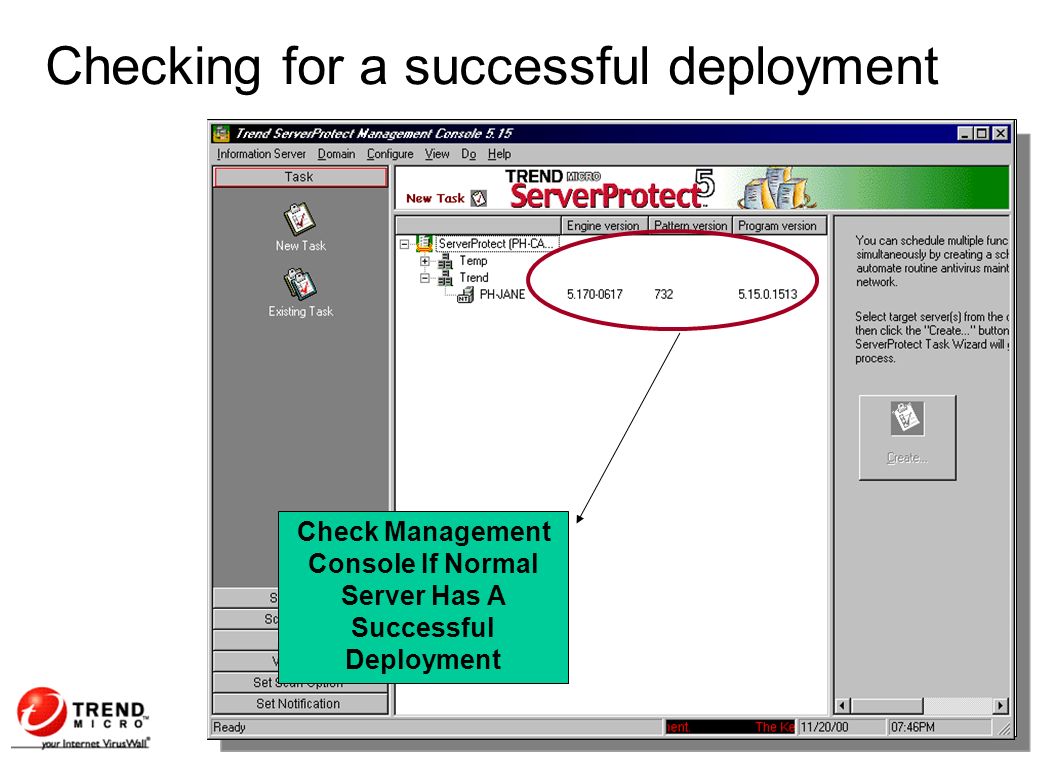

Checking for a successful deployment Check Management Console If Normal Server Has A Successful Deployment

Rolling-back the Previous Deployment Action Check the component you want to rollback

Viewing Scan Result and Log Files

Viewing Scan Results Real-time scan enabled Infected File found

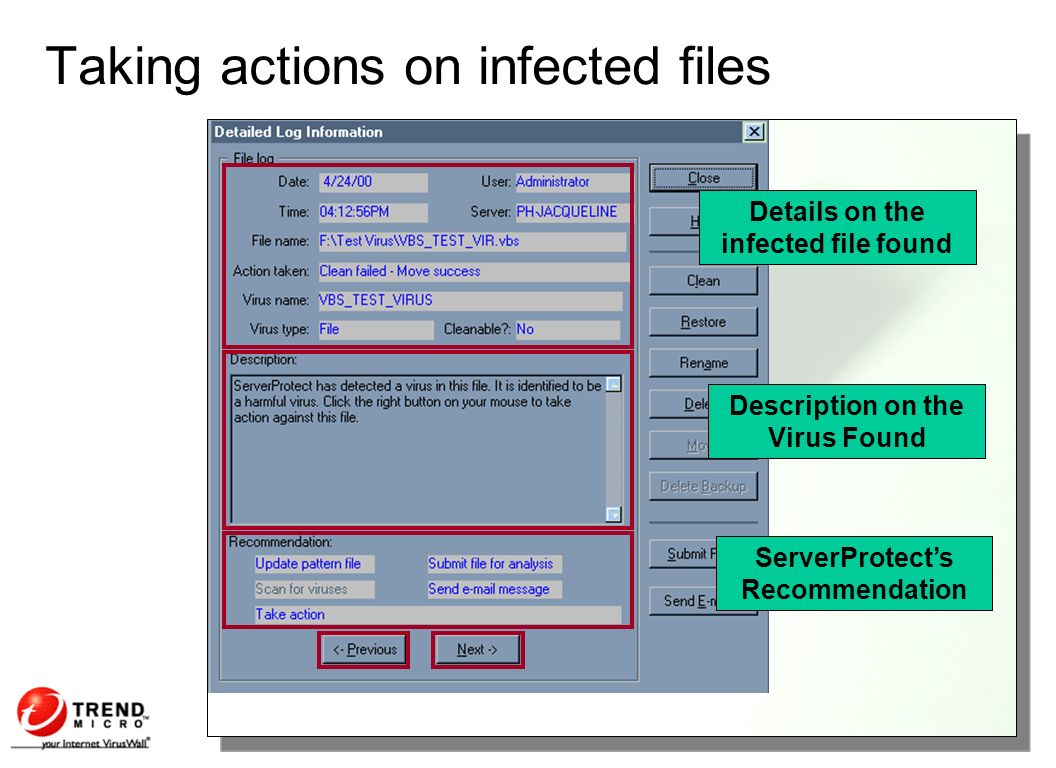

Taking actions on infected files ServerProtect’s Recommendation Description on the Virus Found Details on the infected file found

Taking actions on infected files Click Purge Take Action

Viewing Logs Log Types Date Range Select Action to perform

Viewing Detailed Log Information Click Next or Previous to view other events Description in the event More information about the event

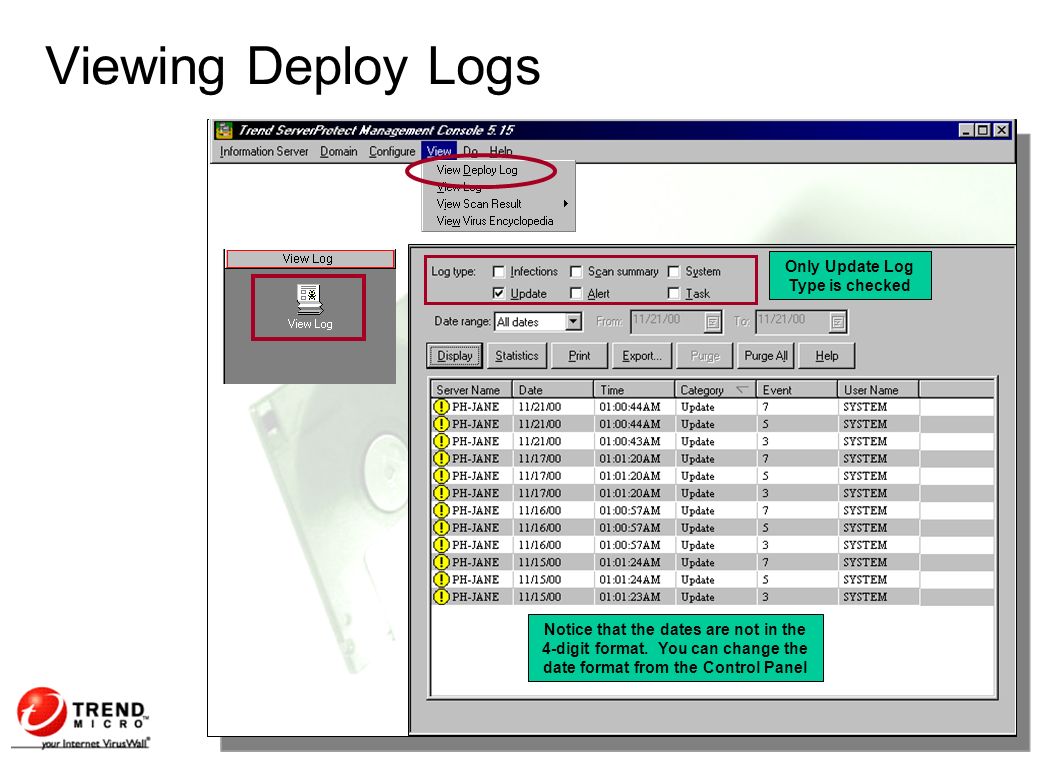

Viewing Deploy Logs Only Update Log Type is checked Notice that the dates are not in the 4-digit format. You can change the date format from the Control Panel

Viewing Scan Statistics Only Infections Log Type is checked Click the Statistics button

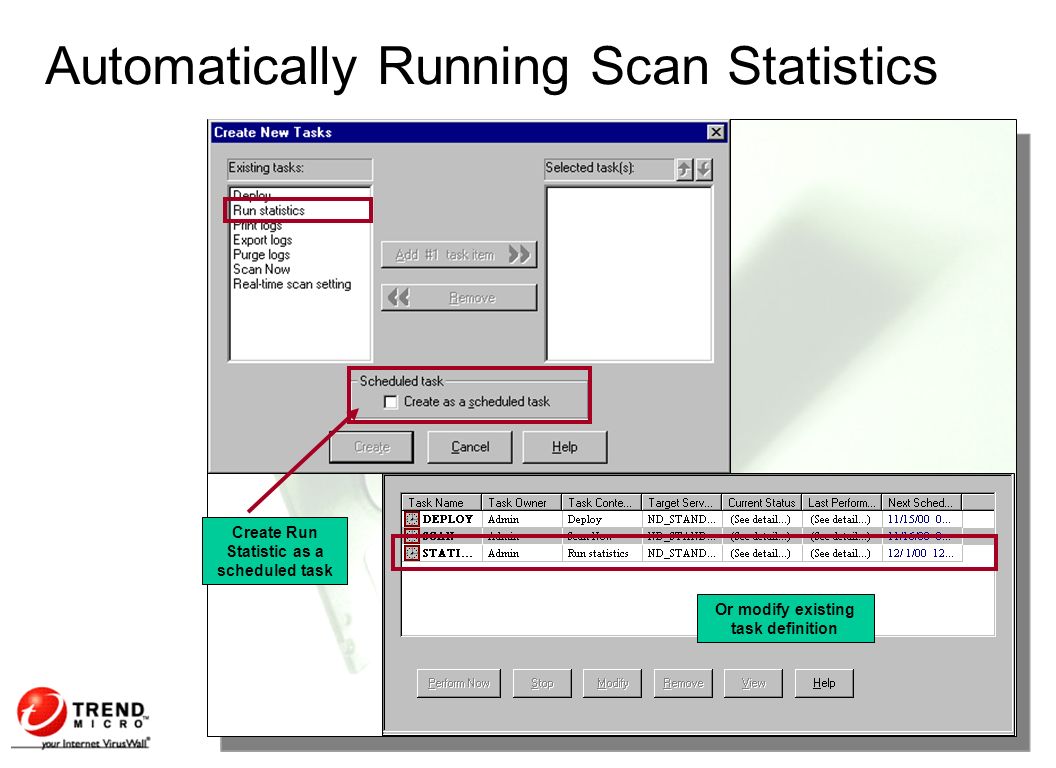

Automatically Running Scan Statistics Or modify existing task definition Create Run Statistic as a scheduled task

Printing, Exporting and Purging Logs Printing Logs Exporting Logs Click Purge button to delete a specific log entry and Purge All to delete all the log entries

Automatically Purging of Logs Create Purge logs as a scheduled task Purge Log Demo

Troubleshooting

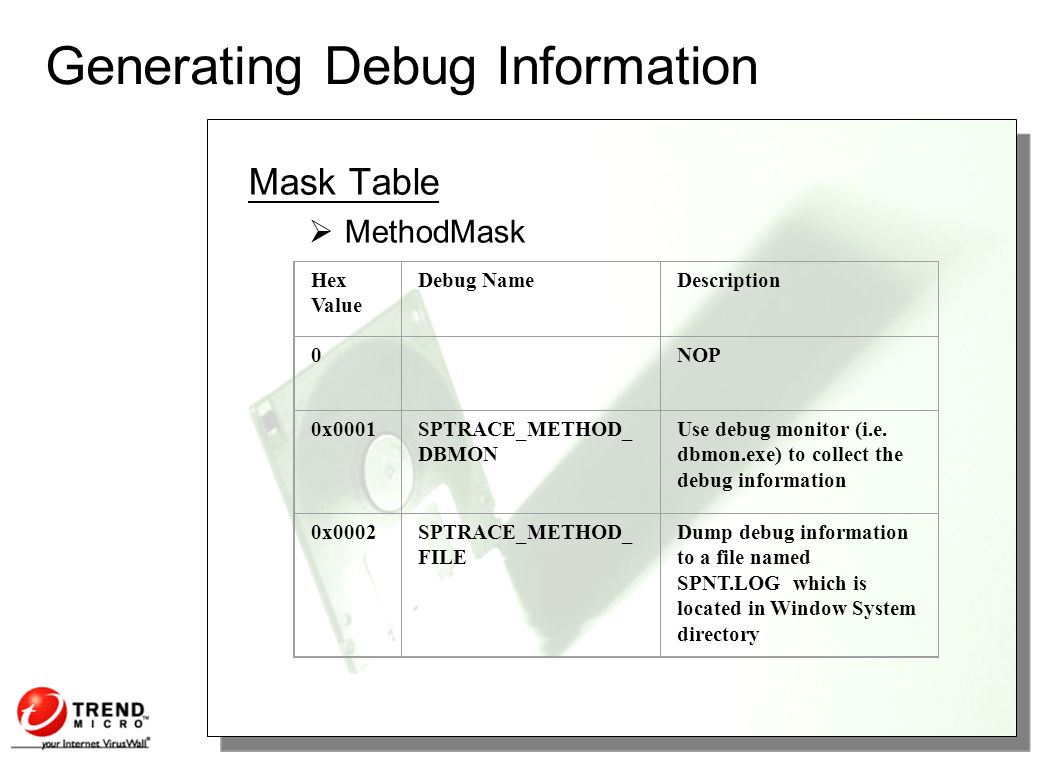

Generating Debug Information Mask Table  MethodMask Hex Value Debug NameDescription 0 NOP 0x0001SPTRACE_METHOD_ DBMON Use debug monitor (i.e. dbmon.exe) to collect the debug information 0x0002SPTRACE_METHOD_ FILE Dump debug information to a file named SPNT.LOG which is located in Window System directory

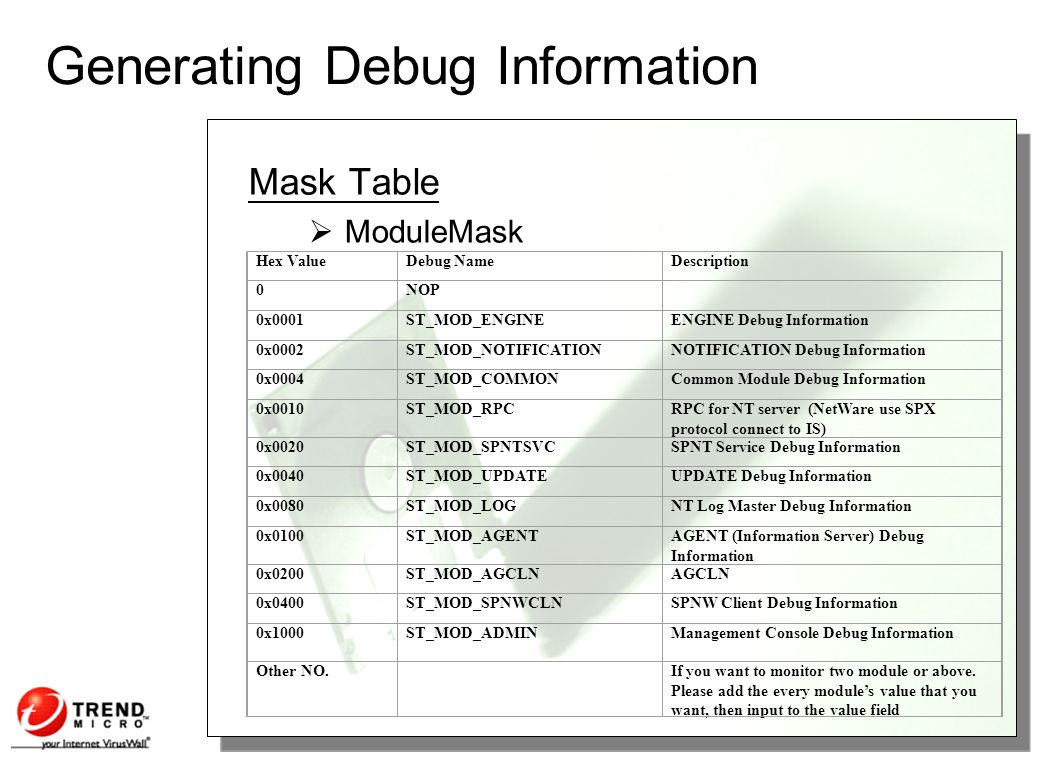

Generating Debug Information Mask Table  ModuleMask Hex ValueDebug NameDescription 0NOP 0x0001ST_MOD_ENGINEENGINE Debug Information 0x0002ST_MOD_NOTIFICATIONNOTIFICATION Debug Information 0x0004ST_MOD_COMMONCommon Module Debug Information 0x0010ST_MOD_RPCRPC for NT server (NetWare use SPX protocol connect to IS) 0x0020ST_MOD_SPNTSVCSPNT Service Debug Information 0x0040ST_MOD_UPDATEUPDATE Debug Information 0x0080ST_MOD_LOGNT Log Master Debug Information 0x0100ST_MOD_AGENTAGENT (Information Server) Debug Information 0x0200ST_MOD_AGCLNAGCLN 0x0400ST_MOD_SPNWCLNSPNW Client Debug Information 0x1000ST_MOD_ADMINManagement Console Debug Information Other NO. If you want to monitor two module or above. Please add the every module’s value that you want, then input to the value field

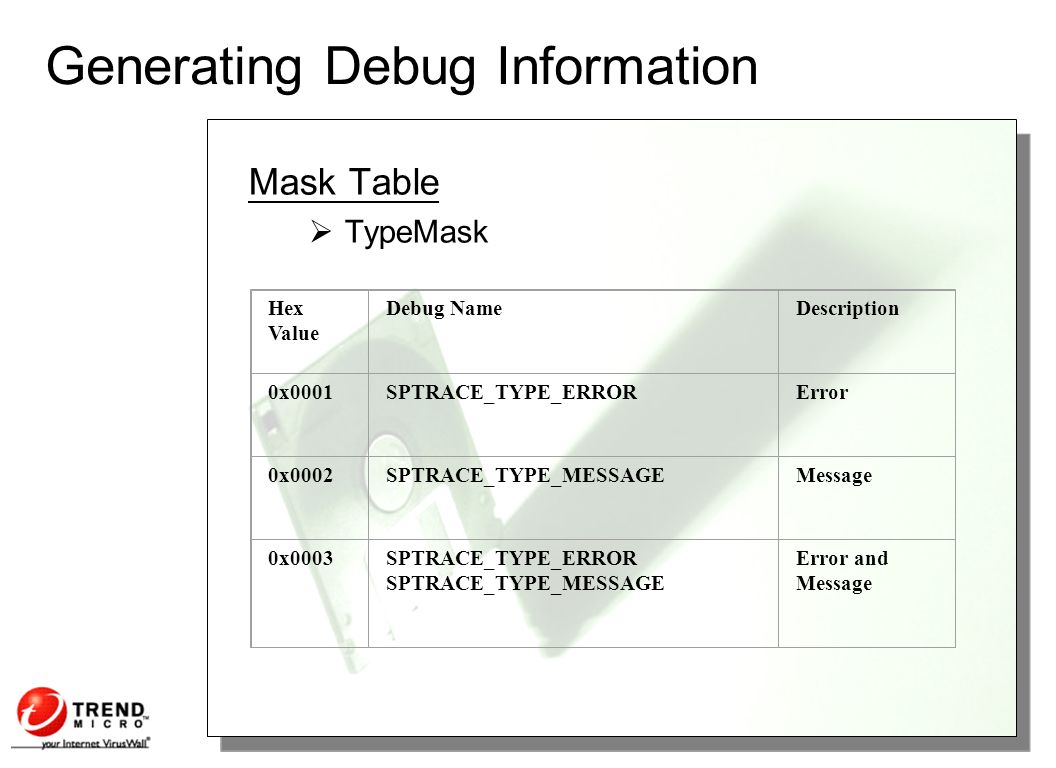

Generating Debug Information Mask Table  TypeMask Hex Value Debug NameDescription 0x0001SPTRACE_TYPE_ERRORError 0x0002SPTRACE_TYPE_MESSAGEMessage 0x0003SPTRACE_TYPE_ERROR SPTRACE_TYPE_MESSAGE Error and Message

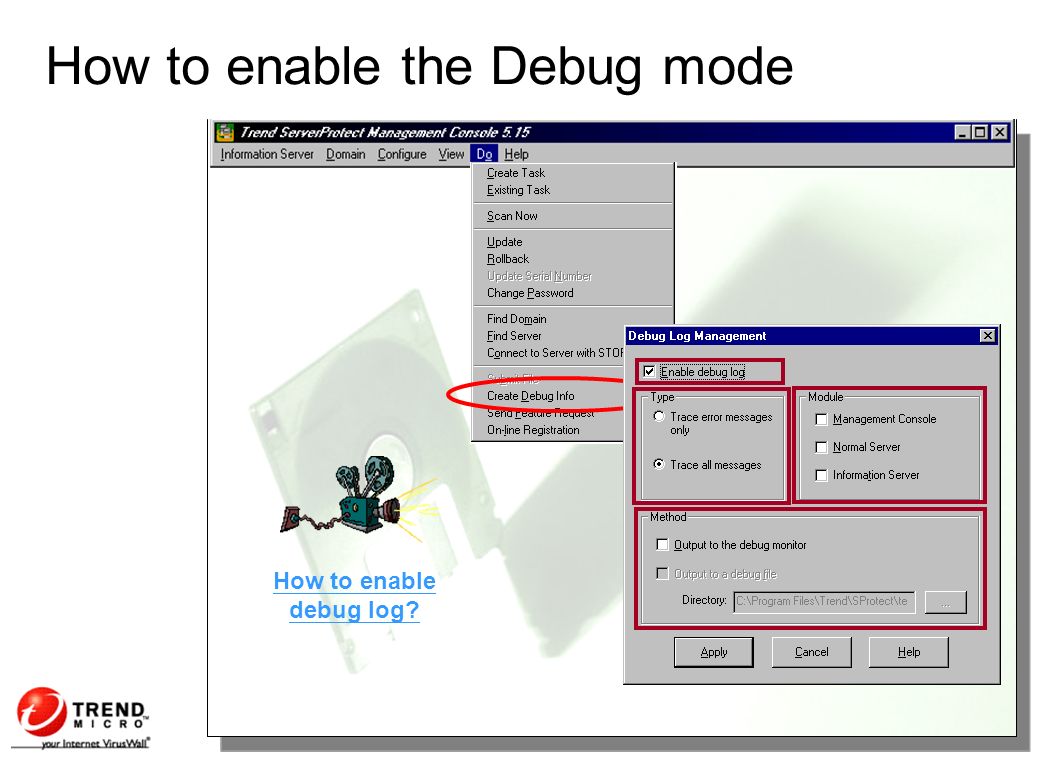

How to enable the Debug mode How to enable debug log?

Creating debug logs from the registry 1.Open the Registry Editor of the ServerProtect server. 2.Under the HKEY_LOCAL_MACHINE\SOFTWARE\TrendMicro\ DebugLog\ directory, do the following:  Create a new item to define where to save the debug log file, like [SPNTHomeDirectory] = "c:\spnt.log"  Set the following values  MethodMask = 2  ModuleMask = ffffffff  TypeMask = 3 3.Re-start the ServerProtect service. If the service cannot be started, you can send the "c:\spnt.log" debug log file to Trend technical support engineers for assistance. How to enable the Debug mode

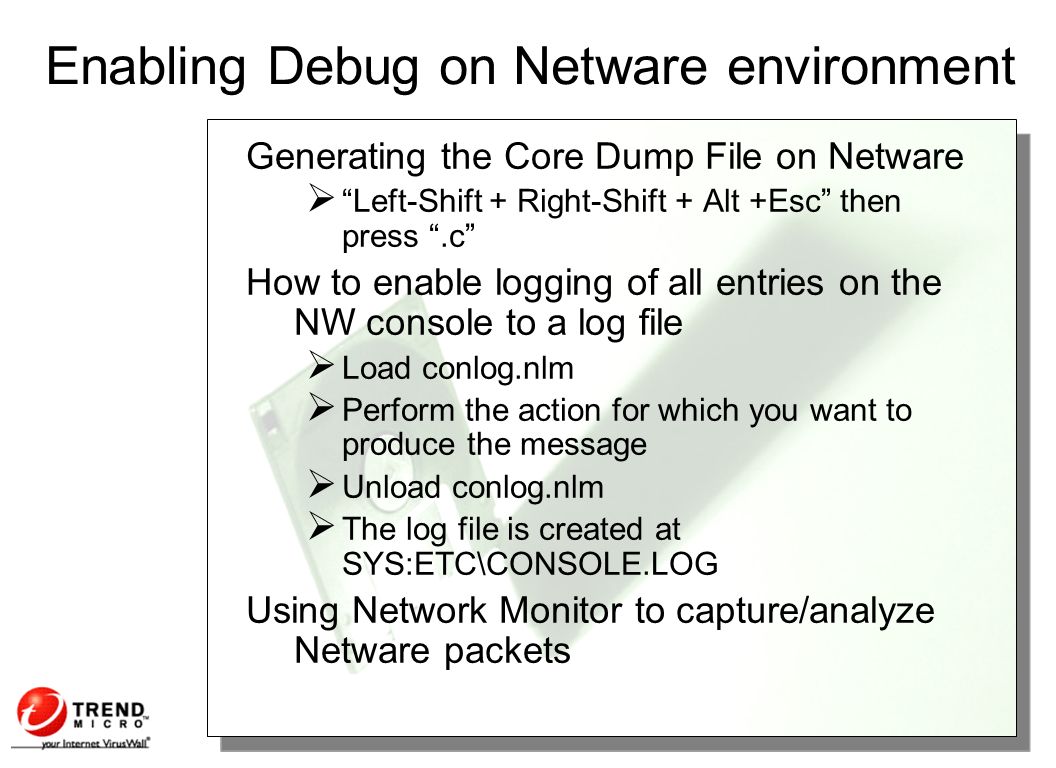

Enabling Debug on Netware environment Generating the Core Dump File on Netware  “Left-Shift + Right-Shift + Alt +Esc” then press “.c” How to enable logging of all entries on the NW console to a log file  Load conlog.nlm  Perform the action for which you want to produce the message  Unload conlog.nlm  The log file is created at SYS:ETC\CONSOLE.LOG Using Network Monitor to capture/analyze Netware packets

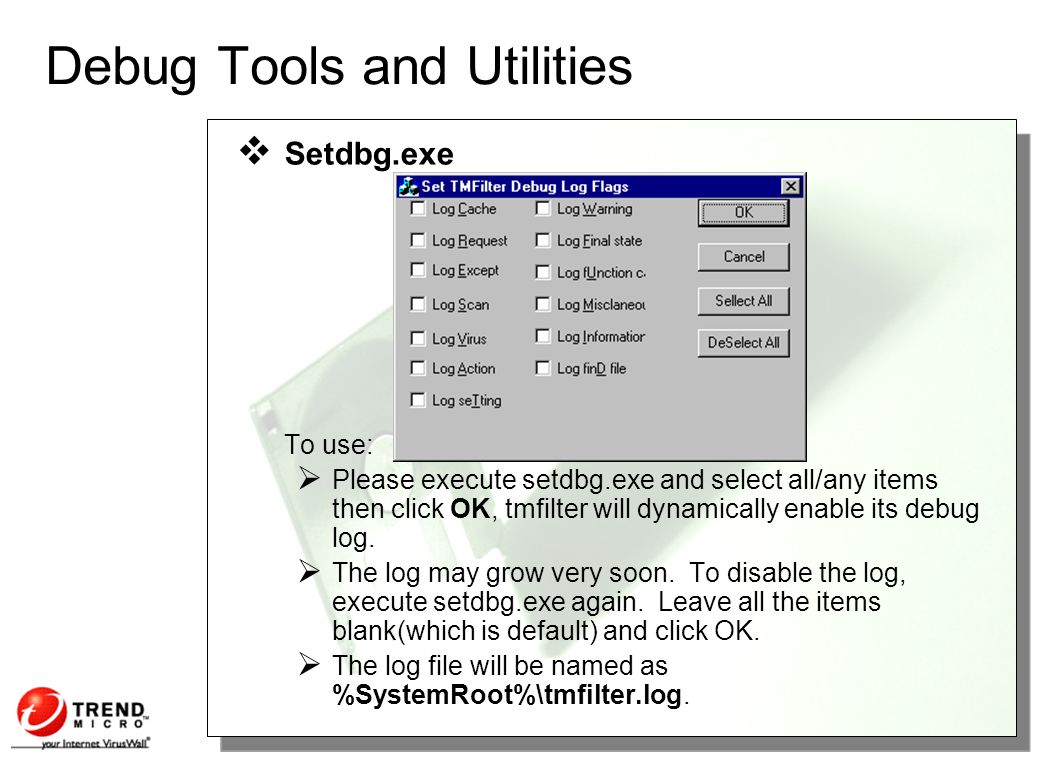

Debug Tools and Utilities  Setdbg.exe To use:  Please execute setdbg.exe and select all/any items then click OK, tmfilter will dynamically enable its debug log.  The log may grow very soon. To disable the log, execute setdbg.exe again. Leave all the items blank(which is default) and click OK.  The log file will be named as %SystemRoot%\tmfilter.log.

Debug Tools and Utilities  SetSP5.exe This utility will display information about the Lprotect module. It also displays a menu that allows user to set various parameters in the Lprotect module. To use:  Please extract the setsp5.zip, first and run SETSP5.exe from a DOS prompt, with the SETSP5.exe file and the Lprotect module located in the root path.  Then type “SETSP5 LPROTECT.NLM” to display the following information about lprotect.nlm: Serial String; Netware Server Name; Working Directory of the old "LPROTECT.NLM”  The same information should be used whenever the lprotect module is updated manually.

Debug Tools and Utilities  Log.exe This tool is used to change the SPNW 5.x log files into text file format. To use:  On the Dos prompt, please type “log.exe f:\Sprotect\VpmLog\lp****.log”.  A text file called lp****.dmp will be created that would contain the information included in the log file.  Toolbox.exe This tool allow users to run Dos commands under Netware server console. It also allow users to access and browse Dos partitions. To use:  Please copy the file to the Netware server and type “load toolbox.nlm”.

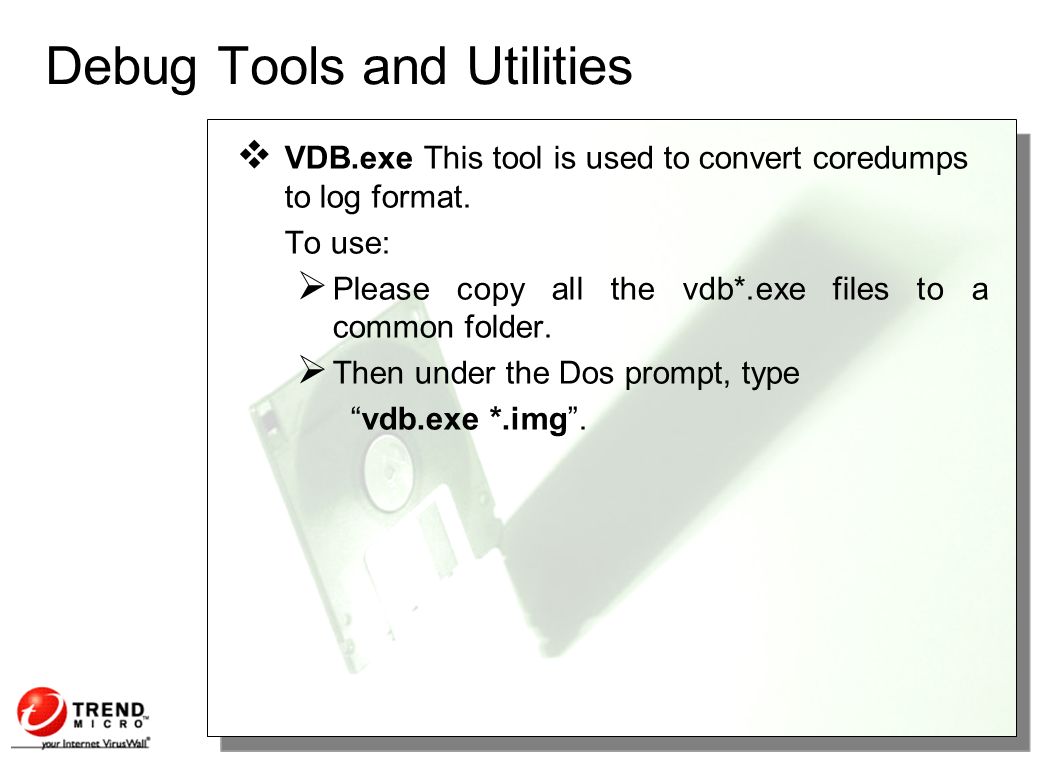

Debug Tools and Utilities  VDB.exe This tool is used to convert coredumps to log format. To use:  Please copy all the vdb*.exe files to a common folder.  Then under the Dos prompt, type “vdb.exe *.img”.

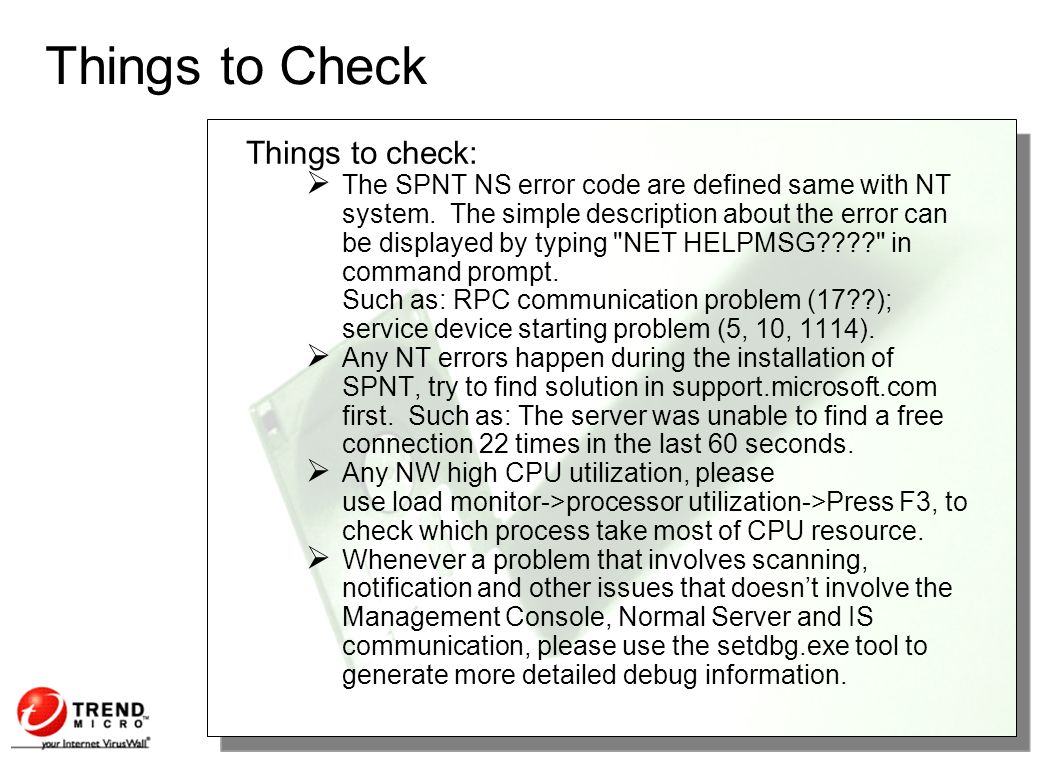

Things to Check Things to check:  The SPNT NS error code are defined same with NT system. The simple description about the error can be displayed by typing "NET HELPMSG????" in command prompt. Such as: RPC communication problem (17??); service device starting problem (5, 10, 1114).  Any NT errors happen during the installation of SPNT, try to find solution in support.microsoft.com first. Such as: The server was unable to find a free connection 22 times in the last 60 seconds.  Any NW high CPU utilization, please use load monitor->processor utilization->Press F3, to check which process take most of CPU resource.  Whenever a problem that involves scanning, notification and other issues that doesn’t involve the Management Console, Normal Server and IS communication, please use the setdbg.exe tool to generate more detailed debug information.

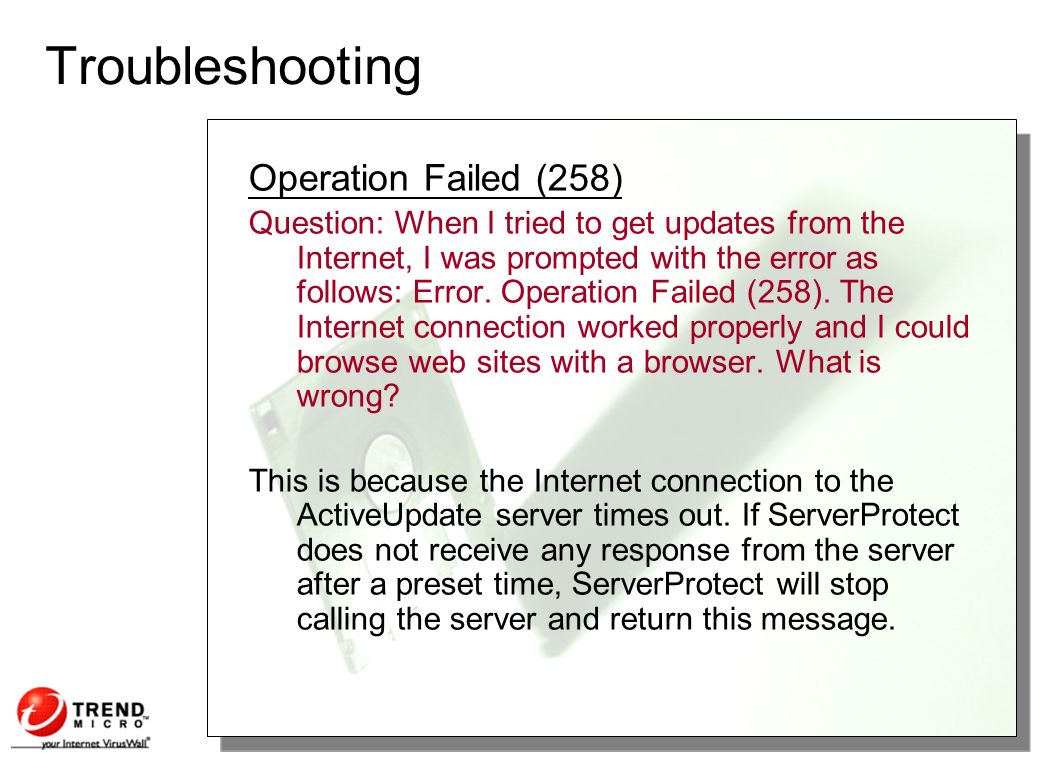

Troubleshooting Operation Failed (258) Question: When I tried to get updates from the Internet, I was prompted with the error as follows: Error. Operation Failed (258). The Internet connection worked properly and I could browse web sites with a browser. What is wrong? This is because the Internet connection to the ActiveUpdate server times out. If ServerProtect does not receive any response from the server after a preset time, ServerProtect will stop calling the server and return this message.

Troubleshooting Failed when creating/deleting a directory under the destination directory Question: When I tried to download the latest virus pattern file by clicking the Download Now button from the Management Console, the error, “Failed when creating/deleting a directory under the destination directory” occurred. What happened? Do the following: 1.Check your network configuration settings. 2.Try using your browser to download the ActiveUpdate INI file (server.ini) from the following servers to ensure that the ActiveUpdate server is running: http://serverprotect.activeupdate.trend.com/Activeupdate/server.ini 3.Check the debug log file, tmdump.txt, located under the \\Sprotect\Temp\ directory.

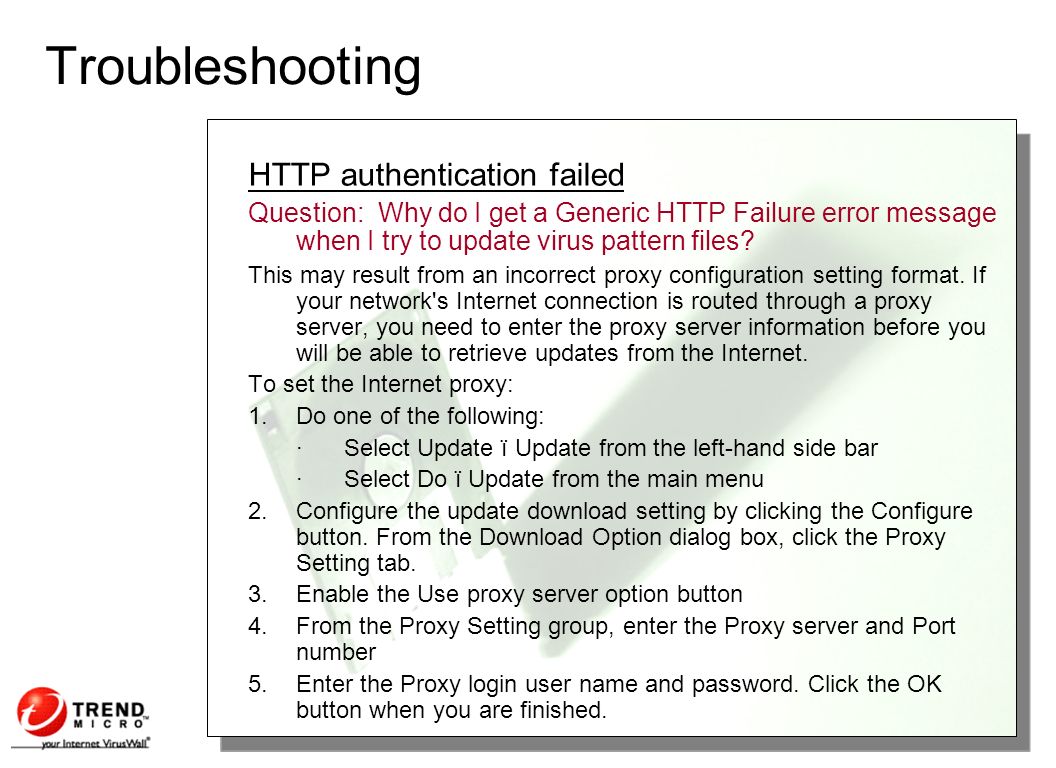

Troubleshooting HTTP authentication failed Question: Why do I get a Generic HTTP Failure error message when I try to update virus pattern files? This may result from an incorrect proxy configuration setting format. If your network's Internet connection is routed through a proxy server, you need to enter the proxy server information before you will be able to retrieve updates from the Internet. To set the Internet proxy: 1.Do one of the following: ·Select Update ï Update from the left-hand side bar ·Select Do ï Update from the main menu 2.Configure the update download setting by clicking the Configure button. From the Download Option dialog box, click the Proxy Setting tab. 3.Enable the Use proxy server option button 4.From the Proxy Setting group, enter the Proxy server and Port number 5.Enter the Proxy login user name and password. Click the OK button when you are finished.

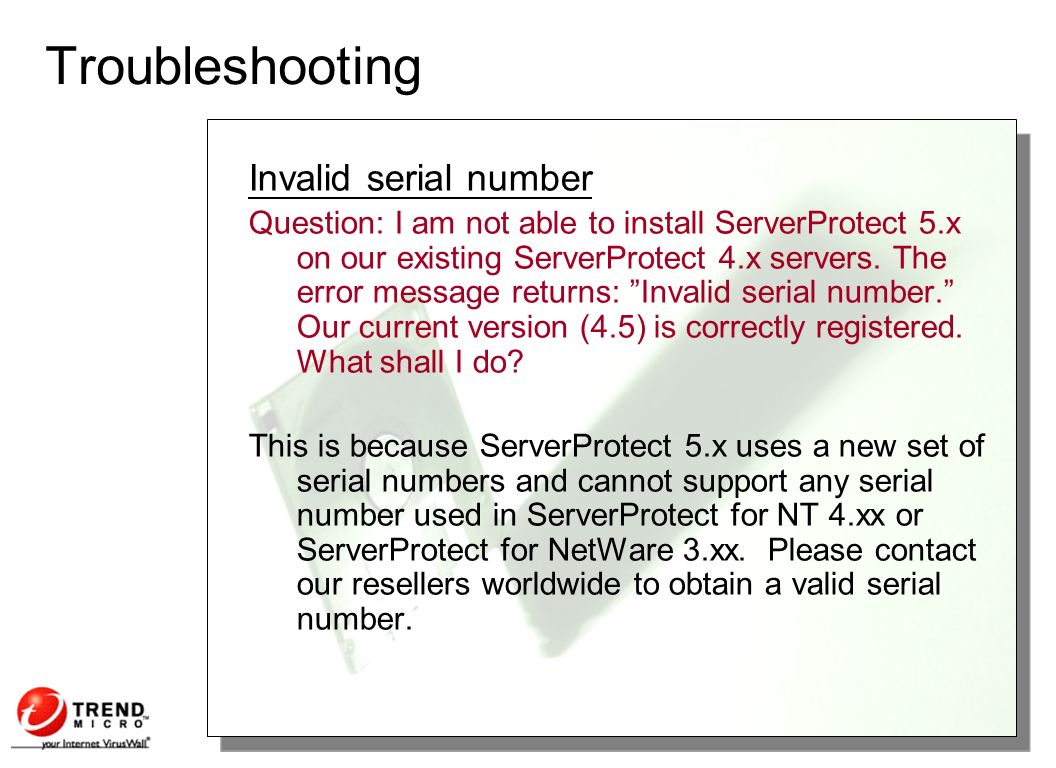

Troubleshooting Invalid serial number Question: I am not able to install ServerProtect 5.x on our existing ServerProtect 4.x servers. The error message returns: ”Invalid serial number.” Our current version (4.5) is correctly registered. What shall I do? This is because ServerProtect 5.x uses a new set of serial numbers and cannot support any serial number used in ServerProtect for NT 4.xx or ServerProtect for NetWare 3.xx. Please contact our resellers worldwide to obtain a valid serial number.

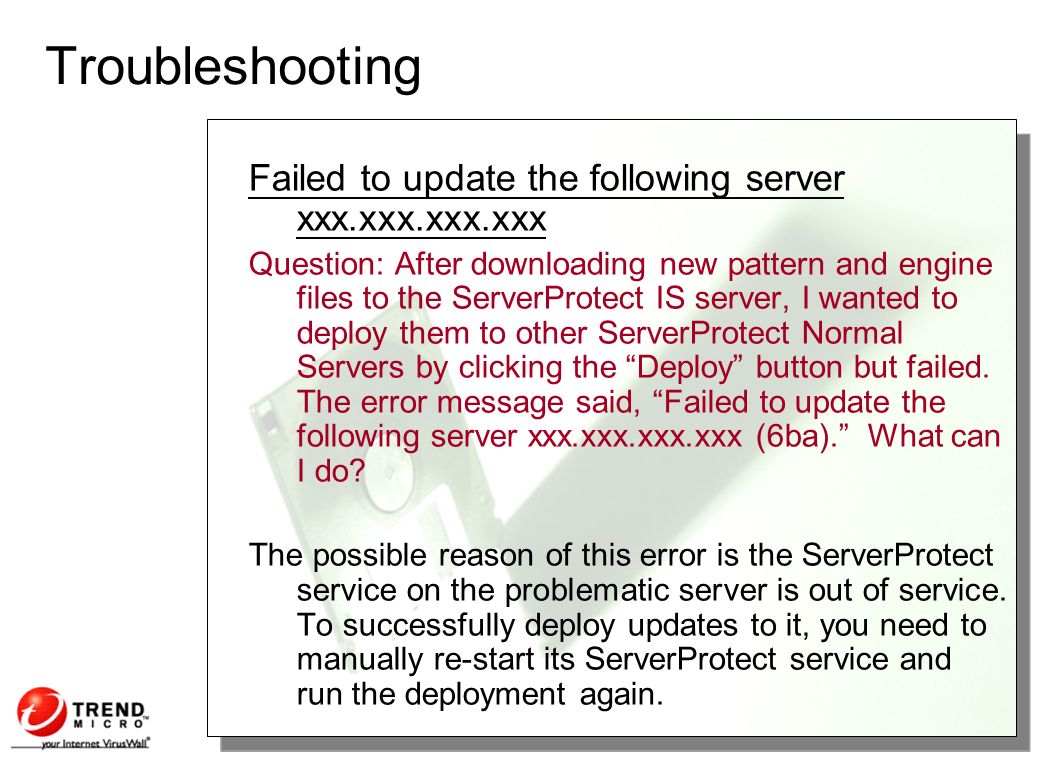

Troubleshooting Failed to update the following server xxx.xxx.xxx.xxx Question: After downloading new pattern and engine files to the ServerProtect IS server, I wanted to deploy them to other ServerProtect Normal Servers by clicking the “Deploy” button but failed. The error message said, “Failed to update the following server xxx.xxx.xxx.xxx (6ba).” What can I do? The possible reason of this error is the ServerProtect service on the problematic server is out of service. To successfully deploy updates to it, you need to manually re-start its ServerProtect service and run the deployment again.

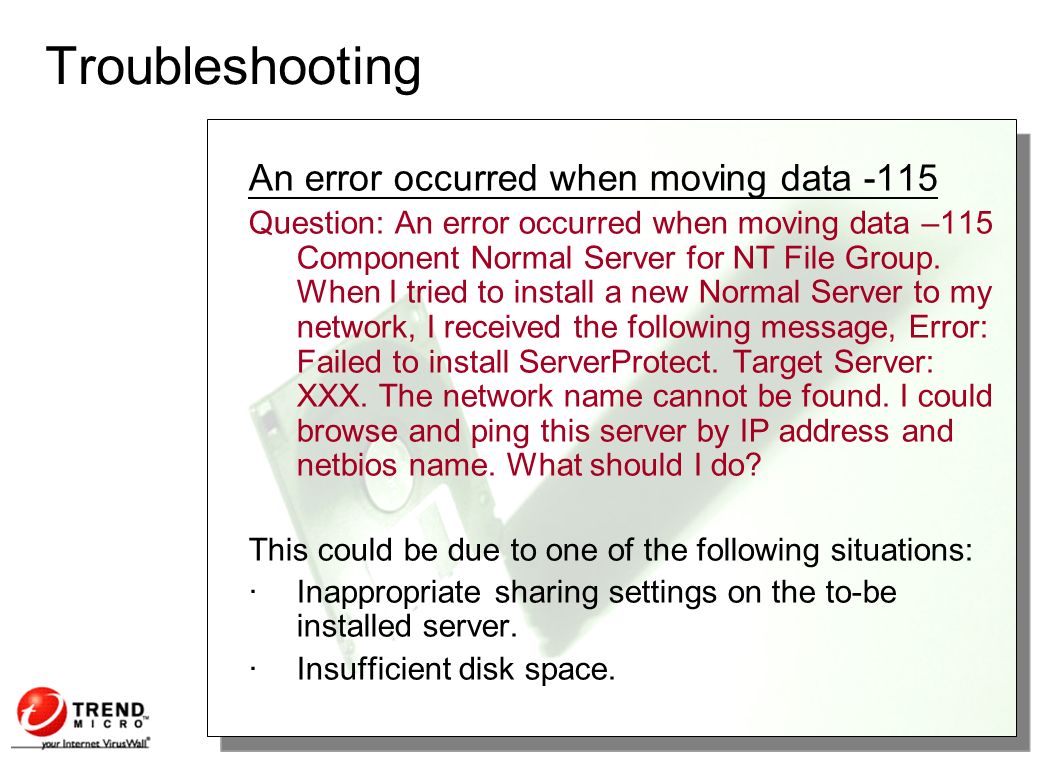

Troubleshooting An error occurred when moving data -115 Question: An error occurred when moving data –115 Component Normal Server for NT File Group. When I tried to install a new Normal Server to my network, I received the following message, Error: Failed to install ServerProtect. Target Server: XXX. The network name cannot be found. I could browse and ping this server by IP address and netbios name. What should I do? This could be due to one of the following situations: ·Inappropriate sharing settings on the to-be installed server. ·Insufficient disk space.

Troubleshooting ActiveUpdate source not found Question: ActiveUpdate source not found (server.ini) This could be that the Trend update server is currently down. If this is the case, try to connect to the server after a few moments. The server will be automatically rebooted. This message may also occur while you are downloading update files. This is because the server.ini is either corrupt or missing. To solve the problem, manually download the server.ini file from the Trend ActiveUpdate web site and copy the file to the folder where you saved the previously downloaded update files.

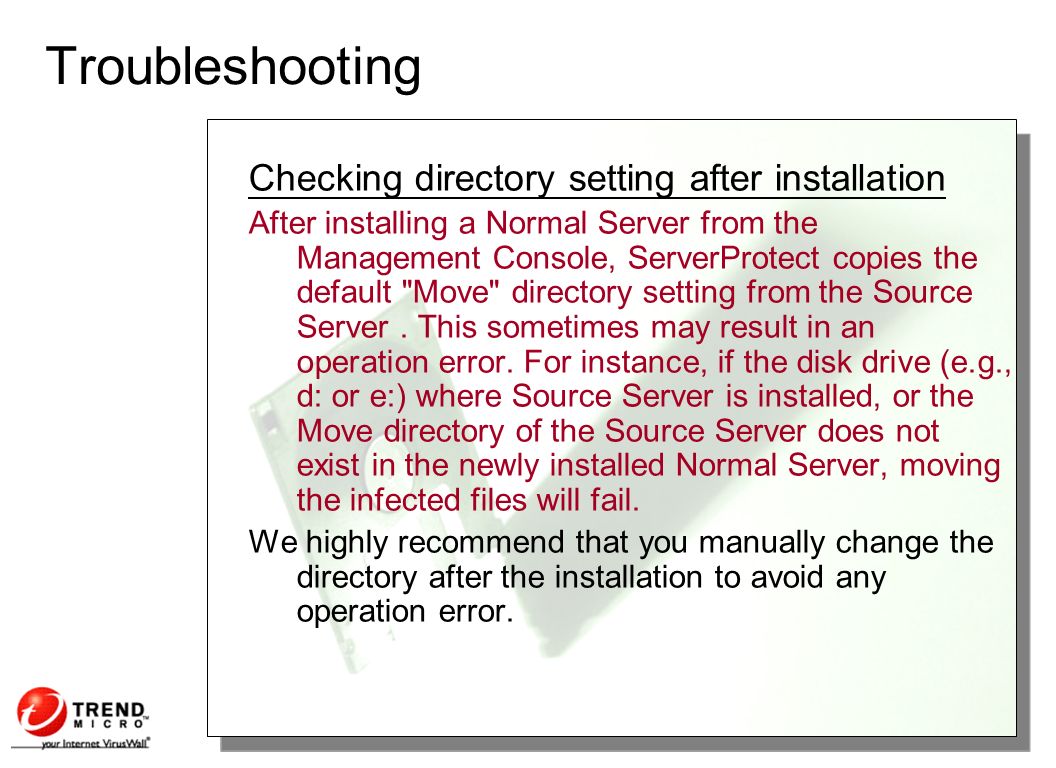

Troubleshooting Checking directory setting after installation After installing a Normal Server from the Management Console, ServerProtect copies the default "Move" directory setting from the Source Server. This sometimes may result in an operation error. For instance, if the disk drive (e.g., d: or e:) where Source Server is installed, or the Move directory of the Source Server does not exist in the newly installed Normal Server, moving the infected files will fail. We highly recommend that you manually change the directory after the installation to avoid any operation error.

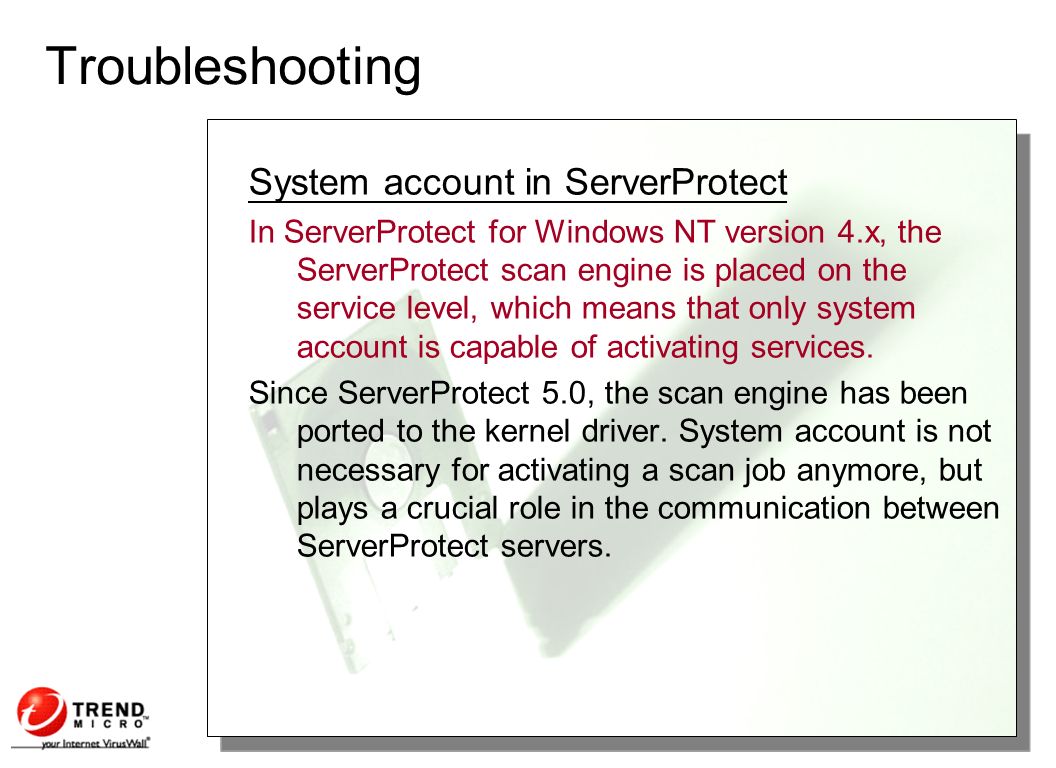

Troubleshooting System account in ServerProtect In ServerProtect for Windows NT version 4.x, the ServerProtect scan engine is placed on the service level, which means that only system account is capable of activating services. Since ServerProtect 5.0, the scan engine has been ported to the kernel driver. System account is not necessary for activating a scan job anymore, but plays a crucial role in the communication between ServerProtect servers.

Frequently Asked Questions

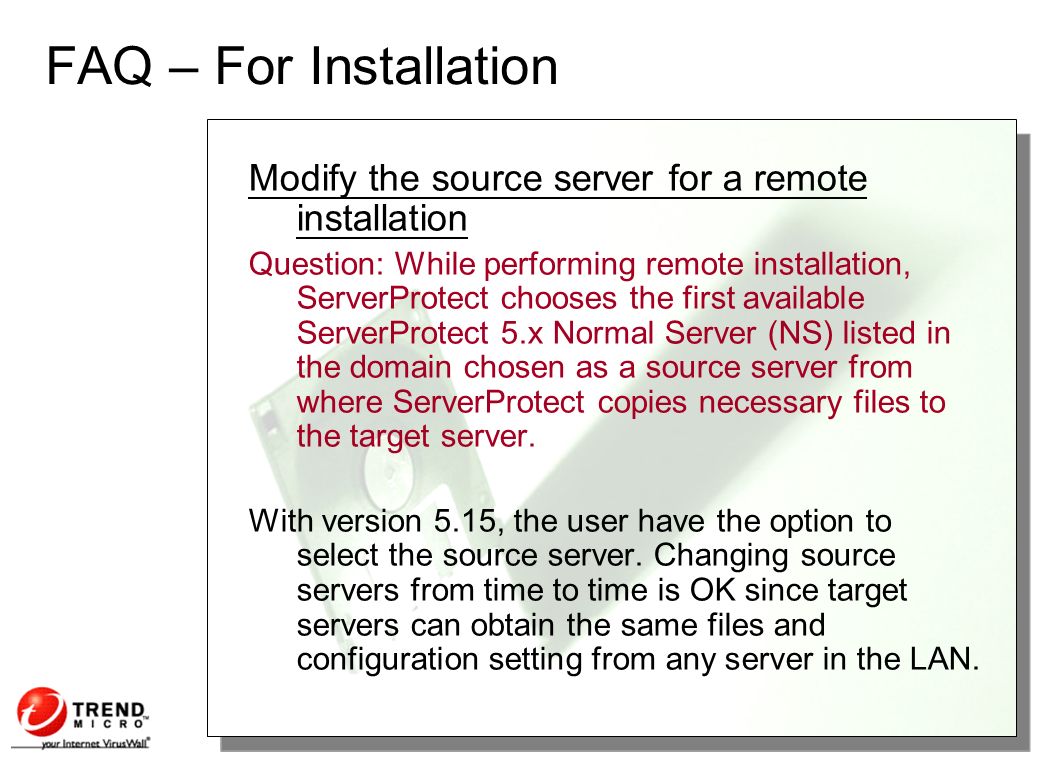

FAQ – For Installation Modify the source server for a remote installation Question: While performing remote installation, ServerProtect chooses the first available ServerProtect 5.x Normal Server (NS) listed in the domain chosen as a source server from where ServerProtect copies necessary files to the target server. With version 5.15, the user have the option to select the source server. Changing source servers from time to time is OK since target servers can obtain the same files and configuration setting from any server in the LAN.

FAQ – For Installation Configuring a mixture of Alpha and Intel machines into one domain Question: We have both Intel and Alpha servers to which we want to install ServerProtect. Can I configure a mixture of Alpha and Intel machines into one domain and have automatic pattern updates from the same Information Server? Currently ServerProtect only supports Intel servers. Installing Alpha servers is not supported in the current version.

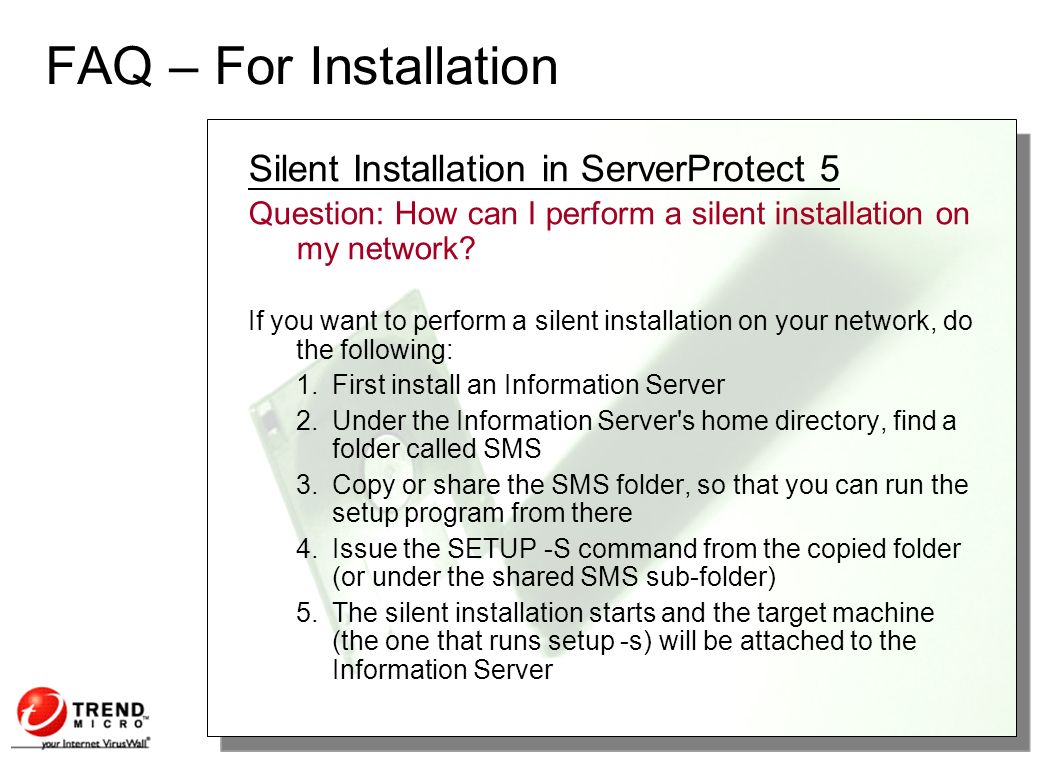

FAQ – For Installation Silent Installation in ServerProtect 5 Question: How can I perform a silent installation on my network? If you want to perform a silent installation on your network, do the following: 1.First install an Information Server 2.Under the Information Server's home directory, find a folder called SMS 3.Copy or share the SMS folder, so that you can run the setup program from there 4.Issue the SETUP -S command from the copied folder (or under the shared SMS sub-folder) 5.The silent installation starts and the target machine (the one that runs setup -s) will be attached to the Information Server

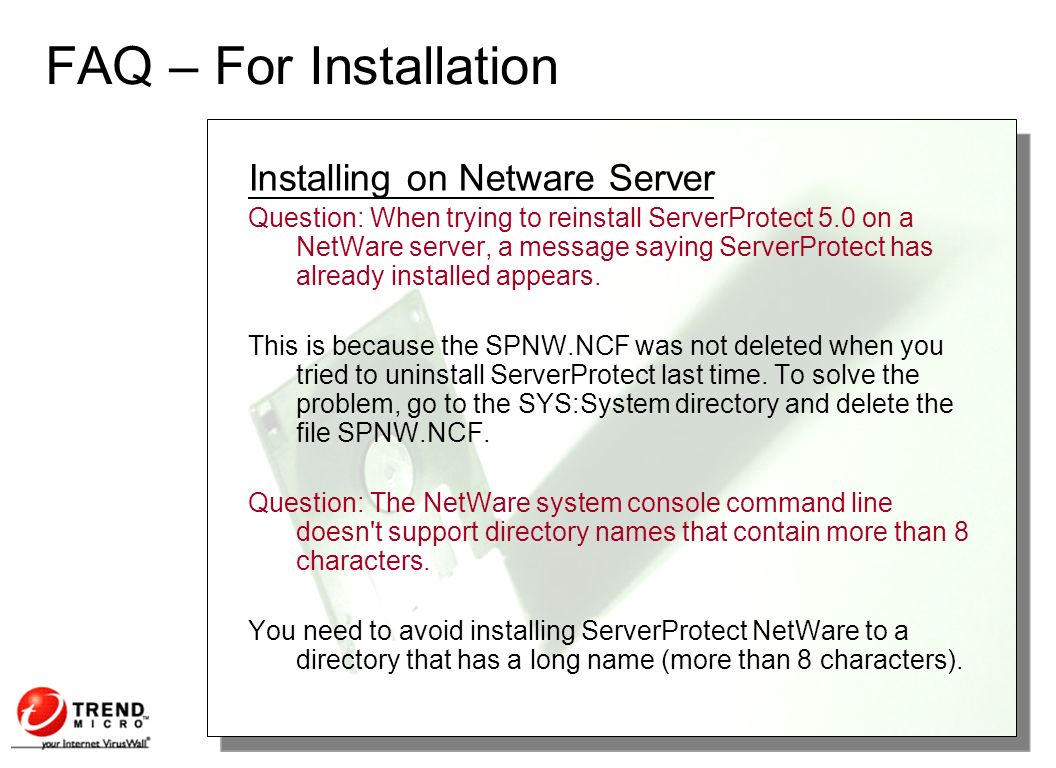

FAQ – For Installation Installing on Netware Server Question: When trying to reinstall ServerProtect 5.0 on a NetWare server, a message saying ServerProtect has already installed appears. This is because the SPNW.NCF was not deleted when you tried to uninstall ServerProtect last time. To solve the problem, go to the SYS:System directory and delete the file SPNW.NCF. Question: The NetWare system console command line doesn't support directory names that contain more than 8 characters. You need to avoid installing ServerProtect NetWare to a directory that has a long name (more than 8 characters).

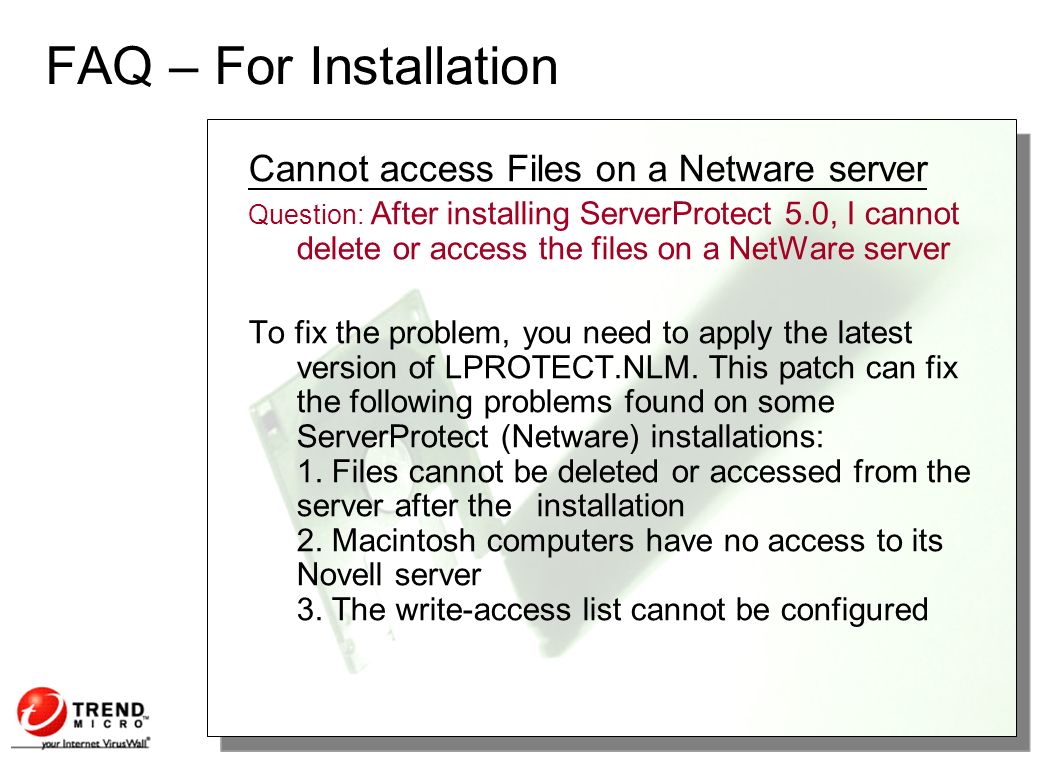

FAQ – For Installation Cannot access Files on a Netware server Question: After installing ServerProtect 5.0, I cannot delete or access the files on a NetWare server To fix the problem, you need to apply the latest version of LPROTECT.NLM. This patch can fix the following problems found on some ServerProtect (Netware) installations: 1. Files cannot be deleted or accessed from the server after the installation 2. Macintosh computers have no access to its Novell server 3. The write-access list cannot be configured

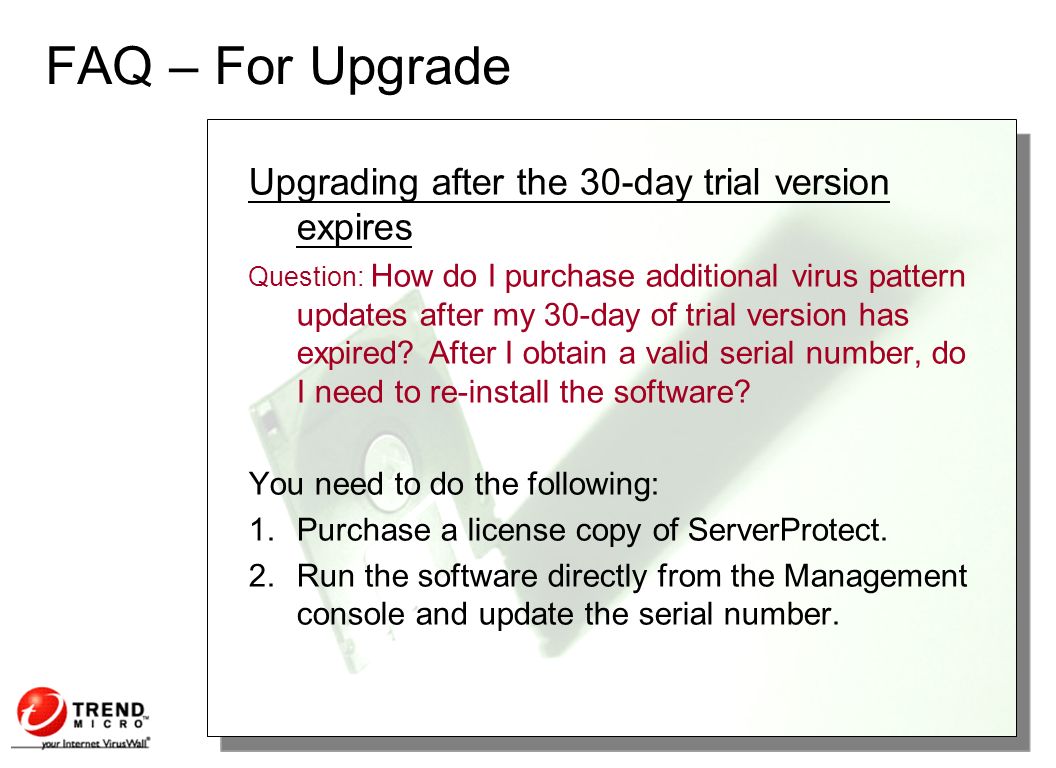

FAQ – For Upgrade Upgrading after the 30-day trial version expires Question: How do I purchase additional virus pattern updates after my 30-day of trial version has expired? After I obtain a valid serial number, do I need to re-install the software? You need to do the following: 1.Purchase a license copy of ServerProtect. 2.Run the software directly from the Management console and update the serial number.

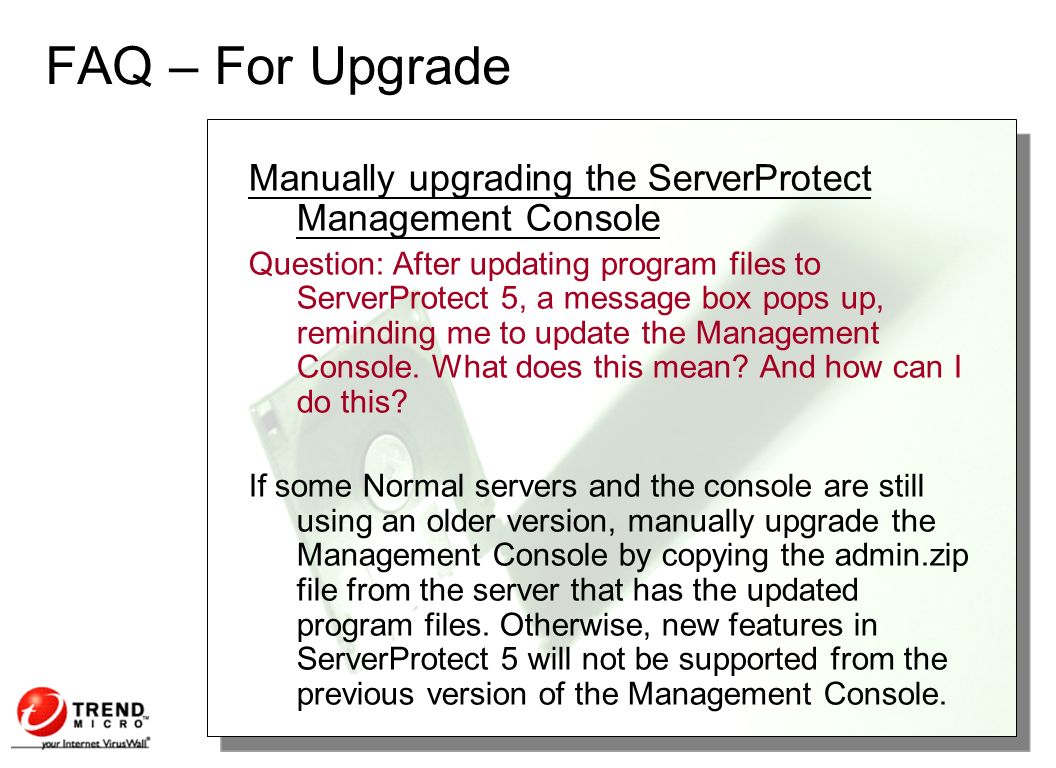

FAQ – For Upgrade Manually upgrading the ServerProtect Management Console Question: After updating program files to ServerProtect 5, a message box pops up, reminding me to update the Management Console. What does this mean? And how can I do this? If some Normal servers and the console are still using an older version, manually upgrade the Management Console by copying the admin.zip file from the server that has the updated program files. Otherwise, new features in ServerProtect 5 will not be supported from the previous version of the Management Console.

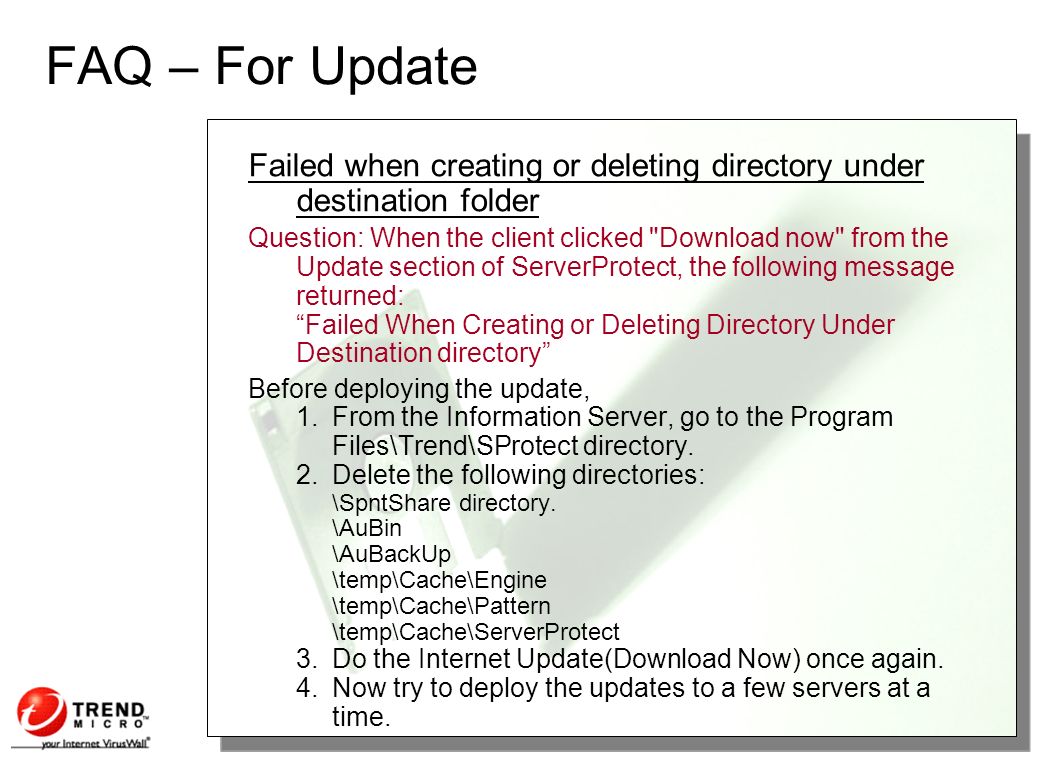

FAQ – For Update Failed when creating or deleting directory under destination folder Question: When the client clicked "Download now" from the Update section of ServerProtect, the following message returned: “Failed When Creating or Deleting Directory Under Destination directory” Before deploying the update, 1. From the Information Server, go to the Program Files\Trend\SProtect directory. 2. Delete the following directories: \SpntShare directory. \AuBin \AuBackUp \temp\Cache\Engine \temp\Cache\Pattern \temp\Cache\ServerProtect 3. Do the Internet Update(Download Now) once again. 4. Now try to deploy the updates to a few servers at a time.

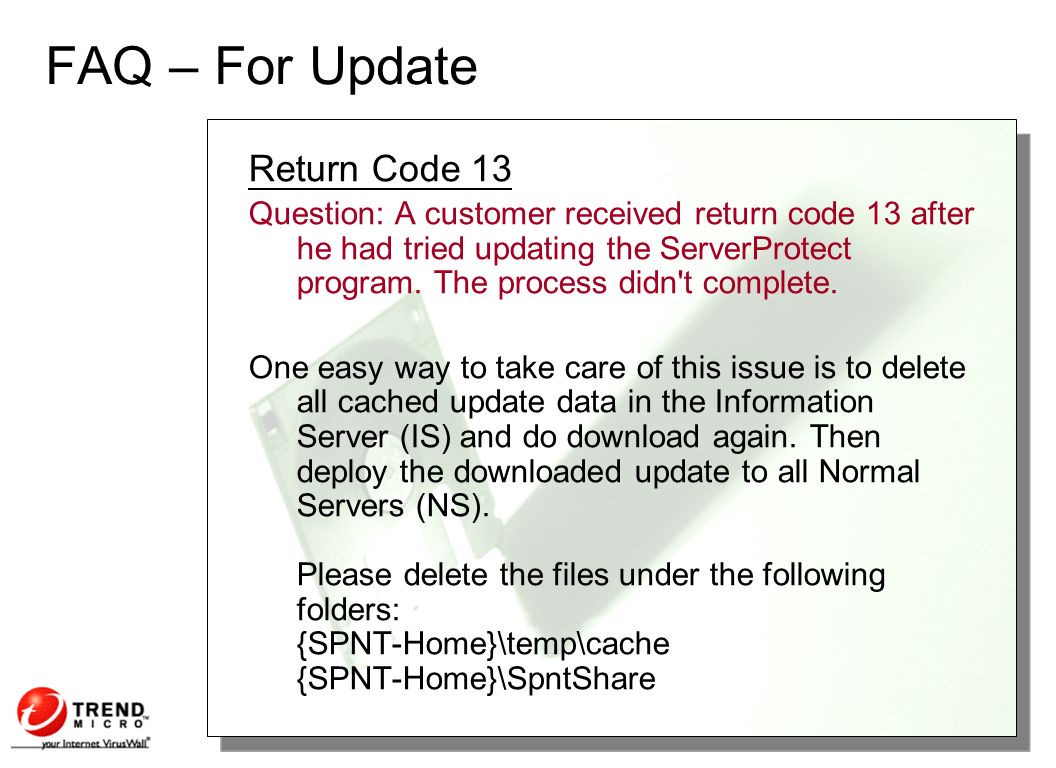

FAQ – For Update Return Code 13 Question: A customer received return code 13 after he had tried updating the ServerProtect program. The process didn't complete. One easy way to take care of this issue is to delete all cached update data in the Information Server (IS) and do download again. Then deploy the downloaded update to all Normal Servers (NS). Please delete the files under the following folders: {SPNT-Home}\temp\cache {SPNT-Home}\SpntShare

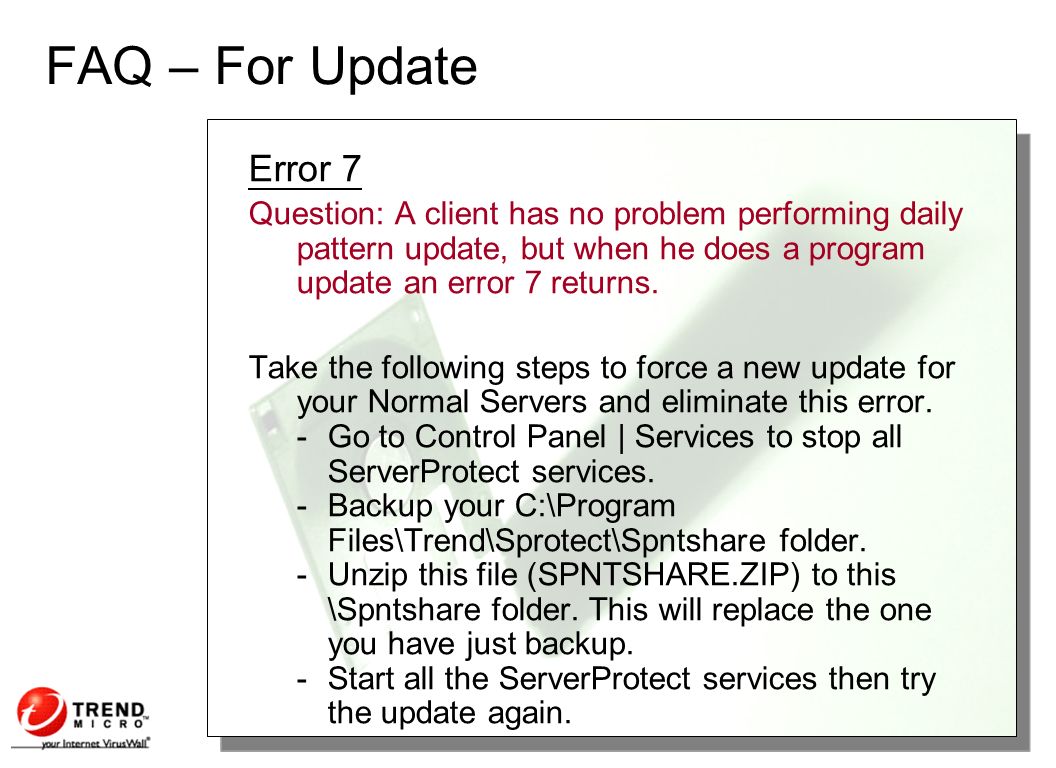

FAQ – For Update Error 7 Question: A client has no problem performing daily pattern update, but when he does a program update an error 7 returns. Take the following steps to force a new update for your Normal Servers and eliminate this error. - Go to Control Panel | Services to stop all ServerProtect services. - Backup your C:\Program Files\Trend\Sprotect\Spntshare folder. - Unzip this file (SPNTSHARE.ZIP) to this \Spntshare folder. This will replace the one you have just backup. - Start all the ServerProtect services then try the update again.

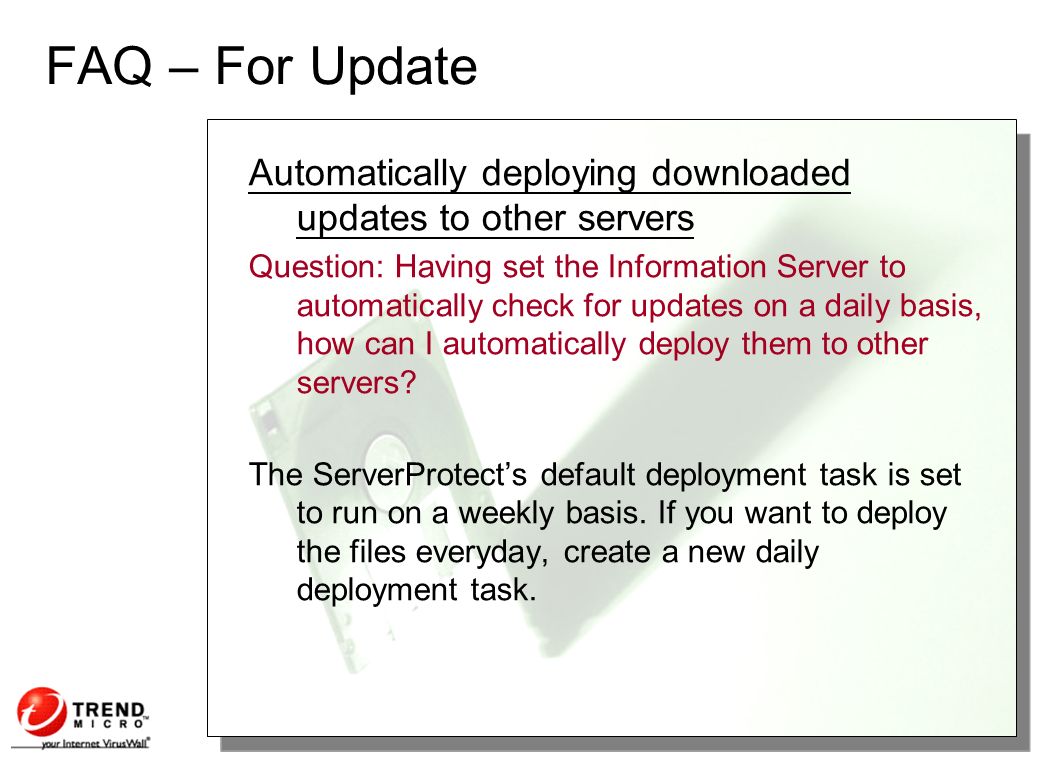

FAQ – For Update Automatically deploying downloaded updates to other servers Question: Having set the Information Server to automatically check for updates on a daily basis, how can I automatically deploy them to other servers? The ServerProtect’s default deployment task is set to run on a weekly basis. If you want to deploy the files everyday, create a new daily deployment task.

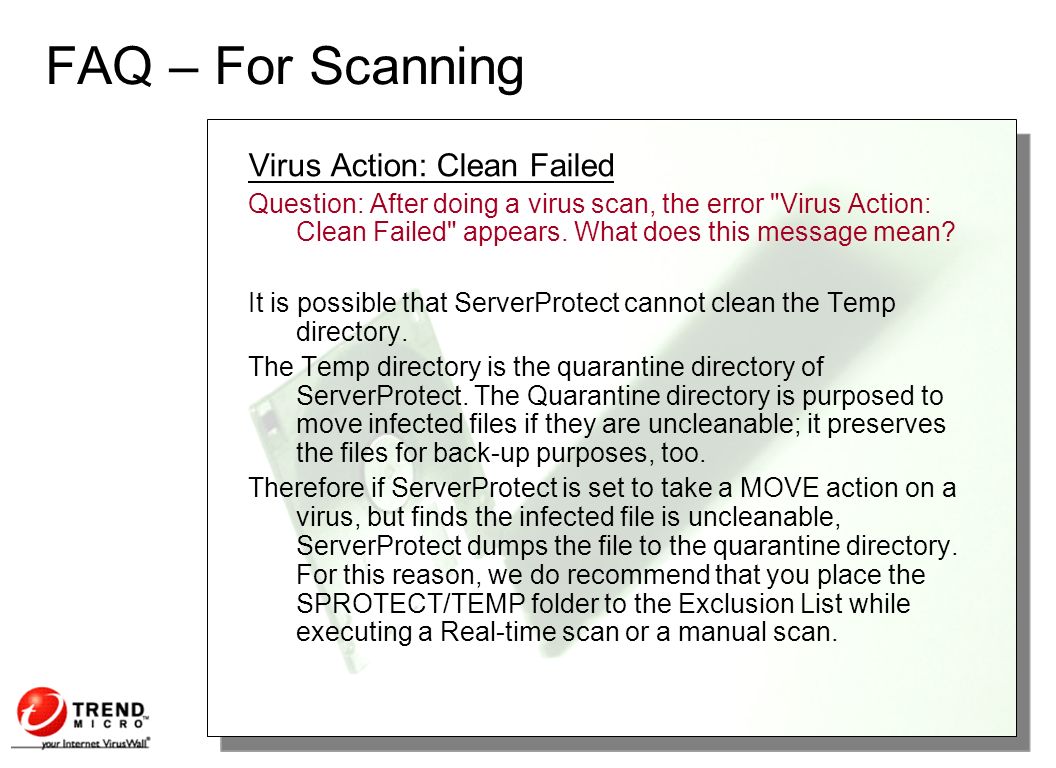

FAQ – For Scanning Virus Action: Clean Failed Question: After doing a virus scan, the error "Virus Action: Clean Failed" appears. What does this message mean? It is possible that ServerProtect cannot clean the Temp directory. The Temp directory is the quarantine directory of ServerProtect. The Quarantine directory is purposed to move infected files if they are uncleanable; it preserves the files for back-up purposes, too. Therefore if ServerProtect is set to take a MOVE action on a virus, but finds the infected file is uncleanable, ServerProtect dumps the file to the quarantine directory. For this reason, we do recommend that you place the SPROTECT/TEMP folder to the Exclusion List while executing a Real-time scan or a manual scan.

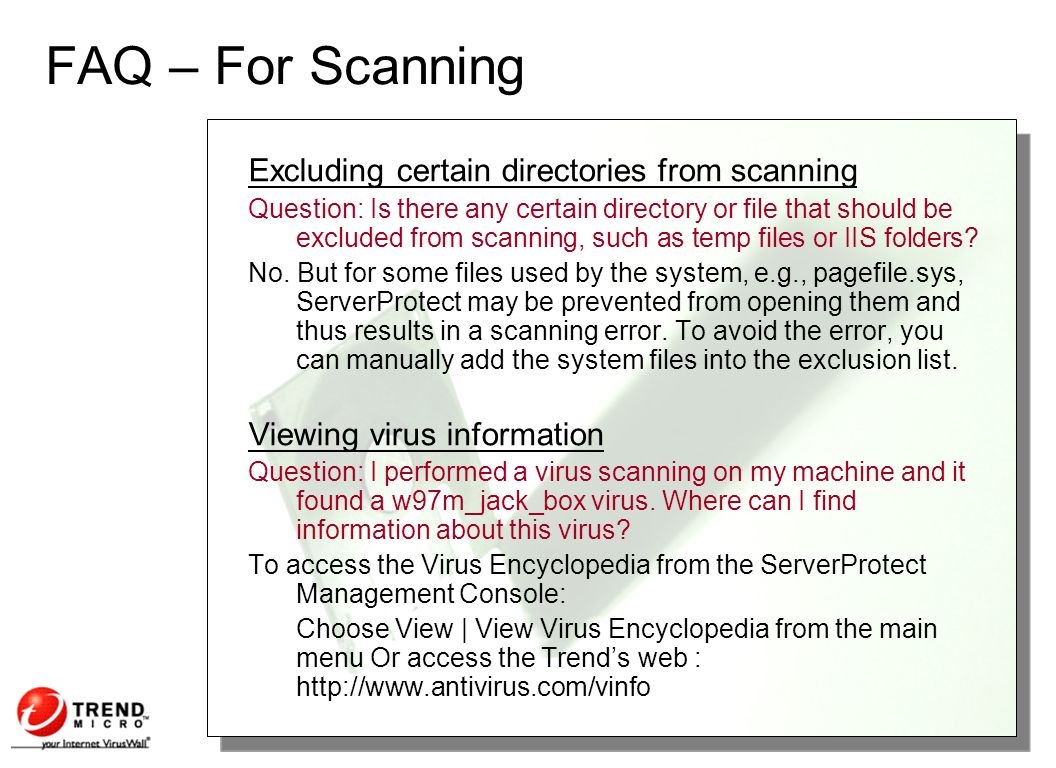

FAQ – For Scanning Excluding certain directories from scanning Question: Is there any certain directory or file that should be excluded from scanning, such as temp files or IIS folders? No. But for some files used by the system, e.g., pagefile.sys, ServerProtect may be prevented from opening them and thus results in a scanning error. To avoid the error, you can manually add the system files into the exclusion list. Viewing virus information Question: I performed a virus scanning on my machine and it found a w97m_jack_box virus. Where can I find information about this virus? To access the Virus Encyclopedia from the ServerProtect Management Console: Choose View | View Virus Encyclopedia from the main menu Or access the Trend’s web : http://www.antivirus.com/vinfo

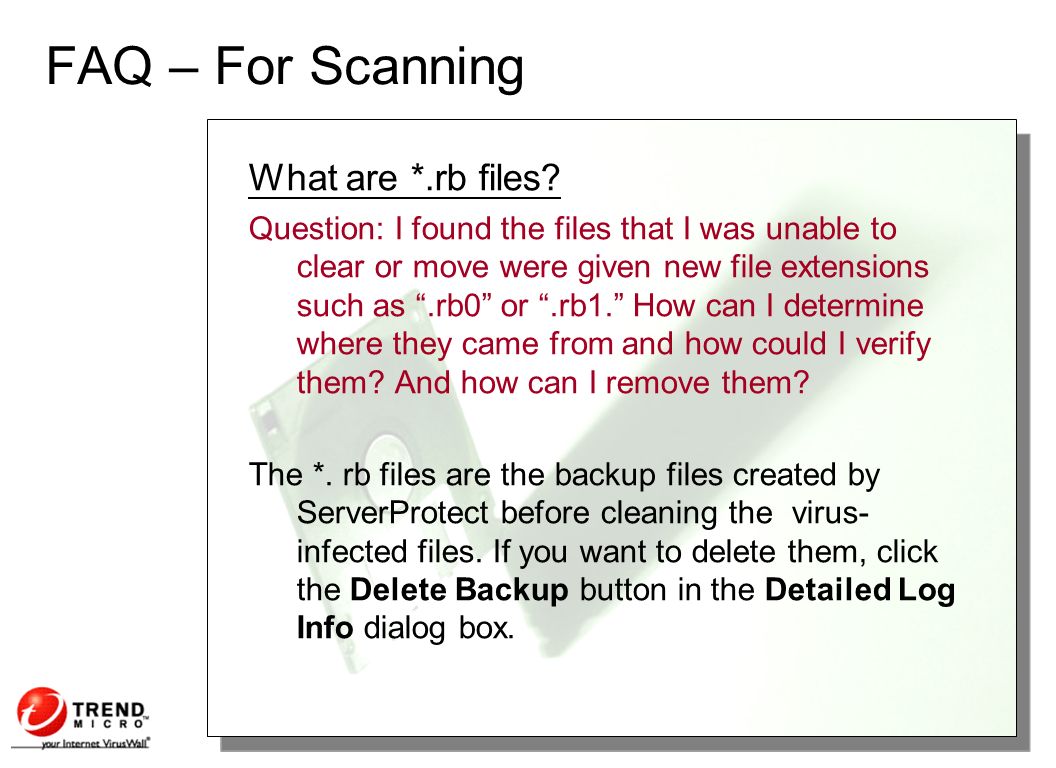

FAQ – For Scanning What are *.rb files? Question: I found the files that I was unable to clear or move were given new file extensions such as “.rb0” or “.rb1.” How can I determine where they came from and how could I verify them? And how can I remove them? The *. rb files are the backup files created by ServerProtect before cleaning the virus- infected files. If you want to delete them, click the Delete Backup button in the Detailed Log Info dialog box.

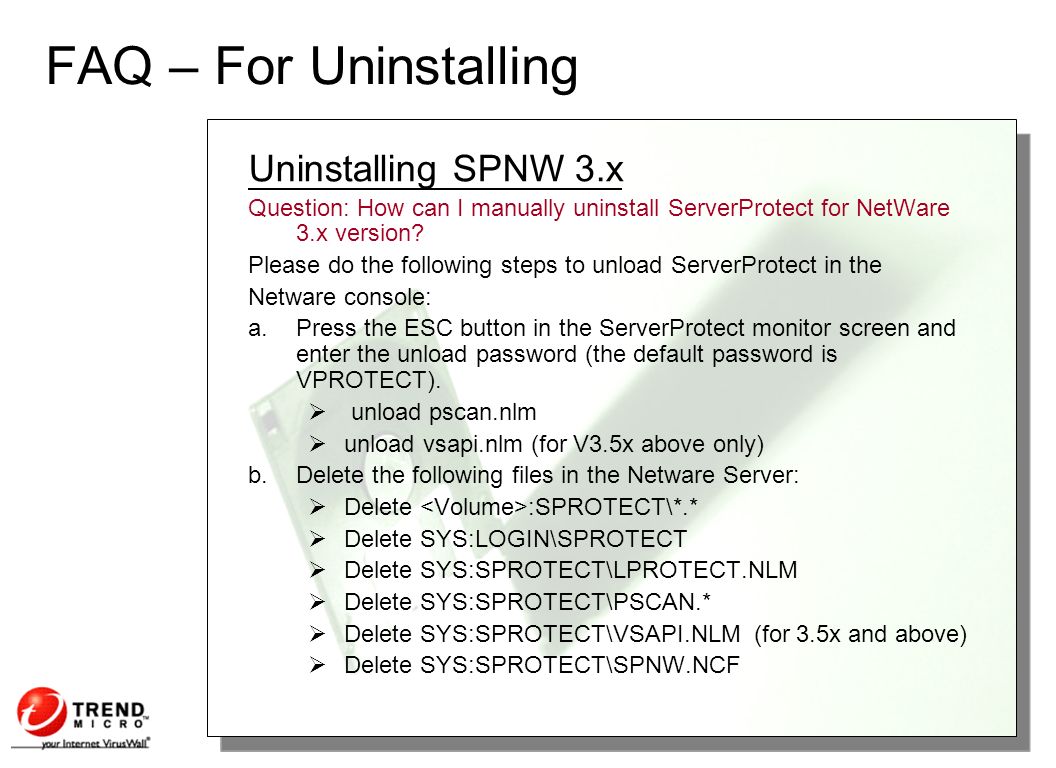

FAQ – For Uninstalling Uninstalling SPNW 3.x Question: How can I manually uninstall ServerProtect for NetWare 3.x version? Please do the following steps to unload ServerProtect in the Netware console: a. Press the ESC button in the ServerProtect monitor screen and enter the unload password (the default password is VPROTECT).  unload pscan.nlm  unload vsapi.nlm (for V3.5x above only) b. Delete the following files in the Netware Server:  Delete :SPROTECT\*.*  Delete SYS:LOGIN\SPROTECT  Delete SYS:SPROTECT\LPROTECT.NLM  Delete SYS:SPROTECT\PSCAN.*  Delete SYS:SPROTECT\VSAPI.NLM (for 3.5x and above)  Delete SYS:SPROTECT\SPNW.NCF

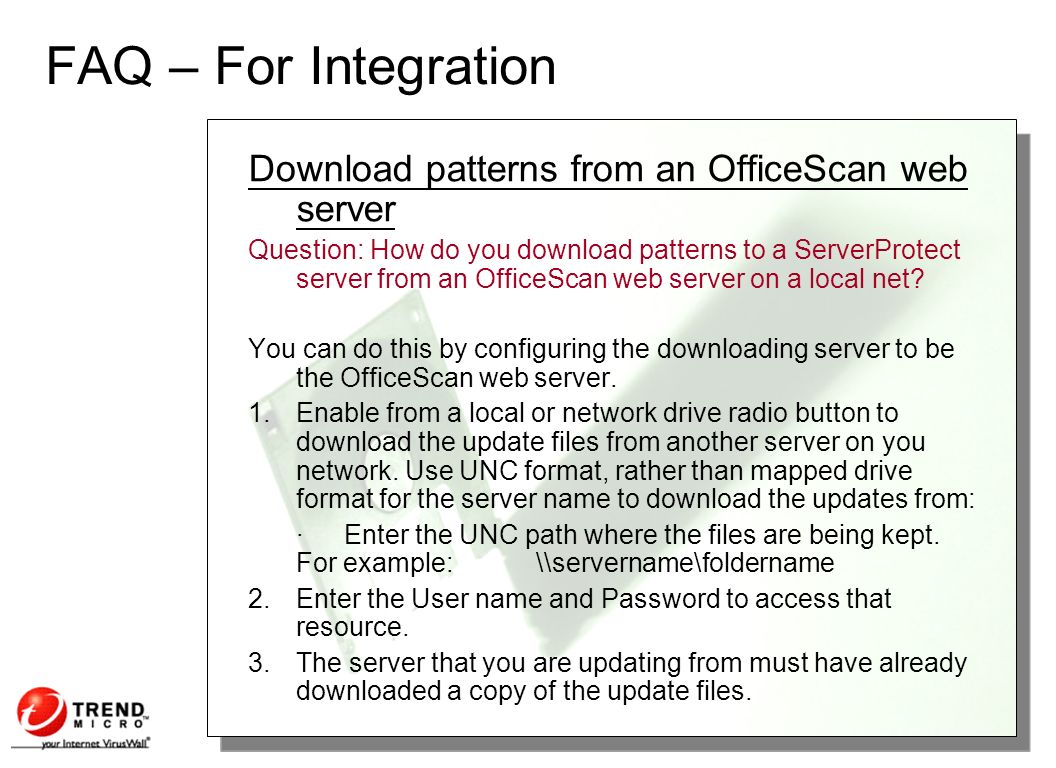

FAQ – For Integration Download patterns from an OfficeScan web server Question: How do you download patterns to a ServerProtect server from an OfficeScan web server on a local net? You can do this by configuring the downloading server to be the OfficeScan web server. 1.Enable from a local or network drive radio button to download the update files from another server on you network. Use UNC format, rather than mapped drive format for the server name to download the updates from: ·Enter the UNC path where the files are being kept. For example:\\servername\foldername 2.Enter the User name and Password to access that resource. 3.The server that you are updating from must have already downloaded a copy of the update files.

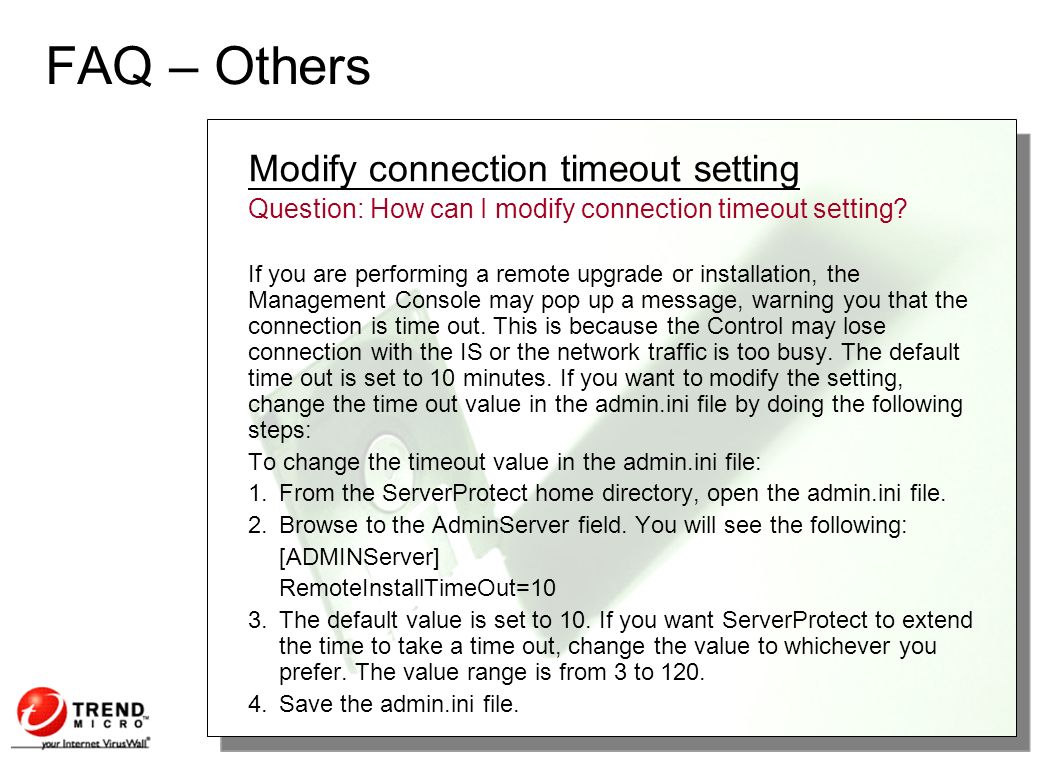

FAQ – Others Modify connection timeout setting Question: How can I modify connection timeout setting? If you are performing a remote upgrade or installation, the Management Console may pop up a message, warning you that the connection is time out. This is because the Control may lose connection with the IS or the network traffic is too busy. The default time out is set to 10 minutes. If you want to modify the setting, change the time out value in the admin.ini file by doing the following steps: To change the timeout value in the admin.ini file: 1.From the ServerProtect home directory, open the admin.ini file. 2.Browse to the AdminServer field. You will see the following: [ADMINServer] RemoteInstallTimeOut=10 3.The default value is set to 10. If you want ServerProtect to extend the time to take a time out, change the value to whichever you prefer. The value range is from 3 to 120. 4.Save the admin.ini file.

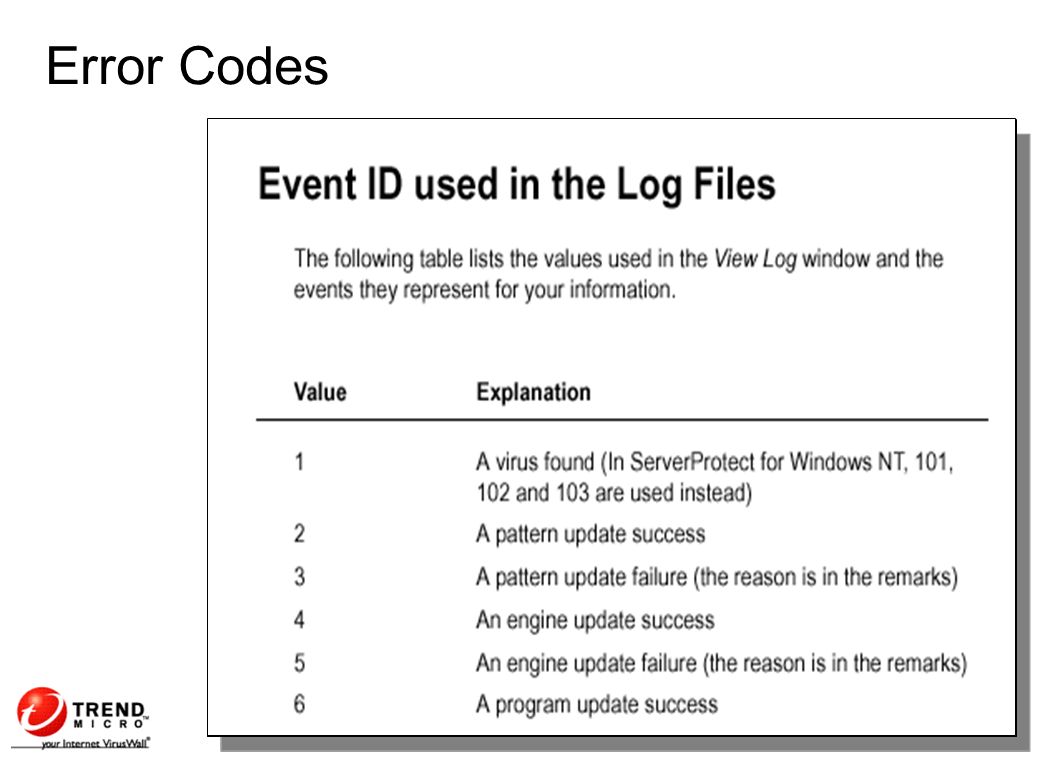

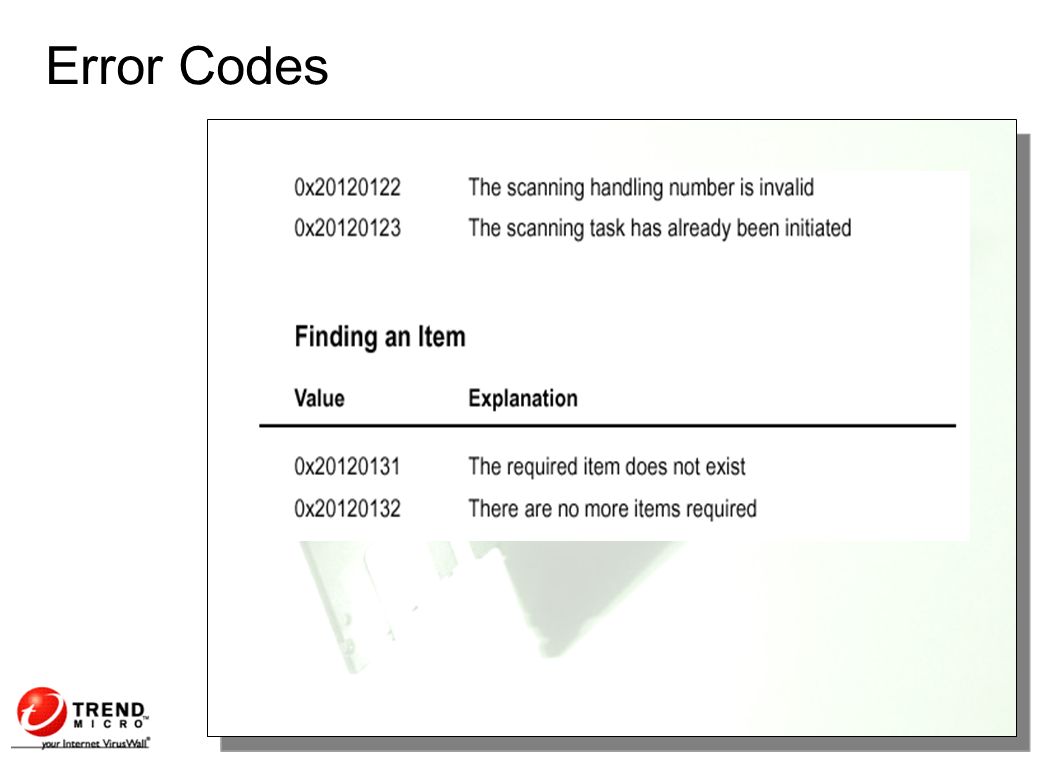

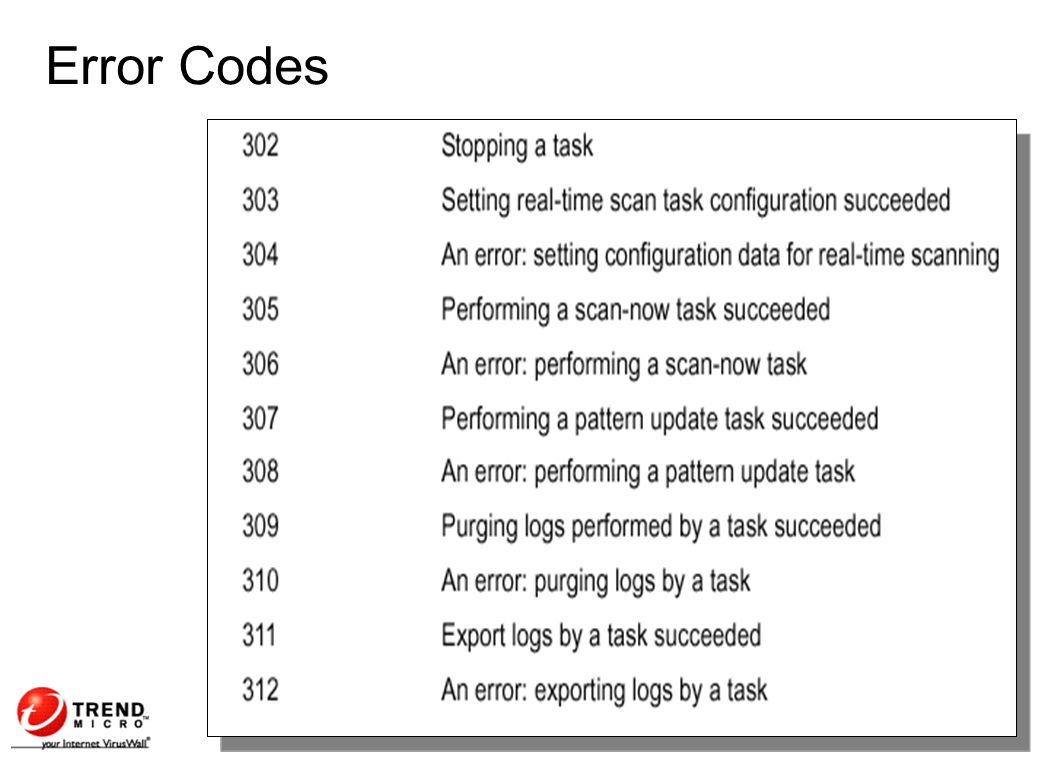

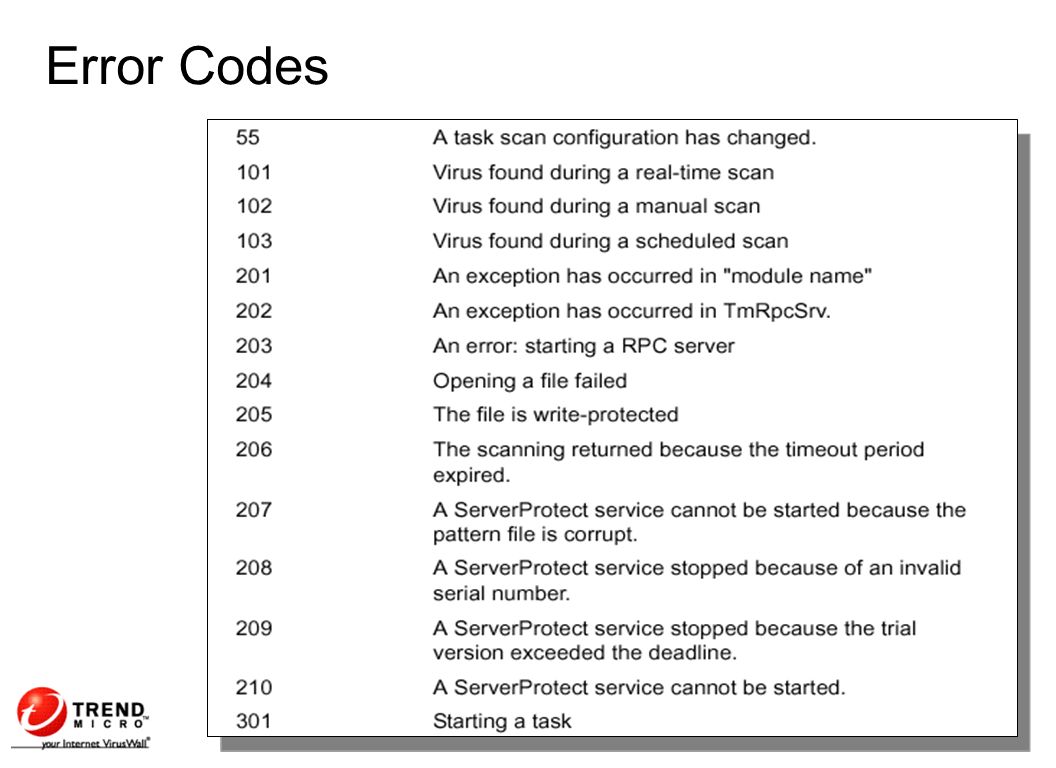

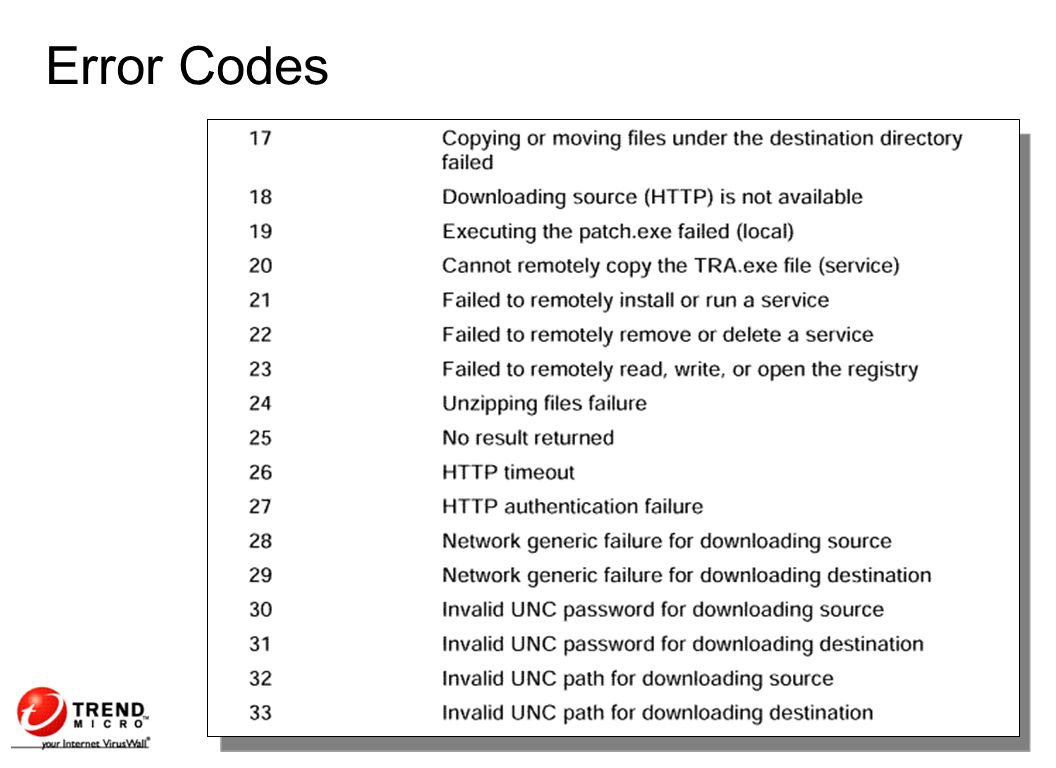

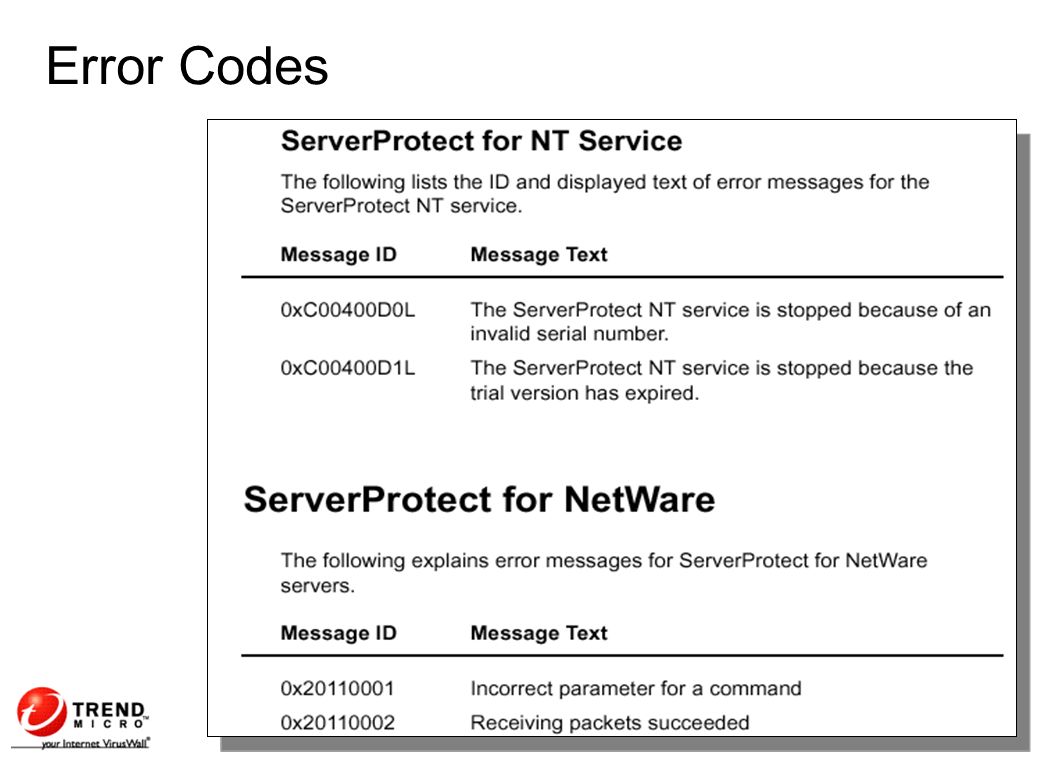

Error Codes

 Information Server Return Codes Information Server Return Codes  NT Normal Server Return Codes NT Normal Server Return Codes  NW Normal Server Return Codes NW Normal Server Return Codes  Engine Return Codes Engine Return Codes  Handling and Miscellaneous Return Codes Handling and Miscellaneous Return Codes  TMNotify Return Codes TMNotify Return Codes  Active Update Return Codes Active Update Return Codes  Error Codes returned by InstallShield Error Codes returned by InstallShield

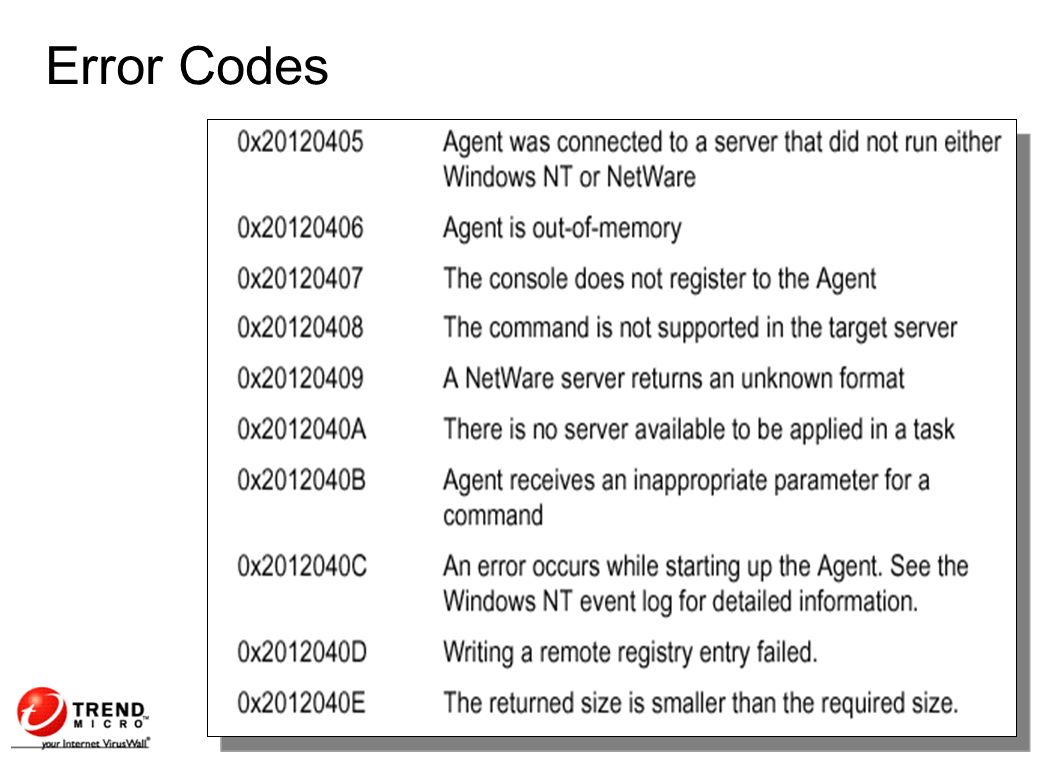

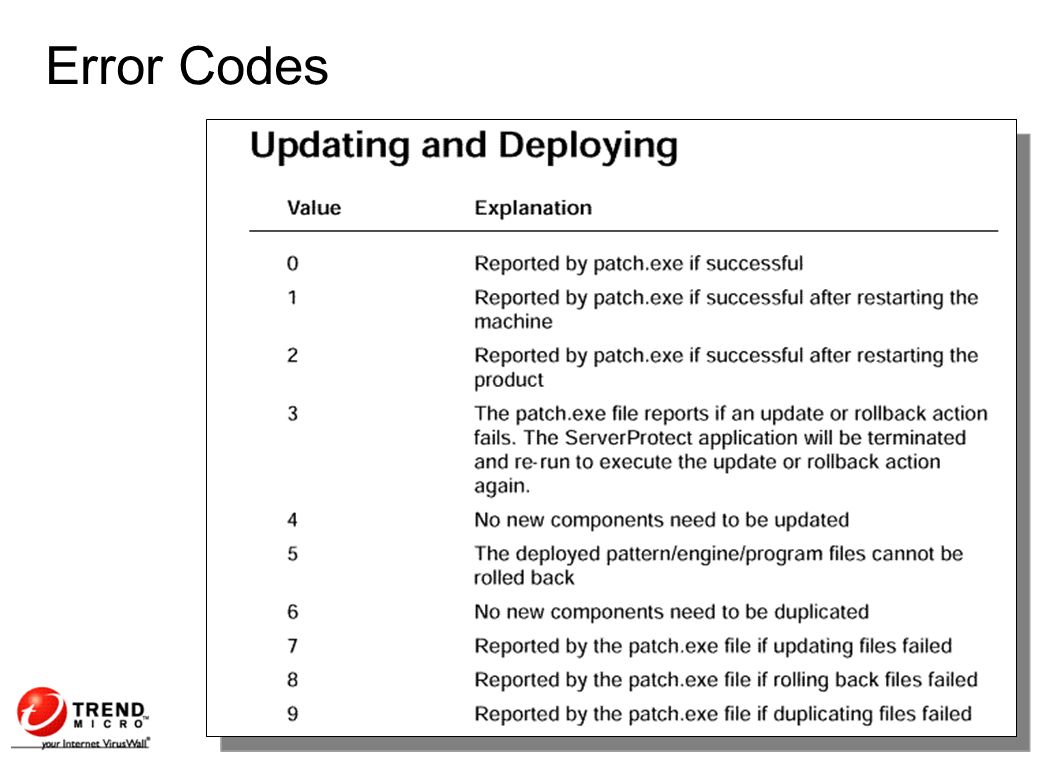

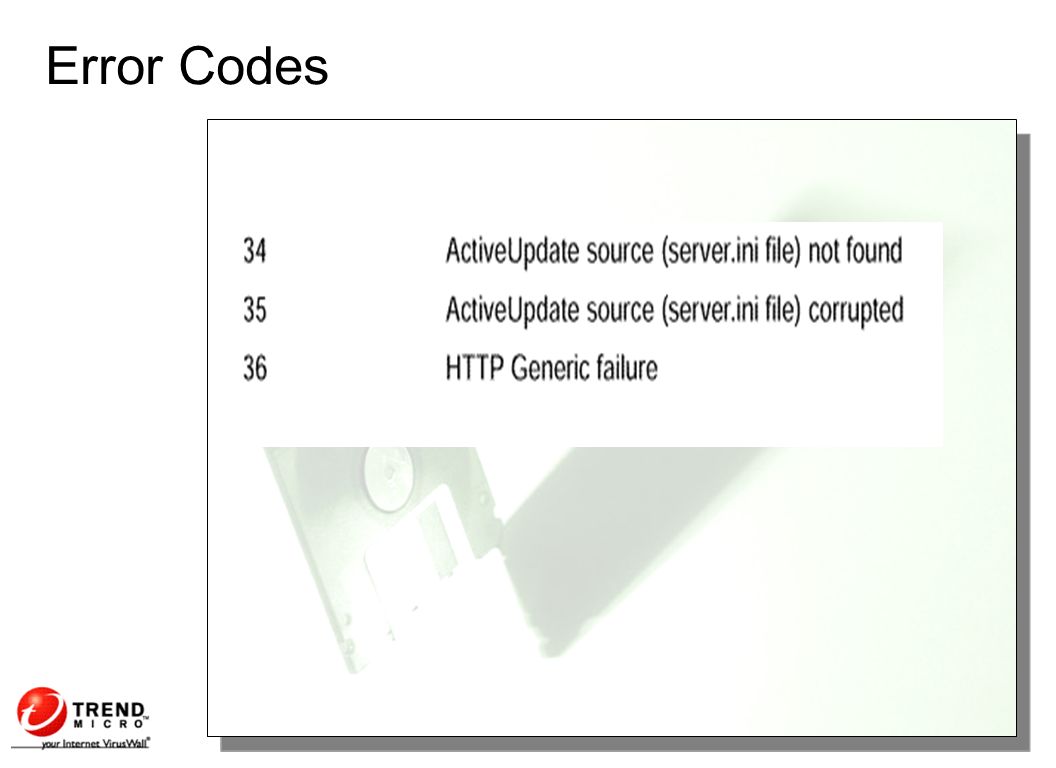

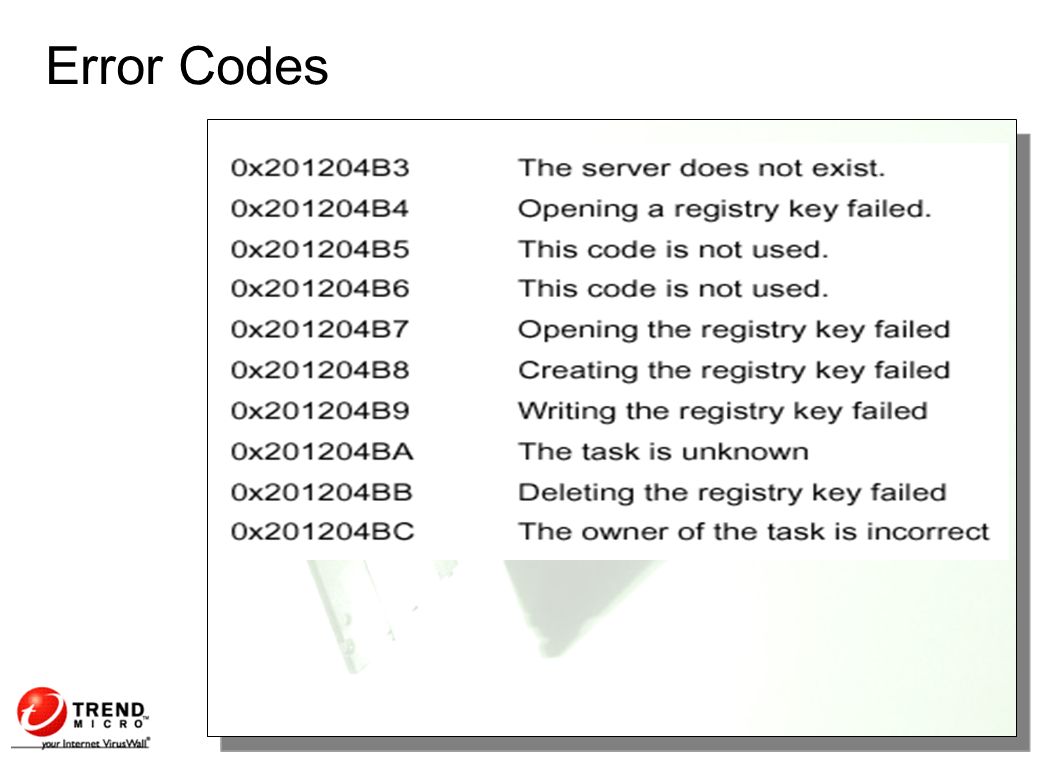

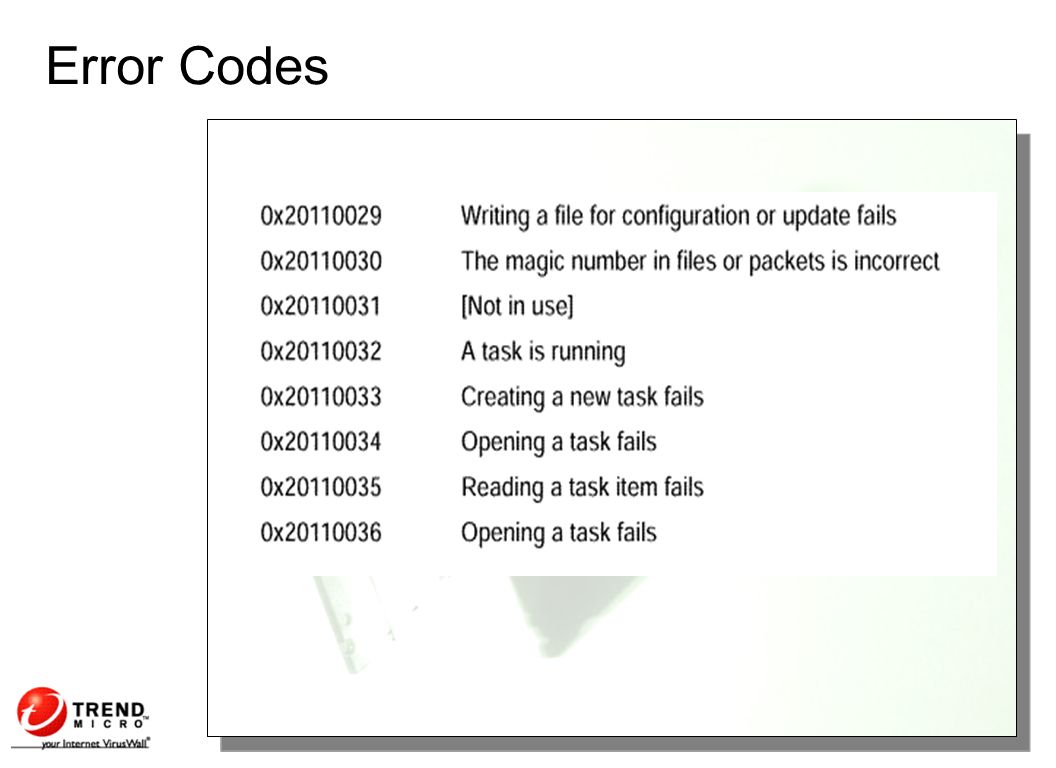

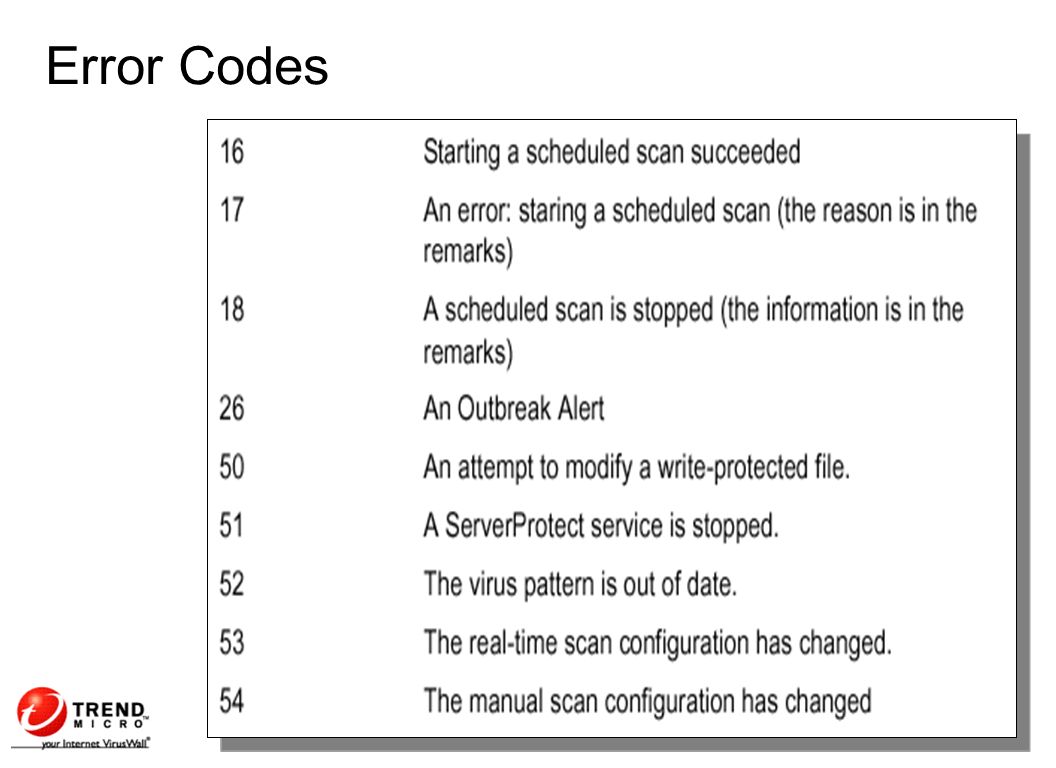

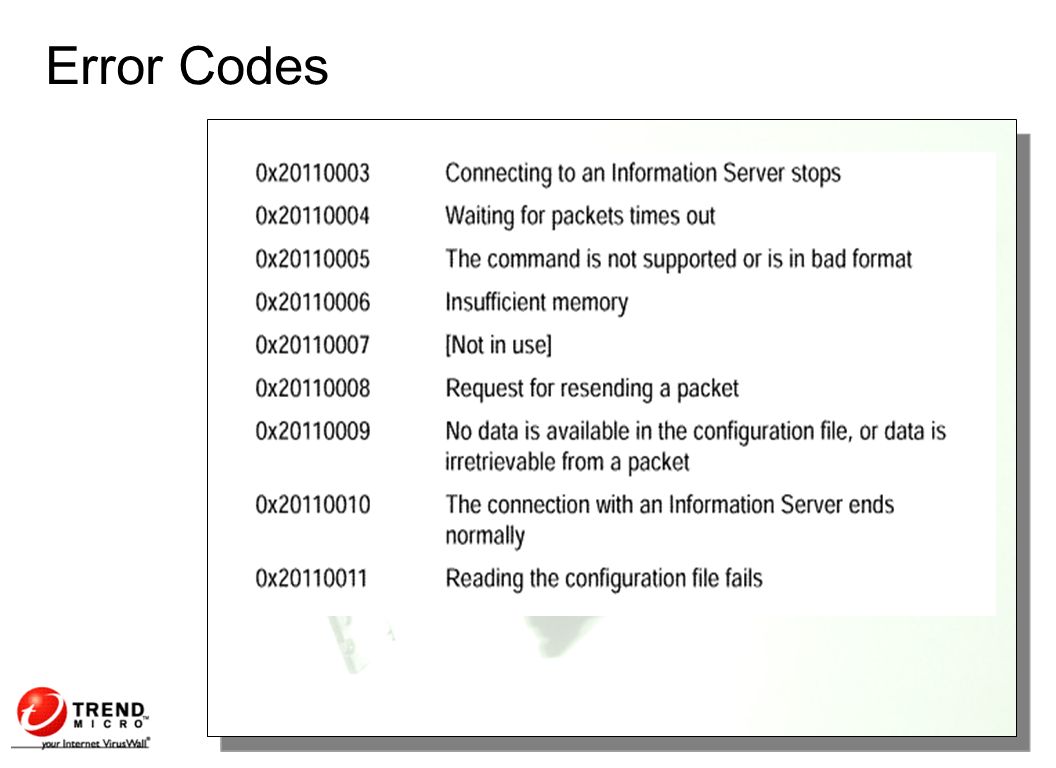

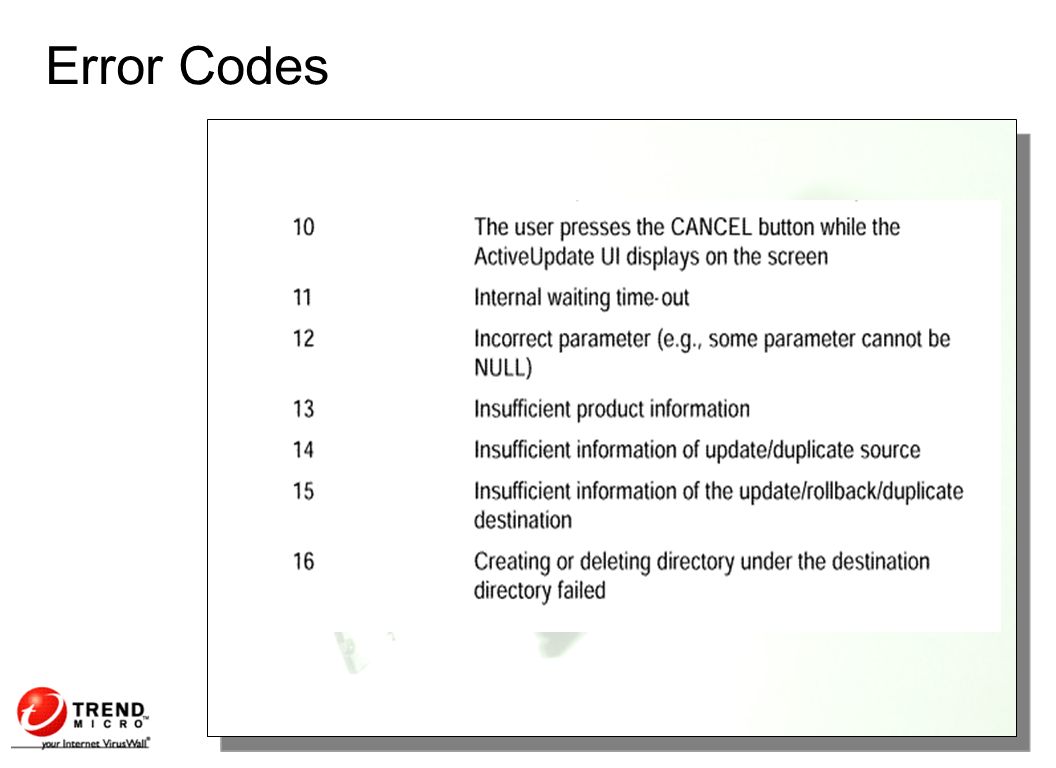

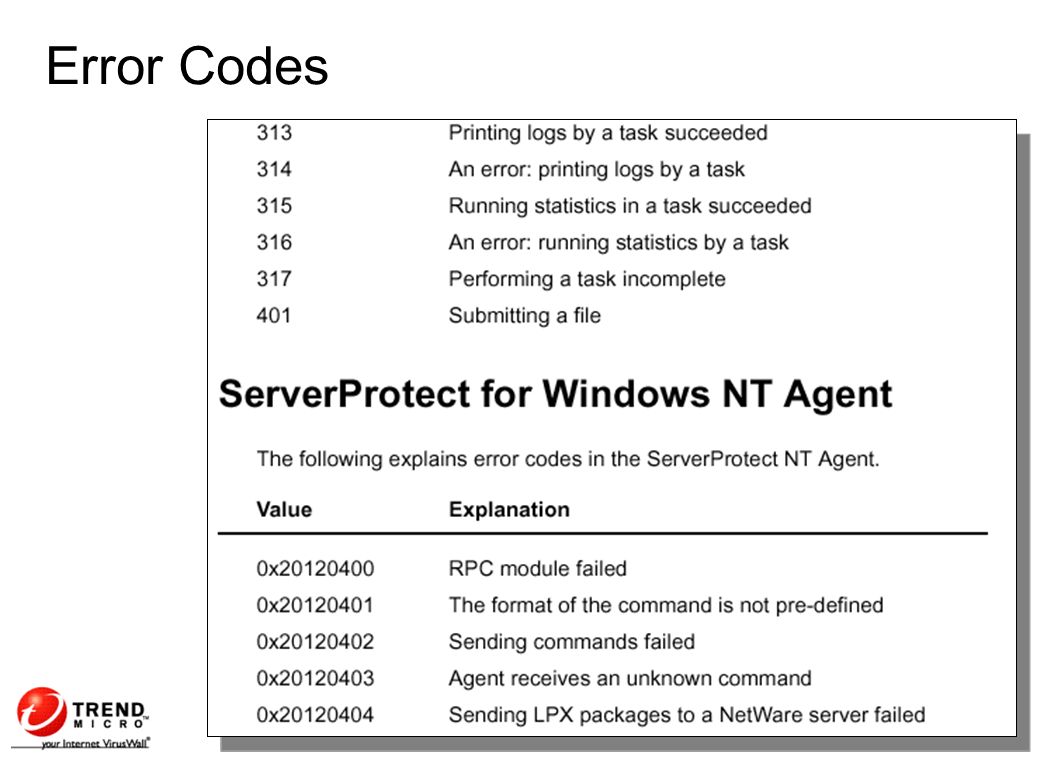

Error Codes

Contacting Support and Solution Bank

Using Solution bank and submitting case Use our online solution bank to find solutions to most asked questions. (Click here for DEMO) (Click here for DEMO) Unable to find a specific problem? Submit a case to support team. (Click here for DEMO) (Click here for DEMO)

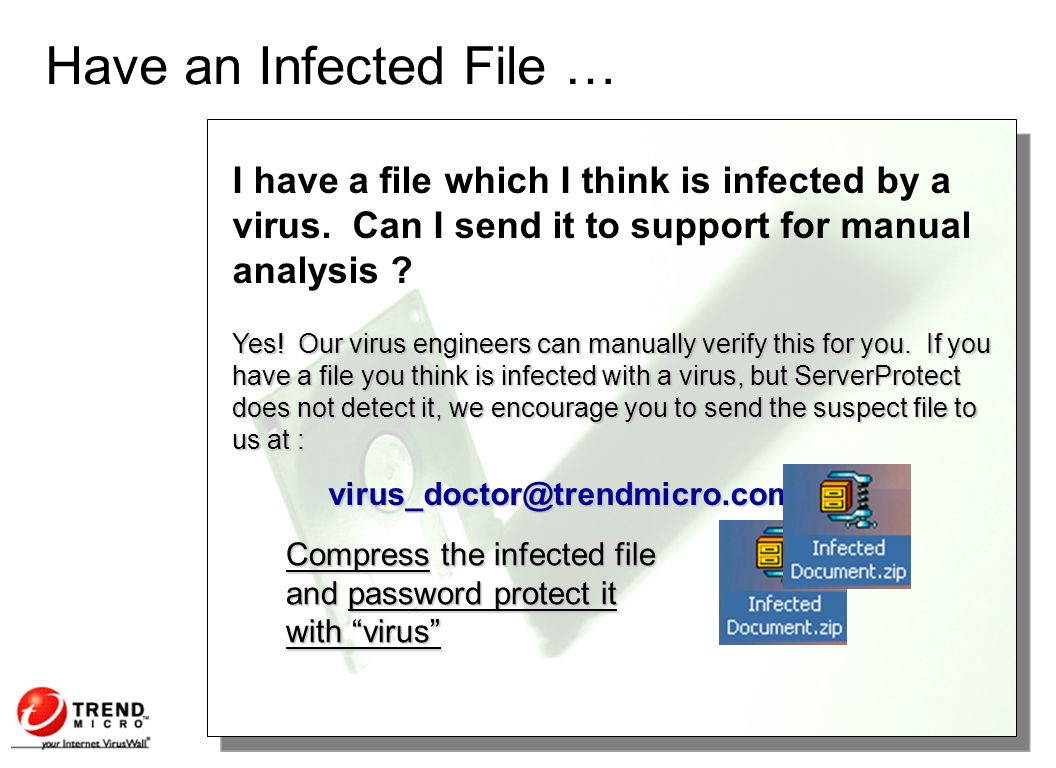

Have an Infected File … I have a file which I think is infected by a virus. Can I send it to support for manual analysis ? Yes! Our virus engineers can manually verify this for you. If you have a file you think is infected with a virus, but ServerProtect does not detect it, we encourage you to send the suspect file to us at : virus_doctor@trendmicro.com Compress the infected file and password protect it with “virus”

ServerProtect 5 for NT and NW Jennifer O. Chua January 2001 TDSC Trend Development and Support Center Source: Several ServerProtect PDF files eLearning.

Similar presentations

Presentation on theme: "ServerProtect 5 for NT and NW Jennifer O. Chua January 2001 TDSC Trend Development and Support Center Source: Several ServerProtect PDF files eLearning."— Presentation transcript:

Similar presentations

About project

Feedback

Log in

Auth with social network:

ServerProtect 5 for NT and NW Jennifer O. Chua January 2001 TDSC Trend Development and Support Center Source: Several ServerProtect PDF files eLearning.

Similar presentations

Presentation on theme: "ServerProtect 5 for NT and NW Jennifer O. Chua January 2001 TDSC Trend Development and Support Center Source: Several ServerProtect PDF files eLearning."— Presentation transcript:

Similar presentations

About project

Feedback
