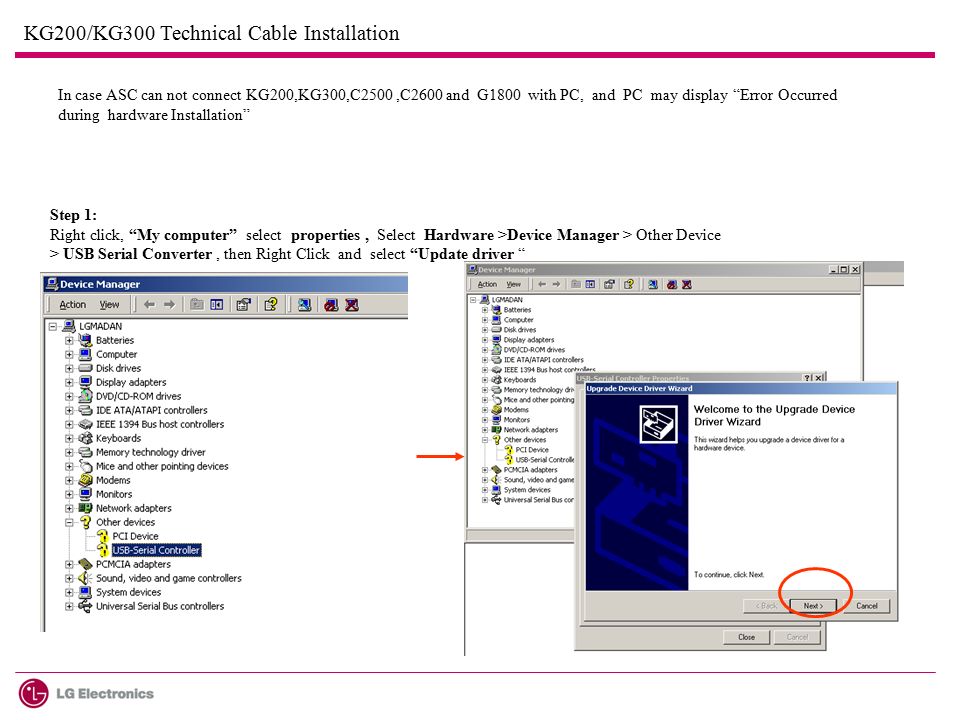

1. Step 1: Right click, “My computer” select properties, Select Hardware >Device Manager > Other Device > USB Serial Converter, then Right Click and select “Update driver “ KG200/KG300 Technical Cable Installation In case ASC can not connect KG200,KG300,C2500,C2600 and G1800 with PC, and PC may display “Error Occurred during hardware Installation”

2. KG200/KG300 Technical Cable Installation Step 2 Select the second option and clink on next Step 3 Select Ports (COM & LPT)

3. KG200/KG300 Technical Cable Installation Step 4 Browse the driver File, (Available in Lgmobiles site, (Tools> Driver Technical cable, KG200,KG300) Download the file and keep in any folder in C drive, During browse, select the same folder and Open

4. KG200/KG300 Technical Cable Installation Step 6 Select Prolific Technology and then Prolific USB to Serial Bridge Step 7: Click on Yes

5. KG200/KG300 Technical Cable Installation Step 8: Click on next Step 9 Click on Finish

6. KG200/KG300 Technical Cable Installation Step 10 One can view the cable installed in the name Prolific USB to Serial Bridge

7. Step 1: Right click, “My computer” select properties, Select Hardware >Device Manager > Other Device > USB Serial Converter, then Right Click and select “Update driver “ C2500/C2600/G1800 Technical Cable Installation

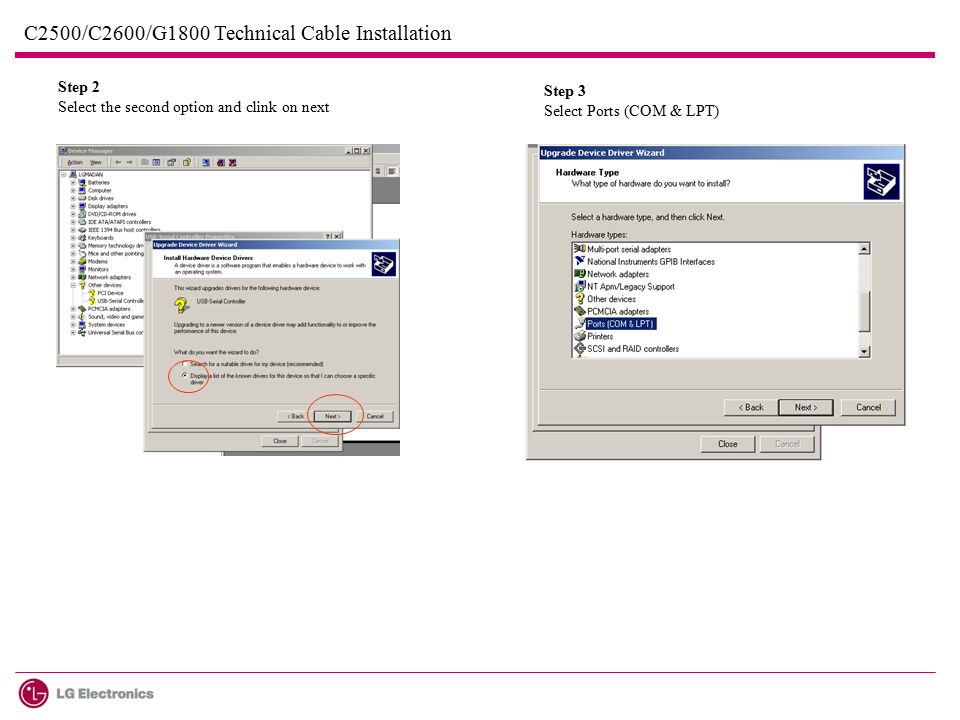

8. Step 2 Select the second option and clink on next Step 3 Select Ports (COM & LPT) C2500/C2600/G1800 Technical Cable Installation

9. Step 4: Select Foxlink USB to Serial com port. Browse the driver File, (Available in Lgmobiles site, (Tools> Driver Technical cable, C2500, C2600, G1800) Download the file and keep in any folder in C drive, During browse, select the same folder and Open and browse the Driver File Step 5: Click on Finish

10. C2500/C2600/G1800 Technical Cable Installation Step 6 One can view the cable installed in the name Foxlink USB to Serial Com Port
