1. ريزپردازنده ها
Microprocessors
Spring 2005

2. Books Author: Burry B. Brey Translator: Hossein Nia
The Z80 Microprocessor , Hardware , Software programming & interfacing
Author: Burry B. Brey
Translator: Hossein Nia
Publisher: Astane Ghodse Razavi(Beh Nashr

3. Books
Microcompiuter and Microprocessor : the 8080 , 8085 , Z-80 Programming , interfacing and trubleshooting
Publisher: Nass Pub.Date: 1381 Edition Turn: 3 ISBN:  Pages: 719 Author: John E . UffenbeckTranslator: Mahmmod Dayani

4. Books
The 80x86 IBM PC and compatible computers (Design and interfacing of the IBM PC PS and compatible) Publisher: Baghani Pub.Date: 1379 Edition Turn: 2 ISBN:  Pages: 760 Author: Mohammad Ali . Mazidi Janice Gillispie . MazidiTranslator: Dr. Sepidnam

5. Books
Microcontroller 8051 Publisher: Baghani Pub.Date: 1380 ISBN:  Pages: 380 Author: Mohammad ali Mazidi Jonis Glispi MazidiTranslator: Dr. Sepidnam

6. Books
The 8051 Microcontroller Publisher: Baghani Pub.Date: 1380 Publishing Turn: 5 Edition Turn: 3 ISBN:  Pages: 383 Author: Iscott Makenzi
Translator: Rezaei Nia ,Darbandi Azar

7. Intruduction Microprocessor (uP)(MPU) Micro-computer (u-Computer)
A uP is a CPU on a single chip.
Components of CPU
ALU, instruction decoder, registers, bus control circuit, etc.
Micro-computer (u-Computer)
small computer
uP + peripheral I/O + memory specifically for data acquisition and control applications
Microcontroller (uC)
u-Computer on a single chip of silicon

8. uP vs. uC A uP A uC only is a single-chip CPU bus is available
RAM capacity, num of port is seletable
RAM is larger than ROM (usually)
A uC
contains a CPU and RAM,ROM ,Prepherals, I/O port in a single IC
internal hardware is fixed
Communicate by port
ROM is larger than RAM (usually)
Small power consumption
Single chip, small board
Implementation is easy
Low cost

9. uP vs. uC – cont. Applications
uCs are suitable to control of I/O devices in designs requiring a minimum component
uPs are suitable to processing information in computer systems.

10. uP vs. uC – cont. uC is easy to use and design.
Only single chip can be a complete system
interfacing to other devices,
for example, motors, displays, sensors, and communicate with PC.
In contrast, similar system that builds from
uP would require a lot of additional units,
such as RAM, UART, I/O , TIMER and etc.

11. uC is a Reusable Hardware
Logic circuit provides limited function for one
single design. In order to change circuit’s
functionality, we need to redesign the circuits.
uC can reprogram and change functionality of
every port, input to output or digital to analog
on the fly.

12. uCs Many uCs are existing right now.
8051, 68HC11, MSP430, ARM series, and etc.
We may widely divide it with how it is designed
RISC/CISC architecture.
What is the main difference between
RISC/CISC?
Does it make any difference to our application?

13. The Microprocessor (MPU)
The uP is the ‘brain of the microcomputer’
Is a single chip which is capable of
processing data
controlling all of the components which make up the microcomputer system
µP used to sequence executions of instructions that is in memory
uP Fetch , Decode , and Execute the instruction
The internal architecture of the microprocessor is complex.

14. The Microprocessor (MPU)
microprocessor (MPU) typically contains
Registers: Temporary storage locations for program instruction or data.
The Arithmetic Logic unit (ALU): This part of the MPU performs both arithmetic and logical operations
Timing and Control Circuits: that keep all of the other parts of system (Regs, ALU, memory & I/O) working together in the right time sequence

15. Microcomputers All Microcomputers consist of (at least) :
1. Microprocessor Unit (MPU)
2. Program Memory (ROM)
3. Data Memory (RAM)
4. Input / Output ports
5. Bus System
(and Software)
MPU is the brain of microcomputer

16. Microcomputers

17. The Input/Output (I/O) System
I/O is the link between the MPU and the outside world.
An input port is a circuit through which an external device can send signals (data?) to the MPU.
An output port is a circuit that allows the MPU to send signals (data?) to external devices.
I/O ports connect both digital and analogue devices by DAC and ADC

18. Bus
A Bus is a common communications pathway used to carry information between the various elements of a computer system
The term BUS refers to a group of wires or conduction tracks on a printed circuit board (PCB) though which binary information is transferred from one part of the microcomputer to another
The individual subsystems of the digital computer are connected through an interconnecting BUS system.

19. Bus
There are three main bus groups
ADDRESS BUS
DATA BUS
CONTROL BUS

20. Data Bus
The Data Bus carries the data which is transferred throughout the system. ( bi-directional)
Examples of data transfers
Program instructions being read from memory into MPU.
Data being sent from MPU to I/O port
Data being read from I/O port going to MPU
Results from MPU sent to Memory
These are called read and write operations

21. Address Bus
An address is a binary number that identifies a specific memory storage location or I/O port involved in a data transfer
The Address Bus is used to transmit the address of the location to the memory or the I/O port.
The Address Bus is unidirectional ( one way ): addresses are always issued by the MPU.

22. Control Bus
The Control Bus: is another group of signals whose functions are to provide synchronization ( timing control ) between the MPU and the other system components.
Control signals are unidirectional, and are mainly outputs from the MPU.
Example Control signals
RD: read signal asserted to read data into MPU
WR: write signal asserted to write data from MPU

23. Main memory The duties of the memory are : Main memory Types
To store programs
To provide data to the MPU on request
To accept result from the MPU for storage
Main memory Types
ROM : read only memory. Contains program (Firmware). does not lose its contents when power is removed (Non-volatile)
RAM: random access memory (read/write memory) used as variable data, loses contents when power is removed volatile. When power up will contain random data values

24. Read-Only Memory uP can read instructions from ROM quickly
Cannot write new data to the ROM
ROM remembers the data, even after power cycled
Typically, when the power is turned on, the microprocessor will start fetching instructions from the still-remembered program in ROM (bootstrap )
On a PC, the ROM is called the BIOS (Basic Input/Output System). When the microprocessor starts, it begins executing instructions it finds in the BIOS. The BIOS instructions do things like test the hardware in the machine, and then it goes to the hard disk to fetch the boot sector. This boot sector is another small program, and the BIOS stores it in RAM after reading it off the disk. The microprocessor then begins executing the boot sector's instructions from RAM. The boot sector program will tell the microprocessor to fetch something else from the hard disk into RAM, which the microprocessor then executes, and so on. This is how the microprocessor loads and executes the entire operating system

25. Available ROMs Masked ROM or just ROM
PROM or programmable ROM(once only)
EPROM (erasable via ultraviolet light)
Flash (can be erased and re-written about times, usually must write a whole block not just 1 byte or 2 bytes, slow writing, fast reading)
EEPROM (electrically erasable read-only memory, also known as EEROM—both reading and writing are very slow but can program millions of times…useless for storing a program but good for say configuration information.

26. ROM ROM Capacity : PROM EEPROM : Output Enable connect to RD of uP
m+1 bit
Address
n+1 bit
Data Am Dn
ROM
PROM
EEPROM
Capacity :
: Output Enable
connect to RD of uP
: Chip Enable
to Address decoder

27. Timing Diagram for a Typical ROM
A0-Am
D0-Dn
OE falls to data valid
Addr valid to data valid

28. 27XX EPROM PGM and VPP are used to programming 64 kbit 8 kbyte 16 kbit

29. 27XXX EPROM 128 kbit 16 kbyte 256 kbit 32 kbyte 512 kbit 64 kbyte

30. 28XX E2PROM 16 kbit 64 kbit 1026 kbit 4096 kbit 256 kbit 2 kbyte

31. RAM (Random Access Memory)
The uP can read the data from RAM quickly,
The uP can write new data quickly to RAM
RAM forgets its data if power is turned off
Two type of is available :
Static RAM(SRAM): ff base, fast, expensive, low cap/vol, applied for cache , no refresh
Dynamic RAM (DRAM): cap base, slow , low cost high capacity/volume , applied for main memory(pc) need refresh.
RAM stands for random-access memory. RAM contains bytes of information, and the microprocessor can read or write to those bytes depending on whether the RD or WR line is signaled. One problem with today's RAM chips is that they forget everything once the power goes off. That is why the computer needs ROM

32. RAM(Static) Capacity : RAM Data bus is Bidirectional : Read signal
m+1 bit
Address
n+1 bit
Data Am Dn
Capacity :
RAM
Data bus is
Bidirectional
: Read signal
connect to MemRD of uP
: Write signal
connect to MemWR of uP
: Chip Select
to Address decoder

33. Session 2 Microprocessors History Data width 8086 vs 8088
8086 pin description
Z80 Pin description

34. Microprocessors
Microprocessors come in all kinds of varieties from the very simple to the very complex
Depend on data bus and register and ALU width uP could be 4-bit , 8-bit , 16-bit, 32-bit , 64-bit
We will discuss two sample of it
Z80 as an 8-bit uP
and 8086/88 as an 16-bit uP
All uPs have
the address bus
the data bus
RD, WR, CLK , RST, INT, . . .

35. History Company 4 bit 8 bit 16 bit 32 bit 64 bit intel 4004 4040 8008
8080
8085
8088/6
80186
80286
80386
80486
80860
pentium
zilog
Z80
Z8000
Z8001
Z8002
Motorola
6800
6802
6809
68006
68008
68010
68020
68030
68040

36. Internal and External Bus
Internal bus is a pathway for data transfer between registers and ALU in the uPs
External bus is available externally to connect to RAM, ROM and I/O
Int. and Ext. Bus width may be different
For example
In 8088 Int. Bus is 16-bit , Ext. bus is 8-bit
In 8086 Int. Bus is 16-bit , Ext. bus is 16-bit
Data Width is the width of the ALU. An 8-bit ALU can add/subtract/multiply/etc. two 8-bit numbers, while a 32-bit ALU can manipulate 32-bit numbers. An 8-bit ALU would have to execute four instructions to add two 32-bit numbers, while a 32-bit ALU can do it in one instruction. In many cases, the external data bus is the same width as the ALU, but not always. The 8088 had a 16-bit ALU and an 8-bit bus, while the modern Pentiums fetch data 64 bits at a time for their 32-bit ALUs.

37. 8086 vs 8088 Only external bus of 8088 is 8_bit 8088 8086
8_bit Data Bus
20_bit Address
16_bit Data Bus
20_bit Address
8086
8088

38. 8086 Pin Assignment

39. 8086 Pin Description Vcc (pin 40) : Power Gnd (pin 1 and 20) : Ground
AD0..AD7 , A8..A15 , A19/S6, A18/S5, A17/S4, A16/S3 : 20 -bit Address Bus
MN/MX’ (input) : Indicates Operating mode
READY (input , Active High) : take uP to wait state
CLK (input) : Provides basic timing for the processor
RESET (input, Active High) : At least 4 clock cycles Causes the uP immediately
terminate its present activity.
TEST’ (input , Active Low) : Connect this to HIGH
HOLD (input , Active High) : Connect this to LOW
HLDA (output , Active High) : Hold Ack
INTR (input , Active High) : Interrupt request
INTA’ (output , Active Low) : Interrupt Acknowledge
NMI (input , Active High) : Non-maskable interrupt

40. 8086 Pin Description
DEN’ (output) : Data Enable. It is LOW when processor wants to
receive data or processor is giving out data (to74245)
DT/R’ (output) : Data Transmit/Receive.
When High, data from uP to memory
When Low, data is from memory to uP (to74245 dir)
IO/M’ (output) : If High uP access I/O Device.
If Low uP access memory
RD’ (output) : When Low, uP is performing a read operation
WR’ (output) : When Low, uP is performing a write operation
ALE (output) : Address Latch Enable , Active High
Provided by uP to latch address
When HIGH, uP is using AD0..AD7, A19/S6,
A18/S5, A17/S4, A16/S3 as address lines

41. Z80 CPU Pin Assignment

42. Z80 Pin Description A15-A0 : D7-D0 : RD: WR:
Address bus (output, active high, 3-state).
Used for accessing the memory and I/O ports
During the refresh cycle the I is put on this bus.
D7-D0 :
Data Bus (input/output, active high, 3-state). Used for data exchanges with memory, I/O and interrupts.
RD:
Read (output, active Low, 3-state) indicates that the CPU wants to read data from memory or I/O
WR:
Write (output, active Low, 3-state) indicates that the CPU data bus holds valid data to be stored at the addressed memory or I/O location.

43. Z80 Pin Description MREQ IORQ M1 RFSH
Memory Request (output, active Low, 3-state). Indicates memory read/write operation. See M1
IORQ
Input/Output Request(output,active Low,3-state) Indicates I/O read/write operation. See M1 M1
Machine Cycle One (output, active Low).
Together with MREQ indicates opcode fetch cycle Together with IORQ indicates an Int Ack cycle
RFSH
Refresh (output, active Low).
Together with MREQ indicates refresh cycle.
Lower 7-bits address is refresh address to DRAM

44. Z80 Pin Description INT Interrupt Request (input, active Low).
Interrupt Request is generated by I/O devices.
Checked at the end of the current instruction
If flip-flop (IFF) is enabled.
NMI
Non-Maskable Interrupt
(Input, negative edge-triggered).
Higher priority than INT.
Recognized at the end of the current Instruction
Independent of the status of IFF
Forces the CPU to restart at location 0066H.

45. Z80 Pin Description BUSREQ Bus Request (input, active Low).
higher priority than NMI
recognized at the end of the current
machine cycle.
forces the CPU address bus, data bus, and MREQ, IORQ, RD, and WR to high-imp.
BUSACK
Bus Acknowledge (output, active,Low)
indicates to the requesting device that address, data, and control signals
MREQ, IORQ, RD, and WR have entered their high-impedance states.

46. Z80 Pin Description RESET Reset (input, active Low).
RESET initializes the CPU as follows:
Resets the IFF
Clears the PC and registers I and R
Sets the interrupt status to Mode 0. During reset time, the address and data bus go to a high-impedance state And all control output signals go to the inactive
state.
must be active for a minimum of three full clock cycles before the reset operation is complete.

47. Z80 CPU

48. Z80 Programming Model

49. Register Set A : Accumulator Register F : Flag register
Two sets of six general-purpose registers
may be used individually as 8-bit A F B C D E H L (A’ F’ B’ C’ D’ E’ H’ L’)
or in pairs as 16-bit registers AF BC DE HL (AF’ BC’ DE’ HL’)
The Alternative registers (A’ F’ B’ C’ D’ E’ H’ L’) not visible to the programmer but can access via:
EXX (BC)<->(BC') , (DE)<->(DE') , (HL)<->(HL')
EX AF, AF ’ (AF)<->(AF')
what is this instruction useful for?

50. Register Set(cont) 4 16-bit registers hold memory address (pointers)
index registers (IX) and (IY) are 16-bit memory pointers
16 bit stack pointer (SP)
Program counter (PC)
PC points to the next opcode to be fetched from ROM
when the µP places an address on the address bus to fetch the byte from memory, it then increments the program counter by one to the next location
Special purpose registers
I : Interrupt vector register.
R : memory Refresh register

51. Flag Register S Sign Flag (1:negativ)* Z Zero Flag (1:Zero)
H Half Carry Flag (1: Carry from Bit 3 to Bit 4)**
P Parity Flag (1: Even)
V Overflow Flag (1:Overflow)*
N Operation Flag (1:previous Operation wassubtraction)**
C Carry Flag (1: Carry from Bit n-1 to Bit n, with n length of operand)
*: 2-complement number representation
**: used in DAA-operation for BCD-arithmetic

52. DAA - Decimal Adjust Accumulator
Adjusts the content of the Accumulator A for BCD addition and subtraction
operations such as ADD, ADC, SUB, SBC, and NEG according to the table:
before DAA
after DAA Op N C
Bits 4-7 H
Bits 0-3
A=A+..
ADD
ADC
0-9 00
0-8
A-F 06 1
0-3 60
9-F 66
0-2
SUB
SBC
NEG
6-F FA
7-F A0 9A

53. Instruction cycles, machine cycles and “T-states”
Instruction cycle is the time taken to complete the execution of an instruction
Machine cycle is defined as the time required to complete one operation of accessing memory, accessing IO, etc.
T-state = 1/f (f:Z80 Clock Frequency)
f= 4MHZ  T-state=0.25 uS

54. Basic CPU Timing Example

55. Opcode Fetch Bus Timings (M1 Cycle)

56. The R register Is increased at every first machine cycle (M1).
Bit 7 of it is never changed by this; only the lower 7 bits are included in the addition. So bit 7 stays the same
Bit 7 can be changed using the LD R,A instruction.
LD A,R and LD R,A access the R register after it is increased
R is often used in programs for a random value, which is good but of course not truly random.
the block instructions decrease the PC with two, so the instructions are re-executed.

57. Memory read/write cycle

58. Adding One Wait State to an M1 Cycle

59. Adding One Wait State to Any Memory Cycle

60. IO read/write cycle
During I/O operations a single wait state is automatically inserted

61. Bus Request/Acknowledge Cycle

62. Interrupt Request/Acknowledge Cycle
Two wait states are automatically added to this cycle

63. Non-Maskable Interrupt Request Operation

64. M1 Refresh Cycle Takes 4T to 6Ts
Z80 includes built in circuitry for refreshing DRAM
This simplifies the external interfacing hardware
DRAM consists of MOS transistors, which store Information as capacitive charges; each cell needs to be periodically refreshed
During T3 and T4 (when Z80 is performing internal ops), the low order address is used to supply a 7-bit address for refresh

65. Wait Signal
the Z80 samples the wait signal during T2 if low then Z80 adds wait
states to extend the machine cycle
used to interface memories with slow response time
Slow memory is low cost

66. Interrupts There are two types of interrupts: non mask-able (NMI)
Could not be masked
Jump to 0066H of memory
mask-able(INT)
Has 3 mode
Can be set with the IM x Instruction
IM 0 sets Interrupt mode 0
IM 1 sets Interrupt mode 1
IM 2 sets Interrupt mode 2

67. Interrupt Modes Mode 0: Mode 1: Mode 2:
An 8 bit opcode is Fetched from Data BUS and executed
The source interrupt device must put 8 bit opcode at data bus

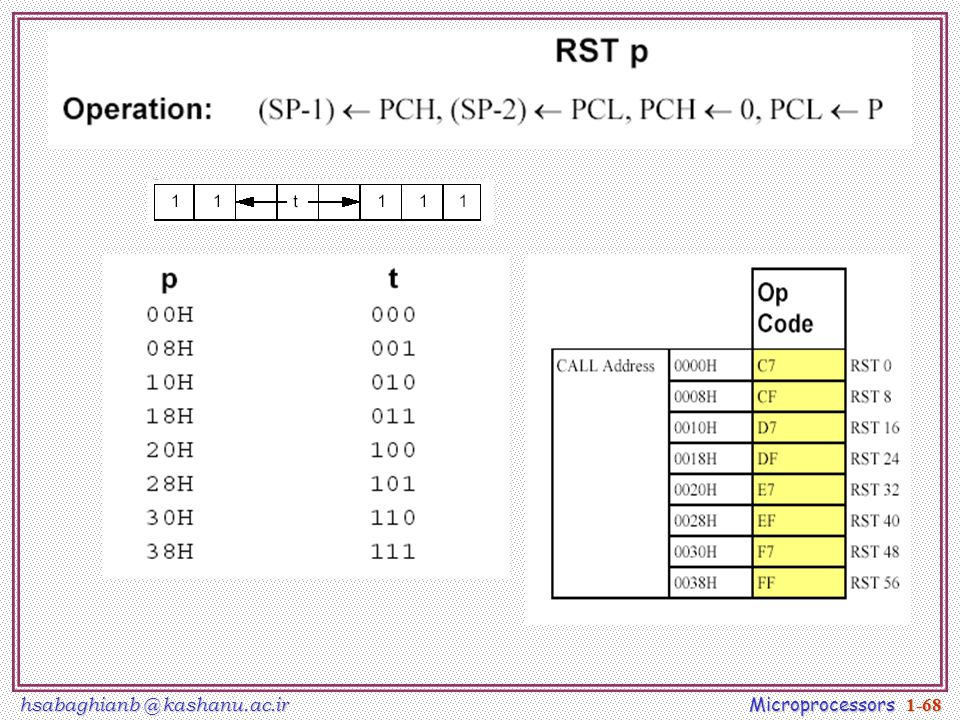

8 bit opcode usually is RST p instructions
Mode 1:
A jump is made to address 0038h
No value is required at data bus
Mode 2:
A jump is made to address (register I × value from interrupting device that puts at bus)
I is high 8 bit of interrupt vector
Value is low 8 bit of interrupt vector

69. Z80 CPU Instruction Description
158 different instruction types
Including all 78 of the 8080A CPU.
Instruction groups
Load and Exchange
Block Transfer and Search
Arithmetic and Logical
Rotate and Shift
Bit Manipulation (Set, Reset, Test)
Jump, Call, and Return
Input/Output
Basic CPU Control

70. Addressing Modes Immediate Immediate Extended
Modified Page Zero Addressing (rst p)
Relative Addressing
Jump Relative (2 byte)
One Byte Op Code
8-Bit Two’s Complement Displacement (A+2)
Extended Addressing
Absolute jump
One byte opcode
2 byte address
Indexed Addressing
(Index Register + Displacement) (IX+d)
2 byte opcode
1 byte displacement

71. Addressing Modes(cont.)
Register Addressing
LD C,B
Implied Addressing
Op Code implies other operand(s)
ADD E
Register Indirect Addressing
16-bit CPU register pair as pointer (such as HL)
ADD (HL)
Bit Addressing
set, reset, and test instructions.
SET 3,A
RES 7,B

72. Minimal Configuration of a Z80 Microcomputer

73. Z80 Memory connection CPU 16 bit address bus  64 k memory(max)
CPU 8 bit data bus  8 bit data width
Generally should be connected
Data to data
Address to address
Wr to wr
Rd to rd
Mreq to cs

74. Memory connection (cont.)
If only one RAM chip Full size (64 kb capacity)
RAM
64 kb
Z80
CPU
D7~D0
A15~A0

75. Memory connection (cont.)
If RAM capacity was 32 kb
A15 composed with MREQ
RAM area is from 0000h to 7FFFh
RAM
32 kb
Z80
CPU
D7~D0
A14~A0
A15

76. Memory connection (cont.)
There is two 32 kb RAM
Problem: Bus Conflict. The two memory chips will provide data at the same time when microprocessor performs a memory read.
Solution: Use address line A15 as an “arbiter”. If A15 outputs a logic “1” the upper memory is enabled (and the lower memory is disabled) and vice-versa.

77. Memory connection (cont.)
There is two 32 kb RAM
A15 applied to select one RAM chip
Two RAM area is from 0000h to 7FFFh (RAM1)
and 8000h to FFFFh (RAM1)
RAM
32 kb
Z80
CPU
D7~D0
A14~A0
A15

78. Memory connection (cont.)
32 kb ROM and 32 kb RAM
ROM doesn’t have wr signal
ROM
32 kb
Z80
CPU
D7~D0
A14~A0
RAM
A15

79. Memory connection (cont.)
There is 4 memory chip
A14 and A15 applied to chip selection
ROM
16 kb
D7~D0
A13~A0
RAM
A15
A14 En S0 S1
Z80
CPU

80. Address Bit Map Selects chip Selects location within chips A15 to A0
(HEX)
AA AA
11 11
54 32
AAAA
1198 10
7654
3210
Memory
Chip
0000h
3FFFh
00 00
00 11
0000
1111
ROM
4000h
7FFFh
01 00
01 11
RAM1
8000h
BFFFh
10 00
10 11
RAM2
C000h
FFFFh
11 00
RAM3

81. Memory Map ROM Represents the memory type RAM1
Address area of each memory chip
Empty area
0000h
3FFFh
ROM
16k
4000h
7FFFh
RAM1
8000h
BFFFh
RAM2
C000h
FFFFh
RAM3
ROM
16 kb
D7~D0
A13~A0
RAM
A15
A14 En S0 S1

82. Memory Map ROM RAM2 RAM3 0000h 3FFFh 4000h
Empty Area cann’t write and read
Read op. returns FFh value (usualy)
Write op. cann’t store any value on it
0000h
3FFFh
ROM
4000h
7FFFh
Empty
8000h
BFFFh
RAM2
C000h
FFFFh
RAM3
ROM
16 kb
D7~D0
A13~A0
A15
RAM
A14 En S0 S1

83. Memory Map ROM RAM 0000h 3FFFh 4000h Empty Area cann’t write and read
Read op. returns FFh value (usualy)
Write op. cann’t store any value on it
0000h
3FFFh
ROM
4000h
7FFFh
Empty
8000h
BFFFh
RAM
C000h
FFFFh
ROM
16 kb
D7~D0
A13~A0
A15
RAM
A14 En S0 S1

84. Full and Partial Decoding
Full (exhaust) Decoding
All of the address lines are connected to any memory/device to perform selection
Absolute address : any memory location has one address
Partial Decoding
When some of the address lines are connected the memory/device to perform selection
Using this type of decoding results into roll-over addresses (fold back or shading).
roll-over address : any memory location has more than one address

85. Partial Decoding A15~A12 has no connection
Then doesn’t play any role in addressing
What is the Memory and Address Bit map?
RAM
4 kb
Z80
CPU
D7~D0
A11~A0 X
A15~A12

86. Partial Decoding Roll-over Address
0000h
0FFFh
RAM
1000h
1FFFh
RAM’
2000h
2FFFh
3000h
3FFFh
F000h
FFFFh
Every memory location has more than one address
For example first RAM location has addresses:
0000h
1000h
2000h
3000h
…………….
F000h
Roll-over Address
RAM
4 kb
Z80
CPU
D7~D0
A11~A0 X
A15~A12
A15 to A0
(HEX)
AAAA
1111
5432
1198 10
7654
3210
Memory
Chip
X000h
XFFFh
xxxx
0000
RAM

87. Partial Decoding X Z80 CPU A12 only connected to RAM
A13 has no connection
What is the memory map?
D7~D0
D7~D0
D7~D0
ROM
4 kb
RAM
8 kb
A12~A0
A11~A0
A12~A0
A13 X
Z80
CPU
A14
A15

88. Partial Decoding 8 roll-over address for ROM
4 roll-over address for RAM
ROM
4 kb
Z80
CPU
D7~D0
A11~A0
A12~A0
RAM
8 kb
A14
A15 X
A13
AAAA
1111
5432
1198 10
7654
3210
Memory
Chip
0xxx
0000
ROM
X0x0
X0x1
RAM

89. Partial Decoding Conflict X RAM’ ROM ROM’ RAM Z80 CPU AAAA 1111 5432
0000h
1FFFh
RAM’
0FFFh
ROM
1000h
ROM’
2000h
3FFFh
2FFFh
3000h
4000h
5FFFh
4FFFh
5000h
6000h
7FFFh
6FFFh
7000h
8000h
9FFFh
RAM
F000h
FFFFh
A000h
BFFFh
C000h
DFFFh
E000h
Conflict
ROM
4 kb
Z80
CPU
D7~D0
A11~A0
A12~A0
RAM
8 kb
A14
A15 X
A13
AAAA
1111
5432
1198 10
7654
3210
Memory
Chip
0xxx
0000 4k
ROM
X0x0
X0x1 8k
RAM

90. Partial Decoding Conflict X ROM ROM’ RAM’ RAM Z80 CPU AAAA 1111 5432
0000h
1FFFh
0FFFh
ROM
1000h
ROM’
2000h
3FFFh
2FFFh
3000h
4000h
5FFFh
RAM’
4FFFh
5000h
6000h
7FFFh
6FFFh
7000h
8000h
9FFFh
F000h
FFFFh
A000h
BFFFh
C000h
DFFFh
RAM
E000h
ROM
4 kb
Z80
CPU
D7~D0
A11~A0
A12~A0
RAM
8 kb
A14
A15 X
A13
Conflict
AAAA
1111
5432
1198 10
7654
3210
Memory
Chip
0xxx
0000 4k
ROM
X1x0
X1x1 8k
RAM

91. Full (exhaustive) decoding
AAAA
1111
5432
1198 10
7654
3210
Memory
Chip
0000
0001
ROM
0010
0111
RAM
A12~A0
A12~A0
D7~D0
2764
EPROM
8k8
D7~D0
74138 Y0 Y1 Y2 Y3 Y6 Y4 Y7 Y5 C B A
G2A
G2B G1
A13
0000h-07FFh
A12
0800h-0FFFh
A11
7421
1000h-17FFh
A10~A0
A10~A0
1800h-1FFFh
D7~D0
2000h-27FFh
6116
RWM
2k8
A15
A14

92. Partial decoding 74138 A12~A0 A12~A0 D7~D0 D7~D0 Y0 Y1 Y2 Y3 Y6 Y4 Y7
1111
5432
1198 10
7654
3210
Memory
Chip
0000
0001
ROM
001x
x000
x111
RAM
A12~A0
A12~A0
D7~D0
2764
EPROM
8k8
D7~D0
74138 Y0 Y1 Y2 Y3 Y6 Y4 Y7 Y5 C B A
G2A
G2B G1
A15
0000h-1FFFh
A14
2000h-3FFFh
A13
A10~A0
A10~A0
D7~D0
6116
RWM
2k8
GND
VCC

93. 1 Bit Memory With Separated I/O
D7-D0 D7 D1 D0
Din
Din
Din
A11~A0
Dout
A11~A0
Dout
A11~A0
Dout
A11-A0
A11-A0
A11-A0
2147
RWM
4k1
2147
RWM
4k1
2147
RWM
4k1

94. What is the memory(addr. bit) map
A12~A0
D7~D0
2764
EPROM
8k8
74138 Y0 Y1 Y2 Y3 Y6 Y4 Y7 Y5 C B A
G2A
G2B G1
A15
0000h-1FFFh
A14
2000h-3FFFh
D7-D0 D7 D1 D0
A13
Din
Din
Din
A11~A0
Dout
A11~A0
Dout
A11~A0
Dout
A11-A0
A11-A0
A11-A0
2147
RWM
4k1
2147
RWM
4k1
2147
RWM
4k1
GND
VCC

95. Adding RAM & ROM

96. Minimum Z80 Computer System

97. Z80-µP-Family (Typical Environment)

98. Z80 Input Output Z80 at most could have 256 input port and 256 output
8 bit port address is placed on A7–A0 pin to select the
I/O device
OUT (n), A
n is 8 bit port address
Content of A is data
OUT (C), r
Content of C is a port address
r is a data register
IN A, (n)
Data is transfered to A
IN r (C)
Content of Reg C is a port address
Input data is transfered to r (data reg)

99. Remember IO read/write cycle

100. Z80 and simple output port
OUT (03), A
Z80
CPU
A14 A0 : D7 D6 WR
IORQ
A15 D5 D4 D3 D2 D1 D0 A 7 6 5 4 3 2 1
IOWR
74LS373 Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7 OE LE

101. Z80 and simple input port IN A, (02) Z80 CPU 74LS244 A15 A14 : A0 D75V
A14 : A0 D7 Y0 A0 D6 Y1 A1 D5 Y2 A2
Z80
CPU D4 Y3 A3 D3 Y4
74LS244 A4 D2 Y5 A5 D1 Y6 A6 D0 Y7 A7 G1 G2
IORQ RD A A A A A A A A
IORD 7 6 5 4 3 2 1

102. 8088 and simple output port 8088 Minimum Mode 74LS373 A19 A18 : A0 D7Q0 D6 D1 Q1 D5 D2 Q2 D4 D3 Q3 D3 D4
74LS373 Q4 D2 D5 Q5
8088 D1 D6 Q6
Minimum D0 D7 Q7
Mode LE OE
IOR
IOW A A A A A A A A A A A A A A A A
IOW 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1 5 4 3 2 1

103. 8088 and simple input port What is this? 8088 Minimum Mode 74LS244 A195V
A18 :
What is this? A0 D7 Y0 A0 D6 Y1 A1 D5 Y2 A2 D4 Y3 A3 D3 Y4
74LS244 A4 D2 Y5 A5
8088 D1 Y6 A6
Minimum D0 Y7 A7
Mode G1 G2
IOR
IOW A A A A A A A A A A A A A A A A
IOW 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1 5 4 3 2 1

104. Simplified Drawing of 8088 Minimum Mode
A7 - A0
B7 - B0
DEN E
74LS245
DT / R
DIR
A7-A0
AD7 - AD0
D7 - D0
Q7 - Q0
GND OE
74LS373 LE
A15-A8
A15 - A8
D7 - D0
Q7 - Q0
8088
GND OE
74LS373 LE
A19-A16
A19/S6 - A16/
D7 - D4
Q7 - Q4 S3
D3 - D0
Q3 - Q0
GND OE
74LS373
ALE LE RD
MEMR
IO / M
MEMW WR
IOR
IOW

105. Minimum Mode 220 bytes or 1MB memory Simplified Drawing of 1 MB
A19 - A0 RD WR
Simplified
Drawing of
8088 Minimum
Mode
MEMR
MEMW CS

106. What are the memory locations of a 1MB (220 bytes) Memory?
A19 to A0
(HEX)
AAAA
1111
9876
5432
1198 10
7654
3210
00000
0000
FFFFF
Example: 34FD0

107. Minimum Mode 512 kB memory What do we do with A19? Don’t connect it
D7 - D0
D7 - D0
What do we do with A19?
Don’t connect it
Connect to cs
What is the difference?
A19
A18 - A0
A18 - A0
Simplified
Drawing of
512 kB
Memory
8088 Minimum
Mode
MEMR RD
MEMW WR CS

108. 512 kB Memory Map Don’t connect it Connect to cs
A19 is not connected to the memory so even if the 8088 microprocessor outputs a logic “1”,the memory cannot “see” it.
A19=0 is the same as A19=1 for Memory
Connect to cs
If A19=0 Memory chip act normal fanction
00000h
7FFFFh
512k
Mem
80000h
FFFFFh
Mem’
00000h
7FFFFh
512k
Mem
80000h
FFFFFh
Empty

109. 2  512 kB memory 512 kB RAM1 Simplified RAM2 Drawing of 8088 Minimum
D7 - D0
A18 - A0 RD WR
Simplified
Drawing of
8088 Minimum
Mode
MEMR
MEMW CS
A19
RAM2

110. 2  512 kB memory
What are the memory locations of two consecutive 512KB (219 bytes) Memory?
00000h
7FFFFh
512k
RAM1
80000h
FFFFFh
RAM2
AAAA
1111
9876
5432
1198 10
7654
3210
Memory
Chip
0000
0111
ROM
1000
RAM

111. Interfacing four 256K Memory Chips to the 8088 Microprocessor: A0 D7
256KB : #4 D0 RD WR
A19 CS
A18
A17
A17 : : A0 A0 D7 D7
256KB : : #3 D0 D0
MEMR RD
MEMW WR
8088 CS
Minimum
Mode
A17 : A0 D7
256KB : #2 D0 RD WR CS
A17 : A0 D7
256KB : #1 D0 RD WR CS

112. Interfacing four 256K Memory Chips to the 8088 Microprocessor
Minimum
Mode
A17 A0 : D7 D0
MEMR
MEMW
A18
256KB #3 RD WR CS
A19 #2 #1 #4
Interfacing four 256K Memory Chips to the 8088 Microprocessor

113. Memory chip#__ is mapped to:
AAAA
1111
9876
5432
1198 10
7654
3210
Memory
Chip
RAM#1
RAM#2
RAM#3
RAM#4

114. Interfacing several 8K Memory Chips to the 8088 P
Minimum
Mode
A12 A0 : D7 D0
MEMR
MEMW
A13
A14
8KB #2 RD WR CS #1 #?
A15
A16
A17
A18
A19

115. Interfacing 128 8K Memory Chips to the 8088 P
Minimum
Mode
A12 A0 : D7 D0
MEMR
MEMW
A13
A14
8KB #2 RD WR CS #1
#128
A15
A16
A17
A18
A19

116. Interfacing 128 8K Memory Chips to the 8088 P
Minimum
Mode
A12 A0 : D7 D0
MEMR
MEMW
A13
A14
8KB #2 RD WR CS #1
#128
A15
A16
A17
A18
A19
Interfacing 128 8K Memory Chips to the 8088 P

117. Memory chip#__ is mapped to:
AAAA
1111
9876
5432
1198 10
7654
3210
Memory
Chip
RAM#1
RAM#2
RAM#126
RAM#127
RAM#128

118. What is the Memory and Address Bit map?
74138 Y0 Y1 Y2 Y3 Y6 Y4 Y7 Y5 C B A
G2A
G2B G1
2764
EPROM
8k8
D7~D0
A12~A0
6116
RWM
2k8
A10~A0
A14
A13
A12
A15
7408
VCC
74244
input
