1. CMOS Invertors Lecture #3

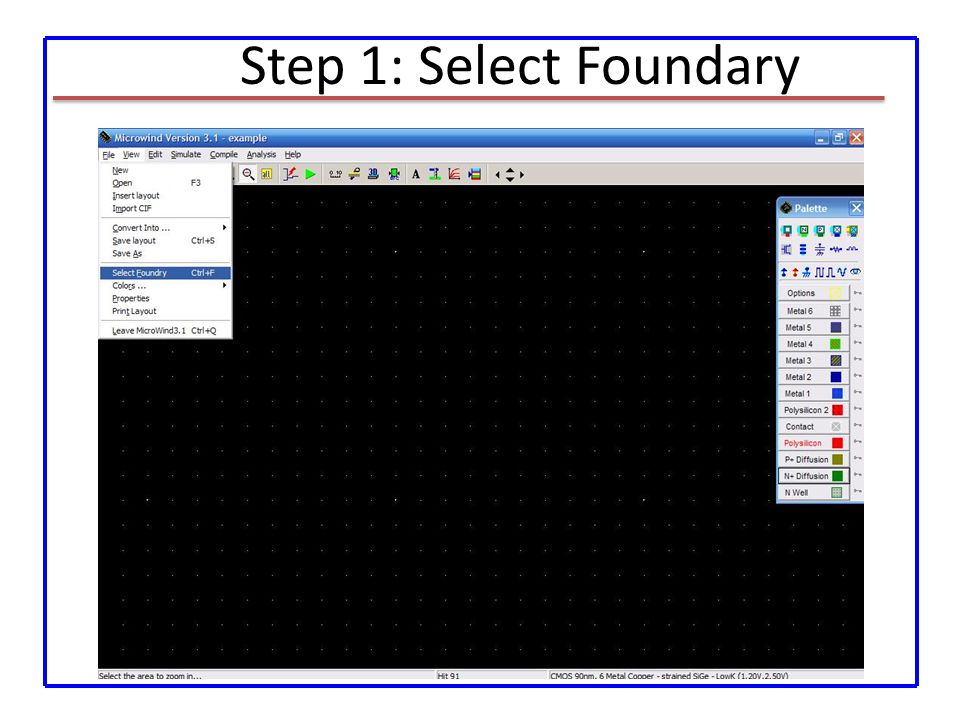

2. Step 1: Select Foundary

3. Step 2: Select Foundary

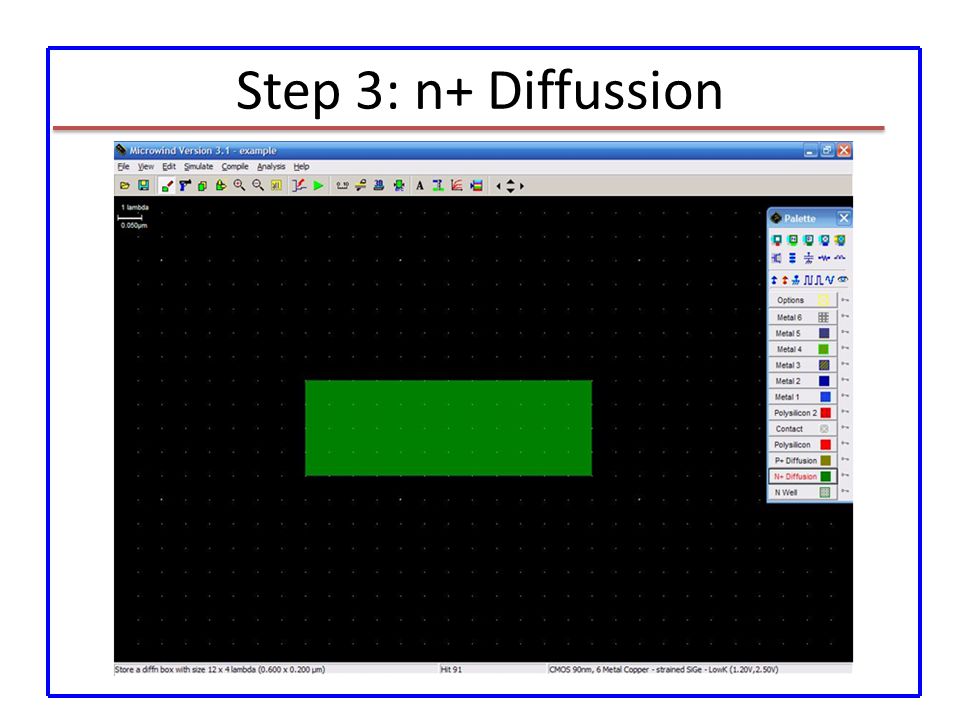

4. Step 3: n+ Diffussion

5. Step 4: Polysilicon

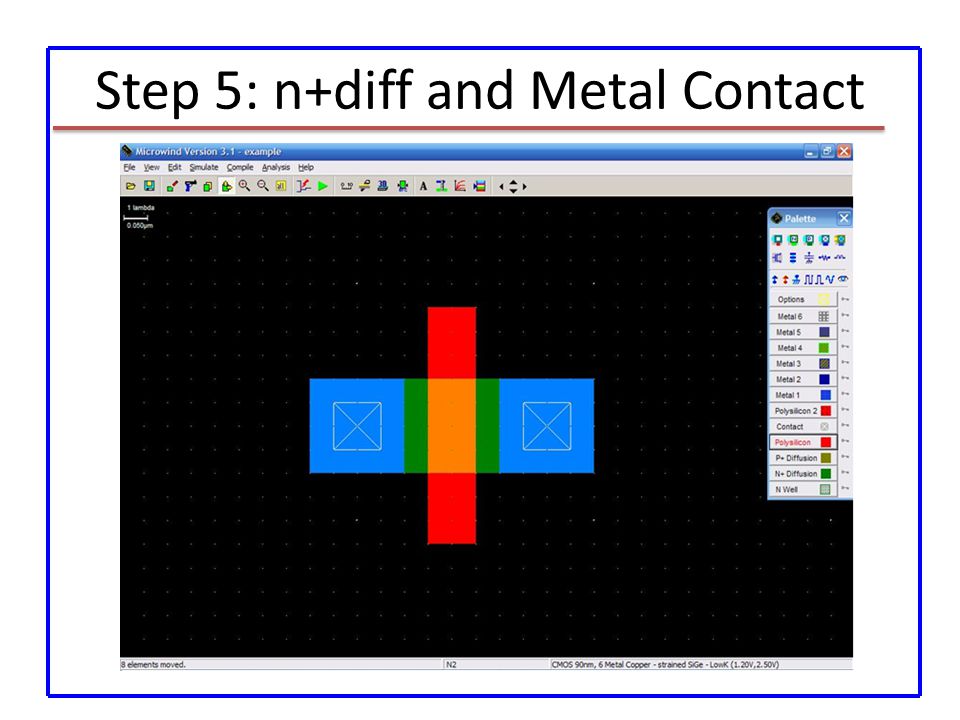

6. Step 5: n+diff and Metal Contact

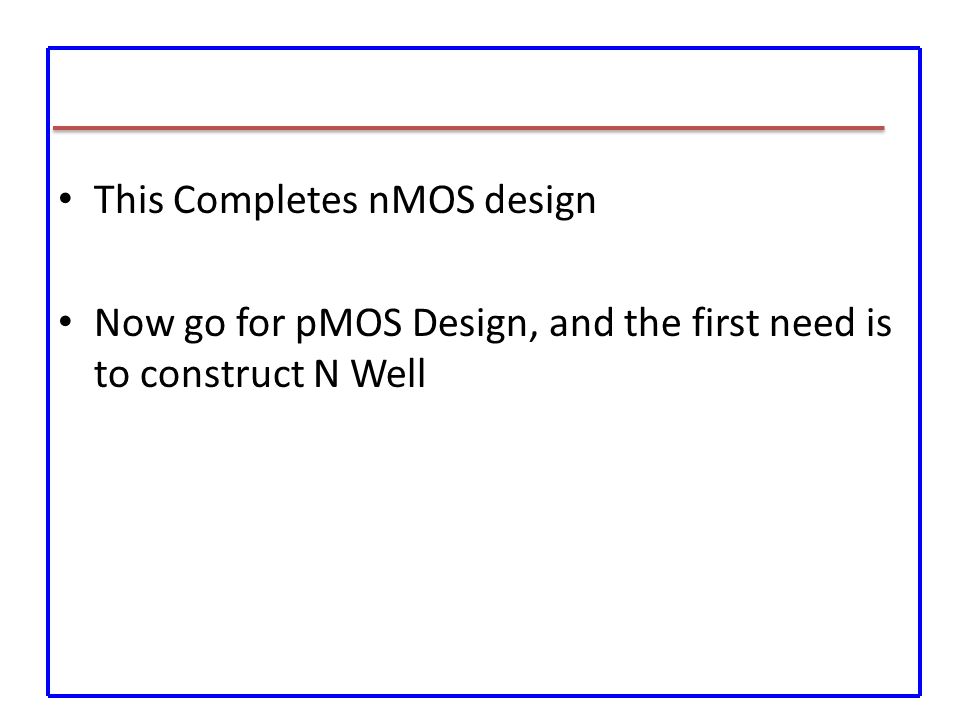

7. This Completes nMOS design Now go for pMOS Design, and the first need is to construct N Well

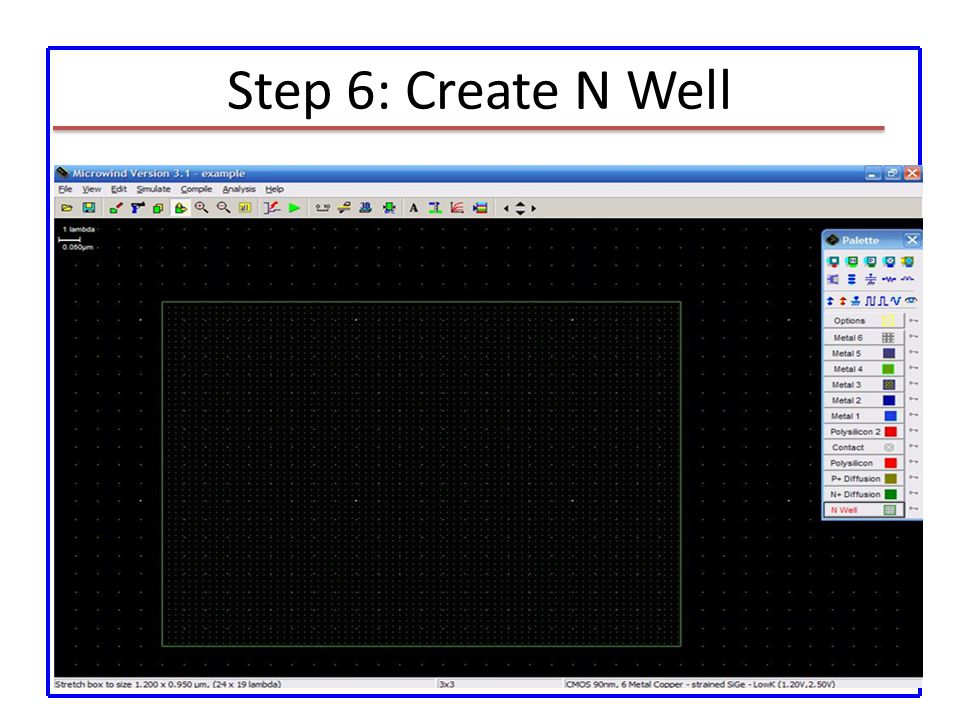

8. Step 6: Create N Well

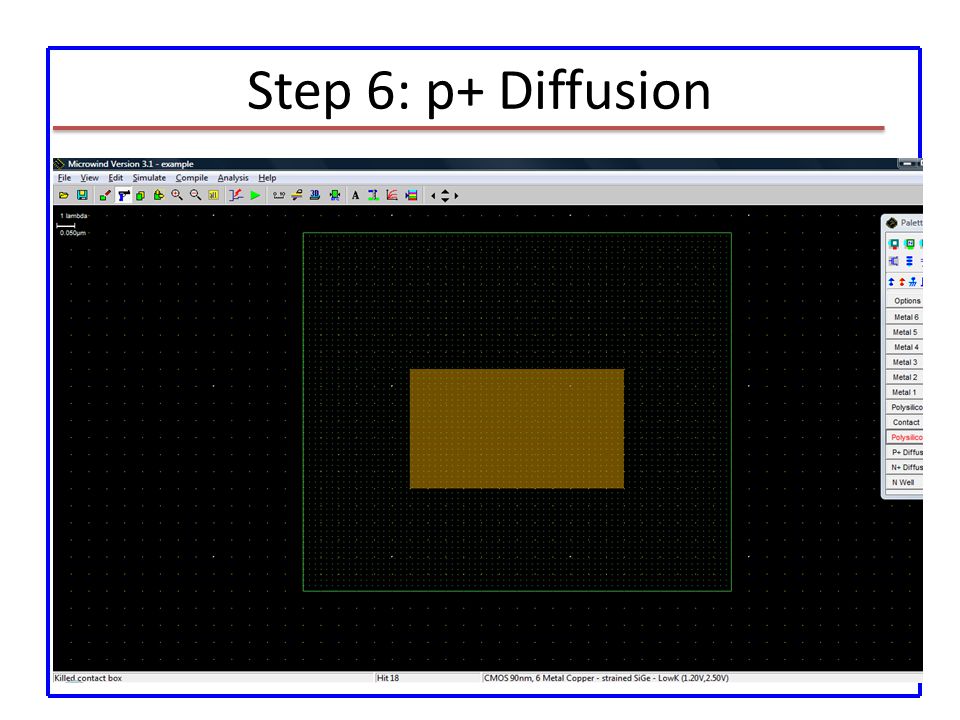

9. Step 6: p+ Diffusion

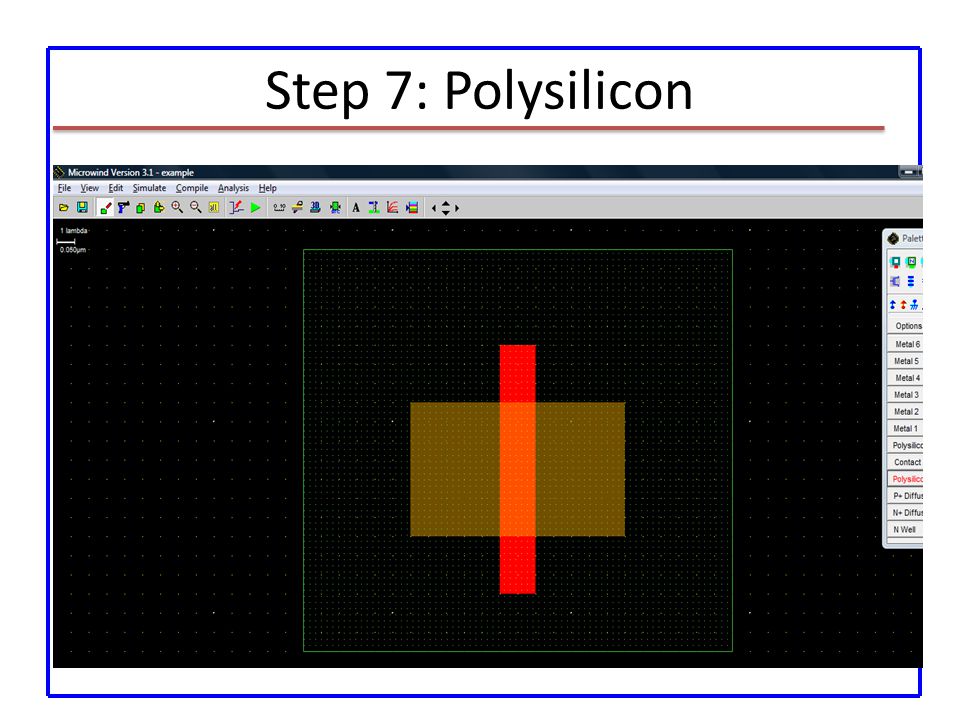

10. Step 7: Polysilicon

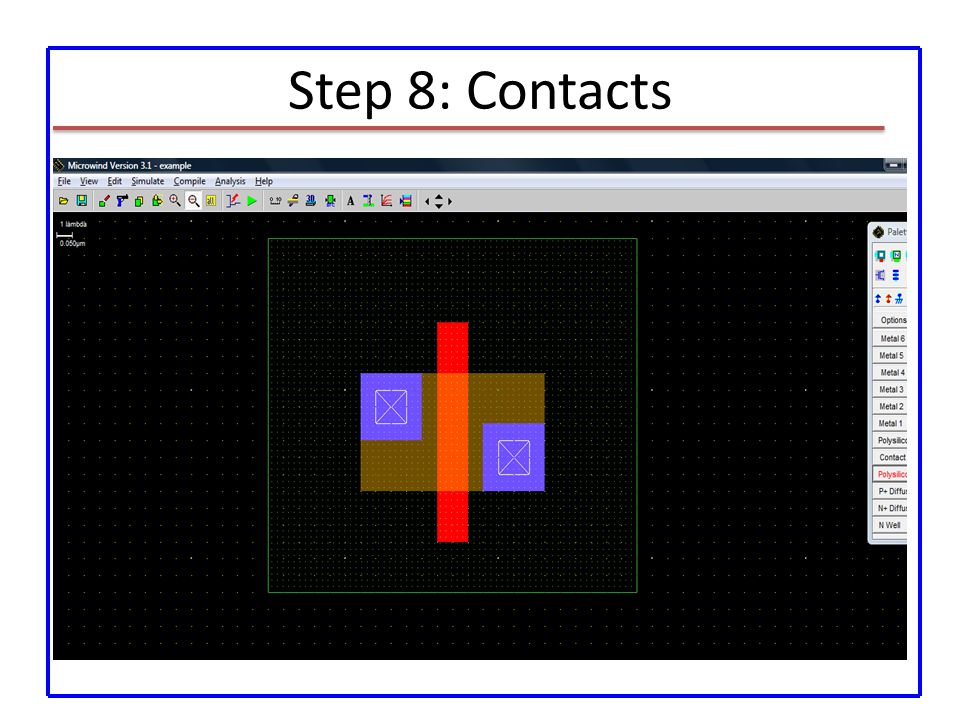

11. Step 8: Contacts

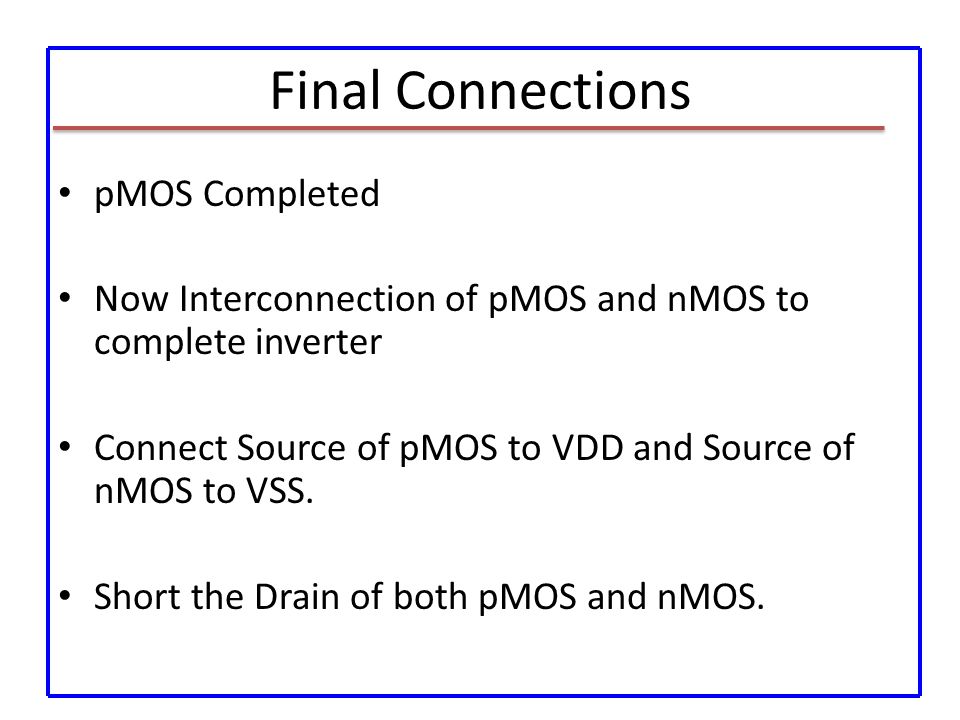

12. Final Connections pMOS Completed Now Interconnection of pMOS and nMOS to complete inverter Connect Source of pMOS to VDD and Source of nMOS to VSS. Short the Drain of both pMOS and nMOS.

13. INVERTER: Complete Design

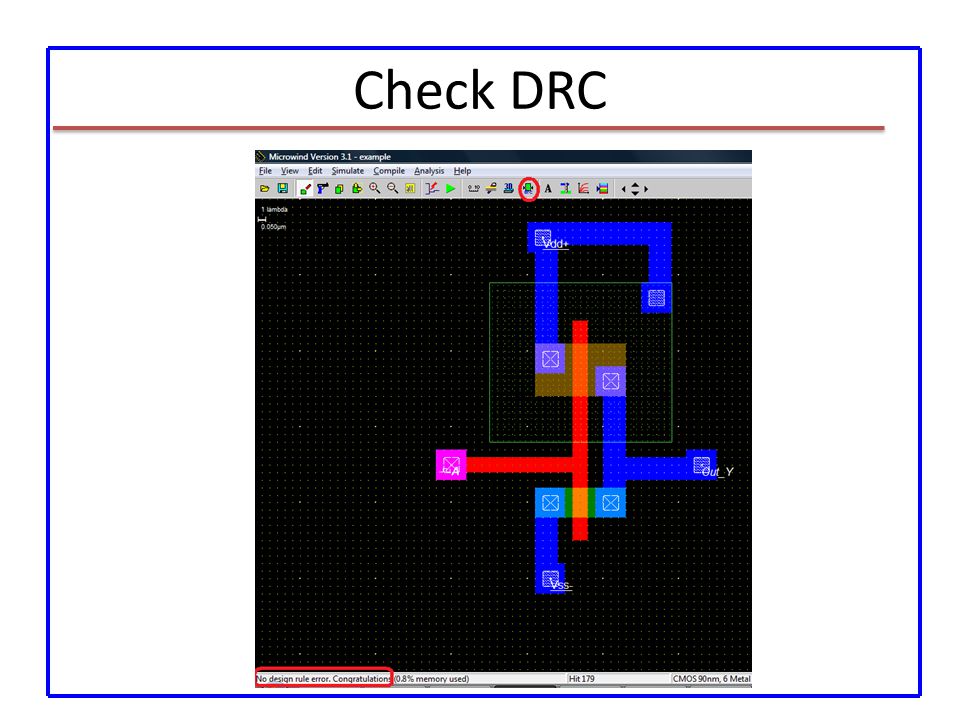

14. Check DRC

15. Assign Source Assign Signal (Clock) to Gate Terminal Add Visible node at Output

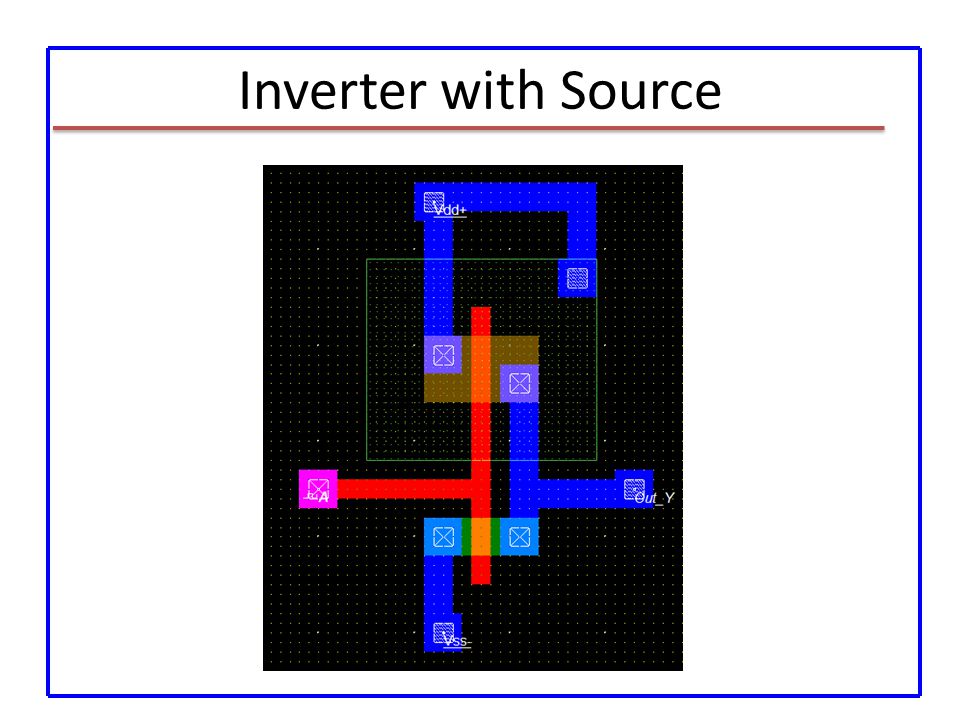

16. Inverter with Source

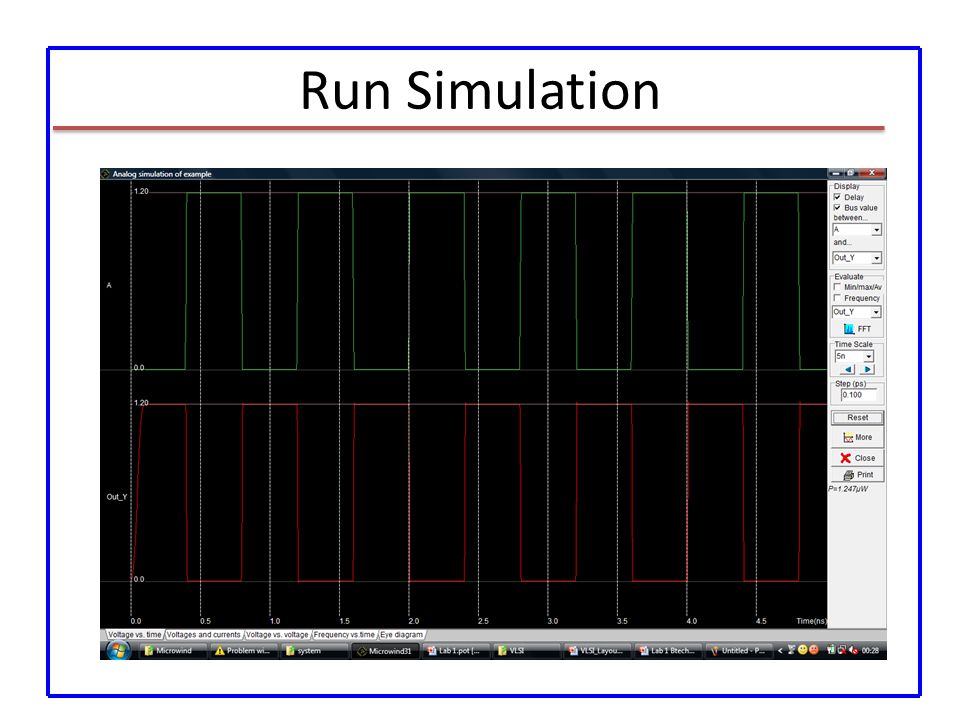

17. Run Simulation

18. VTC Characteristics
