1. hsabaghianb @ kashanu.ac.ir Microprocessors 10-1 IO Devices Stepper Motors DAC, ADC, PPI Lec note 10

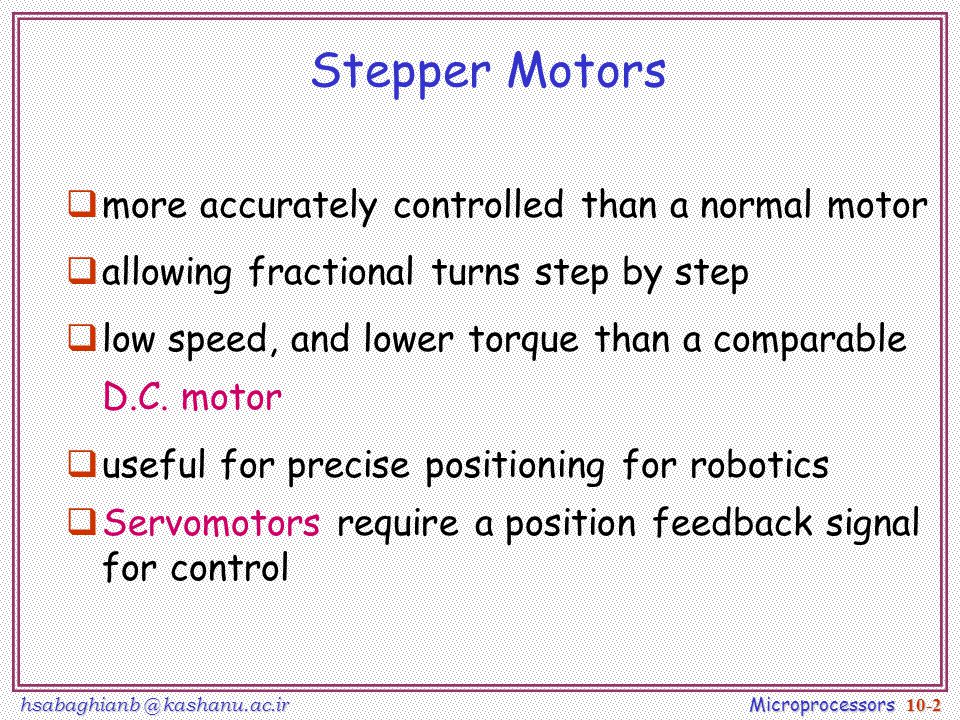

2. hsabaghianb @ kashanu.ac.ir Microprocessors 10-2 Stepper Motors  more accurately controlled than a normal motor  allowing fractional turns step by step  low speed, and lower torque than a comparable D.C. motor  useful for precise positioning for robotics  Servomotors require a position feedback signal for control

3. hsabaghianb @ kashanu.ac.ir Microprocessors 10-3 Stepper Motor Diagram

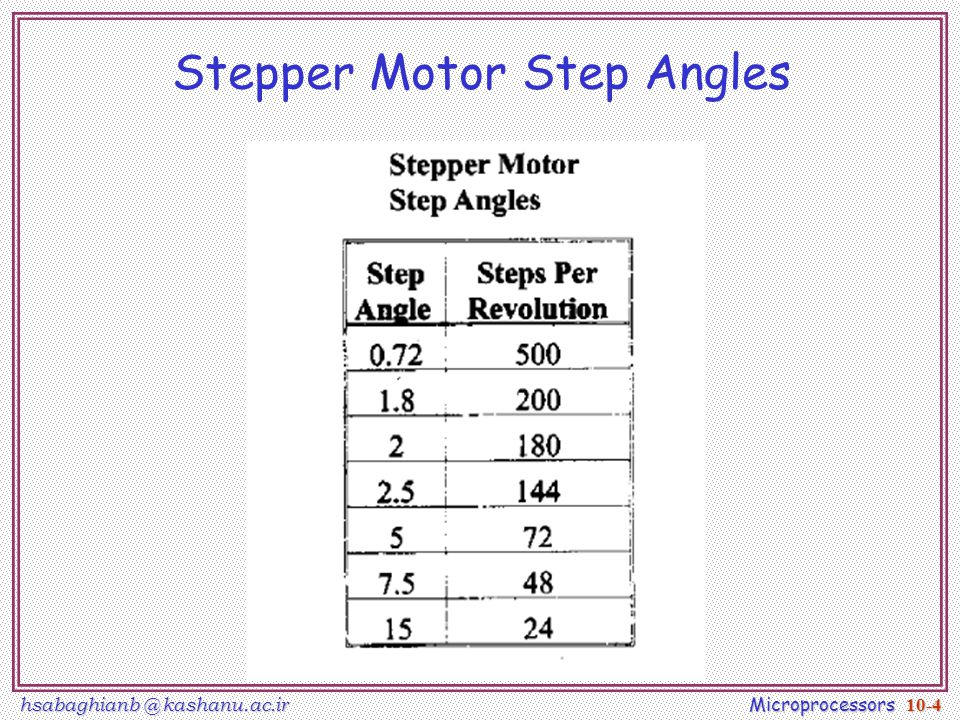

4. hsabaghianb @ kashanu.ac.ir Microprocessors 10-4 Stepper Motor Step Angles

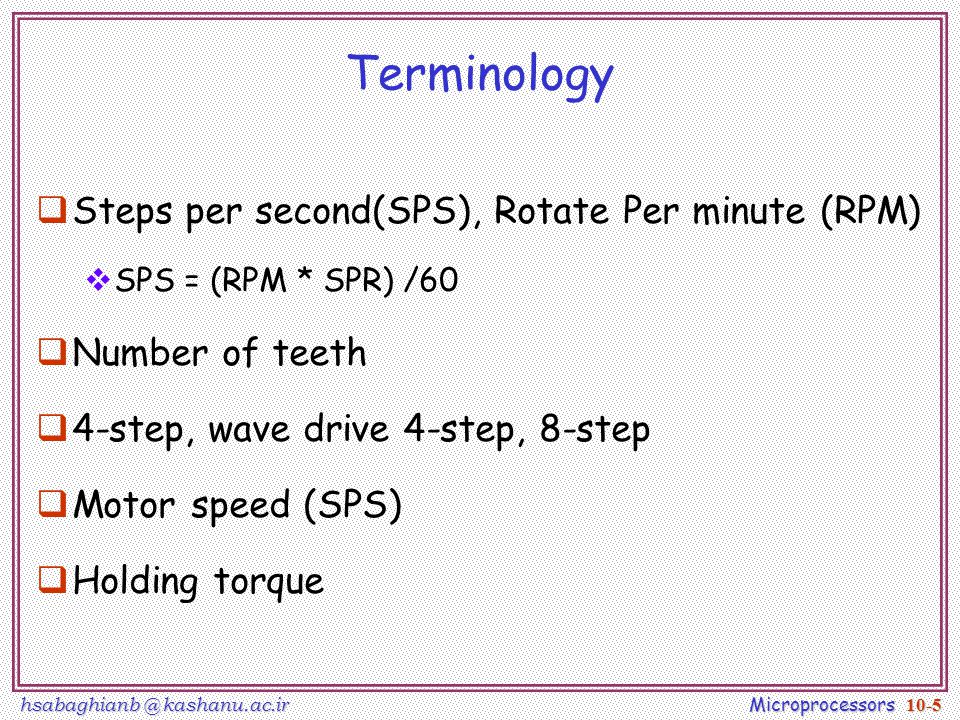

5. hsabaghianb @ kashanu.ac.ir Microprocessors 10-5 Terminology  Steps per second(SPS), Rotate Per minute (RPM)  SPS = (RPM * SPR) /60  Number of teeth  4-step, wave drive 4-step, 8-step  Motor speed (SPS)  Holding torque

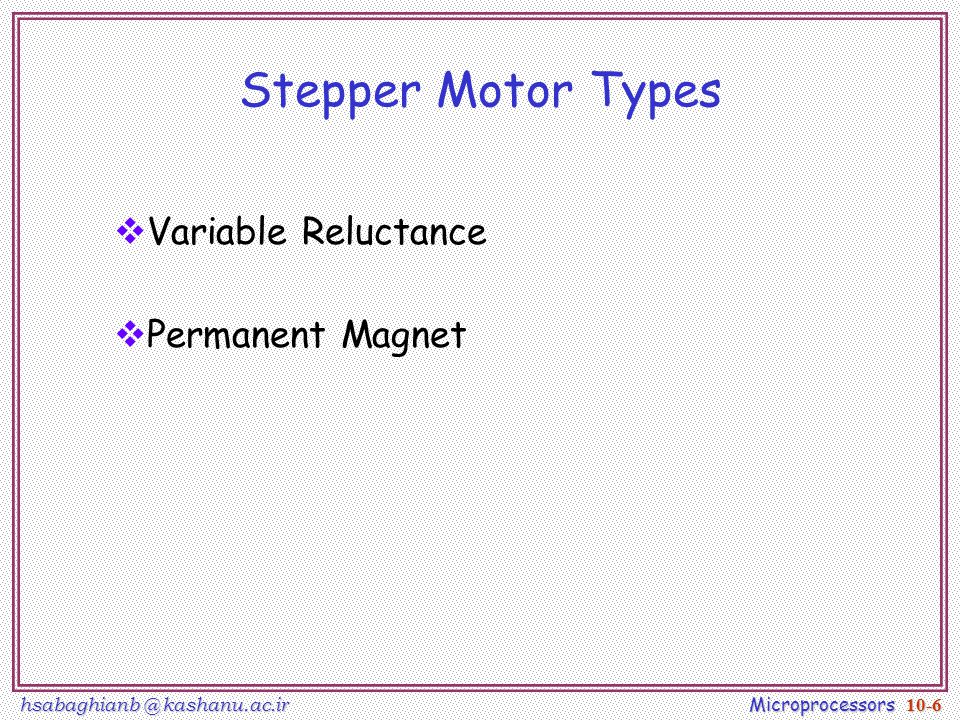

6. hsabaghianb @ kashanu.ac.ir Microprocessors 10-6 Stepper Motor Types  Variable Reluctance  Permanent Magnet

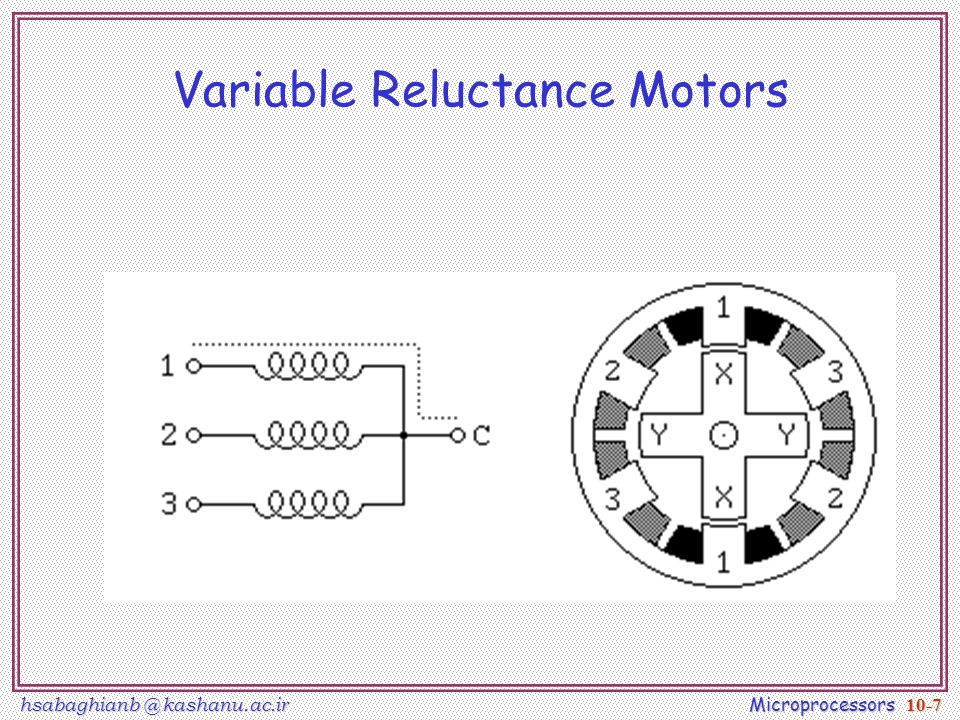

7. hsabaghianb @ kashanu.ac.ir Microprocessors 10-7 Variable Reluctance Motors

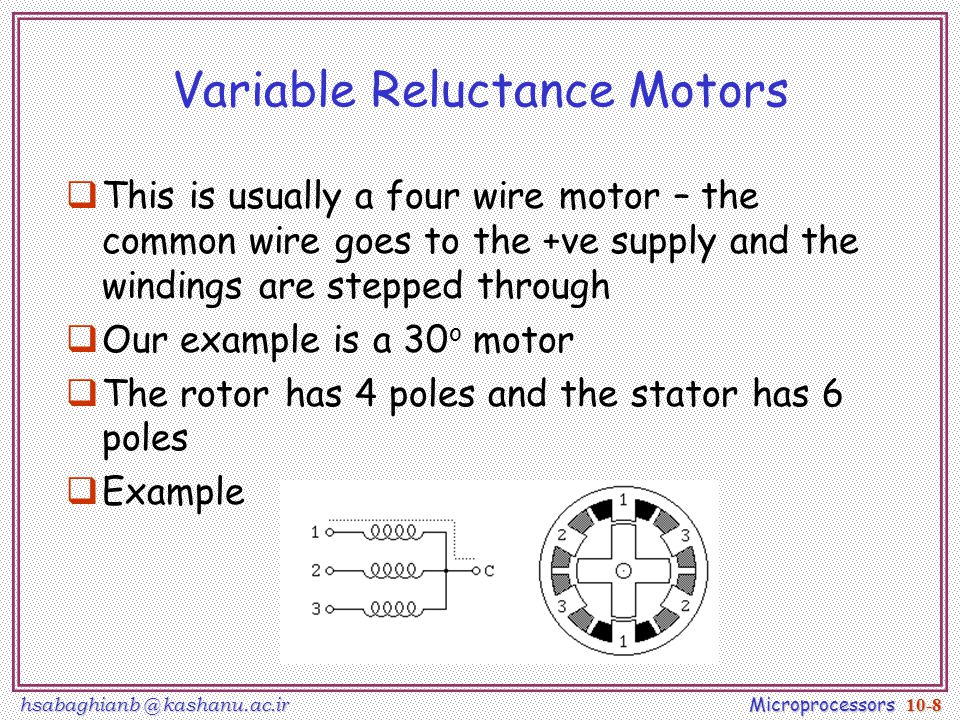

8. hsabaghianb @ kashanu.ac.ir Microprocessors 10-8 Variable Reluctance Motors  This is usually a four wire motor – the common wire goes to the +ve supply and the windings are stepped through  Our example is a 30 o motor  The rotor has 4 poles and the stator has 6 poles  Example

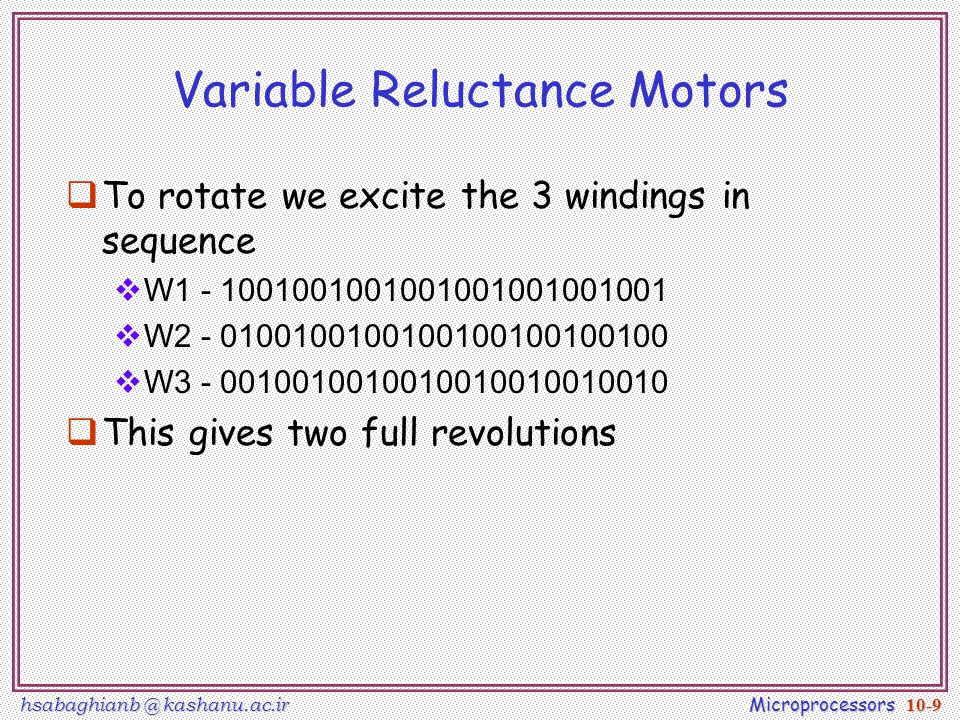

9. hsabaghianb @ kashanu.ac.ir Microprocessors 10-9 Variable Reluctance Motors  To rotate we excite the 3 windings in sequence  W1 - 1001001001001001001001001  W2 - 0100100100100100100100100  W3 - 0010010010010010010010010  This gives two full revolutions

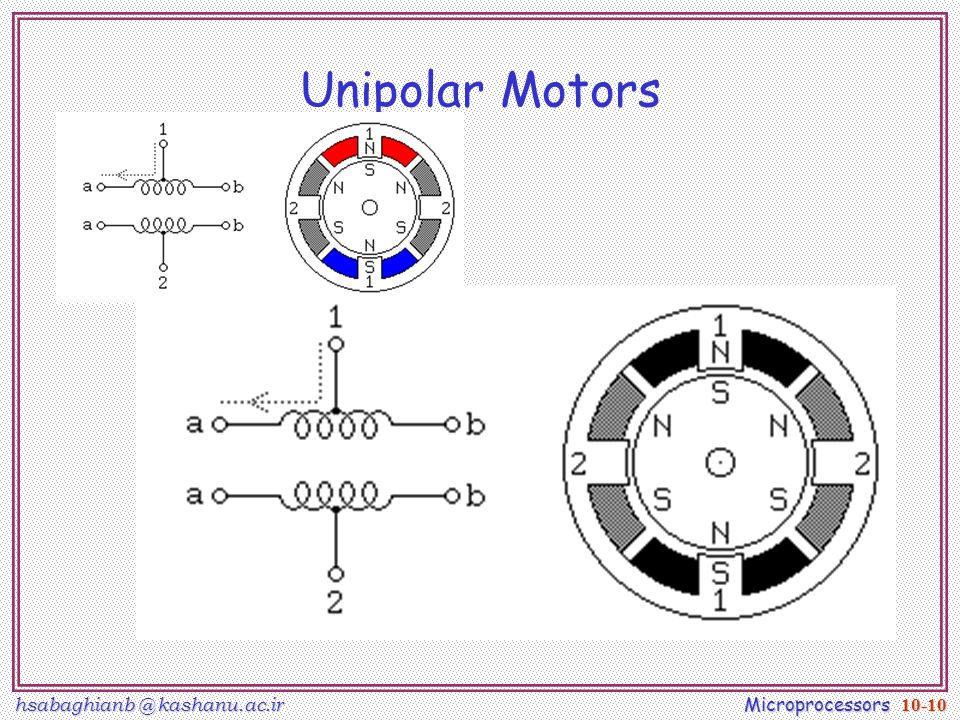

10. hsabaghianb @ kashanu.ac.ir Microprocessors 10-10 Unipolar Motors

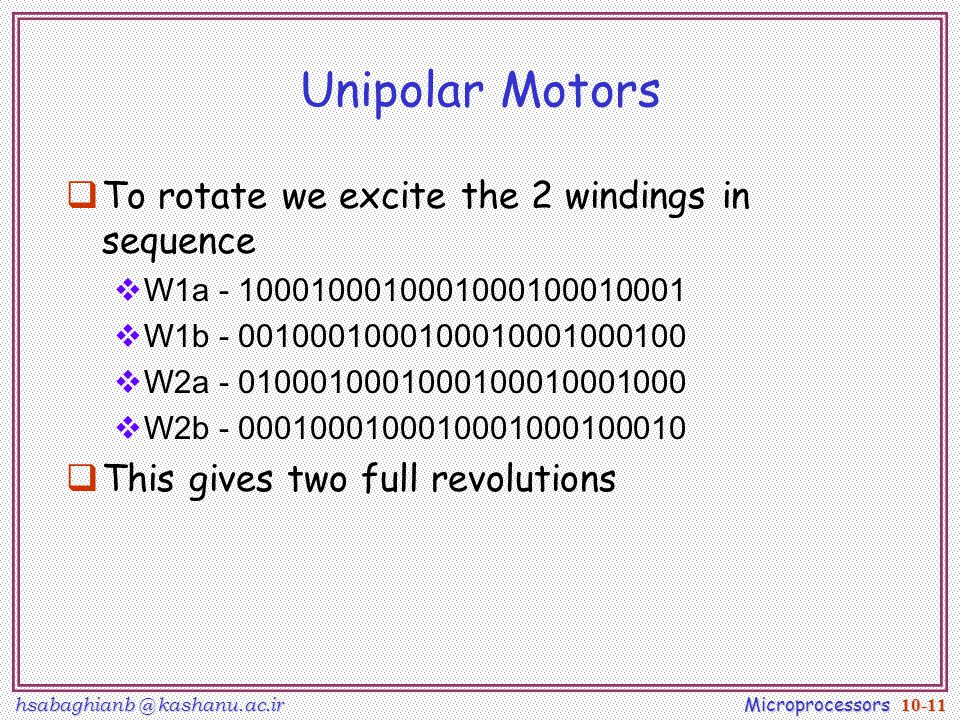

11. hsabaghianb @ kashanu.ac.ir Microprocessors 10-11 Unipolar Motors  To rotate we excite the 2 windings in sequence  W1a - 1000100010001000100010001  W1b - 0010001000100010001000100  W2a - 0100010001000100010001000  W2b - 0001000100010001000100010  This gives two full revolutions

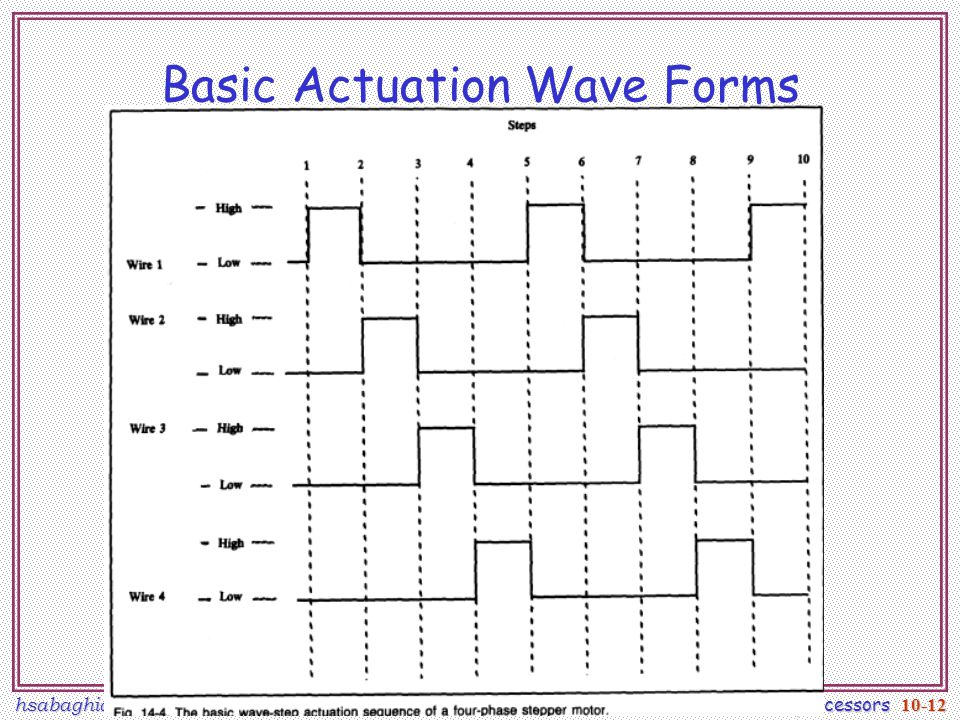

12. hsabaghianb @ kashanu.ac.ir Microprocessors 10-12 Basic Actuation Wave Forms

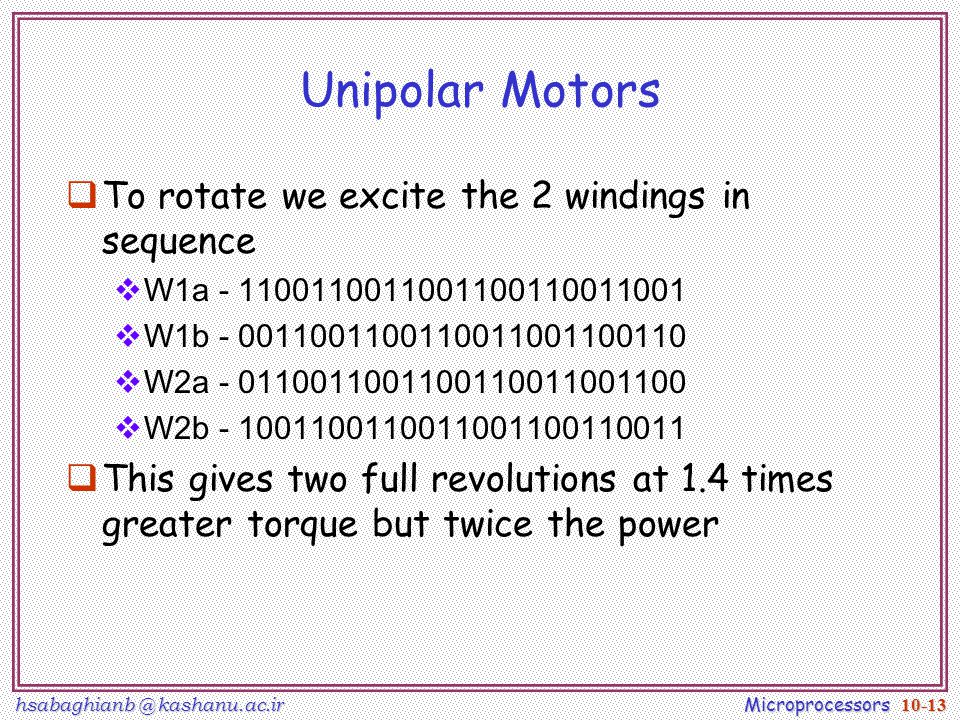

13. hsabaghianb @ kashanu.ac.ir Microprocessors 10-13 Unipolar Motors  To rotate we excite the 2 windings in sequence  W1a - 1100110011001100110011001  W1b - 0011001100110011001100110  W2a - 0110011001100110011001100  W2b - 1001100110011001100110011  This gives two full revolutions at 1.4 times greater torque but twice the power

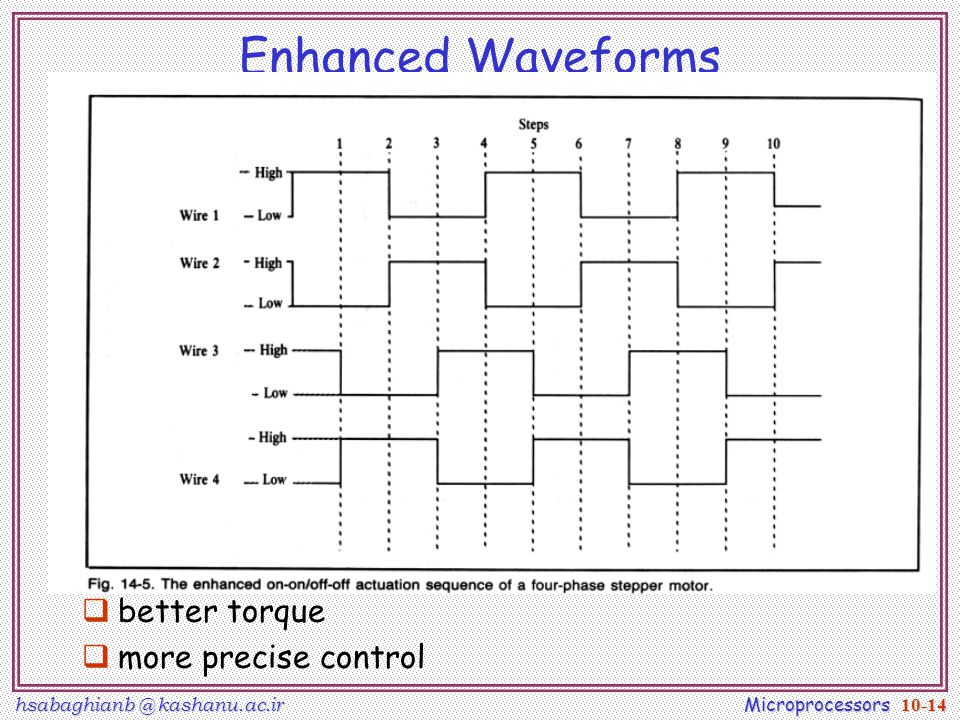

14. hsabaghianb @ kashanu.ac.ir Microprocessors 10-14 Enhanced Waveforms  better torque  more precise control

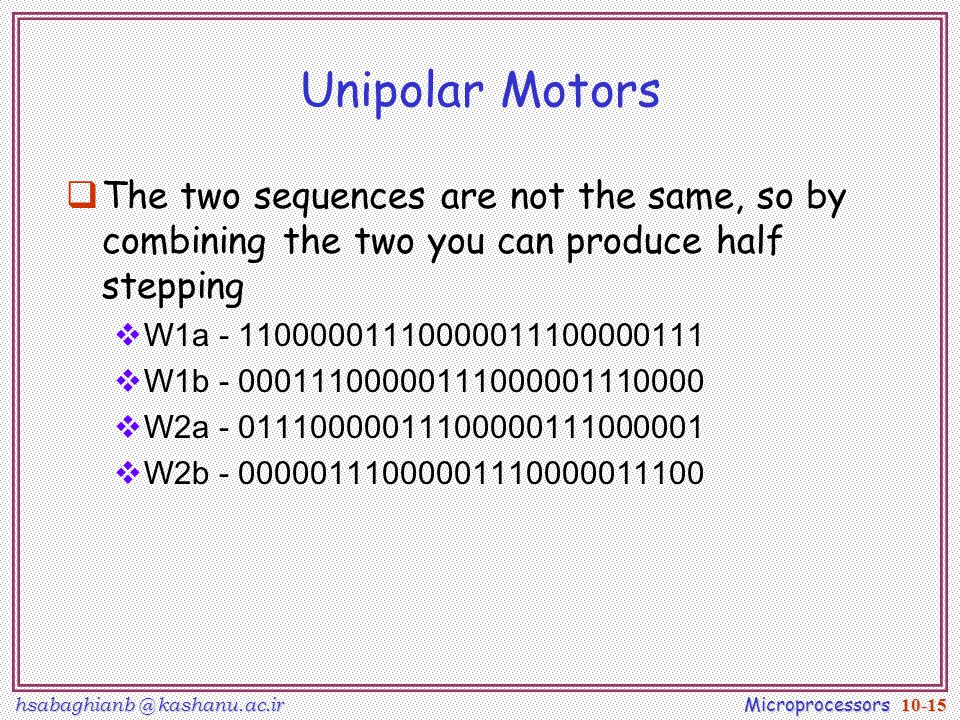

15. hsabaghianb @ kashanu.ac.ir Microprocessors 10-15 Unipolar Motors  The two sequences are not the same, so by combining the two you can produce half stepping  W1a - 11000001110000011100000111  W1b - 00011100000111000001110000  W2a - 01110000011100000111000001  W2b - 00000111000001110000011100

16. hsabaghianb @ kashanu.ac.ir Microprocessors 10-16 Motor Control Circuits  For low current options the ULN200x family of Darlington Arrays will drive the windings direct.

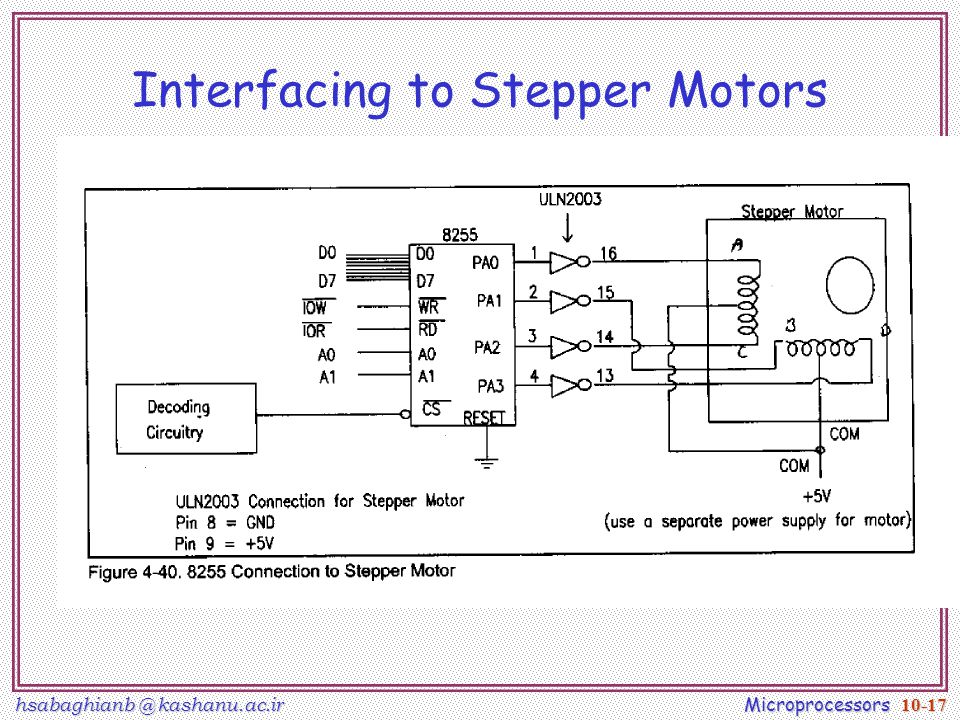

17. hsabaghianb @ kashanu.ac.ir Microprocessors 10-17 Interfacing to Stepper Motors

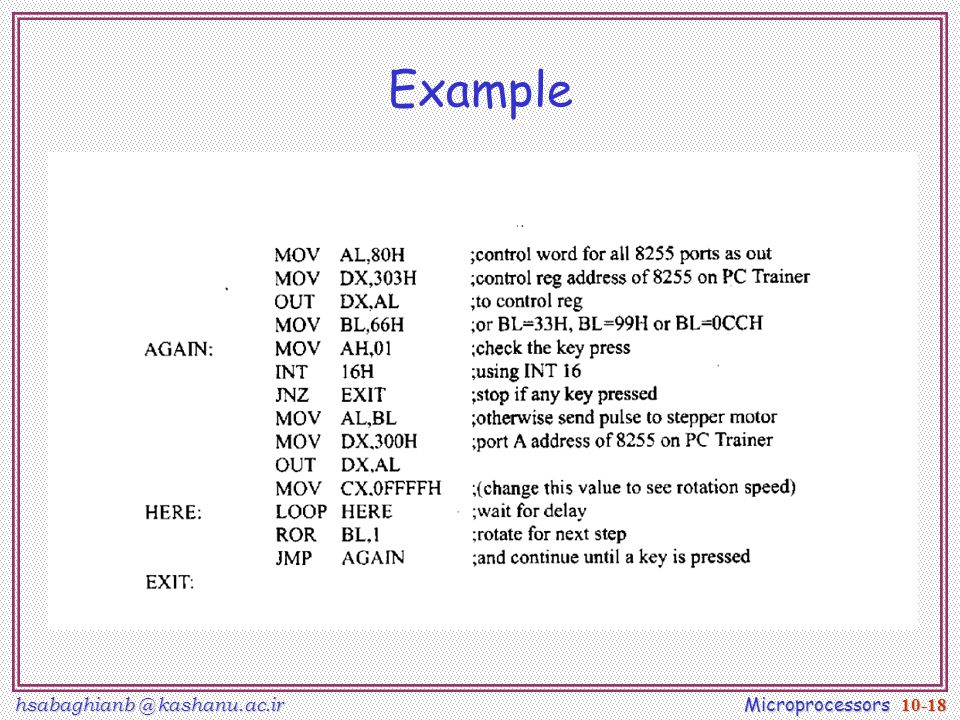

18. hsabaghianb @ kashanu.ac.ir Microprocessors 10-18 Example

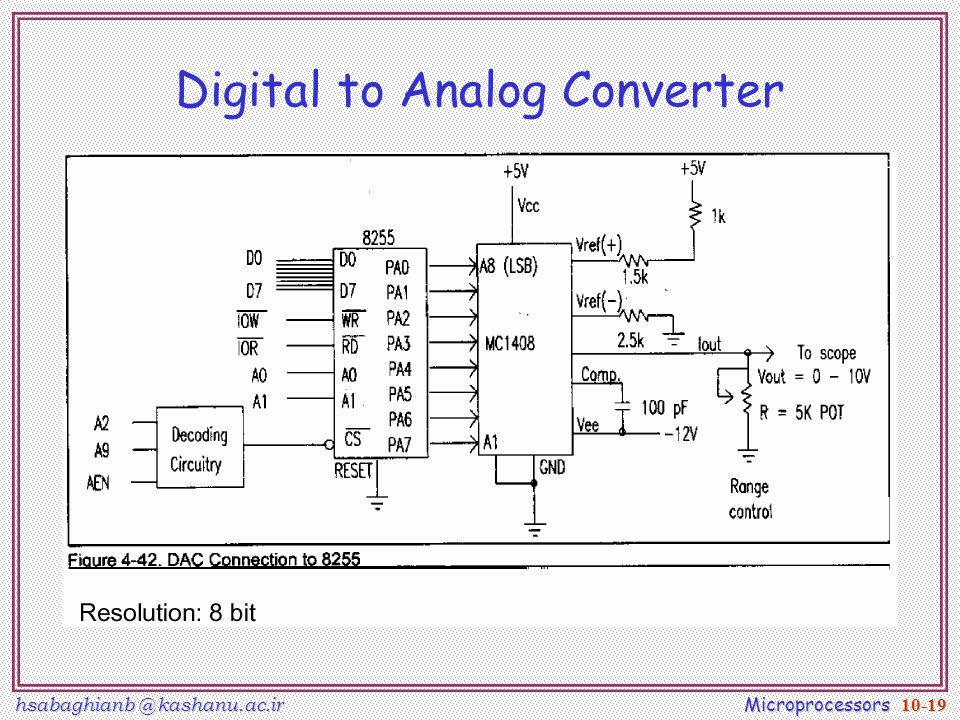

19. hsabaghianb @ kashanu.ac.ir Microprocessors 10-19 Digital to Analog Converter

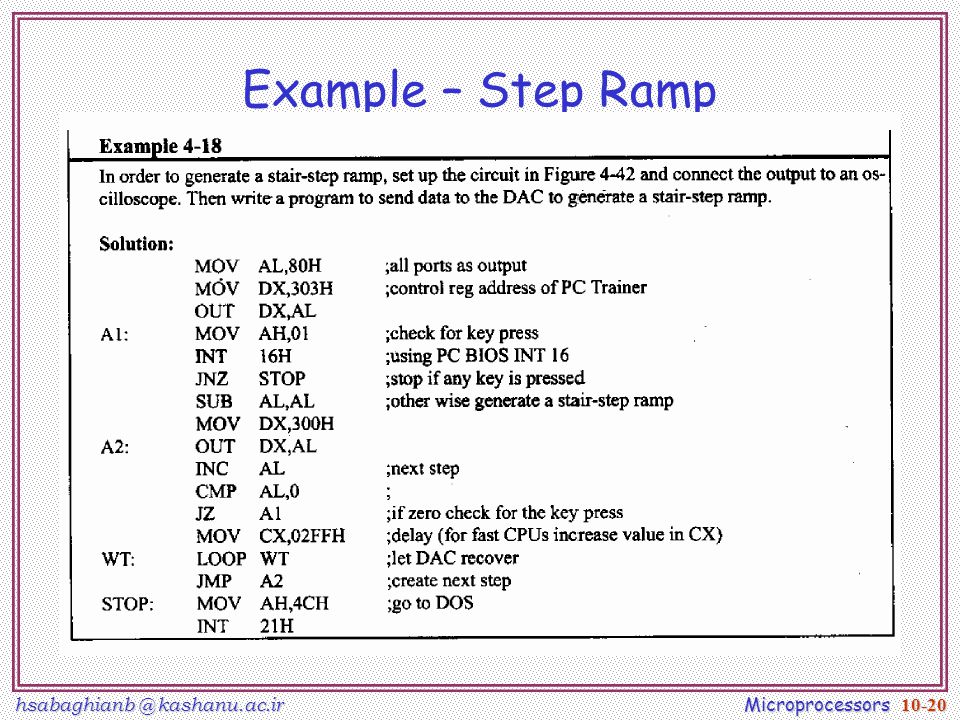

20. hsabaghianb @ kashanu.ac.ir Microprocessors 10-20 Example – Step Ramp

21. hsabaghianb @ kashanu.ac.ir Microprocessors 10-21 Analog to Digital

22. hsabaghianb @ kashanu.ac.ir Microprocessors 10-22 V in Range

23. hsabaghianb @ kashanu.ac.ir Microprocessors 10-23 Timing

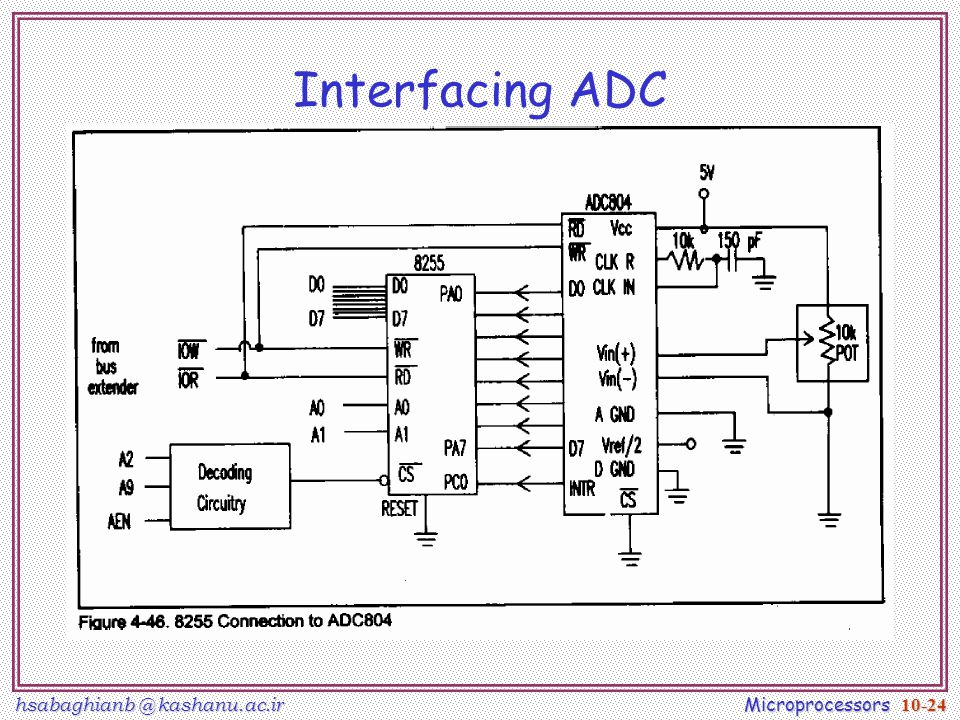

24. hsabaghianb @ kashanu.ac.ir Microprocessors 10-24 Interfacing ADC

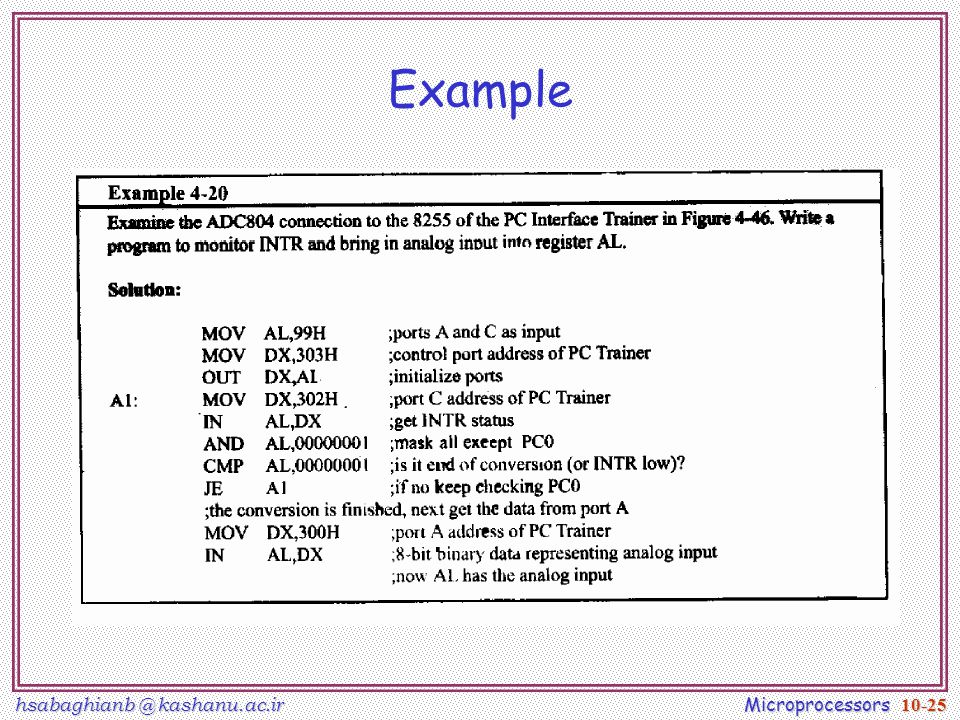

25. hsabaghianb @ kashanu.ac.ir Microprocessors 10-25 Example

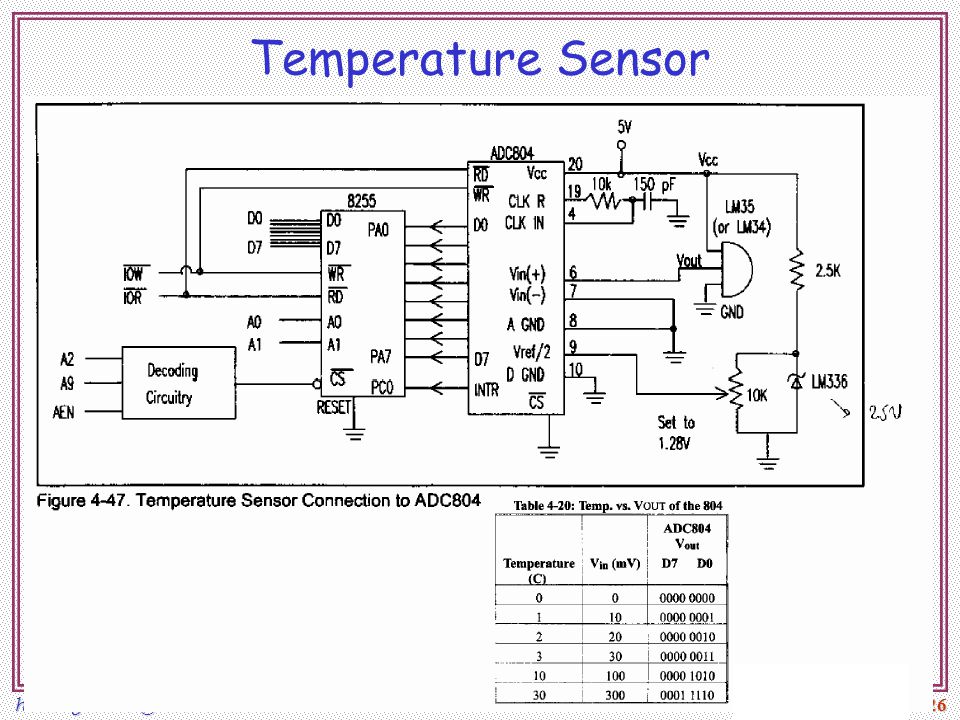

26. hsabaghianb @ kashanu.ac.ir Microprocessors 10-26 Temperature Sensor

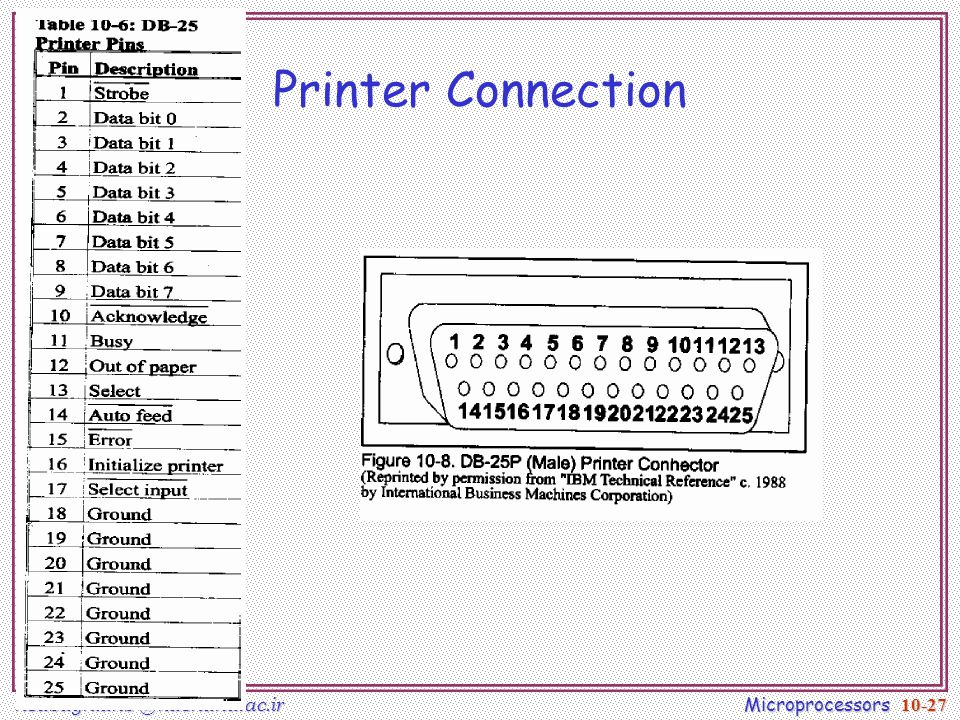

27. hsabaghianb @ kashanu.ac.ir Microprocessors 10-27 Printer Connection

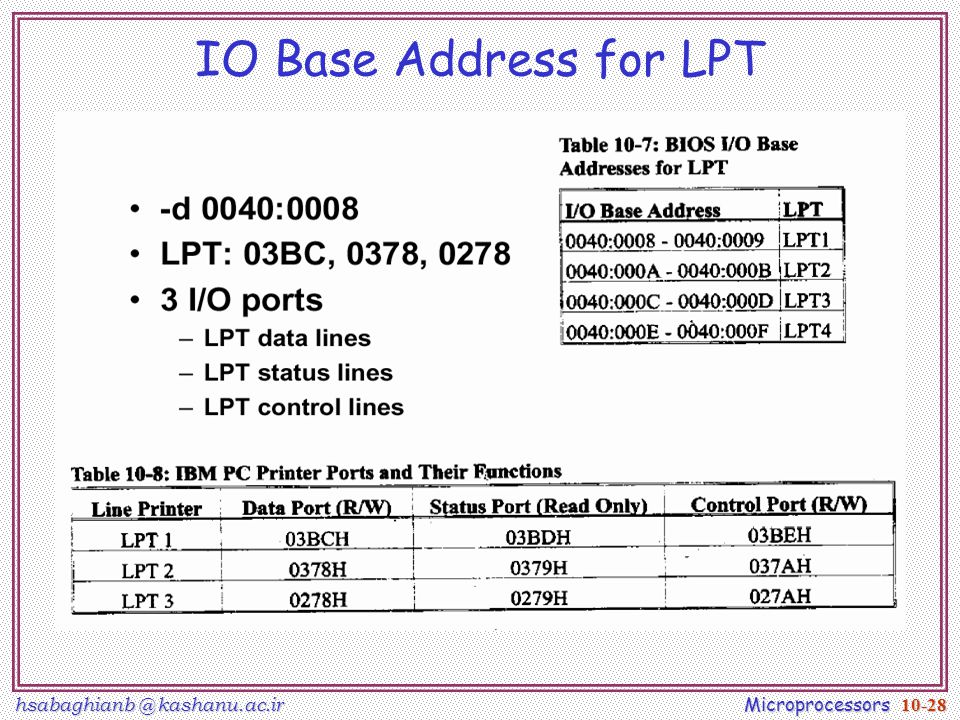

28. hsabaghianb @ kashanu.ac.ir Microprocessors 10-28 IO Base Address for LPT

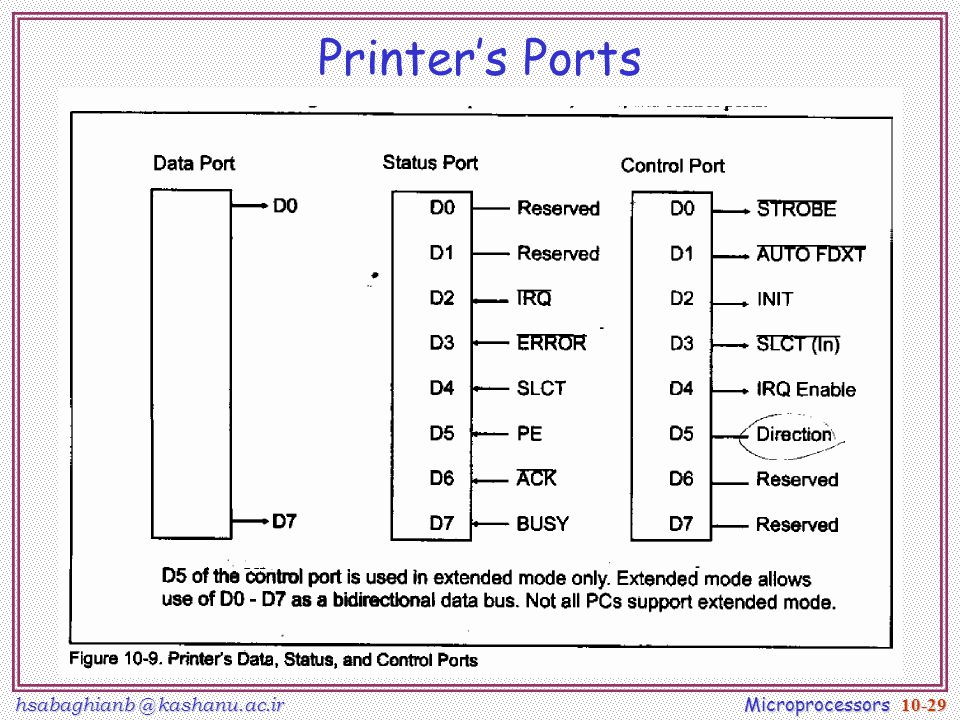

29. hsabaghianb @ kashanu.ac.ir Microprocessors 10-29 Printer’s Ports

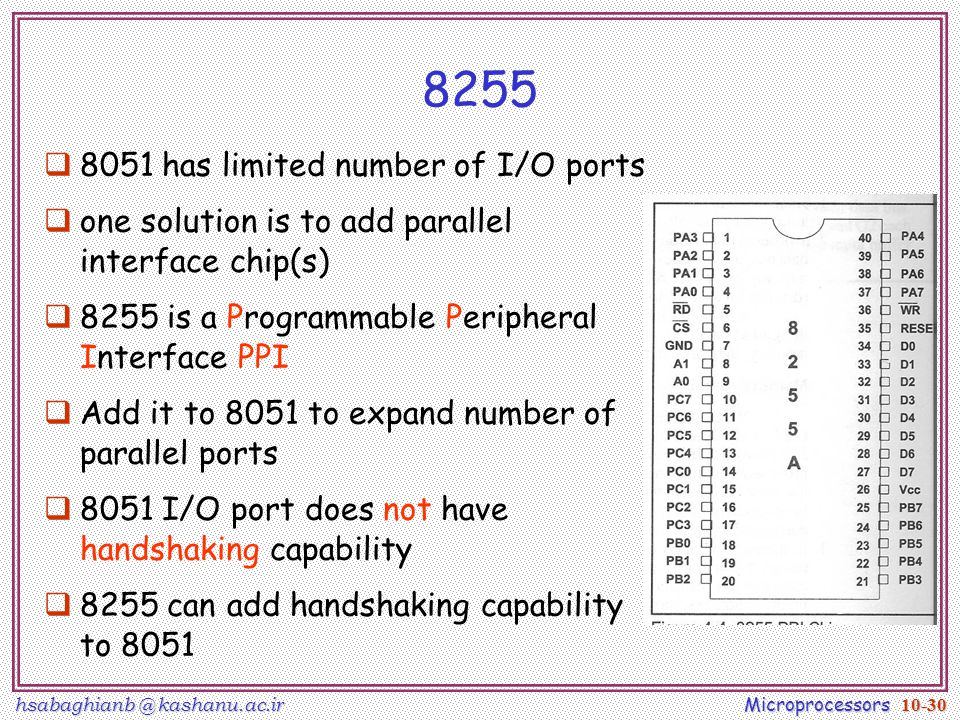

30. hsabaghianb @ kashanu.ac.ir Microprocessors 10-30 8255  8051 has limited number of I/O ports  one solution is to add parallel interface chip(s)  8255 is a Programmable Peripheral Interface PPI  Add it to 8051 to expand number of parallel ports  8051 I/O port does not have handshaking capability  8255 can add handshaking capability to 8051

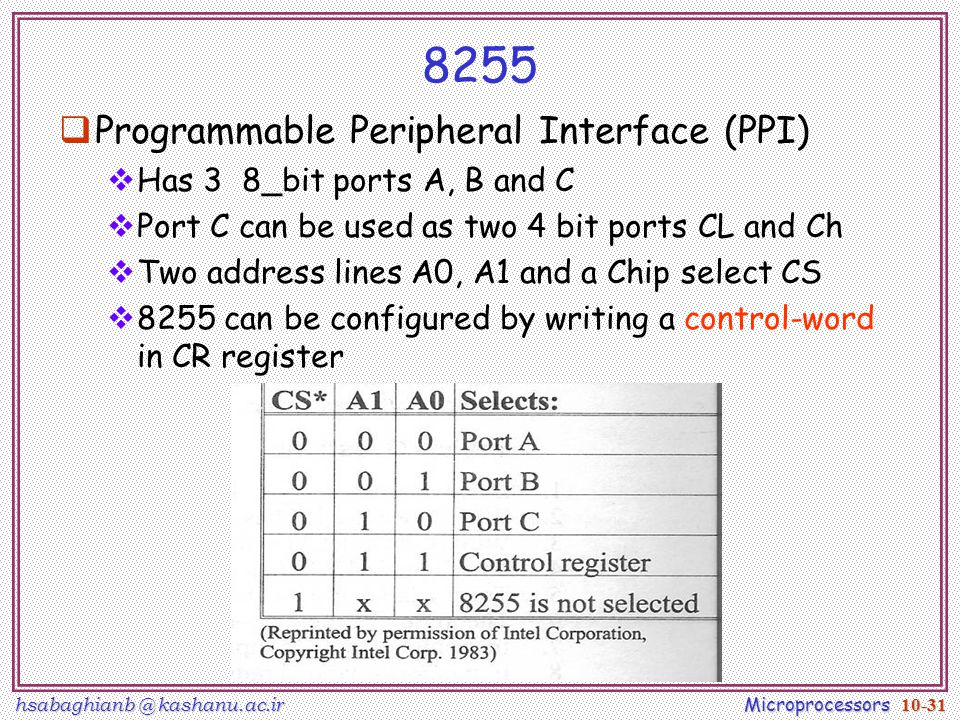

31. hsabaghianb @ kashanu.ac.ir Microprocessors 10-31 8255  Programmable Peripheral Interface (PPI)  Has 3 8_bit ports A, B and C  Port C can be used as two 4 bit ports CL and Ch  Two address lines A0, A1 and a Chip select CS  8255 can be configured by writing a control-word in CR register

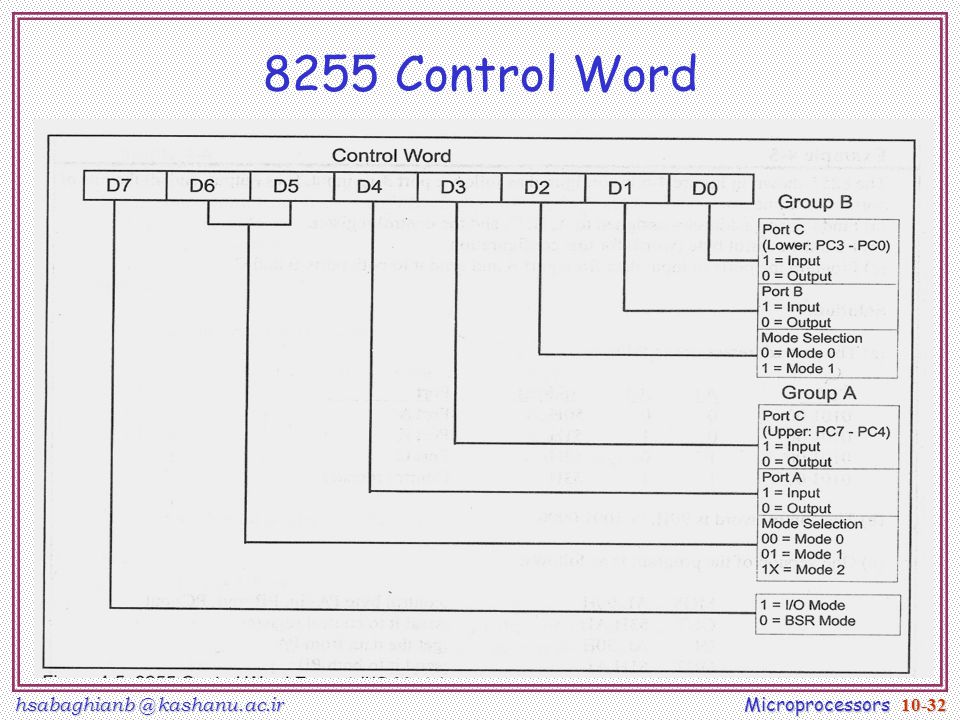

32. hsabaghianb @ kashanu.ac.ir Microprocessors 10-32 8255 Control Word

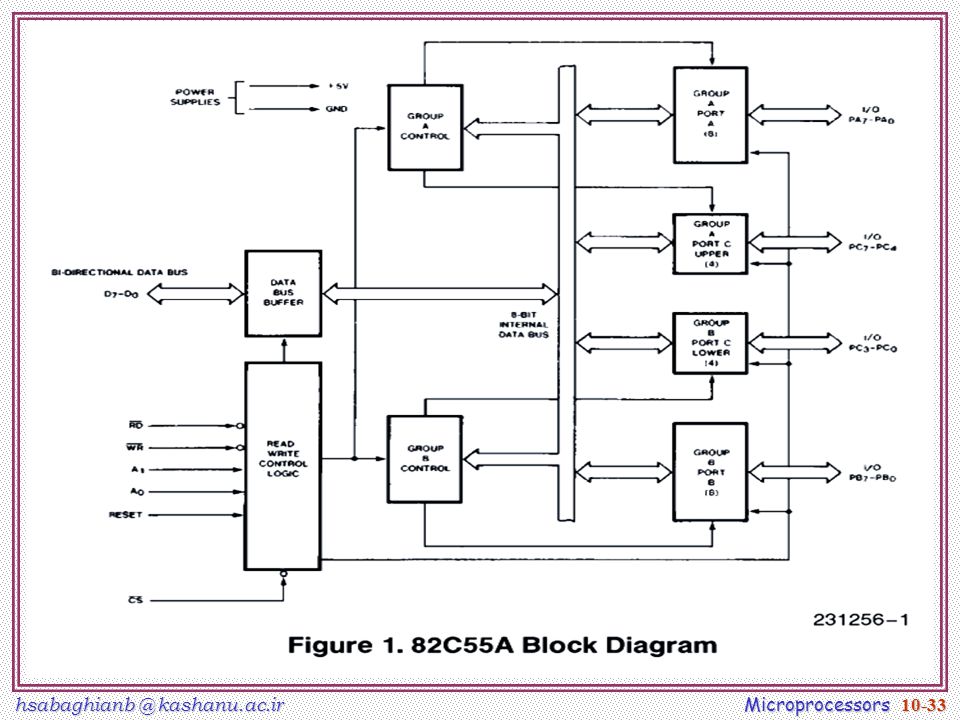

33. hsabaghianb @ kashanu.ac.ir Microprocessors 10-33

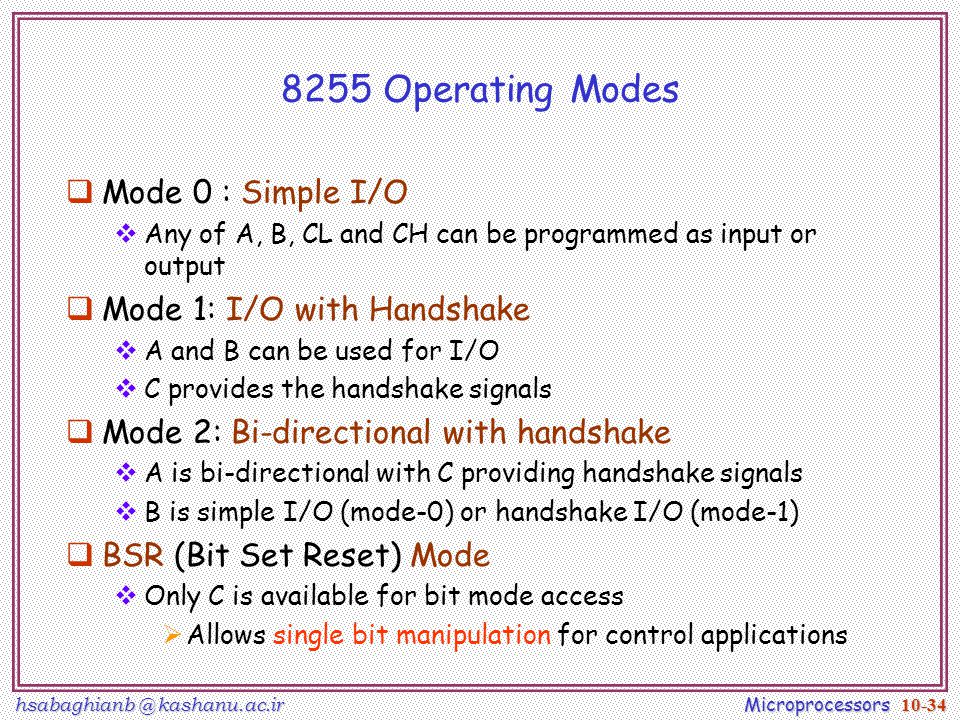

34. hsabaghianb @ kashanu.ac.ir Microprocessors 10-34 8255 Operating Modes  Mode 0 : Simple I/O  Any of A, B, CL and CH can be programmed as input or output  Mode 1: I/O with Handshake  A and B can be used for I/O  C provides the handshake signals  Mode 2: Bi-directional with handshake  A is bi-directional with C providing handshake signals  B is simple I/O (mode-0) or handshake I/O (mode-1)  BSR (Bit Set Reset) Mode  Only C is available for bit mode access  Allows single bit manipulation for control applications

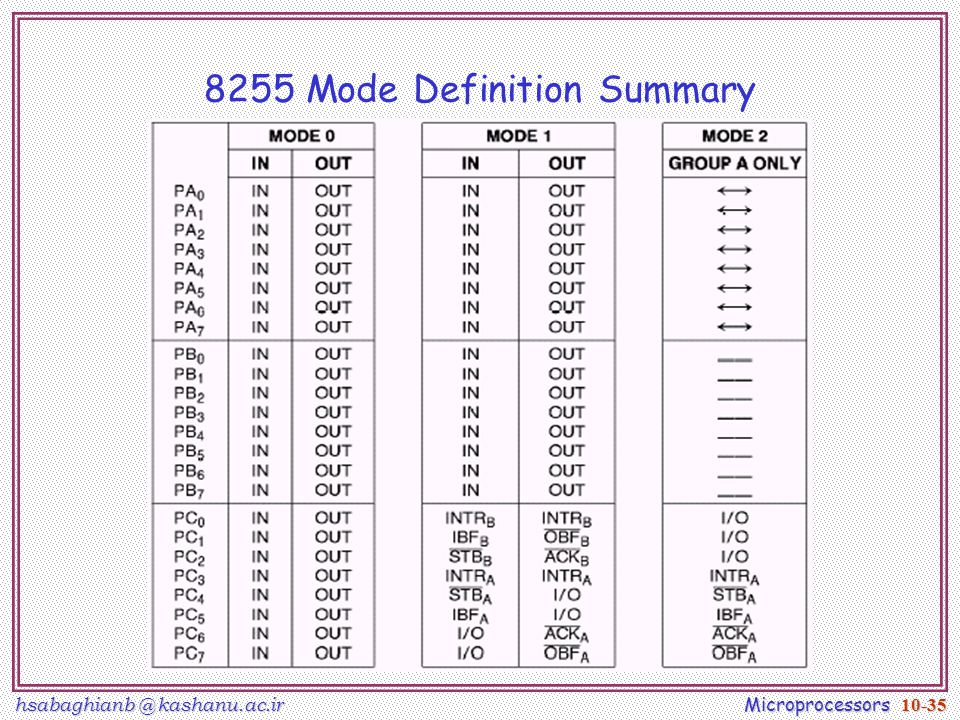

35. hsabaghianb @ kashanu.ac.ir Microprocessors 10-35 8255 Mode Definition Summary

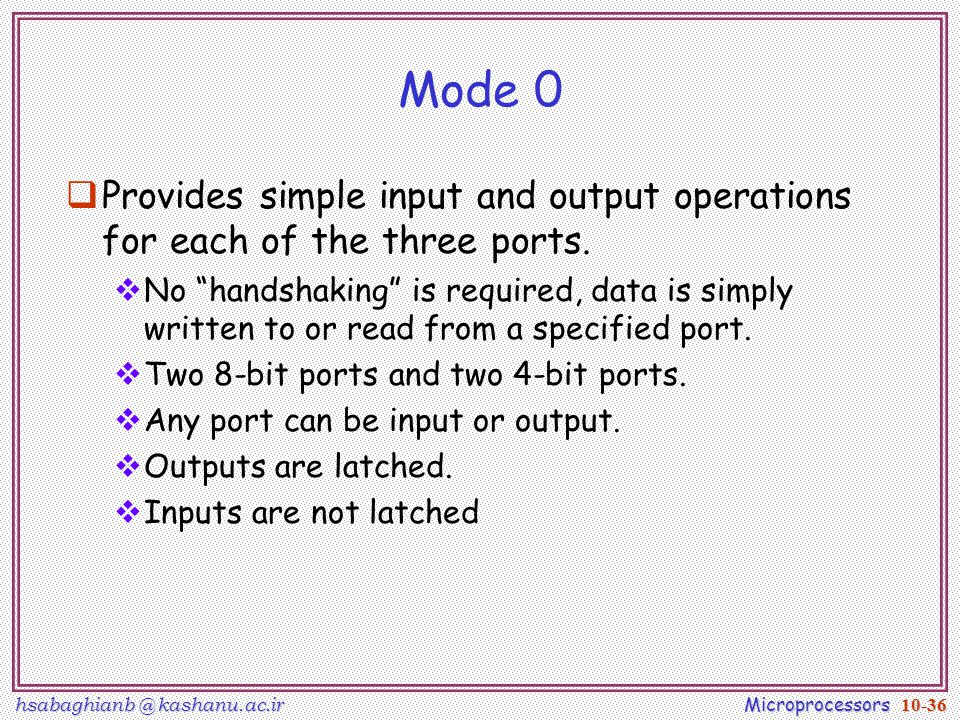

36. hsabaghianb @ kashanu.ac.ir Microprocessors 10-36 Mode 0  Provides simple input and output operations for each of the three ports.  No “handshaking” is required, data is simply written to or read from a specified port.  Two 8-bit ports and two 4-bit ports.  Any port can be input or output.  Outputs are latched.  Inputs are not latched

37. hsabaghianb @ kashanu.ac.ir Microprocessors 10-37 Mode 1  Mode 1 Basic functional Definitions:  Two Groups (Group A and Group B).  Each group has one 8-bit data port and one 4-bit control/data port.  The 8-bit data port can be either input or output. Both inputs and outputs are latched.  The 4-bit port is used for control and status of the 8-bit data port.

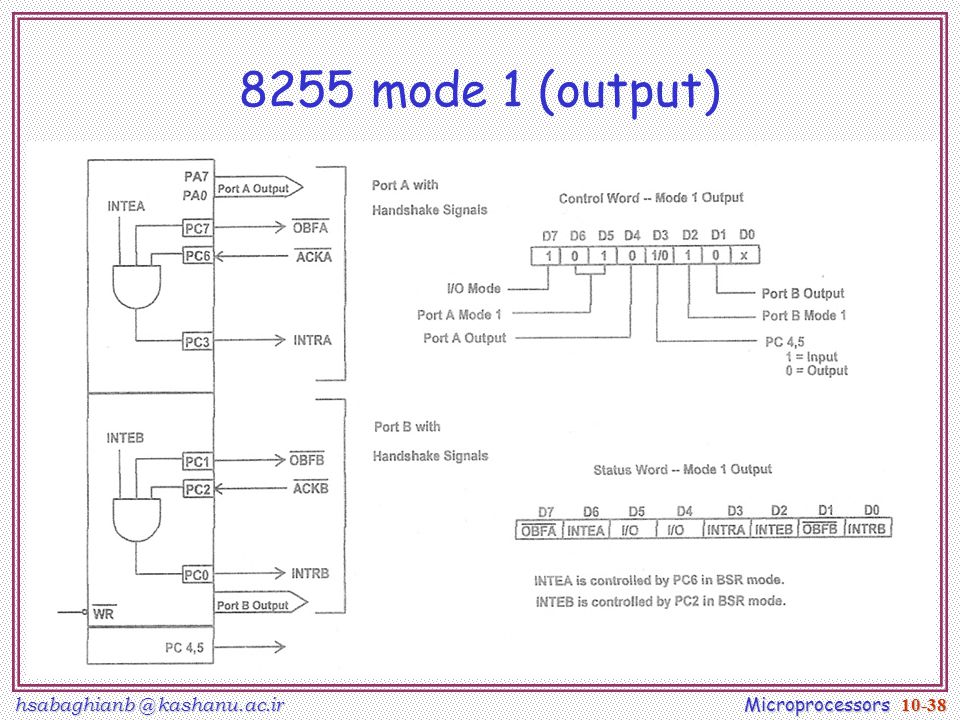

38. hsabaghianb @ kashanu.ac.ir Microprocessors 10-38 8255 mode 1 (output)

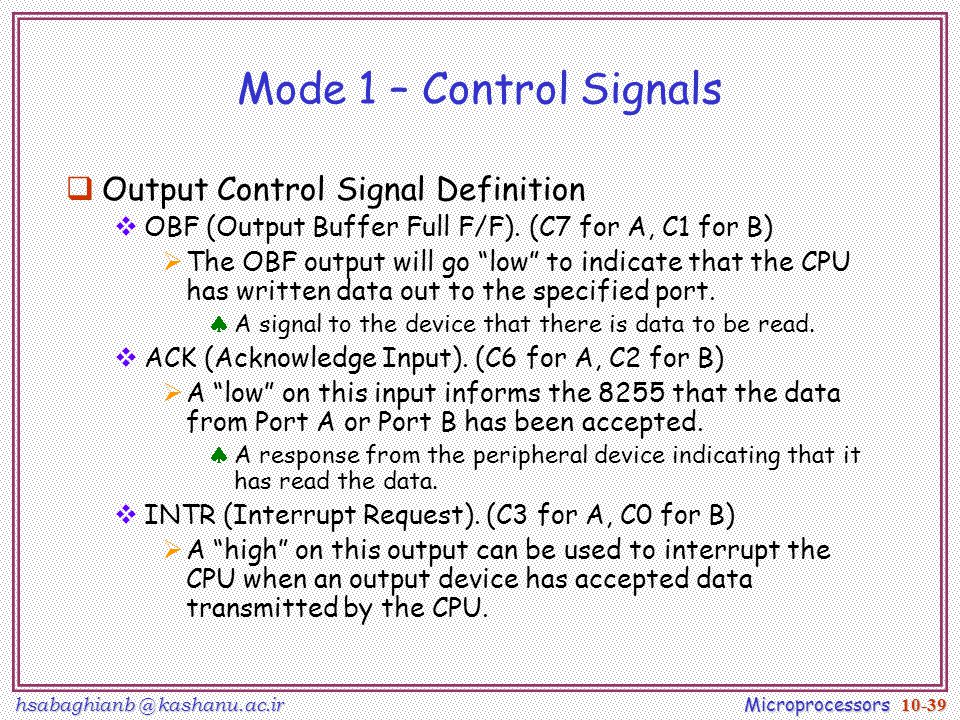

39. hsabaghianb @ kashanu.ac.ir Microprocessors 10-39 Mode 1 – Control Signals  Output Control Signal Definition  OBF (Output Buffer Full F/F). (C7 for A, C1 for B)  The OBF output will go “low” to indicate that the CPU has written data out to the specified port.  A signal to the device that there is data to be read.  ACK (Acknowledge Input). (C6 for A, C2 for B)  A “low” on this input informs the 8255 that the data from Port A or Port B has been accepted.  A response from the peripheral device indicating that it has read the data.  INTR (Interrupt Request). (C3 for A, C0 for B)  A “high” on this output can be used to interrupt the CPU when an output device has accepted data transmitted by the CPU.

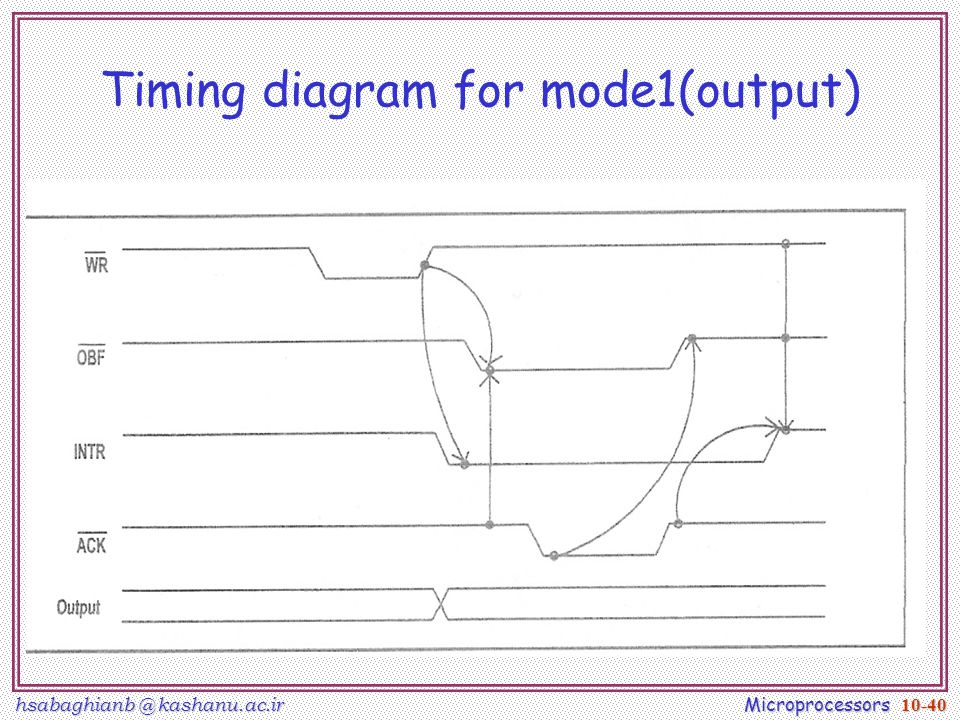

40. hsabaghianb @ kashanu.ac.ir Microprocessors 10-40 Timing diagram for mode1(output)

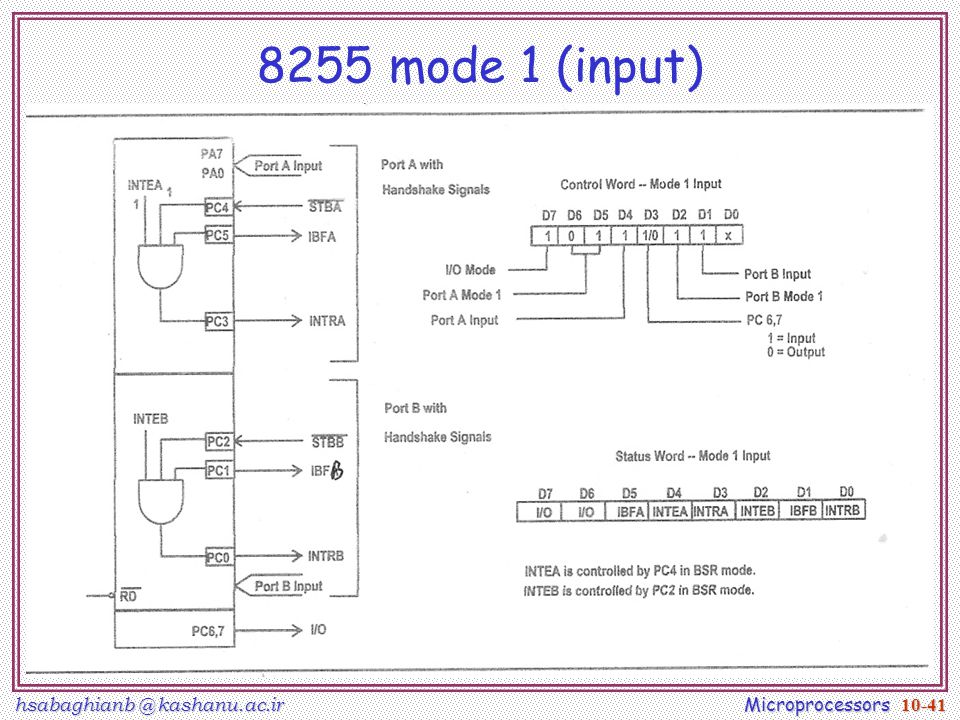

41. hsabaghianb @ kashanu.ac.ir Microprocessors 10-41 8255 mode 1 (input)

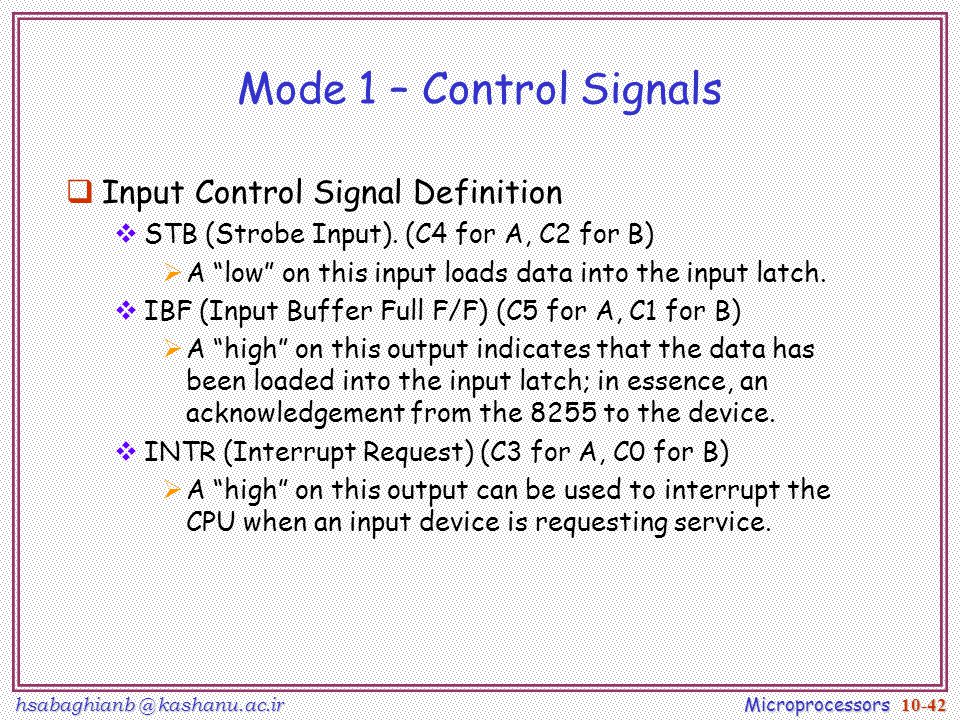

42. hsabaghianb @ kashanu.ac.ir Microprocessors 10-42 Mode 1 – Control Signals  Input Control Signal Definition  STB (Strobe Input). (C4 for A, C2 for B)  A “low” on this input loads data into the input latch.  IBF (Input Buffer Full F/F) (C5 for A, C1 for B)  A “high” on this output indicates that the data has been loaded into the input latch; in essence, an acknowledgement from the 8255 to the device.  INTR (Interrupt Request) (C3 for A, C0 for B)  A “high” on this output can be used to interrupt the CPU when an input device is requesting service.

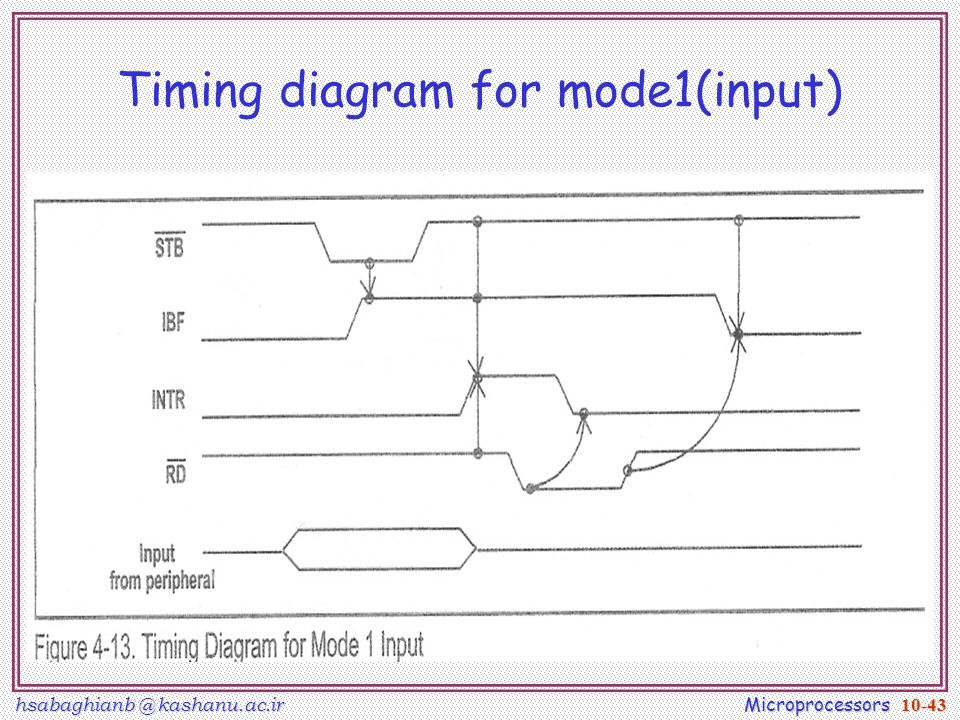

43. hsabaghianb @ kashanu.ac.ir Microprocessors 10-43 Timing diagram for mode1(input)

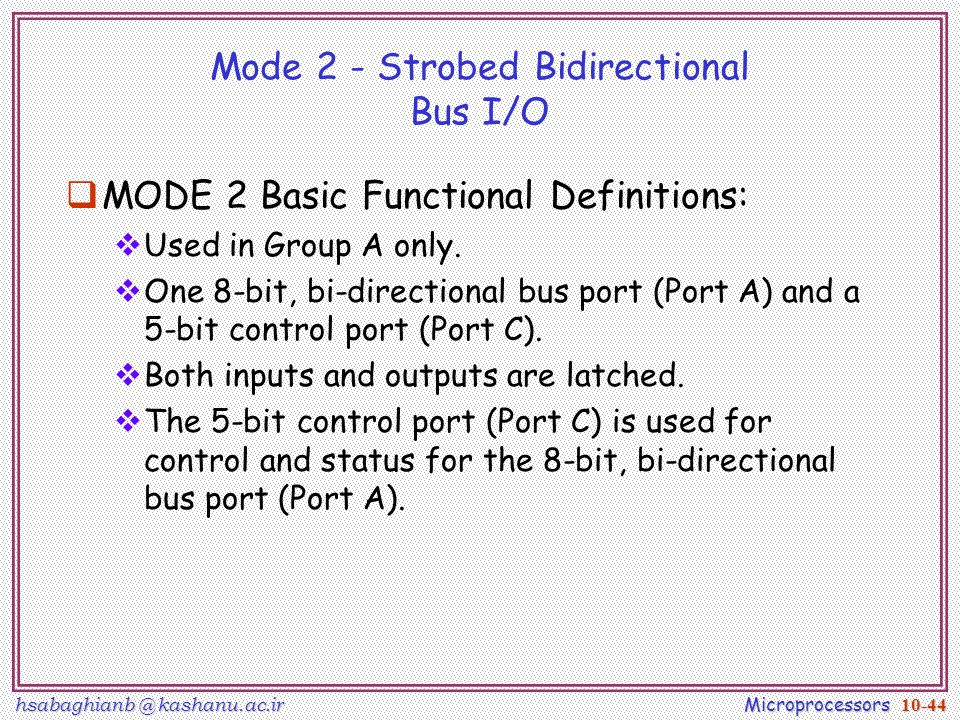

44. hsabaghianb @ kashanu.ac.ir Microprocessors 10-44 Mode 2 - Strobed Bidirectional Bus I/O  MODE 2 Basic Functional Definitions:  Used in Group A only.  One 8-bit, bi-directional bus port (Port A) and a 5-bit control port (Port C).  Both inputs and outputs are latched.  The 5-bit control port (Port C) is used for control and status for the 8-bit, bi-directional bus port (Port A).

45. hsabaghianb @ kashanu.ac.ir Microprocessors 10-45 Mode 2  Output Operations  OBF (Output Buffer Full). The OBF output will go low to indicate that the CPU has written data out to port A.  ACK (Acknowledge). A low on this input enables the tri-state output buffer of Port A to send out the data. Otherwise, the output buffer will be in the high impedance state.  Input Operations  STB (Strobe Input). A low on this input loads data into the input latch.  IBF (Input Buffer Full F/F). A high on this output indicates that data has been loaded into the input latch. PinFunction PC7/OBF PC6/ACK PC5IBF PC4/STB PC3INTR PC2I/O PC1I/O PC0I/O

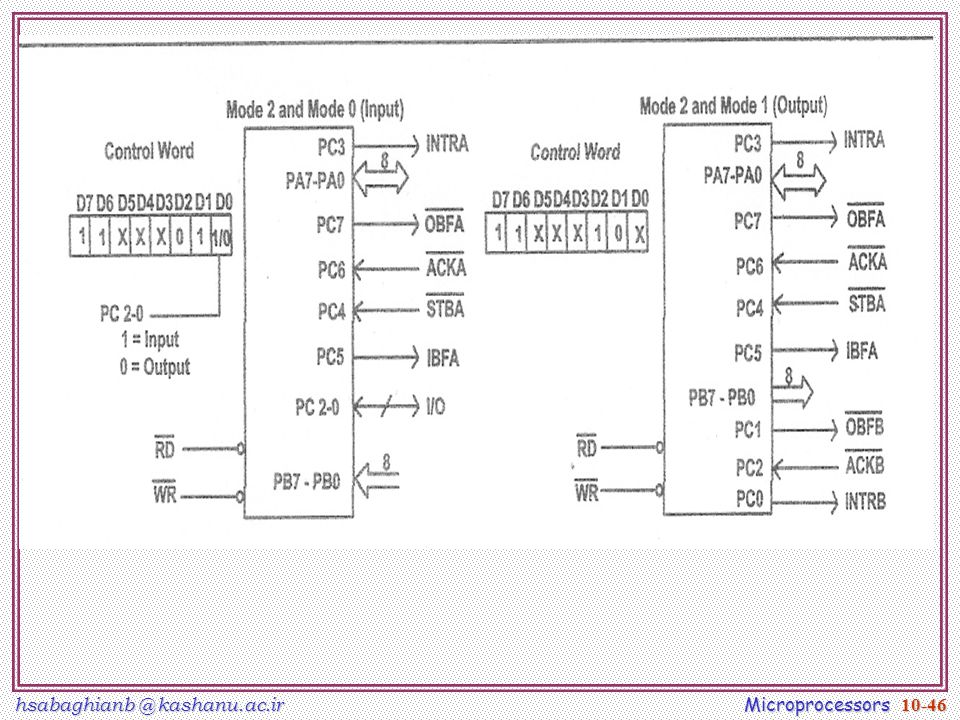

46. hsabaghianb @ kashanu.ac.ir Microprocessors 10-46

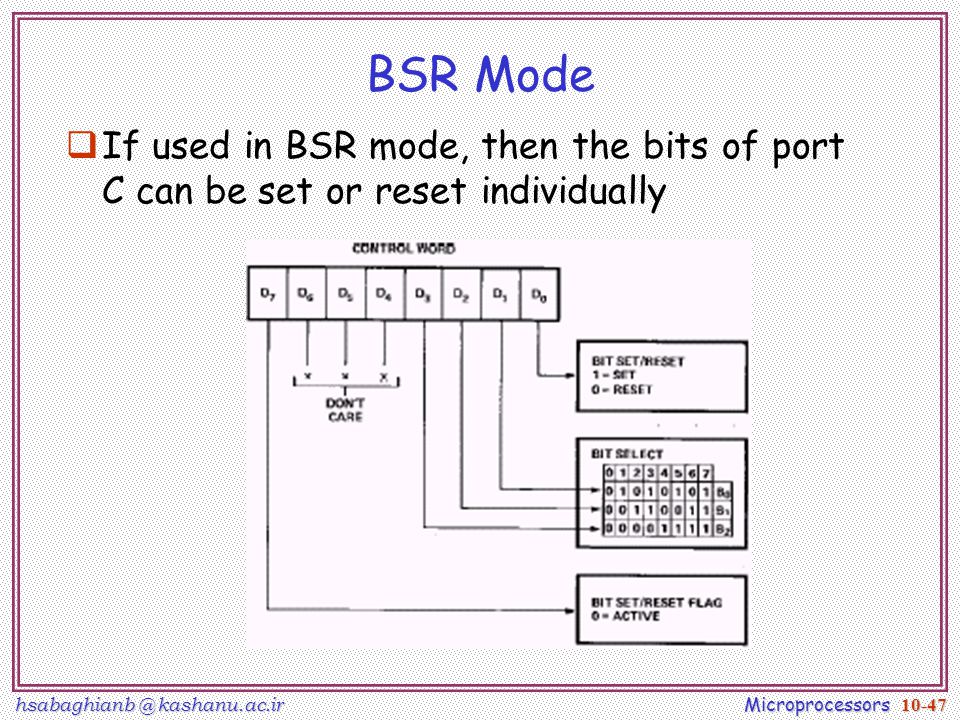

47. hsabaghianb @ kashanu.ac.ir Microprocessors 10-47 BSR Mode  If used in BSR mode, then the bits of port C can be set or reset individually

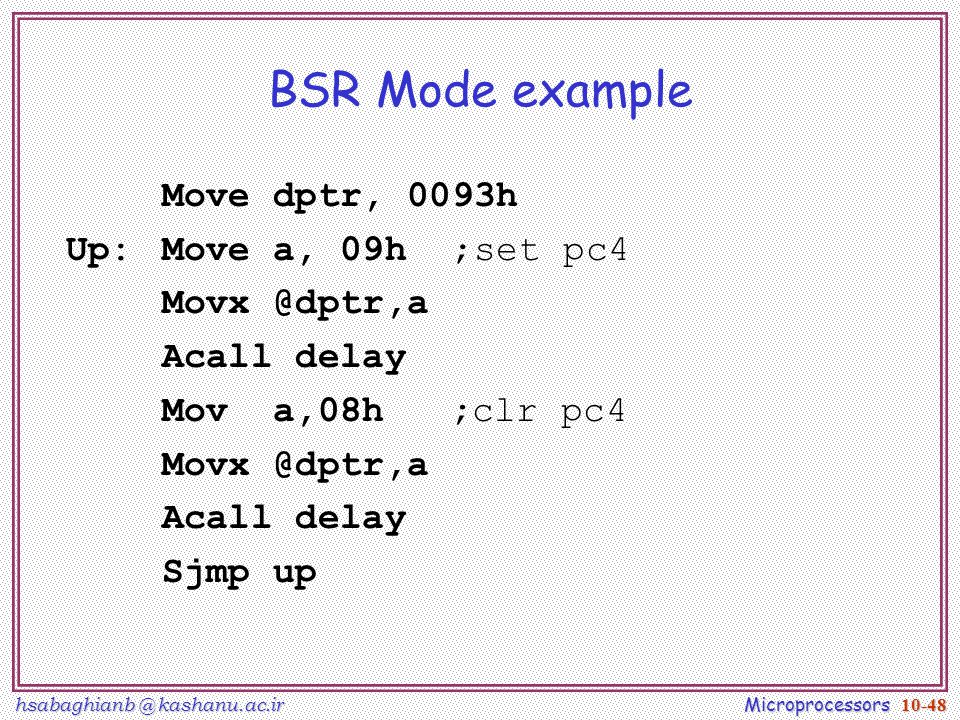

48. hsabaghianb @ kashanu.ac.ir Microprocessors 10-48 BSR Mode example Move dptr, 0093h Up:Move a, 09h ;set pc4 Movx @dptr,a Acall delay Mov a,08h;clr pc4 Movx @dptr,a Acall delay Sjmp up

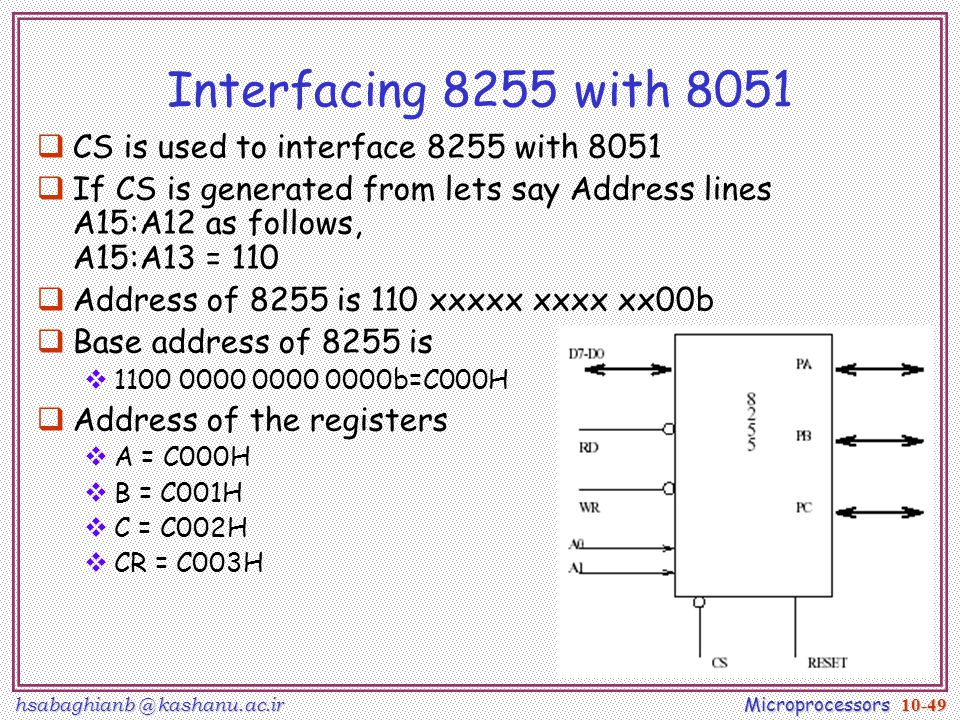

49. hsabaghianb @ kashanu.ac.ir Microprocessors 10-49 Interfacing 8255 with 8051  CS is used to interface 8255 with 8051  If CS is generated from lets say Address lines A15:A12 as follows, A15:A13 = 110  Address of 8255 is 110 xxxxx xxxx xx00b  Base address of 8255 is  1100 0000 0000 0000b=C000H  Address of the registers  A = C000H  B = C001H  C = C002H  CR = C003H

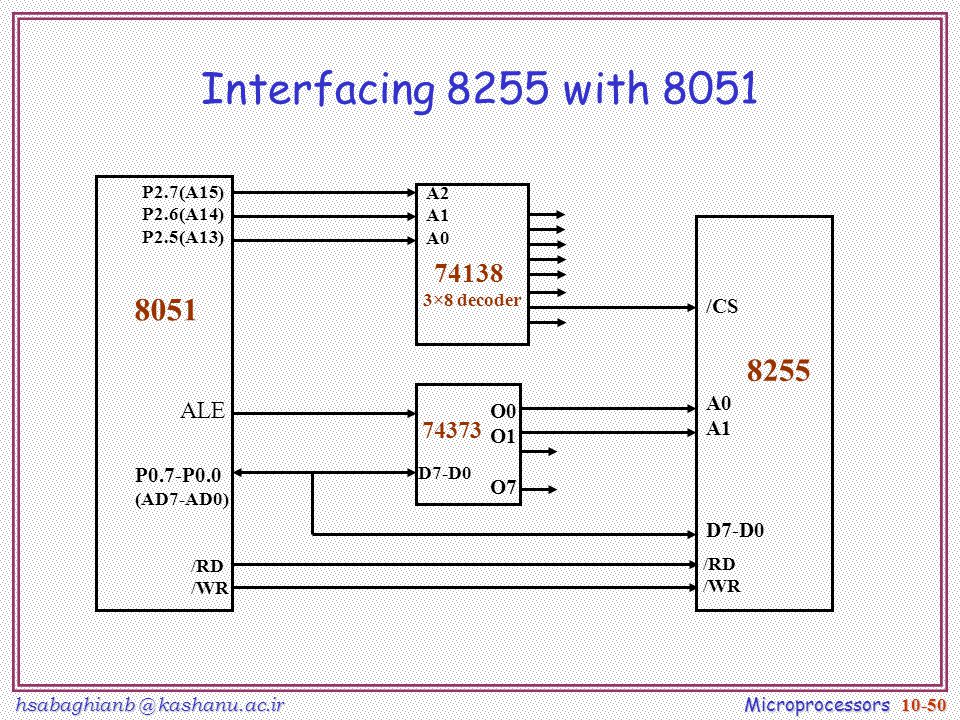

50. hsabaghianb @ kashanu.ac.ir Microprocessors 10-50 Interfacing 8255 with 8051 8255 8051 74138 3×8 decoder 74373 P0.7-P0.0 (AD7-AD0) D7-D0 /CS A0 A1 O0 O1 O7 A2 A1 A0 P2.7(A15) P2.6(A14) P2.5(A13) ALE /RD /WR /RD /WR

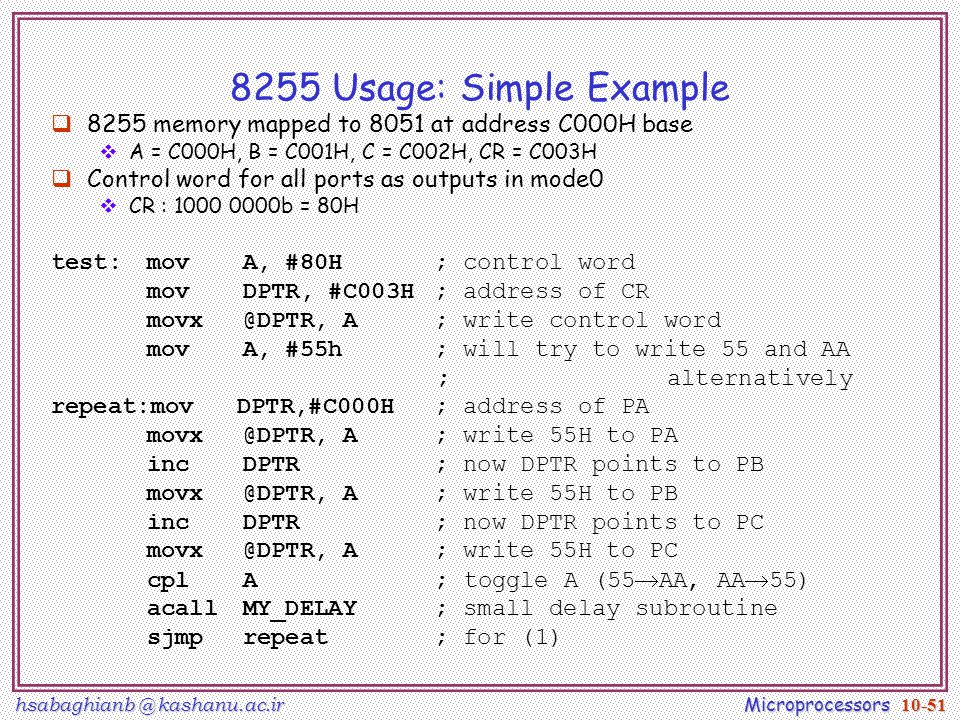

51. hsabaghianb @ kashanu.ac.ir Microprocessors 10-51 8255 Usage: Simple Example  8255 memory mapped to 8051 at address C000H base  A = C000H, B = C001H, C = C002H, CR = C003H  Control word for all ports as outputs in mode0  CR : 1000 0000b = 80H test: mov A, #80H ; control word mov DPTR, #C003H ; address of CR movx @DPTR, A ; write control word mov A, #55h ; will try to write 55 and AA ; alternatively repeat:mov DPTR,#C000H ; address of PA movx @DPTR, A ; write 55H to PA inc DPTR ; now DPTR points to PB movx @DPTR, A ; write 55H to PB inc DPTR ; now DPTR points to PC movx @DPTR, A ; write 55H to PC cpl A ; toggle A (55  AA, AA  55) acall MY_DELAY ; small delay subroutine sjmp repeat ; for (1)
