1. Wireless Router Setup

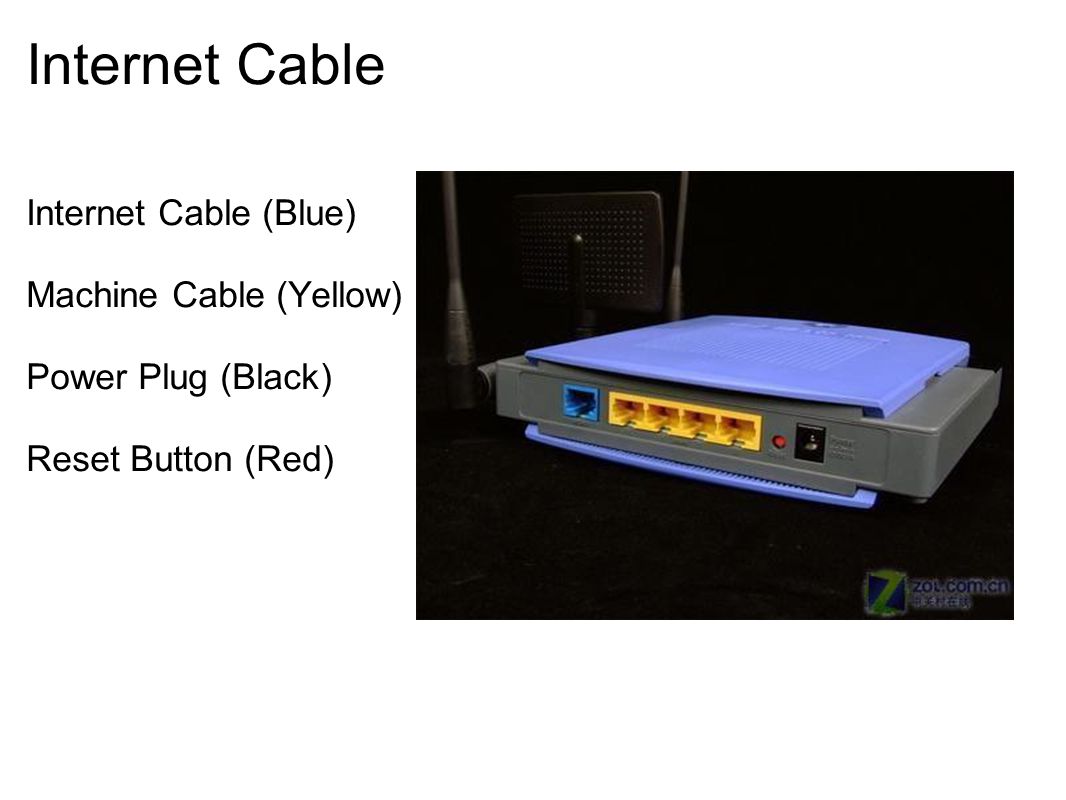

2. Internet Cable Internet Cable (Blue) Machine Cable (Yellow) Power Plug (Black) Reset Button (Red)

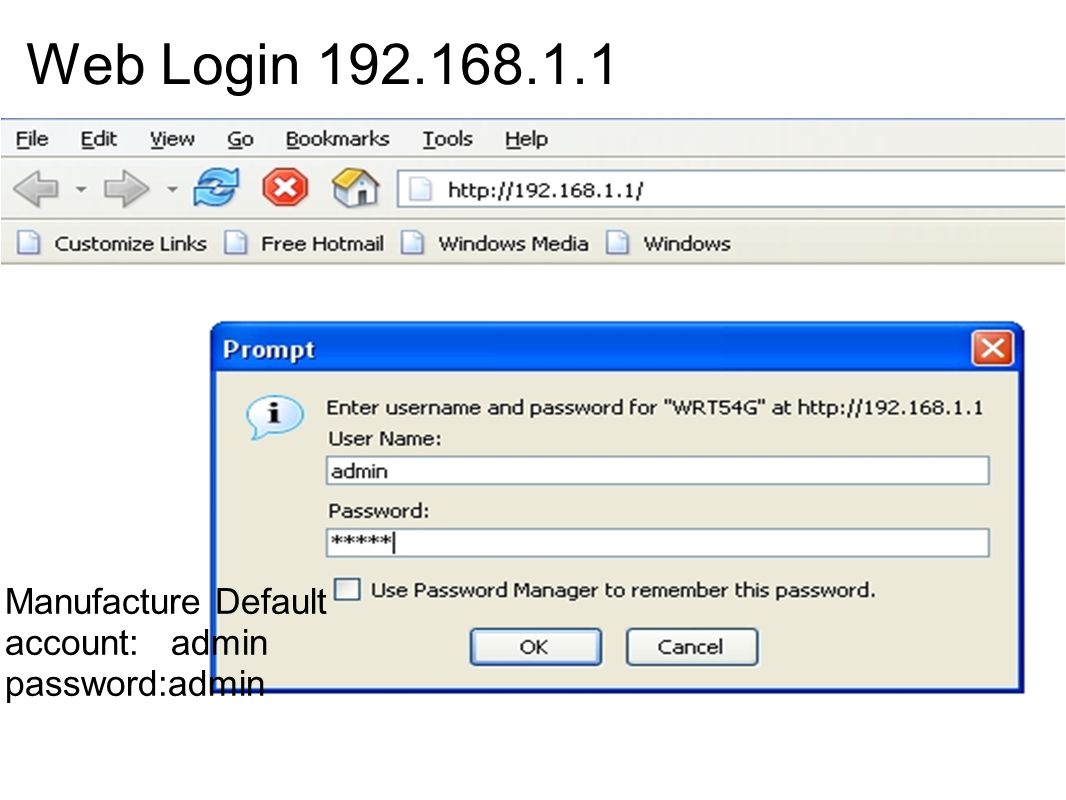

3. Web Login 192.168.1.1 Manufacture Default account: admin password:admin

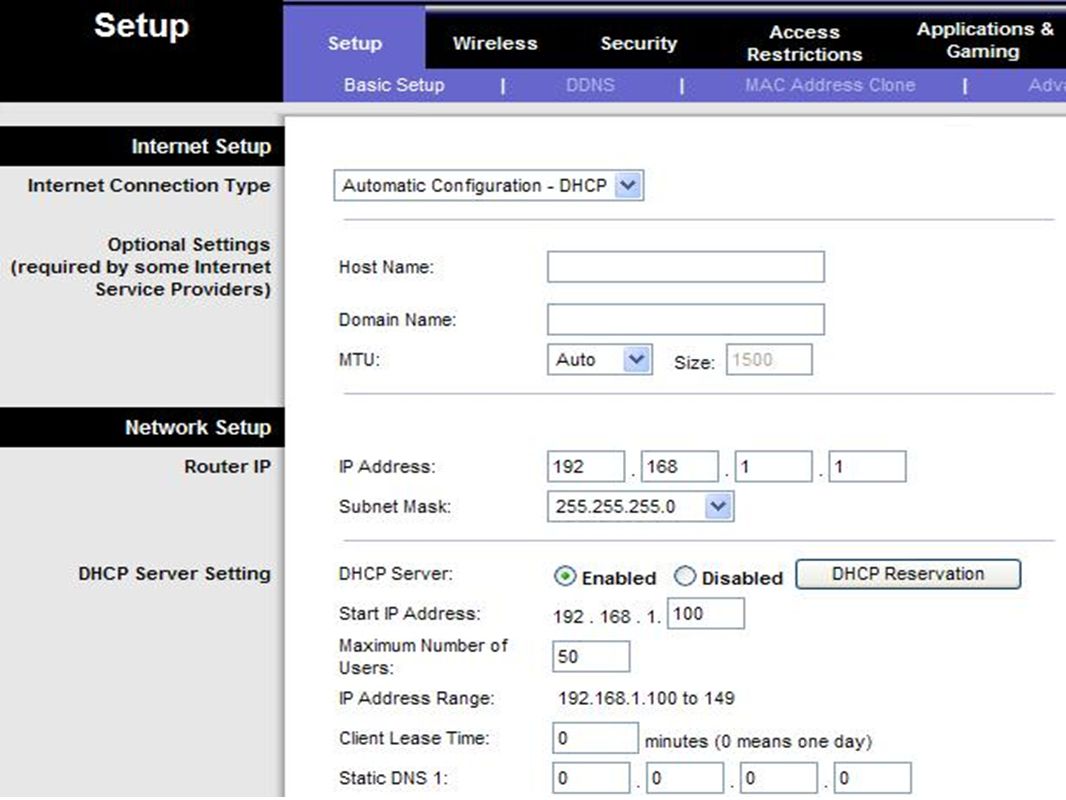

4. DHCP

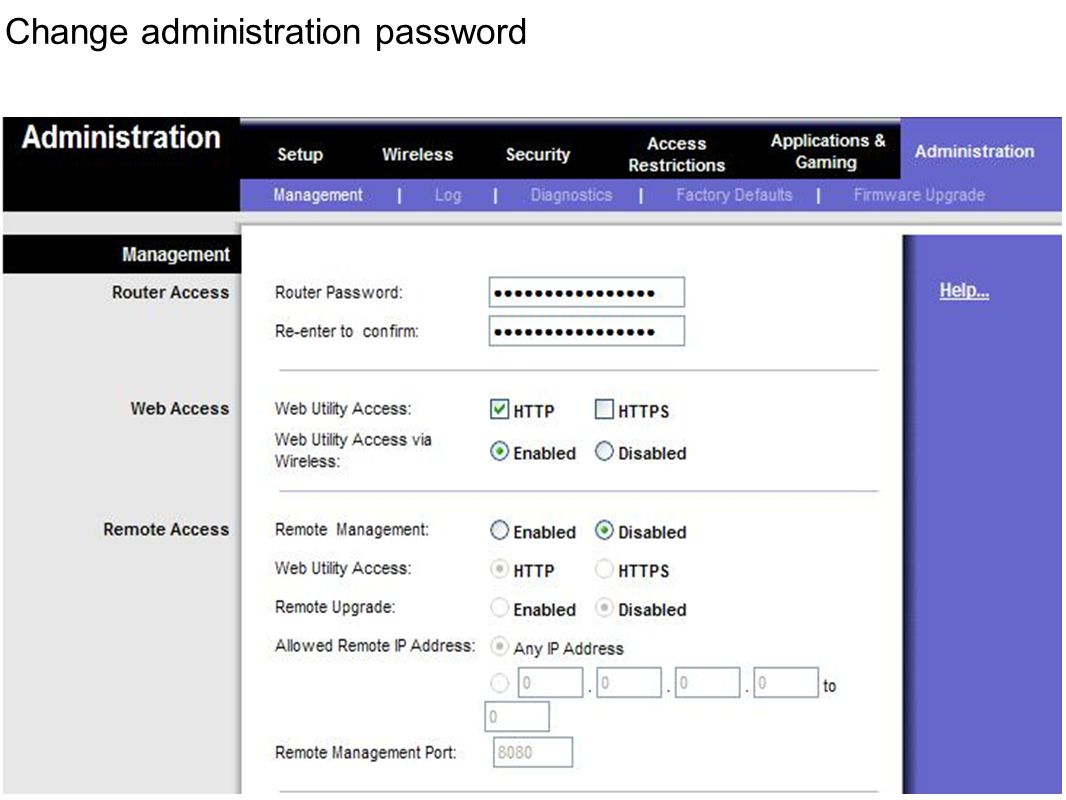

5. Change administration password

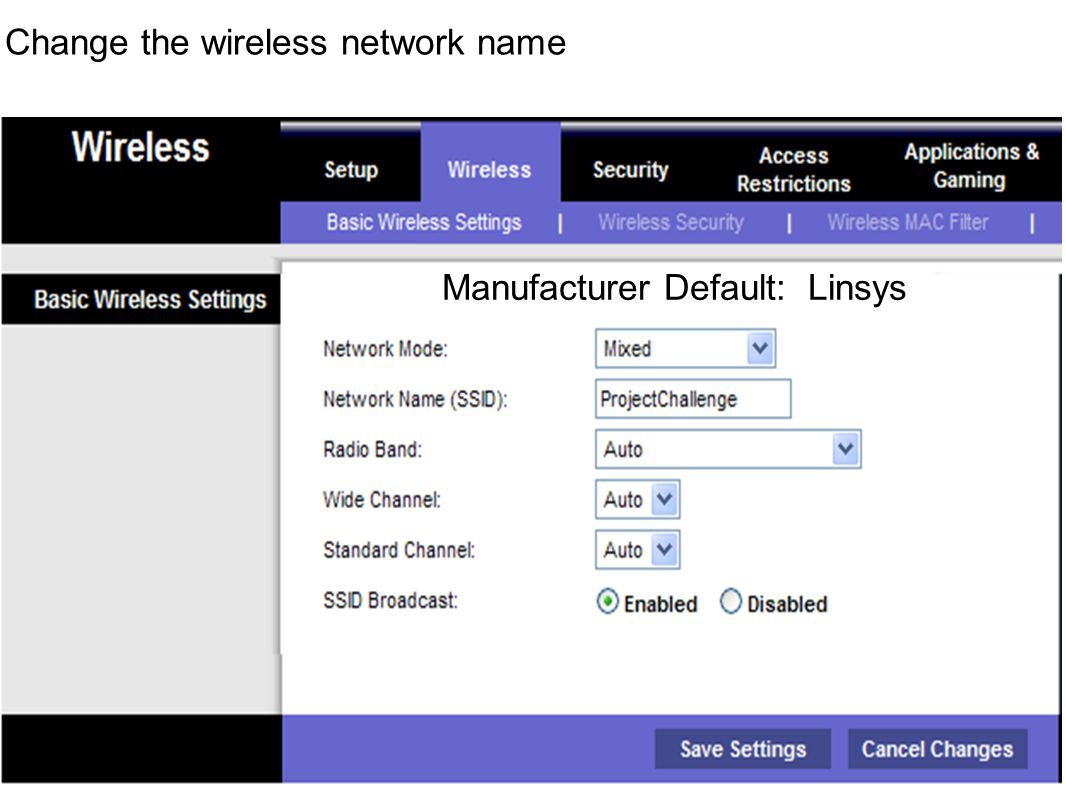

6. Change the wireless network name Manufacturer Default: Linsys

7. Secure: Limit Access By Mac Address

8. Secure: Limit by setting up password

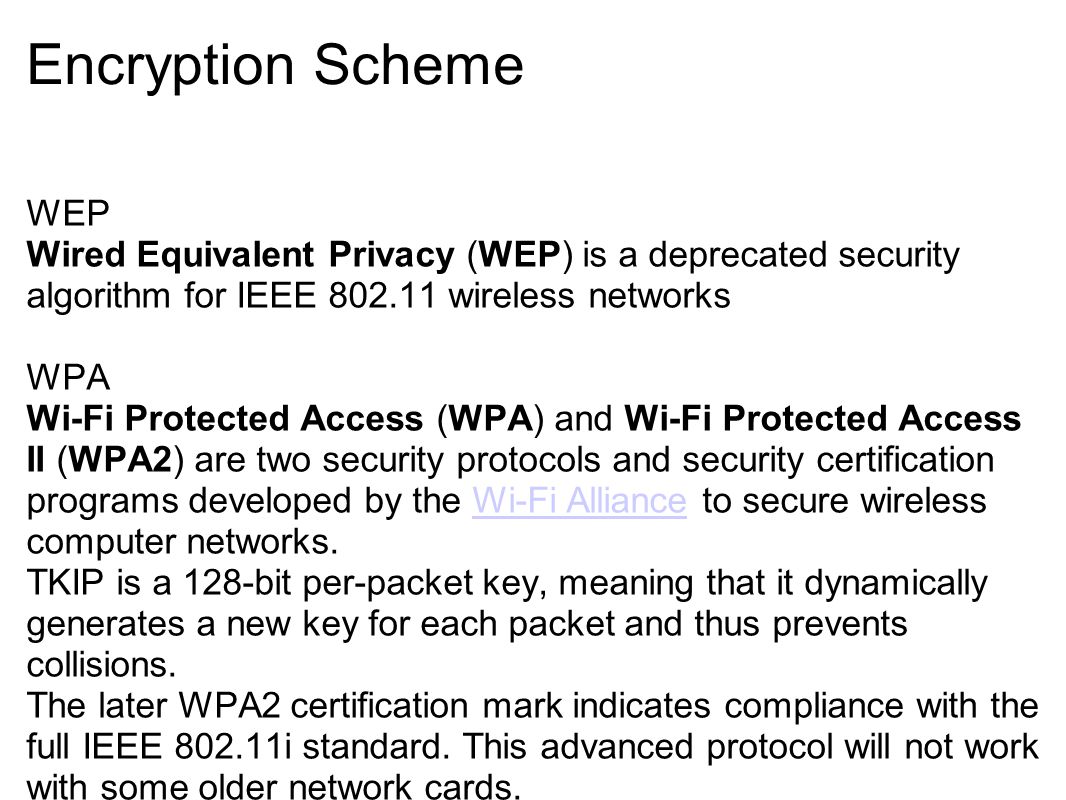

9. Encryption Scheme WEP Wired Equivalent Privacy (WEP) is a deprecated security algorithm for IEEE 802.11 wireless networks WPA Wi-Fi Protected Access (WPA) and Wi-Fi Protected Access II (WPA2) are two security protocols and security certification programs developed by the Wi-Fi Alliance to secure wireless computer networks.Wi-Fi Alliance TKIP is a 128-bit per-packet key, meaning that it dynamically generates a new key for each packet and thus prevents collisions. The later WPA2 certification mark indicates compliance with the full IEEE 802.11i standard. This advanced protocol will not work with some older network cards. WPA2

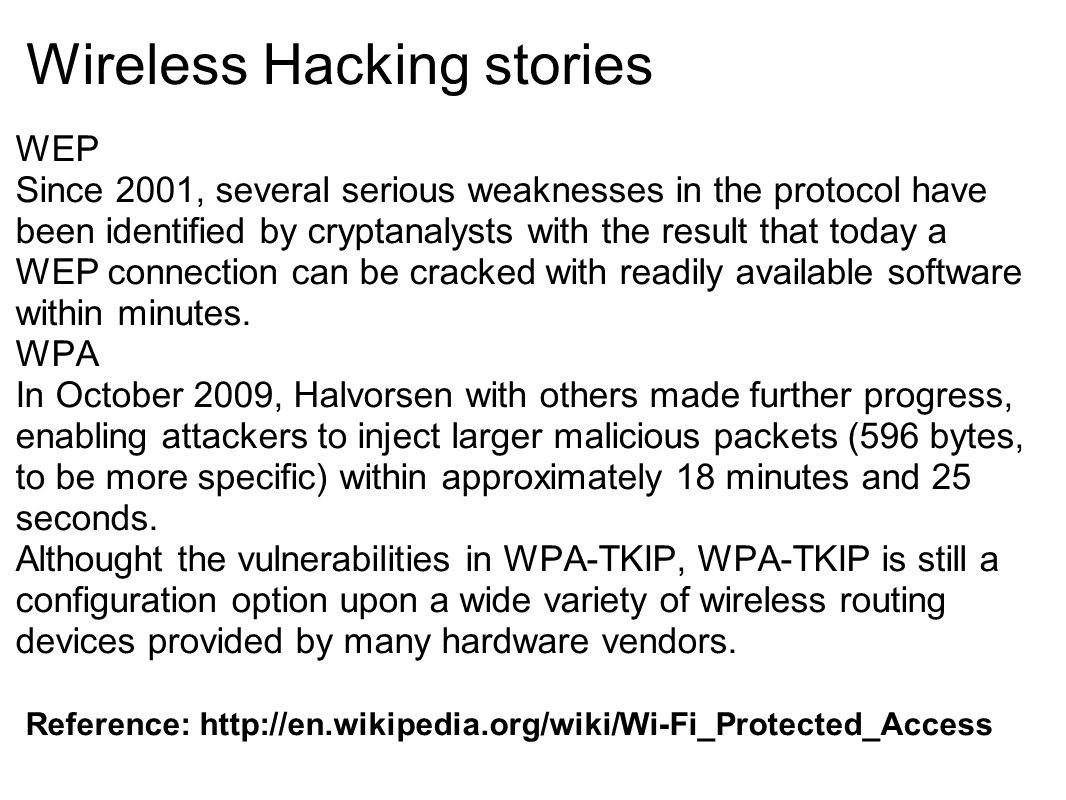

10. Wireless Hacking stories WEP Since 2001, several serious weaknesses in the protocol have been identified by cryptanalysts with the result that today a WEP connection can be cracked with readily available software within minutes. WPA In October 2009, Halvorsen with others made further progress, enabling attackers to inject larger malicious packets (596 bytes, to be more specific) within approximately 18 minutes and 25 seconds. Althought the vulnerabilities in WPA-TKIP, WPA-TKIP is still a configuration option upon a wide variety of wireless routing devices provided by many hardware vendors. Reference: http://en.wikipedia.org/wiki/Wi-Fi_Protected_Access

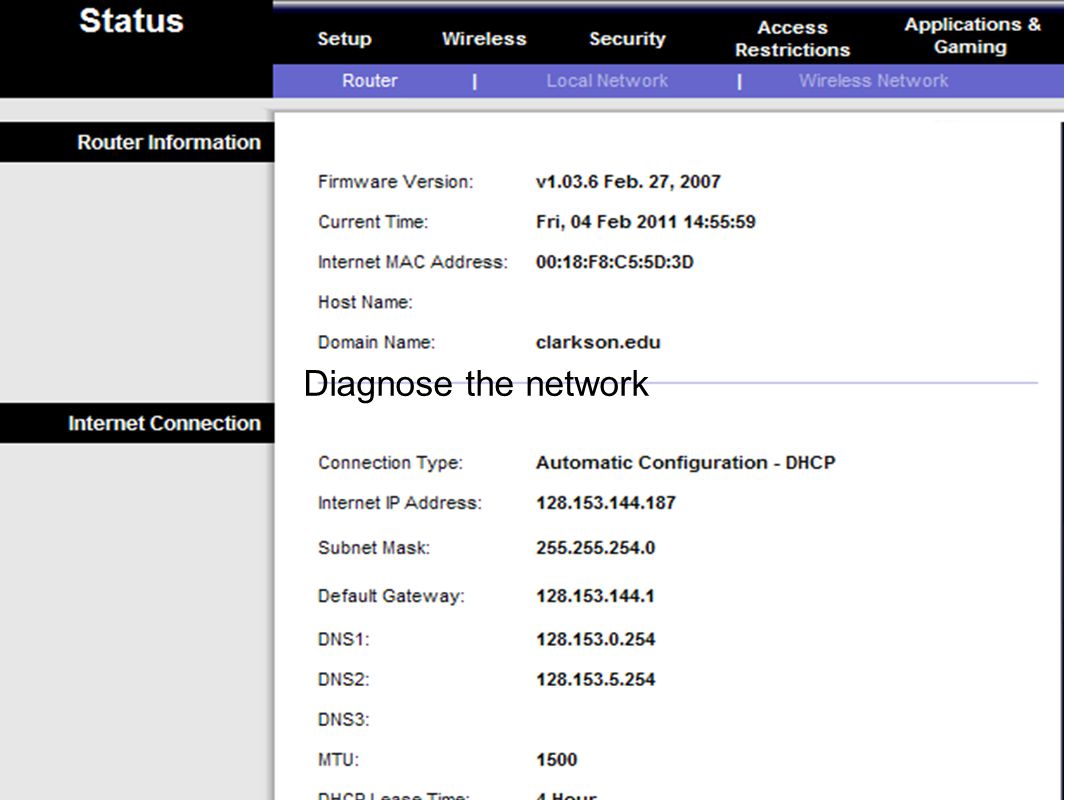

11. Diagnose the network
