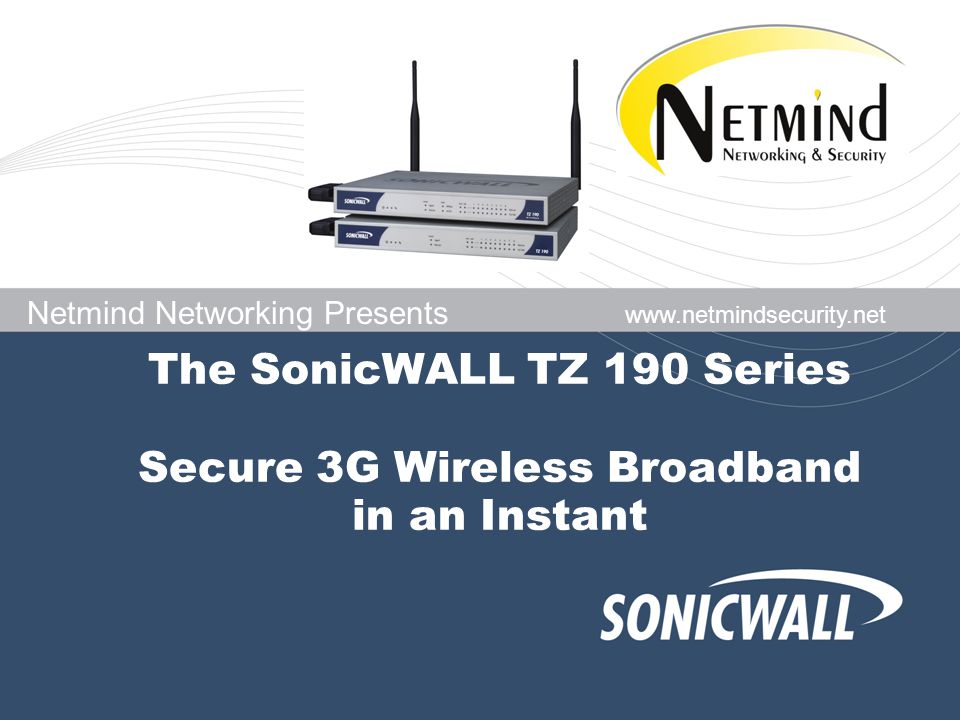

1. The SonicWALL TZ 190 Series Secure 3G Wireless Broadband in an Instant Netmind Networking Presents www.netmindsecurity.net

2. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 2 Problem: Business Continuity  Organizations today rely heavily on high-speed Internet access  But, wired connections aren’t always practical  35% of SMBs have no fixed broadband option*  Wiring costs can be prohibitive  Plus, broadband failures can be catastrophic  Example - what if the DSL is out for 2 weeks?  Would this have a business impact? *Small business survey commissioned by Hughes Networks, September 2005

3. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 3  Satellite  Expensive, exotic technology  Dial-up  Dial-up is slow; not “always-on,” but highly available  3G Wireless Broadband  3G is now almost as fast as broadband  Major carriers have high speed coverage in most urban areas, and many secondary metro regions as well! Alternatives to Broadband

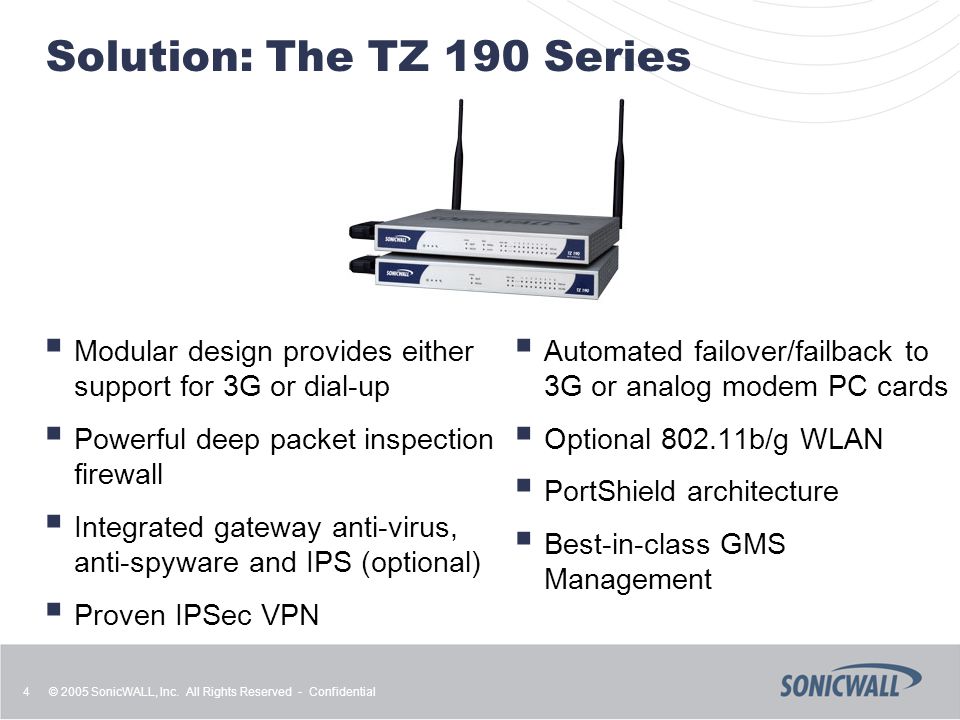

4. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 4 Solution: The TZ 190 Series  Modular design provides either support for 3G or dial-up  Powerful deep packet inspection firewall  Integrated gateway anti-virus, anti-spyware and IPS (optional)  Proven IPSec VPN  Automated failover/failback to 3G or analog modem PC cards  Optional 802.11b/g WLAN  PortShield architecture  Best-in-class GMS Management

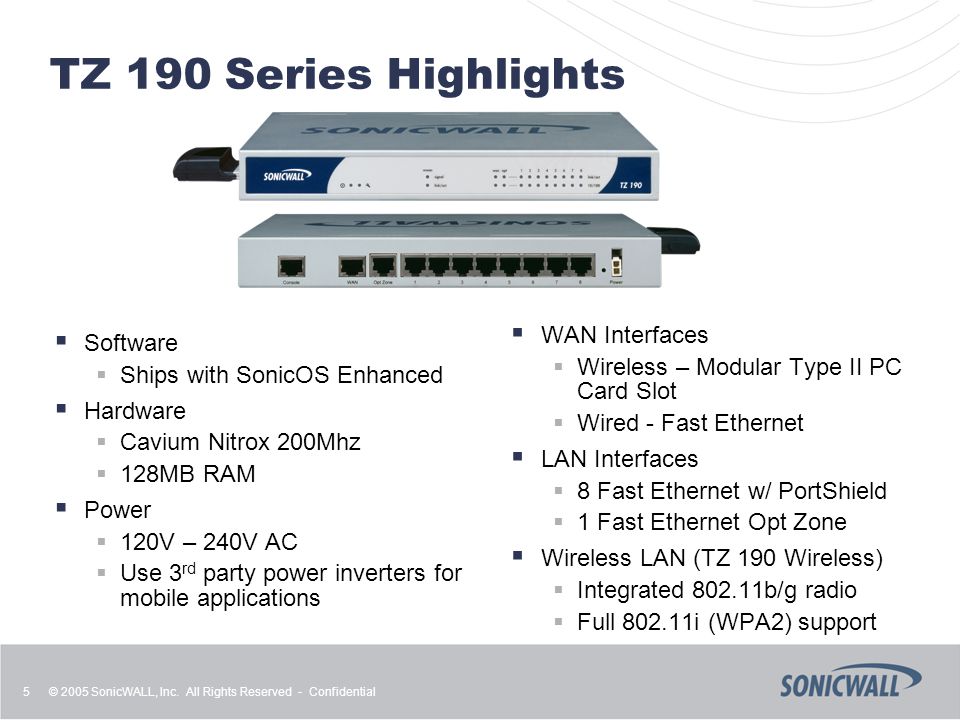

5. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 5 TZ 190 Series Highlights  Software  Ships with SonicOS Enhanced  Hardware  Cavium Nitrox 200Mhz  128MB RAM  Power  120V – 240V AC  Use 3 rd party power inverters for mobile applications  WAN Interfaces  Wireless – Modular Type II PC Card Slot  Wired - Fast Ethernet  LAN Interfaces  8 Fast Ethernet w/ PortShield  1 Fast Ethernet Opt Zone  Wireless LAN (TZ 190 Wireless)  Integrated 802.11b/g radio  Full 802.11i (WPA2) support

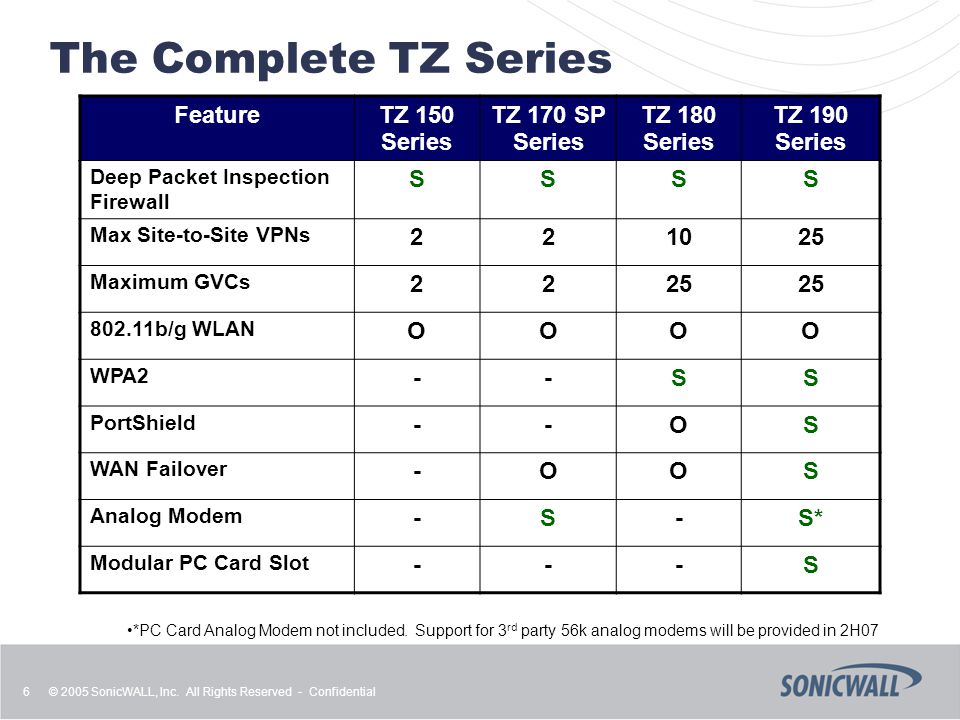

6. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 6 The Complete TZ Series *PC Card Analog Modem not included. Support for 3 rd party 56k analog modems will be provided in 2H07 FeatureTZ 150 Series TZ 170 SP Series TZ 180 Series TZ 190 Series Deep Packet Inspection Firewall SSSS Max Site-to-Site VPNs 221025 Maximum GVCs 2225 802.11b/g WLAN OOOO WPA2 --SS PortShield --OS WAN Failover -OOS Analog Modem -S-S* Modular PC Card Slot ---S

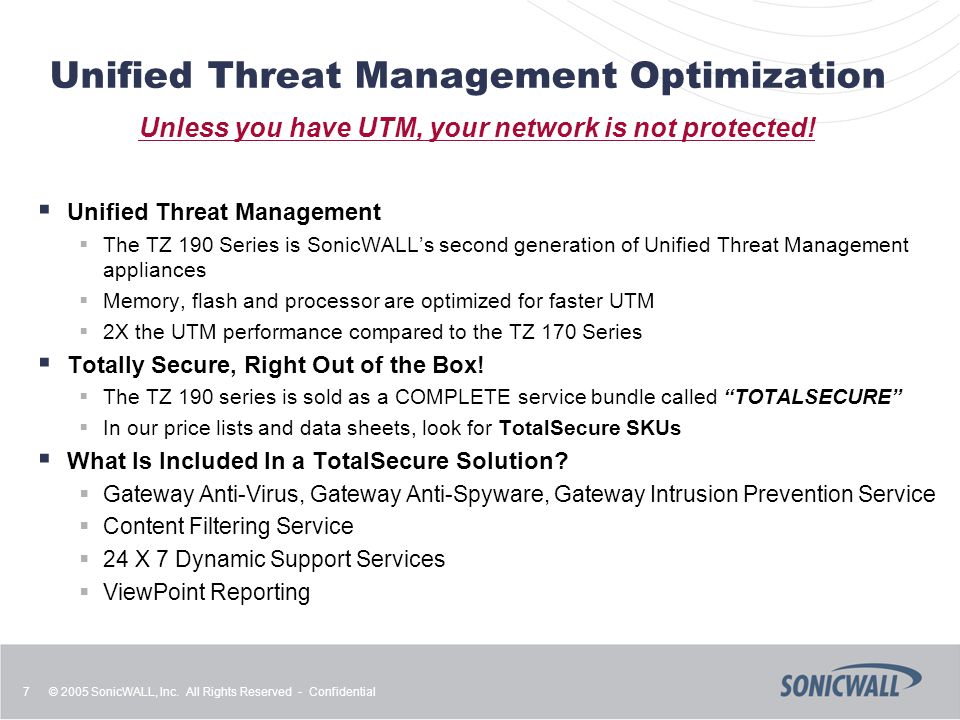

7. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 7 Unified Threat Management Optimization  Unified Threat Management  The TZ 190 Series is SonicWALL’s second generation of Unified Threat Management appliances  Memory, flash and processor are optimized for faster UTM  2X the UTM performance compared to the TZ 170 Series  Totally Secure, Right Out of the Box!  The TZ 190 series is sold as a COMPLETE service bundle called “TOTALSECURE”  In our price lists and data sheets, look for TotalSecure SKUs  What Is Included In a TotalSecure Solution?  Gateway Anti-Virus, Gateway Anti-Spyware, Gateway Intrusion Prevention Service  Content Filtering Service  24 X 7 Dynamic Support Services  ViewPoint Reporting Unless you have UTM, your network is not protected!

8. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 8 Gateway Protection  Integrated solution, intelligently reinforces total protection  Many threats are blended or multi-variate  Protecting against a virus is great but if the attack is multi-pronged, it can still bypass virus protection  Gateway anti-virus, spyware & intrusion protection work together as a Total Solution

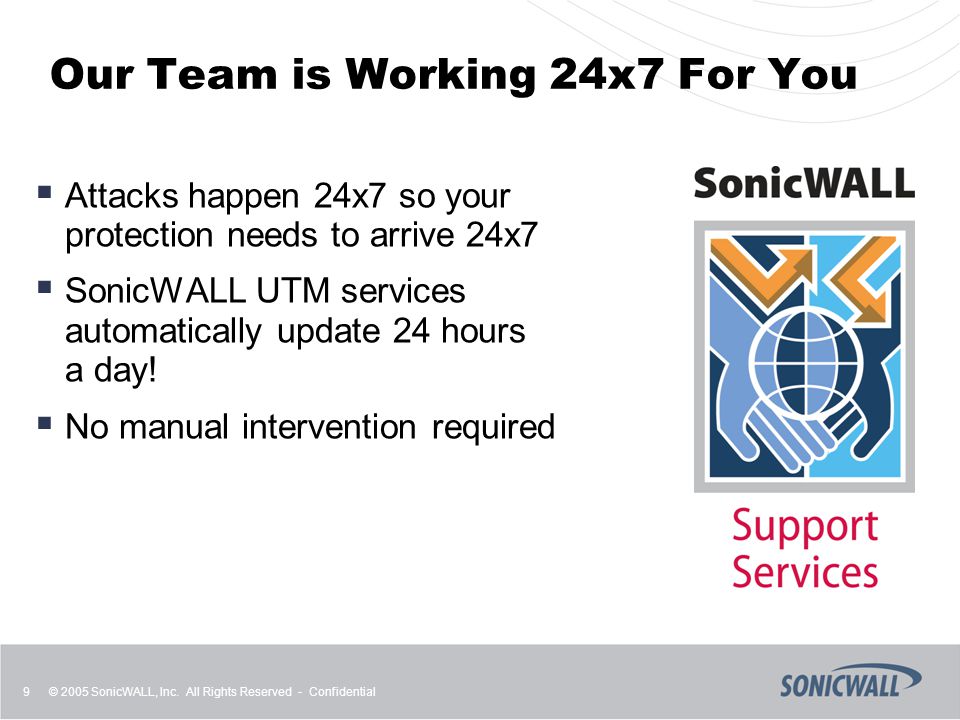

9. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 9 Our Team is Working 24x7 For You  Attacks happen 24x7 so your protection needs to arrive 24x7  SonicWALL UTM services automatically update 24 hours a day!  No manual intervention required

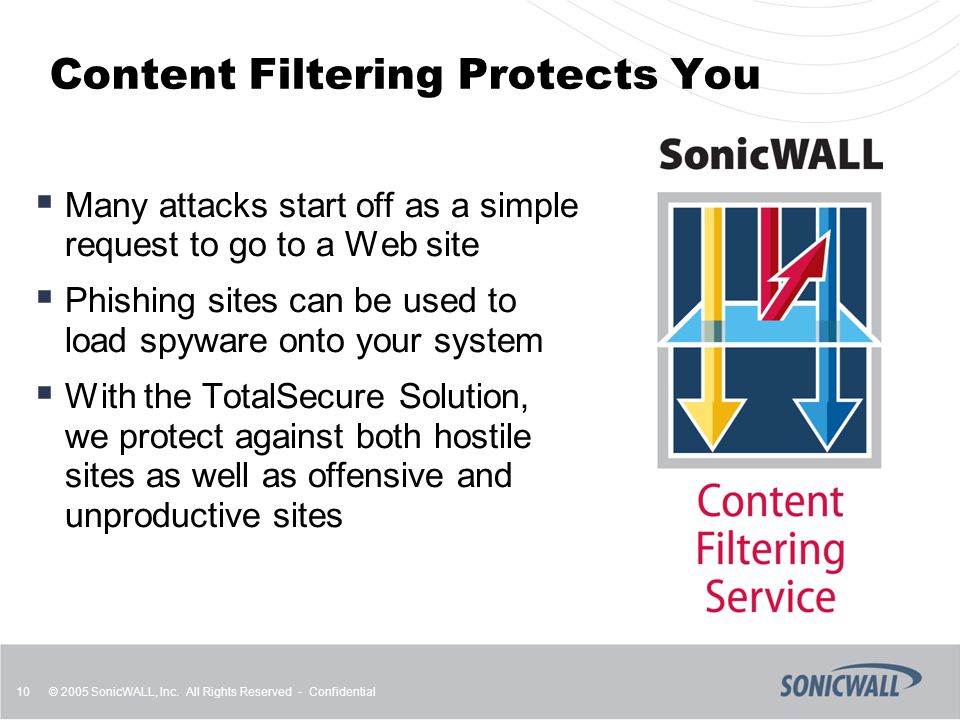

10. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 10 Content Filtering Protects You  Many attacks start off as a simple request to go to a Web site  Phishing sites can be used to load spyware onto your system  With the TotalSecure Solution, we protect against both hostile sites as well as offensive and unproductive sites

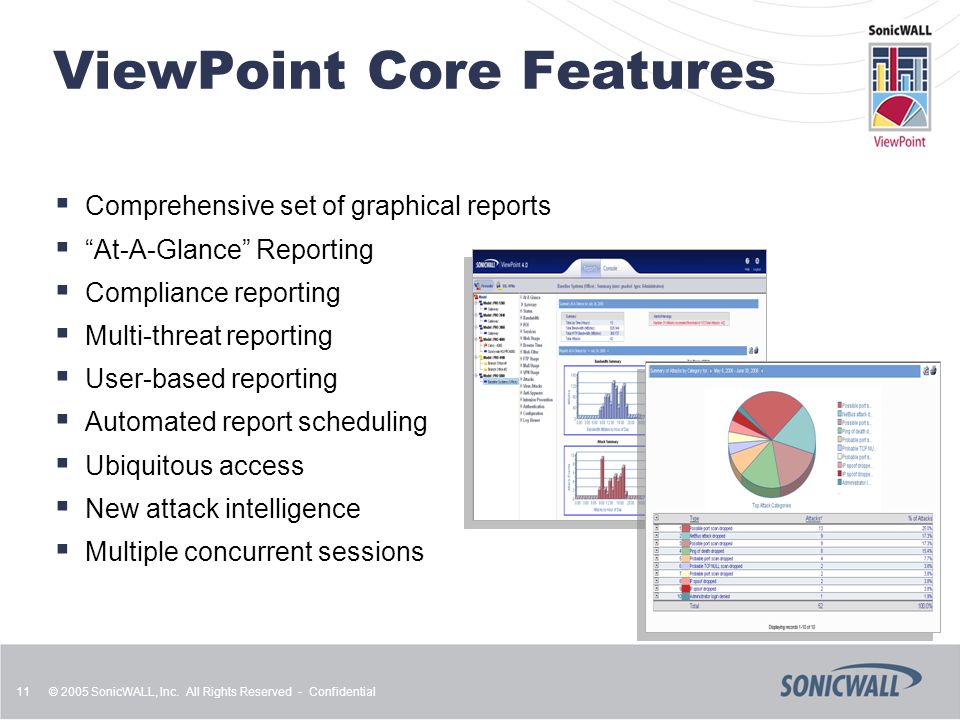

11. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 11 ViewPoint Core Features  Comprehensive set of graphical reports  “At-A-Glance” Reporting  Compliance reporting  Multi-threat reporting  User-based reporting  Automated report scheduling  Ubiquitous access  New attack intelligence  Multiple concurrent sessions

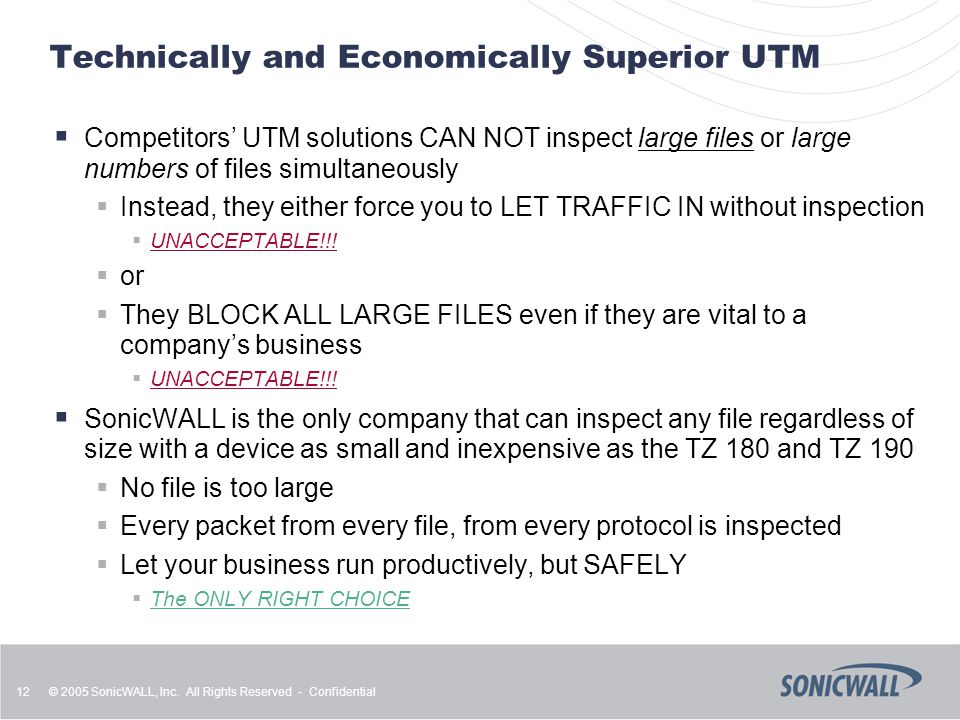

12. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 12 Technically and Economically Superior UTM  Competitors’ UTM solutions CAN NOT inspect large files or large numbers of files simultaneously  Instead, they either force you to LET TRAFFIC IN without inspection  UNACCEPTABLE!!!  or  They BLOCK ALL LARGE FILES even if they are vital to a company’s business  UNACCEPTABLE!!!  SonicWALL is the only company that can inspect any file regardless of size with a device as small and inexpensive as the TZ 180 and TZ 190  No file is too large  Every packet from every file, from every protocol is inspected  Let your business run productively, but SAFELY  The ONLY RIGHT CHOICE

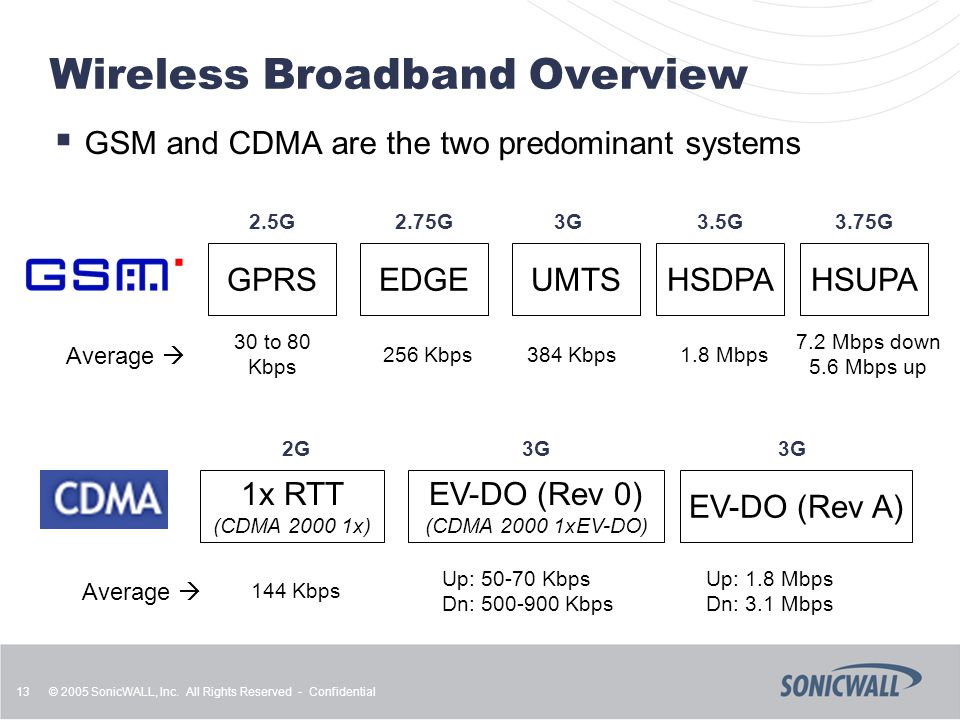

13. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 13 Wireless Broadband Overview  GSM and CDMA are the two predominant systems GPRSEDGEUMTSHSDPA 1x RTT (CDMA 2000 1x) EV-DO (Rev 0) (CDMA 2000 1xEV-DO) EV-DO (Rev A) 30 to 80 Kbps 144 Kbps 256 Kbps Average  2.5G2.75G3G3.5G 2G3G Up: 50-70 Kbps Dn: 500-900 Kbps Up: 1.8 Mbps Dn: 3.1 Mbps 384 Kbps1.8 Mbps HSUPA 3.75G 7.2 Mbps down 5.6 Mbps up

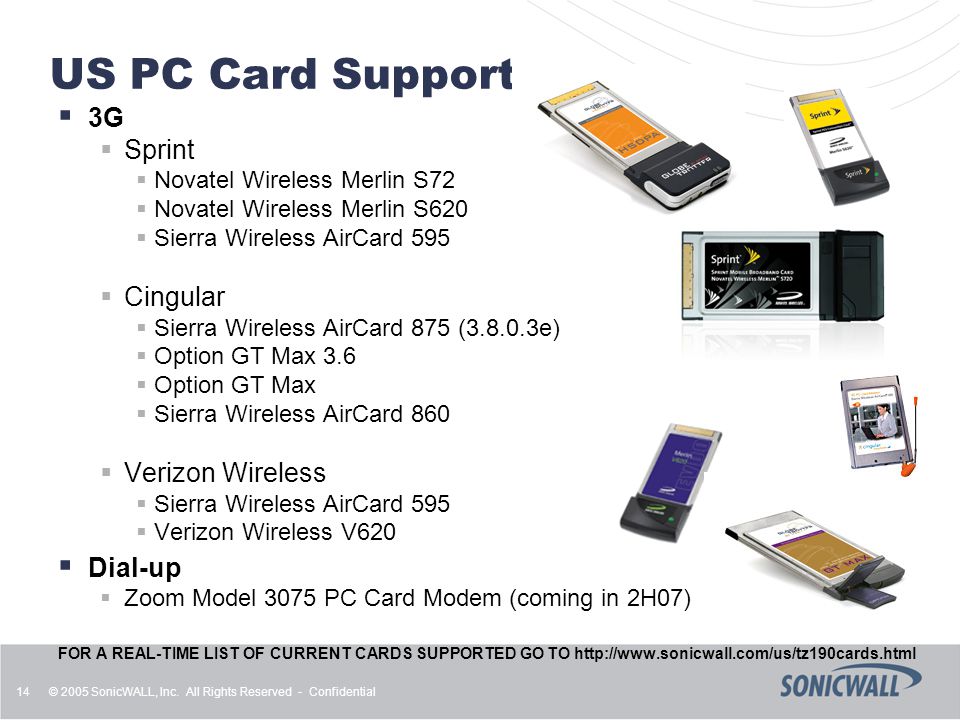

14. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 14 US PC Card Support  3G  Sprint  Novatel Wireless Merlin S72  Novatel Wireless Merlin S620  Sierra Wireless AirCard 595  Cingular  Sierra Wireless AirCard 875 (3.8.0.3e)  Option GT Max 3.6  Option GT Max  Sierra Wireless AirCard 860  Verizon Wireless  Sierra Wireless AirCard 595  Verizon Wireless V620  Dial-up  Zoom Model 3075 PC Card Modem (coming in 2H07) FOR A REAL-TIME LIST OF CURRENT CARDS SUPPORTED GO TO http://www.sonicwall.com/us/tz190cards.html

15. Solution Examples

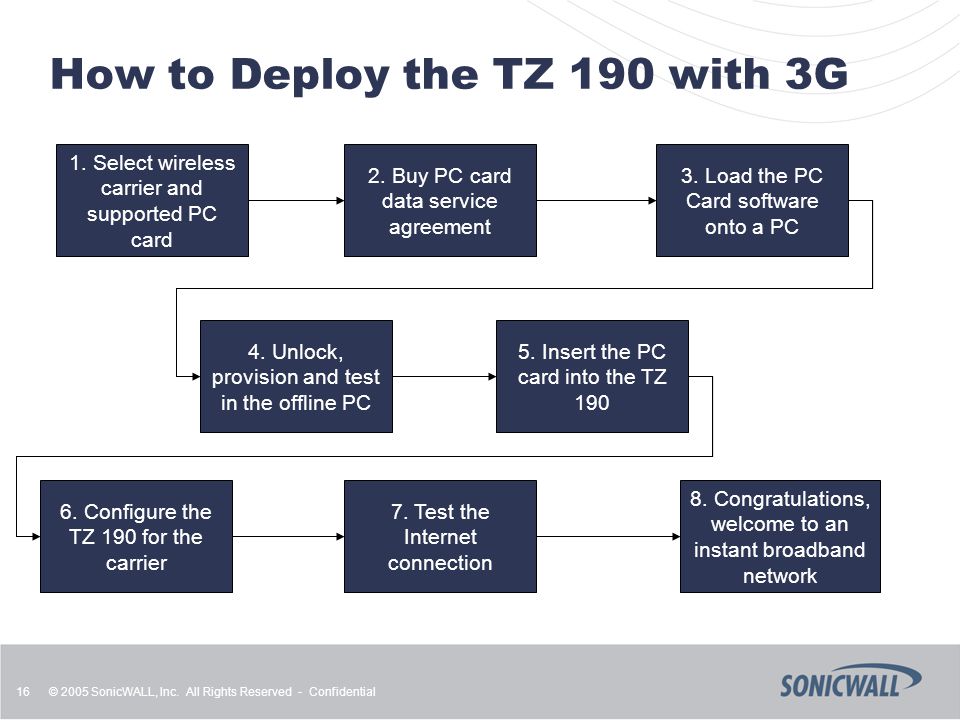

16. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 16 How to Deploy the TZ 190 with 3G 1. Select wireless carrier and supported PC card 2. Buy PC card data service agreement 3. Load the PC Card software onto a PC 4. Unlock, provision and test in the offline PC 5. Insert the PC card into the TZ 190 6. Configure the TZ 190 for the carrier 7. Test the Internet connection 8. Congratulations, welcome to an instant broadband network

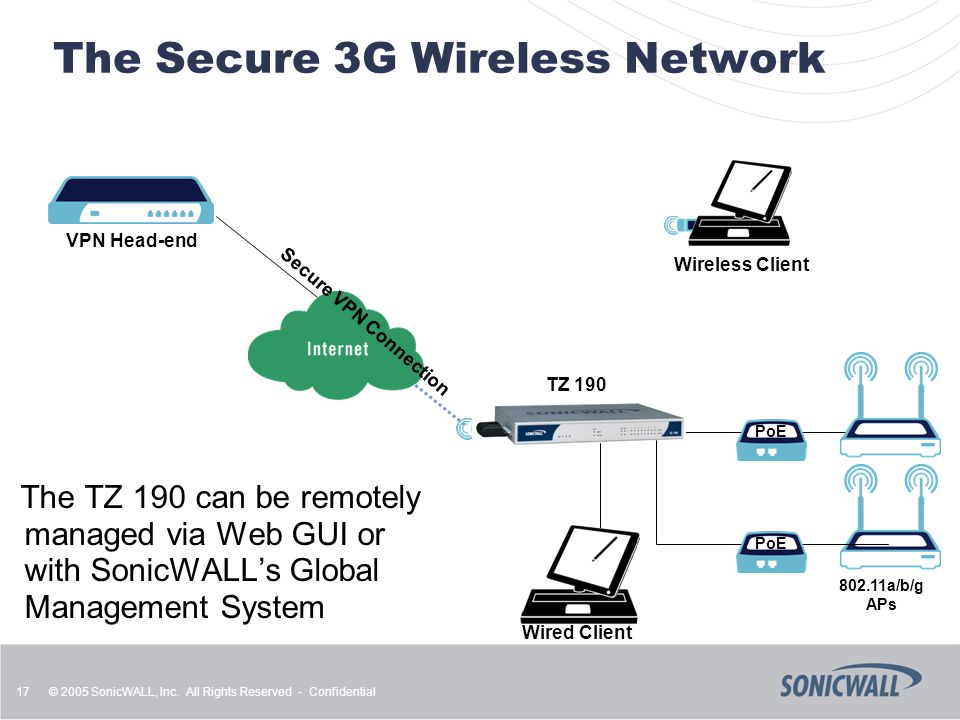

17. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 17 The Secure 3G Wireless Network Wireless Client Wired Client VPN Head-end TZ 190 Secure VPN Connection The TZ 190 can be remotely managed via Web GUI or with SonicWALL’s Global Management System PoE 802.11a/b/g APs PoE

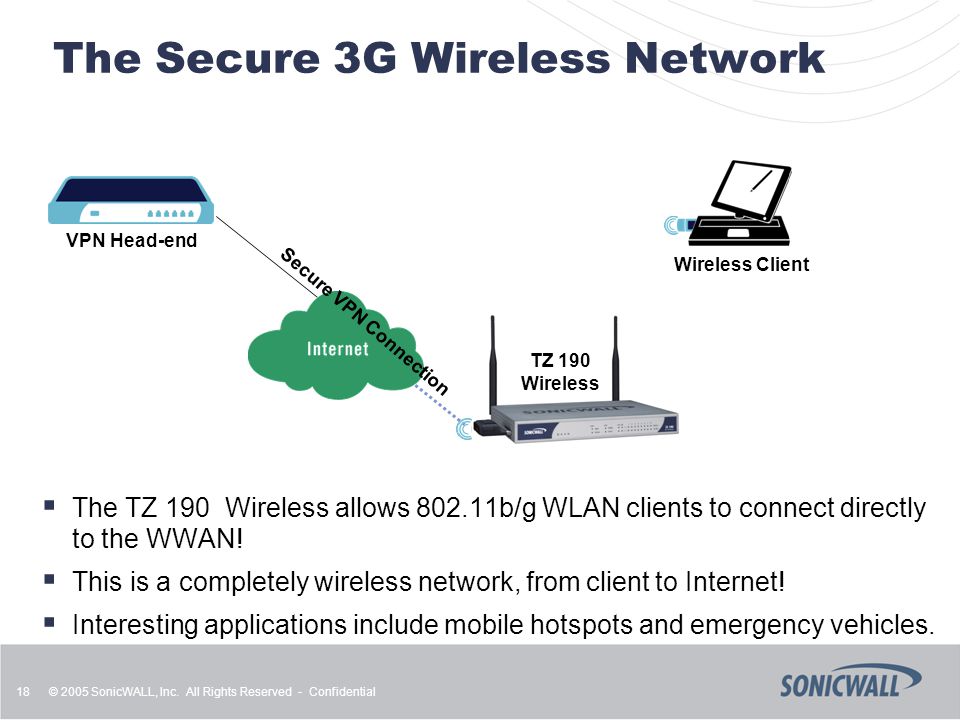

18. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 18 The Secure 3G Wireless Network Wireless Client VPN Head-end TZ 190 Secure VPN Connection  The TZ 190 Wireless allows 802.11b/g WLAN clients to connect directly to the WWAN!  This is a completely wireless network, from client to Internet!  Interesting applications include mobile hotspots and emergency vehicles. TZ 190 Wireless

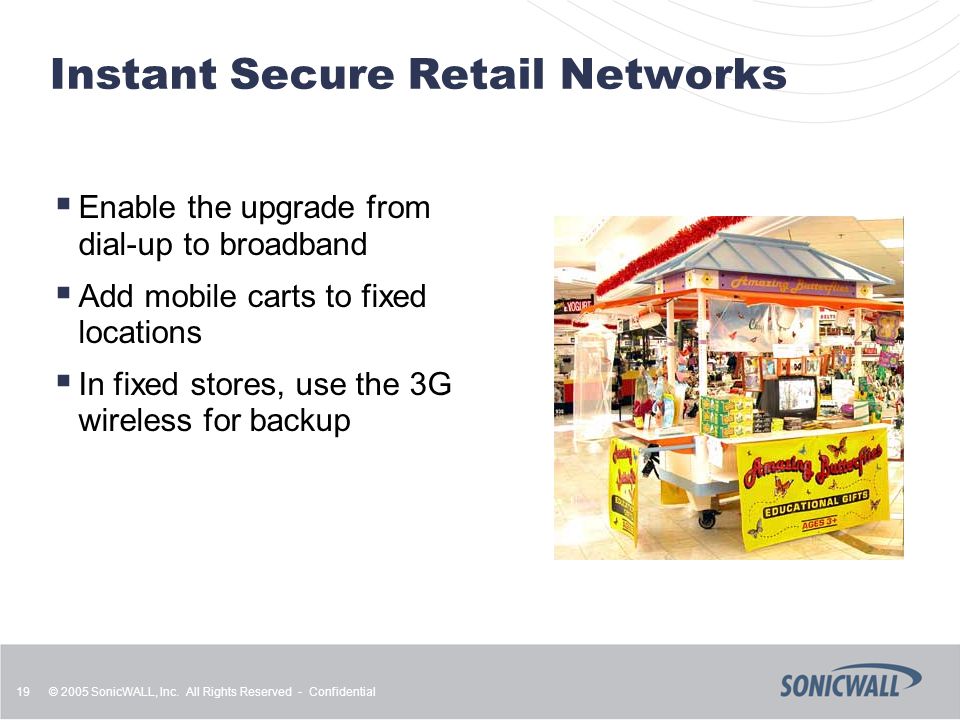

19. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 19 Instant Secure Retail Networks  Enable the upgrade from dial-up to broadband  Add mobile carts to fixed locations  In fixed stores, use the 3G wireless for backup

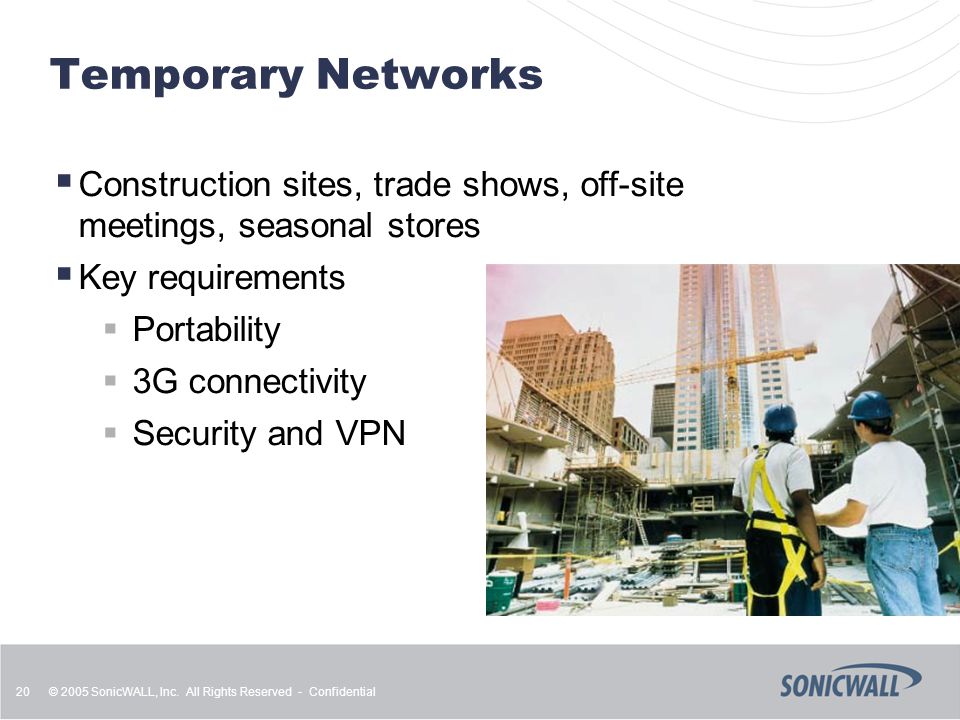

20. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 20 Temporary Networks  Construction sites, trade shows, off-site meetings, seasonal stores  Key requirements  Portability  3G connectivity  Security and VPN

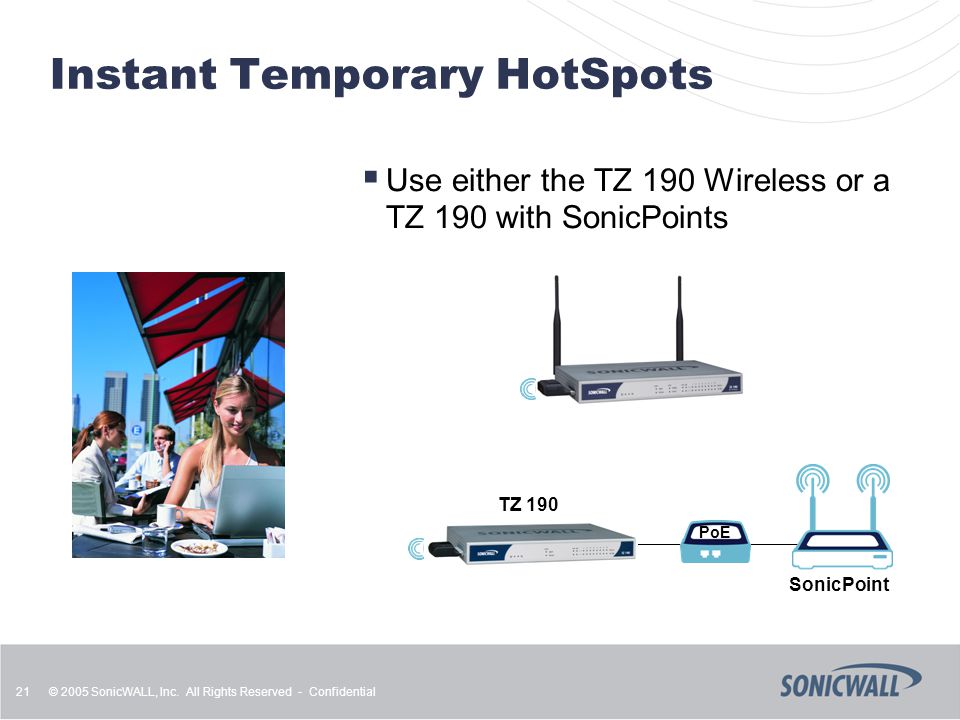

21. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 21 Instant Temporary HotSpots  Use either the TZ 190 Wireless or a TZ 190 with SonicPoints SonicPoint TZ 190 PoE

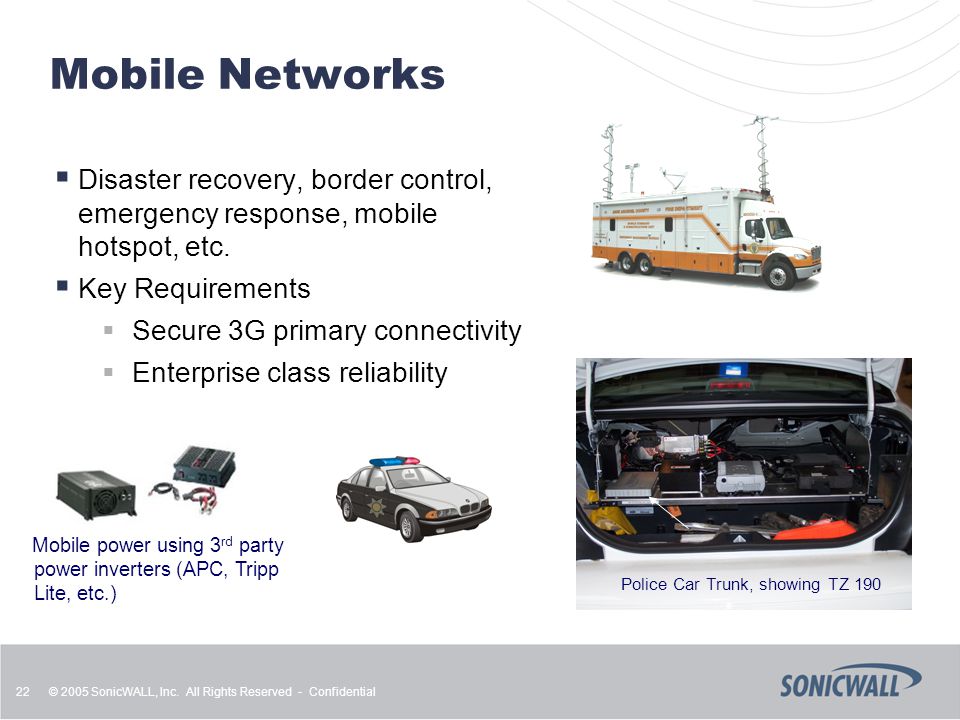

22. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 22 Mobile Networks  Disaster recovery, border control, emergency response, mobile hotspot, etc.  Key Requirements  Secure 3G primary connectivity  Enterprise class reliability Mobile power using 3 rd party power inverters (APC, Tripp Lite, etc.) Police Car Trunk, showing TZ 190

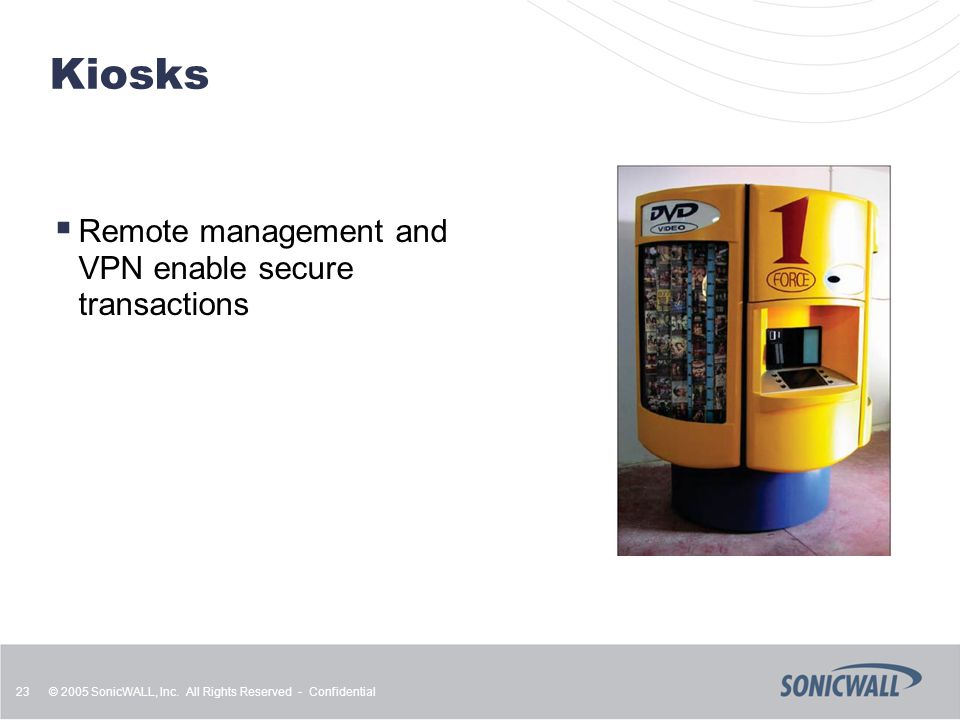

23. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 23 Kiosks  Remote management and VPN enable secure transactions

24. What Makes the TZ 190 Series Different?

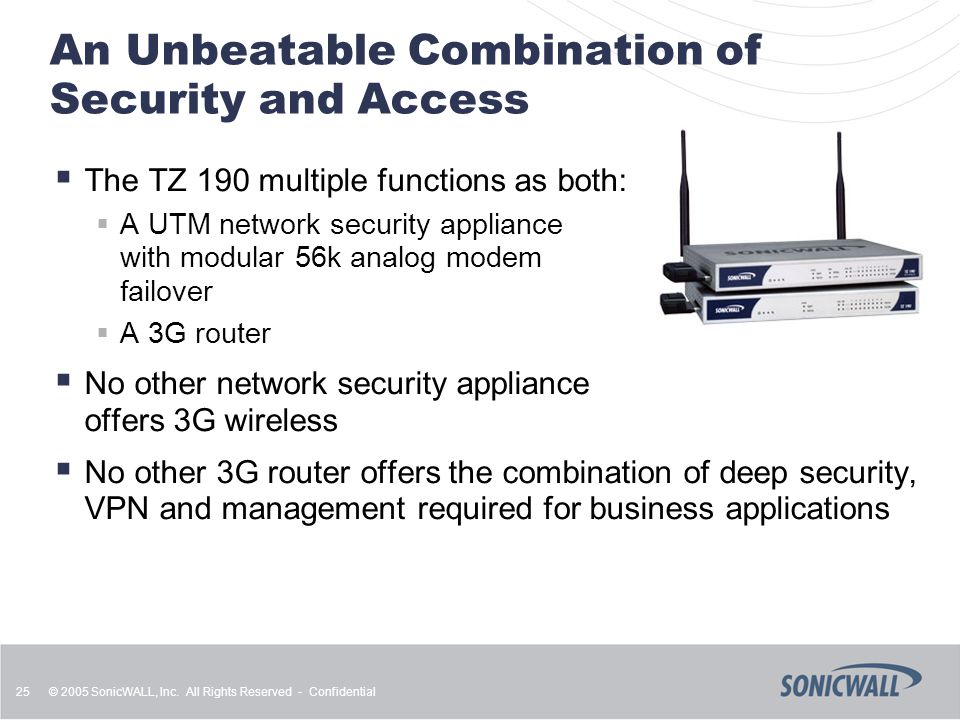

25. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 25 An Unbeatable Combination of Security and Access  The TZ 190 multiple functions as both:  A UTM network security appliance with modular 56k analog modem failover  A 3G router  No other network security appliance offers 3G wireless  No other 3G router offers the combination of deep security, VPN and management required for business applications

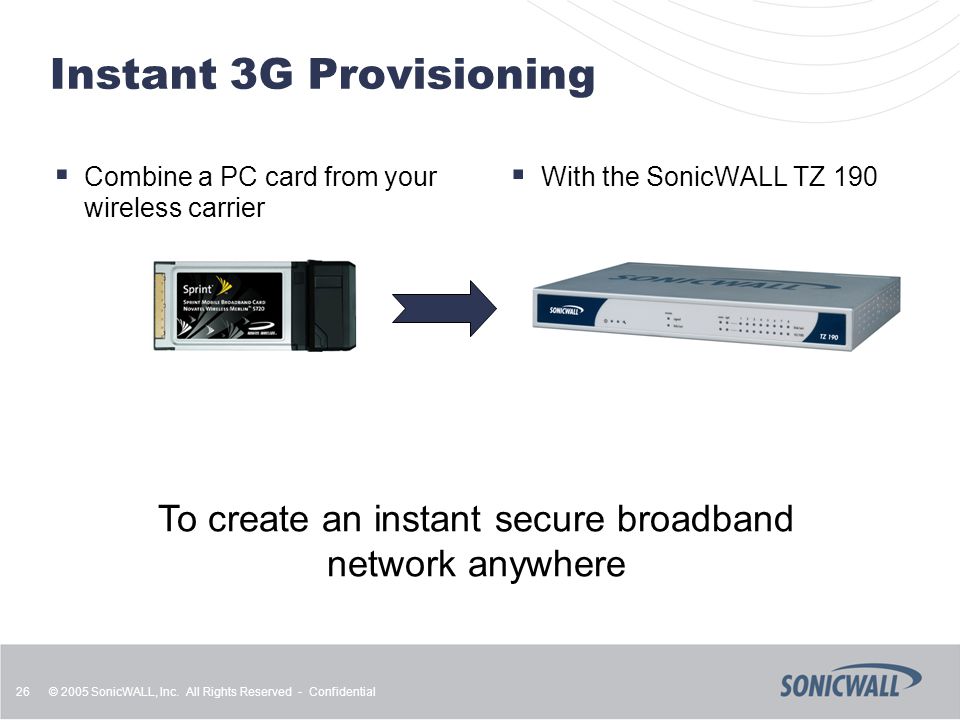

26. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 26 Instant 3G Provisioning  Combine a PC card from your wireless carrier  With the SonicWALL TZ 190 To create an instant secure broadband network anywhere

27. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 27 Unified Threat Management Find the malicious code hidden deep in the network

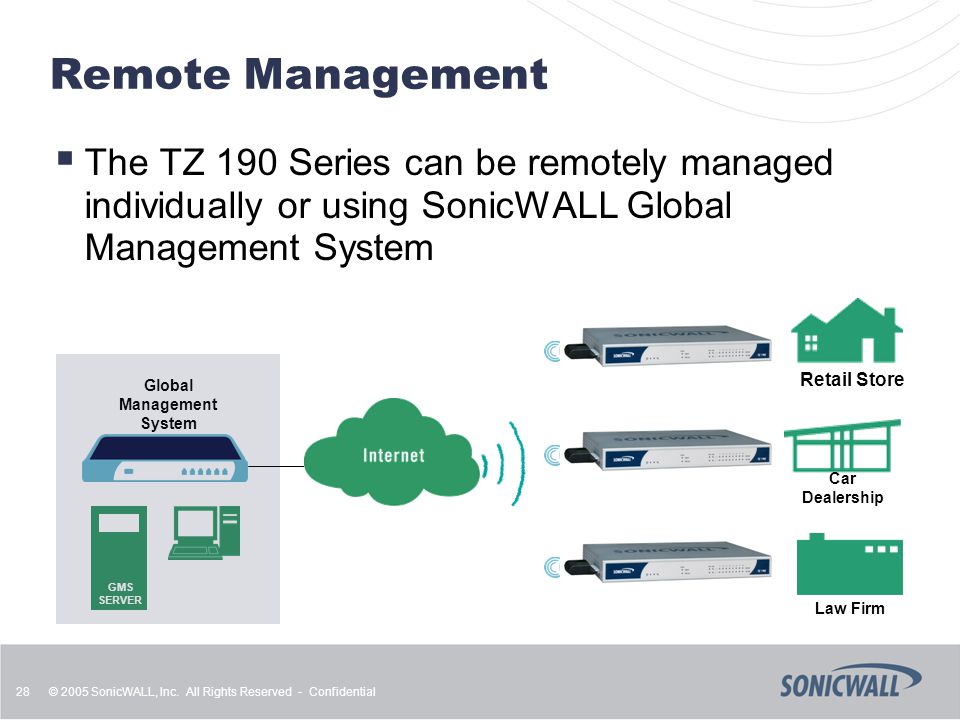

28. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 28 Remote Management  The TZ 190 Series can be remotely managed individually or using SonicWALL Global Management System Retail Store Law Firm Car Dealership GMS SERVER Global Management System

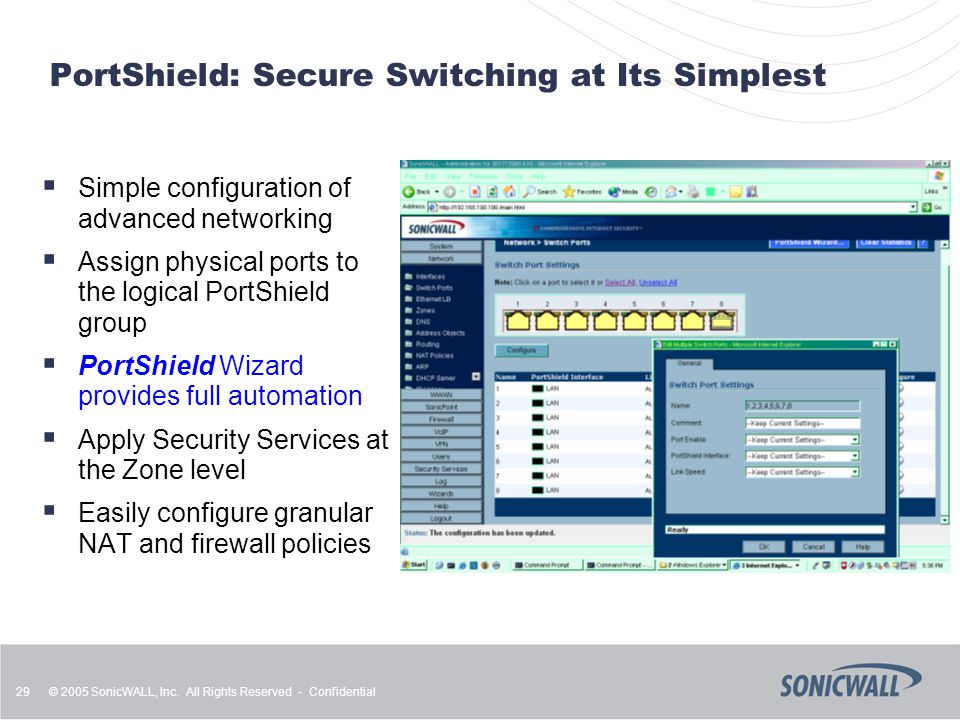

29. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 29 PortShield: Secure Switching at Its Simplest  Simple configuration of advanced networking  Assign physical ports to the logical PortShield group  PortShield Wizard provides full automation  Apply Security Services at the Zone level  Easily configure granular NAT and firewall policies

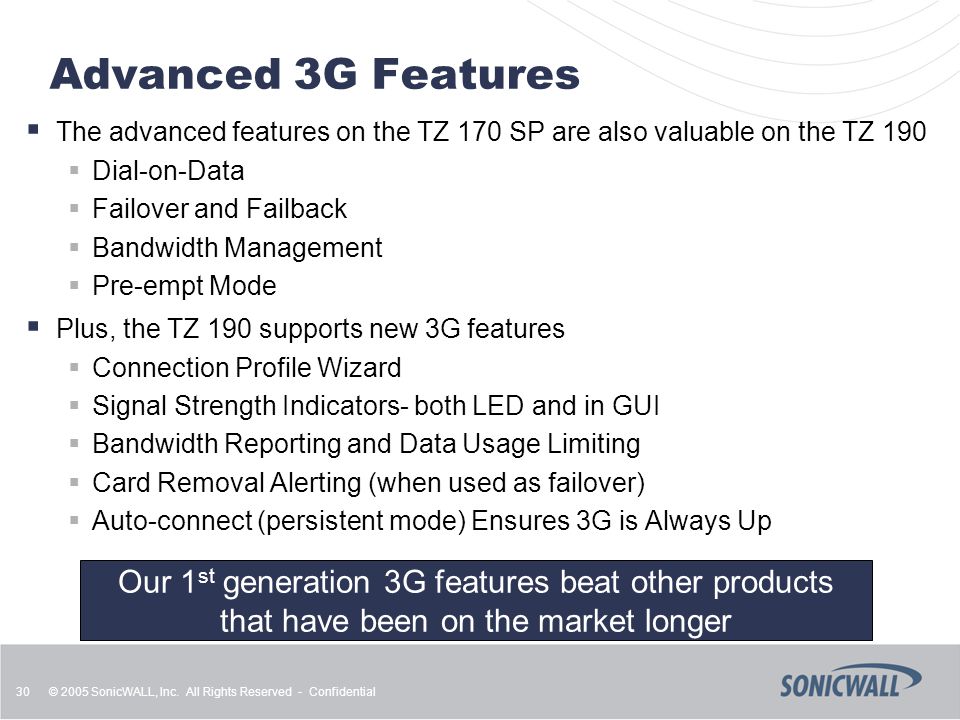

30. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 30 Advanced 3G Features  The advanced features on the TZ 170 SP are also valuable on the TZ 190  Dial-on-Data  Failover and Failback  Bandwidth Management  Pre-empt Mode  Plus, the TZ 190 supports new 3G features  Connection Profile Wizard  Signal Strength Indicators- both LED and in GUI  Bandwidth Reporting and Data Usage Limiting  Card Removal Alerting (when used as failover)  Auto-connect (persistent mode) Ensures 3G is Always Up Our 1 st generation 3G features beat other products that have been on the market longer

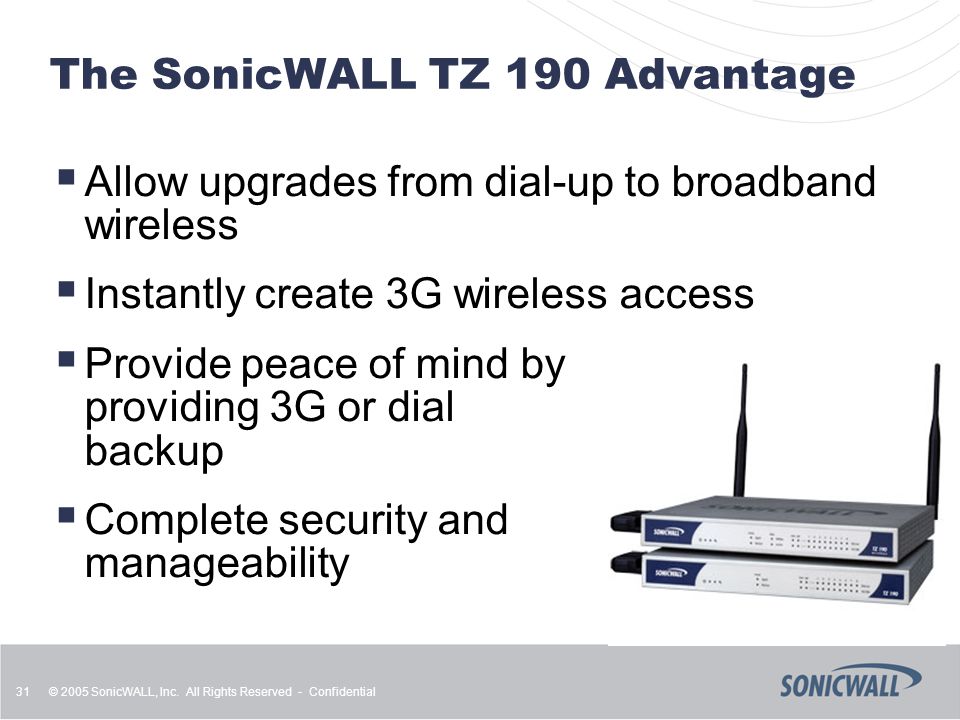

31. © 2005 SonicWALL, Inc. All Rights Reserved - Confidential 31 The SonicWALL TZ 190 Advantage  Allow upgrades from dial-up to broadband wireless  Instantly create 3G wireless access  Provide peace of mind by providing 3G or dial backup  Complete security and manageability

32. Thank You!
