1. Table of contents M 1 : The environment M 2 : Air, water, soil M 3 : Waste management M 4 : Risk analysis M 5 : Prevention and protection of personnel M 6 : Prevention and protection of the site M 7 : Capacity to react M 8 : Circulation in the factory M 9 : Transport and storage M 10 : Industrial safety M 11 : Crisis management M 12 : Opening a paint shop

2. Session 1 : A global approach Session 2 : Sensitivity of the environment Session 3 : The environmental actors Session 4 : Regulations and environmental responsibilities M 1 : The environment M 2 : Air, soil, water M3 : Waste management M 4 : Risk analysis M 5 : Prevention and protection of personnel M 6 : Prevention and protection of the site M 7 : Capacity of react M 8 : Circulation in the factory M 9 : Transport and storage M 10 : Industrial safety M 11 : Crisis management M 12 : Opening up a paint shop Understanding the environment as a whole THE ENVIRONMENT

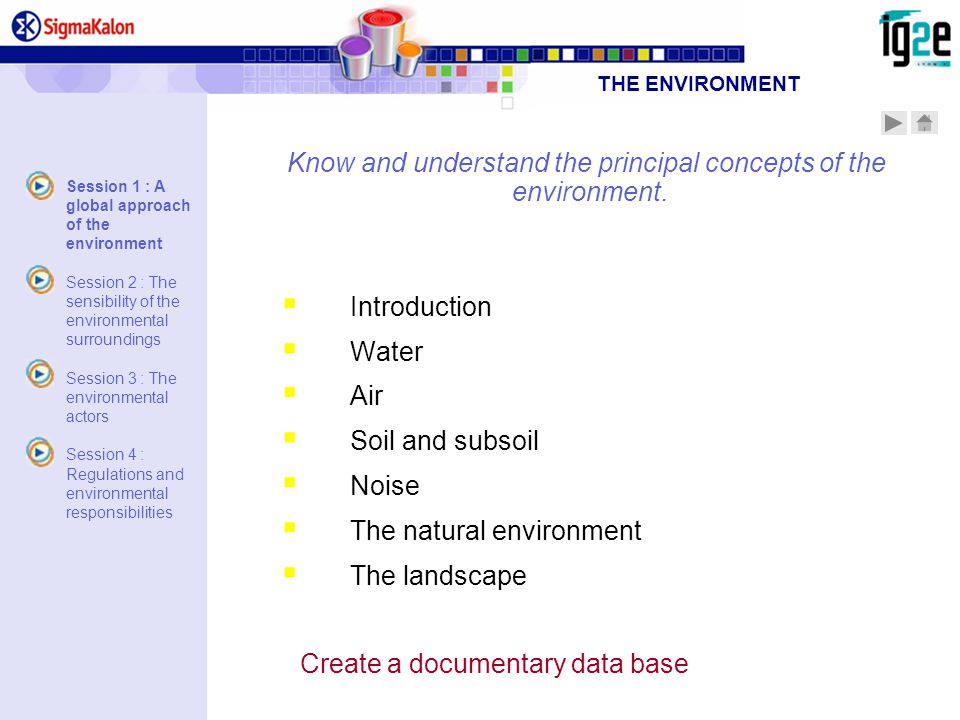

3. Know and understand the principal concepts of the environment.  Introduction  Water  Air  Soil and subsoil  Noise  The natural environment  The landscape Create a documentary data base Session 1 : A global approach of the environment Session 2 : The sensibility of the environmental surroundings Session 3 : The environmental actors Session 4 : Regulations and environmental responsibilities THE ENVIRONMENT

4. Quiz Key Points Exercises Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape Introduction THE ENVIRONMENT

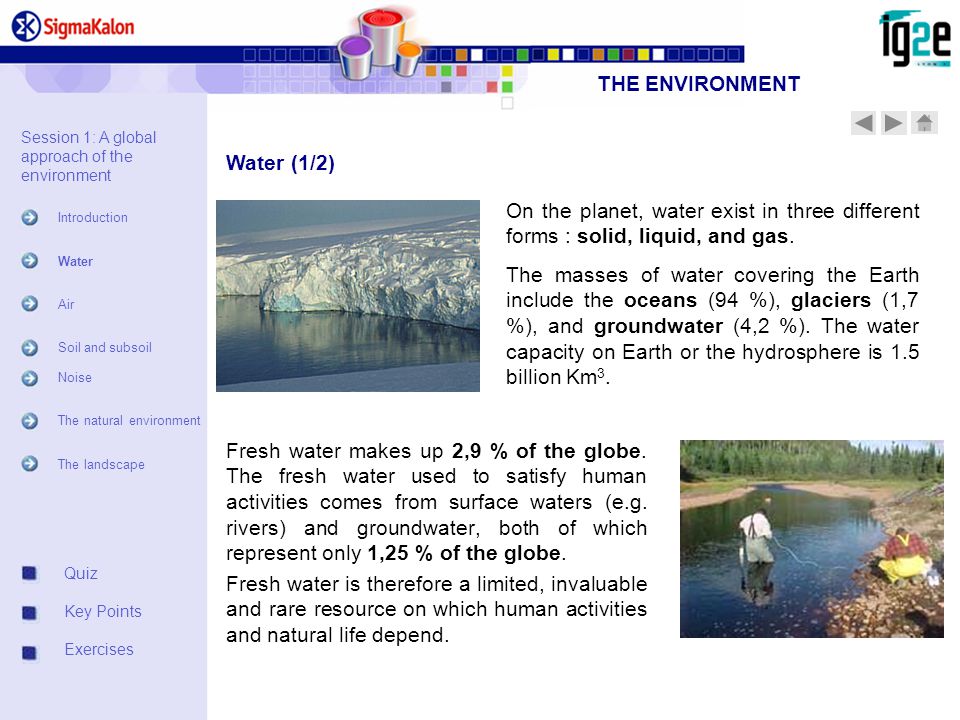

5. Quiz Key Points Exercises Water (1/2) Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape On the planet, water exist in three different forms : solid, liquid, and gas. The masses of water covering the Earth include the oceans (94 %), glaciers (1,7 %), and groundwater (4,2 %). The water capacity on Earth or the hydrosphere is 1.5 billion Km 3. Fresh water makes up 2,9 % of the globe. The fresh water used to satisfy human activities comes from surface waters (e.g. rivers) and groundwater, both of which represent only 1,25 % of the globe. Fresh water is therefore a limited, invaluable and rare resource on which human activities and natural life depend. THE ENVIRONMENT

6. Quiz Key Points Exercises Water (2/2) Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape THE ENVIRONMENT

7. Quiz Key Points Exercises Air (1/2) Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape Air is the second most necessary element for life. The normal chemical composition of air consist of 78% nitrogen, 21% oxygen, 1% water vapor and other gases (e.g. Argon). The present day average temperature of the atmosphere is around 14°C. The green house effect is a natural phenomenon which causes the atmosphere to reheat due to the presence of various gases, notably carbon dioxide (CO2), water vapor, and methane (CH4). These gases block infrared radiation emitted by the Earth. The ozone layer (O3) forms naturally when solar radiation comes into contact with oxygen. It controls the overexposure of ultraviolet (UV) rays, which can cause superficial burns. THE ENVIRONMENT

8. Quiz Key Points Exercises Air (2/2) Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape THE ENVIRONMENT

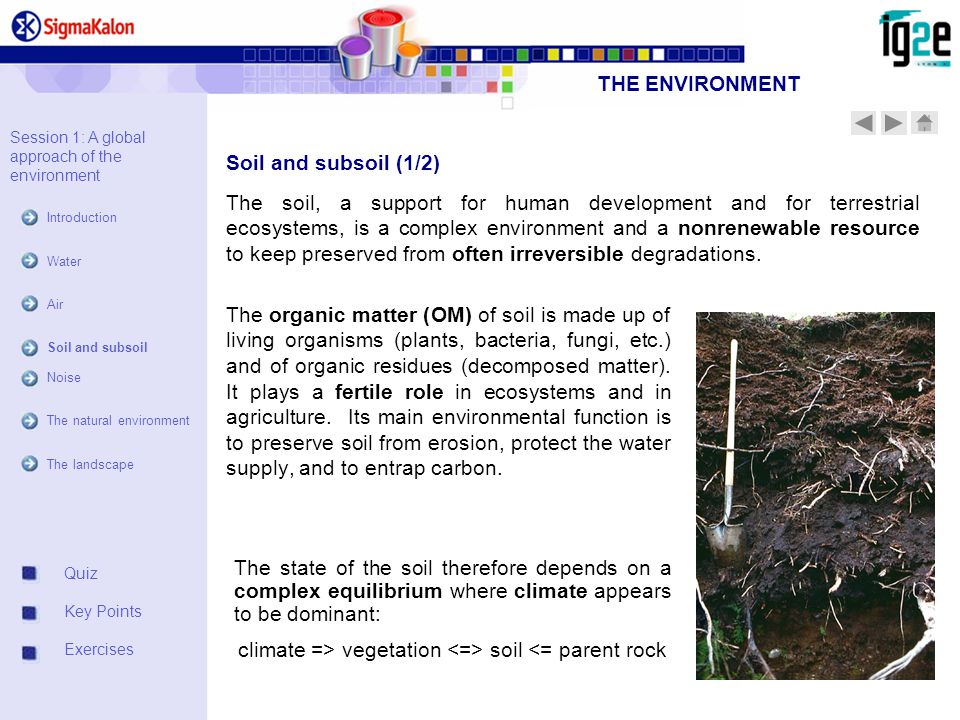

9. Quiz Key Points Exercises Soil and subsoil (1/2) Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape The soil, a support for human development and for terrestrial ecosystems, is a complex environment and a nonrenewable resource to keep preserved from often irreversible degradations. The organic matter (OM) of soil is made up of living organisms (plants, bacteria, fungi, etc.) and of organic residues (decomposed matter). It plays a fertile role in ecosystems and in agriculture. Its main environmental function is to preserve soil from erosion, protect the water supply, and to entrap carbon. The state of the soil therefore depends on a complex equilibrium where climate appears to be dominant: climate => vegetation soil <= parent rock THE ENVIRONMENT

10. Quiz Key Points Exercises Soil and subsoil (2/2) Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape THE ENVIRONMENT

11. Quiz Key Points Exercises Noise Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape THE ENVIRONMENT

12. Quiz Key Points Exercises The natural environment Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape The natural environment consists of biological, chemical and physical elements that interact in a given place.  The ecosystem is a natural community formed by physical and living elements (animals and plants) and there interrelationships.  Nature is a reality existing independently of humans and in which humans are a stakeholder.  The environment is a space, consisting of all natural and artificial elements, in which an individual lives. The ecosystem must be protected in is entirety because it is a fragile and unique environment. That is why parks and reserves are created as well as international endangered species lists. THE ENVIRONMENT

13. Quiz Key Points Exercises  Nature harmonizes some with all these characteristics, bringing us to a natural landscape which appears beautiful to us. It is our visual perception.  Nature uses these various characteristics for a better coherence between living beings. If it is modified, one destroys this cohesion of well-being. Examples : With a Saharan landscape made up of clear colours and a dark building where the insects will be coupled because of the great amplitude of the colours. One divides a forest in two to introduce a culture. There is rupture of trees which separates the species into two and produces a difference between the them, creating two distinct forests. The landscape Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape Thousands of different landscapes cover the Earth. They vary in form, relief, color, climate, geographical zone, architecture,… THE ENVIRONMENT

14. Quiz Key Points Exercises A global approach of the environment: Quiz Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape THE ENVIRONMENT

15. Quiz Key Points Exercises Key points : The fresh water is an invaluable and limited resource, used by humans in its liquid form. Water is regenerated during its cycle. The air made up of fume, airstreams, dust, and fog makes up the planet’s composition, temperature and climate. The soil permanently undergoes percolation, infiltration and erosion due to the surface activity. It is a resource structured in layers. The subsoil contains sheets of water. The vibrations of noise spread with a certain speed in solids, liquids and gas. Noise is a sound wave. Nature is made up of ecosystems. The protection of species aims at keeping a rich biodiversity. The landscape is a visual design. Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape THE ENVIRONMENT

16. Quiz Key Points Exercises Create a documentary data base :  Use a file with dividers by theme (Air, water,…)  Search, sort and classify the environmental information that seems relevant to the site (principles, theories, definitions, diagrams,…). Session 1: A global approach of the environment Introduction Water Air Soil and subsoil Noise The natural environment The landscape THE ENVIRONMENT

17. Determining the sensibility of the environment surrounding the site  Introduction  Sensibility of the atmospheric environment  Sensibility of the aquatic environment  Sensibility of the terrestrial environment  Sensibility to noise  Sensibility of the natural environment  The landscape Determine the sensibility of the different environments THE ENVIRONMENT Session 1 : A global approach of the environment Session 2 : The sensibility of the environmental surroundings Session 3 : The environmental actors Session 4 : Regulations and environmental responsibilities

18. Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Introduction Quiz Key Points Exercises

19. The aquatic environment is sensitive to several biological, chemical, and physical parameters. Example : An oasis fed by ground water empties its out by self evaporation due to the sun. The slightest deviation in water can dry out the oasis and in time hinder the aquatic life and then the terrestrial life. It is closely tied to the water table which is made up of rain water from high plateaus. These plateaus must be protected in order to guarantee the survival of the oasis. The physical parameters are morphological structures (forms and relief) with running waters, streams, rivers, swamps, marches, lakes, ponds, oasis,… The sensibility is induced by the quantity of water that circulates and its turnover. The aquatic environment (1/3) THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

20. Example : In a river, one observes an untreated discharge of water from a highway. When winter approaches, to avoid black ice, large quantities of salt are spread on the highways. This phenomenon induces, in the river, an elevation in salinity resulting in the diminution of the river’s biodiversity. The chemical parameters :  the pH (acidic, neutral, basic). In water, one finds traces of metals.  the total suspended matter (TSM) that makes water appear murky.  the BOD/COD (biological/ chemical oxygen demand) that allows for a self-purification.  the halogenated elements not naturally present. The aquatic environment (2/3) THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

21. The biological parameters mediates the sensitivity of aquatic species with the normalized global biological index (NGBI). One studies the aquatic life and obtains a note that provides the properties of a body of water. Biological diversity is the essential component of clean water. If it disappears, the water quality degrades very fast becoming unsanitary and toxic for the terrestrial life that it serves. The aquatic environment (3/3) Example : In a river, one observes an untreated water discharge from a wastewater treatment plant. Samples of animals taken near the discharge with a dip net show a disappearance of individuals and species. THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

22. A prolonged exposure to UV radiation can cause aging, skin cancer, the appearance of cataracts and a weakening in the immune system. A decline of the stratospheric ozone causes the production of the tropospheric ozone, which is harmful to the health. The ozone layer is very sensitive to chlorofluorocarbons (CFC). On security data sheets for products, an ozone depletion factor is defined. The more the factor approaches 1, the more the gas is a depleting substance. The atmospheric environment (1/3) THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

23. The greenhouse effect has an effect on the Earth's average temperature. The more the temperatures rise, the more the Earth heats up provoking strong climate modifications (global warming), which result in the thawing of glaciers, and the ocean levels to rise. For the greenhouse effect there is a global warming factor found on security data sheets. The more it increases, the more it contributes to the generation of a high greenhouse effect. Some secondary gases, which are less abundant, have a strong impact on global warming just as much as methane, CFC, HCFC (halogenated fluorocarbon). Human activities contribute as well to the greenhouse effect, but naturally in little abundance. The atmospheric environment (2/3) THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

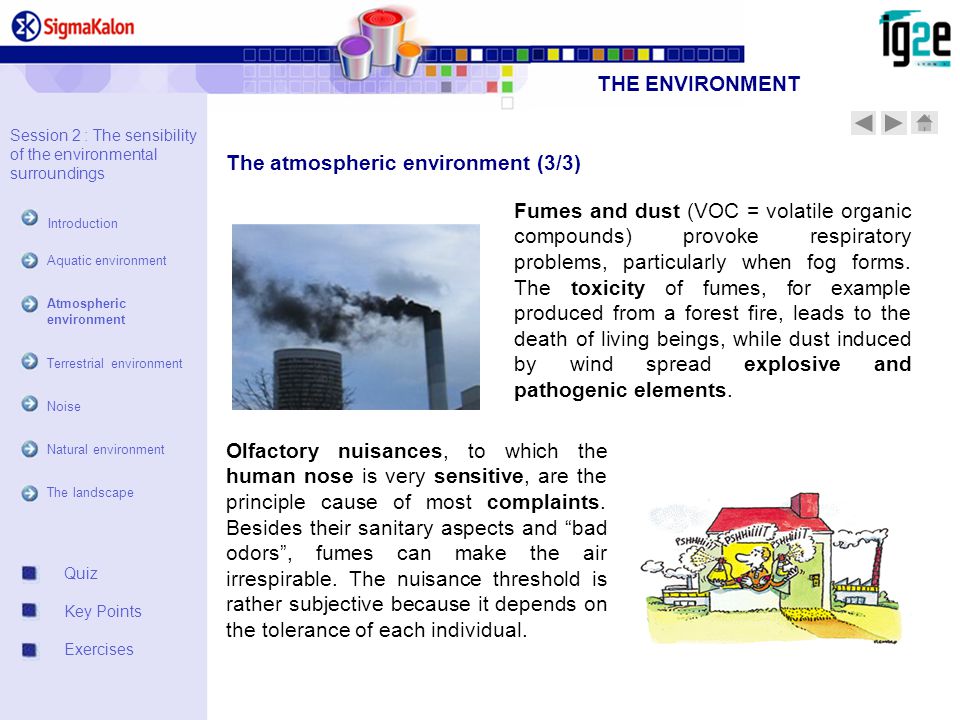

24. Olfactory nuisances, to which the human nose is very sensitive, are the principle cause of most complaints. Besides their sanitary aspects and “bad odors”, fumes can make the air irrespirable. The nuisance threshold is rather subjective because it depends on the tolerance of each individual. Fumes and dust (VOC = volatile organic compounds) provoke respiratory problems, particularly when fog forms. The toxicity of fumes, for example produced from a forest fire, leads to the death of living beings, while dust induced by wind spread explosive and pathogenic elements. The atmospheric environment (3/3) THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

25. The soil, contrary to on would believe, is extremely sensitive because it take thousands of years to build up. It interacts with and maintains other environments. Its a large area for storage, filtration, and the concentration of matter. Three parameter of degradation exist : The terrestrial environment (1/3) ProblemsOriginsConsequences Physical Impermeability Loss in harvesting, loss of purification functionalities, pollution of receiving waters Compaction Erosion Chemical Acidification Modification of soil functionalities and remobilization of metals, sterilization of soils, toxicity of soils and its products Salification Biological Pesticides Loss of biodiversity, increase of chemical and physical degradation, flow of greenhouse gases Loss of organic matter THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

26. The velocity at which liquids penetrate the granular soils is very quick. Its permeability is a major factor. The permeability represents the volume of water that traverses the soil per unit time. It is expressed as the filtration velocity (K in m/s). Its porosity is also a major factor. It is the volume of liquids or air that absorbs the soil. The porosity is related to the particle-size distribution of the soil. The more the soil takes up empty spaces, the greater the porosity. An example is sand and gravel. Soil is a result of the transformation of the bed rock. Three types of soil come into play: clay, silt, and sand. The terrestrial environment (2/3) THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

27. In the subsoil, in general contains groundwater, which is sensitive if it is « free flowing » in relation to the surface and has a slow water-flow velocity. If the groundwater is captive (protected by an impermeable layer at the surface), then the problem of spills at the surface affects less the groundwater. The distance and depth of the groundwater do not affect its sensitivity, only the properties of the soil affect its quality. The terrestrial environment (3/3) THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

28. Noise is considered as a major environmental nuisance. In all environments, noise nuisances are viewed as the most harmful of nuisances for the human population. Noise is measured with sound- level meter in decibels (dB). Every 3 dB, the noise multiplies by two (logarithmic scale). Noise, which is also sound, spreads as a sound wave. The environment is very receptive of the vibrations which can be felt by the material in which it crosses. Noise THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

29. The natural environment does is not a concern for all.. Today, humans largely modify its principle sources of life. Do vegetation, the fauna, the flora, and rare species live in harmony with their environment and humans? The natural environment For example, if a species such as a rodent disappears, the balanced relationship will be modified resulting in the progressive disappearance of its predators as well as in an increased growth of vegetation, which could lead to the use of herbicides. The sensibility of a species depends on its surrounding relationships. Each relationship forms chain. The longer the chain, the more it will need to be protected. Some zones might have a total, partial, or targeted protection for a species, such as agricultural zones that directly effect humans or forest zones, which serve as a primary resource for all human needs (heat, furniture, building,…). THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

30. The landscape depends the perception of the population. Certain colors, forms, and objects implemented. Within the proximity of a town, it is desirable to preserve its spirit by integrating hedges, trees, mounds of soil, building… However, it should not be forgotten to store away materials such as cans, tanks, … The local inhabitants passing by should see a clean company. The presence or not of organizations for the protection of landscapes or good-will volunteers should be taken into consideration as well. The landscape Integration the site and buildings in the surrounding environment not only protects a company’s public image, but also improves the standards of living and working conditions. THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

31. THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises Sensitivity of the surrounding mediums : Quiz

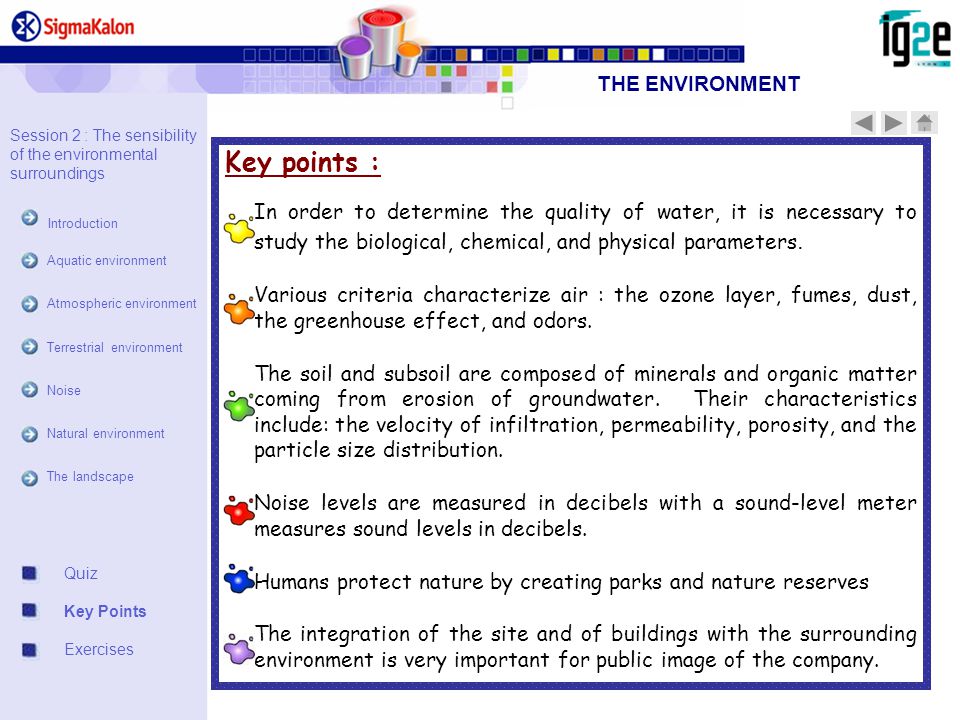

32. THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises Key points : In order to determine the quality of water, it is necessary to study the biological, chemical, and physical parameters. Various criteria characterize air : the ozone layer, fumes, dust, the greenhouse effect, and odors. The soil and subsoil are composed of minerals and organic matter coming from erosion of groundwater. Their characteristics include: the velocity of infiltration, permeability, porosity, and the particle size distribution. Noise levels are measured in decibels with a sound-level meter measures sound levels in decibels. Humans protect nature by creating parks and nature reserves The integration of the site and of buildings with the surrounding environment is very important for public image of the company.

33. Determine the sensibility of the different environments :  Fill in the following documents : : Sensibility of the landscape and the natural environments Sensibility of the landscape and the natural environments : Sensibility of the atmospheric environment Sensibility of the atmospheric environment : Sensibility to noise Sensibility to noise : Sensibility of soil Sensibility of soil : Sensibility of the aquatic environment Sensibility of the aquatic environment  Locate on a map of the different environments by using the previously gathered information : Step 1 : Obtain an existing map of the zone in which the site is implemented. Step 2 : Locate on this map the natural areas, such as bodies of water, relieves, and vegetative environments (swamps, marches, mangroves, woods,…), flood zones,… Step 3 : With the same map, locate any modified areas or implantations by humans, such as housing, water catchment areas, tourist zones,… Step 4 : Then locate any other elements that could influence the surrounding environment of the site. THE ENVIRONMENT Session 2 : The sensibility of the environmental surroundings Introduction Aquatic environment Atmospheric environment Terrestrial environment Noise Natural environment The landscape Quiz Key Points Exercises

34. Identify the role of environmental actors and the type of information which they can provide  Various roles of the actors  Various fields  Various levels of information Create a directory of the environmental actors THE ENVIRONMENT Session 1 : A global approach of the environment Session 2 : The sensibility of the environmental surroundings Session 3 : The environmental actors Session 4 : Regulations and environmental responsibilities

35. Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France Control / Inspection Advice / Expertise Assistance / Subsidies Legislation / Standardization Various roles of the actors (1/3) Quiz Key points Exercises THE ENVIRONMENT

36.  Assistance / Subsidies Organizations providing assistance are often public structures, which support companies who take their first steps towards environmental protection. The importance of subsidies depends on the scope and the field of the project (water, air...).  Advice / Expertise These public or private organizations sell to companies their technical expertise, their know-how, in regards to environmental management and regulation. Various roles of the actors (2/3) Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

37.  Legislation / Standardization Legislative organizations create and diffuse environmental regulations, which are obligatory for paint industries. Standardization organizations create standards and guidance documents on which these same industries can base themselves at the time of their voluntary step towards protection the environment.  Control / Inspection The role of these structures is to check the industry’s application of regulations. They have the authority to enter companies and to inspect the conformity of installations. If a company does not respect the regulations, these actors can impose sanctions on its manager. Various roles of the actors (3/3) Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

38. Industrial installations Fauna / Flora Environmental actors have precise roles and intervene in one or more of the fields presented below : Air Water Landscape Wastes Grounds Various fileds Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

39. Environmental actors that can provide useful information are :  Maintenance Breakdowns, accidental rejections, global view of the site...  Purchasing manager Raw materials, subcontracting, …  Employees Incidents, proposals, ideas, daily practices and work environment,...  Regrouping of employees, labor unions Motivations of employees, vision of other companies,... Within the factory Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

40. Environmental actors that can provide useful information are :  The ESH coordinator of the branch : Environmental policy of the company, technical and organizational assistance,...  Others company managers in the world Technical and organizational assistance, exterior point of view, feedback from experience,... With in the company Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

41. Environmental actors that can provide useful information are :  Representatives of a town, city, or a territory Housing plans, geographical maps, local rules...  Representatives of industrial parks Wastewater drainage plan, electrical network...  Regrouping of businesses, neighboring factories, partner networks Experience from feedback, assistance, advice, … At a local level Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

42. Environmental actors that can provide useful information are :  Ministry for the protection of the environment Regulations, subsidies, research, environmental information,…  Ministry for industries Information on the control of machines, subsidies for investing in wastewater treatment plants, air filtration... On a national level Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

43.  Trade unions / Occupation associations Advice, expertise adapted to the paint industry, assistance programs common to other industries,...  Standardization organizations Guidance documents, national standards,…  Universities / research centers Research, innovations, cleaner processes,… On a national level Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

44. Environmental actors that can provide useful information are :  UNO (United Nations Organization) United Nations Environment Program (UNEP)  OHSA (Occupational Health and Safety Administration)  NFPA (National Fire Protection Association)  ISO (International standard organization) Standards, ISO 14001,… On an international level Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

45. WaterAirWastes Grounds Industrial installations LandscapeFauna Flora Wastewater treatment plant manager Maintenance /ventilation super- intendent Waster manager Site manager-landscaper -Painter / Fishing associations - air analyses providers -weather stations -Municipal waste collectors -Environmental and geological survey agencies -Environmental and industrial authorities -neighborhoods -Mayor -Environmental authorities and geological survey agencies - Wildlife services -Agricultural and forest management authorities Ministry of the environment -Water resource services - Ministry of the environment ONU Associations (W.W.F….) Level Field Example in France Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

46. Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France Environmental actors : Quiz

47. Key points : In order to define which the environmental actors, their roles, and the fields in which they intervene, it is best to categorize them in the following way : Levels of influence FieldsRoles  Factory  Business  Local  National  International  Water  Air  soil  Landscapes  Installations  Fauna / Flora  Wastes  Help / Subvention  Advice / Expertise  Legislation / Standardization  Authorities / Inspection Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

48. Create a directory of the environmental actors : Fill in the table: Directory of environmental actors Quiz Key points Exercises THE ENVIRONMENT Session 3 : The environmental actors The different roles of the actors The different fields The different levels of information Within the factory Within the Sigmakalon group At a local level On a national level On an international level Example in France

49. Become familiar with the regulations and risks of penalties  Regulations  Responsabilies Create la veille réglementaire du site Session 1 : A global approach of the environment Session 2 : The sensibility of the environmental surroundings Session 3 : The environmental actors Session 4 : Regulations and environmental responsibilities THE ENVIRONMENT

50. ENVIRONNEMENT GLOBAL Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk Quiz Key points Exercises  Regulations are made of general texts (codes, laws,...) and applicable texts (decrees...).  Regulations come from the highest level of the country (Example : environmental ministry).  Regulations are organized in various environment fields (ex : air, water, landscapes...) General points

51. ENVIRONNEMENT GLOBAL Quiz Key points Exercises Paint industries must respect obligations coming from various levels : International treaties Local rules Requirements of Sigmakalon Federal regulations Various levels (1/3) Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

52. ENVIRONNEMENT GLOBAL Quiz Key points Exercises Various levels (2/3)  Rules inside the site interior rules environmental policy of the site  Requirements of Sigmakalon environmental policy of the branch requirements based on the French (and European) regulations in the absence of federal regulations Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

53. ENVIRONNEMENT GLOBAL Quiz Key points Exercises Various levels (3/3)  Local rules Rules of the village, the town, the territory  Federal regulations Laws, decrees, orders,…  International treaties and amendments Protocols (ex : Kyoto protocol) United Nations Environmental Program (UNEP) Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

54. ENVIRONNEMENT GLOBAL Quiz Key points Exercises Environmental regulations are divided into various fields : Air Fauna / Flora Industrial installations Wastes Soil Water Various fields Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

55. ENVIRONNEMENT GLOBAL Quiz Key points Exercises Regulatory survey Regulations evolve regularly. It is thus necessary to create a regulatory surveying tool which will make it possible to detect the new texts. This survey must be done regularly, for example each month. An exhaustive regulatory surveying tool is the best guarantee :  for legal safety of the site,  for being able to anticipate the investments necessary be conform.  to satisfy the requirements of partners : customers, shareholders, bankers, insurers and public partners...  a good relationship the area around the site. Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

56. ENVIRONNEMENT GLOBAL Quiz Key points Exercises Information sources How can one find regulatory texts ? Several means for collecting information are possible according to countries :  A CD Rom up-dated monthly by companies  Internet sites : “Government printing office " of the country  A regulatory survey done by associations or programs such as Coatings Care or the International Paint and Printing Ink Council (IPPIC)  Local authorities : Prefectures, ministries  Information transmitted by the branch and the Business Unit MPC&DI Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

57. ENVIRONNEMENT GLOBAL Quiz Key points Exercises  The environmental regulations define obligations aiming to respect the environment.  Neglecting these obligations can lead to penalties  The principle of environmental responsibility aims to apply programs such as “pay-as-you-throw”. Definitions Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

58. ENVIRONNEMENT GLOBAL Quiz Key points Exercises To apply the principle of environmental responsibility, the following are necessary :  one (or several) identifiable author(s)  the polluter ;  that the damages are real and quantifiable  pollution (of a river, of the air, of the soil…)  a link established between the polluter(s) and the damages. Thus, the principle can apply for example whenever the damage results from industrial accidents or a progressive pollution caused by paint substances or wastes introduced into the environment. Conditions of application Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

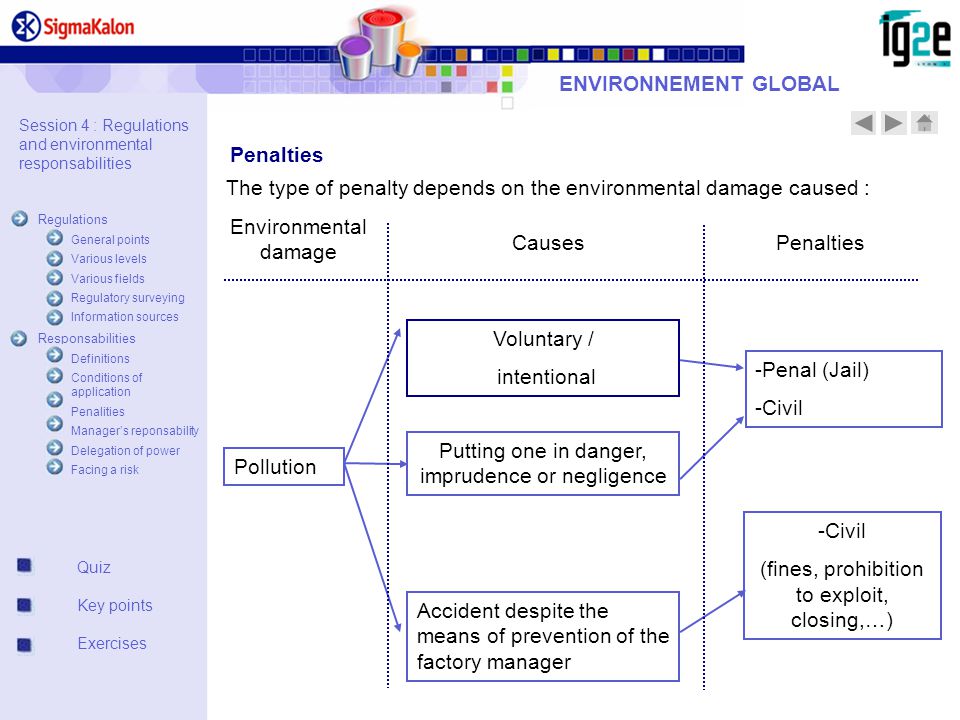

59. ENVIRONNEMENT GLOBAL Quiz Key points Exercises Penalties Voluntary / intentional Putting one in danger, imprudence or negligence Accident despite the means of prevention of the factory manager -Penal (Jail) -Civil (fines, prohibition to exploit, closing,…) Pollution The type of penalty depends on the environmental damage caused : Environmental damage CausesPenalties Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

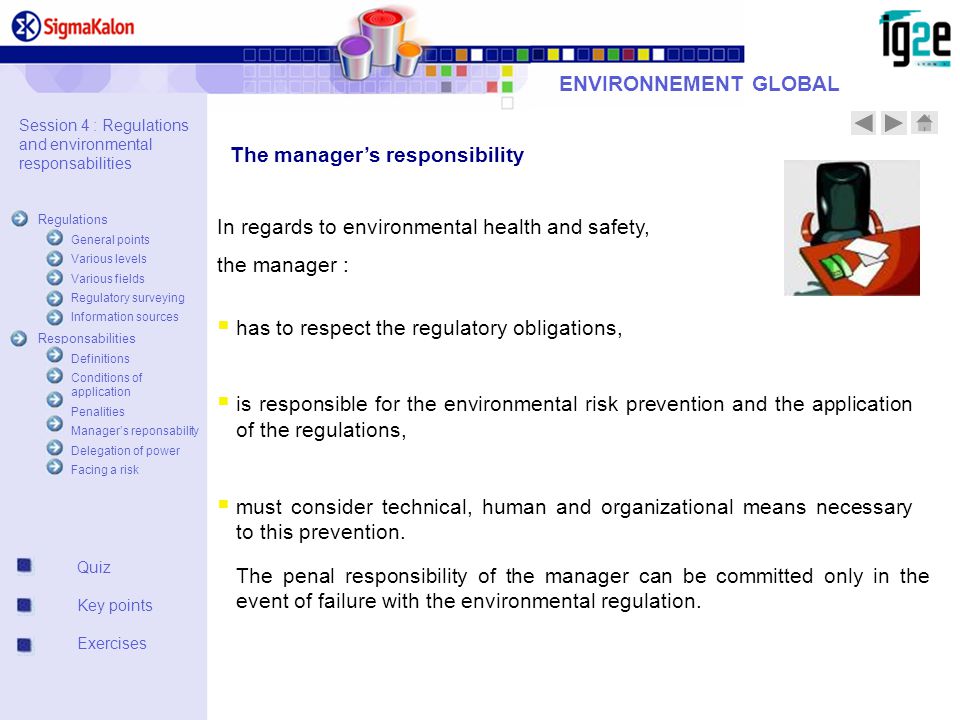

60. ENVIRONNEMENT GLOBAL Quiz Key points Exercises The manager’s responsibility In regards to environmental health and safety, the manager :  has to respect the regulatory obligations,  is responsible for the environmental risk prevention and the application of the regulations,  must consider technical, human and organizational means necessary to this prevention. The penal responsibility of the manager can be committed only in the event of failure with the environmental regulation. Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

61. ENVIRONNEMENT GLOBAL Quiz Key points Exercises  The manager can transfer, partly, his penal responsibility on another designated person : it is the delegation of power.  This delegation of power is possible in big companies when the manager does not have enough time to exert his power of surveillance in regards to environment.  The delegation of power is valid only if it is precise and if the employee with the delegation is provided : authority allowing the observance of the regulation, competence, means necessary to fulfill his mission. Delegation of power Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

62. ENVIRONNEMENT GLOBAL Quiz Key points Exercises  The paint activity inevitably includes a share of risk. This risk must be identified and managed not to choke the manager and not to oblige him to reason only in terms of sanction.  To this situation, the manager must : Treat the risk by implementing all the possible technical means to reduce it ; Support the risk by accepting it if technical means are not sufficient ; Transfer the risk to the insurer if he can not support it. Facing a risk Warning Transferring the risk to the insurer does not remove the manager’s responsibility, but it help him in the event of financial sanctions. Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

63. ENVIRONNEMENT GLOBAL Environmental regulation and responsability : Quiz Quiz Key points Exercises Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

64. ENVIRONNEMENT GLOBAL Quiz Key points Exercises Key points : The environmental regulation is organized in various fields and comes from the highest national level. A regulatory survey is necessary for the legal safety of the site. Sot that the principle of environmental responsibility applies, an author (polluter), a damage and a link of causality between the two must exist. Neglecting the regulations can involve civil and penal sanctions. The manager’s environmental responsibility can partly be transferred, under certain conditions, by a delegation of power. Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk

65. ENVIRONNEMENT GLOBAL Quiz Key points Exercises Establish a regulatory survey tool on the site : To establish the regulatory survey tool on the site, classify the regulations found in the different environmental fields. Fill in the Excel file « Regulatory survey » Session 4 : Regulations and environmental responsabilities Regulations General points Various levels Various fields Regulatory surveying Information sources Responsabilities Definitions Conditions of application Penalities Manager’s reponsability Delegation of power Facing a risk
