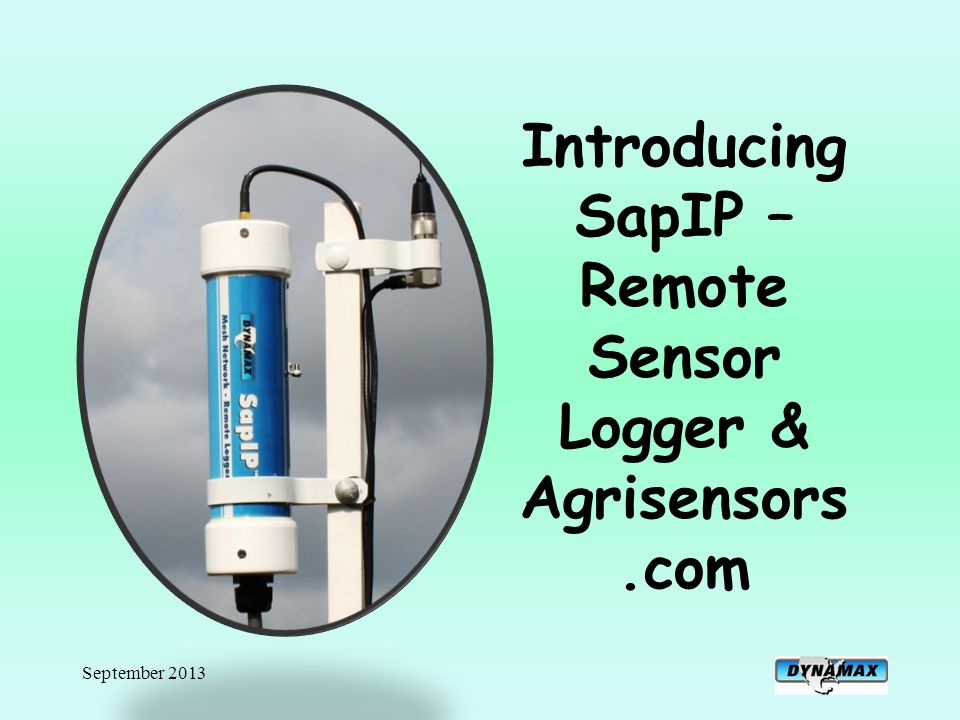

2. September 2013 Introducing SapIP – Remote Sensor Logger & Agrisensors.com

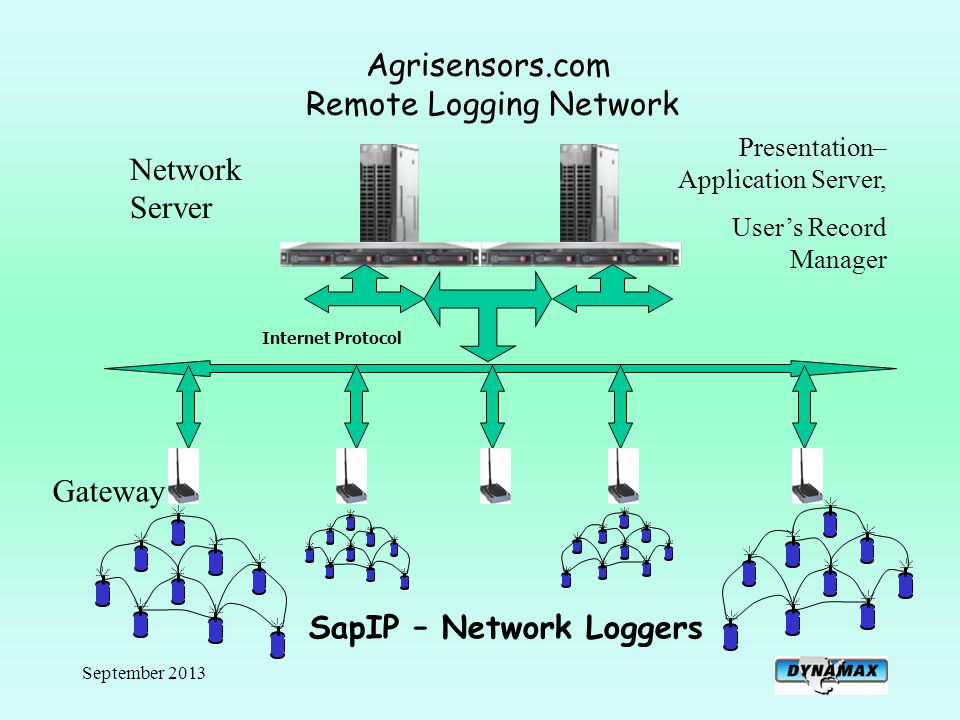

3. September 2013 Agrisensors.com Remote Logging Network Internet Protocol Presentation– Application Server, User’s Record Manager Network Server Gateway SapIP – Network Loggers

4. September 2013 Why Do We Want SapIP? Data on the spot – wireless mesh radio network Remote access from anywhere with internet Remote Control and Monitoring Status Real Time Data – updated within minutes. Reduce cable cost and travel cost Improve data storage capacity and multi point access Logger Storage and Automatic network storage NO user programming required – all preconfigured

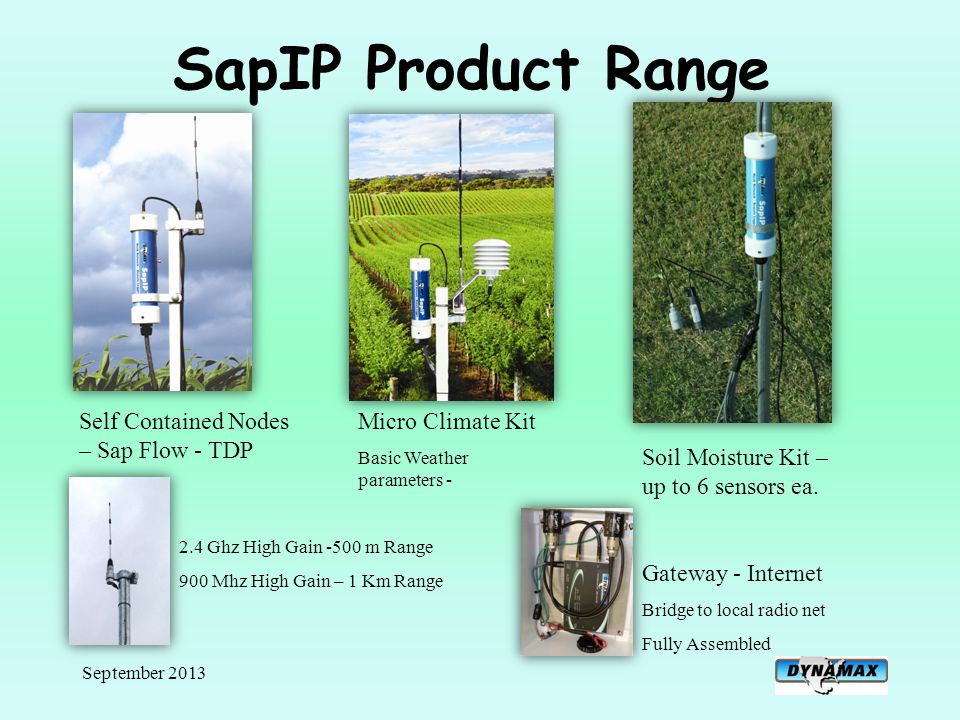

5. September 2013 SapIP Product Range Self Contained Nodes – Sap Flow - TDP Micro Climate Kit Basic Weather parameters - Soil Moisture Kit – up to 6 sensors ea. Gateway - Internet Bridge to local radio net Fully Assembled 2.4 Ghz High Gain -500 m Range 900 Mhz High Gain – 1 Km Range

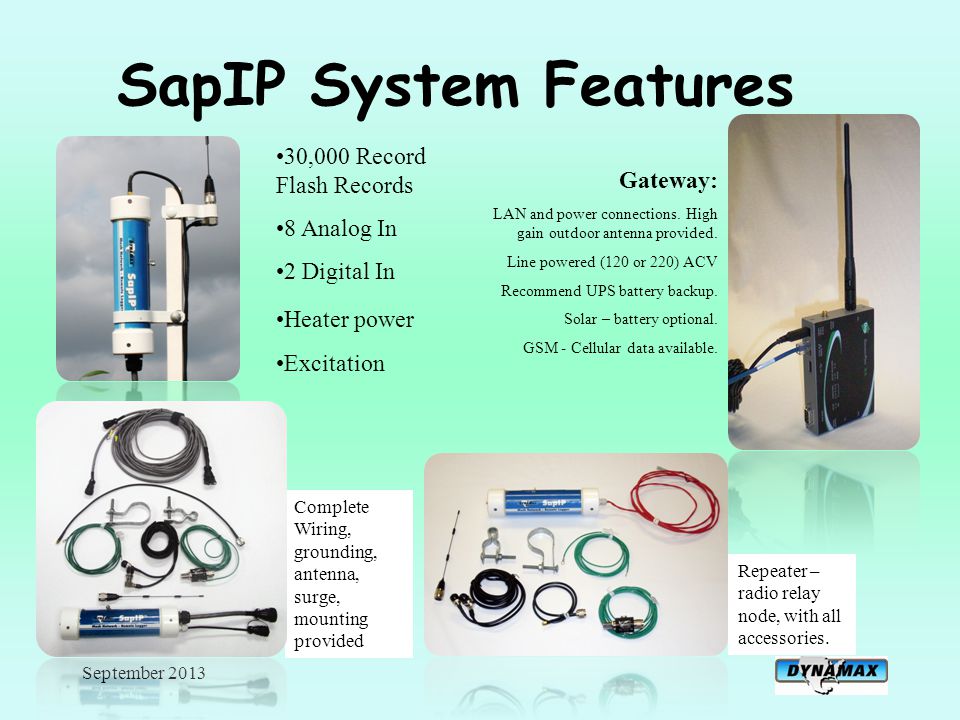

6. September 2013 SapIP System Features Easy Mounting Complete Wiring, grounding, antenna, surge, mounting provided Gateway: LAN and power connections. High gain outdoor antenna provided. Line powered (120 or 220) ACV Recommend UPS battery backup. Solar – battery optional. GSM - Cellular data available. 30,000 Record Flash Records 8 Analog In 2 Digital In Heater power Excitation Repeater – radio relay node, with all accessories.

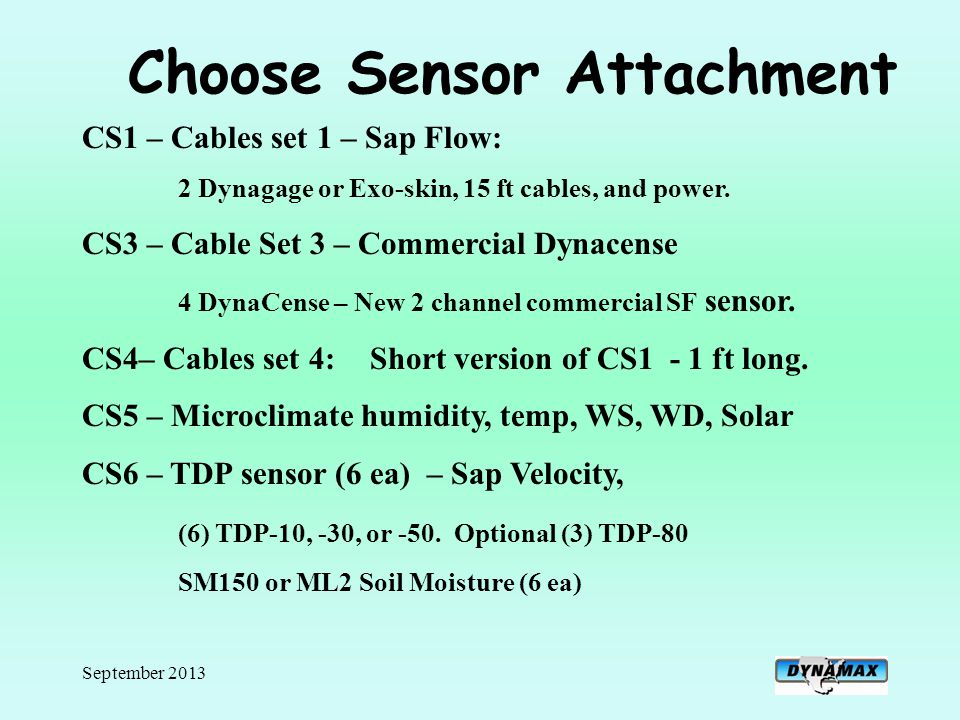

7. September 2013 Choose Sensor Attachment CS1 – Cables set 1 – Sap Flow: 2 Dynagage or Exo-skin, 15 ft cables, and power. CS3 – Cable Set 3 – Commercial Dynacense 4 DynaCense – New 2 channel commercial SF sensor. CS4– Cables set 4: Short version of CS1 - 1 ft long. CS5 – Microclimate humidity, temp, WS, WD, Solar CS6 – TDP sensor (6 ea) – Sap Velocity, (6) TDP-10, -30, or -50. Optional (3) TDP-80 SM150 or ML2 Soil Moisture (6 ea)

8. September 2013 Wireless Benefits Distributed wide-area data represents real situations. Data from any internet connected computer browser. On-line automatic data presentation graphs, and analysis. Data computation is all on-line and verifiable. On-line support from Dynamax expertise On-line diagnostics for problems and data questions.

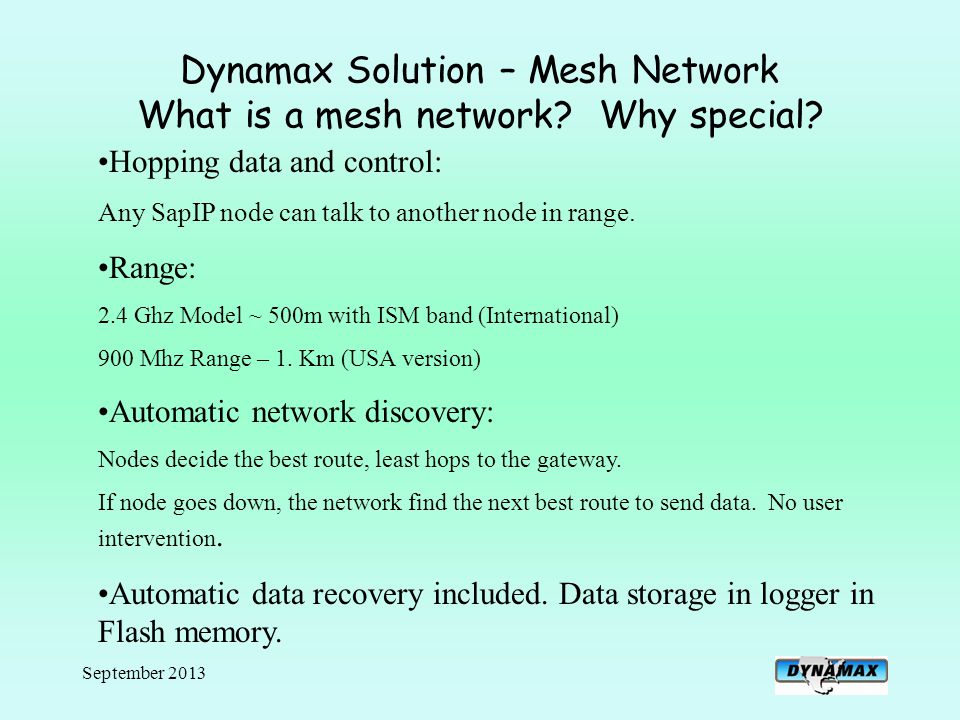

9. September 2013 Dynamax Solution – Mesh Network What is a mesh network? Why special? Hopping data and control: Any SapIP node can talk to another node in range. Range: 2.4 Ghz Model ~ 500m with ISM band (International) 900 Mhz Range – 1. Km (USA version) Automatic network discovery: Nodes decide the best route, least hops to the gateway. If node goes down, the network find the next best route to send data. No user intervention. Automatic data recovery included. Data storage in logger in Flash memory.

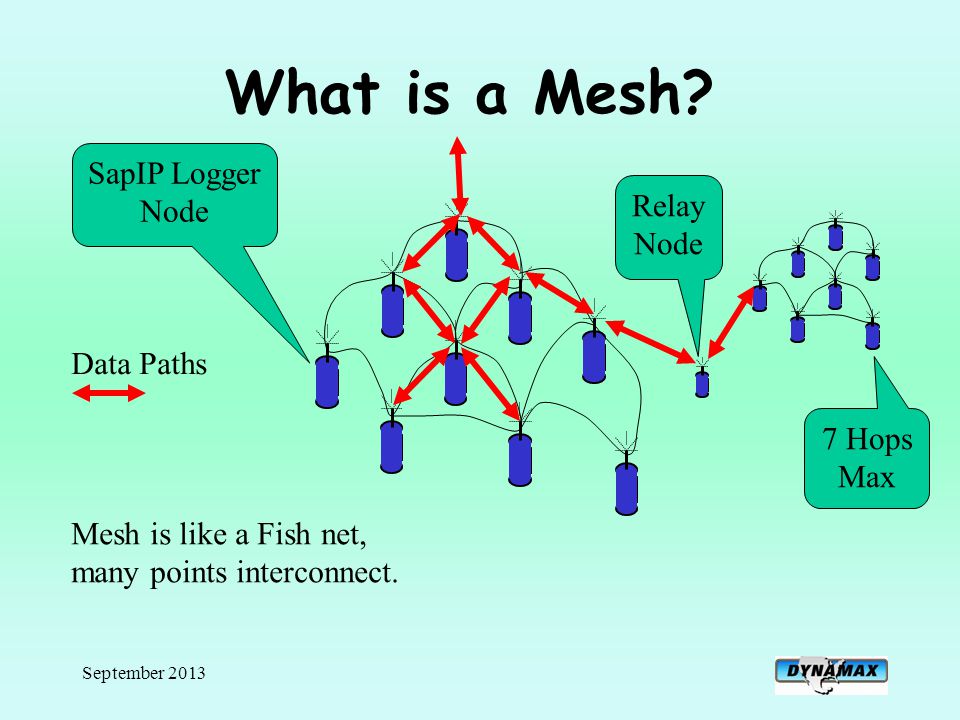

10. September 2013 What is a Mesh? Data Paths Mesh is like a Fish net, many points interconnect. Relay Node SapIP Logger Node 7 Hops Max

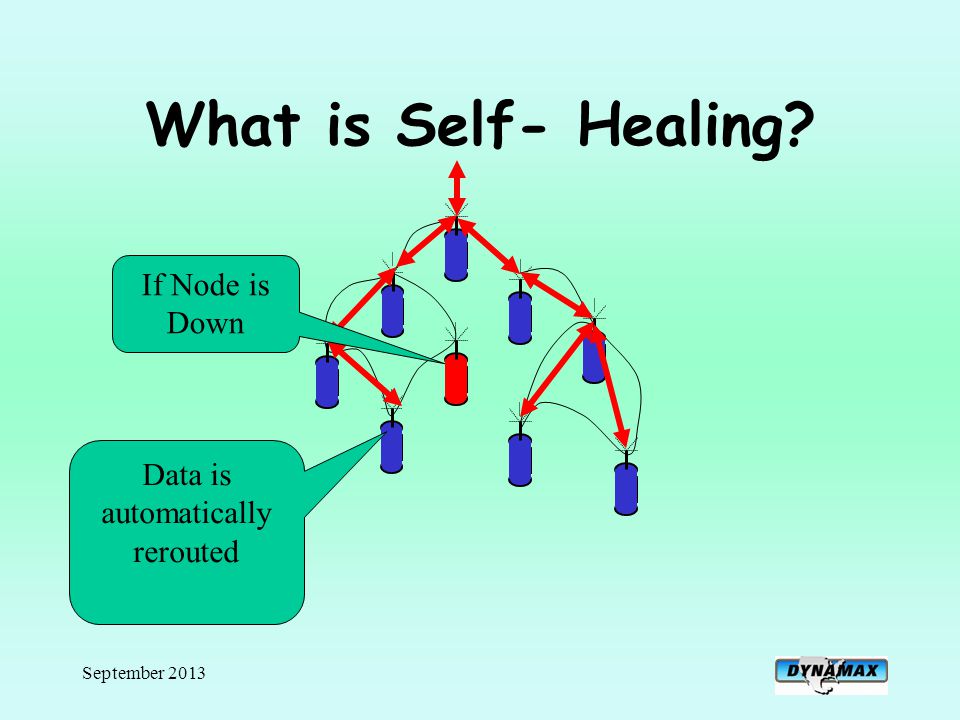

11. September 2013 What is Self- Healing? If Node is Down Data is automatically rerouted

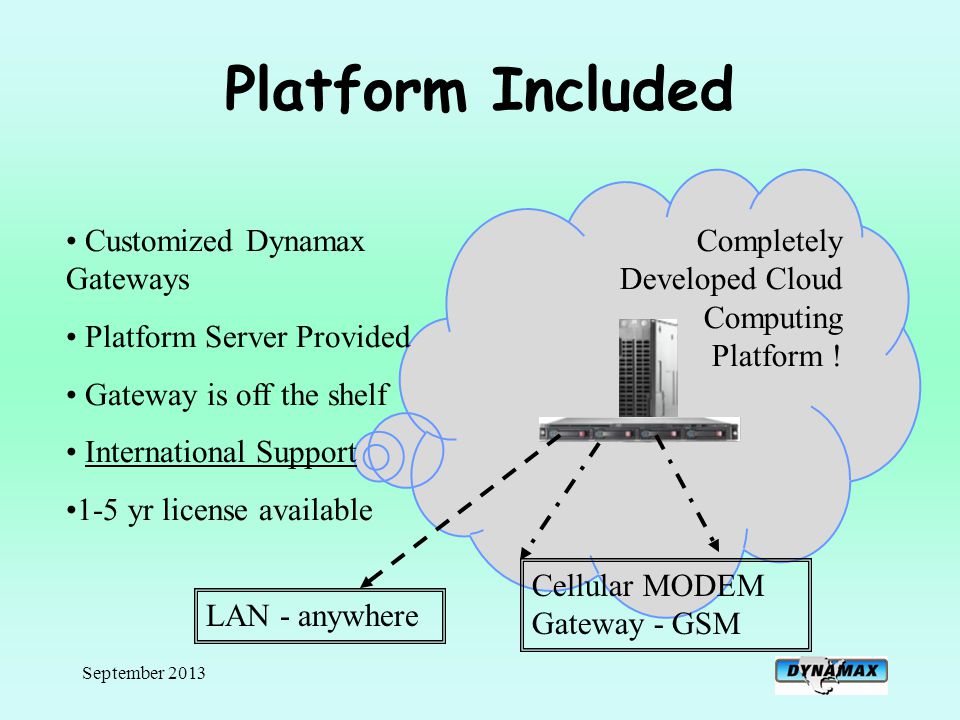

12. September 2013 Platform Included LAN - anywhere Completely Developed Cloud Computing Platform ! Cellular MODEM Gateway - GSM Customized Dynamax Gateways Platform Server Provided Gateway is off the shelf International Support 1-5 yr license available

13. September 2013 WEB Access Data ! Agrisensors.com Dynamax Server – Access and Data Security Control SapIP Devices Start and Stop Devices Modify Setup Collect Data Report Data Integrity Locate on Satellite Map

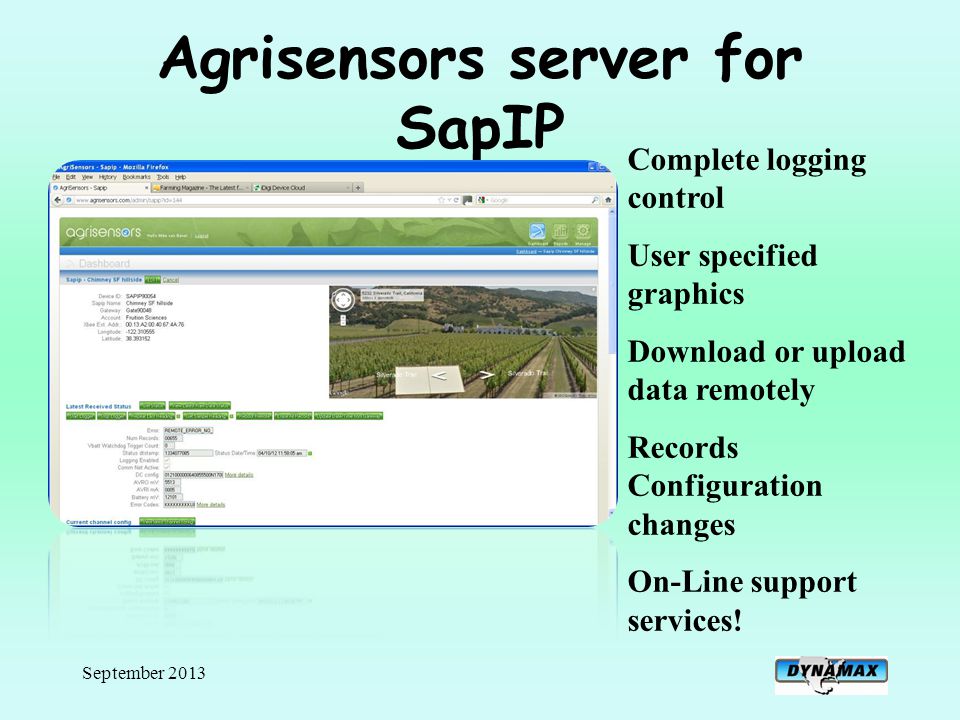

14. September 2013 Agrisensors server for SapIP Complete logging control User specified graphics Download or upload data remotely Records Configuration changes On-Line support services!

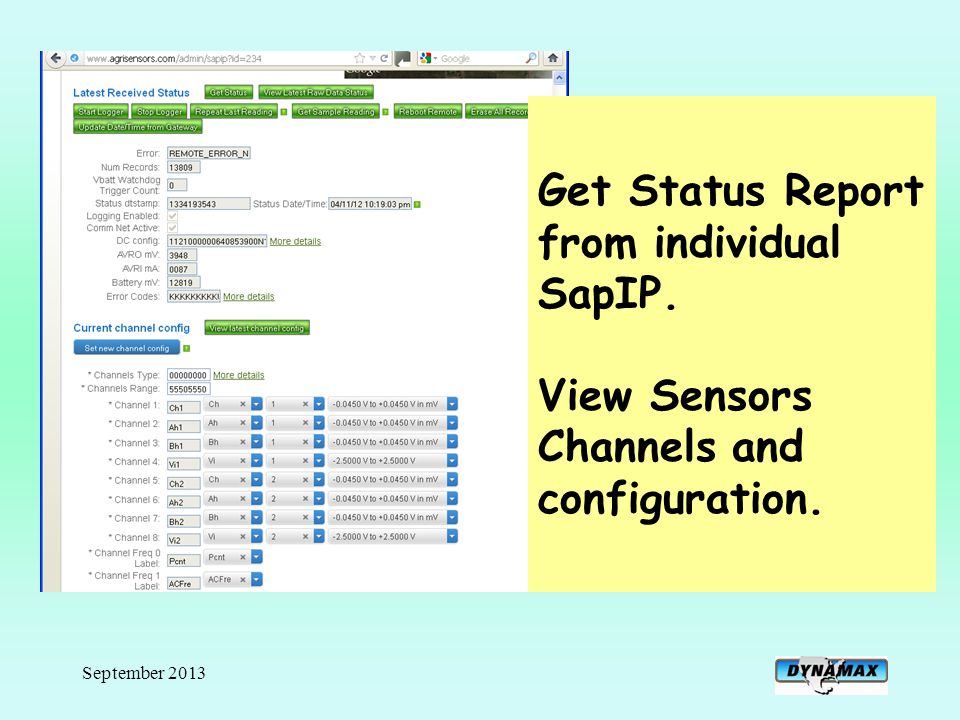

15. September 2013 Get Status Report from individual SapIP. View Sensors Channels and configuration.

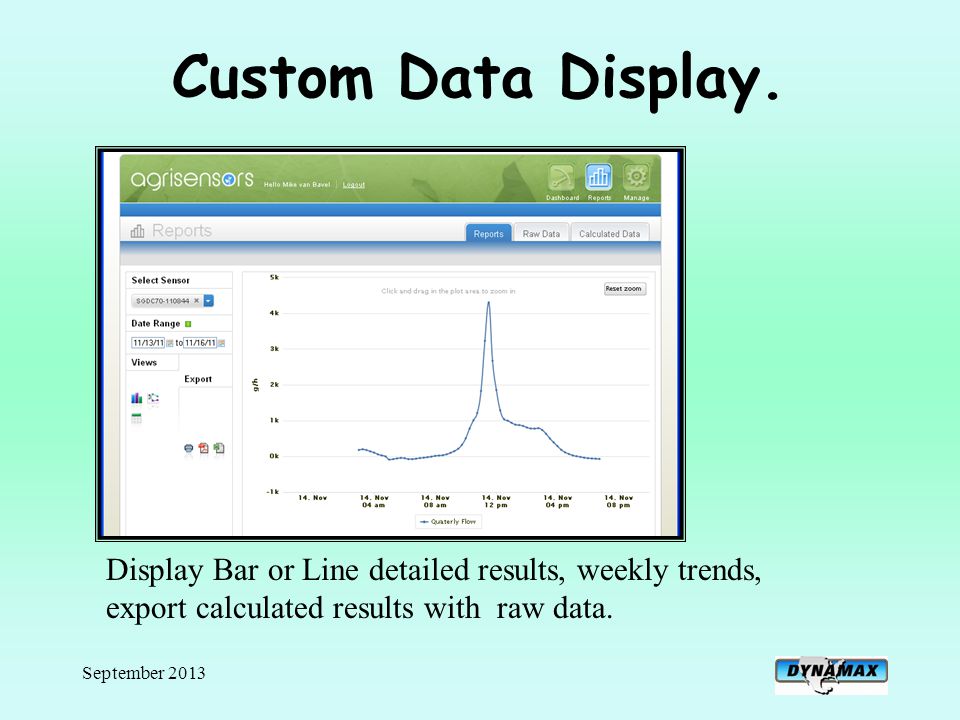

16. September 2013 Custom Data Display. Display Bar or Line detailed results, weekly trends, export calculated results with raw data.

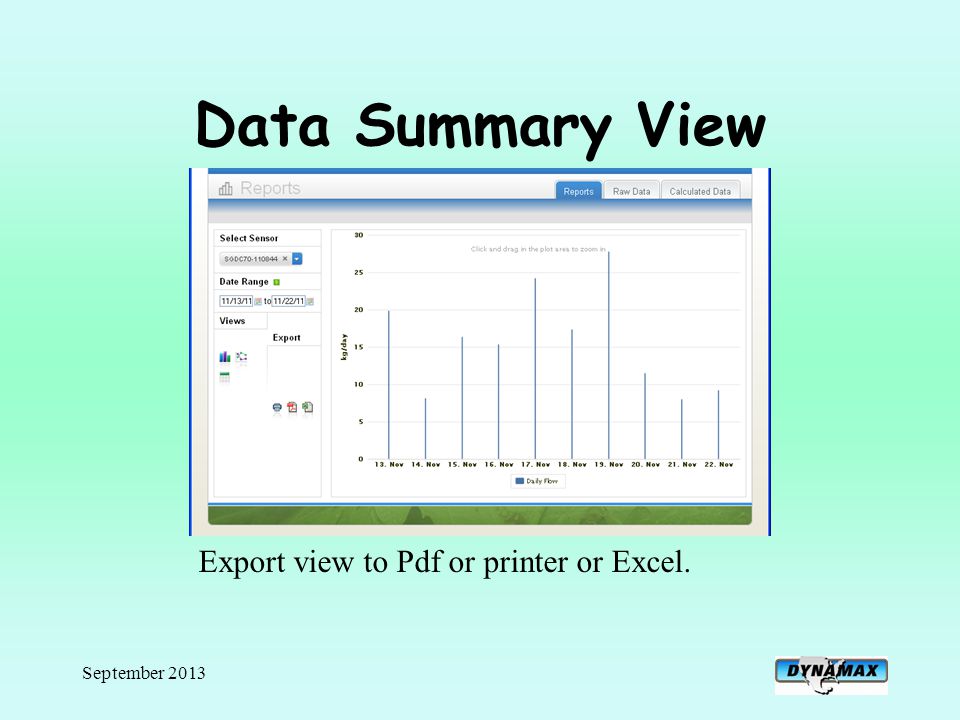

17. September 2013 Data Summary View Export view to Pdf or printer or Excel.

18. September 2013 Download Raw Data and Calculated Results

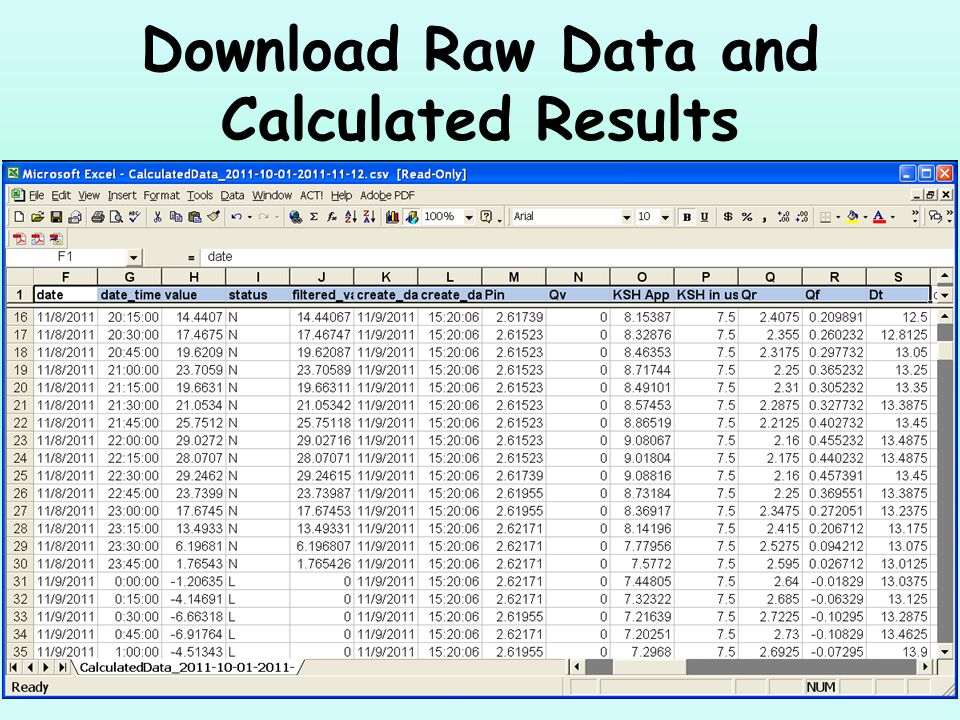

19. September 2013 Platform Services Include: User Login Security – Passwords and encryption Remote Network Maintenance Data Support On-Line from Houston and International Rep VPN – Virtual Private Network to government servers or Educational networks. Time Server – Synchronization of clocks Remote Data network management, statistics 1-5 yr Software license available, based on SapIp qty.

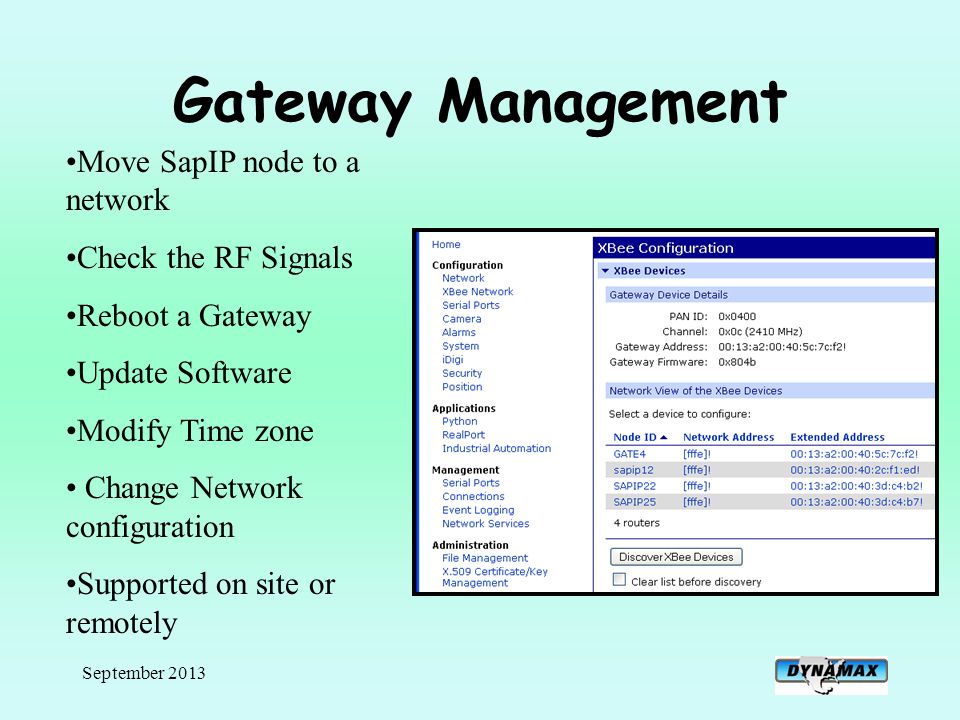

20. September 2013 Gateway Management Move SapIP node to a network Check the RF Signals Reboot a Gateway Update Software Modify Time zone Change Network configuration Supported on site or remotely

21. A new direct USB dashboard tool to set-up, deploy and test SAPIP in the field or the lab. Introducing SapIP Direct- DASH Attach Windows PC to the USB port of the SapIP to control, and monitor. Used for stand- alone operation as well. Retrieves data and exports raw results to Excel, Agrisensors, or local charts. September 2013

22. SapIP – Direct Dash Real-Time Charts & Data base view September 2013

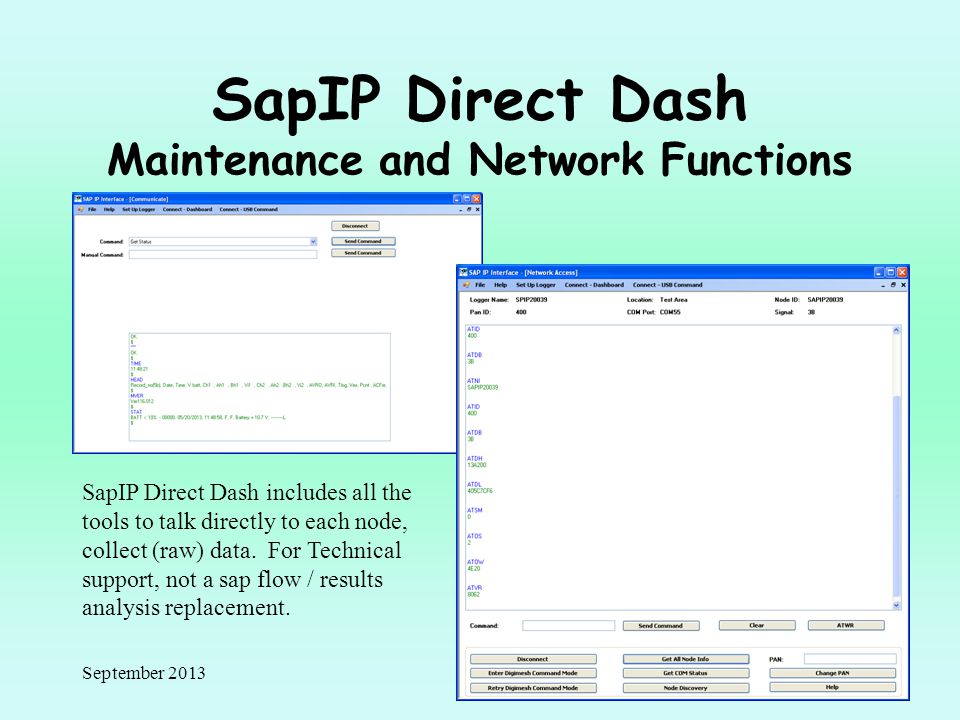

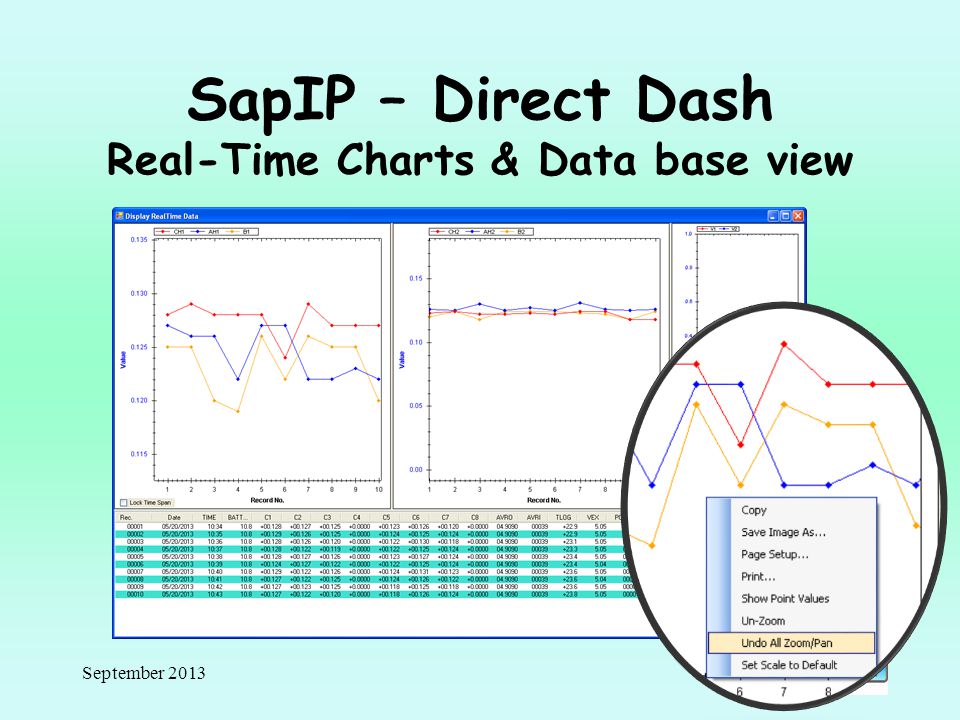

23. SapIP Direct Dash Maintenance and Network Functions September 2013 SapIP Direct Dash includes all the tools to talk directly to each node, collect (raw) data. For Technical support, not a sap flow / results analysis replacement.

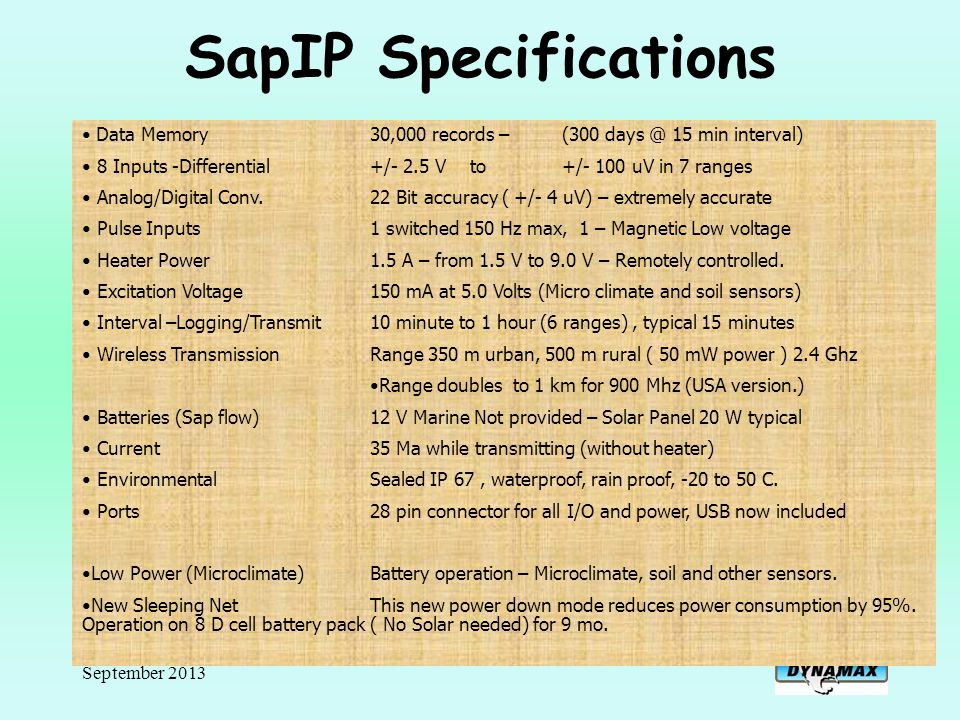

24. September 2013 SapIP Specifications Data Memory 30,000 records – (300 days @ 15 min interval) 8 Inputs -Differential+/- 2.5 V to +/- 100 uV in 7 ranges Analog/Digital Conv. 22 Bit accuracy ( +/- 4 uV) – extremely accurate Pulse Inputs1 switched 150 Hz max, 1 – Magnetic Low voltage Heater Power1.5 A – from 1.5 V to 9.0 V – Remotely controlled. Excitation Voltage150 mA at 5.0 Volts (Micro climate and soil sensors) Interval –Logging/Transmit10 minute to 1 hour (6 ranges), typical 15 minutes Wireless TransmissionRange 350 m urban, 500 m rural ( 50 mW power ) 2.4 Ghz Range doubles to 1 km for 900 Mhz (USA version.) Batteries (Sap flow)12 V Marine Not provided – Solar Panel 20 W typical Current 35 Ma while transmitting (without heater) EnvironmentalSealed IP 67, waterproof, rain proof, -20 to 50 C. Ports28 pin connector for all I/O and power, USB now included Low Power (Microclimate)Battery operation – Microclimate, soil and other sensors. New Sleeping NetThis new power down mode reduces power consumption by 95%. Operation on 8 D cell battery pack ( No Solar needed) for 9 mo.

25. September 2013 Deployment Strategy Sap Flow Network with complete solutions. Microclimate and Soil Monitoring High reliability with fail safe features Research Team - Enterprise management Large Scale Farming –Production monitoring. Irrigation Decisions. Newest Remote Monitoring Technology Information presented from wide areas.

26. September 2013 Will This Work for You? Only High resolution logger with integrated Radio to Internet data. Platform is scalable to cover large areas. Stand alone option – USB data device Scientific Grade Input performance ppm resolution (.1 uV) Very Flexible sensor configuration Price is ½ of comparable 10 channel loggers. Package is self contained and durable, without the high price. Low – cost with high reliability sap flow sensors THANK YOU FOR YOUR INTEREST
