1. How to Convert ASIC Code to FPGA Code Part 1

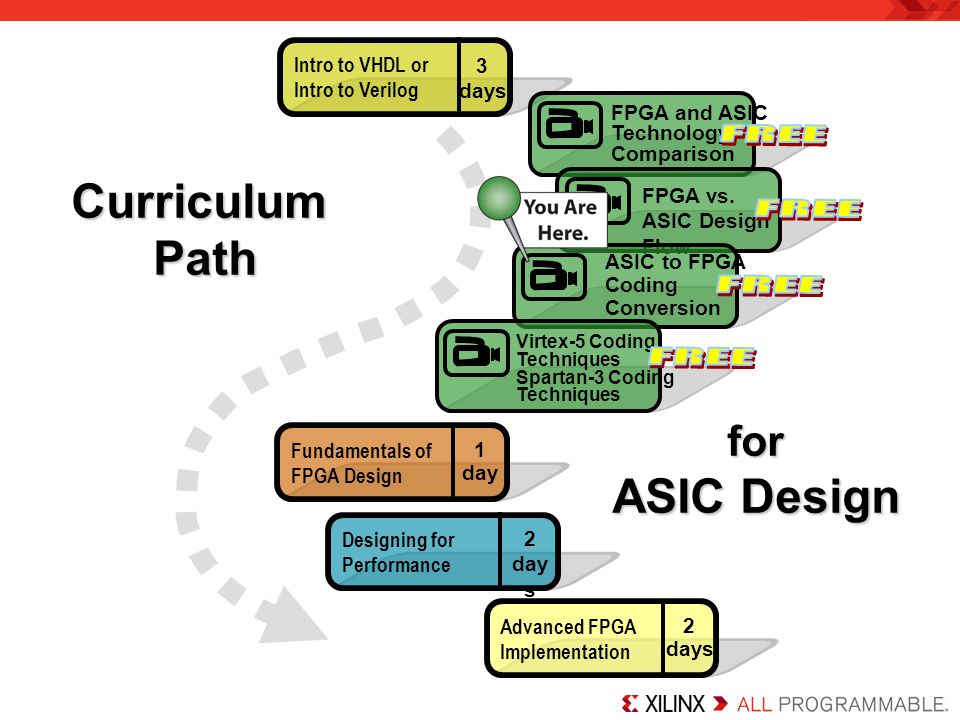

2. Fundamentals of FPGA Design 1 day Designing for Performance 2 day s Advanced FPGA Implementation 2 days Intro to VHDL or Intro to Verilog 3 days FPGA and ASIC Technology Comparison FPGA vs. ASIC Design Flow ASIC to FPGA Coding Conversion Virtex-5 Coding Techniques Spartan-3 Coding Techniques CurriculumPath for ASIC Design FPGA and ASIC Technology Comparison

3. Welcome If you are an experienced ASIC designer transitioning to FPGAs, this course will help you reduce your learning curve by leveraging your ASIC experience Careful attention to how a design can be optimized for an FPGA, will help you create a fast and reliable FPGA design

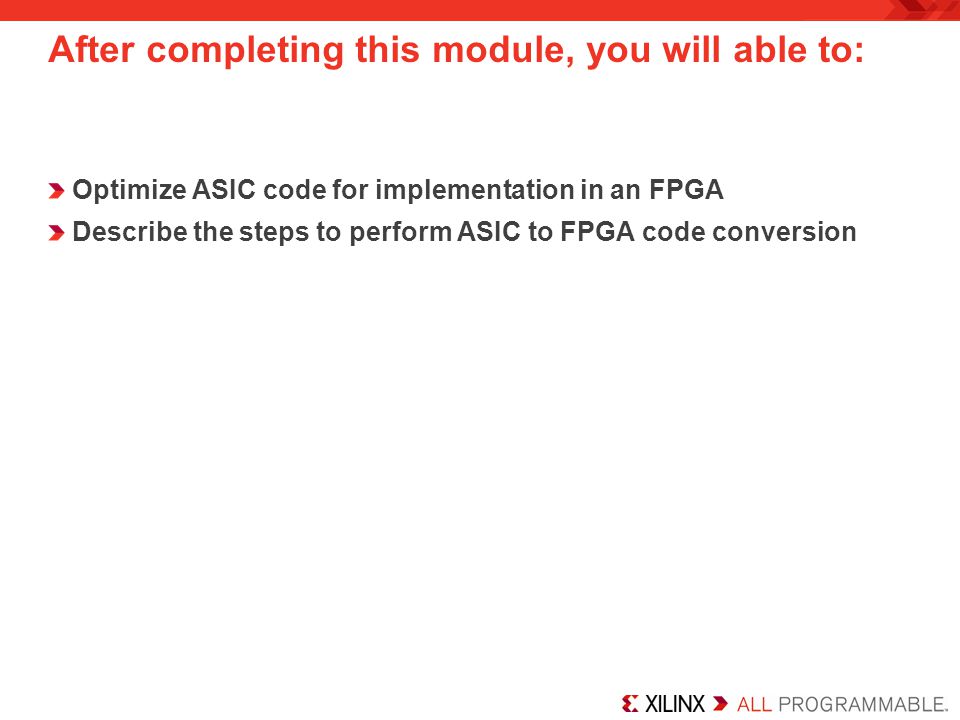

4. After completing this module, you will able to: Optimize ASIC code for implementation in an FPGA Describe the steps to perform ASIC to FPGA code conversion

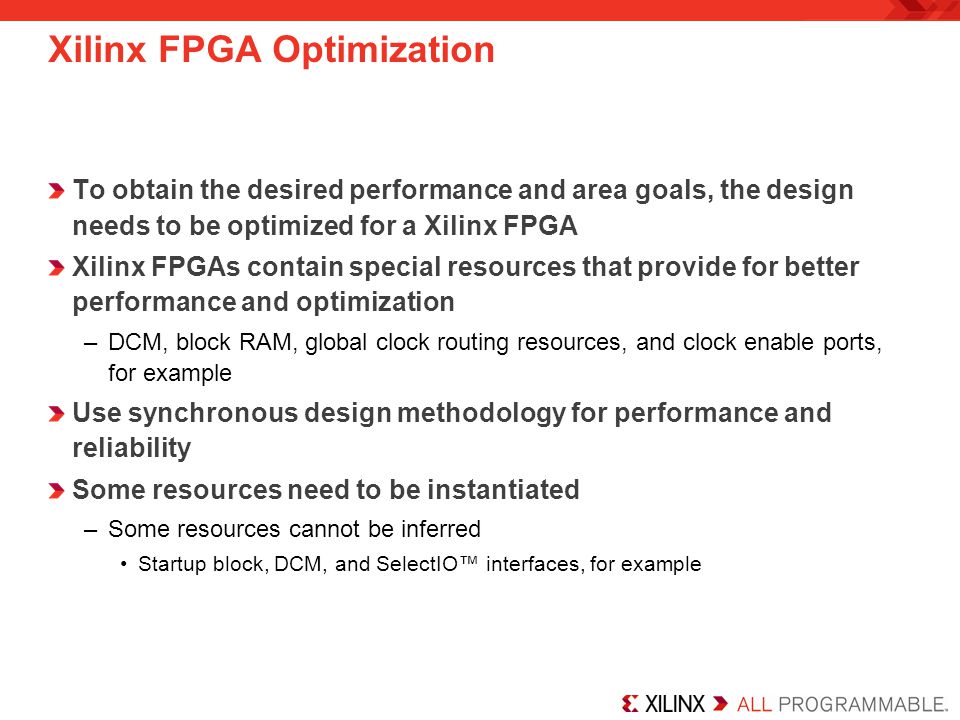

5. Xilinx FPGA Optimization To obtain the desired performance and area goals, the design needs to be optimized for a Xilinx FPGA Xilinx FPGAs contain special resources that provide for better performance and optimization –DCM, block RAM, global clock routing resources, and clock enable ports, for example Use synchronous design methodology for performance and reliability Some resources need to be instantiated –Some resources cannot be inferred Startup block, DCM, and SelectIO™ interfaces, for example

6. Xilinx-Specific Resources Inference –Check your synthesis tool’s solutions database—often best for primary logic resources Instantiation (from the Architecture Wizard) –Best for SERDES (ChipSync™ Wizard), DCM (DCM Wizard), or PLL components Instantiation (from the Core Generator™ tool) –Best for DSP, block RAM, larger components, and custom components Instantiation (from the Memory Interface Generator) –Best for memory controllers Instantiation (from the Xilinx Unified Library) –Best for startup blocks, I/O buffers, or ANY resource

7. Instantiation Rules Rule of thumb: Instantiate only when you cannot infer a proper resource or when inference does not provide acceptable results Each synthesis tool requires different resources to be instantiated, while others can infer resources if an additional synthesis tool attribute is applied –So check your vendors solution data base (Exemplar, Synopsys, and XST)

8. Synthesis Settings Synthesis tools help you to achieve higher performance by –Duplicating registers and logic to reduce fanout –Extracting state machines to re-encode for one-hot, gray, binary, or two- hot encoding –Replicating the IOB three-state register Allows the register to be placed in the IOB by providing faster clock-to-out –Optimizing for area or speed on a module-by-module basis –Providing constraint-driven optimization (Synopsys, Exemplar, and XST)

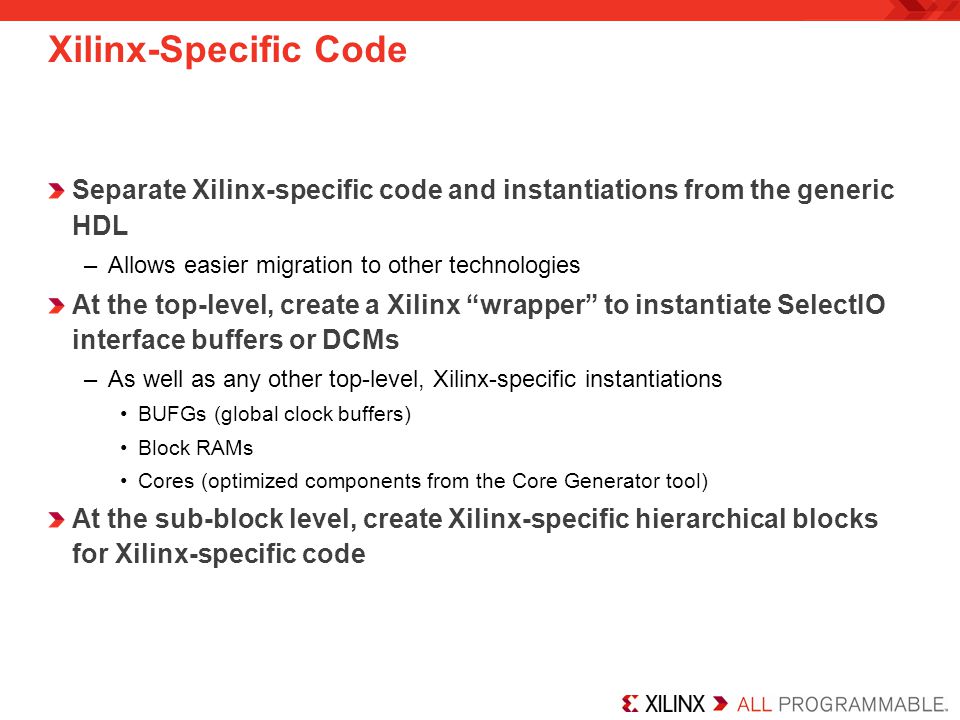

9. Xilinx-Specific Code Separate Xilinx-specific code and instantiations from the generic HDL –Allows easier migration to other technologies At the top-level, create a Xilinx “wrapper” to instantiate SelectIO interface buffers or DCMs –As well as any other top-level, Xilinx-specific instantiations BUFGs (global clock buffers) Block RAMs Cores (optimized components from the Core Generator tool) At the sub-block level, create Xilinx-specific hierarchical blocks for Xilinx-specific code

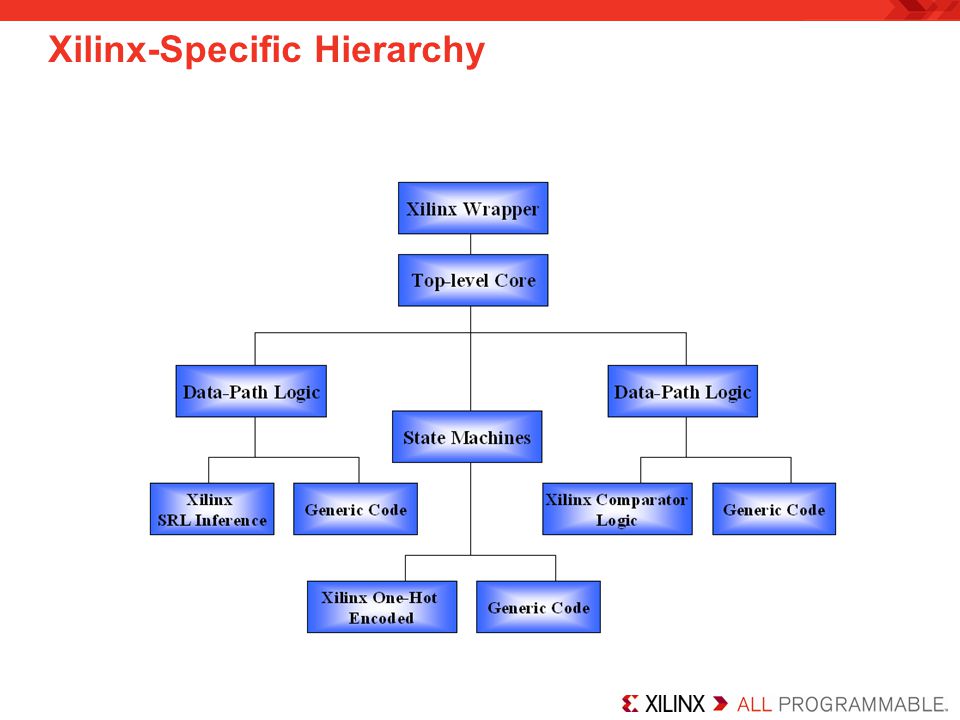

10. Xilinx-Specific Hierarchy

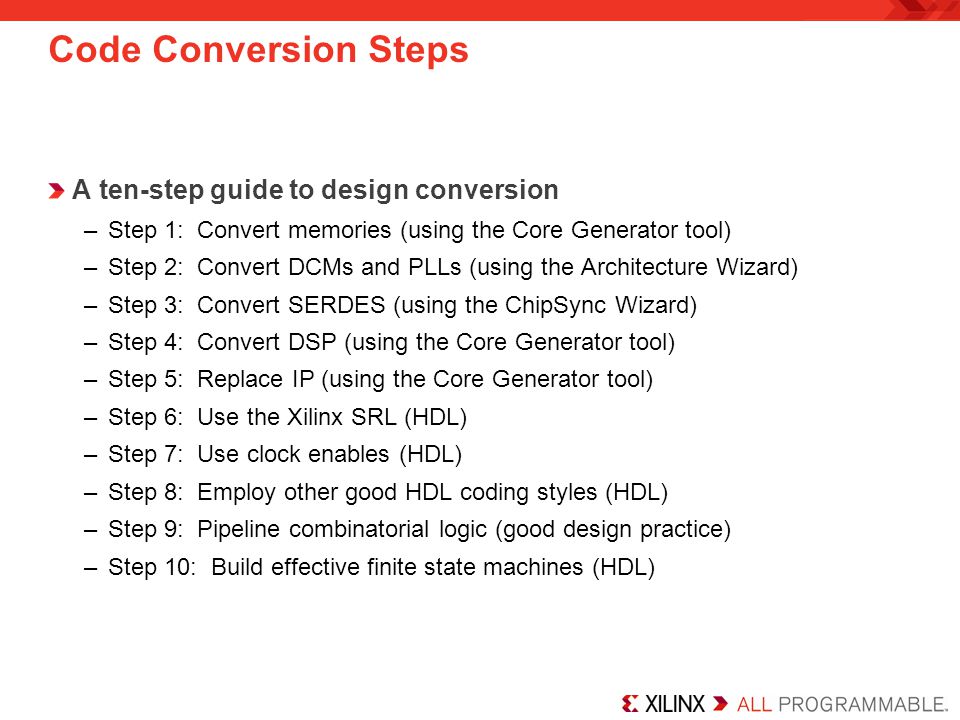

11. Code Conversion Steps A ten-step guide to design conversion –Step 1: Convert memories (using the Core Generator tool) –Step 2: Convert DCMs and PLLs (using the Architecture Wizard) –Step 3: Convert SERDES (using the ChipSync Wizard) –Step 4: Convert DSP (using the Core Generator tool) –Step 5: Replace IP (using the Core Generator tool) –Step 6: Use the Xilinx SRL (HDL) –Step 7: Use clock enables (HDL) –Step 8: Employ other good HDL coding styles (HDL) –Step 9: Pipeline combinatorial logic (good design practice) –Step 10: Build effective finite state machines (HDL)

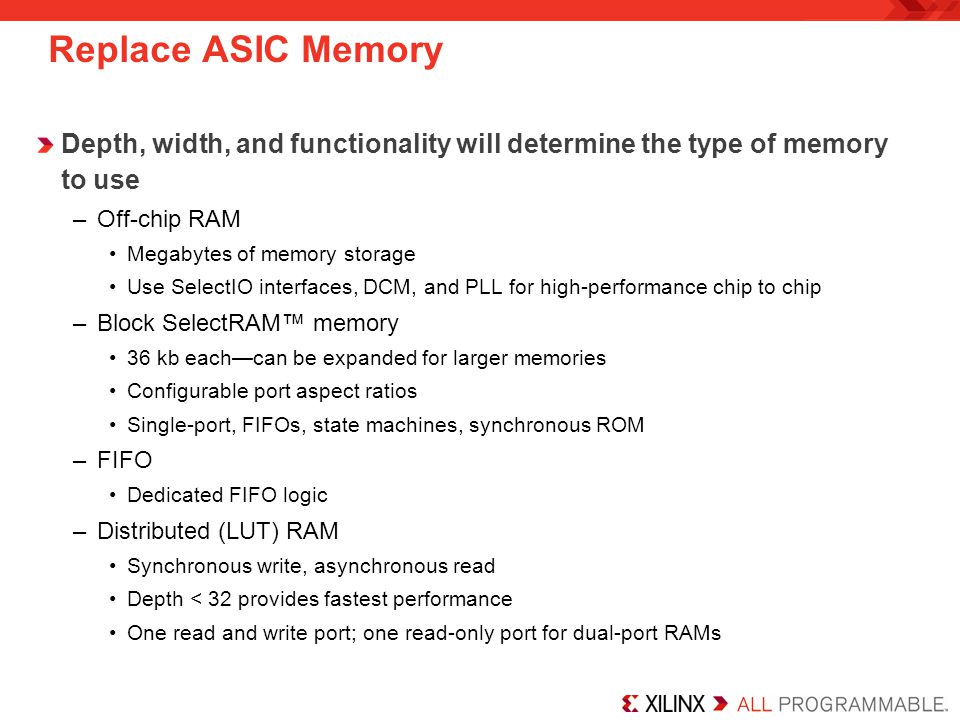

12. Replace ASIC Memory Depth, width, and functionality will determine the type of memory to use –Off-chip RAM Megabytes of memory storage Use SelectIO interfaces, DCM, and PLL for high-performance chip to chip –Block SelectRAM™ memory 36 kb each—can be expanded for larger memories Configurable port aspect ratios Single-port, FIFOs, state machines, synchronous ROM –FIFO Dedicated FIFO logic –Distributed (LUT) RAM Synchronous write, asynchronous read Depth < 32 provides fastest performance One read and write port; one read-only port for dual-port RAMs

13. Off-Chip Memory Controllers for off-chip memory can be implemented in a Xilinx FPGA –Use the Memory Interface Generator (MIG) The SelectIO technology resources allow for direct interaction with many different memory threshold levels –HSTL or SSTL Several downloadable memory controllers available (VHDL and Verilog) from the Xilinx Memory Corner –www.xilinx.com  Technology Solutions  Memory

14. Block SelectRAM Memory Use Simple dual-port and single-port synchronous RAMs can be inferred by Mentor, Synopsys, and XST –Your coding style must include 1) Synchronous write 2) Registered read address 3) Requires synthesis attributes for inference of proper resources For advanced block RAM use, create the RAM with the CORE Generator tool –Configurable aspect ratio, for example Port A – 512 x 8; Port B – 256 x 16 Port A – 1024 x 8; Port B – 1024 x 32

15. type blockram_512x8 is array (0 to 511) of std_logic_vector(7 downto 0); signal mem : blockram_512x8; signal addr_q : std_logic_vector (8 downto 0); begin process (clk) begin if rising_edge(clk) then addr_q <= addr; if we = '1' then mem(conv_integer(addr)) <= di; end if; end process; do <= mem(conv_integer(addr_q)); Block SelectRAM Memory Inference

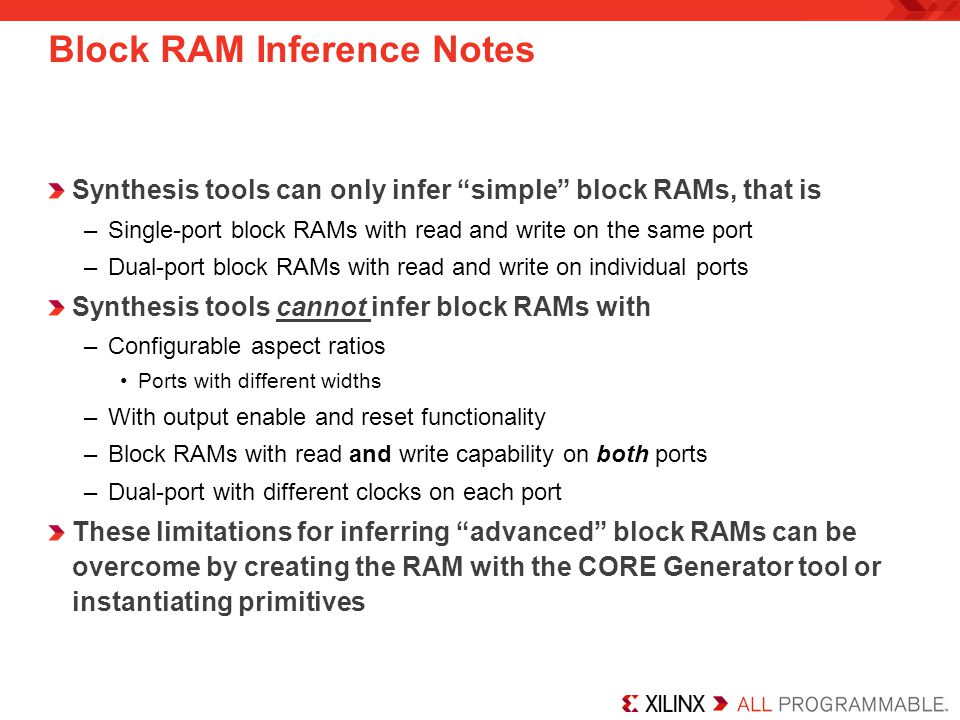

16. Block RAM Inference Notes Synthesis tools can only infer “simple” block RAMs, that is –Single-port block RAMs with read and write on the same port –Dual-port block RAMs with read and write on individual ports Synthesis tools cannot infer block RAMs with –Configurable aspect ratios Ports with different widths –With output enable and reset functionality –Block RAMs with read and write capability on both ports –Dual-port with different clocks on each port These limitations for inferring “advanced” block RAMs can be overcome by creating the RAM with the CORE Generator tool or instantiating primitives

17. Memory Interface Generator Generates a complete memory controller and interface design –Output: RTL, UCF, documentation, and timing analysis VHDL or Verilog –Choose from a predefined catalog of available devices and interfaces –Checks SSO and all pin selection rules –Available as part of the CORE Generator tool (free)

18. Distributed RAM Distributed memory resources can be correctly inferred by Synopsys, Mentor, and XST –All distributed RAMs can be inferred Requires characterization of  1) Synchronous write  2) Asynchronous read –Older Synopsys tools may infer combinatorial feedback loops How would you find out? Can also be created with the CORE Generator tool –This is generally recommended

19. Distributed RAM Example reg [3:0] ram64x4 [0:63]; always @ (posedge clk) if (we) ram64x4[addr] <= din; assign dout = ram64x4[addr];

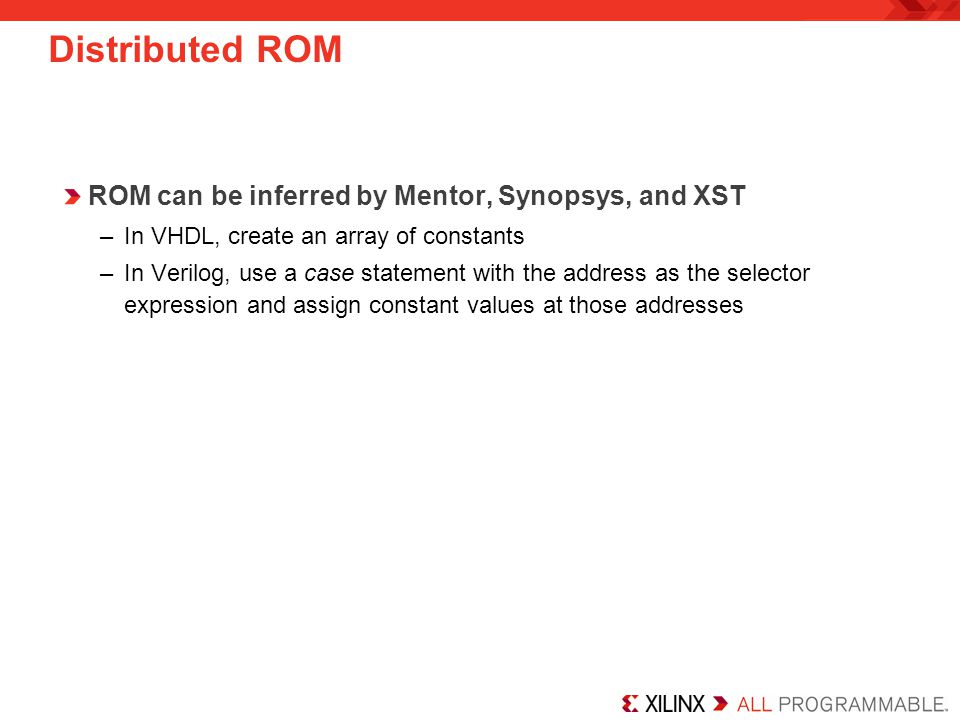

20. ROM can be inferred by Mentor, Synopsys, and XST –In VHDL, create an array of constants –In Verilog, use a case statement with the address as the selector expression and assign constant values at those addresses Distributed ROM

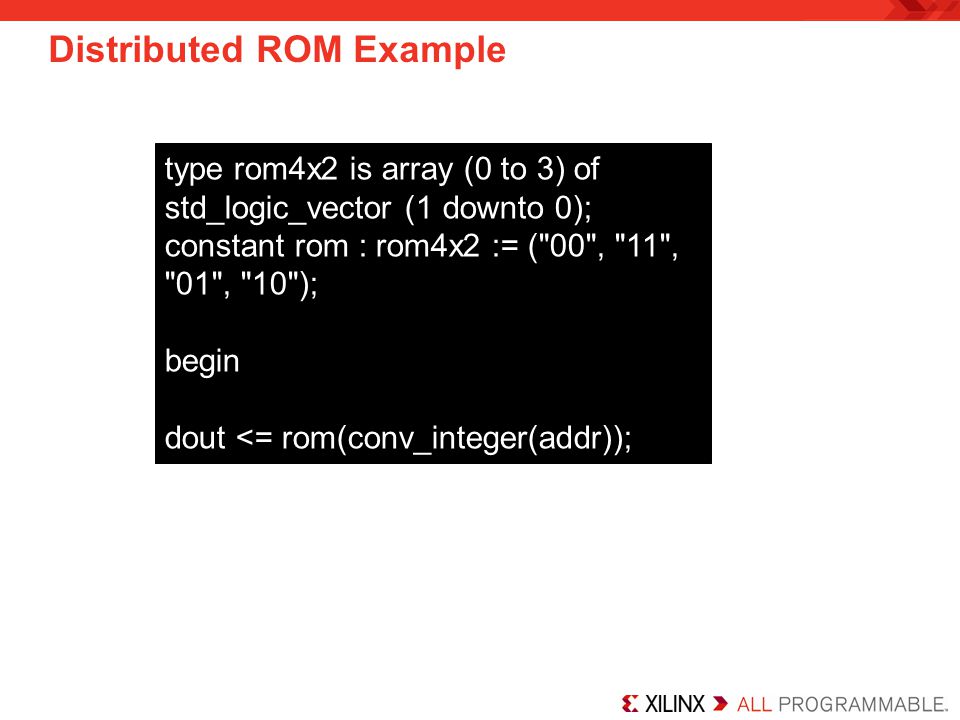

21. type rom4x2 is array (0 to 3) of std_logic_vector (1 downto 0); constant rom : rom4x2 := ("00", "11", "01", "10"); begin dout <= rom(conv_integer(addr)); Distributed ROM Example

22. The DCM provides powerful clock management features –DLL is used to eliminate clock skew –DFS is used to provide a wide range of clock synthesis –DPS is used for fine-grain phase shifting The PLL provides frequency synthesis and jitter filter Replace an ASIC PLL with a Xilinx PLL (or a DCM) –Be aware of the DCM limitations by referring to your FPGA’s data sheet or user guide Digital Clock Manager and PLL

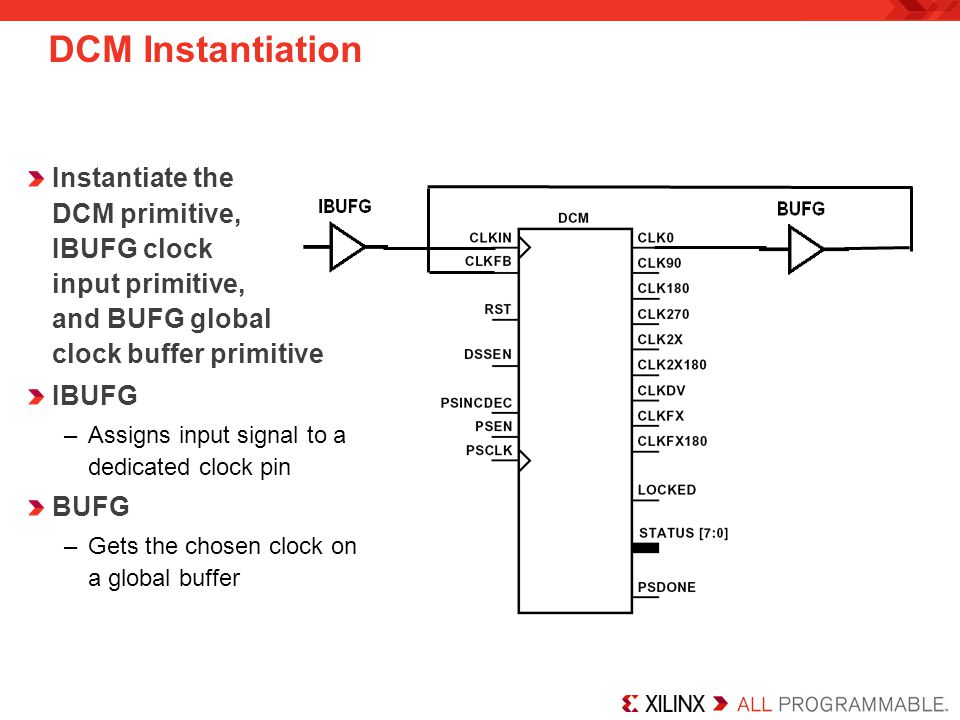

23. DCM Instantiation Instantiate the DCM primitive, IBUFG clock input primitive, and BUFG global clock buffer primitive IBUFG –Assigns input signal to a dedicated clock pin BUFG –Gets the chosen clock on a global buffer

24. InClk 1 To Global Clocks CMT DCM PLL Filter DCM output clock jitter InClk 1 To Global Clocks CMT DCM PLL Filter high clock jitter before reaching the DCM InClk 1 InClk 2 InClk 3 To Global Clocks DCM PLL CMT DCM Use each DCM and PLL individually Standard CMT Configurations

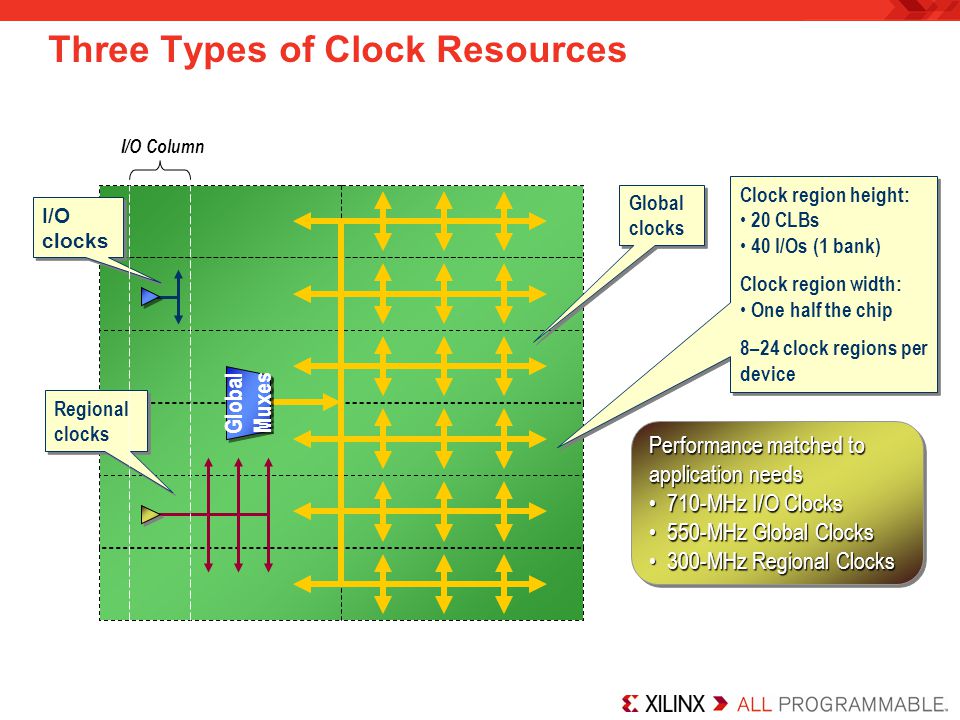

25. Performance matched to application needs 710-MHz I/O Clocks 710-MHz I/O Clocks 550-MHz Global Clocks 550-MHz Global Clocks 300-MHz Regional Clocks 300-MHz Regional Clocks Performance matched to application needs 710-MHz I/O Clocks 710-MHz I/O Clocks 550-MHz Global Clocks 550-MHz Global Clocks 300-MHz Regional Clocks 300-MHz Regional Clocks Global Muxes Global clocks Regional clocks I/O clocks I/O Column Clock region height: 20 CLBs 40 I/Os (1 bank) Clock region width: One half the chip 8–24 clock regions per device Clock region height: 20 CLBs 40 I/Os (1 bank) Clock region width: One half the chip 8–24 clock regions per device Three Types of Clock Resources

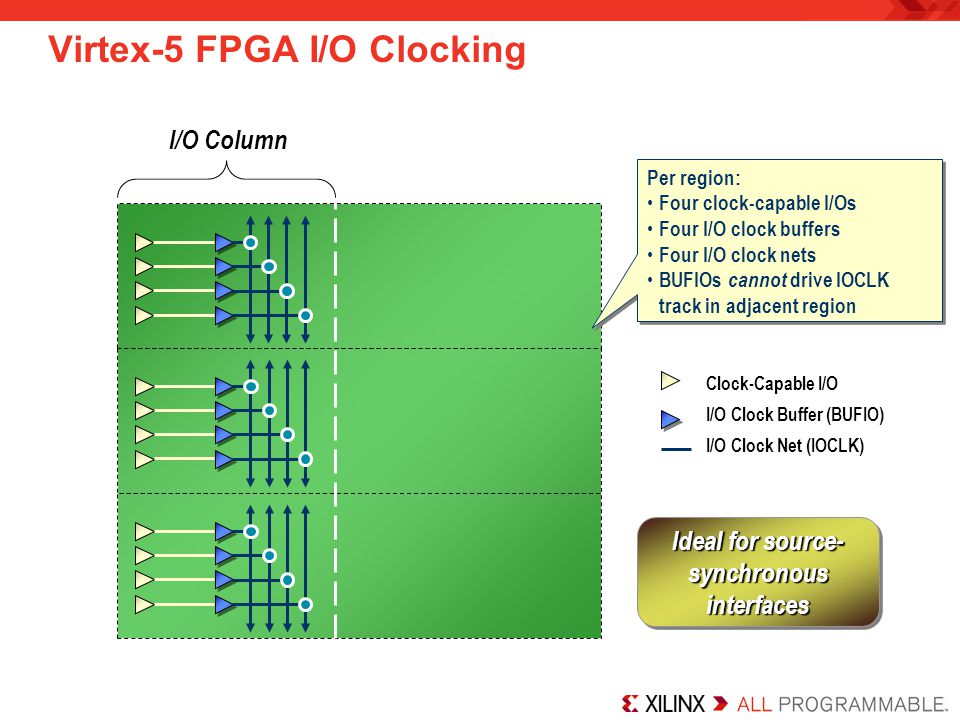

26. Clock-Capable I/O I/O Clock Buffer (BUFIO) I/O Clock Net (IOCLK) Per region: Four clock-capable I/Os Four I/O clock buffers Four I/O clock nets BUFIOs cannot drive IOCLK track in adjacent region Per region: Four clock-capable I/Os Four I/O clock buffers Four I/O clock nets BUFIOs cannot drive IOCLK track in adjacent region I/O Column Ideal for source- synchronous interfaces Virtex-5 FPGA I/O Clocking

27. Clock-capable I/O Regional Clock Buffer (BUFR) Regional Clock Net (RCLK) Per region: Four clock-capable I/Os Two regional clock buffers Four regional clock nets Per region: Four clock-capable I/Os Two regional clock buffers Four regional clock nets 4 2 4 4 2 2 2 2 2 2 Easily create many clock domains per FPGA Virtex-5 FPGA Regional Clocking

28. Architecture Wizard Double-click Create New Source –Select IP (CORE Generator & Architecture Wizard) and click Next

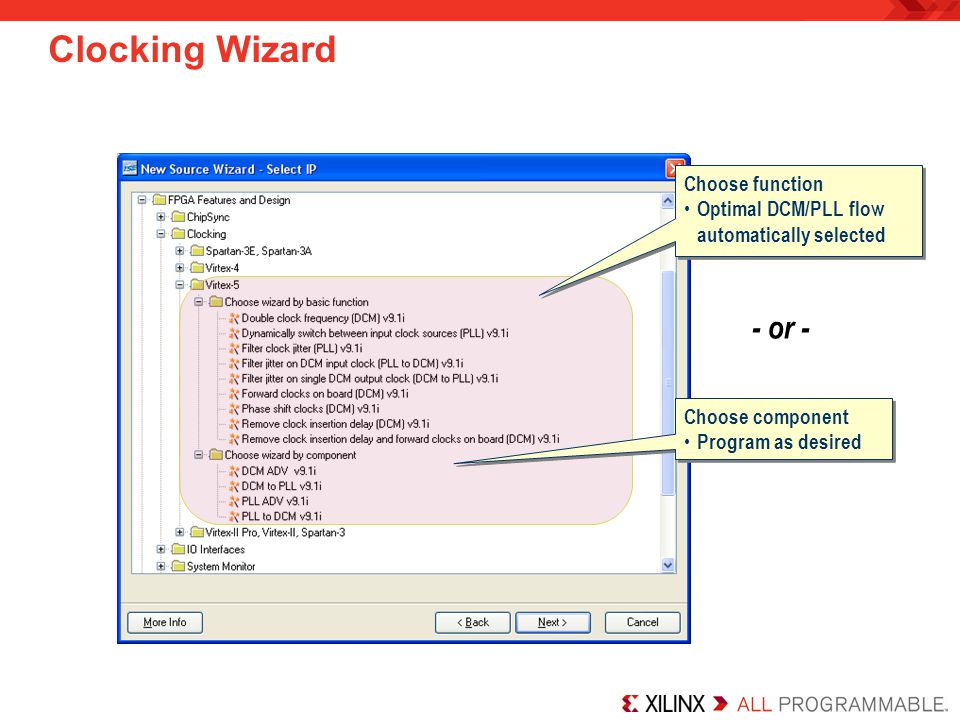

29. Clocking Wizard Choose function Optimal DCM/PLL flow automatically selected Choose function Optimal DCM/PLL flow automatically selected Choose component Program as desired Choose component Program as desired - or -

30. Customize the DCM Main window –Select pins –Specify Reference source Clock frequency Phase shift –Advanced button Wizard generates ready-to-use VHDL or Verilog wrappers and components Use the GUI to instantiate and program your clocking components Xilinx Clocking Wizard

31. SelectIO Technology Instantiate SERDES resources with the Memory Interface Generator (MIG) or by direct instantiation of resources customized with the ChipSync Wizard Instantiate SelectIO interface buffers to connect directly to over 40 different I/O standards –Eliminates threshold translators; therefore decreasing delay and board area –Synthesis tools allow the SelectIO interfaces to be specified in their constraint tools or through code attributes Single-ended and differential I/O standards can also be selected in PinAhead or set in a UCF

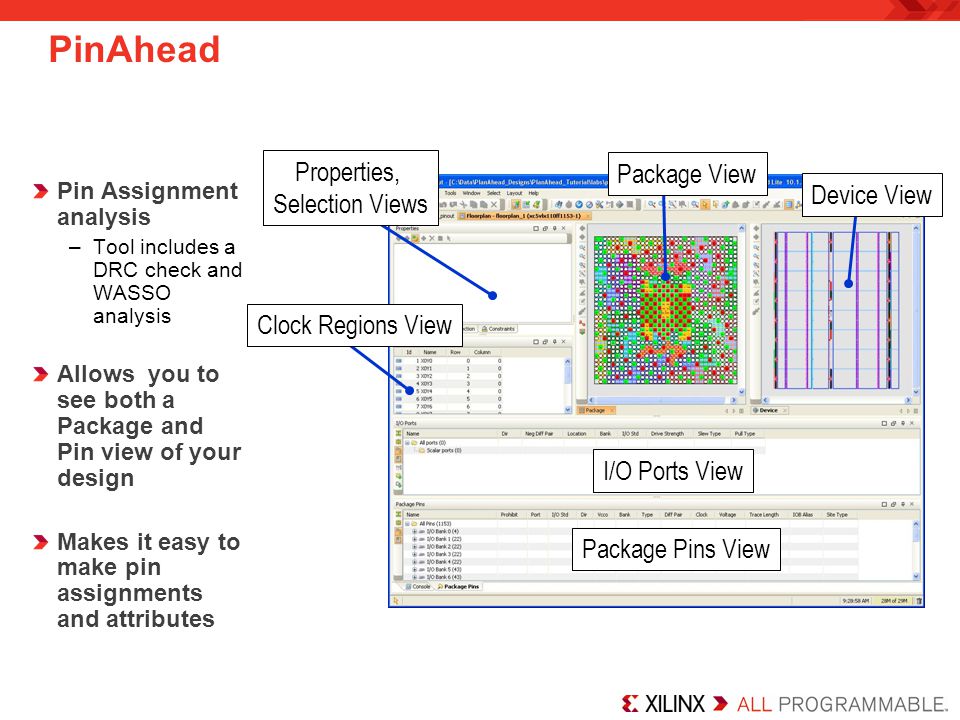

32. PinAhead Pin Assignment analysis –Tool includes a DRC check and WASSO analysis Allows you to see both a Package and Pin view of your design Makes it easy to make pin assignments and attributes I/O Ports View Package Pins View Properties, Selection Views Clock Regions View Package View Device View

33. Source-Synchronous Memory ChipSync technology –Programmable IDELAY and ODELAY –Integrated I/O SERDES Fast regional and I/O clocks Embedded ECC logic –Reduces logic resources –Increases performance Proven memory interfaces –DDR-II DRAM and QDR/QDR-II, for example XCITE: Internal impedance control Virtex™-5 FPGA Data Forwarded CLK/DQS SelectIO™ interface ChipSync technology

34. Frequency division –Data width to 10 bits Dynamic signal alignment –Bit alignment –Word alignment –Clock alignment –Supports Dynamic Phase Alignment (DPA) ChipSync™ n ISERDES CLK CLKDIV FPGA Fabric BUFIO BUFR ÷ ÷ CLK Data ISERDES

35. OSERDES ChipSync™ChipSync™ n CLKCLKDIV m FPGA Fabric BUFIO/BUFR DCM/PMCD BUFIO/BUFR DCM/PMCD Two separate SERDES included –Data SERDES: 2, 3, 4, 5, 6, 7, 8, 10 bits –Three-state SERDES: 1, 2, 4 bits Ideal for memories

36. ChipSync Wizard Generates a complete SERDES interface –Provides a VHDL or Verilog instantiation plus a Xilinx netlist (.xaw file extension) –Choose from a list of supported I/O standards and SERDES programmability –Available as part of the CORE Generator tool (free)

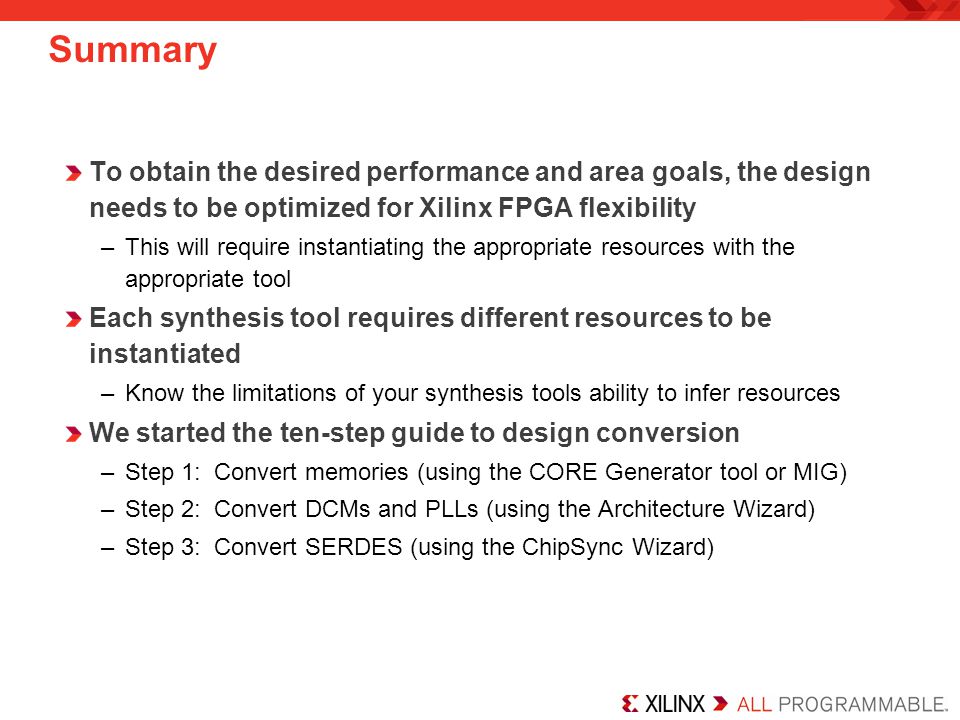

37. To obtain the desired performance and area goals, the design needs to be optimized for Xilinx FPGA flexibility –This will require instantiating the appropriate resources with the appropriate tool Each synthesis tool requires different resources to be instantiated –Know the limitations of your synthesis tools ability to infer resources We started the ten-step guide to design conversion –Step 1: Convert memories (using the CORE Generator tool or MIG) –Step 2: Convert DCMs and PLLs (using the Architecture Wizard) –Step 3: Convert SERDES (using the ChipSync Wizard) Summary

38. Where Can I Learn More? Xilinx online documents –www.support.xilinx.com Software manuals  Synthesis and Simulation Design Guide »Includes general recommendations for coding practices and coding tips for specific FPGA families Virtex-5 FPGA User guide (SERDES, clocking resources) Xilinx Education Services courses –www.xilinx.com/training Xilinx tools and architecture courses Hardware description language courses Basic FPGA architecture and other Free Videos!

39. How to Convert ASIC Code to FPGA Code Part 2

40. Fundamentals of FPGA Design 1 day Designing for Performance 2 day s Advanced FPGA Implementation 2 days Intro to VHDL or Intro to Verilog 3 days FPGA and ASIC Technology Comparison FPGA vs. ASIC Design Flow ASIC to FPGA Coding Conversion Virtex-5 Coding Techniques Spartan-3 Coding Techniques CurriculumPath for ASIC Design FPGA and ASIC Technology Comparison

41. Welcome A ten-step guide to design conversion –Step 1: Convert memories (using the CORE Generator™ tool) –Step 2: Convert DCMs and PLLs (using the Architecture Wizard) –Step 3: Convert SERDES (using the ChipSync Wizard) –Step 4: Convert DSP (using the CORE Generator tool) –Step 5: Replace IP (using the CORE Generator tool) –Step 6: Use the Xilinx SRL (HDL) –Step 7: Use clock enables (HDL) –Step 8: Employ other good HDL coding styles (HDL) –Step 9: Pipeline combinatorial logic (good design practice) –Step 10: Build effective finite state machines (HDL)

42. After completing this module, you will able to: Optimize ASIC code for implementation in an FPGA Describe the steps to perform ASIC to FPGA code conversion

43. Code Conversion Steps A ten-step guide to design conversion –Step 1: Convert memories (using the CORE Generator™ tool) –Step 2: Convert DCMs and PLLs (using the Architecture Wizard) –Step 3: Convert SERDES (using the ChipSync Wizard) –Step 4: Convert DSP (using the CORE Generator tool) –Step 5: Replace IP (using the CORE Generator tool) –Step 6: Use the Xilinx SRL (HDL) –Step 7: Use clock enables (HDL) –Step 8: Employ other good HDL coding styles (HDL) –Step 9: Pipeline combinatorial logic (good design practice) –Step 10: Build effective finite state machines (HDL)

44. IP Cores Xilinx provides intellectual property cores for your design via the CORE Generator tool Use the CORE Generator tool to generate LogiCORE™ IP –LogiCORE IP are supported by Xilinx –Some point solution cores have a charge associated, but almost all are FREE Use the CORE Generator tool to find information on AllianceCORE IP –AllianceCORE IP are those sold through Alliance partners—third-party vendors –All have a charge associated –All are supported by third-party vendors

45. CORE Generator Tool IP Basic elements –Counters, comparators, and shift registers DSP functions –FIR filters, correlators, modulation, transforms, trig functions, and waveform synthesis Math functions –Dividers, floating point module, multipliers, MACs, and square-root generators Memories –All combinations of block RAM/ROM, FIFOs, MIG, and CAMs FPGA features –ChipSync™ technology, Clocking Wizard, RocketIO GTP Wizard, System Monitor, XtremeDSP slice (more math functions) Standard bus interfaces –PCI™, PCI-X™, PCI Express®, and Serial RapidIO technology

46. Core Benefits Why use the CORE Generator tool for implementing high-level cores? –Cores are pre-tested and use optimum device resources –Engineering cost and time can be reduced –Some are Relationally Placed Macros (RPMs) providing optimized speed and area results –VHDL and Verilog simulation models are provided

47. Use the SRL Xilinx Virtex®-based FPGAs have the ability to use a LUT as a 16 x 1 shift register (the Virtex-5 FPGA can make a 32 x 1) –SRL is used as a pipeline delay element or to capture burst data –Serial in and serial out Non-loadable No parallel-in/out Saves flip-flops –Saves resources over an ASIC shift-register implementation

48. SRL Inference SRLs can be inferred by Synopsys, Mentor, and XST SRLs can also be instantiated by using an SRL primitive or through the CORE Generator tool –Use the characterization 1) Synchronous shift 2) Asynchronous read 3) No set or reset functionality VHDL: process (clk) begin if rising_edge(clk) then -- synchronous shift sr <= sr(14 downto 1) & din; end if; end process; -- asynchronous read dout <= sr(15); Verilog: always @ (posedge clk) // synchronous shift sr <= {sr[14:1], din}; // asynchronous read dout <= sr(15);

49. SRL with Enable Inference Likewise, the SRLE can be inferred VHDL: process (clk) begin if rising_edge(clk) then if en = ‘1’ then -- synchronous shift with enable sr <= sr(14 downto 1) & din; end if; end process; -- asynchronous read dout <= sr(15); Verilog: always @ (posedge clk) if (en) // synchronous shift with enable sr <= {sr[14:1], din}; // asynchronous read dout <= sr(15);

50. Enhanced Register Virtex-5 registers provide clock enables, synchronous sets, and synchronous resets—directly on the register All three can be used on any register –To directly use the pins on the register, the priority must be: Reset, Set, CE By having these pins directly on the register, the fan-in to the LUT is reduced –Without a direct pin on the register, these functions would be implemented through the LUT before the register

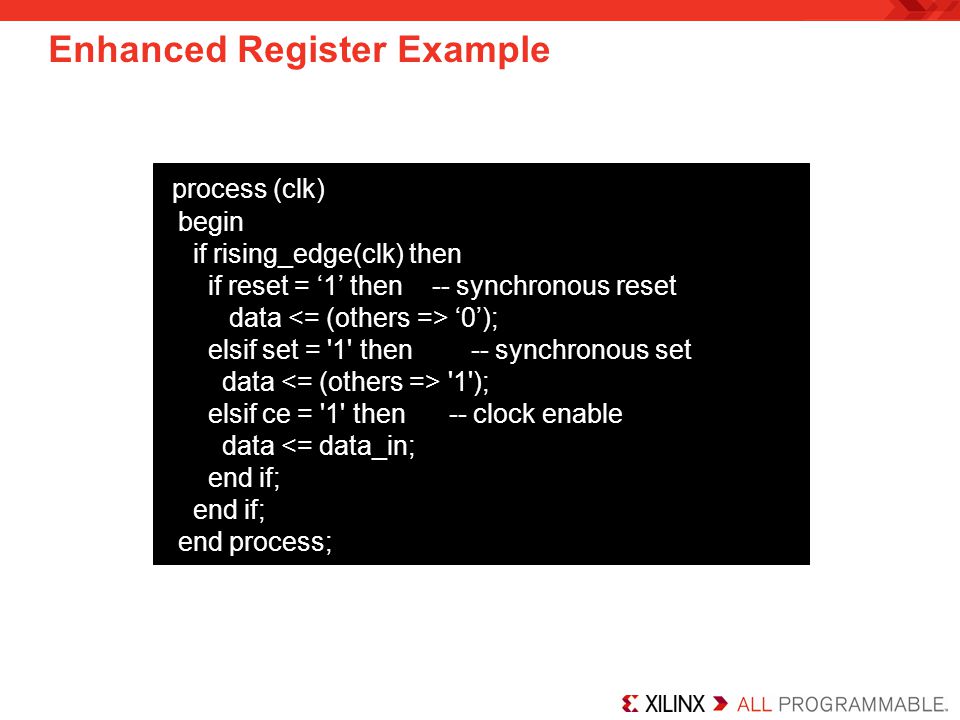

51. Enhanced Register Example process (clk) begin if rising_edge(clk) then if reset = ‘1’ then -- synchronous reset data ‘0’); elsif set = '1' then -- synchronous set data '1'); elsif ce = '1' then -- clock enable data <= data_in; end if; end process;

52. Synchronous Design Replace gated clock circuits with a CE circuit

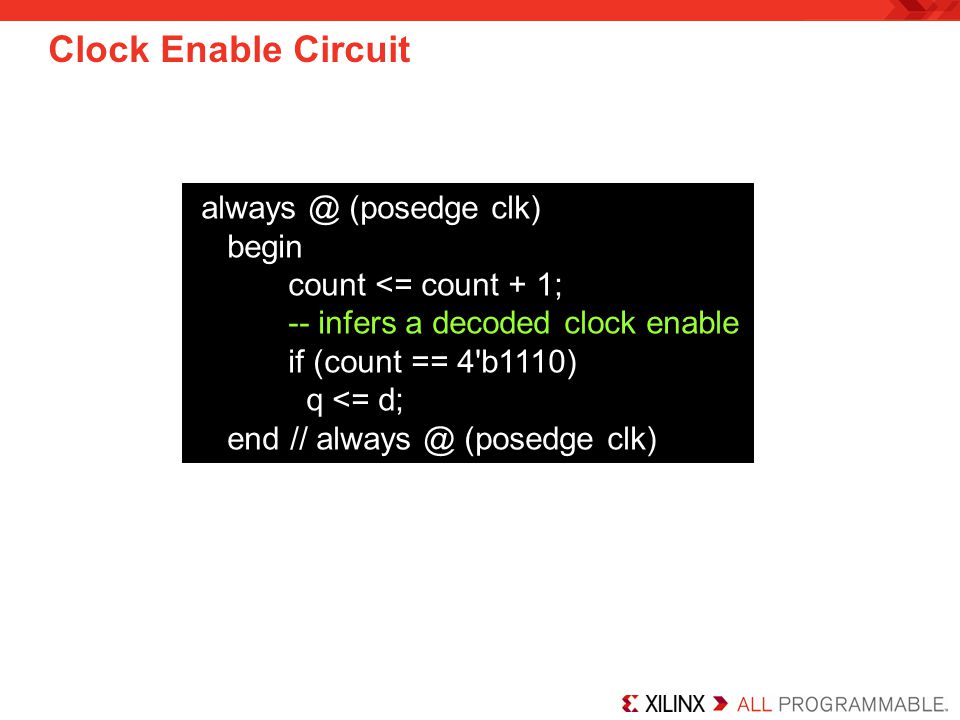

53. Clock Enable Circuit always @ (posedge clk) begin count <= count + 1; -- infers a decoded clock enable if (count == 4'b1110) q <= d; end // always @ (posedge clk)

54. Synchronous Reset Synchronous Set and Reset For internal reset circuits, use a synchronous set or reset Similar to the gated clock example, an asynchronous signal that provides a set or reset can glitch, propagating erroneous data Be careful with Global Resets − Only one reset port

55. Synchronous Reset Example process (clk) begin if rising_edge(clk) then count <= count + 1; if count = "1110" then -- synchronous reset q '0'); else q <= d; end if; end process;

56. Inference of Arithmetic Logic Arithmetic logic is implemented by using the dedicated carry chain For access to the dedicated carry chain, the HDL must use arithmetic operators –+, –, *, /, >, <, = –That is, you will not infer the use of the carry chain by explicitly building the arithmetic logic For example, Half_Sum <= A xor B will not infer the carry chain Half_Sum <= A + B will infer the carry chain

57. Counters To increase performance, try different types of counters –Binary: Slow, familiar count sequence; fewest amount of registers –One-hot: Fast; uses the maximum number of registers –Johnson: Ring counter; fast and uses fewer registers than one-hot encoding –LFSR: Fast, pseudo-random sequence and uses few registers

58. Decode Logic Example Instead of this… Use case statements for decode logic whenever possible process (clk) begin if rising_edge(clk) then cs0 <= '0'; -- default value cs1 <= '0'; -- default value cs2 <= '0'; -- default value if addr <= "0011" then cs0 <= '1'; elsif (addr > "0011" and addr <= "0111”) then cs1 <= '1'; elsif addr > "0111" then cs2 <= '1'; end if; end process;

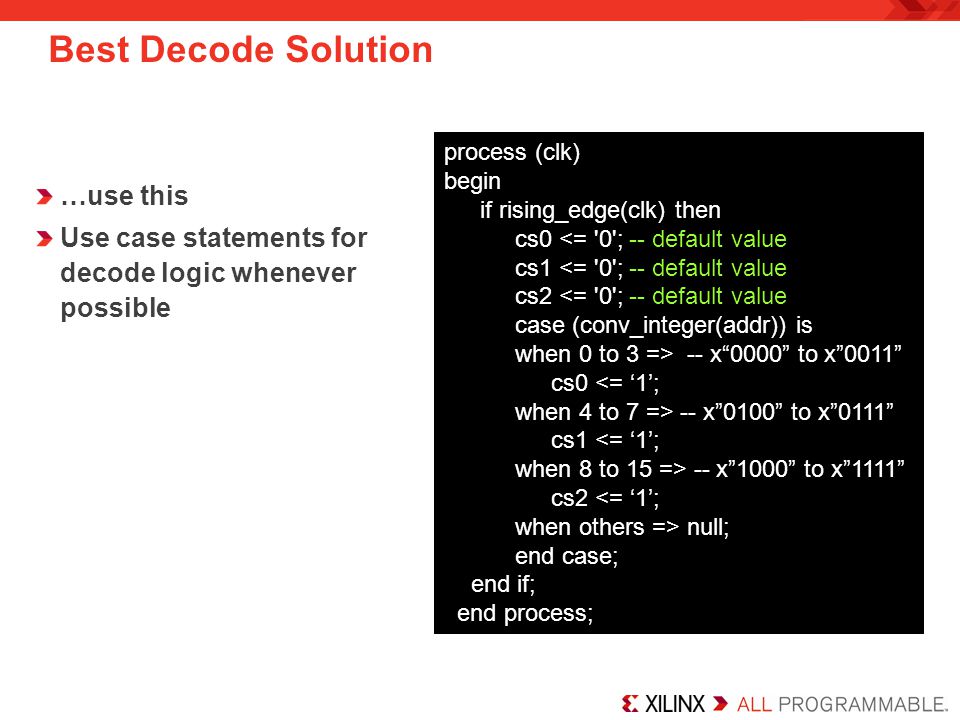

59. Best Decode Solution …use this Use case statements for decode logic whenever possible process (clk) begin if rising_edge(clk) then cs0 <= '0'; -- default value cs1 <= '0'; -- default value cs2 <= '0'; -- default value case (conv_integer(addr)) is when 0 to 3 => -- x“0000” to x”0011” cs0 <= ‘1’; when 4 to 7 => -- x”0100” to x”0111” cs1 <= ‘1’; when 8 to 15 => -- x”1000” to x”1111” cs2 <= ‘1’; when others => null; end case; end if; end process;

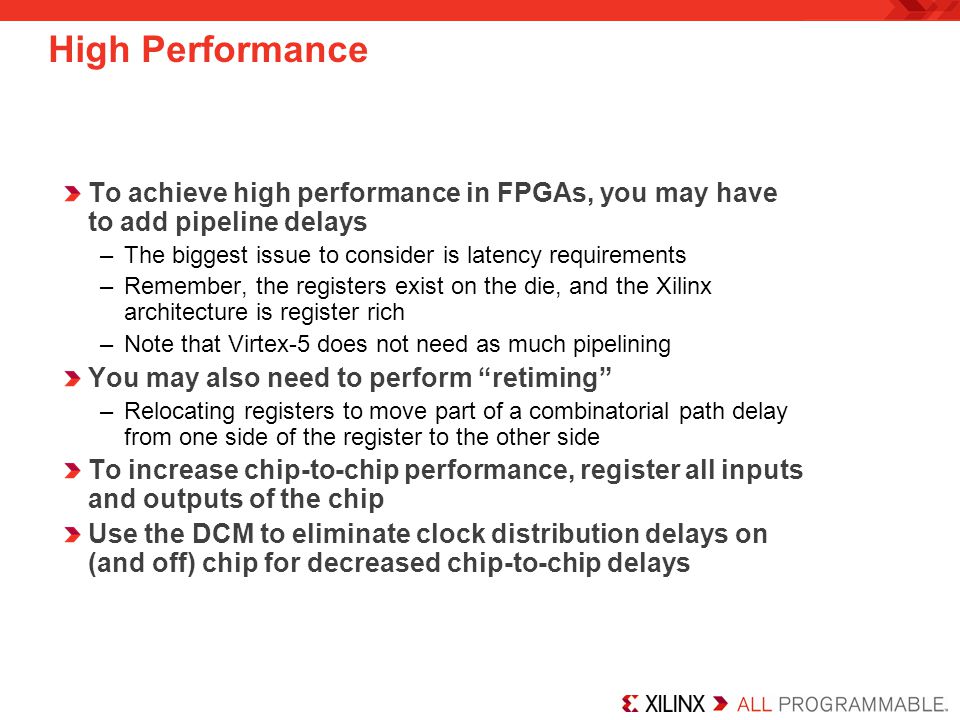

60. High Performance To achieve high performance in FPGAs, you may have to add pipeline delays –The biggest issue to consider is latency requirements –Remember, the registers exist on the die, and the Xilinx architecture is register rich –Note that Virtex-5 does not need as much pipelining You may also need to perform “retiming” –Relocating registers to move part of a combinatorial path delay from one side of the register to the other side To increase chip-to-chip performance, register all inputs and outputs of the chip Use the DCM to eliminate clock distribution delays on (and off) chip for decreased chip-to-chip delays

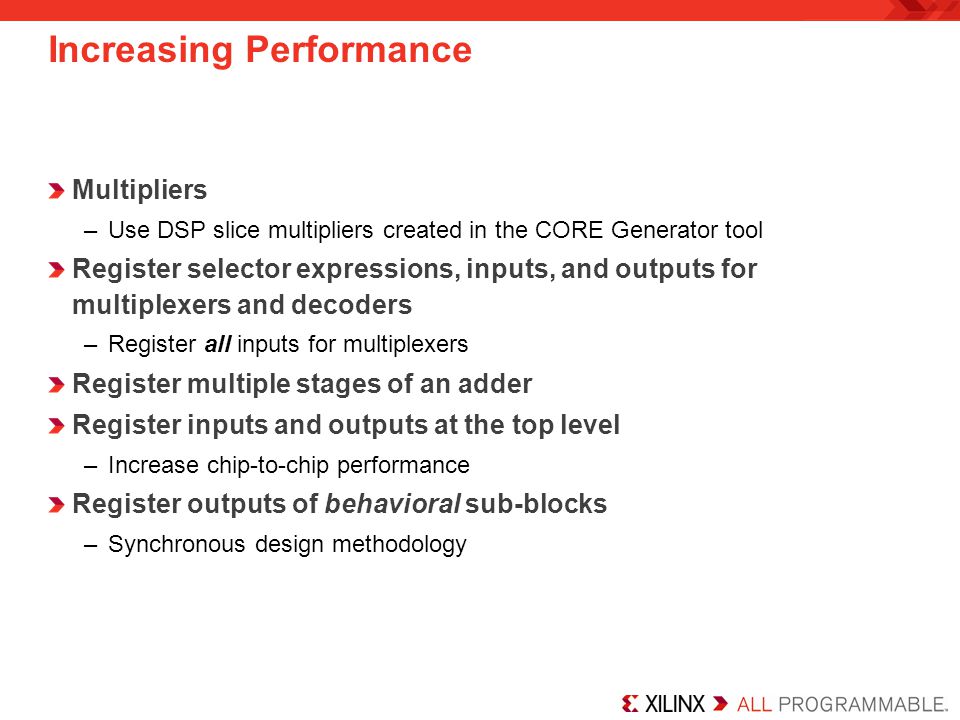

61. Increasing Performance Multipliers –Use DSP slice multipliers created in the CORE Generator tool Register selector expressions, inputs, and outputs for multiplexers and decoders –Register all inputs for multiplexers Register multiple stages of an adder Register inputs and outputs at the top level –Increase chip-to-chip performance Register outputs of behavioral sub-blocks –Synchronous design methodology

62. Analyze Delays Analyze the delays on combinatorial paths to determine whether a pipeline delay is required –Virtex-5 should use maximum 3 logic levels –Other devices should use maximum 4 logic levels But you make your own definition of performance!

63. FSM Encoding Style To achieve high performance for FSMs, consider choosing an alternative encoding style –One hot is the most popular, but best to re-synthesize large and complex FSMs for binary and Gray as well –FSM Performance depends on… LUT architecture Number of inputs Number of states Desired speed Complexity (number of transitions) Amount of available resources –For very large state machines (greater than 32 states), you may want to consider gray-encoding style –For small state machines (fewer than four states), binary encoding will generally provide equivalent performance

64. FSM Coding Style Use case statements rather than if-then-else statements –Logic will be implemented in parallel, reducing the longest delay path Separate next-state logic from output decoding logic –Place next-state decoding logic and output decoding logic in a separate process or always block Prevents the synthesis tool from sharing logic resources, which generally results in less delay but more area Be aware of inadvertent latch or clock-enable inference –Use default assignments before the case statement –Clock enables are not always bad; however, be careful of lengthy decoding logic for the clock enable

65. To obtain the desired performance and area goals, the design needs to be optimized for a Xilinx FPGA –This will require you following all of our HDL coding recommendations Each synthesis tool requires different resources to be instantiated –Know the limitations of your synthesis tools ability to infer resources Use good HDL coding styles (check out the Videos) We finished the ten-step guide to design conversion –Step 4: Convert DSP (using the CORE Generator tool) –Step 5: Replace IP (using the CORE Generator tool) –Step 6: Use the Xilinx SRL (HDL) –Step 7: Use clock enables (HDL) –Step 8: Employ other good HDL coding styles (HDL) –Step 9: Pipeline combinatorial logic (good design practice) –Step 10: Build effective finite state machines (HDL) Summary

66. Where Can I Learn More? Xilinx online documents –www.support.xilinx.com Software manuals  Synthesis and Simulation Design Guide  Core Data Sheet (accessible from the Core Generator) »Provides feature description and resource utilization info  Xilinx Unified Libraries Guide Xilinx Education Services courses –www.xilinx.com/training Virtex-5 FPGA Coding Techniques Video (Free) Spartan-3 FPGA Coding Techniques Video (Free) Fundamentals of FPGA Design Designing for Performance
