1. www.planet.com.tw ICA-HM135 H.264 Mage-Pixel 20M IR Vandal-Proof Internet Camera Copyright © PLANET Technology Corporation. All rights reserved.

2. www.planet.com.tw 2/15 Presentation Outline Product Overview Product Features Product Application Management Product Comparison

3. www.planet.com.tw 3/15 Product Overview Physical view of ICA-HM135 Outdoor Housing with IP-66 water-proof protection class 310 mm 24 High-light IR LED 2.7 ~ 9 mm Vari-Focal lens with Auto Iris, ICR View Angle : H: 20˚ ~ 59 ˚ / V: 15˚ ~ 46˚ Φ 131 mm Adjustable camera angle Tilting View : 0 ~ 180 ˚ Panning View : 0 ~ 360 ˚

4. www.planet.com.tw 4/15 Product Overview Connector of ICA-HM135 RS485 / DIDO Audio in (MIC in) Audio out Camera DC in LAN 10/100Mbps Reset Button

5. www.planet.com.tw 5/15 Product Features Mega-Pixel 20M Vandal-Proof IR IP Camera ICA-HM135  1.3 Mega-Pixel CMOS Image Sensor  H.264 / MPEG-4 / M-JPEG multi-profile video compress simultaneously  24 Infrared LED over 20M long range IR distance  ICR brings better video quality in the daytime and nighttime  2-Way Audio supported with additional external microphone and speaker  Save-to-NAS function for save video files without operating software  3GPP for 3G mobile remote applications  Compliant with IEEE 802.3af standard PoE interface  Provides 10 specific area for Motion Detection  IP-66 Water-Proof protection class Outdoor Housing  Vandal-proof design that can prevent the artificially destroy  Cam Viewer Plus - Central management software supported

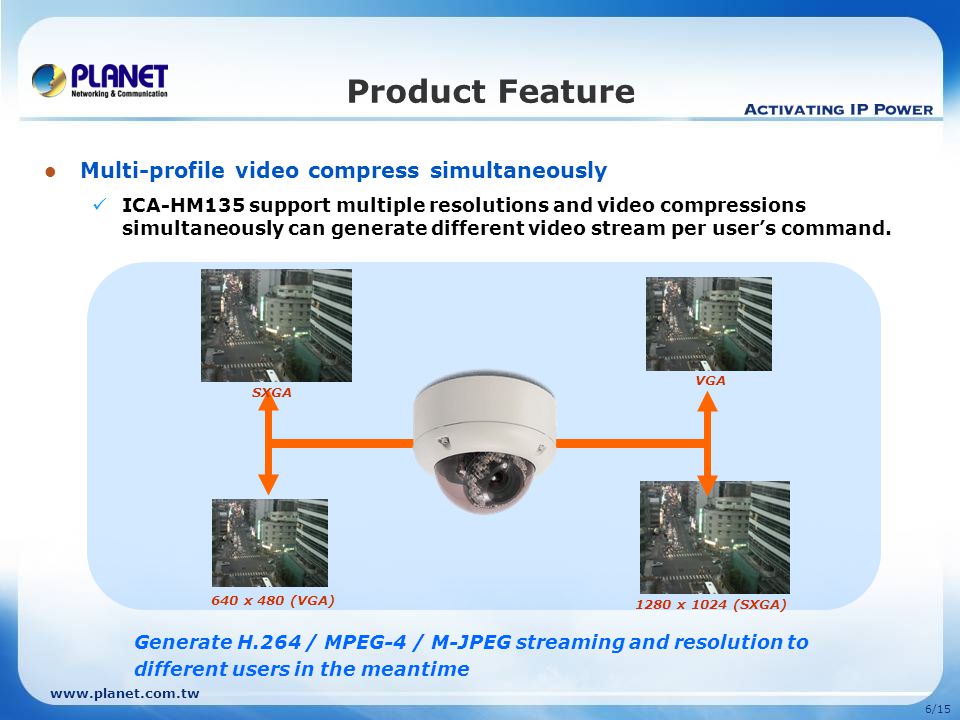

6. www.planet.com.tw 6/15 Multi-profile video compress simultaneously ICA-HM135 support multiple resolutions and video compressions simultaneously can generate different video stream per user’s command. Product Feature Generate H.264 / MPEG-4 / M-JPEG streaming and resolution to different users in the meantime 640 x 480 (VGA) 1280 x 1024 (SXGA) VGA SXGA

7. www.planet.com.tw 7/15 Compliant with IEEE-802.3af standard PoE interface IEEEE802.3af support makes the camera can be installed anywhere without the need for additional power socket for the IP camera. Product Feature It can assist in locating cameras in places where there are no power outlet.

8. www.planet.com.tw 8/15 Product Features IR-Cut Filter Removable With the ICR, ICA-HM135 can get better video quality in the day / night. IR illumination Color image in day time, black & white image in completely dark. 24pcs High-light IR LED. 20M IR LED distance 8 / 24 IR Off IR On

9. www.planet.com.tw 9/15 Product Features Vandal-Proof & Water-Proof The ICA-HM135 is designed with vandal-proof and IP-66 water- proof case. It can provide the best solution for both of indoor and outdoor installation. The vandal-proof designs with die-cast aluminum body that can prevent the artificial destroy. Vari-Focal The 2.7mm to 9mm vari-focal lens is standard, supports auto-iris function, allow the easy camera angle adjustment.

10. www.planet.com.tw 10/15 Management - Web View Video & Administration View Screen Multi Video Profile Multi Language Viewer Status Video Information Streaming Protocol System Setting Menu PTZ Control Menu ActiveX Control 2-Way Audio Client Setting Manu Full Screen

11. www.planet.com.tw 11/15 Management - CVPL A central management software for handling all the IP cameras at the same time PTZ Controller Service / Play Back / Guard / Schedule / Logview / Console Settings Screen Division Exit / Minimize Up to 64 channel w/bundled CVPL Cam Viewer Plus Lite Channel Keypad Surveillance Status

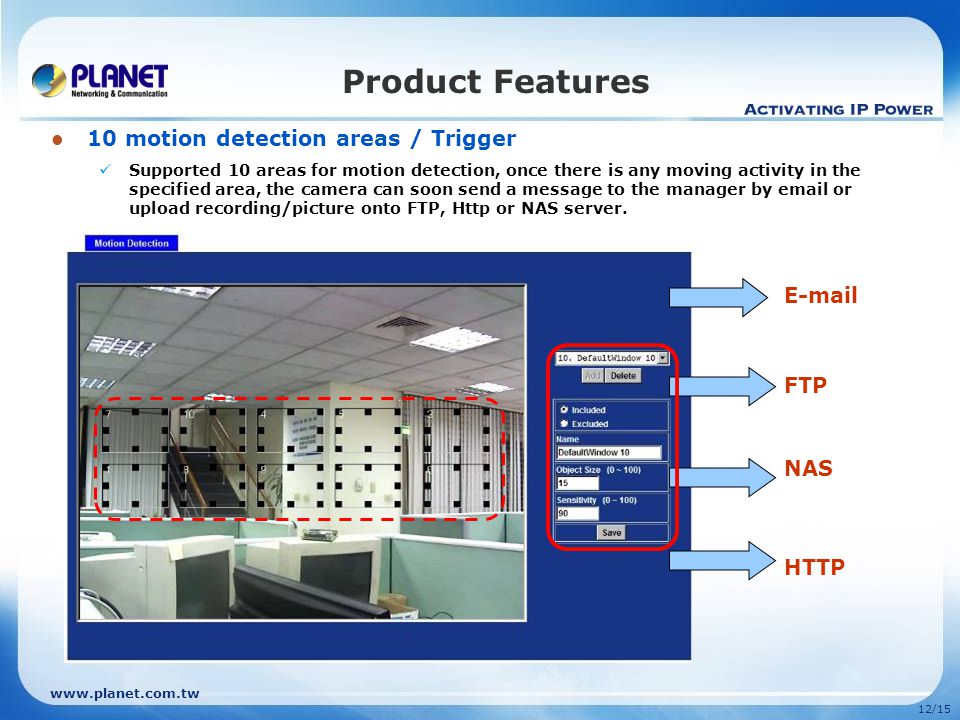

12. www.planet.com.tw 12/15 10 motion detection areas / Trigger Supported 10 areas for motion detection, once there is any moving activity in the specified area, the camera can soon send a message to the manager by email or upload recording/picture onto FTP, Http or NAS server. NAS FTP E-mail Product Features HTTP

13. www.planet.com.tw 13/15 Application Provide various surveillance applications 13 / 24 3GPP Central Management 2-way audio 2-way Audio Multi Profile

14. www.planet.com.tw 14/15 14 / 24 Product Comparison Internal Model Features ICA-HM135ICA-525 Camera TypeOutdoor/Indoor Sensor1.3 Mega-Pixel CMOS sensor1/3” SONY CCD sensor Lens2.7 - 9 mm vari-focal3.7 - 12 mm vari-focal Image CompressionH.264 / MPEG-4 / M-JPEGMPEG-4 / M-JPEG Max Resolution H.264/M-JPEG@1280x1024 MPEG-4@640x480 MPEG-4/M-JPEG@640x480 Max Frame Rate 15 FPS (1280x1024) 30 FPS (640x480) ICRYesNo IR LED24 High Light Max user simultaneous2010 Motion Detect Area104 Alarm Type FTP/HTTP/SAMBA Email/PTZ Preset Audio Alerting Output FTP/HTTP Email/PTZ Preset Audio Alerting Output 3GPPYes PoEIEEE 802.3af RS-485Yes Digital I/O1/1 Audio InMIC inLine level in Water ProofIP-66 classification

15. www.planet.com.tw 15/15 15 / 24 Product Comparison External Model Features PLANET ICA-HM135 Axis 225FD Camera TypeOutdoor/Indoor Sensor1.3 Mega-Pixel CMOS sensor1/4” CCD sensor Lens2.7 - 9 mm vari-focal2.8 – 5.8 mm vari-focal Image CompressionH.264 / MPEG-4 / M-JPEGMPEG-4 / M-JPEG Max Resolution H.264/M-JPEG@1280x1024 MPEG-4@640x480 MPEG-4/M-JPEG@640x480 Max Frame Rate 15 FPS (1280x1024) 30 FPS (640x480) ICRYesNo IR LED YesNo Max user simultaneous20 Motion Detect Area10 Alarm Type FTP/HTTP/Email/ SAMBA/PTZ Preset Audio Alerting Output FTP/HTTP/Email 3GPPYesNo PoEIEEE802.3af RS-485Yes Digital I/O YesNo Audio InYes Water ProofIP-66 classification

16. www.planet.com.tw

17. 17/15 Target Markets  System Integrator  Reseller Target Customers  Who buy our IR indoor/outdoor dome Camera ICA-525 ICA-530 Video server with analog IR dome camera (CAM-IVP52/CAM-52V) Appendix Sales Target

18. www.planet.com.tw 18/15 Related Products: PLANET PoE Switch SGSD-1022P SGSW-2840P FGSW-2620PVM FSD-804Pv3 GSD-802PS Appendix
