2. www.flightcell.com

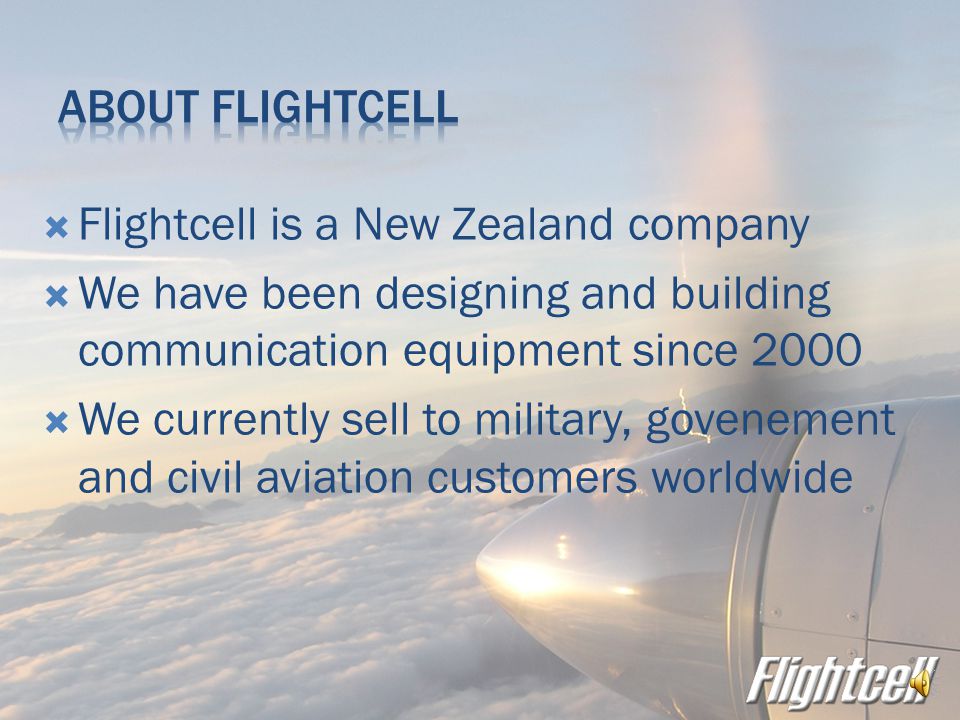

3.  Flightcell is a New Zealand company  We have been designing and building communication equipment since 2000  We currently sell to military, govenement and civil aviation customers worldwide

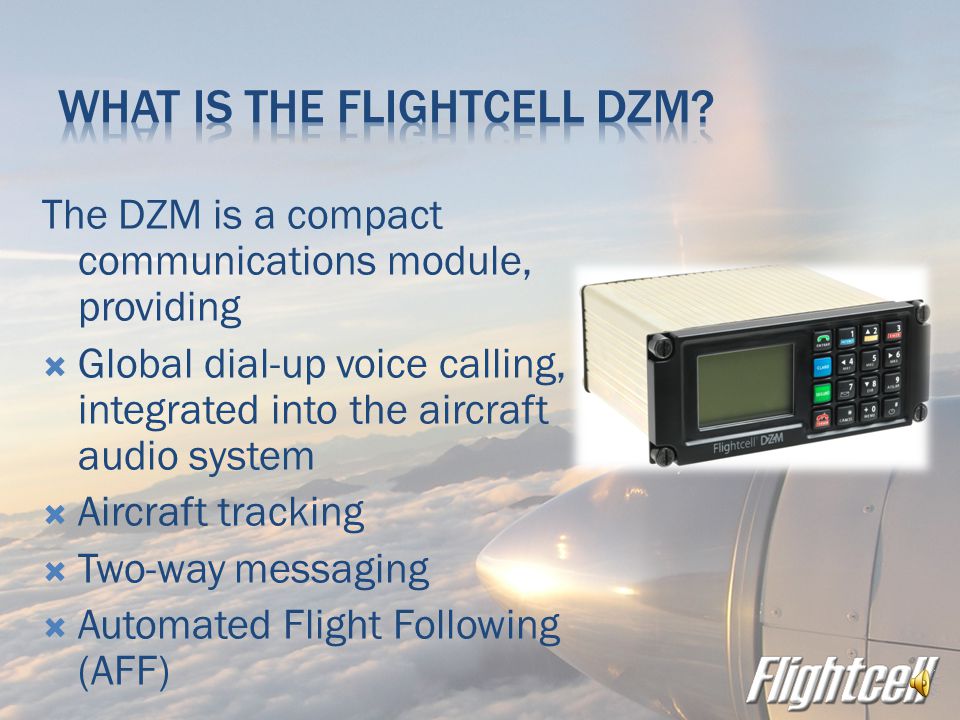

4. The DZM is a compact communications module, providing  Global dial-up voice calling, integrated into the aircraft audio system  Aircraft tracking  Two-way messaging  Automated Flight Following (AFF)

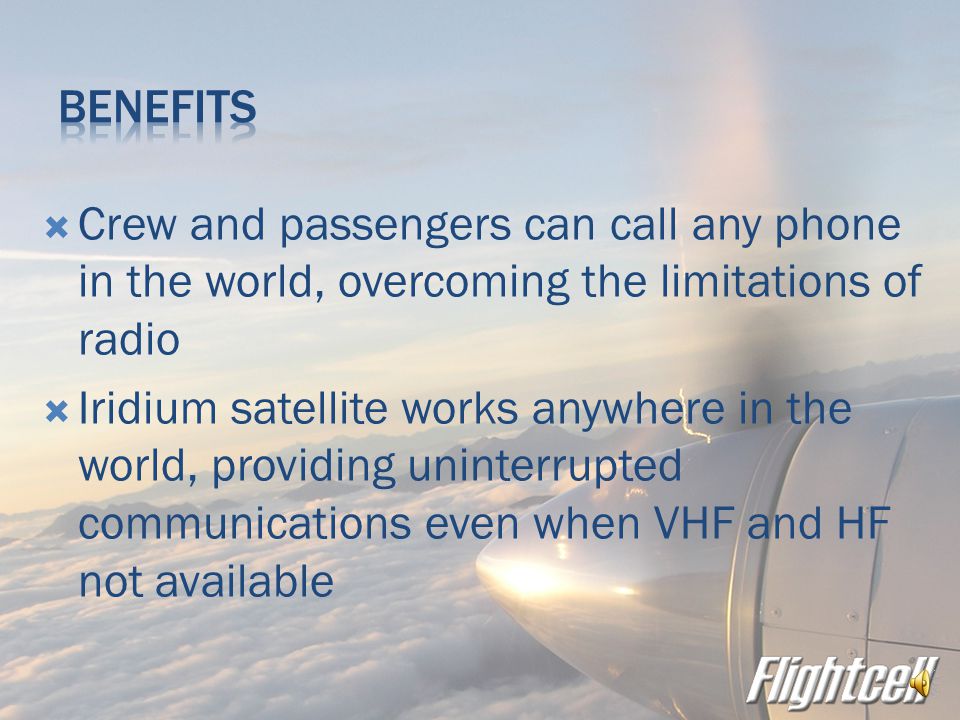

5.  Crew and passengers can call any phone in the world, overcoming the limitations of radio  Iridium satellite works anywhere in the world, providing uninterrupted communications even when VHF and HF not available

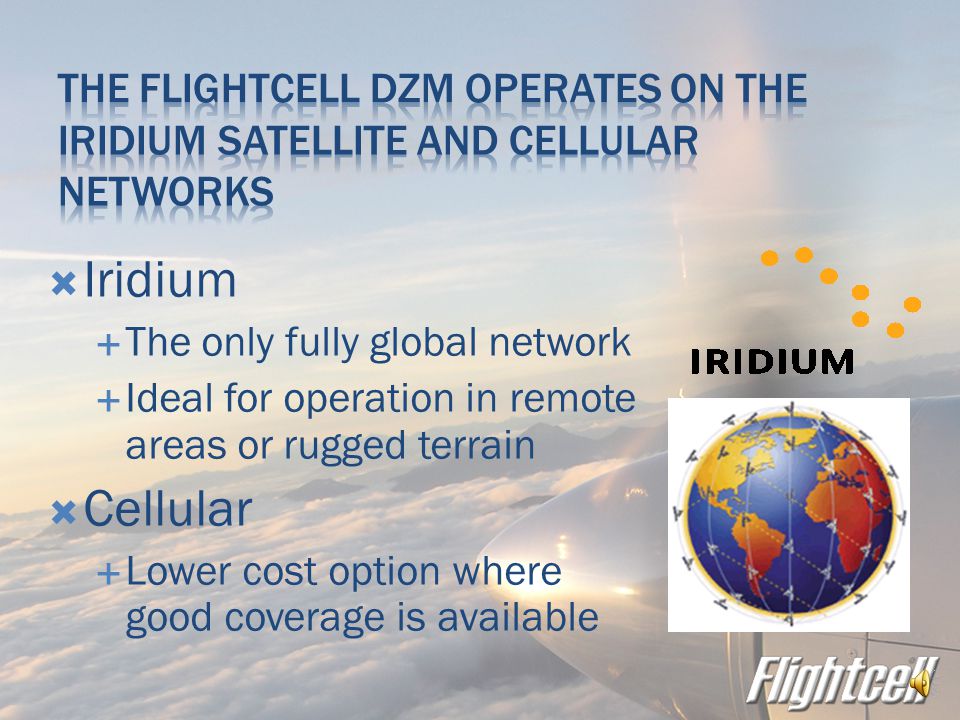

6.  Iridium  The only fully global network  Ideal for operation in remote areas or rugged terrain  Cellular  Lower cost option where good coverage is available

7.  Flightcell DZM2 – removable satellite phone for use on and off the aircraft  Flightcell DZM3 – inbuilt transceiver; reduced space requirements and easy installation

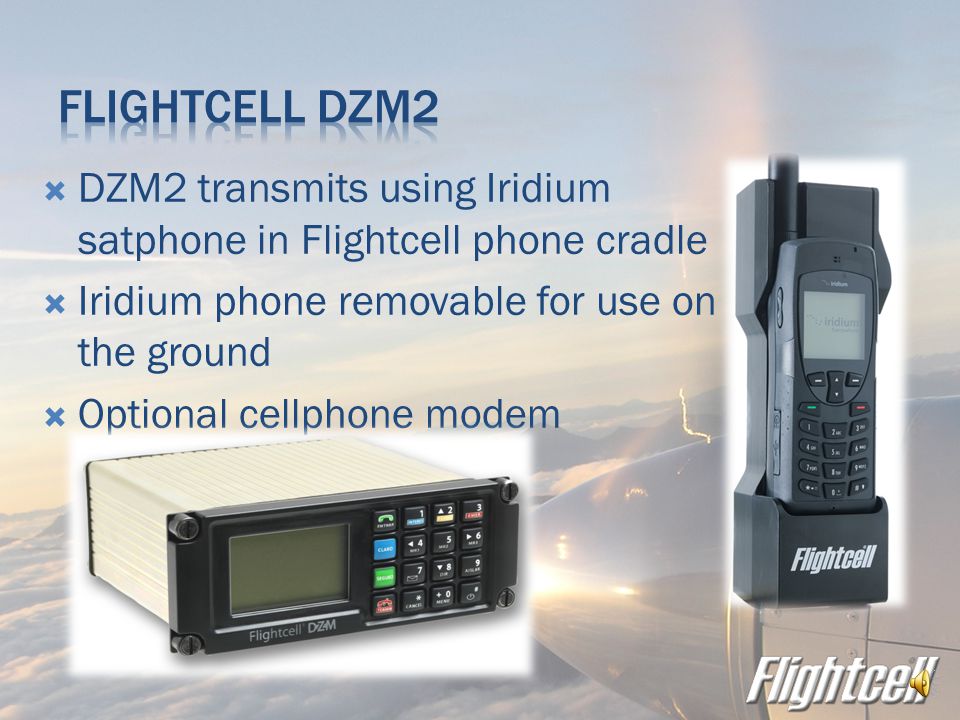

8.  DZM2 transmits using Iridium satphone in Flightcell phone cradle  Iridium phone removable for use on the ground  Optional cellphone modem

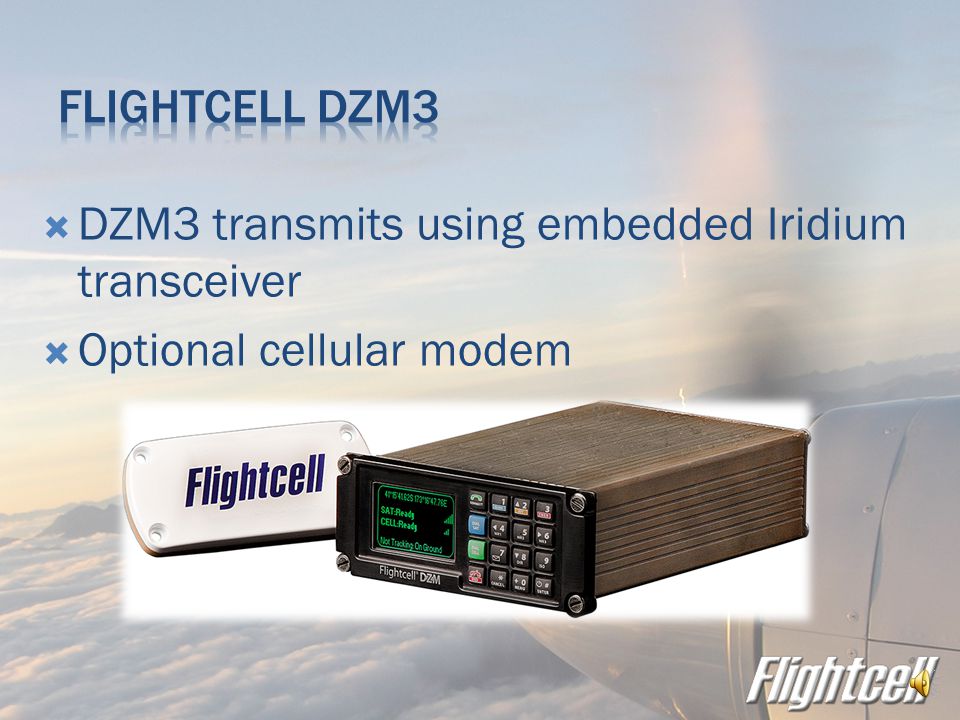

9.  DZM3 transmits using embedded Iridium transceiver  Optional cellular modem

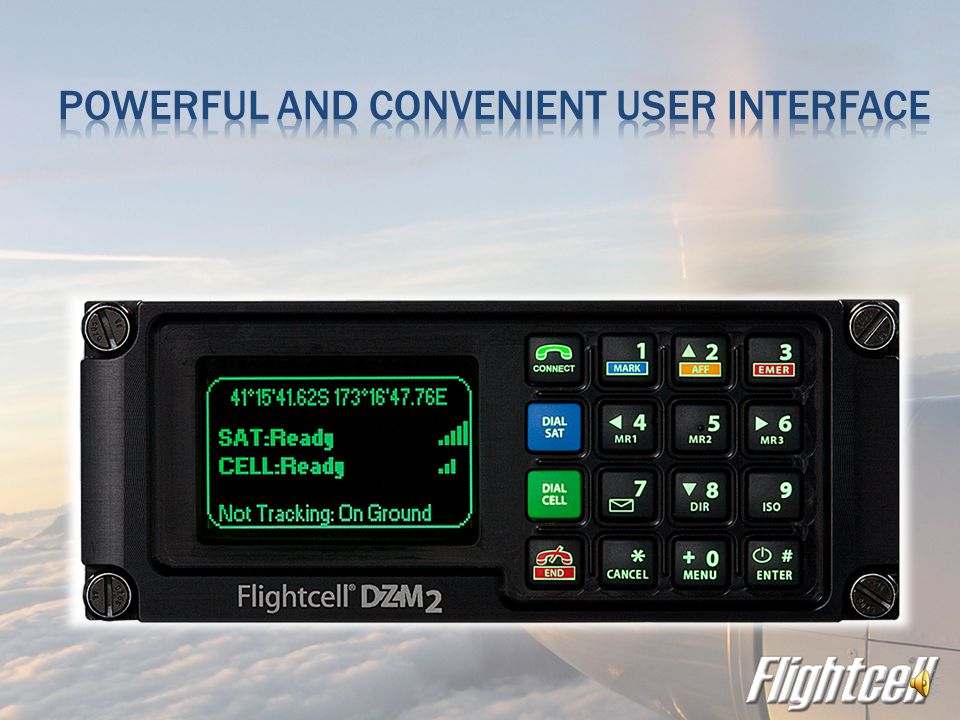

11.  NVG compatible display  Shows  Network and call status information  Aircraft position  Incoming and outgoing messages

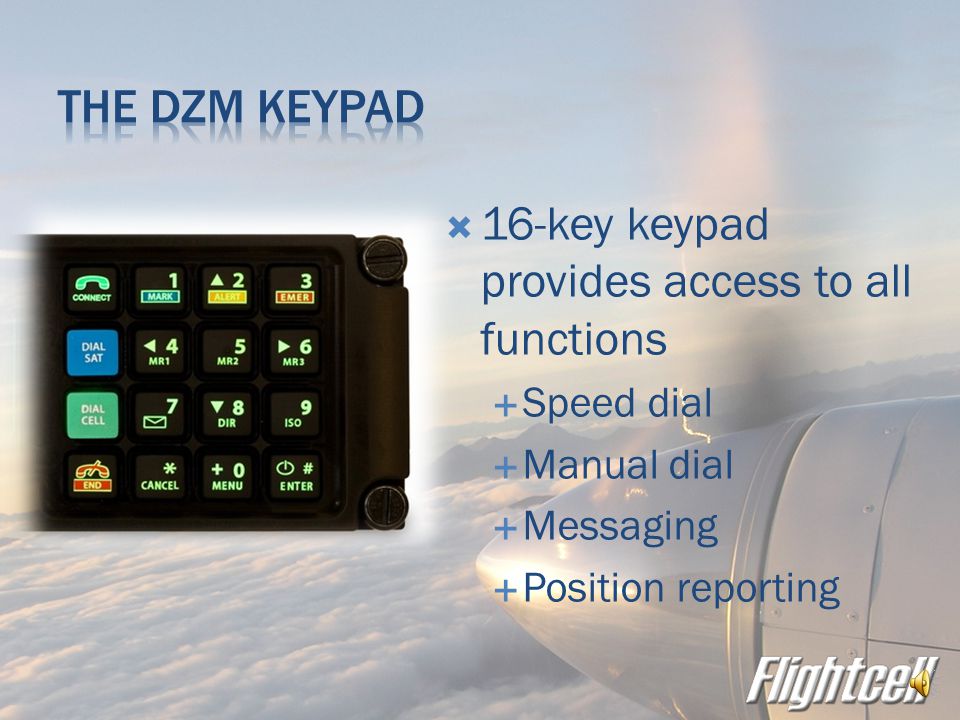

12.  16-key keypad provides access to all functions  Speed dial  Manual dial  Messaging  Position reporting

13.  Fully integrates voice calls into audio system, providing dial up communications for all crew  Optional cabin phone for corporate or passenger aircraft

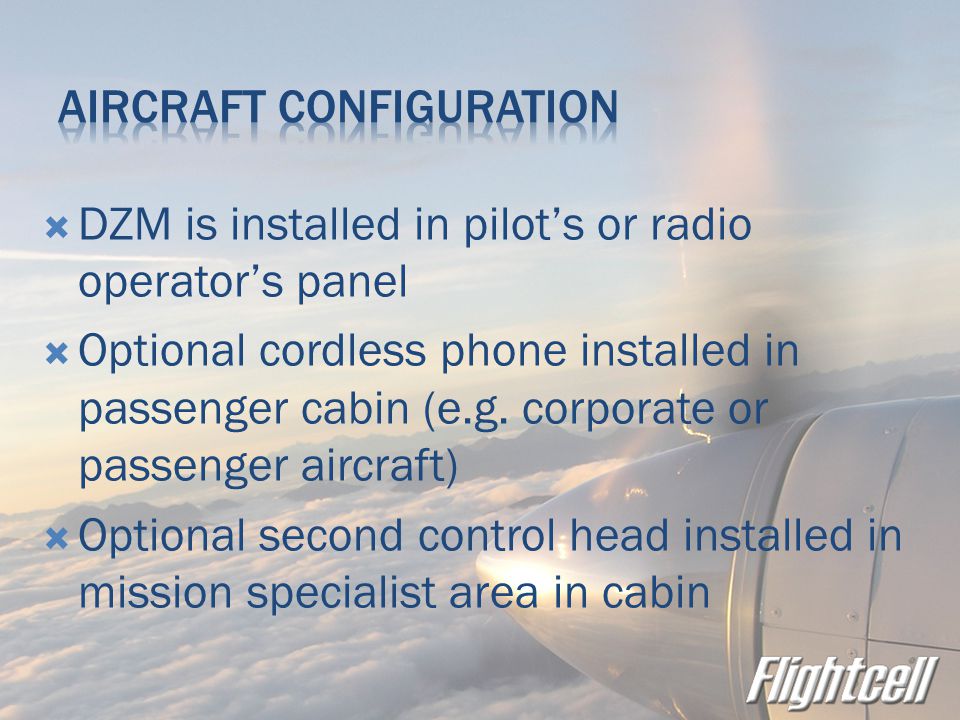

14.  DZM is installed in pilot’s or radio operator’s panel  Optional cordless phone installed in passenger cabin (e.g. corporate or passenger aircraft)  Optional second control head installed in mission specialist area in cabin

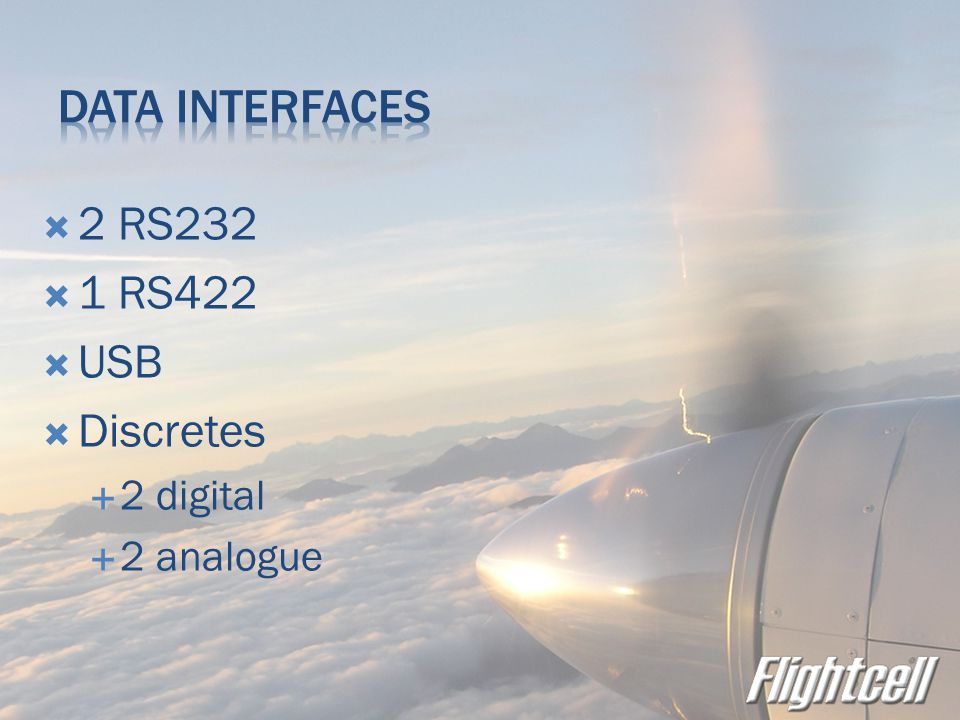

15.  2 RS232  1 RS422  USB  Discretes  2 digital  2 analogue

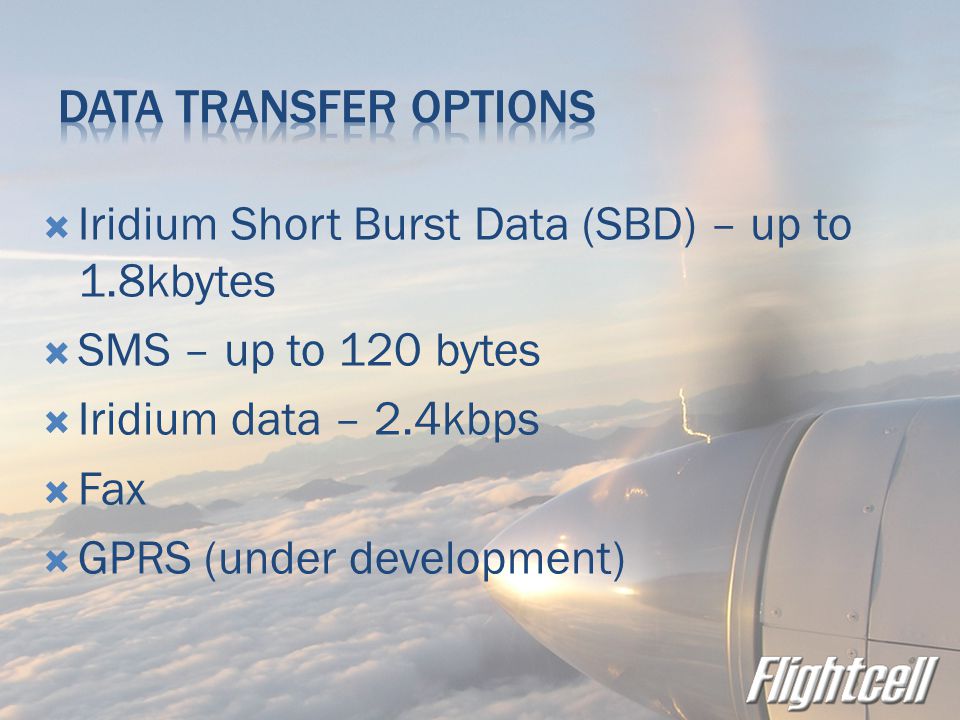

16.  Iridium Short Burst Data (SBD) – up to 1.8kbytes  SMS – up to 120 bytes  Iridium data – 2.4kbps  Fax  GPRS (under development)

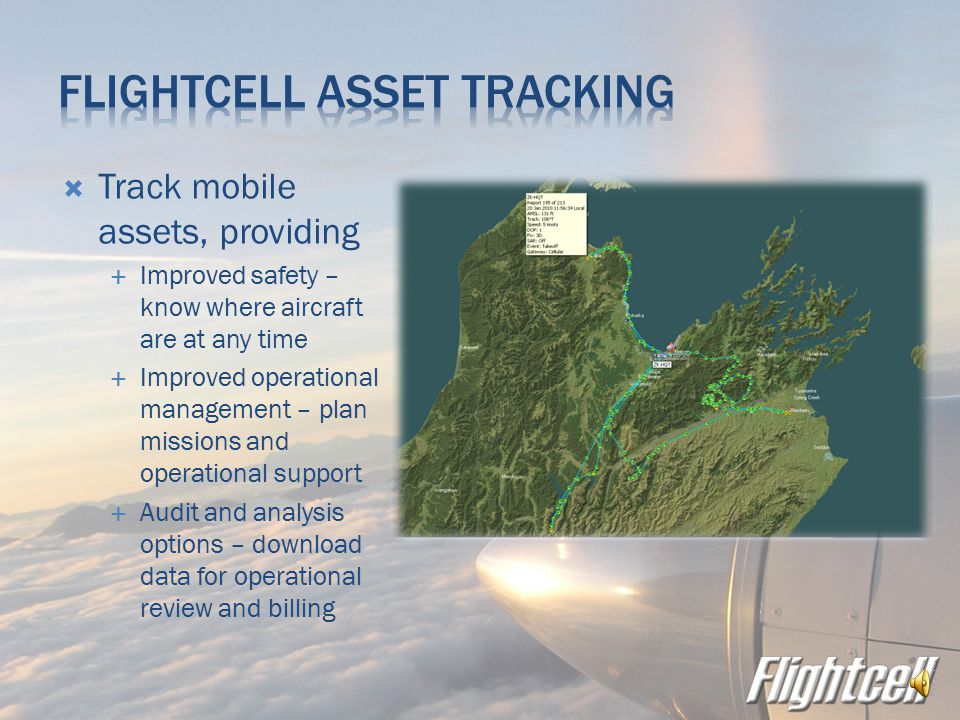

17.  Track mobile assets, providing  Improved safety – know where aircraft are at any time  Improved operational management – plan missions and operational support  Audit and analysis options – download data for operational review and billing

18.  Available events can be configured on DZM menus  Startup  Engine start and stop  Takeoff and landing  Course change

19.  The DZM has several transmission options for position reports. These can be selected according to network coverage and price  Cellular SMS  Iridium SBD  Iridium SMS The DZM reverts to SMS when phone is on voice call)

21. Flightcell DZM ALL Others Removable Satellite Phone for use off the Aircraft (DZM2)  Single compact module (DZM3)  Continuous tracking while on a voice call (using single satellite transceiver)  Position transmission auto switching (cell SMS, sat SBD, sat SMS) depending on message cost, network coverage  Intermediate “breadcrumb” positions to show Truepath ©  Integrated dialler/LCD with tracking audio and data interface. NO additional electronics in Avionics bay.  IP54 environmentally sealed unit  NVG compliant LCD to Mil Std 3009  Cellular voice, tracking and data 

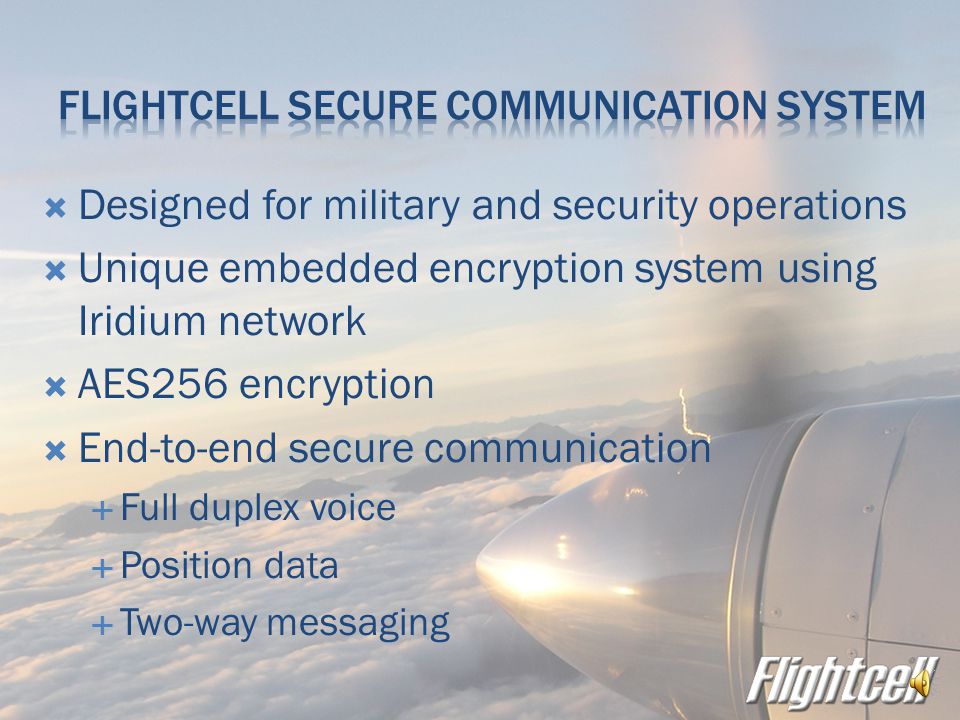

22.  Designed for military and security operations  Unique embedded encryption system using Iridium network  AES256 encryption  End-to-end secure communication  Full duplex voice  Position data  Two-way messaging

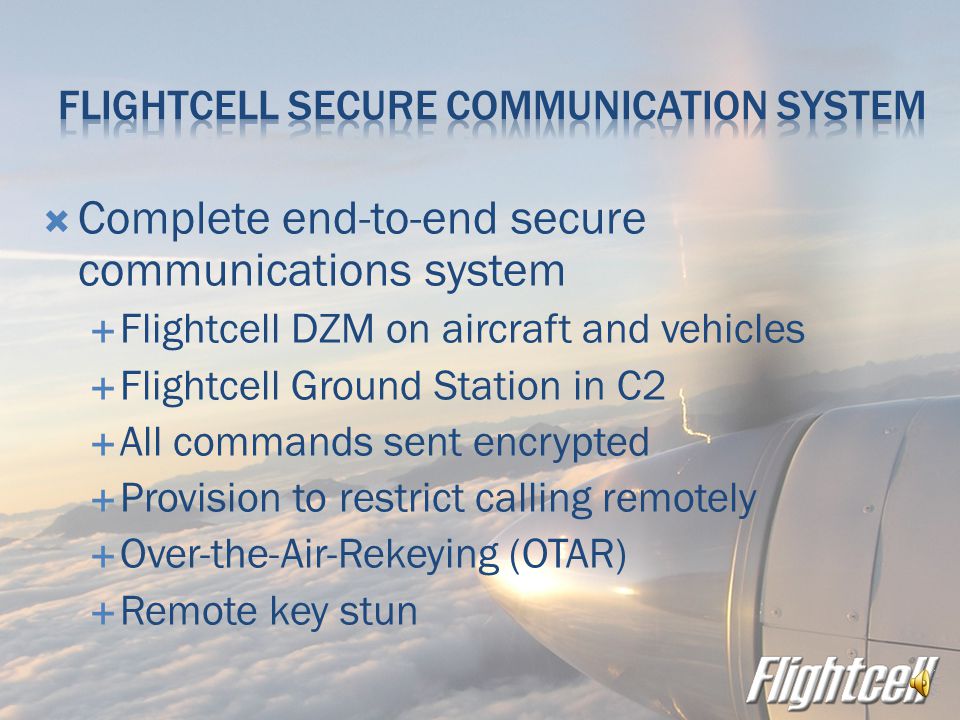

23.  Complete end-to-end secure communications system  Flightcell DZM on aircraft and vehicles  Flightcell Ground Station in C2  All commands sent encrypted  Provision to restrict calling remotely  Over-the-Air-Rekeying (OTAR)  Remote key stun

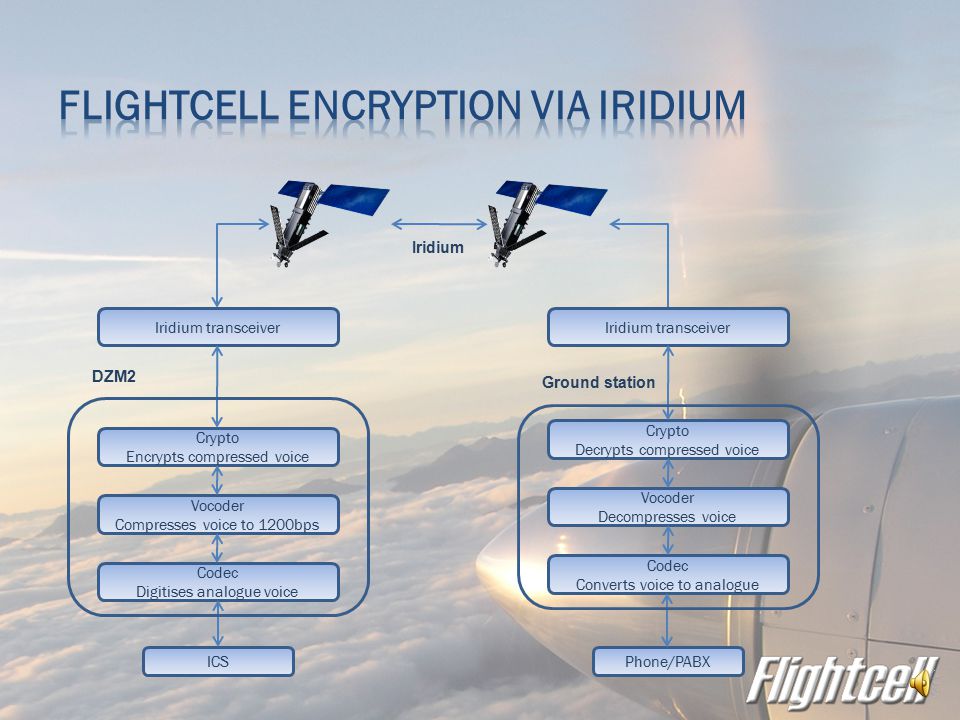

24. ICS Codec Digitises analogue voice Vocoder Compresses voice to 1200bps Crypto Encrypts compressed voice Iridium transceiver Phone/PABX Codec Converts voice to analogue Vocoder Decompresses voice Crypto Decrypts compressed voice Iridium transceiver DZM2 Ground station Iridium

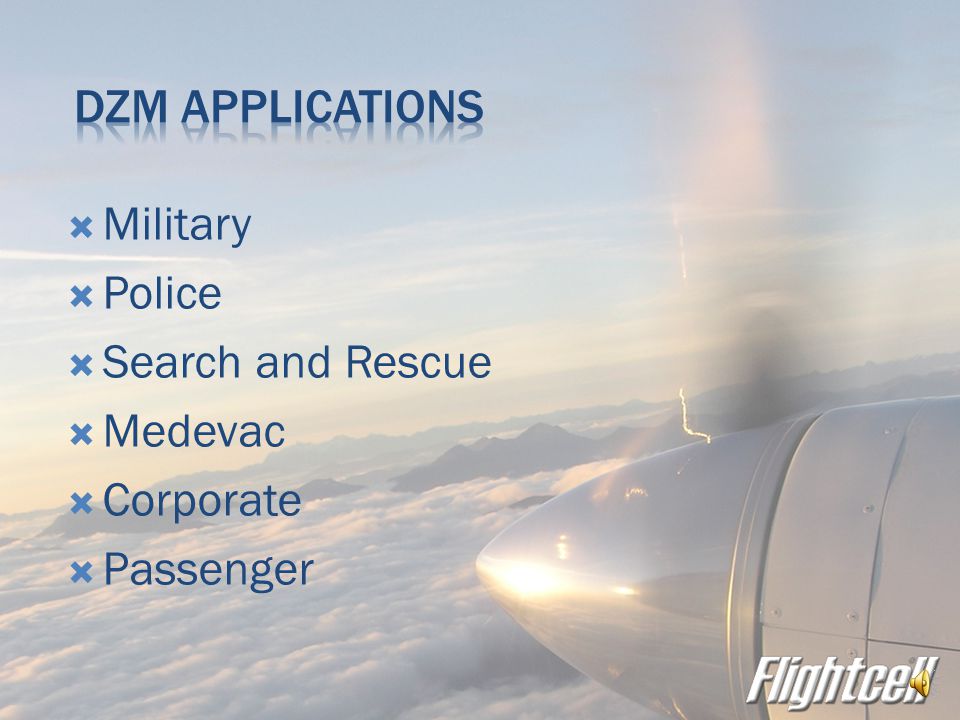

25.  Military  Police  Search and Rescue  Medevac  Corporate  Passenger

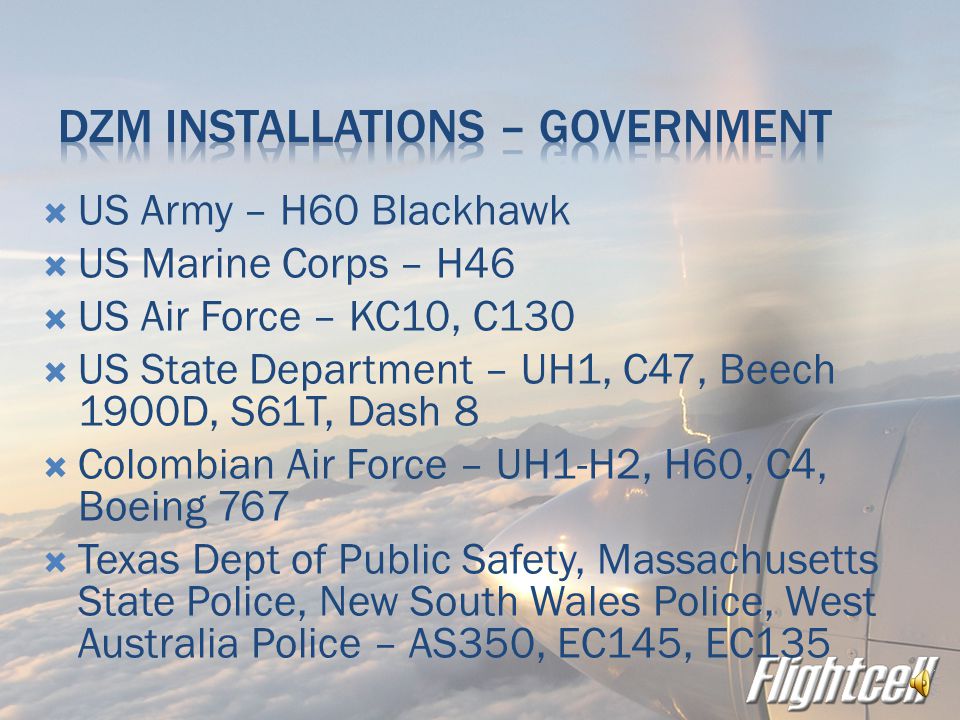

26.  US Army – H60 Blackhawk  US Marine Corps – H46  US Air Force – KC10, C130  US State Department – UH1, C47, Beech 1900D, S61T, Dash 8  Colombian Air Force – UH1-H2, H60, C4, Boeing 767  Texas Dept of Public Safety, Massachusetts State Police, New South Wales Police, West Australia Police – AS350, EC145, EC135

27. Include  Corporate jet – Lear, Cessna Citation  Twin engine– Dornier, KingAir, CASA212, F406, Piper Navajo  Single engine– Cessna 210, 208, 182, 172, Mooney,  Rotary  Eurocopter – AS350, 355; EC120, 130, 135, 145  Bell 212, 412  Agusta A119, A139  Others – Kaman, BK117, R44, H500

28.  Lockheed Martin – DZM selected as Iridium option for C130J
