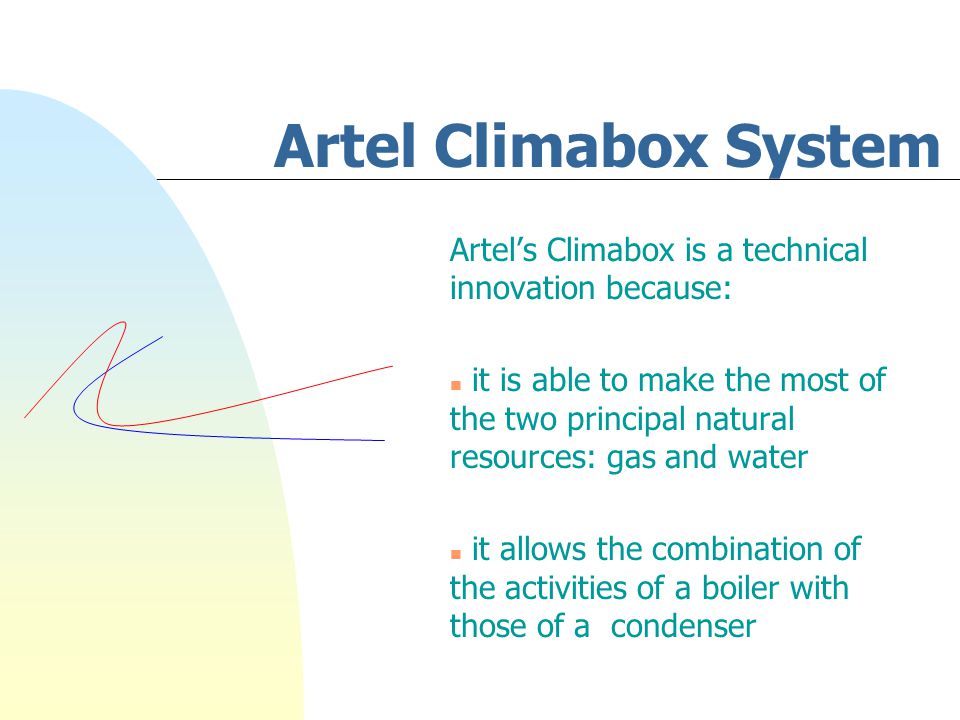

1 Artel Climabox System Artel’s Climabox is a technical innovation because: n it is able to make the most of the two principal natural resources: gas and water n it allows the combination of the activities of a boiler with those of a condenser

2 What is the Climabox ?

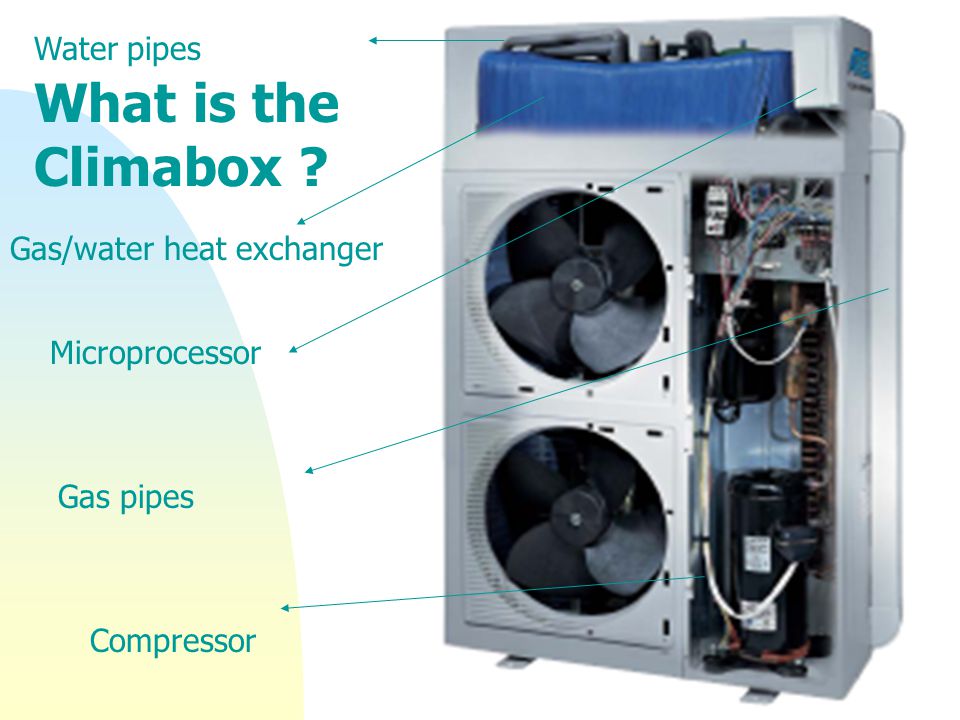

3 What is the Climabox ? Compressor Gas/water heat exchanger Microprocessor Gas pipes Water pipes

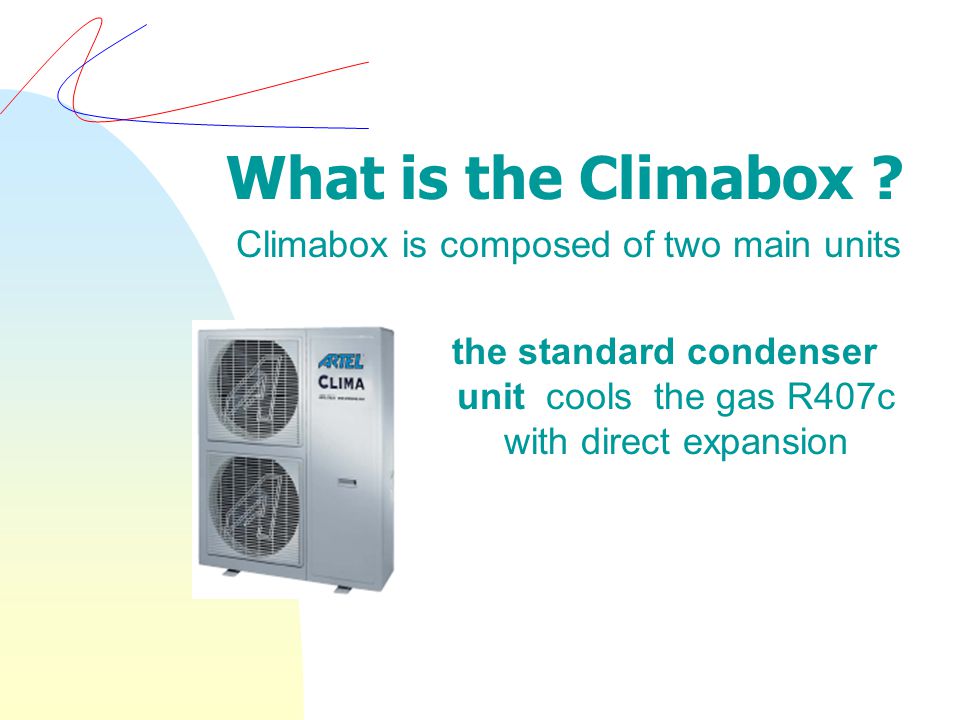

4 What is the Climabox ? Climabox is composed of two main units the standard condenser unit cools the gas R407c with direct expansion

5 What is the Climabox? The additional unit where the coolant changes from gas to water

6 The Climabox from on high Water entrance Water exit

7 Plus: air/water exchanger n Thanks to the large capacity, the Climabox always guarantees a minimum water store n ideal for the combination with the microprocessor of new generation n Made of a particular antifreeze material to be able to work down to very low temperatures anomalies in the temperature regulation do not disturb the exchange system

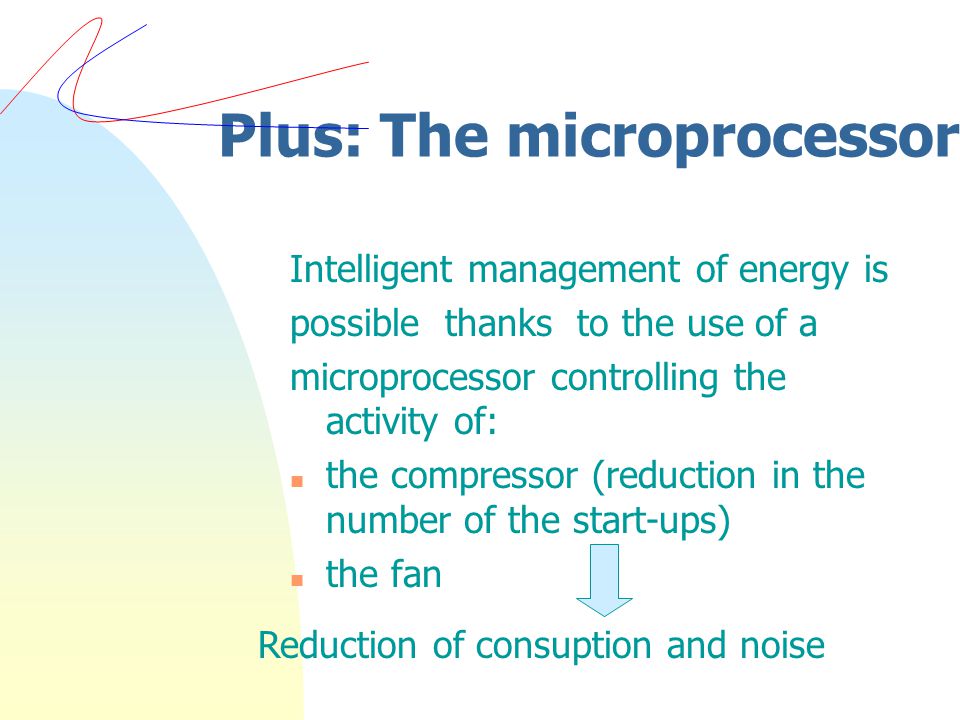

8 Plus: The microprocessor Intelligent management of energy is possible thanks to the use of a microprocessor controlling the activity of: n the compressor (reduction in the number of the start-ups) n the fan Reduction of consuption and noise

9 Plus:The Microprocessor allows n colder wather n a thermal head of 7/8 degrees n the limitation of the number of start-ups of the compressor The complete removal of the accumulation tank

10 The microprocessor allows the limitation of the number of start- ups of the compressor in a hour colder wather, or warmer in heating mode a thermal head of 7-8 degrees improve machine yield Plus:The Microprocessor

11 The microprocessor simulates the operation of the accumulation tank Without microprocessor and accumulation tank With microprocessor and without accumulation tank

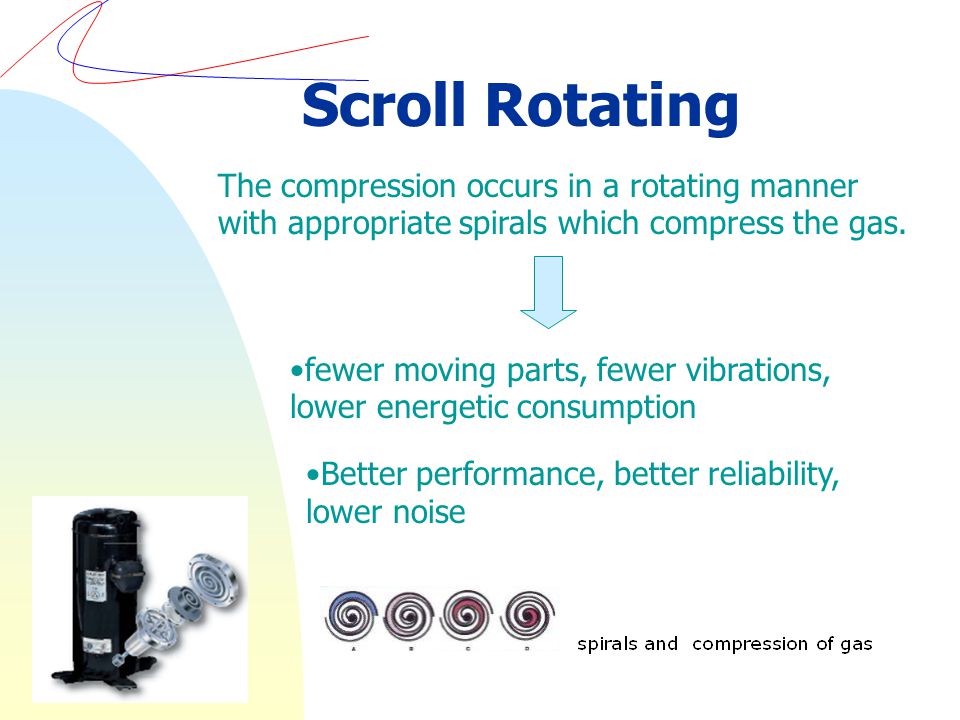

12 Scroll Rotating The compression occurs in a rotating manner with appropriate spirals which compress the gas. fewer moving parts, fewer vibrations, lower energetic consumption Better performance, better reliability, lower noise

13 Principles of operation n water entrance Plant inlet- outlet ***ecologic: Climabox uses the same water inside, without any waste or the need to refill.

14 How to install the Climabox n The Climabox is ideal for connection to and interface with a common gas powered heating boiler The use of a single convection system The alternate use by the two units: - in the summer for a drop in temperature only Climabox operates - in winter Climabox or boiler can operate individually or at the same time

15 How to install the Climabox The Climabox is suitable for two types of installation: n external: the two units are mounted together on the exterior of building

16 How to install the Climabox n internal: only the condenser unit is mounted on the exterior of the building while the additional unit is installed inside.

17 The Climabox is ideal for the conditioning of different rooms placed on different floors and at different distances with high head pumps Climabox destination Maximum efficiency in presence of large height differences, pressure losses and when used for multiple internal units.

18 The Climabox: the partners

19 The Climabox: the versatility Versatility: a system able to be managed by a plumber Versatility: a plant able to facilitate maintenance interventions by technical Versatility: the use of easy-to-get components

20 The Climabox and the Competitors n Dimensions suppressed in the width in comparison to competitors to assure an easy installation and less obstacles n The Climabox is mass-product with a specific pressing (metal-die) that improve the performance in terms of power and the aesthetics ( to knock off the rough edges and the desing of supports)
