Presentation on theme: "Introduction What is the PCIMS ? PCIMS :Process Control Information Management System Each plant as an individual process area shall consist of an integrated."— Presentation transcript:

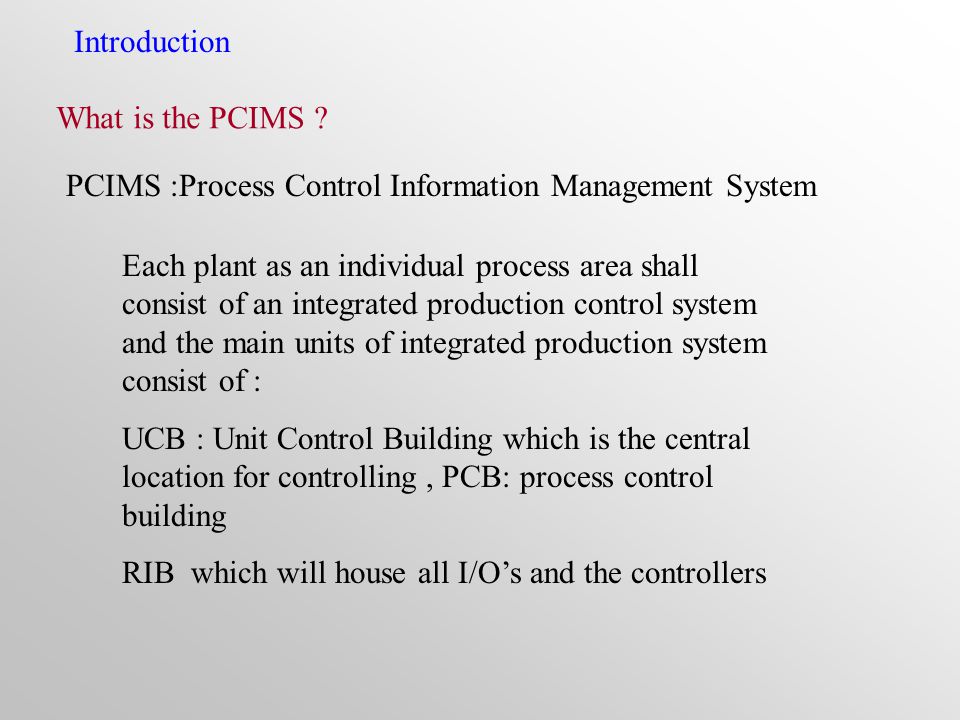

Introduction What is the PCIMS ? PCIMS :Process Control Information Management System Each plant as an individual process area shall consist of an integrated production control system and the main units of integrated production system consist of : UCB : Unit Control Building which is the central location for controlling, PCB: process control building RIB which will house all I/Os and the controllers

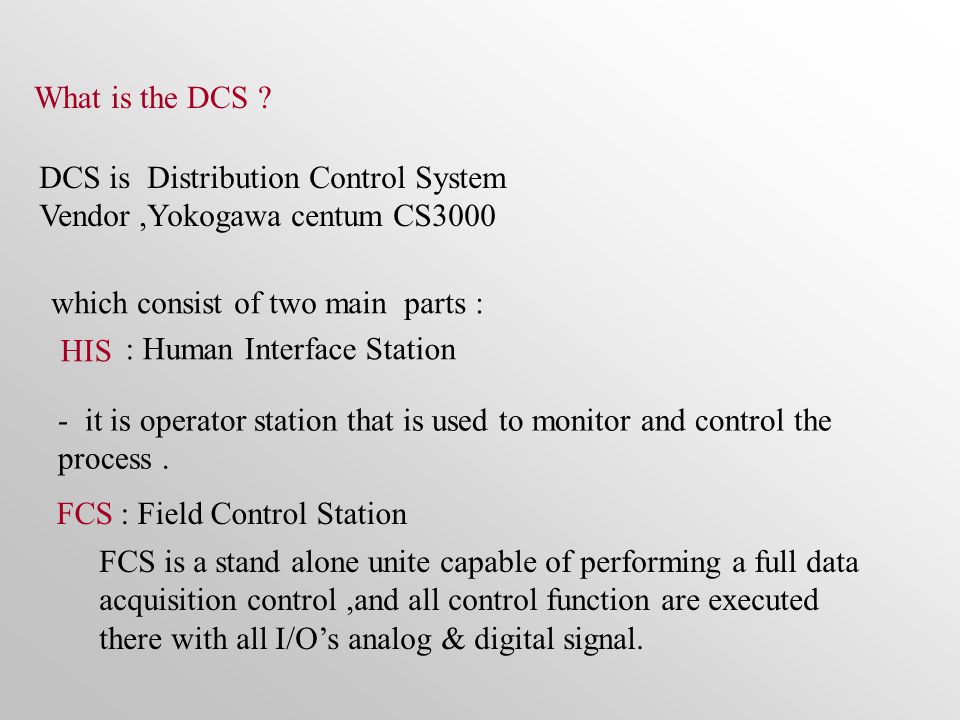

DCS is Distribution Control System Vendor,Yokogawa centum CS3000 which consist of two main parts : HIS : Human Interface Station FCS: Field Control Station - it is operator station that is used to monitor and control the process. FCS is a stand alone unite capable of performing a full data acquisition control,and all control function are executed there with all I/Os analog & digital signal. What is the DCS ?
What is the PESS ? : Programmable electronic safety system Vendor : ( Triconex ) which is used for emergency shutdown (ESD) function and other equipment tripping function. What is the PLC ? is Programmable Logic Control Vendor: Modicon (PLC ) used for control of some packaged mechanical equipment like Demain package & Flare system.
What is MMS ? : Machine Monitoring system Vendor : ( Bentlt Nevada ) Machine Motoring System, the Bently Nevada system is used to monitor the vibration of the shaft and the baring shaft temperature, and to send a signal as hard wire to the shut down system PESS to trip the machine. Which is used in Comp package & critical big Pump..etc. Like :Tank gauging,Flow computer for custody meter and Vibration monitoring System 1 Third party Equipment

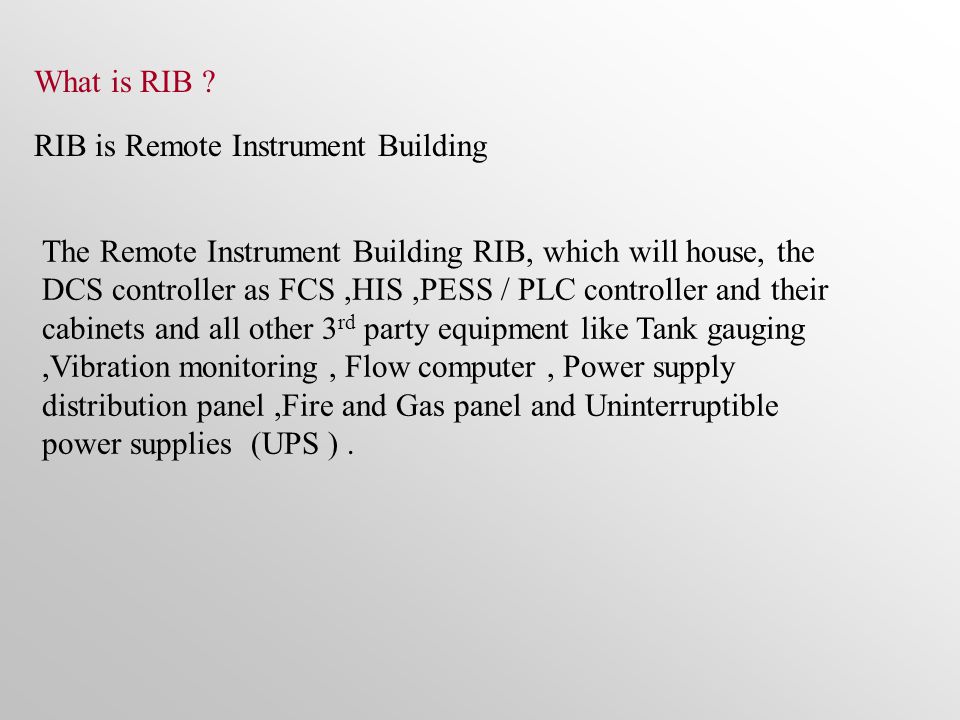

What is RIB ? is Remote Instrument Building The Remote Instrument Building RIB, which will house, the DCS controller as FCS,HIS,PESS / PLC controller and their cabinets and all other 3 rd party equipment like Tank gauging,Vibration monitoring, Flow computer, Power supply distribution panel,Fire and Gas panel and Uninterruptible power supplies (UPS ).
- DCS filed control station FCS Cabinets - Programmable electronic shut down system PESS Cabinets - Machine monitoring system MMS Cabinets - Programmable logic control PLC Cabinets - Other equipment such as Tank Gauging, Custody metering Cabinets - Air unit - Fire and gas panel - All field instruments, wiring signals - Marshaling panels -Terminal blocks -Servers cabinets What is inside RIBs
JB F TA HIS TB FCU FIO HIS Control Room V-net cable 10 base 5 Optical converter Fiber optic cable V-net cable 10 base 2 coaxial cable RIB FCS B/N TMR PLC Copper multi core shielded cable FTA or I/O's cable twisted multi core,as TEL cable One pair copper cable Serial communication link Hard wire YNT FOPP YNT FOPP V-net converter 10 base 5 to 10 base 10 Black box
HIS To do down loading, Tag equalizing between the HIS,s,Trending, and viewing DCS logic DCS OPC server V-net 10 Base 2 cable Control room YNT V-Net 10 Base 5 cable Fiber optic cable RIB YNT V-Net cable 10 base 5 FIO FCS HIS

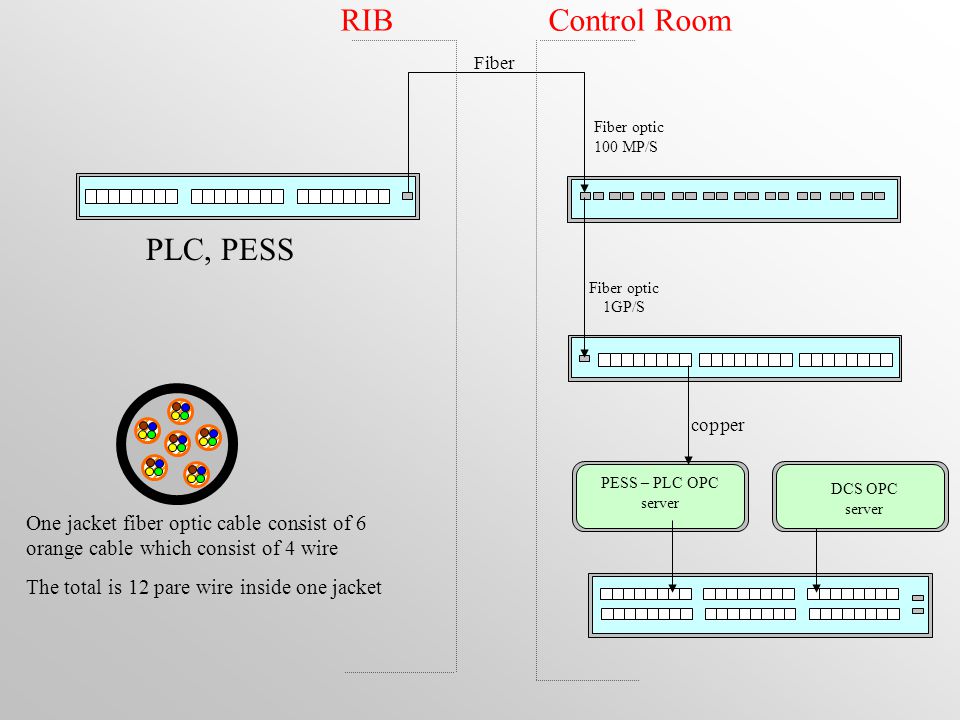

Fiber optic 100 MP/S Fiber optic 1GP/S 2 copper Fiber PLC, PESS RIBControl Room PESS – PLC OPC server DCS OPC server One jacket fiber optic cable consist of 6 orange cable which consist of 4 wire The total is 12 pare wire inside one jacket
