1 Naming Binary Molecular Compounds
2 elements covalent bond

2 3 Rules to Name 1. Name the first element using the entire name 2. Second element in the formula- use the root word and end in –ide ex: Oxygen Sulfur Hydrogen Oxide Sulfide Hydride

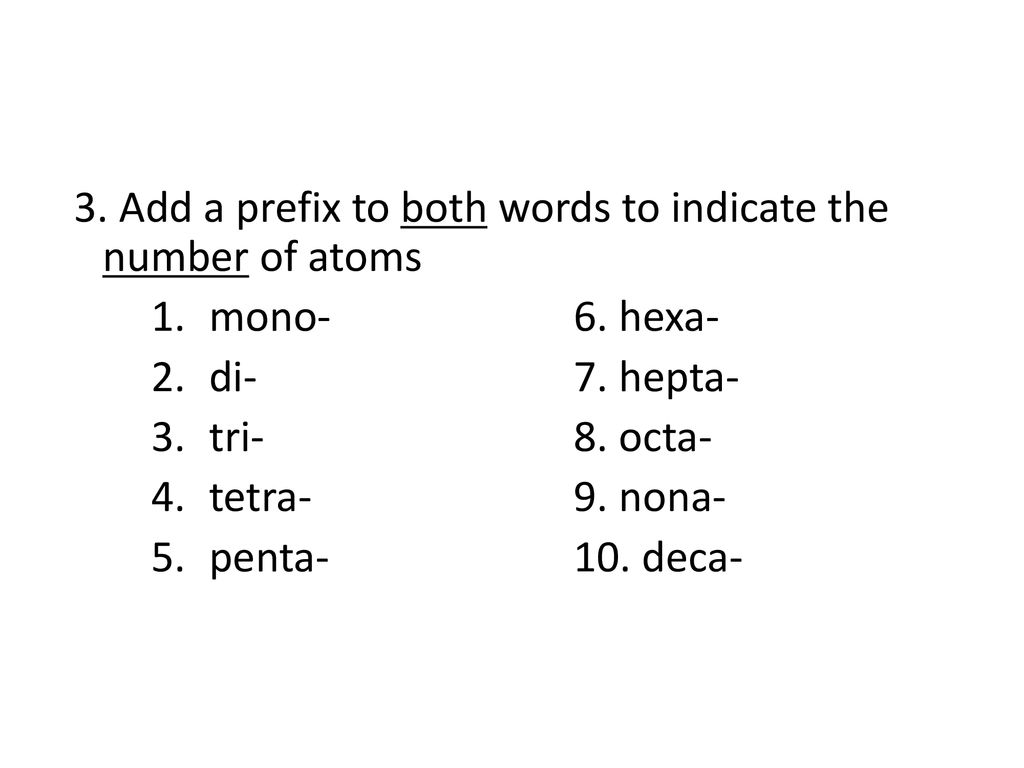

3 3. Add a prefix to both words to indicate the number of atoms
mono hexa- di hepta- tri octa- tetra nona- penta deca-

4 Exceptions to the Rules
1. When the formula contains one atom of the first element, omit mono ex: CO2 Carbon Dioxide Not: Monocarbon Dioxide

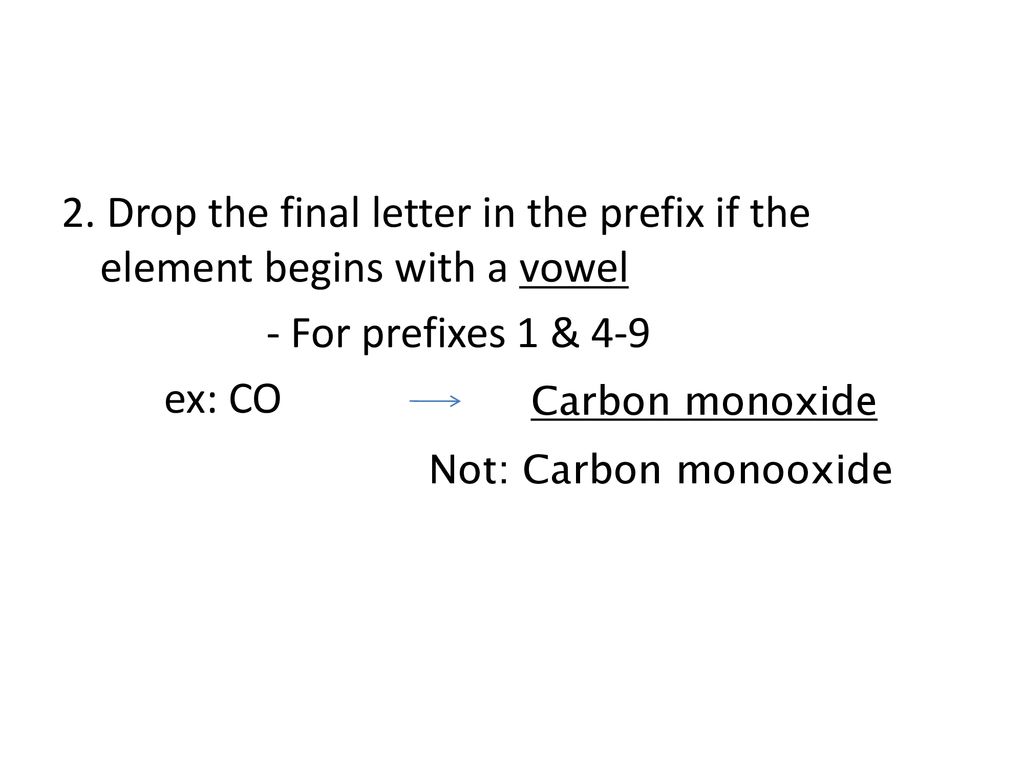

5 2. Drop the final letter in the prefix if the element begins with a vowel - For prefixes 1 & 4-9 ex: CO Carbon monoxide Not: Carbon monooxide

6 Example 1 S4N2 tetra di sulfur nitride nitrogen tetrasulfur dinitride

7 Example 2 SO3 tri oxygen sulfur tri oxide Only one atom of sulfur
- so no prefix needed oxygen sulfur tri oxide

8 Example 3 P4S5 penta tetra sulfur tetra phosphorus penta sulfide

9 Example 4 CO mono oxygen NOT monooxide carbon mon oxide
Only one atom of carbon - so no prefix needed oxygen NOT monooxide carbon mon oxide

10 Example 5 NH3 tri hydrogen More Common Name is “ammonia” nitrogen tri
Only one atom of nitrogen - so no prefix needed hydrogen More Common Name is “ammonia” nitrogen tri hydride

11 Example 6 CH4 tetra hydrogen More Common Name is “methane” carbon
Only one atom of carbon - so no prefix needed hydrogen More Common Name is “methane” carbon tetra hydride

12 Example 7-9 Example 7: As2O3 Diaresenic trioxide Example 8: N2O5
Dinitrogen pentoxide Example 9: P4O10 Tetraphosphorus decaoxide
