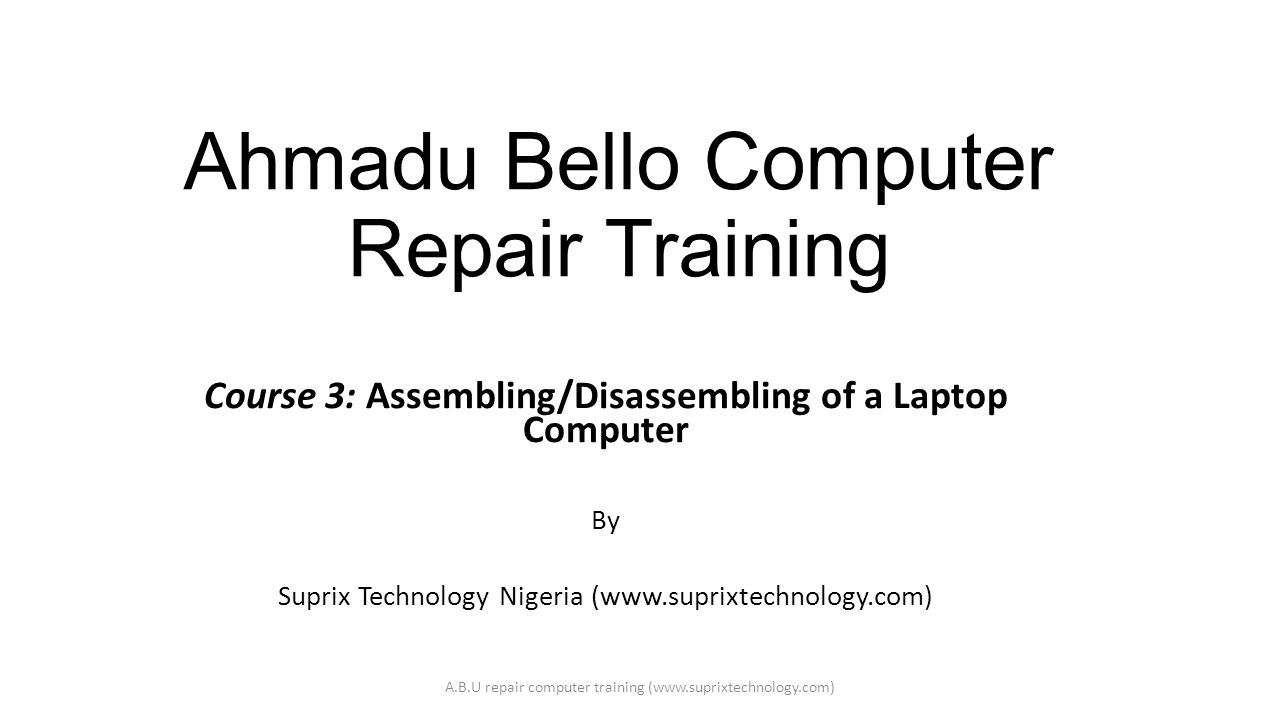

1. Ahmadu Bello Computer Repair Training Course 3: Assembling/Disassembling of a Laptop Computer By Suprix Technology Nigeria (www.suprixtechnology.com) A.B.U repair computer training (www.suprixtechnology.com)

2. Objectives At the end of this lecture, each participant is expected to know how to disassembled an assembled system and to assembled it back without difficulty. A.B.U repair computer training (www.suprixtechnology.com)

3. Introduction “Imagine you hear an abnormal sound from your computer and you couldn’t track it; you tried all you can but all effort prove abortive. That’s annoying right?. I will leave you to answer that.” If yes is the answer then you are about to get a solution to your problem…. Computer Assembly is simply the process of coupling back a disassembled system. i.e. bringing together all parts of a disassembled system to form a whole. Similarly, computer disassembly is the process of losing or separately removing all parts of a computer system either for repair or maintenance. A.B.U repair computer training (www.suprixtechnology.com)

4. Concept of Diagraming in Assembling/Disassembling of a laptop computer This is very helpful when disassembling a laptop especially to the newbies because it help to keep track of the work and helps to know how the laptop was before the commencement of the disassembly work. A.B.U repair computer training (www.suprixtechnology.com)

5. The various steps involve in computer disassembly. 1. Removing the Battery Pack To remove the battery pack from the battery bay, follow the steps below: 1. Turn the notebook upside down. 2. Slide the right battery release lock in the direction of the arrow to unlock the battery pack A.B.U repair computer training (www.suprixtechnology.com)

6. 3. Slide the left battery release latch in the direction of the arrow. The battery pack will pop-up automatically. Gently pry the battery pack from its housing. NOTE: Always start laptop disassembly by removing the battery pack first. A.B.U repair computer training (www.suprixtechnology.com)

7. 2. Removing the HDD Module and Pull up the HDD compartment cover in the direction of the arrow. Follow the steps below to remove the HDD module: 1. Turn the notebook upside down. 2. Remove the screws securing the HDD compartment cover. A.B.U repair computer training (www.suprixtechnology.com)

8. 3. Remove the screws securing the HDD module in place and Pull the tab to remove the HDD module in the direction of the arrow. A.B.U repair computer training (www.suprixtechnology.com)

9. 4. Remove the screws to take off the HDD case if any and Remove the HDD module from the HDD case. A.B.U repair computer training (www.suprixtechnology.com)

10. 5. Removing the RAM Follow the steps below to remove the RAM: 1. Turn the notebook upside down. 2. Remove one screw and one screw securing the RAM cover, and then remove the cover. A.B.U repair computer training (www.suprixtechnology.com)

11. 6. Push the latches to release the RAM module. A spring will force one end of the module up. Grasp the module and pull it out. A.B.U repair computer training (www.suprixtechnology.com)

12. 7. Disassembling the ODD (CD-ROM/DVD-ROM/CD-RW…) Follow the steps below to disassemble the optical drive (ODD): 1. Turn the notebook upside down. 2. Remove the screw securing the ODD. 10.Insert a flat screwdriver into the slot as shown and gently push out the ODD. A.B.U repair computer training (www.suprixtechnology.com)

13. 8. Removing the Keyboard Open the display panel and follow the steps below to remove the keyboard. 1. Lift up the strip cover from the right side and remove it. 2. Remove the two M2.5x4 screws securing the keyboard. A.B.U repair computer training (www.suprixtechnology.com)

14. 9. Turn over the keyboard, revealing the keyboard cable underneath and Use a thin tool such as a screwdriver to lever up the connector bracket and disconnect the keyboard cable from the motherboard. A.B.U repair computer training (www.suprixtechnology.com)

15. 10. Removing the Switch Board Open the display panel and follow the steps below to remove the switch board. 1.Remove the screws securing the switch board. 2.Remove the switch board. A.B.U repair computer training (www.suprixtechnology.com)

16. 11. Removing the Wireless LAN Card To remove the wireless LAN card, follow the steps below: 1.Turn the notebook over. Remove the and screws securing the thermal cover. 2. Remove the cover. A.B.U repair computer training (www.suprixtechnology.com)

17. 12. Disconnect the three antennas from the wireless LAN card and Remove the screws attaching the stand-off bracket to the motherboard. A.B.U repair computer training (www.suprixtechnology.com)

18. 13. Remove the stand-off bracket and Grasp the wireless LAN card and pull it out. CAUTION: Do not touch the connectors on the wireless LAN card or on the computer. Debris on the connectors may cause the unit to malfunction. A.B.U repair computer training (www.suprixtechnology.com)

19. 14. Removing the System Fan To remove the system fan, first remove the wireless LAN card. Then follow the steps below: 1. Turn the notebook over. Remove the three M2.5x4 screws securing the system fan. 2. Disconnect the fan connector from the motherboard as shown, and lift out the system fan. A.B.U repair computer training (www.suprixtechnology.com)

20. 15. Removing the CPU To remove the CPU, first remove the wireless LAN card, and thermal module. Then follow the steps below: 1. Turn the cam on the CPU socket with a flat-blade screwdriver so that the notch on the cam is aligned with the open side of the CPU socket to unlock the CPU. 2. Gently lift out the CPU. A.B.U repair computer training (www.suprixtechnology.com)

21. 16. Removing the LCD Module To remove the LCD module, first remove the keyboard, and switch board. Then follow the steps below: 1. Disconnect the LCD power (LVDS), CMOS, and microphone cables and pull the wireless antennas free from the laptop as shown. 2. Remove the four M2.5x4 screws securing the LCD module to the logic upper. 3. Remove the LCD module. A.B.U repair computer training (www.suprixtechnology.com)

22. 17. Removing the Logic Upper To remove the logic upper, first remove the battery pack, HDD, memory module, ODD, keyboard, switch board, wireless LAN, system fan, thermal module, CPU, Bluetooth module, and LCD module as described in the preceding sections. Follow the steps below to remove the logic upper. 1.Turn the computer upside down and remove the 14 M2.5x8 screws from the bottomside of the notebook. A.B.U repair computer training (www.suprixtechnology.com)

23. 18. Remove the screw securing the logic upper to the logic lower. 1. Turn the computer over again and disconnect the power USB board FFC, touchpad, and finger printer cables as shown. 2. Lift off the logic upper. A.B.U repair computer training (www.suprixtechnology.com)

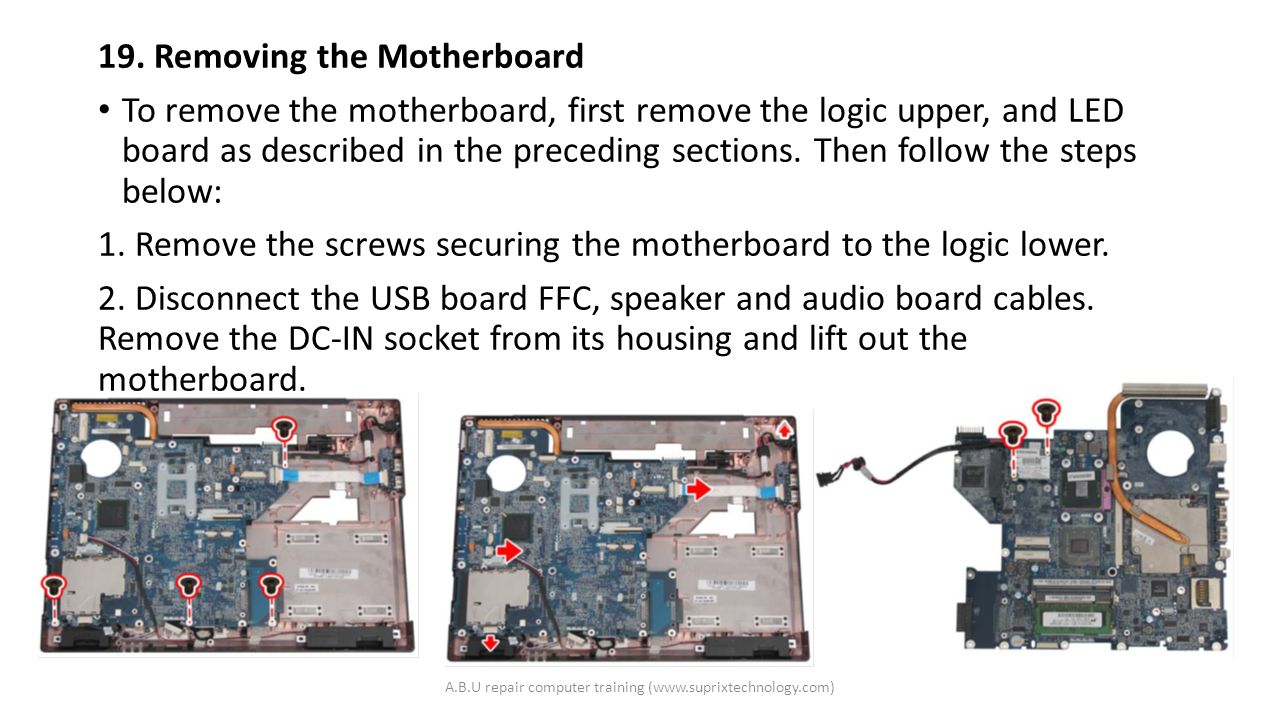

24. 19. Removing the Motherboard To remove the motherboard, first remove the logic upper, and LED board as described in the preceding sections. Then follow the steps below: 1. Remove the screws securing the motherboard to the logic lower. 2. Disconnect the USB board FFC, speaker and audio board cables. Remove the DC-IN socket from its housing and lift out the motherboard. A.B.U repair computer training (www.suprixtechnology.com)

25. Computer Assembly To assemble back the disassembled system, all you need to do is to reverse the disassembly process from the last step back to the first step. An important point to note when assembling/disassembling a desktop computer is to observe the ZIF (Zero Insertion Force) i.e. don’t force anything in or out from its position either on the mother board or any other part of the computer, we might want to know that this is also applicably in other electronics devices. A.B.U repair computer training (www.suprixtechnology.com)
