1. Swedish Bioenergy Association Gustav Melin CEO, SVEBIO President of AEBIOM - European Biomass Association

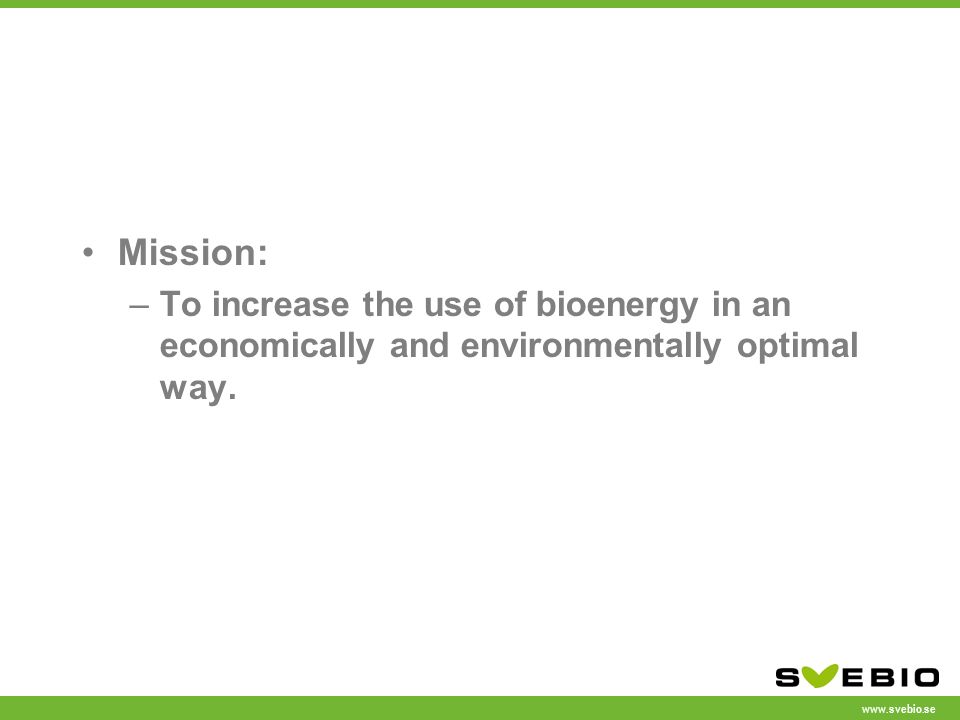

2. www.svebio.se Mission: –To increase the use of bioenergy in an economically and environmentally optimal way.

3. www.svebio.se - Dedicated to increase the use of bioenergy in an economically and environmentally optimal way. In 2012 the Swedish energy supply reached 51 per cent renewables.

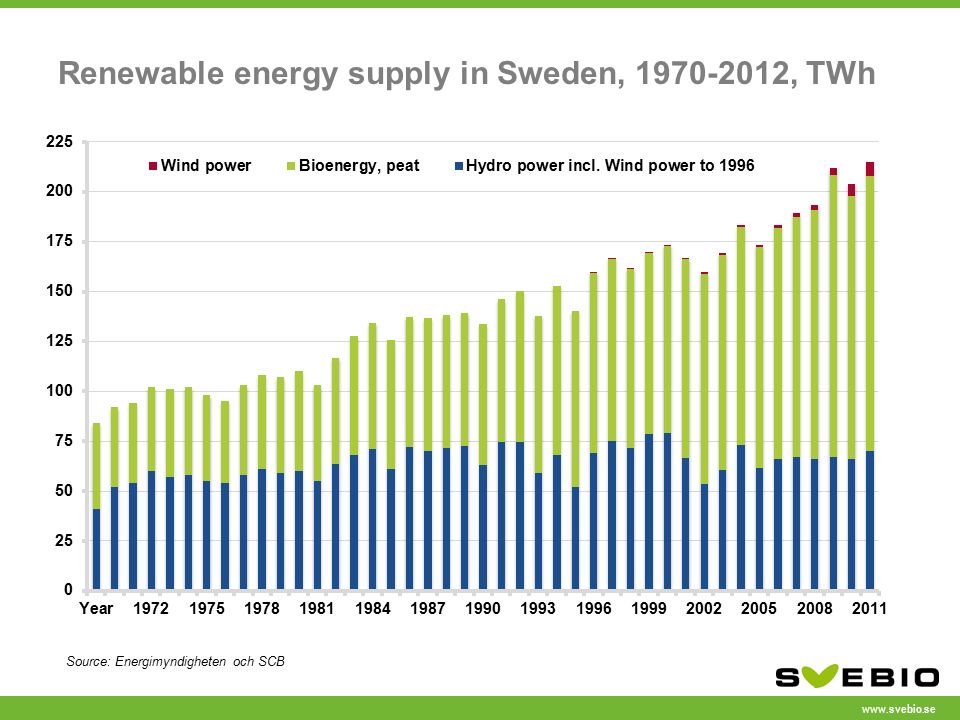

4. www.svebio.se Source: Energimyndigheten och SCB Renewable energy supply in Sweden, 1970-2012, TWh

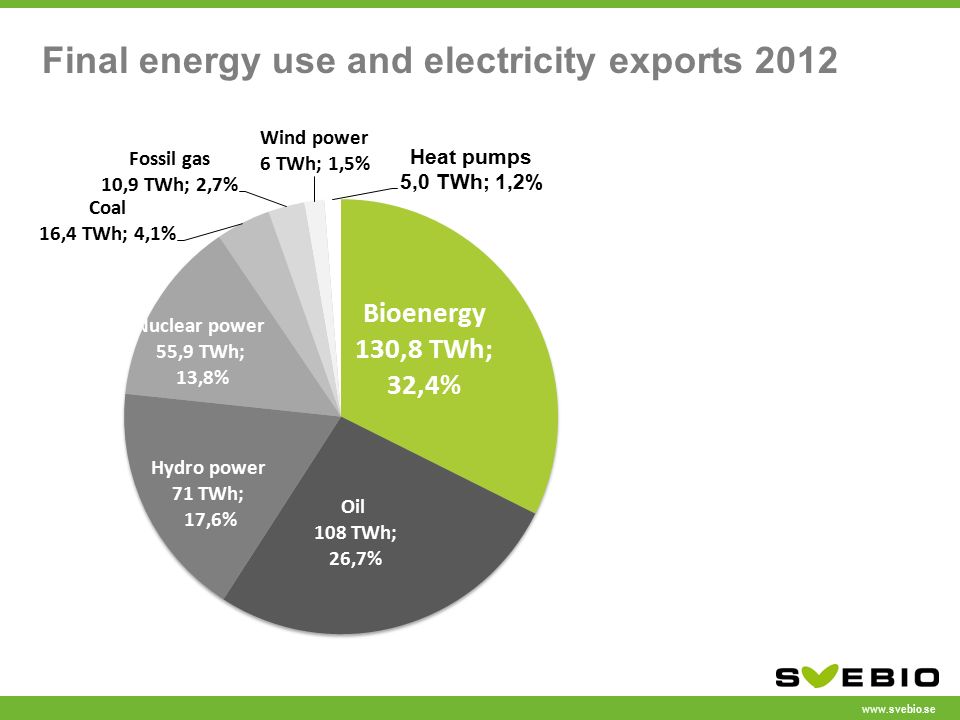

5. www.svebio.se Final energy use and electricity exports 2012

6. www.svebio.se We believe in the beauty of CO 2 tax Use the ‘polluter pays principle’ to combat climate change It reduces the dependence on imported fossil fuels National budget is strengthened by increased carbon tax. Swedish government has lowered the income tax three times when increasing carbon tax. Poor people can be supported to obstain energy powerty.

7. Current price relations Municipal Solid Waste, MSWget paid? Demolition wood€ 8 / MWh? Wood Chips, delivered at plant€20 / MWh Pellets price CIF Rotterdam€28 / MWh Crude oil, Brent 2013€47 / MWh

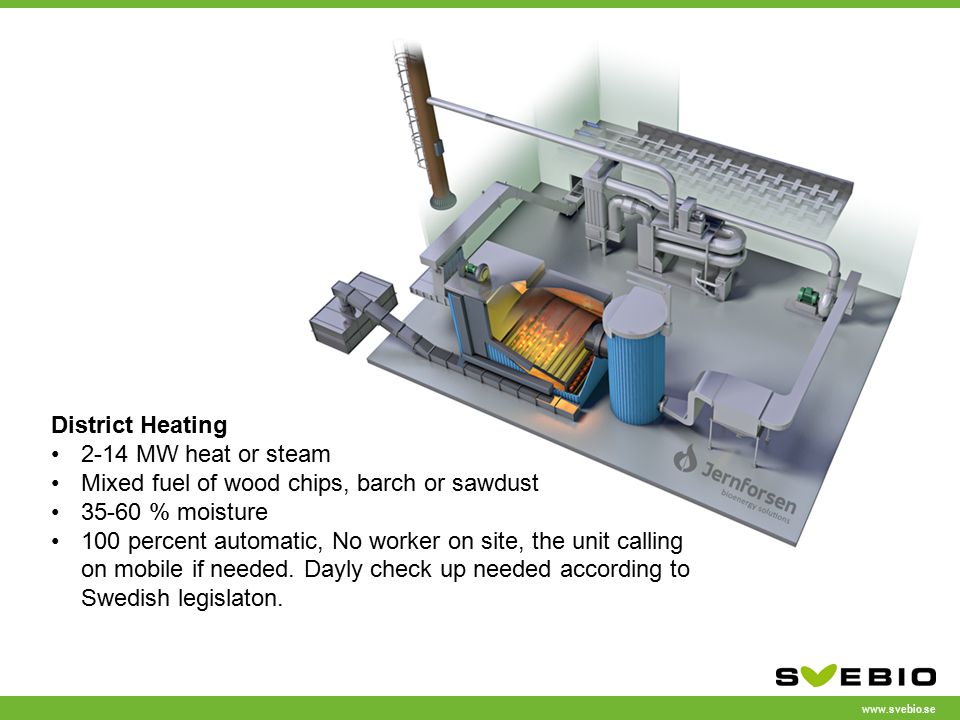

8. www.svebio.se District Heating 2-14 MW heat or steam Mixed fuel of wood chips, barch or sawdust 35-60 % moisture 100 percent automatic, No worker on site, the unit calling on mobile if needed. Dayly check up needed according to Swedish legislaton.

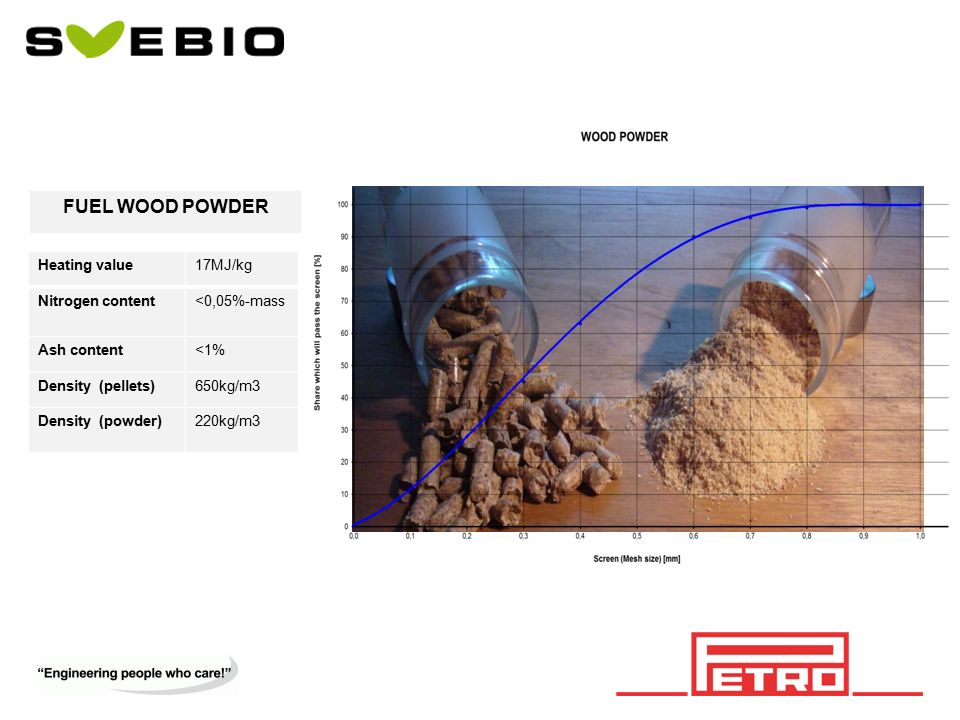

9. Heating value17MJ/kg Nitrogen content<0,05%-mass Ash content<1% Density (pellets)650kg/m3 Density (powder)220kg/m3 FUEL WOOD POWDER

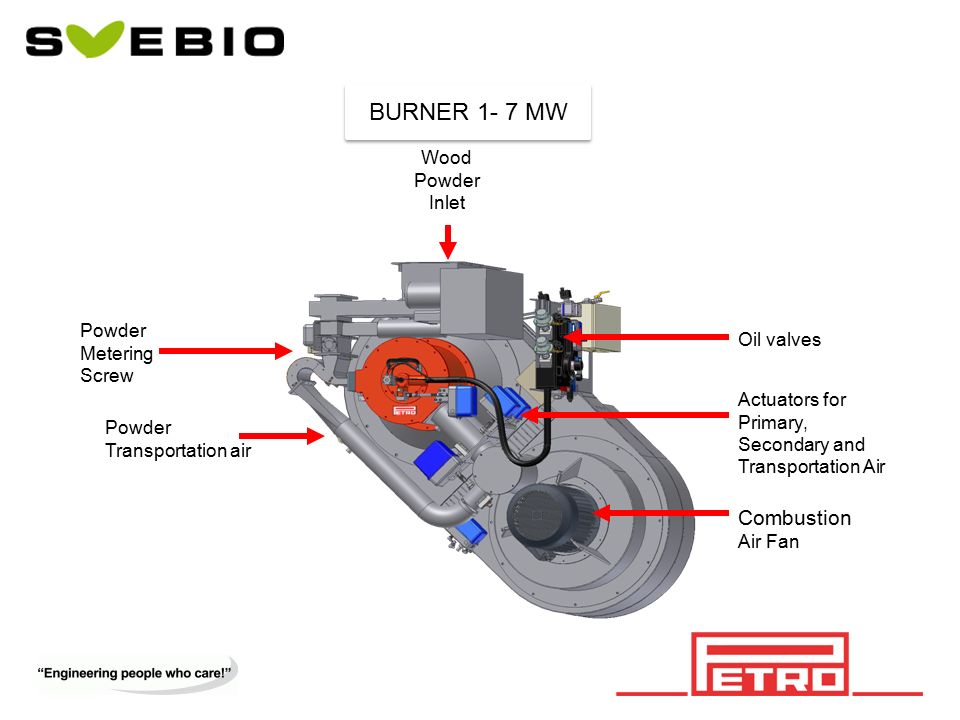

10. BURNER 1- 7 MW Oil valves Actuators for Primary, Secondary and Transportation Air Combustion Air Fan Wood Powder Inlet Powder Metering Screw Powder Transportation air

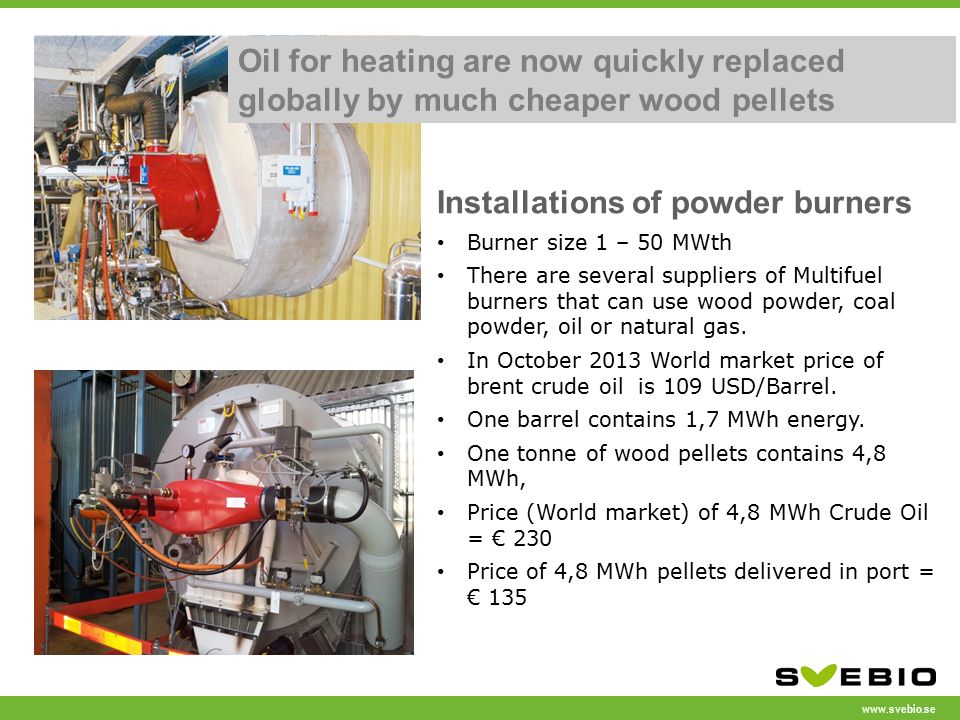

11. www.svebio.se Installations of powder burners Burner size 1 – 50 MWth There are several suppliers of Multifuel burners that can use wood powder, coal powder, oil or natural gas. In October 2013 World market price of brent crude oil is 109 USD/Barrel. One barrel contains 1,7 MWh energy. One tonne of wood pellets contains 4,8 MWh, Price (World market) of 4,8 MWh Crude Oil = € 230 Price of 4,8 MWh pellets delivered in port = € 135 Oil for heating are now quickly replaced globally by much cheaper wood pellets

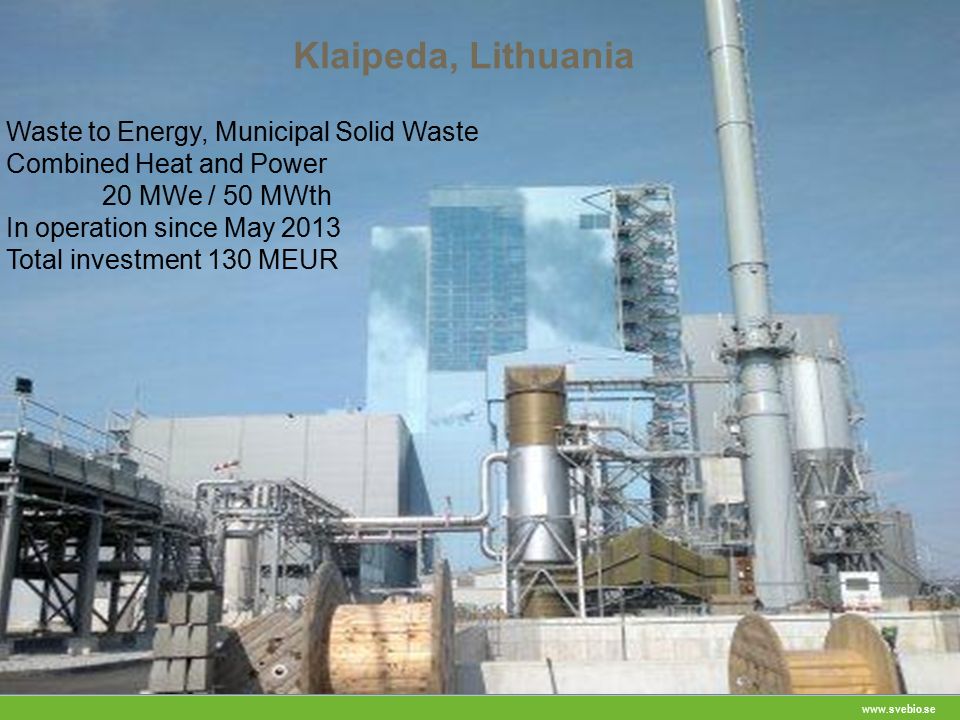

12. www.svebio.se Klaipeda, Lithuania Waste to Energy, Municipal Solid Waste Combined Heat and Power 20 MWe / 50 MWth In operation since May 2013 Total investment 130 MEUR

13. www.svebio.se Igelstaverken. Combined Heat and Power plant in Södertälje south of Stockholm 200 MWth for District Heating. 85 MWe for Power production

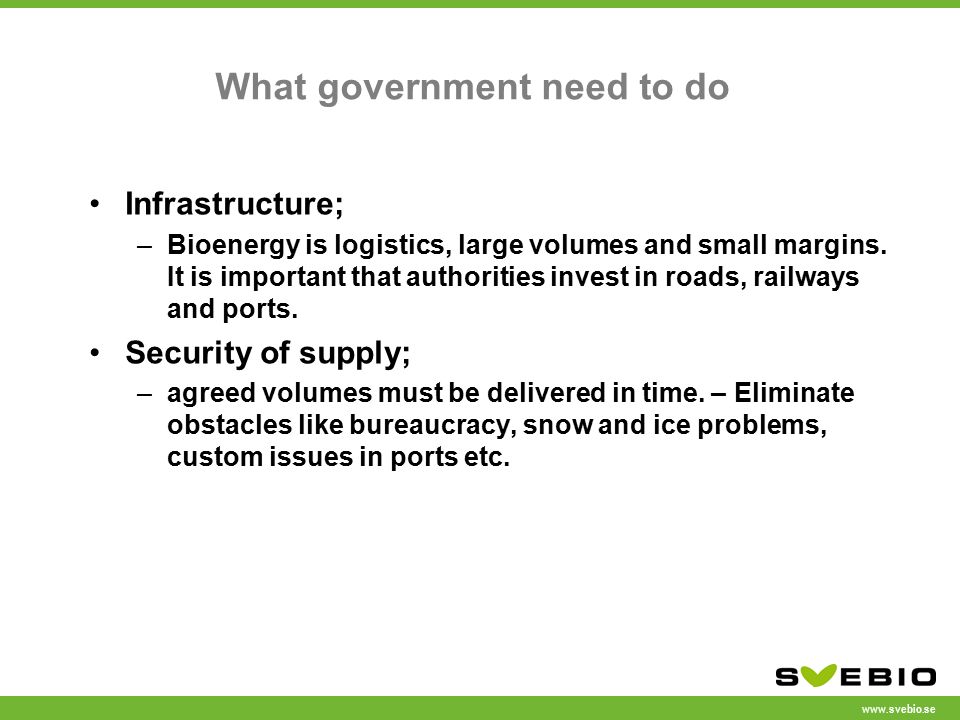

14. www.svebio.se Infrastructure; –Bioenergy is logistics, large volumes and small margins. It is important that authorities invest in roads, railways and ports. Security of supply; –agreed volumes must be delivered in time. – Eliminate obstacles like bureaucracy, snow and ice problems, custom issues in ports etc. What government need to do

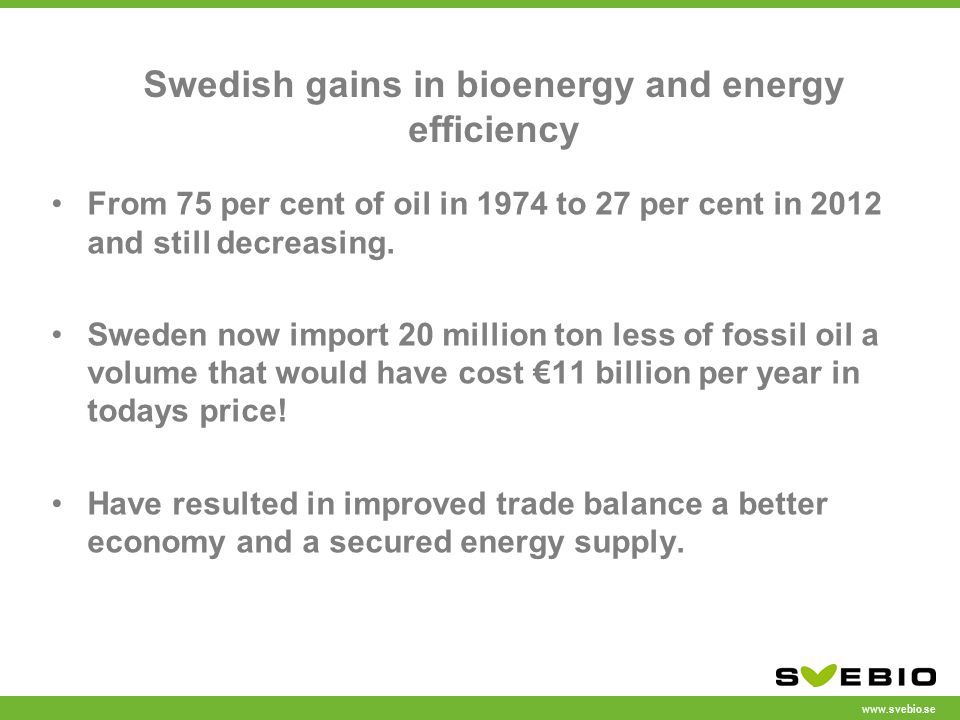

15. www.svebio.se From 75 per cent of oil in 1974 to 27 per cent in 2012 and still decreasing. Sweden now import 20 million ton less of fossil oil a volume that would have cost €11 billion per year in todays price! Have resulted in improved trade balance a better economy and a secured energy supply. Swedish gains in bioenergy and energy efficiency

16. www.svebio.se
