1 Skeletal Injuries

2 Skeletal Injuries—Fracture Fractures (fx): break in bone Failure point: amount of energy needed to cause a fracture Simple (closed) Compound (open) Direct trauma Fx directly at site where force applied Indirect trauma Fx occurs some distance where force applied Sudden, violent muscle ctx or repetitive abnormal stress to bone

3 Simple (Closed) Fracture Occurs when forces on bone exceed the bone’s ability to withstand forces applied May be complete or incomplete

4 Compound (Open) Fracture Complete break in bone where bone ends separate and break through skin Increased chance of wound and bone infection

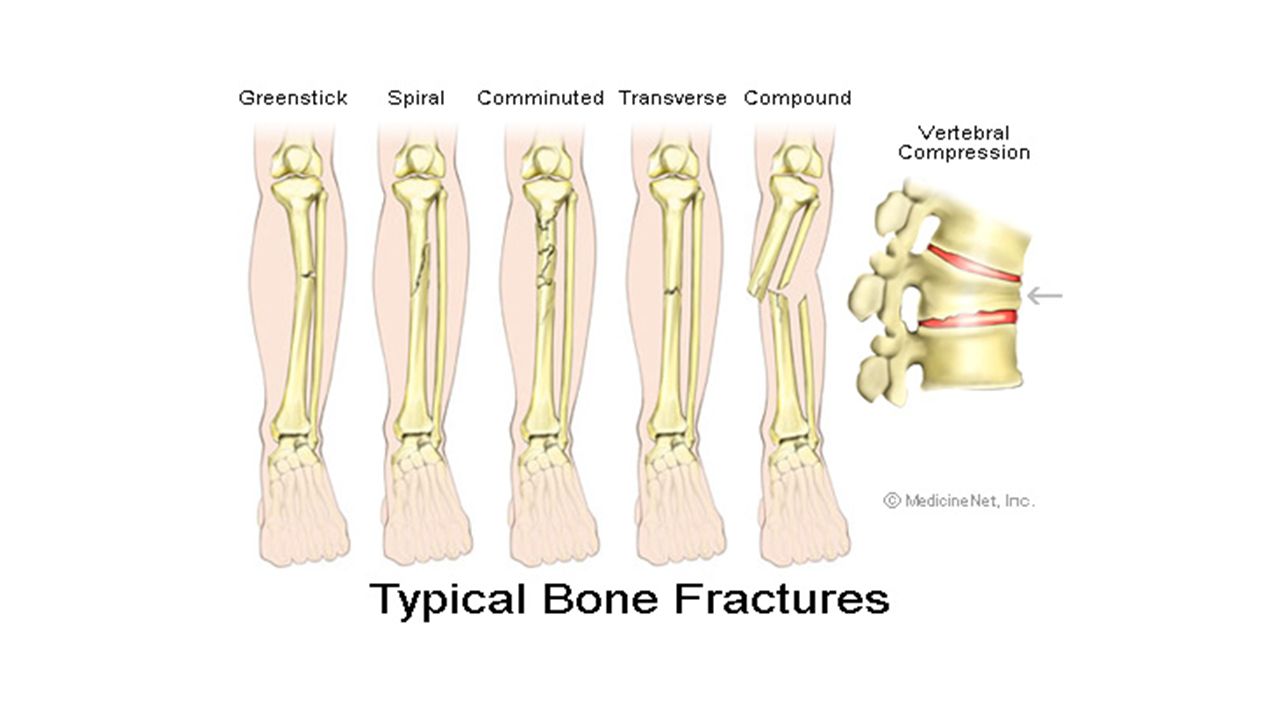

5 Acute Bone Fractures Depressed Greenstick Impacted Longitudinal Spiral Oblique Serrated Transverse Comminuted Contrecoup Blowout Avulsion

6

7

8

9 Depressed Fracture Most often in flat bones (skull) Caused by falling & striking head on hard, immovable surface Hit with hard object Result in gross pathology of soft areas

10 Greenstick Fracture Incomplete break in the shaft of bone Occurs in children b/c bones more pliable Usually occurs on outer bend Direct blow

11 Impacted Fracture Long bone receives such force that osseous tissue compressed Fall from height (compression) Require immediate traction by physician of injured limb

12 Longitudinal Fracture Bone splits along its length Athlete jumping form height and landing in way as to impact force or stress to long axis (compression)

13 Spiral Fracture S-shaped separation Common football or skiing Foot firmly planted when body suddenly rotated in opposing direction (torsion)

14 Oblique Fracture Similar to spiral Occur when one end of bone receives sudden torsion or twisting while other end fixed or stabilized (torsion)

15 Serrated Fracture Two bony fragments have a sawtooth, sharp-edged fx line Usually caused by direct blow Can cause extensive internal damage Severance of vital blood vessels and nerves

16 Transverse Fracture Occur in straight line, more or less at right angles to bone shaft Direct outside blow

17 Comminuted Fracture Break in bone in which bone shattered in many pieces (3+) Hard blow or fall in awkward position

18 Contrecoup Occur on opposite side to point at which trauma initiated

19 Blowout Fracture Occur to wall of the eye orbit as result of a blow to the eye

20 Avulsion Fracture Separation of bone fragment from cortex at an attachment of a ligament or tendon Sudden, powerful twist or stretch of body part

21 Stress Fracture Small incomplete break in bone due to: Overuse Poor muscle balance Lack of flexibility Weakness in soft tissue Malnutrition Stresses on body are greater than body can compensate Symptoms Pain Tenderness after activity No or little pain in AM, but pain returns after activity

22 Epiphyseal Plate Fracture Break in bone at growth plate Most in individuals (age 10-16) due to sports participation X-ray won’t show fx of epiphyseal b/c epiphyseal plate shows up clear

23 Fractures Signs & Symptoms Swelling (edema) Deformity Pain Tenderness Discoloration Loss of function Treatment Internal fixation External fixation Remodeling: process of absorbing and replacing bone

24 Treatment & Repair Internal Fixation Surgery required to align bones and reduce fracture External Fixation Use of cast to keep bones aligned while natural healing occurs

25 Skeletal Injuries Subluxation Occurs when bone displaces, then returns to normal position Dislocation Occurs when significant force displaces bone so that the two bone ends in a joint no longer add up

26 Synovial Joint Injuries  Acute Sprains Synovitis Subluxations Dislocations  Chronic Osteochondrosis Arthritis Bursitis Capsulitis/synovitis

27 Sprains Injury to ligamentous and capsular tissue Traumatic joint twist that results in stretching of connective tissue One of most common & disabling sports injuries General Symptoms: Joint swelling Pain Point tenderness Skin discoloration

28 Sprains  Grade 1  Some pain  Minimum LOF  Mild point tenderness  Little or not swelling  No abnormal motion  Grade 2  Pain  Moderate LOF  Swelling  Slight to moderate instability  Grade 3  Severe sprain  Extremely painful initially  LOF  Severe instability  Tenderness  Swelling  May represent subluxation that reduced spontaneously

29 Synovitis Irritation of synovial membrane Causes increase in fluid production, swelling Joint pain during motion, skin sensitivity from pressure Diminish in few days

30 Acute Joint Injuries Subluxation Occurs when bone displaces, then returns to normal position Dislocation Occurs when significant force displaces bone so that the two bone ends in a joint no longer add up

31 Arthritis Inflammation of an entire joint Usually involves all tissues of the joint Most often in WB joints 100 varieties of arthritis 10% population No cure

32 Rheumatoid Arthritis  Connective tissue disorder resulting in severe inflammation of small joints  Cause unknown  Severely debilitating  destroys cartilage and fuses bones of joint

33 Osteoarthritis

34 Bursitis Inflammation of the synovial cavity caused by excessive stress or tension

35 Open & Closed Kinematic Chains Open Kinematic Chain Sequence of action in which the body part farthest from the trunk is free during movement i.e. Seated leg extension Closed Kinematic Chain Sequence of action in which the body part farthest from the trunk is fixed during movement i.e. In a squat, feet are fixed and the rest of leg chain moves

36
