Maizeoline: Biomass to Diesel via Furfural Rebecca Paustian, Stephanie Callahan, Ross Warner, Ryan Felde-Vassallo May 2, 2015.

Similar presentations


Presentation on theme: "Maizeoline: Biomass to Diesel via Furfural Rebecca Paustian, Stephanie Callahan, Ross Warner, Ryan Felde-Vassallo May 2, 2015."— Presentation transcript:

1 Maizeoline: Biomass to Diesel via Furfural Rebecca Paustian, Stephanie Callahan, Ross Warner, Ryan Felde-Vassallo May 2, 2015

2 What is Biodiesel  Biodiesel is a renewable, clean burning fuel made from plant- based products

3 Importance  6.57 billion barrels of petroleum products consumed in the US in 2013  ~18 million barrels/day  Import ~ 9.3 million barrels/day as of 2014 from 80 different countries  Eventually all known reserves will be depleted

4 Applications and Uses for Biodiesel  Can be used in all diesel engines.  Cleans out engines  Lubricates better then petro-diesel  Was licensed by the California Department of Fish and Game as a shoreline cleaning agent.  Paint and adhesive remover

5 Advantages of Biodiesel  Renewable feedstock  Meets the Clean Air Act Amendments  Comparable energy density and energy content to petro-diesel  Compatible with existing engines  Biodegradable

6 Properties of Biodiesel  Immiscible with water  High flash point  Low vapor pressure

7 Location and Market Opportunities  Plant Location: Spencer, Iowa  Fairly new technology that is being looked by several different companies  Can be blended with petro-diesel  Consumers  US Military  Disneyland  National Parks

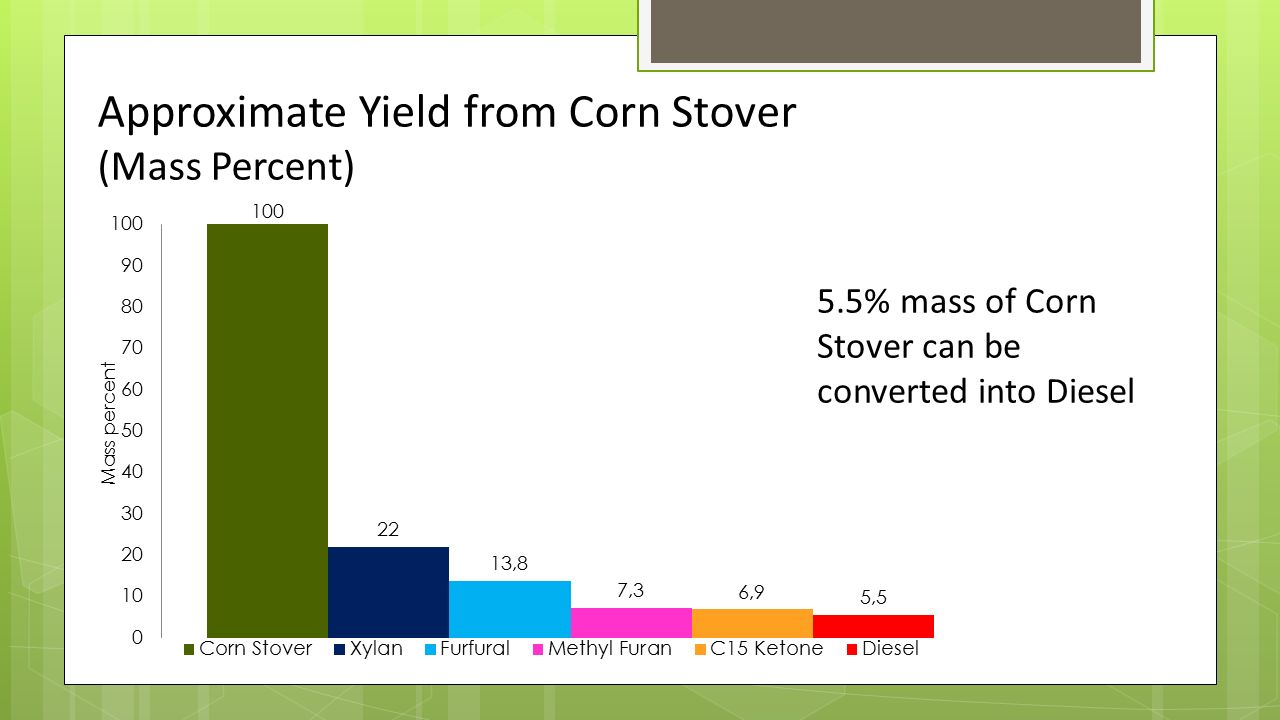

8 Approximate Yield from Corn Stover (Mass Percent) 5.5% mass of Corn Stover can be converted into Diesel

9 Block Diagram

10 Biomass to Furfural Furfural Generation Biomass Grinding Furfural Separation Furfural Wastewater Corn Stover Sulfuric acid Ethanol Plant O-nitrotoluene Unused Biomass

11 Furfural Generation  MTC is a novel reactor designed at Delft University of Technology to minimize by-products and improve yield.  Only significant by product is acetic acid  72.7% yield (mass basis)

12 Furfural Separation  NaOH neutralizes the sulfuric acid and generates sodium sulfate ions  O-nitrotoluene is used to remove most of the water in the extraction tower.  Sodium sulfate ions compete with furfural for hydration  improved furfural separation from water  Two vacuum distillation towers isolate furfural from the organic solvent and residual water.

13 Ethanol Production Summary  Recombinant strain of Zymomonas mobilis ferments glucose and pentose sugars into ethanol and CO 2  Recovered as a 99.5% ethanol product  ~150,000 lb/hr is produced

14 Block Diagram

15 Furfural to 2-MethylFuran Furfural Separation/ Purification Reactor Hydrogen Furfural Hydrogen Furfuryl Alcohol 2-MethylFuran Waste Water Vent to Power Plant

16 Reactor  Exothermic Hydrogenation Reaction  Catalyst: Copper Chromite on Activated Charcoal  Temperature: 195-205 ⁰C  Pressure: 1atm  53.3% Yield Copper Chromite + +

17 Separation Process  Flash Drum  Separate Hydrogen from affluent of reactor  Series of 3 Distillation Columns  1 Vapor Liquid Liquid Column  2 for Furfuryl Alcohol Purification

18 Block Diagram

19 C15 Ketone 2-Methylfuran Reactor Water Separation: Decanter Water Recycle 2-Methylfuran Alkylation to C15 Ketone

20 2-Methylfuran (C 5 H 6 O) + H2OH2O 3 + H2OH2O 2-Methylfuran Alkylation to C15 Ketone Water Is Not Consumed 5,5-bisylvyl-2-pentanone (C 15 H 18 O 3 )

21  Packed Bed Reactor  60 o C and Atmospheric Pressure  Catalyst: ITQ-2 delaminated zeolite  C15 Ketone = 5,5-bisylvyl-2-pentanone  94% Yield 2-Methylfuran Alkylation to C15 Ketone

22 Block Diagram

23 C15 Ketone Hydrodeoxygenation to Diesel Separation: Decanter C15 Ketone Heat Exchanger Hydrogen Reactor Diesel Byproducts Water Vent Organic Phase Separation: Distillation Diesel Overhead

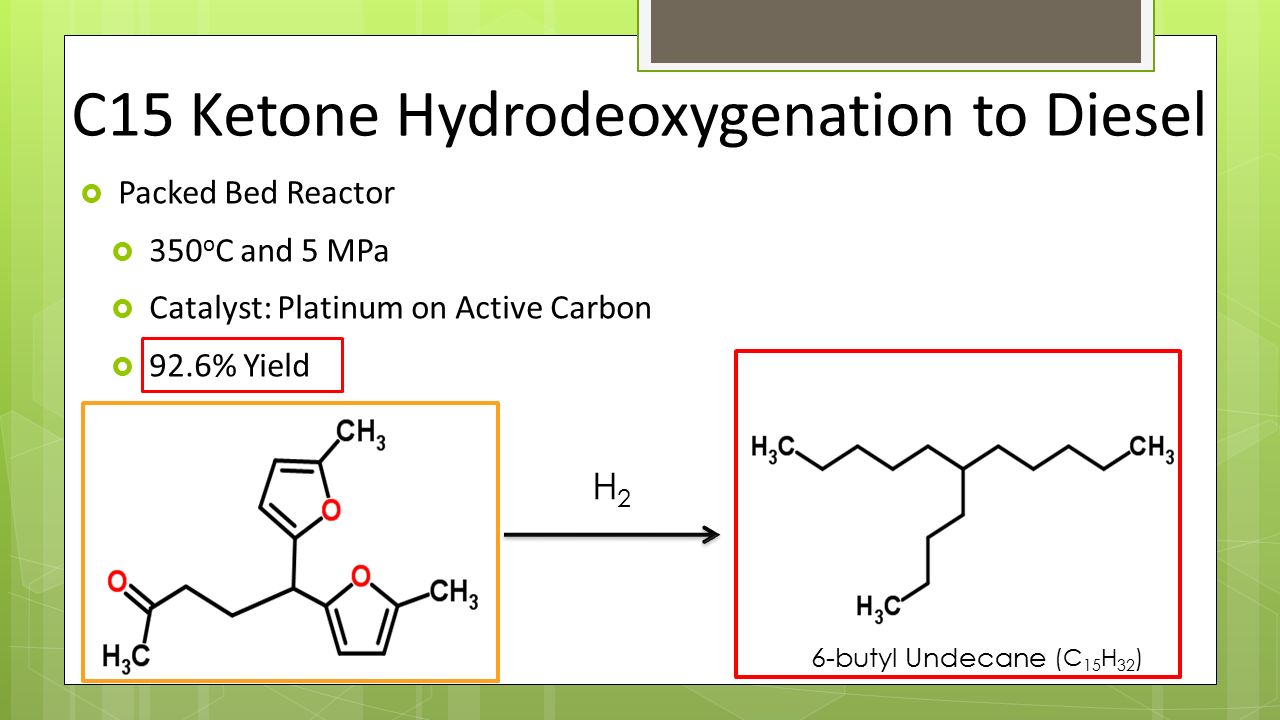

24  Packed Bed Reactor  350 o C and 5 MPa  Catalyst: Platinum on Active Carbon  92.6% Yield H2H2 C15 Ketone Hydrodeoxygenation to Diesel 6-butyl Undecane (C 15 H 32 )

25 Byproducts  From Decanter:  Dirty Water  Vented Hydrocarbons  From Distillation:  Gaseous Hydrocarbons  Hydrocarbons = C 1 to C 8 Range  Propane = C 1 to C 4 Representative  n-Hexane = C 5 to C 8 Representative

26 Block Diagram

27 Power Plant Electricity Purge Steam Firing Duty Unused Biomass Combustor Waste Boiler Vent Overhead Vent Turbines Steam Electricity Process To Grid

28 Power Plant  $66 MM Capital Investment  Capture 80% of Firing Duty for Steam  1.6 MM lb/hr Generated (540 o C, 600 psia)  85% Efficient Turbines  180 o C, 145 psia Steam Sent to the MTC  81 MW of Electricity Generated  40 MW to the Grid

29 Aspen Modeling Properties  NRTL Property Method  Joback  Pure Component Estimation  T c, P c, T B, V c, Z c, and DHFORM  UNIFAC  Estimate Missing Activity Coefficients

30 Waste Water Treatment  Ames Water Pollution Control Facility  Uses physical and biological treatment methods  Remove organic materials, solids, ammonia, and meet oxygen demand before discharging to Skunk River  Include a Non-Domestic Waste Pretreatment Program  Total wastewater cost: $12.26 MM per year

31 Feed Stock Analysis  Corn Stover required to meet Biodiesel requirement  7.491 Billion lb/year  Will need approximately 5.853 million bales/year  Area required: ~ 1million acres  Corn Production in Iowa  13.7 million acres

32 Costs Cost DescriptionTotal Cost MM$ Feed Streams $300.3 Capital Cost $163.9 Waste water $12.3 Catalysts $8.5 Total Cost $485.0 o Catalysts and Capital costs are a one time cost. o Yearly cost averages $312.6 MM$

33 Revenue/ Profits DescriptionYearly Profits MM$ Ethanol $470.8 Furfuryl Alcohol $385.9 Biodiesel $209.9 Electricity Credit $22.04 Total Revenue $1,088.7 By-products are the most profitable.

34 Profitability Analysis This process is not very sensitive to changes in interest rates Summary NPV0 $7.23 MMM$ IRR 32% Pay Back Period ~3.0 years NPV10 $2.35 MMM$ IRR19% Pay Back Period~3.7 years NPV12$1.91 MMM$ IRR17% Pay Back Period~3.95 years

35 Conclusion  Feed:  900,000 lb/hr Corn Stover  Production:  50,000 lb/hr Biodiesel  52,000 lb/hr Furfuryl Alcohol  150,000 lb/hr Ethanol  40 MW Electricity  Profits:  1,088 MM$/year  Pay Back Period: 3.7 years  IRR: 19%  This plant is profitable

36 Acknowledgements  John Myers  Joseph Holles  David Bell  BP Energy Bioscience Institute, Berkeley, CA

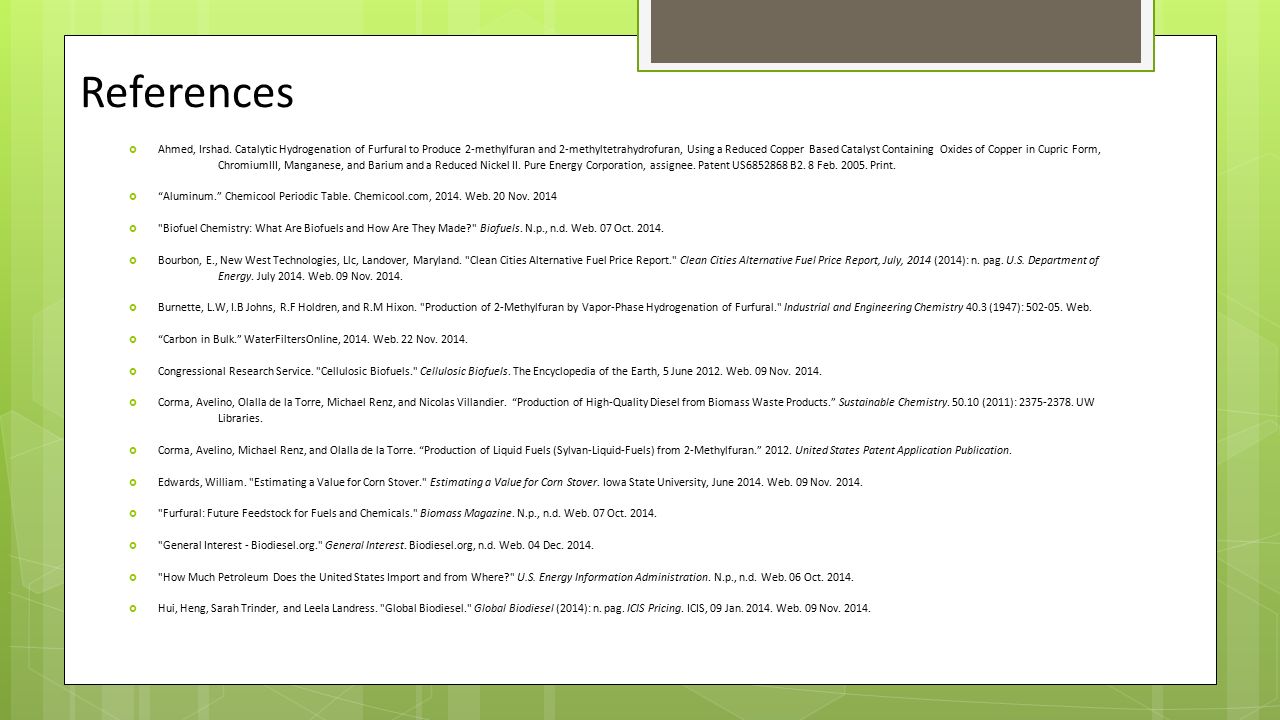

37 References  Ahmed, Irshad. Catalytic Hydrogenation of Furfural to Produce 2-methylfuran and 2-methyltetrahydrofuran, Using a Reduced Copper Based Catalyst Containing Oxides of Copper in Cupric Form, ChromiumIII, Manganese, and Barium and a Reduced Nickel II. Pure Energy Corporation, assignee. Patent US6852868 B2. 8 Feb. 2005. Print.  “Aluminum.” Chemicool Periodic Table. Chemicool.com, 2014. Web. 20 Nov. 2014  "Biofuel Chemistry: What Are Biofuels and How Are They Made?" Biofuels. N.p., n.d. Web. 07 Oct. 2014.  Bourbon, E., New West Technologies, Llc, Landover, Maryland. "Clean Cities Alternative Fuel Price Report." Clean Cities Alternative Fuel Price Report, July, 2014 (2014): n. pag. U.S. Department of Energy. July 2014. Web. 09 Nov. 2014.  Burnette, L.W, I.B Johns, R.F Holdren, and R.M Hixon. "Production of 2-Methylfuran by Vapor-Phase Hydrogenation of Furfural." Industrial and Engineering Chemistry 40.3 (1947): 502-05. Web.  “Carbon in Bulk.” WaterFiltersOnline, 2014. Web. 22 Nov. 2014.  Congressional Research Service. "Cellulosic Biofuels." Cellulosic Biofuels. The Encyclopedia of the Earth, 5 June 2012. Web. 09 Nov. 2014.  Corma, Avelino, Olalla de la Torre, Michael Renz, and Nicolas Villandier. “Production of High-Quality Diesel from Biomass Waste Products.” Sustainable Chemistry. 50.10 (2011): 2375-2378. UW Libraries.  Corma, Avelino, Michael Renz, and Olalla de la Torre. “Production of Liquid Fuels (Sylvan-Liquid-Fuels) from 2-Methylfuran.” 2012. United States Patent Application Publication.  Edwards, William. "Estimating a Value for Corn Stover." Estimating a Value for Corn Stover. Iowa State University, June 2014. Web. 09 Nov. 2014.  "Furfural: Future Feedstock for Fuels and Chemicals." Biomass Magazine. N.p., n.d. Web. 07 Oct. 2014.  "General Interest - Biodiesel.org." General Interest. Biodiesel.org, n.d. Web. 04 Dec. 2014.  "How Much Petroleum Does the United States Import and from Where?" U.S. Energy Information Administration. N.p., n.d. Web. 06 Oct. 2014.  Hui, Heng, Sarah Trinder, and Leela Landress. "Global Biodiesel." Global Biodiesel (2014): n. pag. ICIS Pricing. ICIS, 09 Jan. 2014. Web. 09 Nov. 2014.

38 References  Humbird, D., et al. “Process Design and Economics for Biochemical Conversion of Lignocellulosic Biomass to Ethanol.” NREL: U.S. Dept. of Energy, 2011. Print.  “Hydrogen Generated By Windhunter.” Windhunter, 2011. Web. 1 Dec. 2014  "International Energy Statistics - EIA." U.S. Energy Information Administration. N.p., n.d. Web. 07 Oct. 2014.  Lane, Jim. "A New Path to Renewable Diesel from Biomass." Biofuels Digest. N.p., 28 Nov. 2012. Web. 07 Oct. 2014.  Malinowski, Artur, and Dorota Wardzinska. "Catalytic Conversion of Furfural towards Fuel Biocomponents." Sition (% in Weight): CuO - 62.0, ZnO - 21.0; Al2O CHEMIK.66 (2012): 982- 90. Chemik International. Chemik. Web.  “Platinum Price Chart.” Johnson Matthey, 2014. Web. 2 Dec. 2014.  "Properties Of Biodiesel Fuel." Berkely Biodiesel. N.p., n.d. Web. 05 Oct. 2014.  "Renewable Energy Group Enters Industrial Biotech with Acquisition of LS9." Renewable Energy Group, Inc. N.p., n.d. Web. 07 Oct. 2014.  “Silicon.” Chemicool Periodic Table. Chemicool.com, 2012. Web. 20 Nov. 2014.  "Top 15 Unexpected Uses For Biodiesel - Gas 2." Gas 2. N.p., n.d. Web. 07 Oct. 2014.  "Uses of Biodiesel." Connecticut Bio Fuel Info. N.p., n.d. Web. 07 Oct. 2014.  Vronsky. “Platinum & Palladium Forecasts For 2015.” Gold-Eagle, 2014. Web. 2 Dec. 2014.  "Water Pollution Control Facility." City of Ames. City of Ames, n.d. Web. 02 Dec. 2014.  "What Is Biodiesel - Pacific Biodiesel." Pacific Biodiesel. N.p., n.d. Web. 07 Oct. 2014.  Yu, Tian. "Are U.S. Corn and Soybeans Becoming More Drought Tolerant?" American Journal of Agricultural Economics 92.5 (2010): 1310-323. Iowa State University, Mar. 2014. Web. 04 Dec. 2014.
