1. | 1 EVERLINE® LED Sign Tubes Training

2. Universal is a Member of the Panasonic Group LED Replacement Products Universal continues to expand our LED options with EVERLINE® LED replacement solutions: – LED Sign Tube – LED Linear T8 Replacement Tubes – LED Linear T8 Tubes + Compatible “LED Ready” Ballasts – LED Retrofit Kits – LED Replacement Drivers – LED Fixtures: Wall Packs & Vapor Tights – LED Chains This training presentation will discuss: – EVERLINE LED Sign Tube

3. Universal is a Member of the Panasonic Group LED Sign Tube Overview The Everline Sign Tube is an easy to install retrofit solution for signs using T12HO and T8HO fluorescent systems. The Sign Tube installs using the existing spacing and recessed double contact (RDC) lampholders of the sign for mechanical mounting. System power is supplied by a Class II 24V constant voltage power supply.

4. Universal is a Member of the Panasonic Group Sign Tube Features/Benefits Simple replacement for T12HO and T8HO fluorescent lamps – Up to 60% energy savings over traditional fluorescent systems – Easy to install using existing lampholders – Can be installed in vertical or horizontal applications – Can be rotated 90 o for correct orientation to the sign face Long Life – 60,000 hour rated life with L85 lumen maintenance – Reduces sign maintenance costs Excellent light quality – CRI>82 – 6500K CCT to match traditional lamps Instant full light output in cold temperatures – -30°C (-40°F) to 60°C (140°F) Excellent optical performance – 175° natural batwing distribution provides exceptional light dispersion – 340lm/ft delivered to the sign face – Can be placed as close as 5” from the sign face Simple class II electrical system – 24V constant voltage system – Can daisy chain one module to the next for easy wiring – Power up to 32’ of single sided sign tube or 16’ of double sided tube on a single 100W driver 5-Year Warranty Features & Benefits of the EVERLINE LED Sign Tube include:

5. Universal is a Member of the Panasonic Group Sign Tube Benefits RDC style endcaps can be clocked in 90 o increments to ensure correct lamp orientation. Unique LED provides a natural 175 o dispersion pattern providing excellent uniform appearance. Leads are provided at each end of the Sign Tube for pass through (daisy chain) style wiring or parallel wiring. Note: Wires connected to existing lampholders are not used

6. Universal is a Member of the Panasonic Group LED Distribution LED’s Batwing distribution provides even illumination across the face of the sign Maintains standard spacing without creating hot spots!

7. Universal is a Member of the Panasonic Group Product Offering You can read the part number by following this Part Number Nomenclature Example: ST24-865-SS “ST” stands for Sign Tube “24” gives the nominal length of the tube in inches “8” gives the CRI >82 “65” CCT of the product (65 for 6500K) “SS” or “DS” is the module configuration (SS – for Single Sided & DS-for Double Sided) The LED Sign Tube Family consists of: Multiple lengths (matching common lamps) Single and double sided configurations

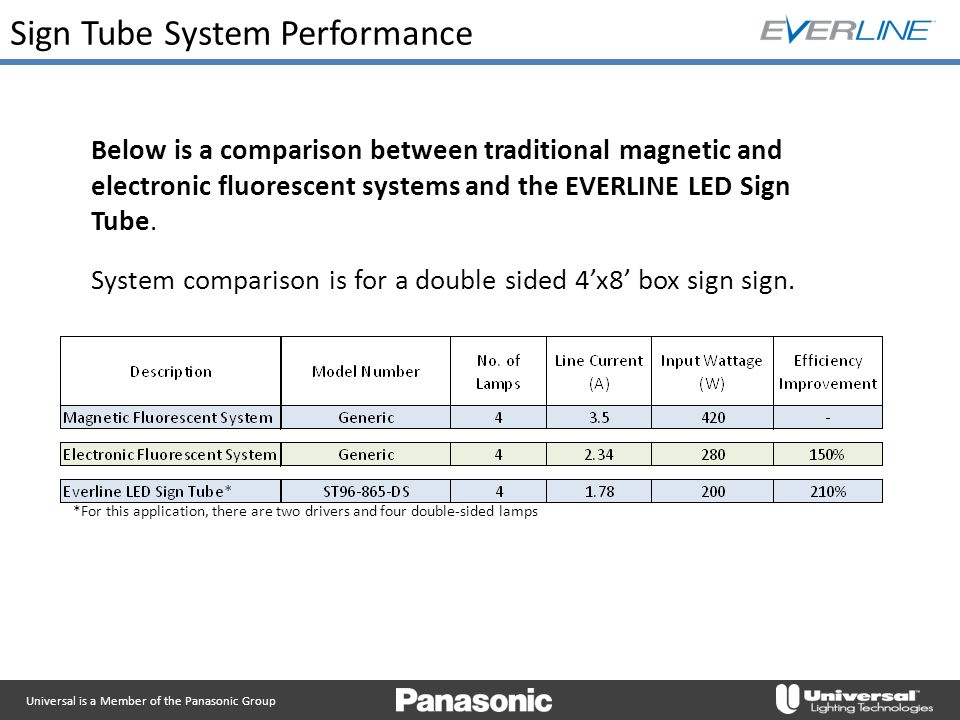

8. Universal is a Member of the Panasonic Group Sign Tube System Performance Below is a comparison between traditional magnetic and electronic fluorescent systems and the EVERLINE LED Sign Tube. System comparison is for a double sided 4’x8’ box sign sign. *For this application, there are two drivers and four double-sided lamps

9. Universal is a Member of the Panasonic Group Wiring Figure 2: Daisy Chain Wiring Figure 3: Parallel Wiring Flexible wiring options, Daisy Chain or Parallel Red/White and White wires at opposite ends of the lamps are internally connected. Unused leads must be individually capped.

10. Universal is a Member of the Panasonic Group Maximum Driver Loading Maximum Loading of a standard 24V 100W power supply Note: Max 32’ of single sided modules OR 16’ of double sided modules may be used on a 24V, 100W power supply such as the L24V100UNV-A or D24V100UNV-A

11. Universal is a Member of the Panasonic Group Application/Installation 1.Disconnect power to the sign and remove the existing lamps and ballast(s). 2.Make sure the RDC ends of the Sign Tubes are in the correct orientation 3.Install the Sign Tubes in the existing lampholders. 4.Install the driver(s) in the electrical raceway. 5.Connect the driver to the LED Sign Tubes. 6.Ensure the Class I wiring has been completely enclosed in the raceway before restoring power.

12. Universal is a Member of the Panasonic Group Sign Tube Resources UNVLT.com – 2/26 Spec Sheet Installation Instructions Tri-fold Brochure Sign Catalog Press Release Sign Tube/ Wiring Block Installation Video

13. Universal is a Member of the Panasonic Group TrueBlue Merchandising

14. Universal is a Member of the Panasonic Group THANK YOU | 14 Website: www.unvlt.com Nashville Customer Service: (800) 862-8666 Universal Technical Engineering Services: 1-800-225-5278 Snap this QR Code and quickly access our website.
