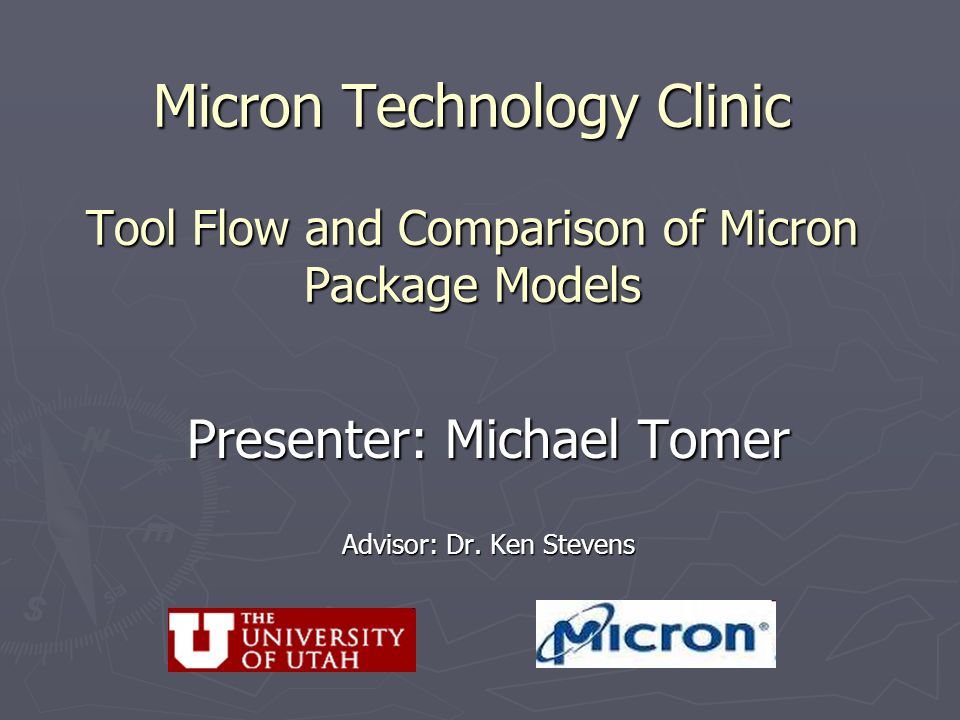

1. Micron Technology Clinic Tool Flow and Comparison of Micron Package Models Presenter: Michael Tomer Advisor: Dr. Ken Stevens

2. Tool Flow and Comparison of the Micron Package Models ► Tool flow  Design of circuits and conversion of circuits to spice format  Setup of control files to run simulations ► Comparison of the Micron package models  Differences between HSimPlus and Hspice when simulating using the package models  Actual differences in the signal between the same tool ► Power and signal integrity when using varying amounts of power inputs

3. Tool Flow VerilogOptimized VerilogStructural VerilogSpiceVerilog (logic correct)ResultsSimulation Control File

4. Tool Flow ► Biggest problem encountered in the project  Tool Setup ► Licensing  No prior experience with tools  Tools failed and stopped working randomly ► As I write this, the tools which had been working earlier today have stopped working. (citing licensing issues) ► As an example I will be converting a verilog file to the spice format

5. Tool Flow VerilogOptimized VerilogStructural VerilogSpiceVerilog (logic correct)ResultsSimulation Control File

6. Verilog Creation // mod.v `timescale 1ns / 1ps module mod( a, out, CLK); input [3:0] a; input CLK; output [1:0] out; reg [1:0] out; always@(posedge CLK) begin out <= a % 3; endendmodule These are the names of the internal inputs and outputs This is where you declare the specs of the circuit. The [3:0] syntax means that there are 4 wires contained in the circuit. the output of this circuit is named out. For us to be able to assign to out in the always block below we must also declare a reg of the same type and name. For this circuit, the code in the always block will run every time that the CLK signal goes from low to high

7. Initial Simulation ► Simulation of the digital logic in the circuit is wise to do at this level before proceeding  More difficult to simulate later ► Digital logic simulation tools  ModelSim SE  Xilink ISE

8. ModelSim SE

9. Conversion from Verilog to Spice ► Conversion from verilog to spice is done in three steps 1.Optimization and verification 2.Synthesized using design compiler 3.Conversion to spice

10. Conversion from Verilog to Spice ► A set of script files are used to do steps 1 and 2  These are based off of the scripts from Ken Stevens ECE 6770 Advanced digital VLSI design class webpage  They have been modified to use 65nm design libraries

11. Step 1: Optimization and Verification ► Verilog circuit is verified and optimized using Design Compiler  Prepares the RTL verilog code to be mapped to the 65nm libraries mod.v `timescale 1ns / 1ps module mod( a, out, CLK); input [3:0] a; input CLK; output [1:0] out; reg [1:0] out; always@(posedge CLK) begin out <= a % 3; end Endmodule mod.rtlopt.v module mod ( a, out, CLK ); input [3:0] a; output [1:0] out; input CLK; wire N0, N1; REM_UNS_OP rem_13 (.A(a),.B({1'b1, 1'b1}),.REMAINDER({N1, N0}) ); \**SEQGEN** \out_reg[1] (.clear(1'b0),.preset(1'b0),.next_state(N1),.clocked_on(CLK),.data_in(1'b0),.enable(1'b0),.Q(out[1]),.synch_clear(1'b0),.synch_preset(1'b0),.synch_toggle(1'b0),.synch_enable(1'b1) ); \**SEQGEN** \out_reg[0] (.clear(1'b0),.preset(1'b0),.next_state(N0),.clocked_on(CLK),.data_in(1'b0),.enable(1'b0),.Q(out[0]),.synch_clear(1'b0),.synch_preset(1'b0),.synch_toggle(1'b0),.synch_enable(1'b1) ); endmodule

12. Step 2: Conversion to Structural Verilog ► Design compiler will convert the file  Maps the logic in the optimized verilog file to modules in the 65nm libraries ► Runs timing tests  Ensures that signals have enough time to propagate through a circuit

13. Step 2: Conversion to Structural Verilog (continued) Excerpt from mod.dcopt.fullpaths Startpoint: a[2] (input port) Endpoint: clock_r_REG0_S1 (rising edge-triggered flip-flop clocked by clock) Path Group: clock Path Type: max Point Incr Path ----------------------------------------------------------- clock (input port clock) (rise edge) 0.00 0.00 input external delay 0.00 0.00 r a[2] (in) 0.00 0.00 r U19/Y (NAND2X1A12TR) 0.02 0.02 f U17/Y (NAND2X1A12TR) 0.02 0.04 r U14/Y (OAI22X1A12TR) 0.03 0.07 f U18/Y (XOR2X0P7A12TR) 0.03 0.10 f clock_r_REG0_S1/D (DFFQNX0P5A12TR) 0.00 0.10 f data arrival time 0.10 clock clock (rise edge) 0.28 0.28 clock network delay (ideal) 0.00 0.28 clock uncertainty -0.01 0.26 clock_r_REG0_S1/CK (DFFQNX0P5A12TR) 0.00 0.26 r library setup time -0.03 0.23 data required time 0.23 ----------------------------------------------------------- data required time 0.23 data arrival time -0.10 ----------------------------------------------------------- slack (MET) 0.13 Scripts generate timing information Clock rate is defined in our script files Possibly too fast or too slow

14. Step 2: Conversion to Structural Verilog (continued) mod.dcopt.v module mod ( a, out0, CLK ); input [3:0] a; output [1:0] out0; input CLK; wire n22, n23, n1, n2, n3, n5, n7, n8, n9, n10, n11, n12, n13, n14, n15, n16, n17, n18, n19, n20, n21; A2DFFQX1A12TR clock_r_REG2_S1 (.A(n1),.B(n12),.CK(CLK),.Q(n10) ); DFFQX0P5A12TR clock_r_REG1_S1 (.D(n18),.CK(CLK),.Q(n9) ); DFFQNX0P5A12TR clock_r_REG0_S1 (.D(n15),.CK(CLK),.QN(n21) ); DFFQX0P5A12TR clock_r_REG3_S1 (.D(n2),.CK(CLK),.Q(n8) ); OAI2XB1X1A12TR U3 (.A1N(n8),.A0(n21),.B0(n19),.Y(n20) ); XOR2X0P7A12TR U4 (.A(n20),.B(n8),.Y(n23) ); XNOR2X0P7A12TR U5 (.A(n7),.B(n21),.Y(n22) ); INVX16A12TR U6 (.A(n3),.Y(out0[0]) ); INVX16A12TR U7 (.A(n5),.Y(out0[1]) ); BUFHX1P4A12TR U8 (.A(a[2]),.Y(n1) ); INVX0P5BA12TR U9 (.A(a[3]),.Y(n12) ); NAND2X0P5BA12TR U10 (.A(a[1]),.B(n16),.Y(n18) ); BUFHX1P4A12TR U11 (.A(a[0]),.Y(n2) ); INVX0P5BA12TR U12 (.A(n23),.Y(n3) ); INVX0P5BA12TR U13 (.A(n22),.Y(n5) ); OAI22X1A12TR U14 (.A0(n17),.A1(n14),.B0(n13),.B1(n12),.Y(n16) ); INVX2A12TR U15 (.A(a[1]),.Y(n14) ); INVX2A12TR U16 (.A(n11),.Y(n13) ); NAND2X1A12TR U17 (.A(a[2]),.B(n11),.Y(n17) ); XOR2X0P7A12TR U18 (.A(n16),.B(a[1]),.Y(n15) ); NAND2X1A12TR U19 (.A(a[3]),.B(a[2]),.Y(n11) ); AND2X1A12TR U20 (.A(n8),.B(n20),.Y(n7) ); XOR2X0P7A12TR U21 (.A(n9),.B(n10),.Y(n19) ); endmodule mod.rtlopt.v module mod ( a, out, CLK ); input [3:0] a; output [1:0] out; input CLK; wire N0, N1; REM_UNS_OP rem_13 (.A(a),.B({1'b1, 1'b1}),.REMAINDER({N1, N0}) ); \**SEQGEN** \out_reg[1] (.clear(1'b0),.preset(1'b0),.next_state(N1),.clocked_on(CLK),.data_in(1'b0),.enable(1'b0),.Q(out[1]),.synch_clear(1'b0),.synch_preset(1'b0),.synch_toggle(1'b0),.synch_enable(1'b1) ); \**SEQGEN** \out_reg[0] (.clear(1'b0),.preset(1'b0),.next_state(N0),.clocked_on(CLK),.data_in(1'b0),.enable(1'b0),.Q(out[0]),.synch_clear(1'b0),.synch_preset(1'b0),.synch_toggle(1'b0),.synch_enable(1'b1) ); endmodule

15. Step 3: Conversion to Spice ► Mentor’s v2lvs utility converts the structural verilog to spice format  Formats are similar

16. Step 3: Conversion to Spice mod.dcopt.v module mod ( a, out0, CLK ); input [3:0] a; output [1:0] out0; input CLK; wire n22, n23, n1, n2, n3, n5, n7, n8, n9, n10, n11, n12, n13, n14, n15, n16, n17, n18, n19, n20, n21; A2DFFQX1A12TR clock_r_REG2_S1 (.A(n1),.B(n12),.CK(CLK),.Q(n10) ); DFFQX0P5A12TR clock_r_REG1_S1 (.D(n18),.CK(CLK),.Q(n9) ); DFFQNX0P5A12TR clock_r_REG0_S1 (.D(n15),.CK(CLK),.QN(n21) ); DFFQX0P5A12TR clock_r_REG3_S1 (.D(n2),.CK(CLK),.Q(n8) ); OAI2XB1X1A12TR U3 (.A1N(n8),.A0(n21),.B0(n19),.Y(n20) ); XOR2X0P7A12TR U4 (.A(n20),.B(n8),.Y(n23) ); XNOR2X0P7A12TR U5 (.A(n7),.B(n21),.Y(n22) ); INVX16A12TR U6 (.A(n3),.Y(out0[0]) ); INVX16A12TR U7 (.A(n5),.Y(out0[1]) ); BUFHX1P4A12TR U8 (.A(a[2]),.Y(n1) ); INVX0P5BA12TR U9 (.A(a[3]),.Y(n12) ); NAND2X0P5BA12TR U10 (.A(a[1]),.B(n16),.Y(n18) ); BUFHX1P4A12TR U11 (.A(a[0]),.Y(n2) ); INVX0P5BA12TR U12 (.A(n23),.Y(n3) ); INVX0P5BA12TR U13 (.A(n22),.Y(n5) ); OAI22X1A12TR U14 (.A0(n17),.A1(n14),.B0(n13),.B1(n12),.Y(n16) ); INVX2A12TR U15 (.A(a[1]),.Y(n14) ); INVX2A12TR U16 (.A(n11),.Y(n13) ); NAND2X1A12TR U17 (.A(a[2]),.B(n11),.Y(n17) ); XOR2X0P7A12TR U18 (.A(n16),.B(a[1]),.Y(n15) ); NAND2X1A12TR U19 (.A(a[3]),.B(a[2]),.Y(n11) ); AND2X1A12TR U20 (.A(n8),.B(n20),.Y(n7) ); XOR2X0P7A12TR U21 (.A(n9),.B(n10),.Y(n19) ); endmodule mod.v2lvs.sp $ Spice netlist generated by v2lvs $ v2007.2_26.18 Wed Jun 13 20:11:48 PDT 2007.SUBCKT mod a[3] a[2] a[1] a[0] out0[1] out0[0] CLK Xclock_r_REG2_S1 n10 n1 n12 CLK 1013 1015 A2DFFQX1A12TR Xclock_r_REG1_S1 n9 CLK n18 1013 1015 DFFQX0P5A12TR Xclock_r_REG0_S1 n21 CLK n15 1013 1015 DFFQNX0P5A12TR Xclock_r_REG3_S1 n8 CLK n2 1013 1015 DFFQX0P5A12TR XU3 n20 n21 n8 n19 1013 1015 OAI2XB1X1A12TR XU4 n23 n20 n8 1013 1015 XOR2X0P7A12TR XU5 n22 n7 n21 1013 1015 XNOR2X0P7A12TR XU6 out0[0] n3 1013 1015 INVX16A12TR XU7 out0[1] n5 1013 1015 INVX16A12TR XU8 n1 a[2] 1013 1015 BUFHX1P4A12TR XU9 n12 a[3] 1013 1015 INVX0P5BA12TR XU10 n18 a[1] n16 1013 1015 NAND2X0P5BA12TR XU11 n2 a[0] 1013 1015 BUFHX1P4A12TR XU12 n3 n23 1013 1015 INVX0P5BA12TR XU13 n5 n22 1013 1015 INVX0P5BA12TR XU14 n16 n17 n14 n13 n12 1013 1015 OAI22X1A12TR XU15 n14 a[1] 1013 1015 INVX2A12TR XU16 n13 n11 1013 1015 INVX2A12TR XU17 n17 a[2] n11 1013 1015 NAND2X1A12TR XU18 n15 n16 a[1] 1013 1015 XOR2X0P7A12TR XU19 n11 a[3] a[2] 1013 1015 NAND2X1A12TR XU20 n7 n8 n20 1013 1015 AND2X1A12TR XU21 n19 n9 n10 1013 1015 XOR2X0P7A12TR.ENDS

17. Step 3: Conversion to Spice mod.v2lvs.sp (with VDD,VSS addition) $ Spice netlist generated by v2lvs $ v2007.2_26.18 Wed Jun 13 20:11:48 PDT 2007.SUBCKT mod a[3] a[2] a[1] a[0] out0[1] out0[0] CLK VDD VSS Xclock_r_REG2_S1 n10 n1 n12 CLK VDD VSS A2DFFQX1A12TR Xclock_r_REG1_S1 n9 CLK n18 VDD VSS DFFQX0P5A12TR Xclock_r_REG0_S1 n21 CLK n15 VDD VSS DFFQNX0P5A12TR Xclock_r_REG3_S1 n8 CLK n2 VDD VSS DFFQX0P5A12TR XU3 n20 n21 n8 n19 VDD VSS OAI2XB1X1A12TR XU4 n23 n20 n8 VDD VSS XOR2X0P7A12TR XU5 n22 n7 n21 VDD VSS XNOR2X0P7A12TR XU6 out0[0] n3 VDD VSS INVX16A12TR XU7 out0[1] n5 VDD VSS INVX16A12TR XU8 n1 a[2] VDD VSS BUFHX1P4A12TR XU9 n12 a[3] VDD VSS INVX0P5BA12TR XU10 n18 a[1] n16 VDD VSS NAND2X0P5BA12TR XU11 n2 a[0] VDD VSS BUFHX1P4A12TR XU12 n3 n23 VDD VSS INVX0P5BA12TR XU13 n5 n22 VDD VSS INVX0P5BA12TR XU14 n16 n17 n14 n13 n12 VDD VSS OAI22X1A12TR XU15 n14 a[1] VDD VSS INVX2A12TR XU16 n13 n11 VDD VSS INVX2A12TR XU17 n17 a[2] n11 VDD VSS NAND2X1A12TR XU18 n15 n16 a[1] VDD VSS XOR2X0P7A12TR XU19 n11 a[3] a[2] VDD VSS NAND2X1A12TR XU20 n7 n8 n20 VDD VSS AND2X1A12TR XU21 n19 n9 n10 VDD VSS XOR2X0P7A12TR.ENDS V2lvs utility not perfect Emacs script Define power net domains for the blocks (supports multiple power sources) Fix naming clashes (HSPICE not case sensitive) Correct unconnected net problems Hand editing

18. Step 3: Conversion to Spice ► Result  A spice file of the circuit that is ready to be simulated mod.v2lvs.sp (with VDD,VSS addition) $ Spice netlist generated by v2lvs $ v2007.2_26.18 Wed Jun 13 20:11:48 PDT 2007.SUBCKT mod a[3] a[2] a[1] a[0] out0[1] out0[0] CLK VDD VSS Xclock_r_REG2_S1 n10 n1 n12 CLK VDD VSS A2DFFQX1A12TR Xclock_r_REG1_S1 n9 CLK n18 VDD VSS DFFQX0P5A12TR Xclock_r_REG0_S1 n21 CLK n15 VDD VSS DFFQNX0P5A12TR Xclock_r_REG3_S1 n8 CLK n2 VDD VSS DFFQX0P5A12TR XU3 n20 n21 n8 n19 VDD VSS OAI2XB1X1A12TR XU4 n23 n20 n8 VDD VSS XOR2X0P7A12TR XU5 n22 n7 n21 VDD VSS XNOR2X0P7A12TR XU6 out0[0] n3 VDD VSS INVX16A12TR XU7 out0[1] n5 VDD VSS INVX16A12TR XU8 n1 a[2] VDD VSS BUFHX1P4A12TR XU9 n12 a[3] VDD VSS INVX0P5BA12TR XU10 n18 a[1] n16 VDD VSS NAND2X0P5BA12TR XU11 n2 a[0] VDD VSS BUFHX1P4A12TR XU12 n3 n23 VDD VSS INVX0P5BA12TR XU13 n5 n22 VDD VSS INVX0P5BA12TR XU14 n16 n17 n14 n13 n12 VDD VSS OAI22X1A12TR XU15 n14 a[1] VDD VSS INVX2A12TR XU16 n13 n11 VDD VSS INVX2A12TR XU17 n17 a[2] n11 VDD VSS NAND2X1A12TR XU18 n15 n16 a[1] VDD VSS XOR2X0P7A12TR XU19 n11 a[3] a[2] VDD VSS NAND2X1A12TR XU20 n7 n8 n20 VDD VSS AND2X1A12TR XU21 n19 n9 n10 VDD VSS XOR2X0P7A12TR.ENDS

19. Tool Flow VerilogOptimized VerilogStructural VerilogSpiceVerilog (logic correct)ResultsSimulation Control File

20. Spice File Simulation ► HSpice and HSimPlus require a control file to simulate  These control files define circuits, input stimulus, output measurements, and other options ► Hard to program from scratch without example ► Hard to set up properly even with good examples

21. Control Files mod.wop.sp SPICE simulation of our simple inverter * SPICE simulation of our simple inverter * include our circuit.include 'mod.v2lvs.sp' * include the library.include '/home/micron/design/65nm/data/cmos10sfrvt_a12.cdl' * include the transistor models.lib '/home/micron/design/65nm/data/skew.file' stats.include '/home/micron/design/65nm/data/fixed_corner'.include '/home/micron/design/65nm/data/HSpice_example.param'.lib '/home/micron/design/65nm/data/lib.models.10sf' 10sf_models **.include '/home/micron/design/65nm/data/nfet.inc' **.include '/home/micron/design/65nm/data/pfet.inc' *** define usage of the subcircuits x1 DIE_DQ3 DIE_DQ2 DIE_DQ1 DIE_DQ0 DIE_DQ5 DIE_DQ4 DIE_DQ6 pwr1 gnd mod * ".option post" generates the outputs for cscope.option acct=1 post *Give initial Voltage and ground powers.nodeset v(pwr1) = 1.2 v(gnd) = 0.0 *Give Initial signal voltages.nodeset v(DIE_DQ0) = 1.2 v(DIE_DQ2) = 1.2 v(DIE_DQ4) = 1.2 + v(DIE_DQ6) = 1.2 * set up our power and ground sources VCC1 pwr1 0 DC 1.2 VSS1 gnd 0 DC 0.0 (continued on next slide).include and.lib tell the simulator what files to use We include our mod.v2lvs.sp which contains our circuit Defines the voltage and ground pins Defines initial voltages (helps HSimplus and HSpice) Makes the simulator generate waveform outputs Instantiates and defines use of sub-circuits (more on this later)

22. Control Files (continued) mod.wop.sp (continued) * define input waves for first gate. * these are switching simultaneously. * PULSE commands are initial-voltage pulse-voltage, time-offset, * rise-time fall-time high-delay cycle-time VA3 DIE_DQ3 0 PULSE(0 1.2 0p 100p 100p 10000p 20000p) VA2 DIE_DQ2 0 PULSE(0 1.2 2500p 100p 100p 10000p 20000p) VA1 DIE_DQ1 0 PULSE(0 1.2 5000p 100p 100p 10000p 20000p) VA0 DIE_DQ0 0 PULSE(0 1.2 7500p 100p 100p 10000p 20000p) VA6 DIE_DQ6 0 PULSE(0 1.2 0p 100p 100p 1000p 2000p).save type=nodeset level=all *** This lowers precision - 1 is default (up to 4).param HSimparprecision = 0 * run a transitent analysis for two clock cycles.TRAN 1p 40000p START=0ps * plot transient voltages.PLOT TRAN V(DIE_DQ0) V(0) (0,1.2).PLOT TRAN V(DIE_DQ1) V(0) (0,1.2).PLOT TRAN V(DIE_DQ2) V(0) (0,1.2).PLOT TRAN V(DIE_DQ3) V(0) (0,1.2).PLOT TRAN V(DIE_DQ4) V(0) (0,1.2).PLOT TRAN V(DIE_DQ5) V(0) (0,1.2).PLOT TRAN V(DIE_DQ6) V(0) (0,1.2).PLOT TRAN V(pwr1) V(0) (0,1.2).PLOT TRAN V(gnd) V(0) (0,1.2) * measure the power.MEAS rmsen rms I(VCC) from = 0ps to 40000ps.end Define inputs for the circuits Here we are doing a 10000ps pulse with various offsets for DIE_DQ0-DIE_DQ3 DIE_DQ6 here is a clock signal Sets HSim’s precision factor. (lower is slower) Instructs the simulator to simulate for a specific amount of time. (40000 pico- seconds) Instructs the simulator to plot the output waveforms of signals from 0 to 1.2 volts Measures the average (rms) power of VCC from 0ps to 40000ps

23. Control Files (continued) *** define usage of the subcircuits x1 DIE_DQ3 DIE_DQ2 DIE_DQ1 DIE_DQ0 DIE_DQ5 DIE_DQ4 DIE_DQ6 pwr1 gnd mod ► Where do we get all of this info  x# at the start gives it a unique identifier for this instantiation of this circuit  mod at the end tells us what circuit it is  The rest of them are arbitrary names chosen by whatever naming scheme you see fit. ► So what should I put here and how many of them should I put? ► First look at the spice file.SUBCKT mod a[3] a[2] a[1] a[0] out0[1] out0[0] CLK VDD VSS x1 DIE_DQ3 DIE_DQ2 DIE_DQ1 DIE_DQ0 DIE_DQ5 DIE_DQ4 DIE_DQ6 pwr1 gnd mod Remember these names have been arbitrary chosen

24. Control Files (continued) ► To connect circuits  Set the name of the outputs of one to be the inputs of another  In this example the outputs of mod circuit x1 used as some of the inputs to x2 x1 DIE_DQ3 DIE_DQ2 DIE_DQ1 DIE_DQ0 DIE_DQ5 DIE_DQ4 DIE_DQ6 pwr1 gnd mod x2 DIE_DQ7 DIE_DQ8 DIE_DQ5 DIE_DQ4 DIE_DQ9 DIE_DQ10 DIE_DQ6 pwr1 gnd mod

25. Micron Package Models ► Micron provided two models of the resistive, capacitive, and inductive effects of a package  Single layer package  Two layer package

26. Control Files (continued) ► The same principals apply to using the micron control files  Only much more complicated

27. Micron Single Layer Model ► I/O Pins *** include the single layer package.include 'v48c_x8_production_11704_DQs_pkg.inc' ***using the single layer power delivery package x0 DIE_DQ0_PKG001 DIE_DQ1_PKG001 DIE_DQ2_PKG001 DIE_DQ3_PKG001 + DIE_DQ4_PKG001 DIE_DQ5_PKG001 DIE_DQ6_PKG001 DIE_DQ7_PKG001 DIE_DQS_PKG001 + DIE_DQS#_PKG001 DIE_DM_PKG001 DIE_TDQS#_PKG001 gnd gnd gnd gnd gnd gnd + gnd gnd gnd gnd gnd gnd pwrQ pwrQ pwrQ1 pwrQ2 pwrQ3 pwrQ3 pwrQ3 gnd gnd + gnd gnd gnd gnd gnd gnd gnd gnd gnd gnd gnd pwr pwr pwr1 pwr2 pwr3 pwr + pwr pwr pwr pwr pwr pwr pwr BGA_VSSA_PKG001 BGA_VSSB_PKG001 BGA_VSSC_PKG001 + BGA_VSSD_PKG001 BGA_VSSE_PKG001 BGA_VSSF_PKG001 BGA_VCCA_PKG001 + BGA_VCCB_PKG001 BGA_VCCC_PKG001 BGA_VCCD_PKG001 BGA_VSSQ1_PKG001 + BGA_VSSQ2_PKG001 BGA_VSSQ3_PKG001 BGA_VSSQ4_PKG001 BGA_VSSQ_PKG001 + BGA_VCCQ2_PKG001 BGA_VCCQ3_PKG001 BGA_VCCQ_PKG001 BGA_VCCQ1_PKG001 + BGA_VSS1_PKG001 BGA_VSS2_PKG001 BGA_VSS3_PKG001 BGA_VSS4_PKG001 + BGA_VSS_PKG001 BGA_VCC3_PKG001 BGA_VCC_PKG001 BGA_VCC1_PKG001 + BGA_VCC2_PKG001 BGA_TDQS#_PKG001 BGA_DM_PKG001 BGA_DQS#_PKG001 + BGA_DQS_PKG001 BGA_DQ7_PKG001 BGA_DQ6_PKG001 BGA_DQ5_PKG001 BGA_DQ4_PKG001 + BGA_DQ3_PKG001 BGA_DQ2_PKG001 BGA_DQ1_PKG001 BGA_DQ0_PKG001 + v48c-11704-dq-str-pwrs-unmer_wrapper

28. Micron Two Layer Model ► I/O Pins *** include the two layer package.include 'v48c_x8_2metal_layer_0523_DQs_pkg.inc' ***using the two layer power delivery package x0 DIE_DQ0_PKG001 DIE_DQ1_PKG001 DIE_DQ2_PKG001 DIE_DQ3_PKG001 + DIE_DQ4_PKG001 DIE_DQ5_PKG001 DIE_DQ6_PKG001 DIE_DQ7_PKG001 DIE_DQS_PKG001 + DIE_DQS#_PKG001 DIE_DM_PKG001 DIE_TDQS#_PKG001 gnd gnd gnd gnd gnd gnd gnd + gnd gnd gnd gnd gnd pwrQ1 pwrQ1 pwrQ pwrQ pwrQ pwrQ pwrQ1 gnd gnd gnd gnd + gnd gnd gnd gnd gnd gnd gnd gnd gnd pwr pwr pwr pwr pwr pwr pwr1 pwr pwr + pwr pwr pwr pwr BGA_VSSQ1A_PKG001 BGA_VSSQ1B_PKG001 BGA_VSSQC_PKG001 + BGA_VCCQ_PKG001 BGA_VCCQ1_PKG001 BGA_VSSA_PKG001 BGA_VSSB_PKG001 + BGA_VSSC_PKG001 BGA_VSSD_PKG001 BGA_VSSE_PKG001 BGA_VSSF_PKG001 + BGA_VSSG_PKG001 BGA_VSSH_PKG001 BGA_VSSI_PKG001 BGA_VCCA_PKG001 + BGA_VCCB_PKG001 BGA_VCCC_PKG001 BGA_VCCD_PKG001 BGA_VCCE_PKG001 + BGA_VCCF_PKG001 BGA_VSSQ1_PKG001 BGA_VSSQ_PKG001 BGA_VCCQ3_PKG001 + BGA_VCCQ2_PKG001 BGA_VSS1_PKG001 BGA_VSS_PKG001 BGA_VCC1_PKG001 + BGA_VCC_PKG001 BGA_TDQS#_PKG001 BGA_DM_PKG001 BGA_DQS#_PKG001 + BGA_DQS_PKG001 BGA_DQ7_PKG001 BGA_DQ6_PKG001 BGA_DQ5_PKG001 + BGA_DQ4_PKG001 BGA_DQ3_PKG001 BGA_DQ2_PKG001 BGA_DQ1_PKG001 BGA_DQ0_PKG001 + sol_v48c_523_dq_dm_str_pwr_unmergedSnks_wrapper

29. Simple ALU Input (op) Output 00out(31:0) <= a+b 01out(31:0) <= a-b 10out(31:0) <= a*b 11out(31:16) <= a%b out(15:0) <= a/b

30. Alu Without Package (WOP) Power HSpice HSim

31. Alu Without Package (WOP) Output HSpice

32. Alu Without Package (WOP) Output HSpiceHSim

33. Single Layer Package vs WOP Output in HSpice Single LayerWOP

34. Single Layer Package vs WOP Output in HSpice (more detail) Single LayerWOP

35. Single Layer Package vs WOP Output in HSim (more detail) WOPSingle Layer

36. Single Layer Package Power in HSpice HSpice

37. Single Layer Package Power in HSim HSim

38. Single Layer Package Power in HSpice and HSim HSpiceHSim

39. Single Layer Package Output in HSpice and HSim HSpiceHSim

40. Two Layer Package vs WOP Output in HSpice Single LayerWOP

41. Two Layer Package vs WOP Output in HSpice Single LayerWOP

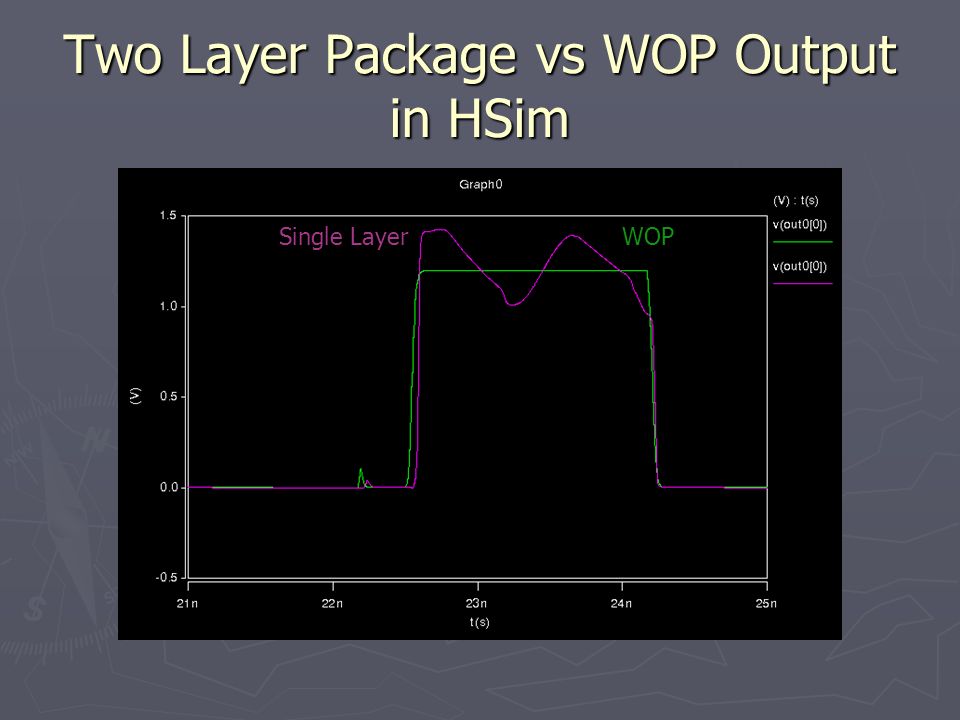

42. Two Layer Package vs WOP Output in HSim Single LayerWOP

43. Two Layer Package Power in HSpice HSpice

44. Two Layer Package Power in HSim HSim

45. Two Layer Package Power in HSpice and HSim HSpiceHSim

46. Two Layer Package Output in HSpice and HSim HSpiceHSim

47. Two Layer vs Single Layer vs WOP Output in HSpice WOPSingle LayerTwo Layer

48. Two Layer vs Single Layer vs WOP Output in HSpice WOPSingle LayerTwo Layer

49. Package Power Micron packages had a majority of pins dedicated to power and ground lines For simplicity sake, most of our tests use just one of the power inputs All of our experiments don’t use the package for signal outputs, only for power input

50. Split Power Experiment Modified the ALU circuit to take in 8 power lines. Set 1/8 of sub circuits in the ALU to use each of the power lines

51. Power Graphs of Split Power In HSpice

52. Regular vs Split Power in HSim Split Power Single Power

53. Regular vs Split Power in HSim Split PowerSingle Power

54. Regular vs Split, Output in HSim Split Power Single Power

55. Regular vs Split, Output in HSim Split PowerSingle Power

56. ► Developed a tool flow  Created circuits design in behavioral verilog  Synthesized designs into spice format using 65nm technology part libraries ► Developed necessary scripts to support conversion  Created control files and simulation vectors for comparing designs ► Performed comparative studies  Developed ALU test circuit  Compared package models ► Dual layer package has less power supply noise ► Splitting power delivery into multiple power lines reduces noise Conclusions
