1. Using Drawings to Communicate Lecture 3 –How to create an isometric drawing of a part when given front, top, & right side views.

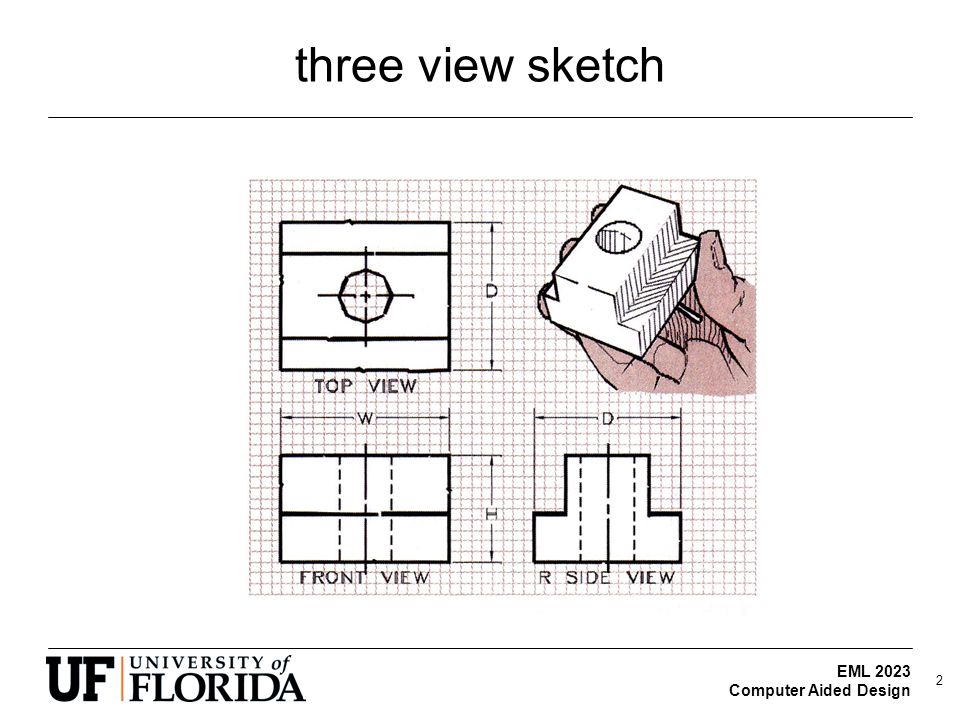

2. EML 2023 Computer Aided Design three view sketch 2

3. EML 2023 Computer Aided Design three view sketch 3

4. 4

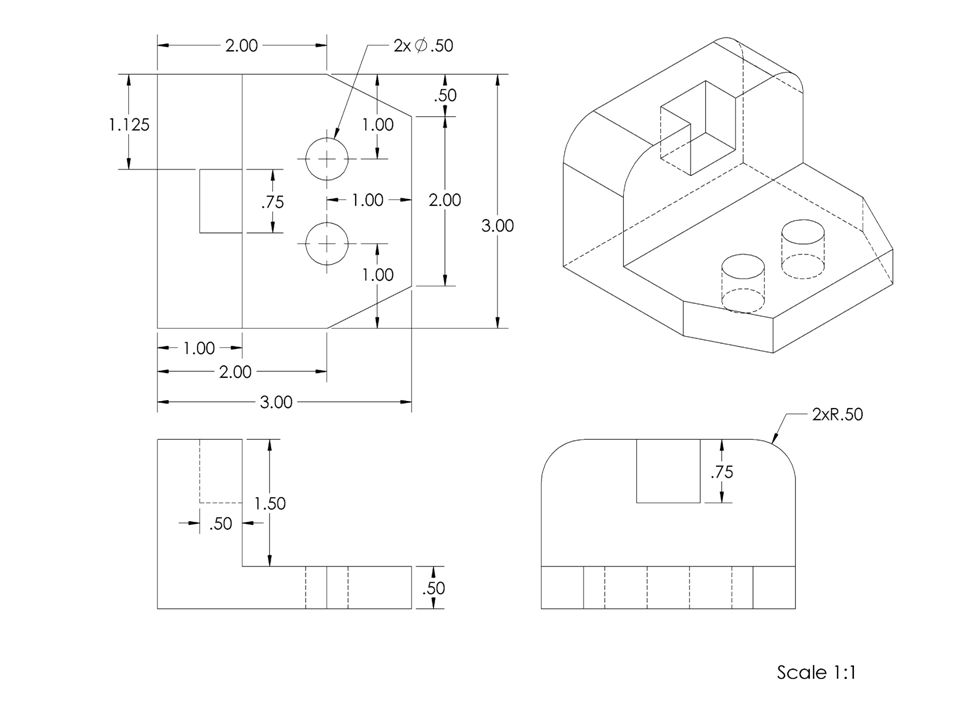

5. 5

6. EML 2023 Computer Aided Design isometric drawings 6

7. EML 2023 Computer Aided Design exercise 7

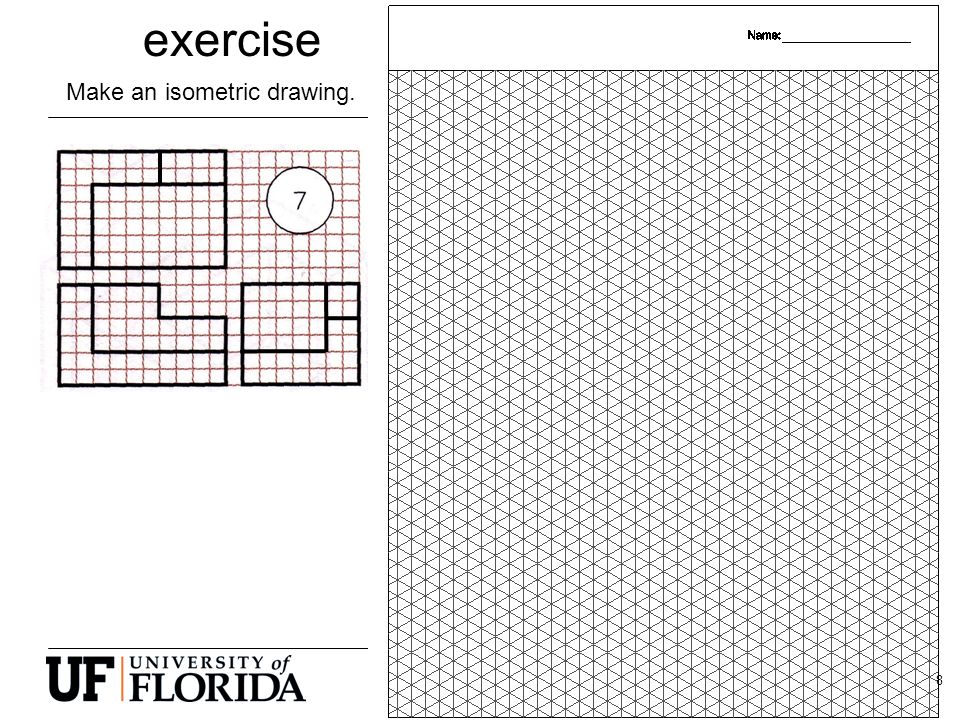

8. EML 2023 Computer Aided Design exercise Make an isometric drawing. 8

9. EML 2023 Computer Aided Design exercise Make an isometric drawing. 9

10. EML 2023 Computer Aided Design exercise Make an isometric drawing. 10

11. EML 2023 Computer Aided Design exercise Make an isometric drawing. 11

12. 12
