1. (Non-Silicate Minerals; Mineral Resources)
Monday January 3, 2011
(Non-Silicate Minerals; Mineral Resources)

2. What is the most common group of minerals?
The Launch Pad
Monday, 1/3/11
What is the most common group of minerals?
the silicates

3. Announcements
Please remember these two important points: You cannot remediate your semester final exam. After the first semester ends, you cannot go back and improve your grade on any six-weeks of the first semester.

4. Five Multiple Choice Questions on Plate Tectonics 11/11 11/12
Assignment Currently Open
Pages
Date of Notes on Website
Date Issued
Date Due
Five Multiple Choice Questions on Plate Tectonics
11/11
11/12
Project – Decade Volcanoes
11/15
11/19
Project – Killer Earthquakes
11/17
12/1
Project – Greatest Mountains
12/3
Project – Fossils
12/2
12/9
Lab: Properties of Minerals
12/13
12/14
Video Quiz – Rocks & Minerals
12/15
Project – Types of Rocks
1/5

5. The Non-Silicate Minerals
hematite
sapphire
The oxides are a family of minerals having structures consisting of close-packed oxygen atoms with metal or metalloid atoms occupying the spaces in between.
ruby
magnetite
Examples of oxides include:

6. The Non-Silicate Minerals
galena
cinnabar
The sulfides are minerals in which sulfur is combined with one or more metals.
Examples of sulfides include:
pyrite
sphalerite

7. The Non-Silicate Minerals
gypsum
baryte
The sulfates minerals have a crystal structure in which a sulfur atom is in the center of a tetrahedral arrangement with four oxygen atoms at the corners.
glauberite
anglesite
Examples of sulfates include:

8. The Non-Silicate Minerals
calcite
dolomite
The carbonate minerals contain the carbonate group, CO3, which is a carbon atom located with an equilateral triangle of oxygen atoms.
malachite
azurite
Examples of carbonates include:

9. The Non-Silicate Minerals
gold
copper
The native elements are minerals formed of a single chemical element.
diamond (carbon)
sulfur
Examples of native elements include:

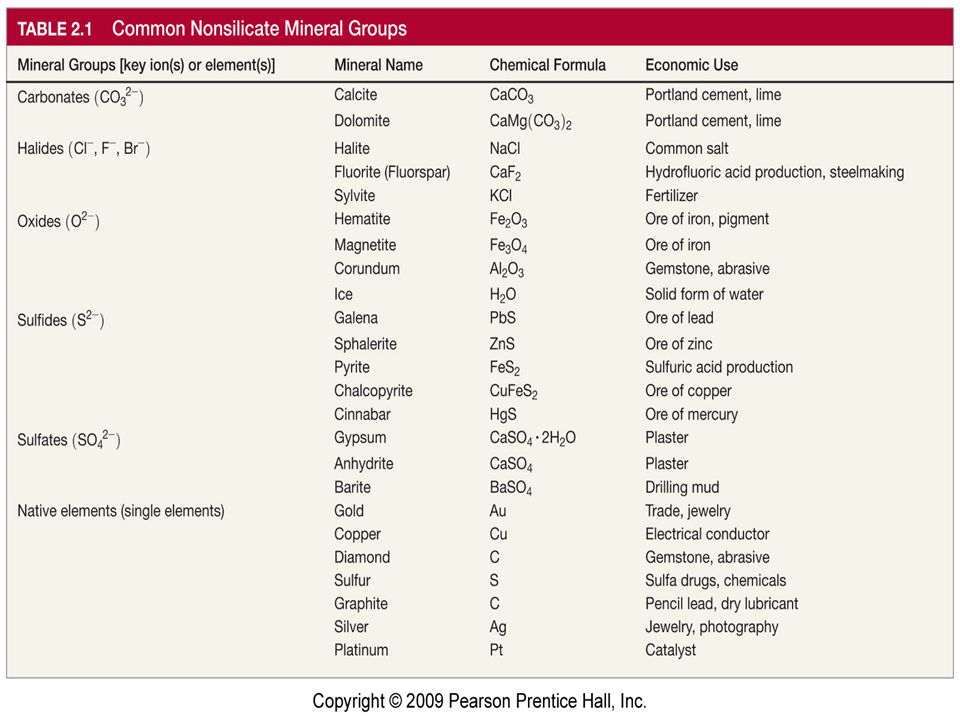

10. Table 2.1

11. Table 2.A

12. Australian sapphires depicting variations in cuts and colors.

13. Birthstones

14. Mineral Resources
Mineral resources are Earth’s storehouse of useful minerals that can be recovered for use.
Mineral reserves are already-identified deposits of minerals that can be extracted.
Ores are useful metallic minerals that can be mined at a profit.
Economic factors may change and influence a resource.

15. An underground halite (salt) mine
Figure 2.22

16. Hematite, an ore of iron

17. Metallic Mineral Resources
Gold, silver, copper, mercury, and lead are examples of metallic mineral resources.
Concentrations of these desirable materials are produced by both igneous and metamorphic processes.
